- Distance between centers
- 1300 mm
- Taper of tailstock sleeve
- MT 2
- Travel of tailstock sleeve
- 100 mm
- Weight approx.
- 218 kg
- Machine dimension (W x D x H)
- 2100 x 700 x 1170 mm
- Motor power output S1 100%
- 1,1 kW (1,5 HP)
- Motor power input S6 40%
- 1,5 kW (2,0 HP)
- Spindle speeds
- 500 / 1000 / 1950 / 2800 rpm
- - over guideway
- 430 mm
- - over support
- 160 mm
- - at copying*
- 160 mm
- Spindle thread
- M 33 x 3,5 mm
- Copying length
- 1300 mm
- Phase
- Trifazis (400V)
- Max. copying depth
- 45 mm

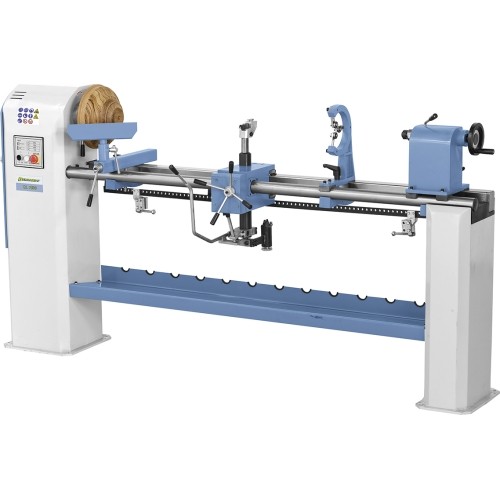

Tekinimo staklės su kopijavimo įrenginiu Bernardo CL 1300
1055950
Price
€3,273.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 18 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 218 kg.
We will deliver the product to you via: 6-12 w.d. Venipak
(€40.99) Weight: 218 kg.
Description
Properties
- The extensive range of accessories includes: 290 mm tool rest, 200 mm face plate, live centre and spore drive centre

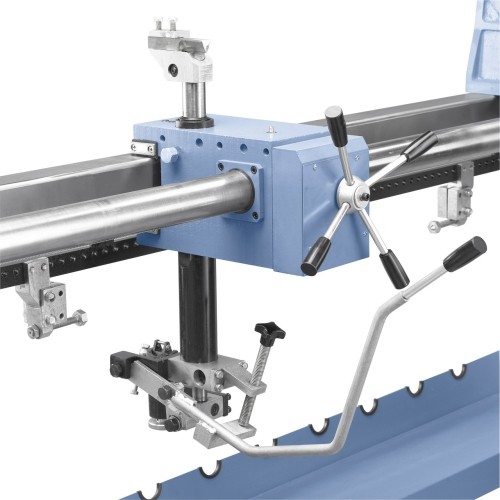

- Copying device for copying of original parts or from templates

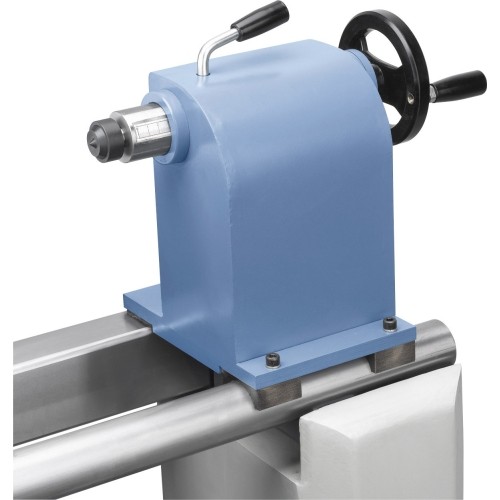

- Tailstock sleeve features drilled passageway bore to process long workpieces
- Powerful drive motor designed for challenging operations

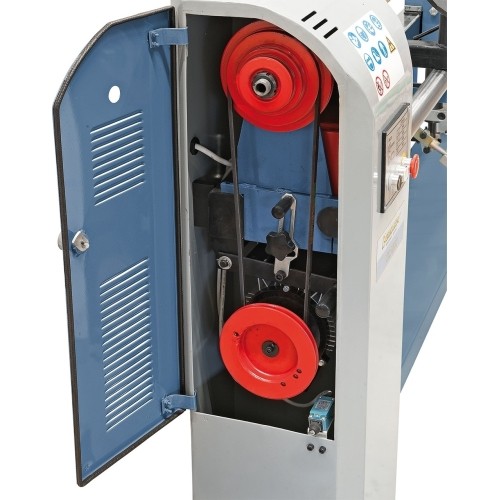

- High-quality belt drive, featuring four speed settings, allows for optimal transmission
- Solid, grey cast-iron construction allows for operating without vibrations

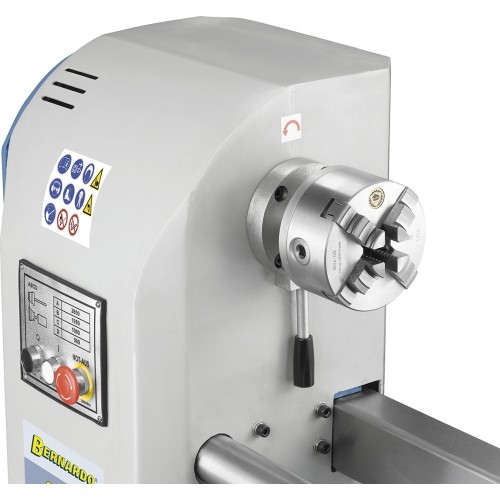

- Ergonomically arranged switches and control elements on front of machine
- Solid, precisely bedded spindle ensures high concentricity
- Extensive range of accessories guarantees optimal price to performance ratio
Standard accessories
- Copying device

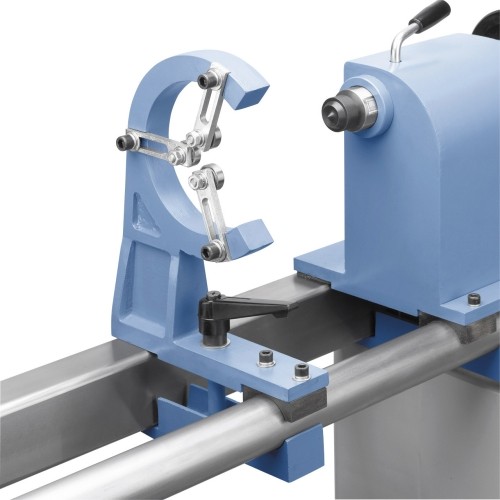

- Steady rest

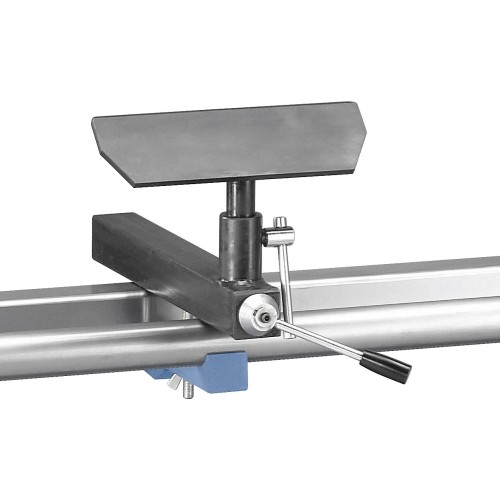

- Tool rest 290 mm

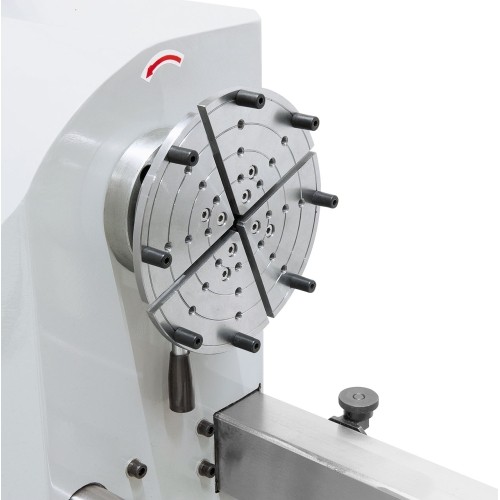

- Face plate 200 mm
- Live center MT 2
- Spore drive center diam. 40 mm
- Drill chuck 3 - 16 mm / B 16
- Drill chuck arbor MT 2 - B 16
- V- Cutter knife in HSS-quality
