- Distance between centers
- 1000 mm

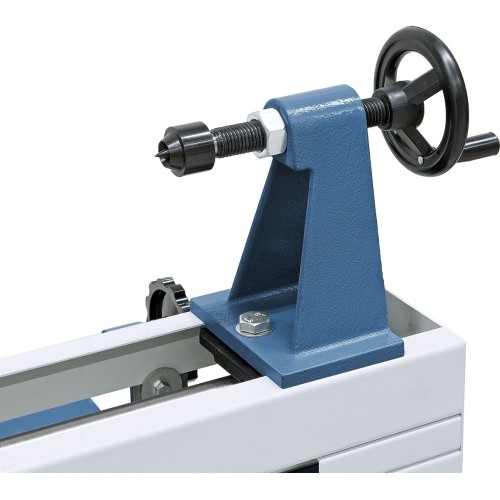

- Taper of tailstock sleeve
- MT 2
- Travel of tailstock sleeve
- 65 mm
- Weight approx.
- 68 kg
- Machine dimension (W x D x H)
- 1500 x 500 x 1210 mm
- Spindle speed, stepless
- 500 – 2000 rpm
- Motor power output S1 100%
- 0,55 kW (0,75 HP)
- Motor power input S6 40%
- 0,75 kW (1,0 HP)
- - over guideway
- 350 mm
- - at copying*
- 160 mm
- Spindle thread
- M 33 x 3,5 mm
- Copying length
- 1000 mm
- Phase
- Trifazis (400V)

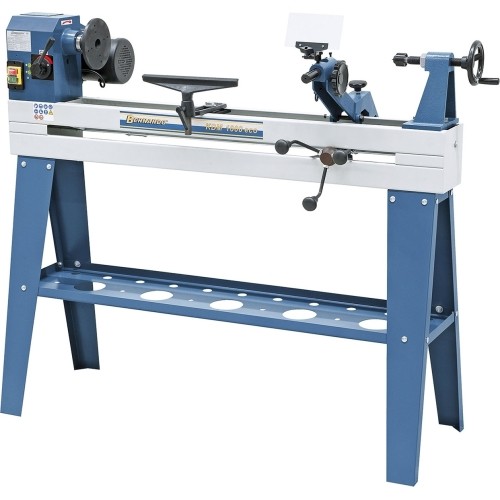

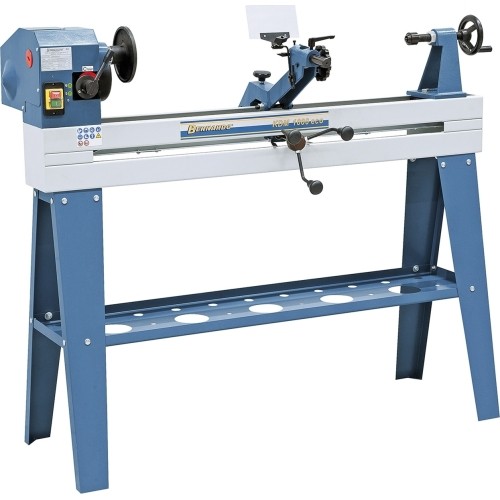

Tekinimo staklės su kopijavimo įrenginiu Bernardo KDM 1000 eco - 400 V
1055948
Price
€865.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 18 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 68 kg.
We will deliver the product to you via: 6-12 w.d. Venipak
(€40.99) Weight: 68 kg.
Description
Properties

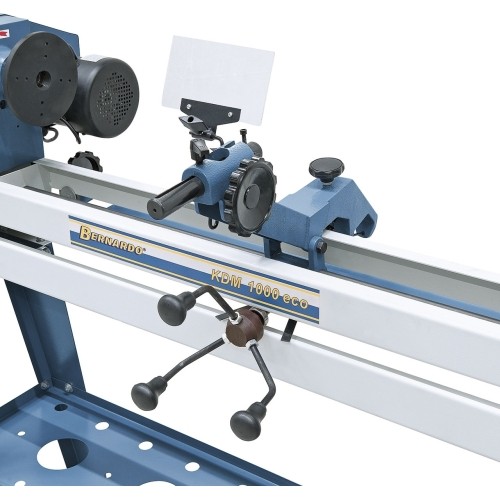

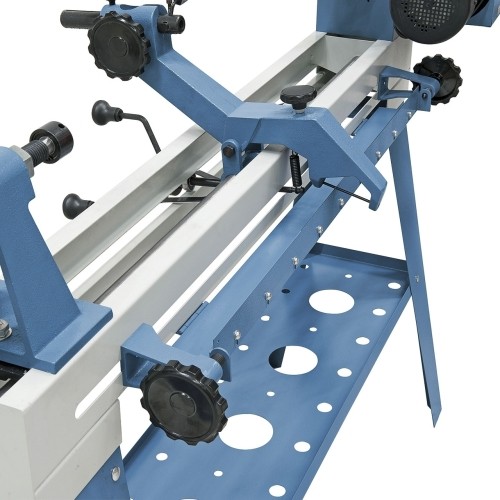

- Copying device allows copying of original parts or templates
- Large speed range from 500 – 2000 rpm, steplessly adjustable
- Solid, precisely bedded spindle ensures high concentricity

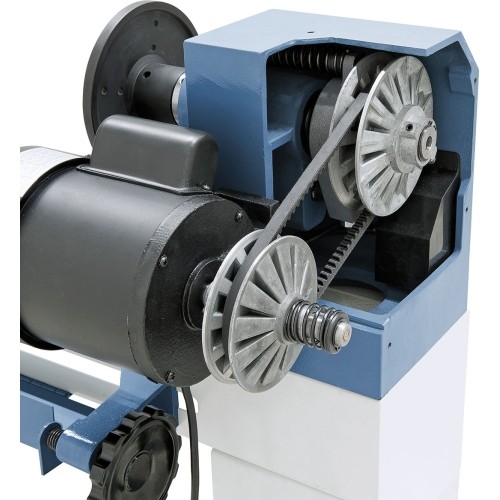

- High-quality belt drive ensures optimal power transmission from motor to spindle
- Extensive range of extra equipment to widen the choice of applications

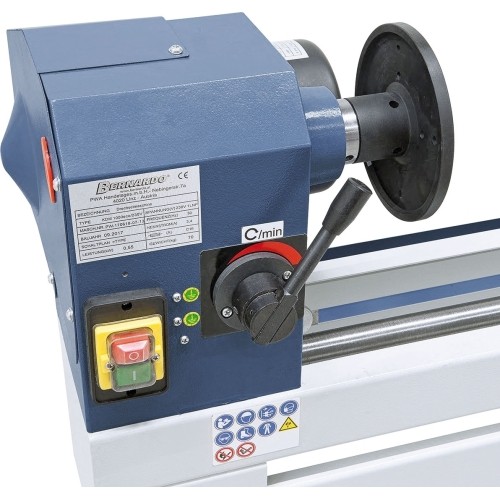

- Clearly arranged switches and control elements on the front of machine
- The extensive range of accessories includes: 300 mm tool rest, 150 mm face plate, live centre and spore drive centre
- Steplessly adjustable spindle speed allows for optimal adjustment to workpiece
Standard accessories

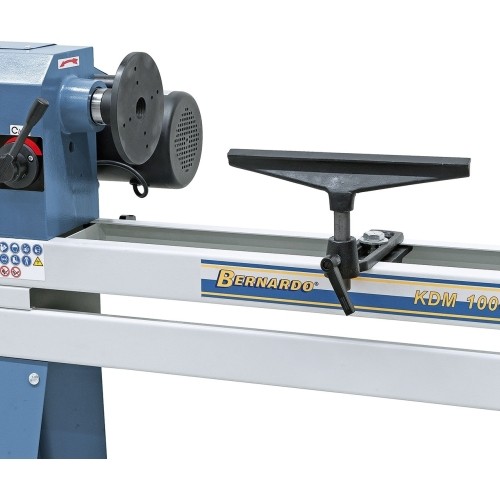

- Tool rest 300 mm

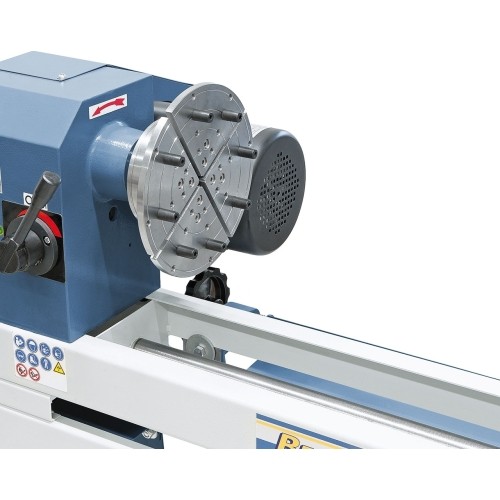

- Face plate 150 mm
- Live center
- Spore drive center
- Copying device
- Stepless speed adjustment
- Stand
- Tools
