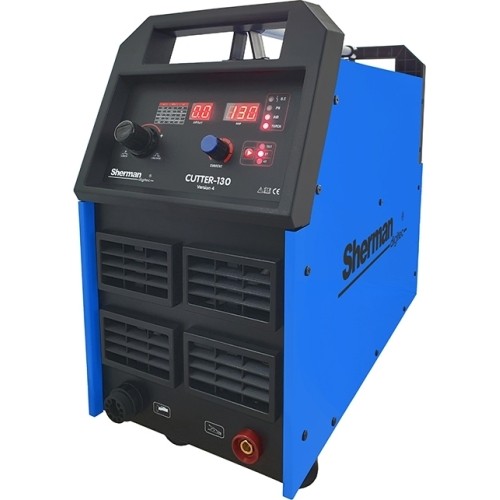

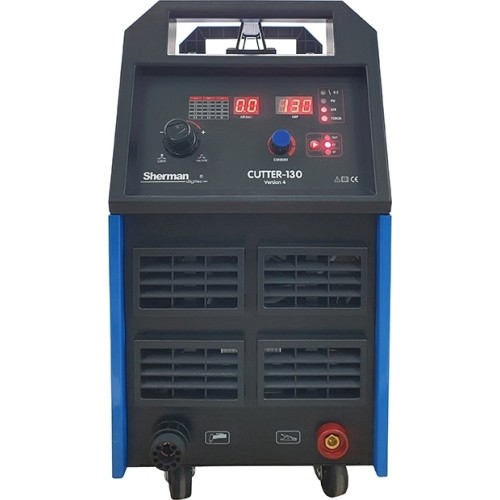

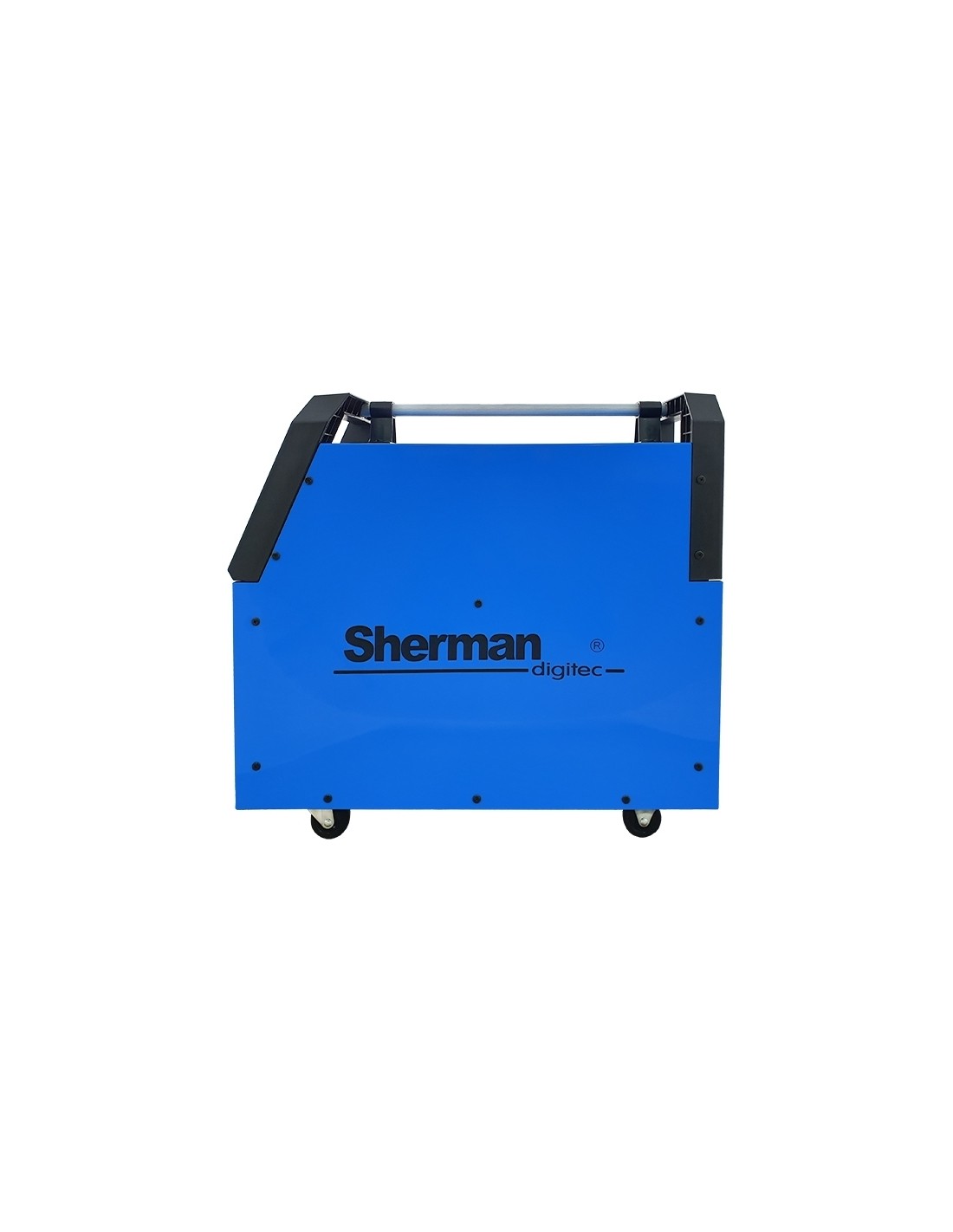

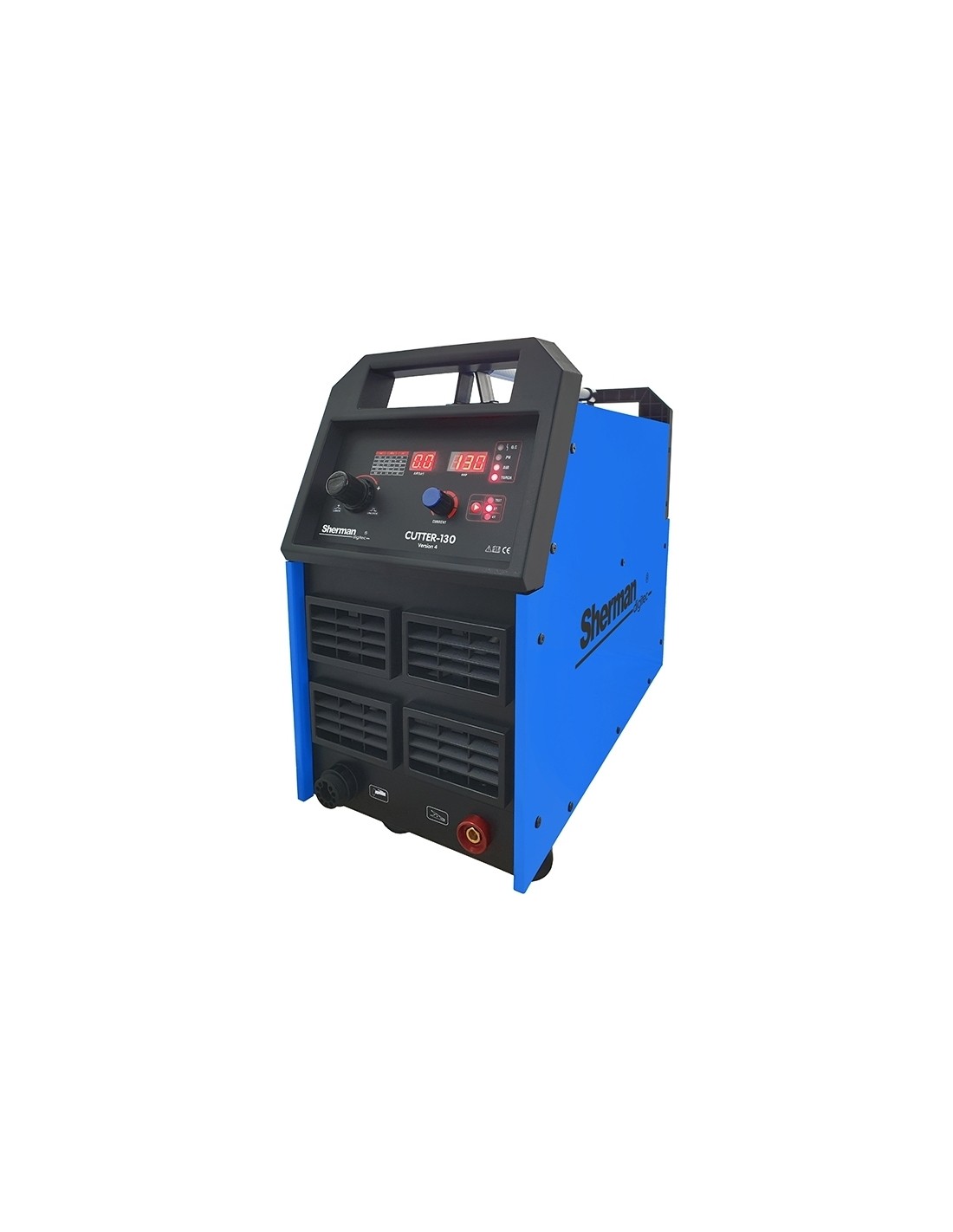

Plasma cutting machine CUTTER 130

The CUTTER 130 plasma cutting machine belongs to a new digitally controlled series built on 200 kHz IGBT technology. Designed for cutting steel, aluminum, and copper sheets and components with air plasma, it is recommended for professional, high‑duty use in production environments. Suitable for indoor or covered areas, protected from direct weather conditions.

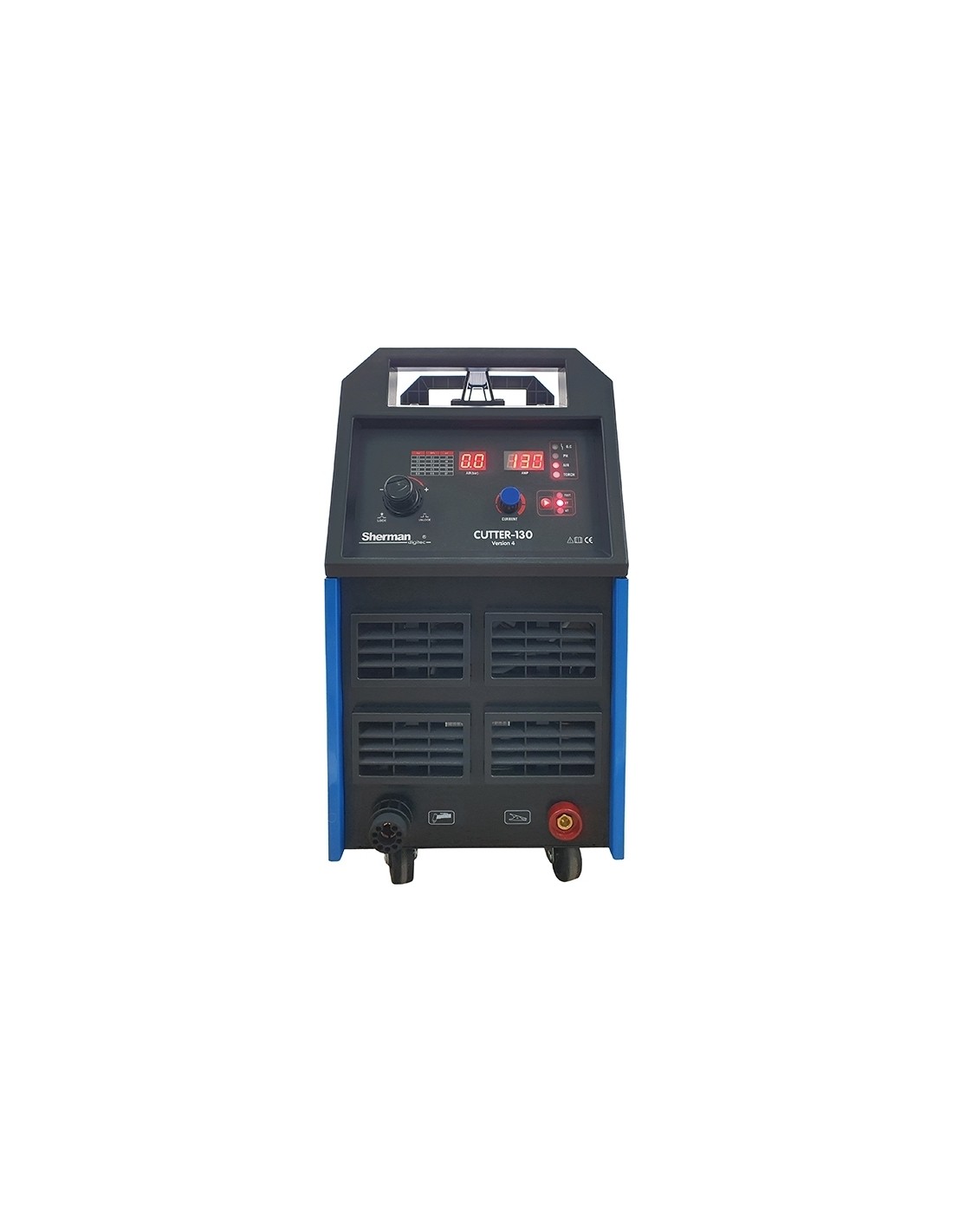

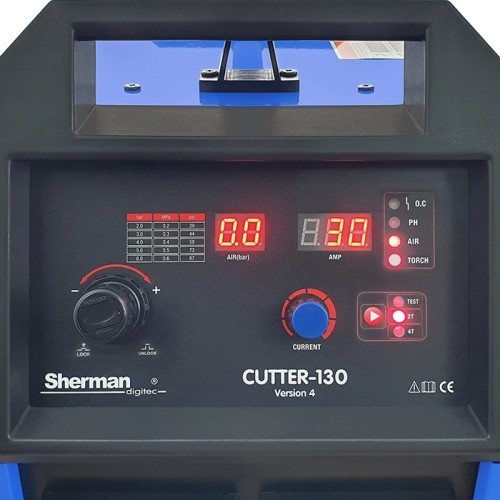

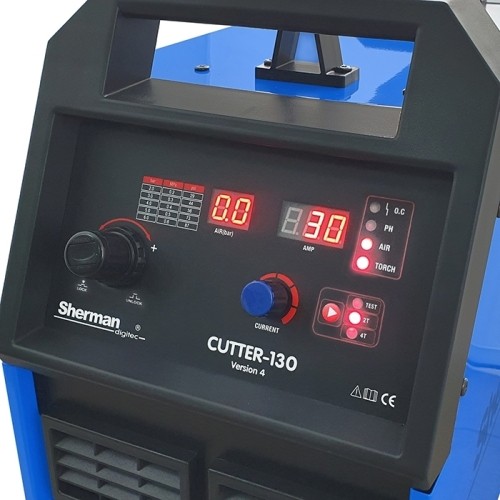

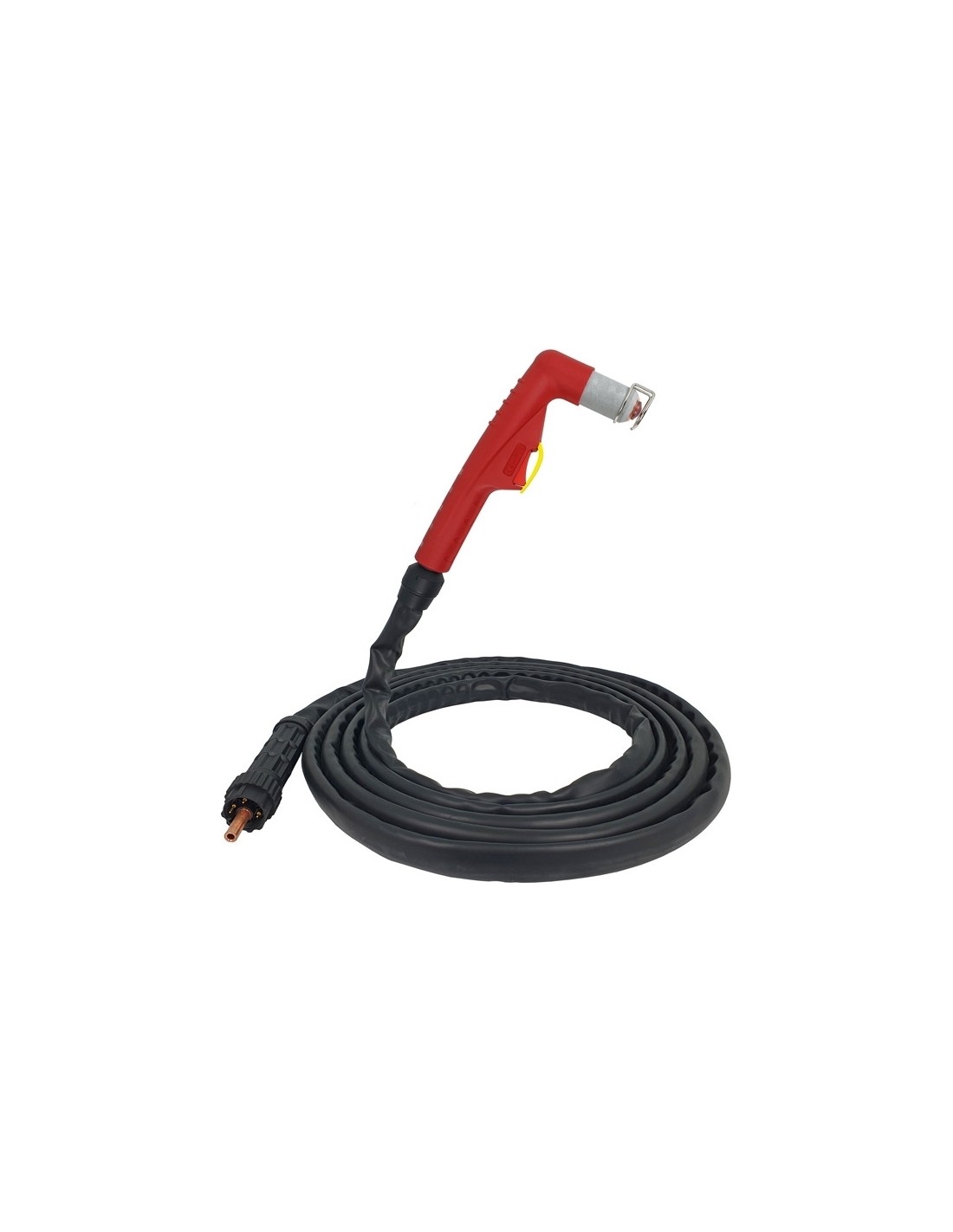

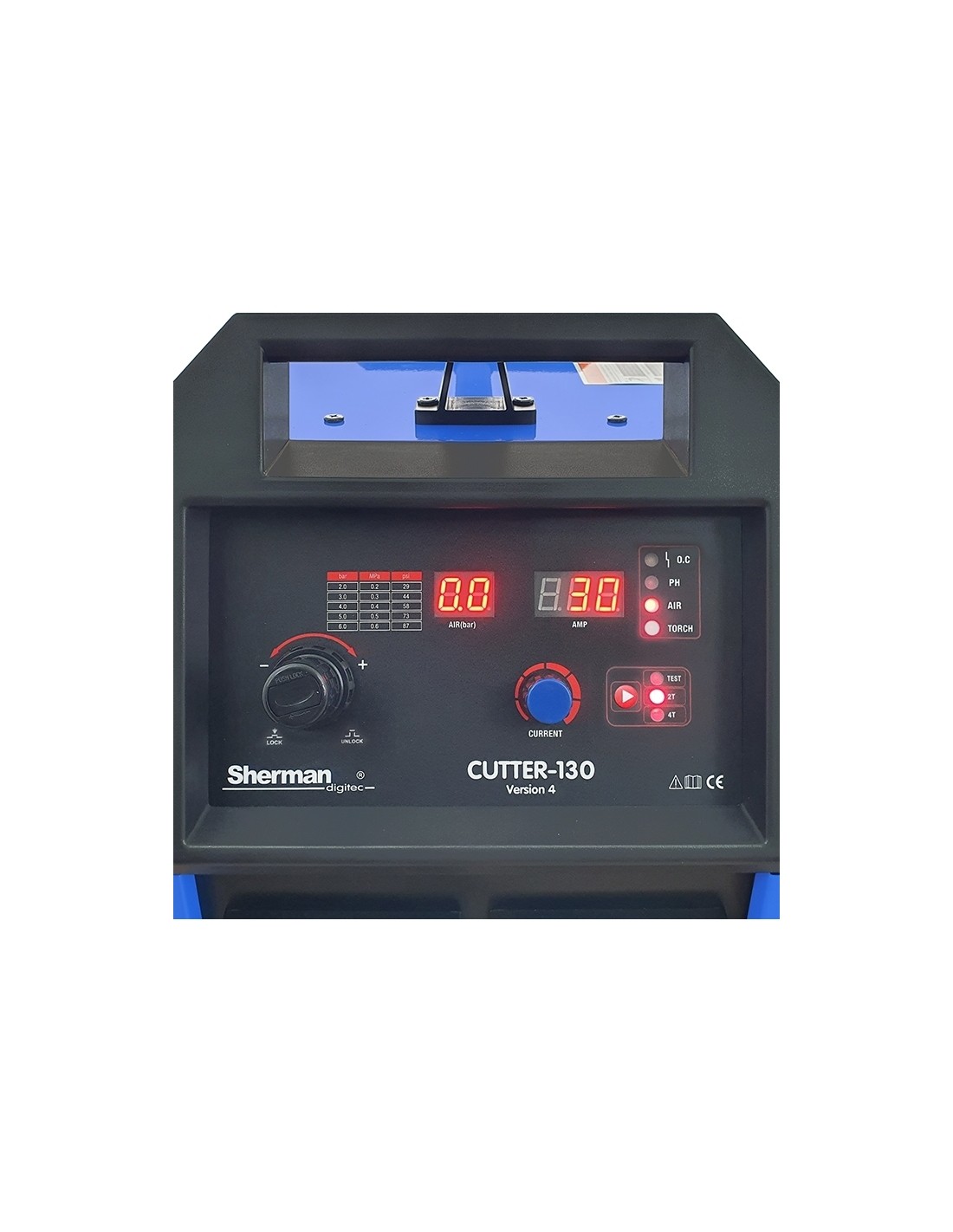

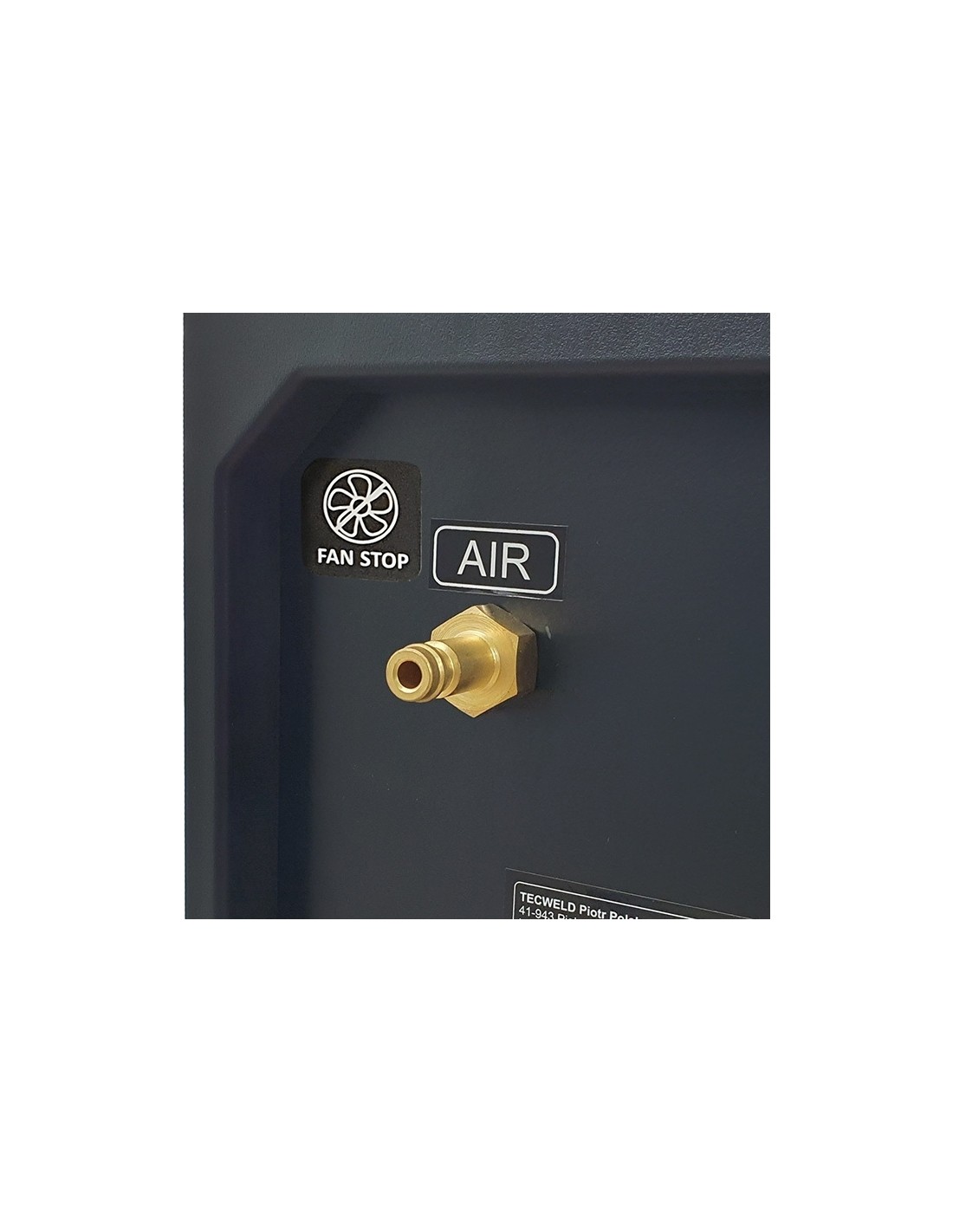

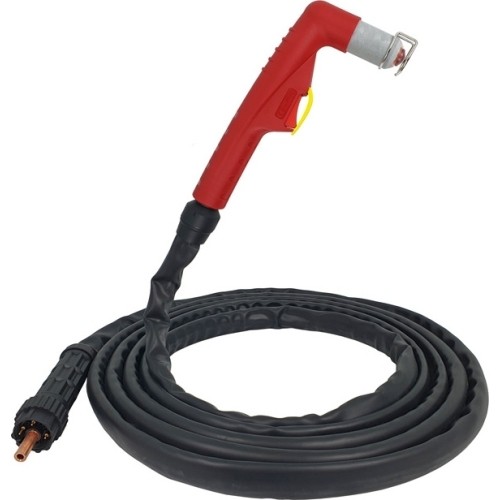

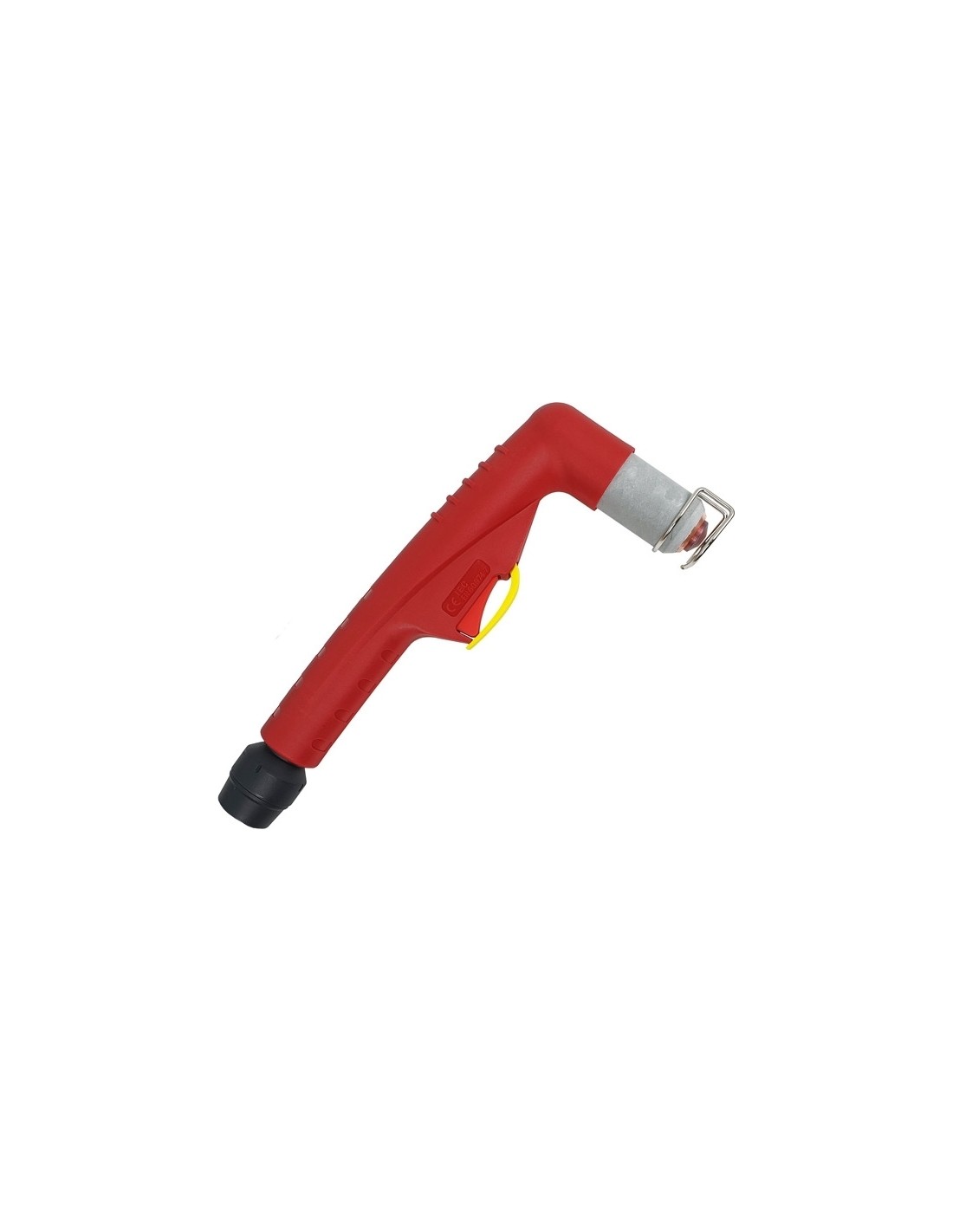

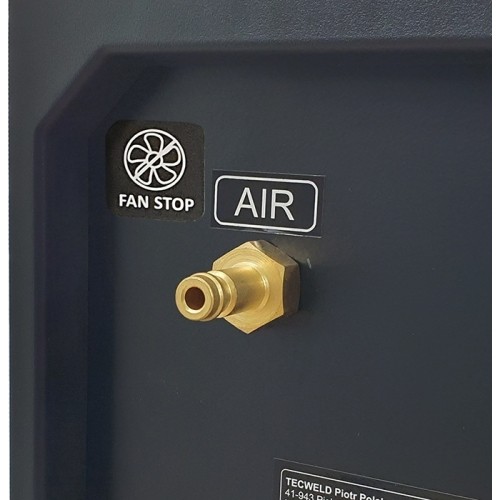

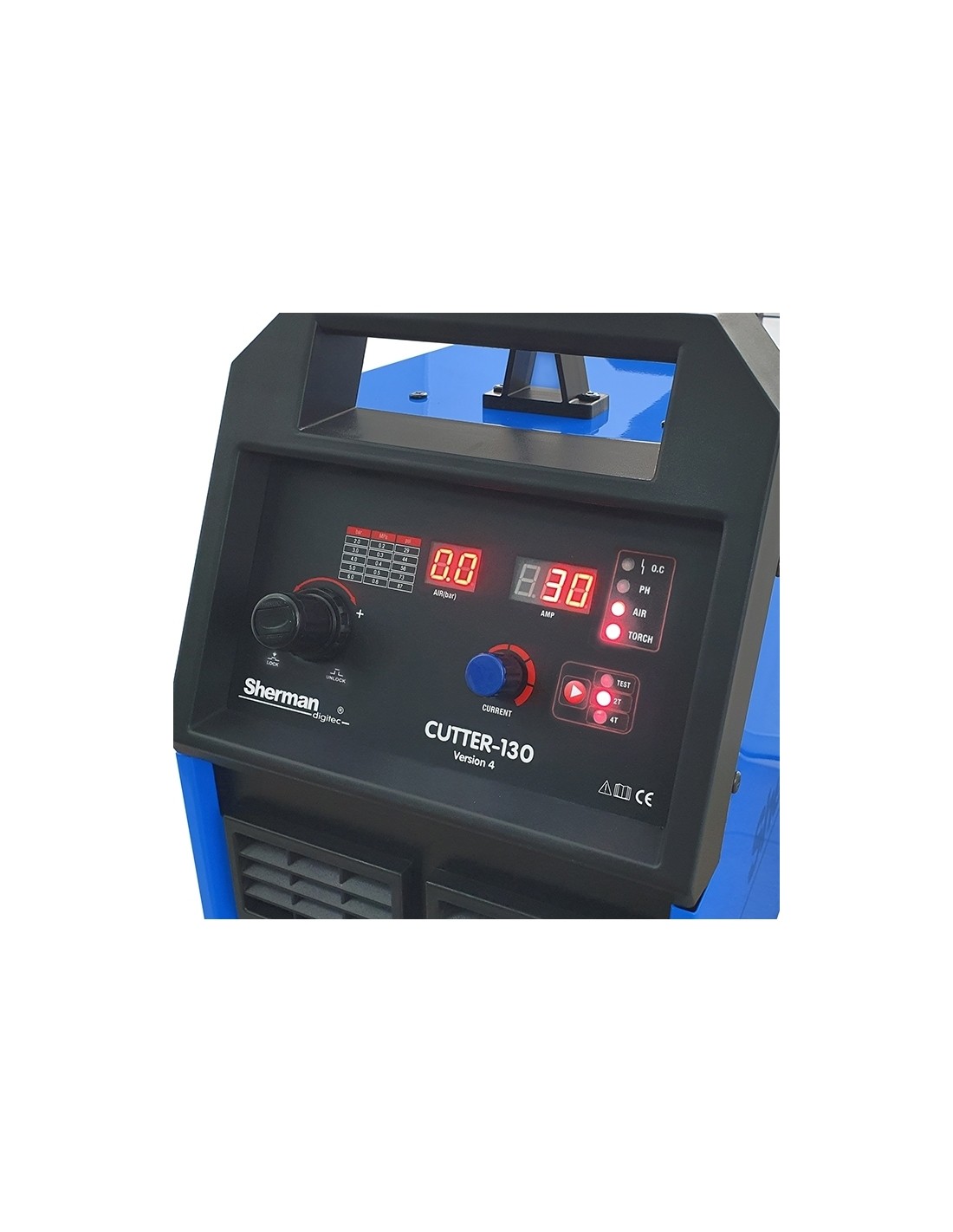

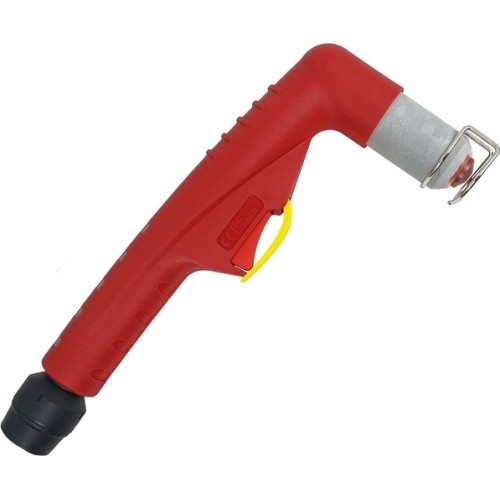

The unit is equipped with a standard TRAFIMET A-141 6 m torch featuring HF pilot arc ignition and a built-in air preparation unit with regulator and pressure gauge, allowing pressure adjustment directly from the control panel. It includes a 2T/4T source control switch and a TEST function for checking and purging the air system. Digital control with an LED display enhances ease of operation.

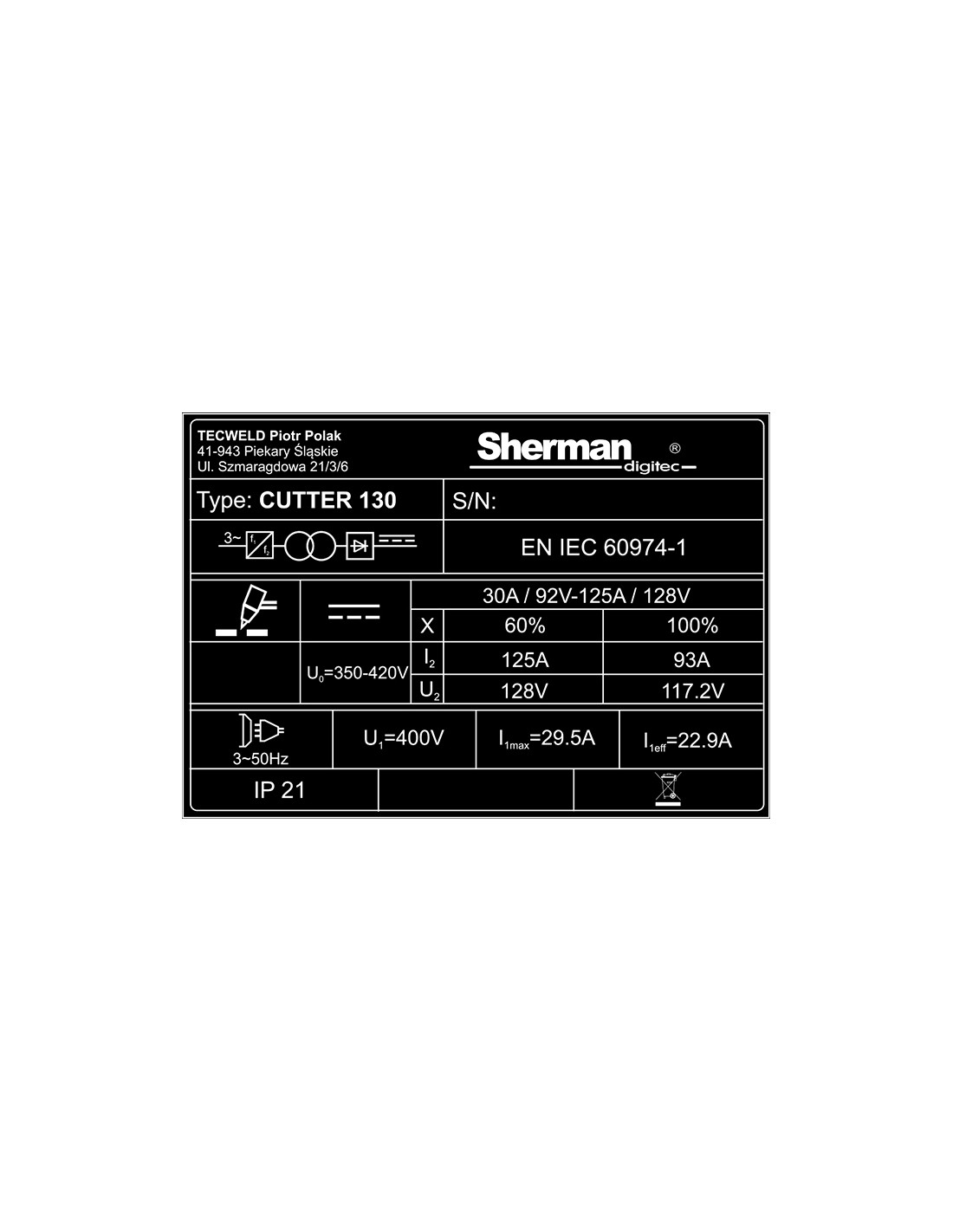

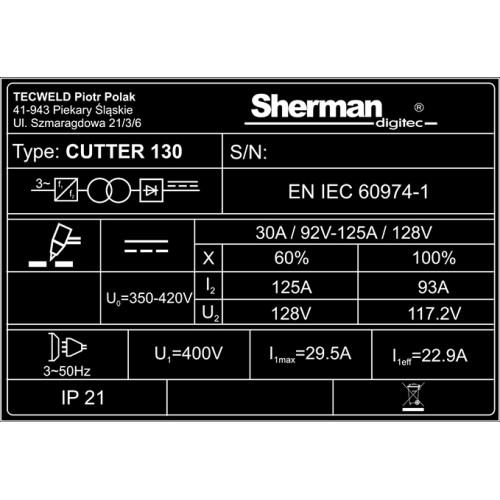

Key performance highlights: three-phase 400 V supply, maximum cutting current 125 A at 60% duty cycle, separation cut thickness up to 45 mm, power consumption up to 20 kVA, air flow 0.5 m³/min, weight 43.42 kg. The set includes a grounding cable with clamp. A list of spare parts for plasma torches is provided in the price list. Below is the spare parts list for plasma torch handles.
