- Online only
Need advice?
- Weight approx.
- 445 kg
- Spindle speed
- 3500 / 5500 / 7000 rpm
- Machine dimension (W x D x H)
- 2000 x 2500 x 1200 mm
- Motor power output S1 100%
- 2,2 kW (3,0 HP)
3,0 kW (4,0 HP) - Motor power input S6 40%
- 3,0 kW (4,0 HP)
4,2 kW (5,7 HP) - Dust extraction outlet
- 100 mm
- Table size
- 370 x 155 mm
1145 x 300 mm - Table height
- 835 mm
- Table extension
- 240 x 300 mm
- Planing width
- 310 mm
- Table length
- 600 mm
1300 mm - Shaft rotation speed
- 4000 rpm
- Planer shaft diameter
- 75 mm
- Planer fence
- 1110 x 130 mm
- Fence tiltable
- 90° to 45°
- Max. cutting depth
- 2,5 mm
5 mm - Working width
- 305 mm
- Working thickness, min./max.
- 5 - 180 mm
- Feed speed
- 8 m/min
- Cutting length
- 2240 mm
- Height adjustment
- 80 mm
145 mm - Square table
- 600 x 415 mm
- Sliding table
- 2000 x 240 mm
- Max. sawblade diameter
- 250 x 30 mm
- Max. cutting height 90° / 45°
- 60 / 50 mm
- Cutting width on rip fence
- 520 mm
- Speed main sawblade
- 4050 rpm
- Speed scoring sawblade
- 6300 rpm
- Scoring sawblade
- 80 x 20 mm
- Spindle diameter
- 30 mm
- Table opening
- 150 mm
- Working length of spindle
- 100 mm
- Cutter knives
- 3 pcs.
- Westcott drill chuck
- 0 - 16 mm
- Max. drill depth
- 90 mm
- Drill width
- 140 mm
- Phase
- Trifazis (400V)
- -at profiling
- 140 mm
- -at tenoning
- 200 mm

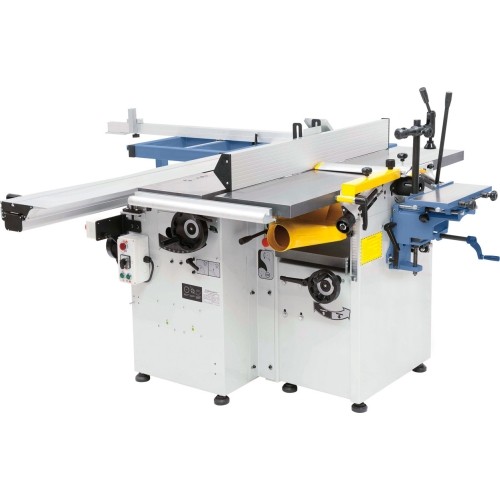

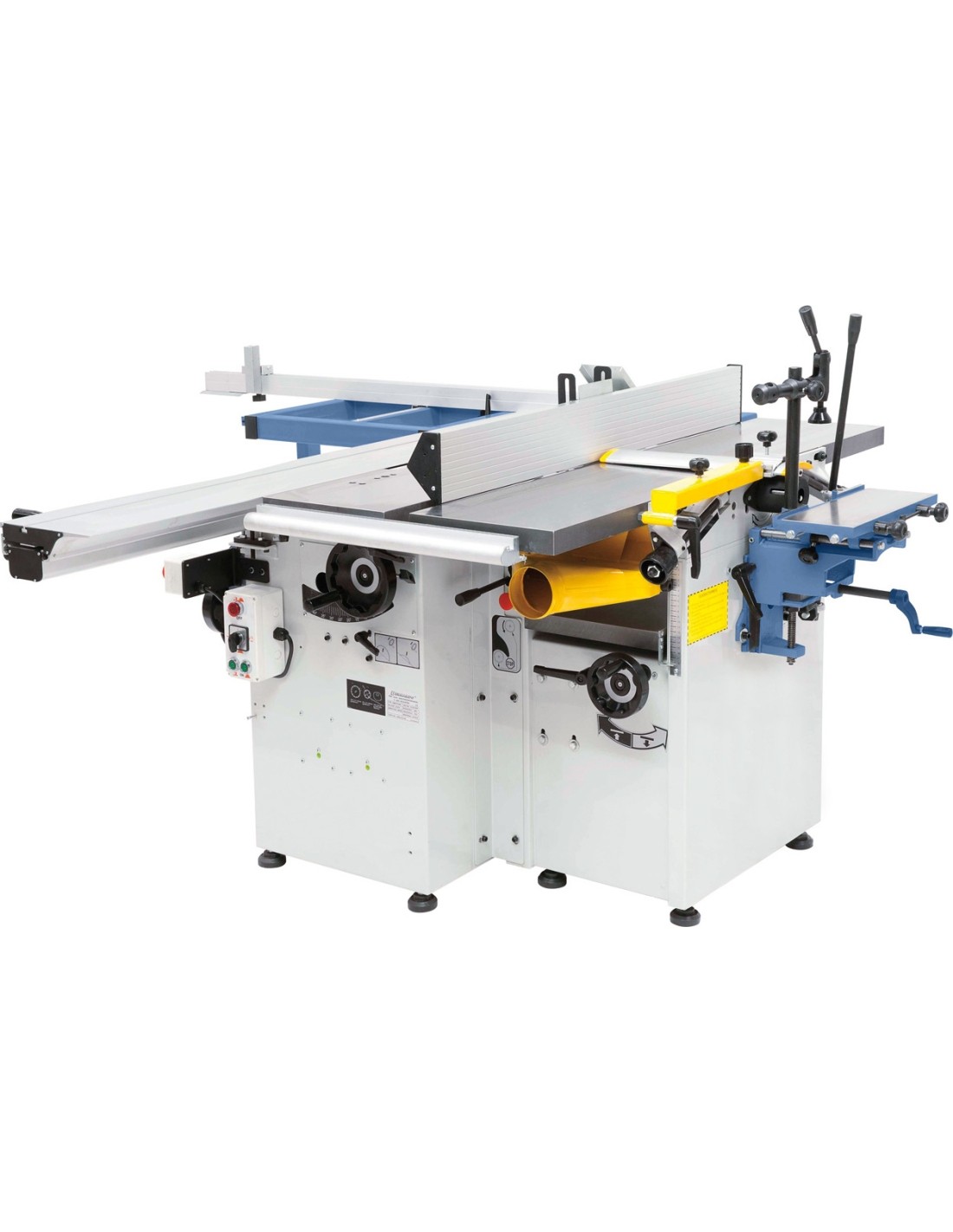

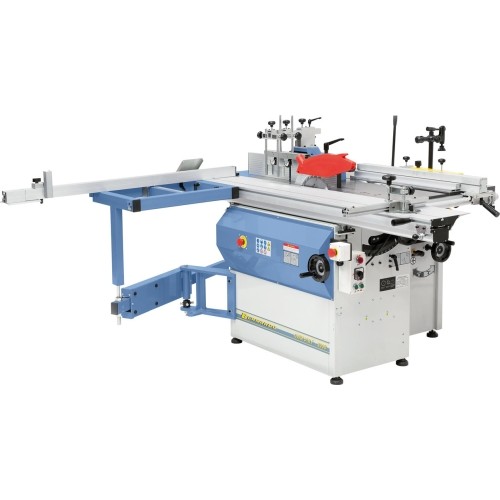

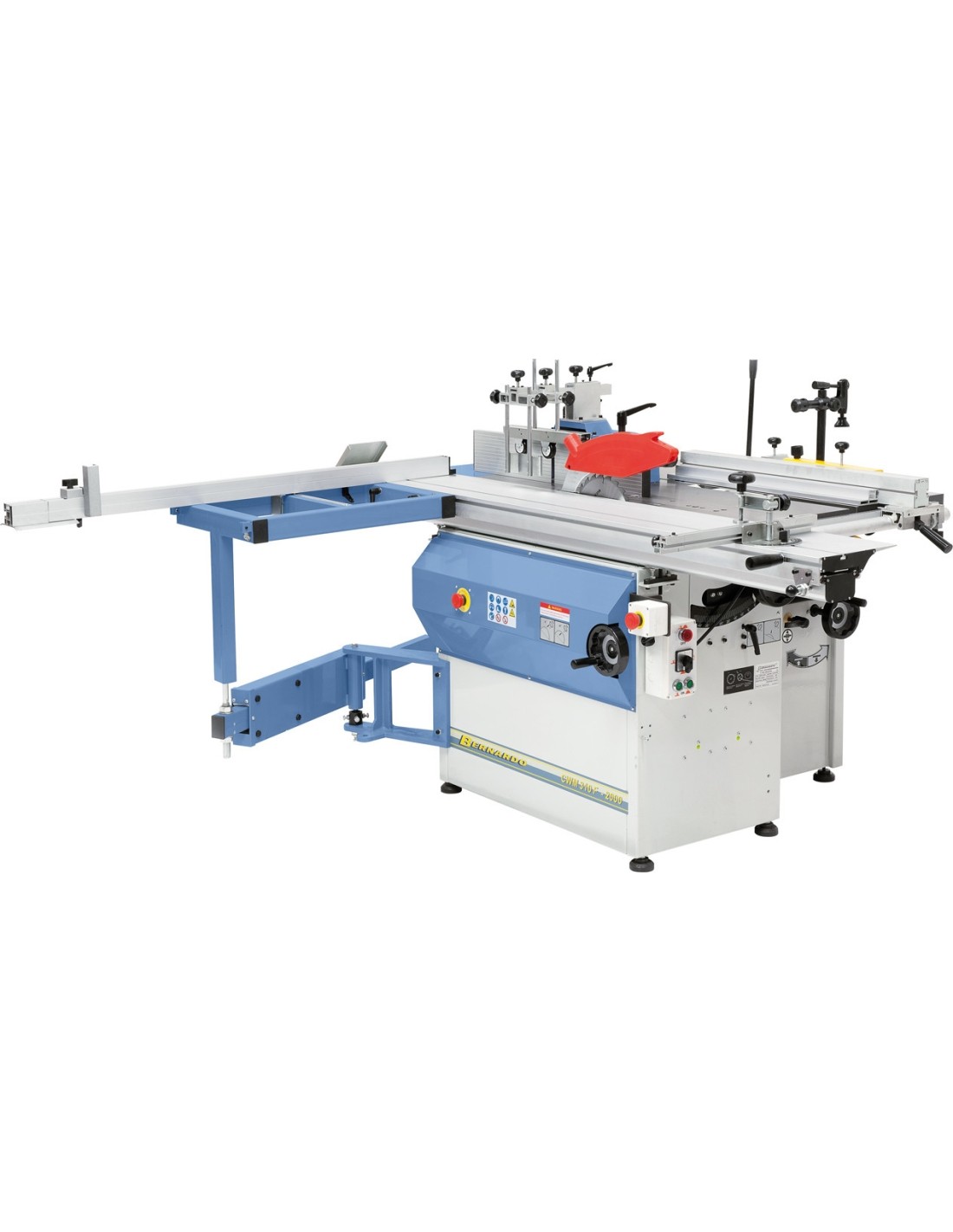

Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
1055966
Price
€9,728.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, april 30 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 445 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 445 kg.
Description
Properties

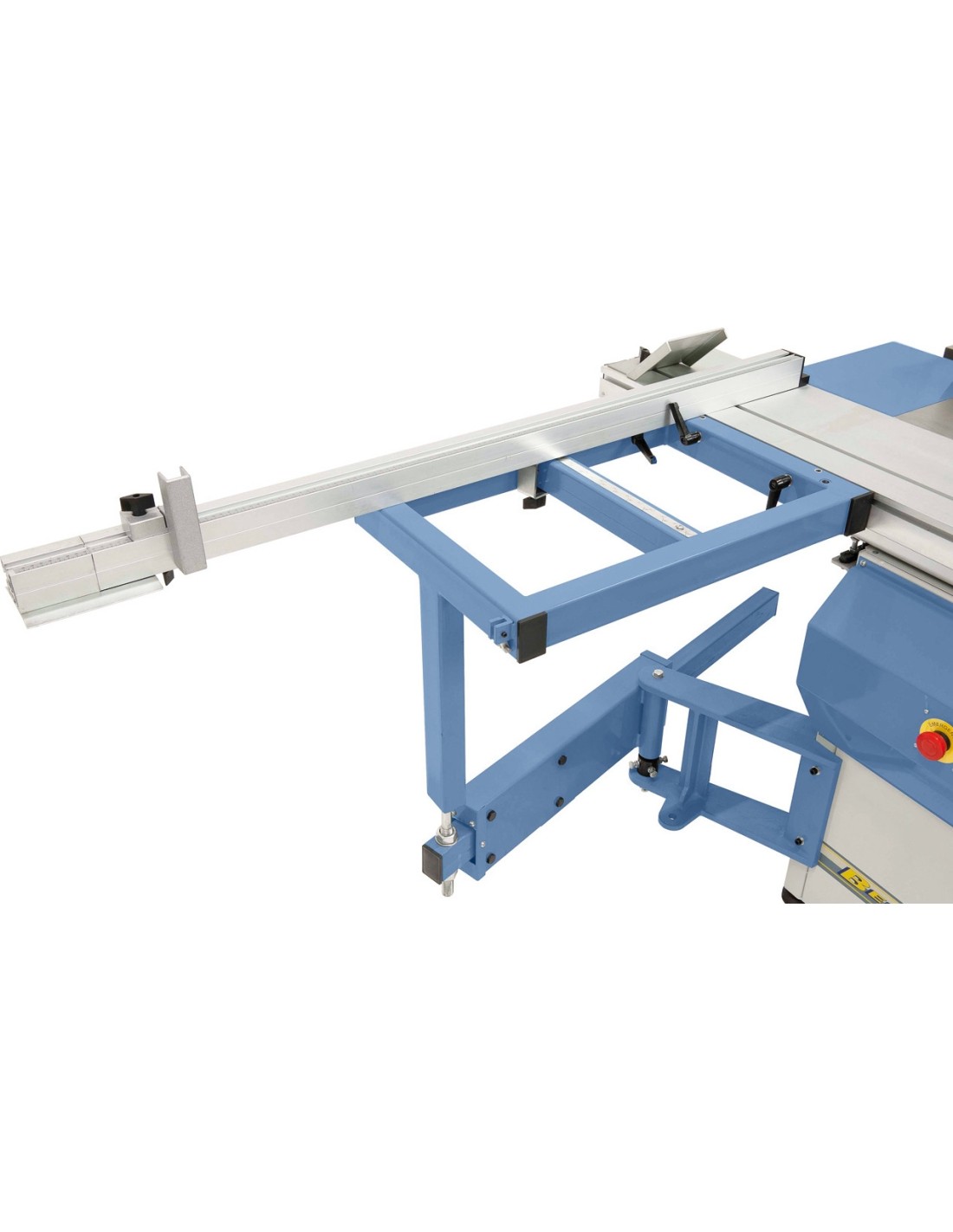

- Extractable telescopic fence can be mounted at front or rear of square table
- Solid square table allows for sufficient support when processing large panels
- Large, robust grey cast-iron table eliminates vibrations

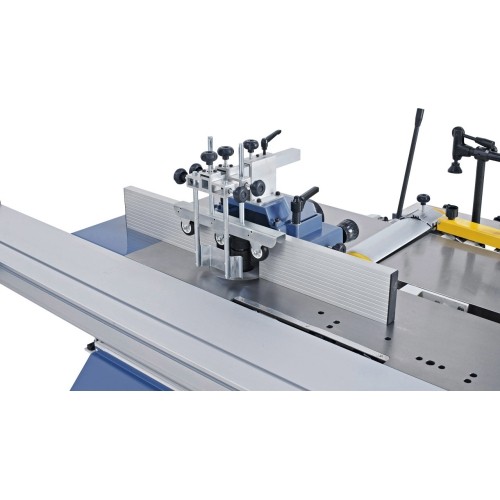

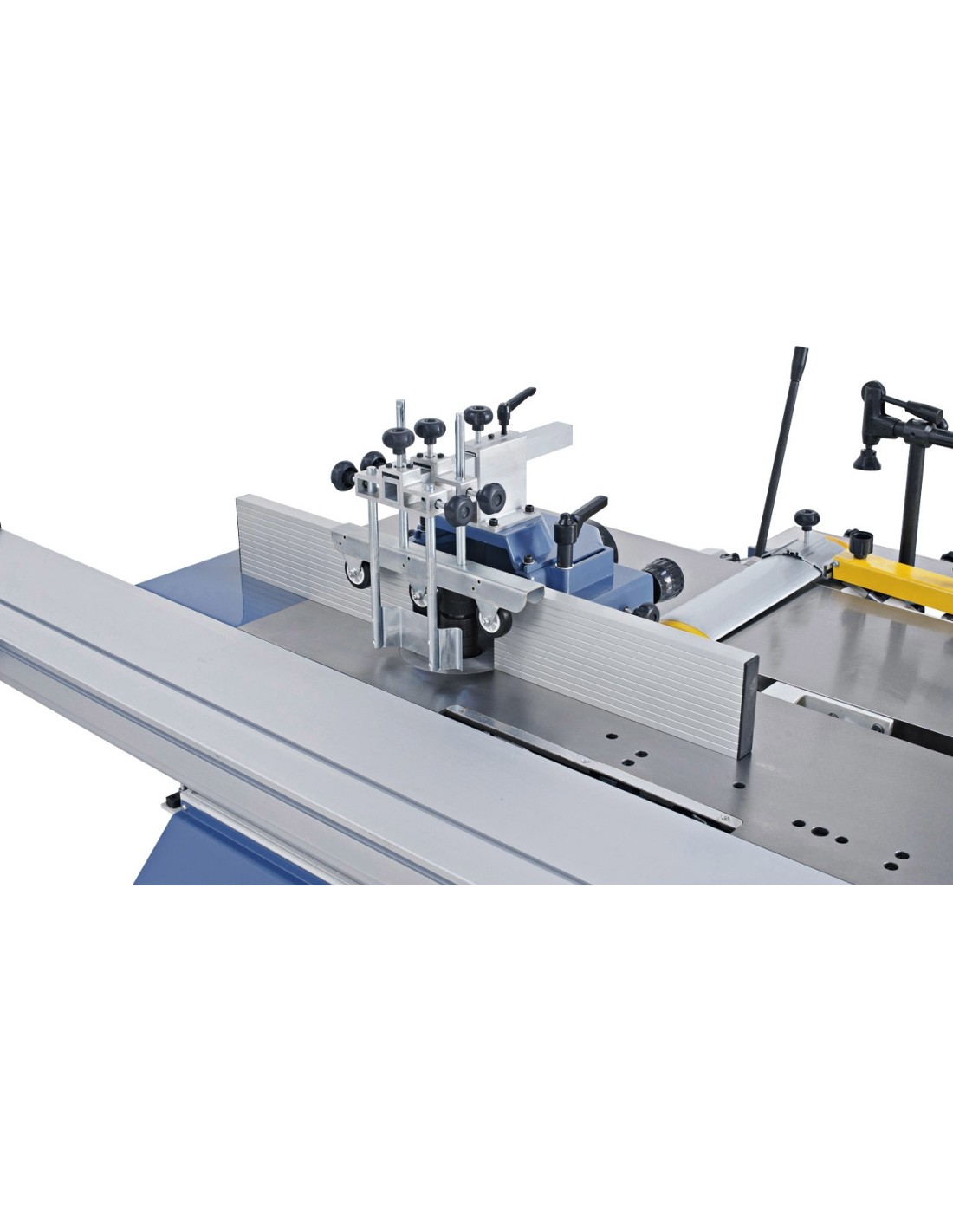

- Moulder unit comes complete with 3 speed settings (3500 / 5500 / 7000 rpm)

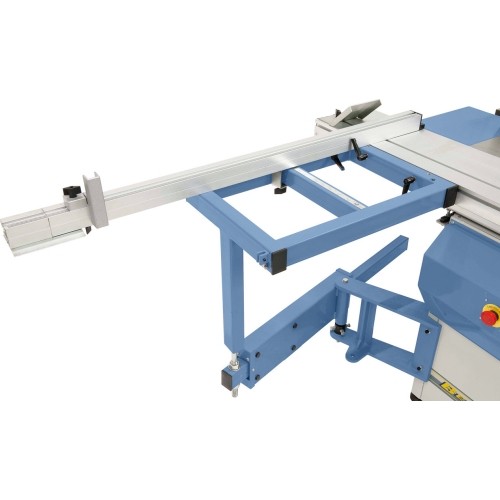

- Smooth, precise sliding table with hardened, prism-shaped guide
- Ergonomically arranged handwheels guarantee convenient adjustment of saw unit

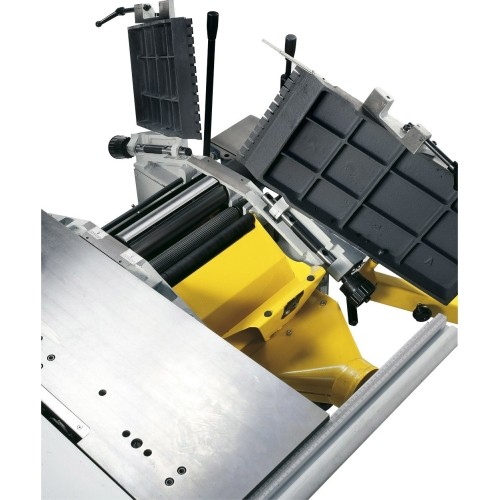

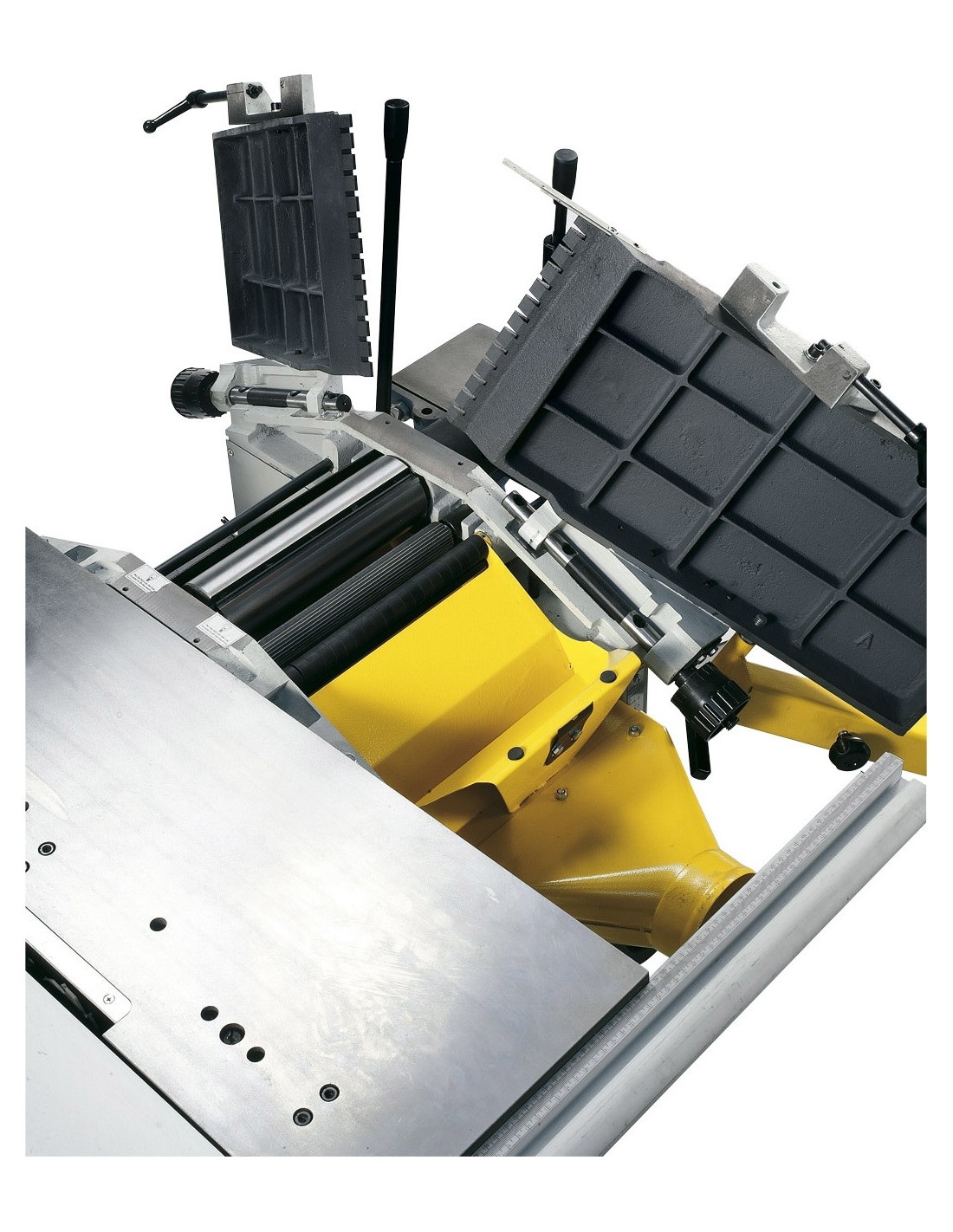

- Planer tables tilt into upright position to allow for quick conversion to thicknessing
- Solid aluminium planer fence, tiltable from 90º to 45º
- Maintenance-free, precisely bedded 3-knife cutterblock features HSS-knives
Standard accessories
- Cutter knives 310 x 30 x 3 mm

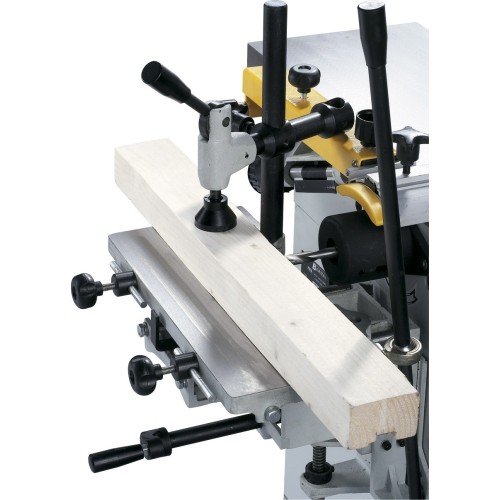

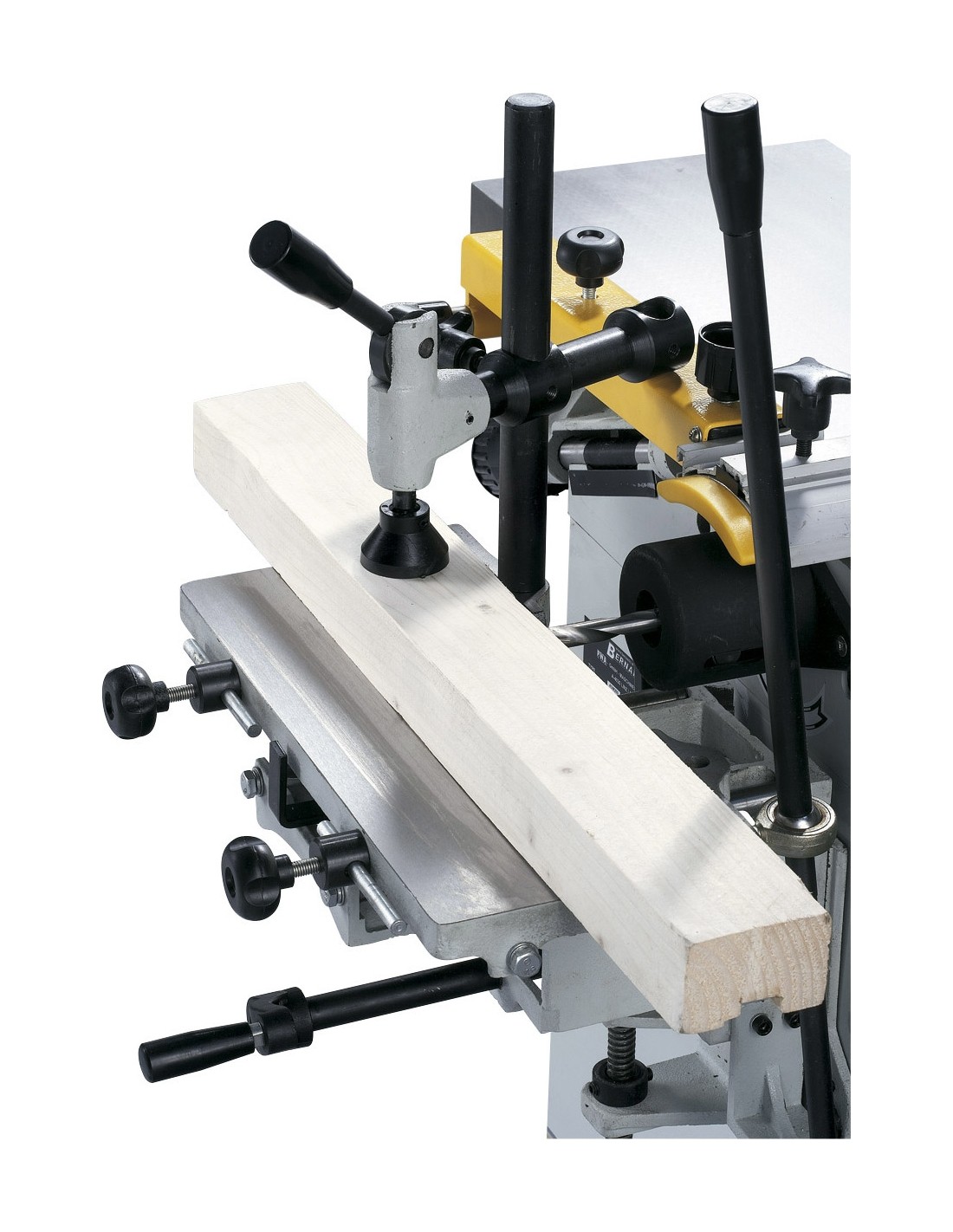

- Mortising unit
- Westcott drill chuck 0 - 16 mm

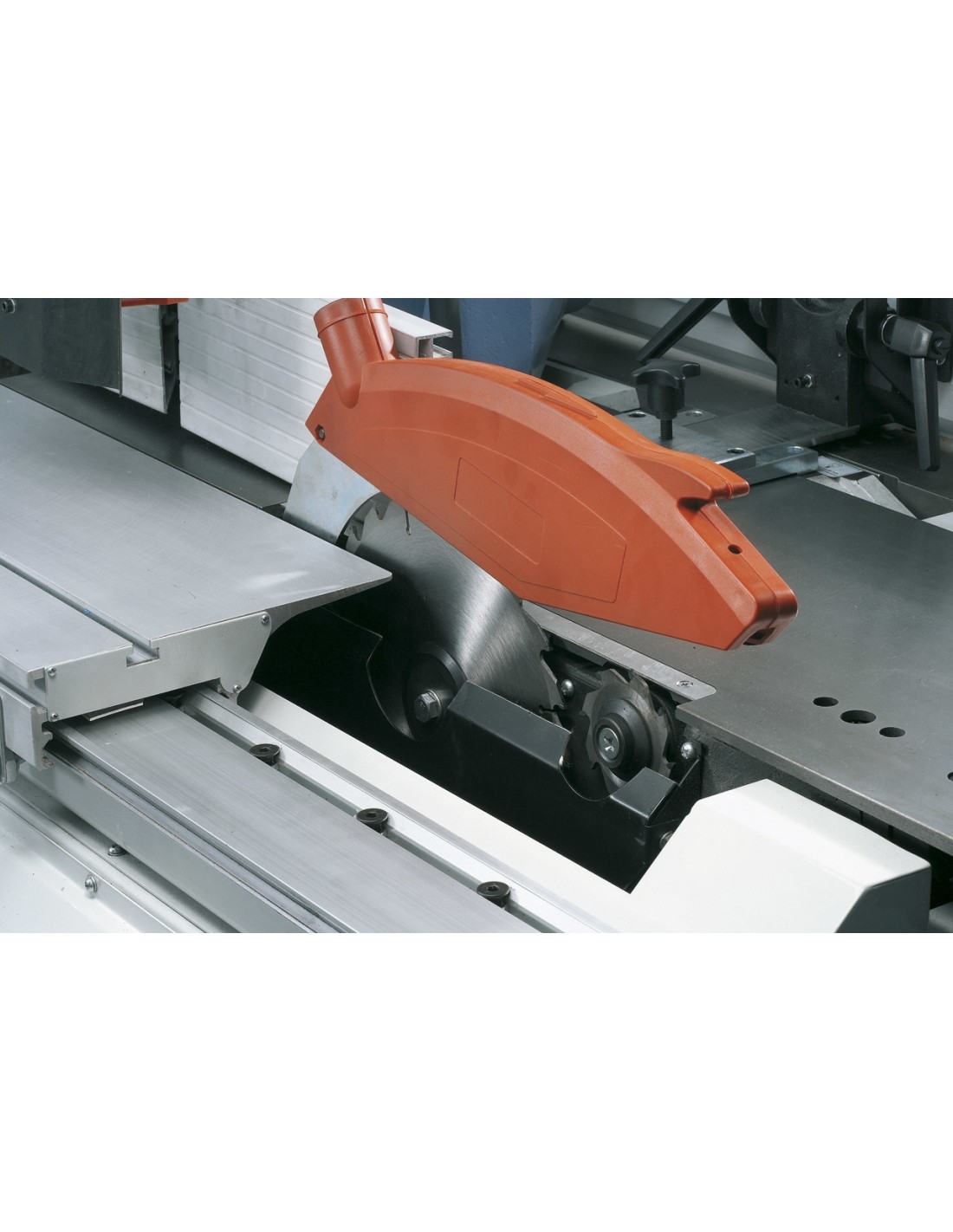

- Carbide sawblade 250 x 3,2 x 30 mm / 24T

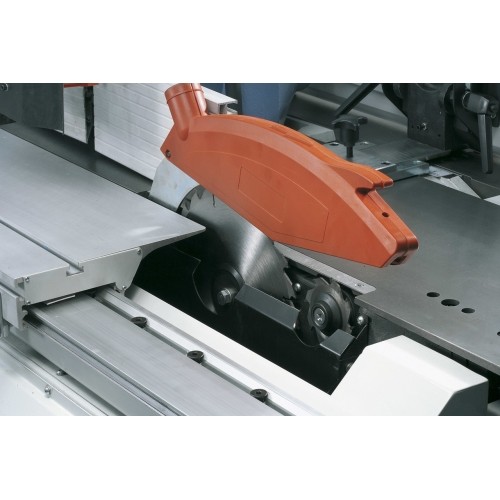

- Scoring sawblade 80 x 3,2 x 20 mm / 8T
- Mitre fence with eccentric holder
- End stop
- Table extension
- Telescopic fence with stop
- Moulding fence
- Protective cover with dust extraction outlet and tube
- Push stick
- Tools
