- Weight approx.
- 378 kg
- Spindle speed
- 3500 / 5500 / 7000 rpm
- Machine dimension (W x D x H)
- 1620 x 2340 x 1150 mm
- Motor power output S1 100%
- 2,0 kW (2,7 HP)
2,2 kW (3,0 HP) - Motor power input S6 40%
- 2,8 kW (3,8 HP)
3,0 kW (4,0 HP) - Dust extraction outlet
- 100 mm
- Table size
- 370 x 150 mm
1045 x 300 mm - Table height
- 820 mm
- Planing width
- 250 mm
- Table length
- 600 mm
1080 mm - Shaft rotation speed
- 3750 rpm
- Planer shaft diameter
- 75 mm
- Planer fence
- 700 x 145 mm
- Fence tiltable
- 90° to 45°
- Max. cutting depth
- 1,8 mm
5 mm - Working width
- 250 mm
- Working thickness, min./max.
- 5 - 190 mm
- Feed speed
- 8 m/min
- Cutting length
- 1600 mm
- Height adjustment
- 85 mm
- Square table
- 600 x 410 mm
- Sliding table
- 1600 x 240 mm
- Max. sawblade diameter
- 250 x 30 mm
- Max. cutting height 90° / 45°
- 65 / 55 mm
- Cutting width on rip fence
- 510 mm
- Speed main sawblade
- 4050 rpm
- Speed scoring sawblade
- 6300 rpm
- Scoring sawblade
- 80 x 20 mm
- Spindle diameter
- 30 mm
- Table opening
- 150 mm
- Working length of spindle
- 90 mm
- - at profiling
- 140 mm
- - at tenoning
- 200 mm
- Height adjustment of spindle
- 150 mm
- Cutter knives
- 3 pcs.
- Westcott drill chuck
- 0 - 16 mm
- Max. drill depth
- 105 mm
- Drill width
- 140 mm
- Phase
- Trifazis (400V)
Universalios daugiafunkcinės staklės CWM 260 F - 1600
1052676
Price
€8,048.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, april 30 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 378 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 378 kg.
Description
Properties
- Maintenance-free, precisely bedded 3-knife cutterblock with HSS-knives

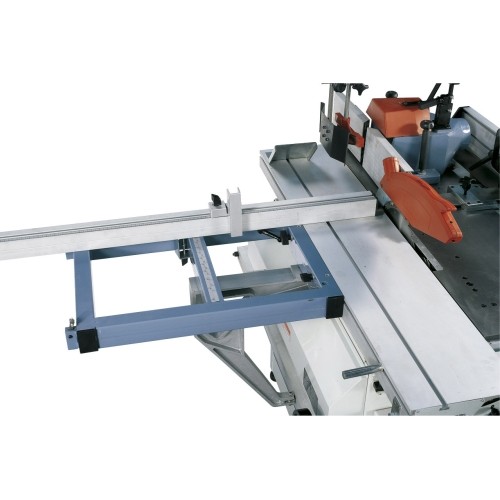

- Torsion-free, aluminium sliding table with prism-shaped guide
- Both planer tables feature fine adjustment and noise-reducing table lips

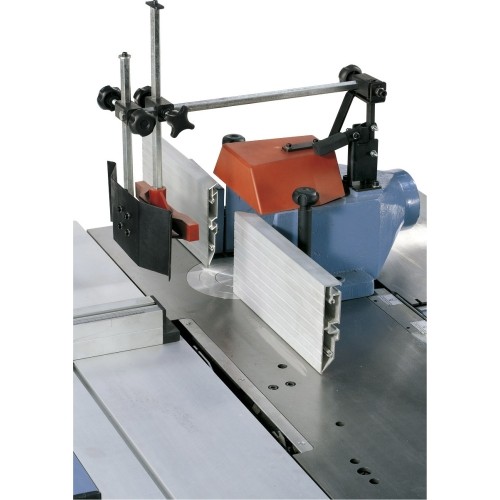

- Moulding fence with aluminium fence rails adjustable on both sides
- Moulder unit features 3 speeds for optimal adjustment to the workpiece

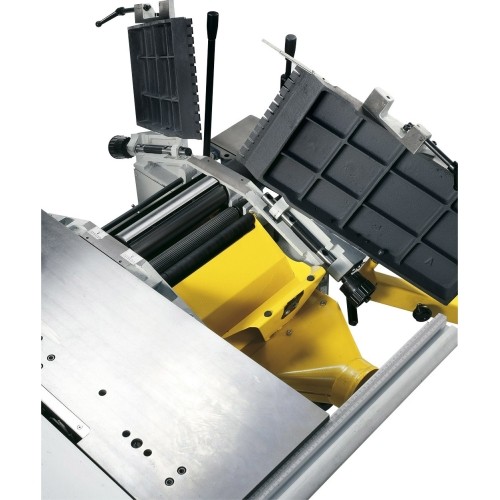

- Planer tables tilt into upright position for quick conversion to thicknessing
- All switches are logically arranged on the control panel

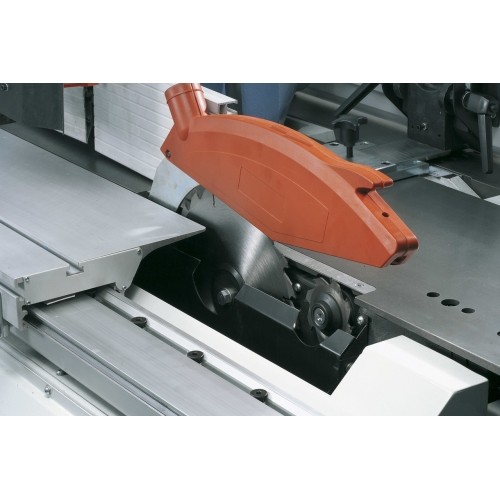

- Handwheel with scale allows for tilting of sawblade up to 45º
- Integrated, tiltable dust hood - extraction outlet 100 mm
- Solid aluminium planer fence, tilts 90º to 45º
- Square table in generous size allows for support of larger panels
Standard accessories
- Cutter knives 250 x 30 x 3 mm
- Planer fence

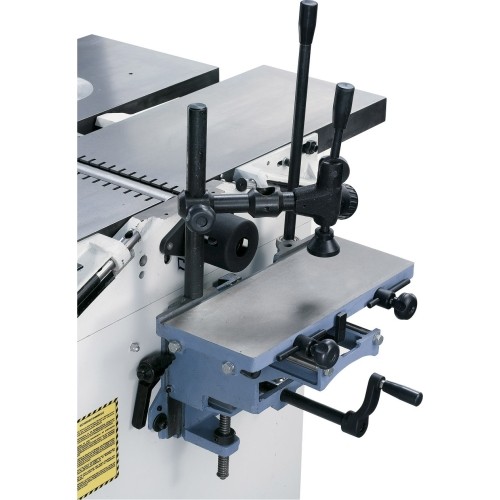

- Mortising unit
- Westcott drill chuck 0 - 16 mm
- Eccentric holder
- Sawblade 250 x 3,2 x 30 mm / 24T
- Scoring sawblade 80 x 3,2 x 20 mm / 8T
- End stop
- Telescopic fence with stop
- Square table
- Moulding fence
- Push stick
- Protective cover with dust extraction outlet and tube
- Tools
