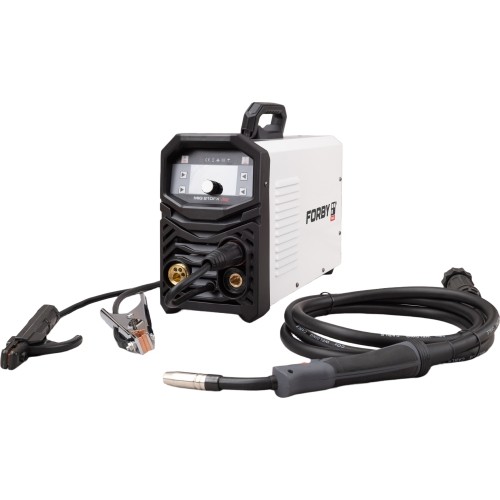

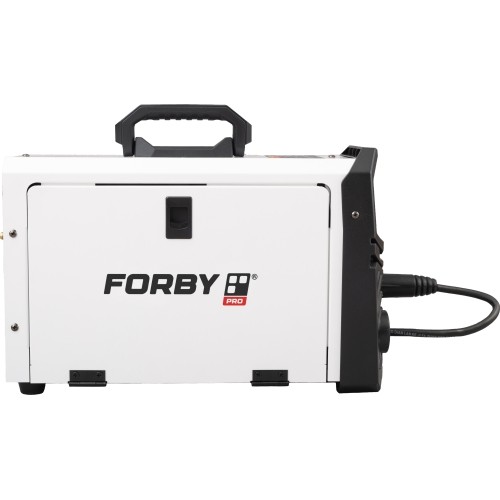

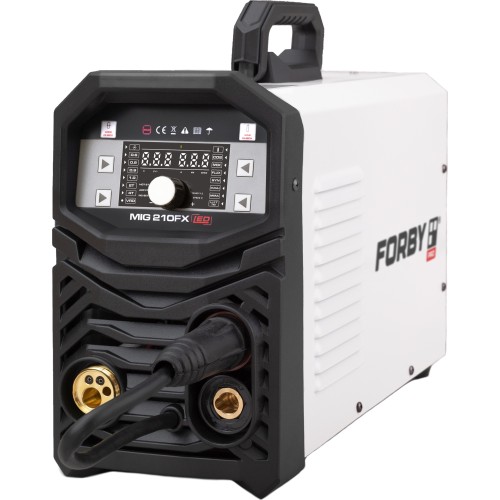

Inverter welding machine FORBY® MIG 210FX

Professional welding machine MIG-210FX LED - a reliable work tool!

The MIG-210FX LED is a modern and powerful welding machine for professionals and hobbyists alike who want quality, efficiency and versatility in a single unit. It is a reliable and compact tool that lets you produce quality welds in a wide range of conditions.

Why choose the MIG-210FX LED?

• High performance and quality - stable arc, minimal spatter and excellent weld bead shape.
• Convenient and easy to use - intuitive controls with an LED display.
• Versatile - suitable for various metal types and welding processes.
• Lightweight and compact - easy to transport and use in different locations.
• Durability - a modern cooling system and durable materials ensure a long service life.

Who is this welding machine for?

• Professional welders who need a reliable and efficient tool.
• Car repair shops and metalworking companies.
• Hobbyists looking for a quality machine at a good price.
• Those working both outdoors and indoors, thanks to its compact size and easy transport.

Welding modes and functions:

MIG/MAG mode

• Current: 50-200 A
• Wire diameter: 0.6 / 0.8 / 1.0 mm
• Suitable for welding both with gas and gasless (FLUX)
• Polarity change - quick switching between MIG and FLUX

MMA (stick electrode) mode

• Current: 10-160 A
• Supports: Ø2.0 / Ø2.5 / Ø3.2 / Ø4.0 mm electrodes
• Hot Start and Arc Force functions

Lift TIG mode

• Current: 10-200 A
• Requires a separate TIG torch and argon cylinder

Suitable for welding various metals - steel, stainless steel, aluminium (with the appropriate wire and gas).
The ability to weld with or without shielding gas (for mild steel) provides extra flexibility when working in various conditions.

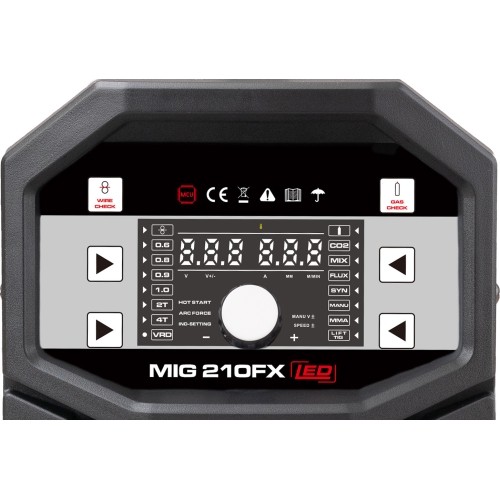

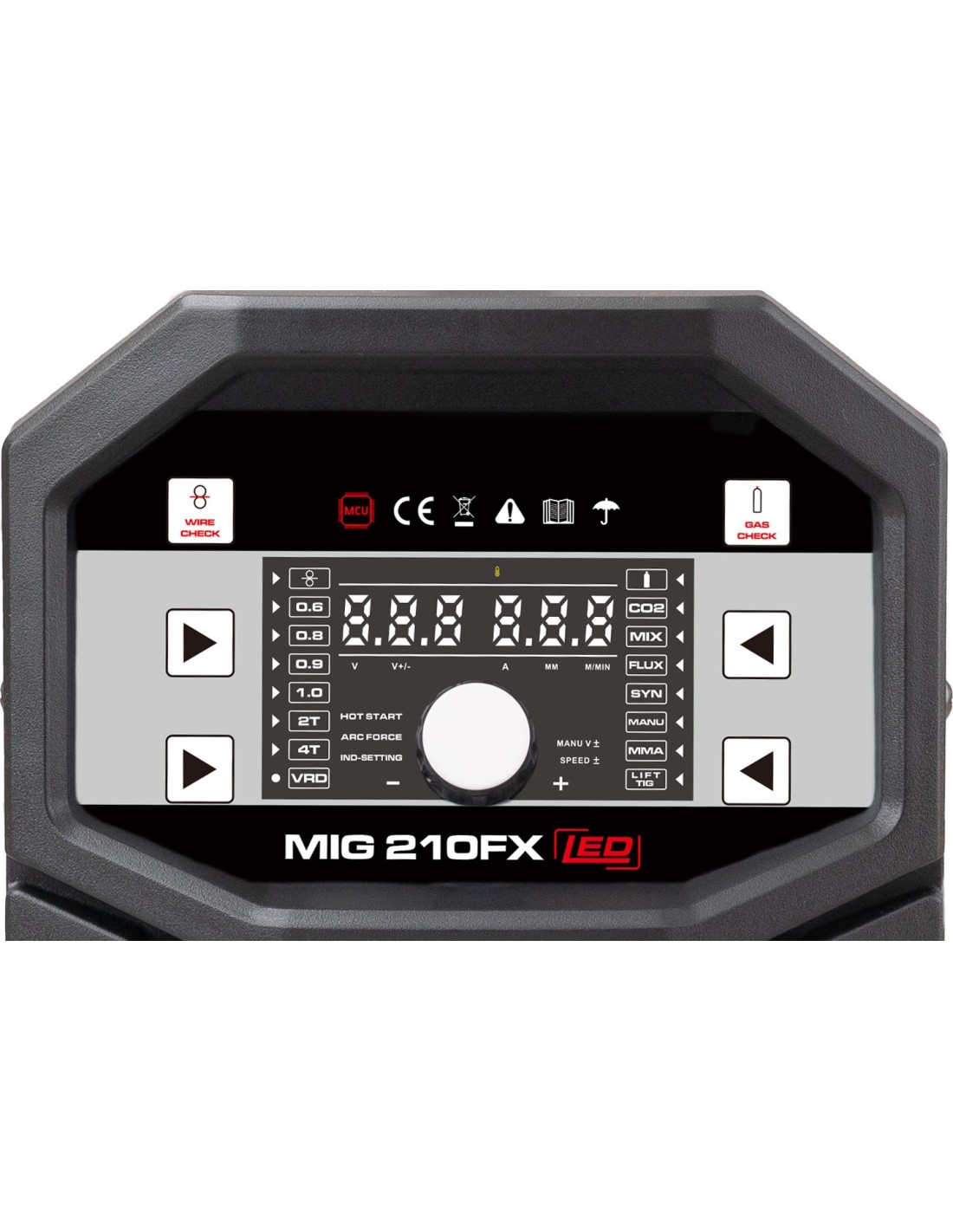

LED display with extremely simple controls:

• Synergic mode
• Manual mode
• Welding process selection - MIG/MAG (wire welding), MMA (stick electrode) and Lift TIG (with filler wire)
• Wire diameter selection
• Gas type selection
• 2T / 4T operating modes
• Inductance adjustment
• Wire feed and gas tests
• VRD function for MMA welding

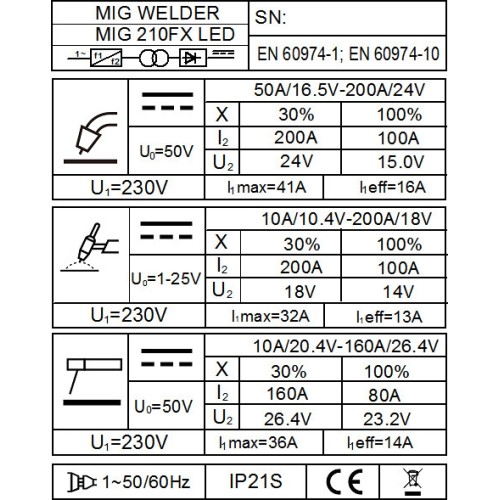

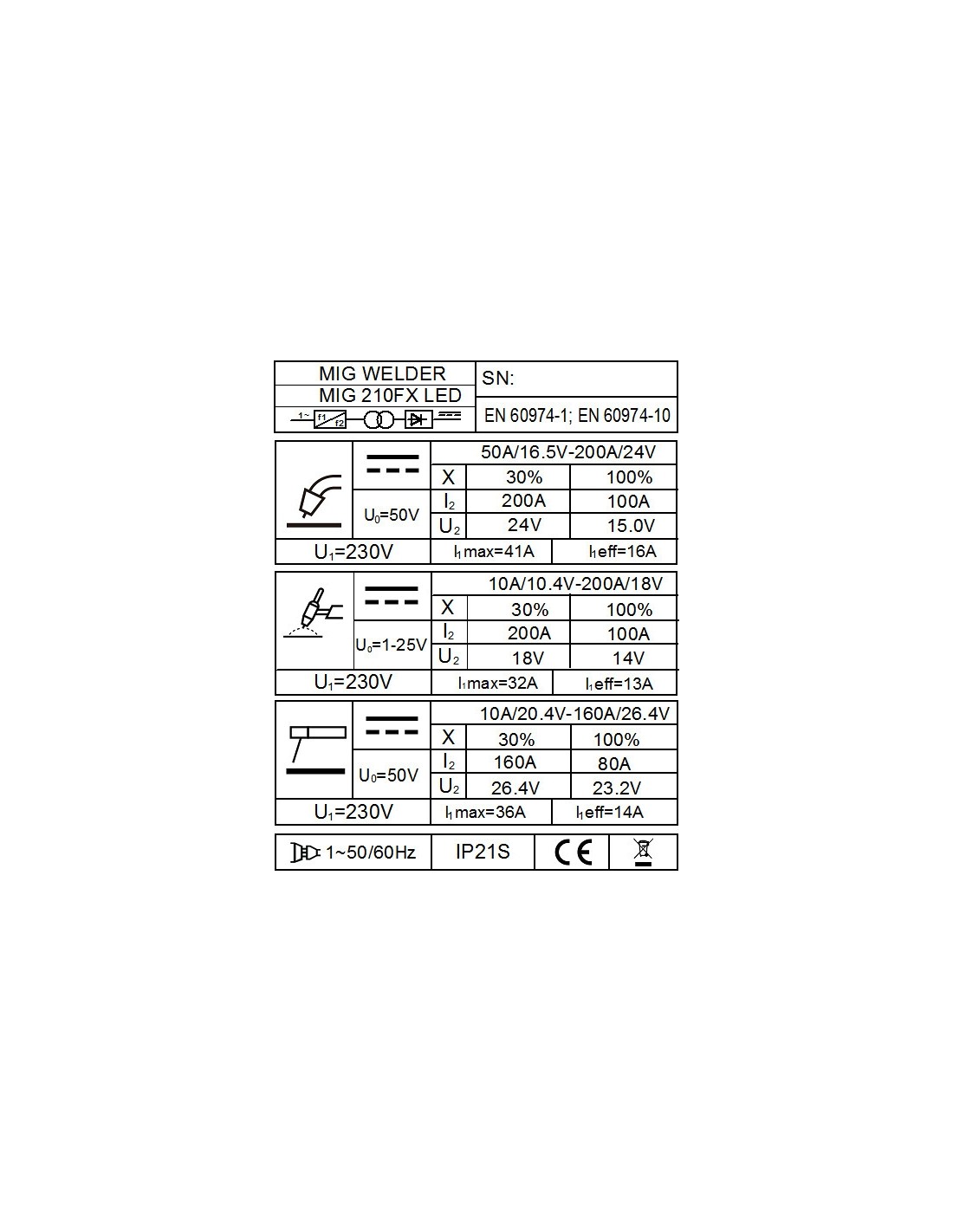

Main operating mode parameters:

MIG/MAG (gas-shielded) mode

• Maximum current (I₂) at 30% duty cycle: 200 A
• Current at 100% duty cycle: 100 A
• Voltage (U₂): 24 V @ 30% / 15.0 V @ 100%
• Maximum input current (Iᵢ max): 41 A
• Effective input current (Iᵢ eff): 16 A

MMA (stick electrode) mode

• Maximum current (I₂) at 30% duty cycle: 200 A
• Current at 100% duty cycle: 100 A
• Voltage (U₂): 18 V @ 30% / 14 V @ 100%
• Maximum input current (Iᵢ max): 32 A
• Effective input current (Iᵢ eff): 13 A

TIG (Lift-TIG) mode

• Current (I₂) at 30% duty cycle: 160 A
• Current (I₂) at 100% duty cycle: 80 A
• Voltage (U₂): 26.4 V @ 30% / 23.2 V @ 100%
• Maximum input current (Iᵢ max): 36 A
• Effective input current (Iᵢ eff): 14 A

Designed for 5 kg D200 welding wire spools. (With the main wire holder removed, it is also compatible with 1 kg D100 spools)

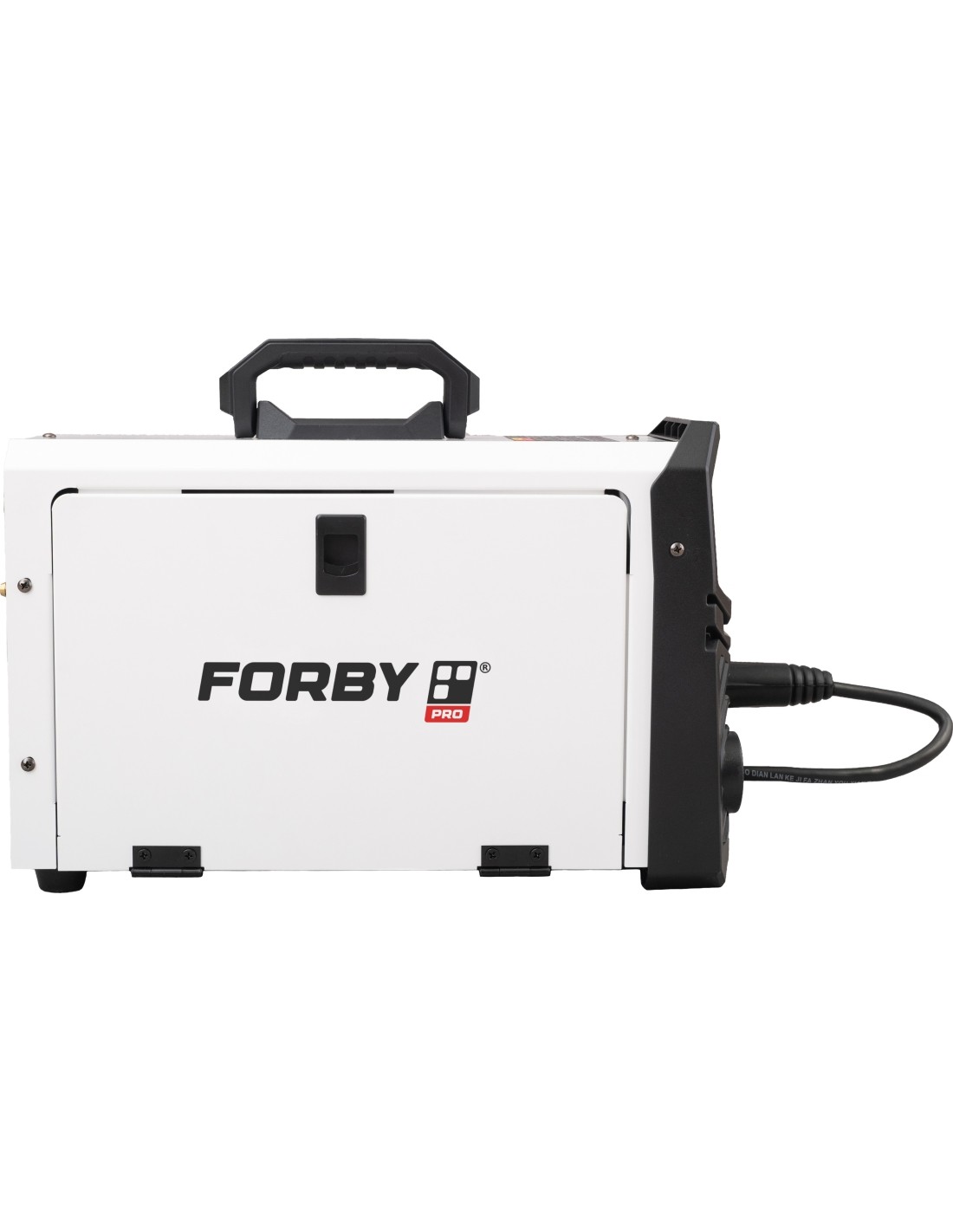

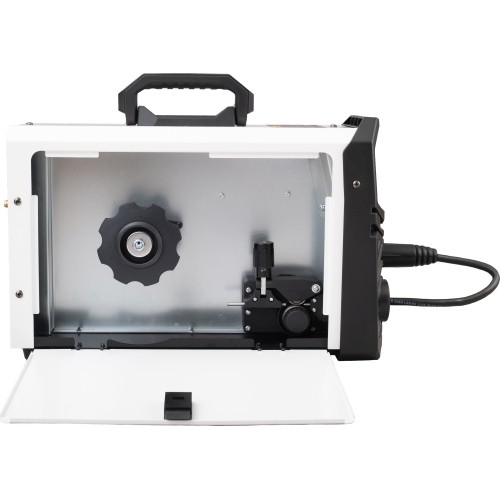

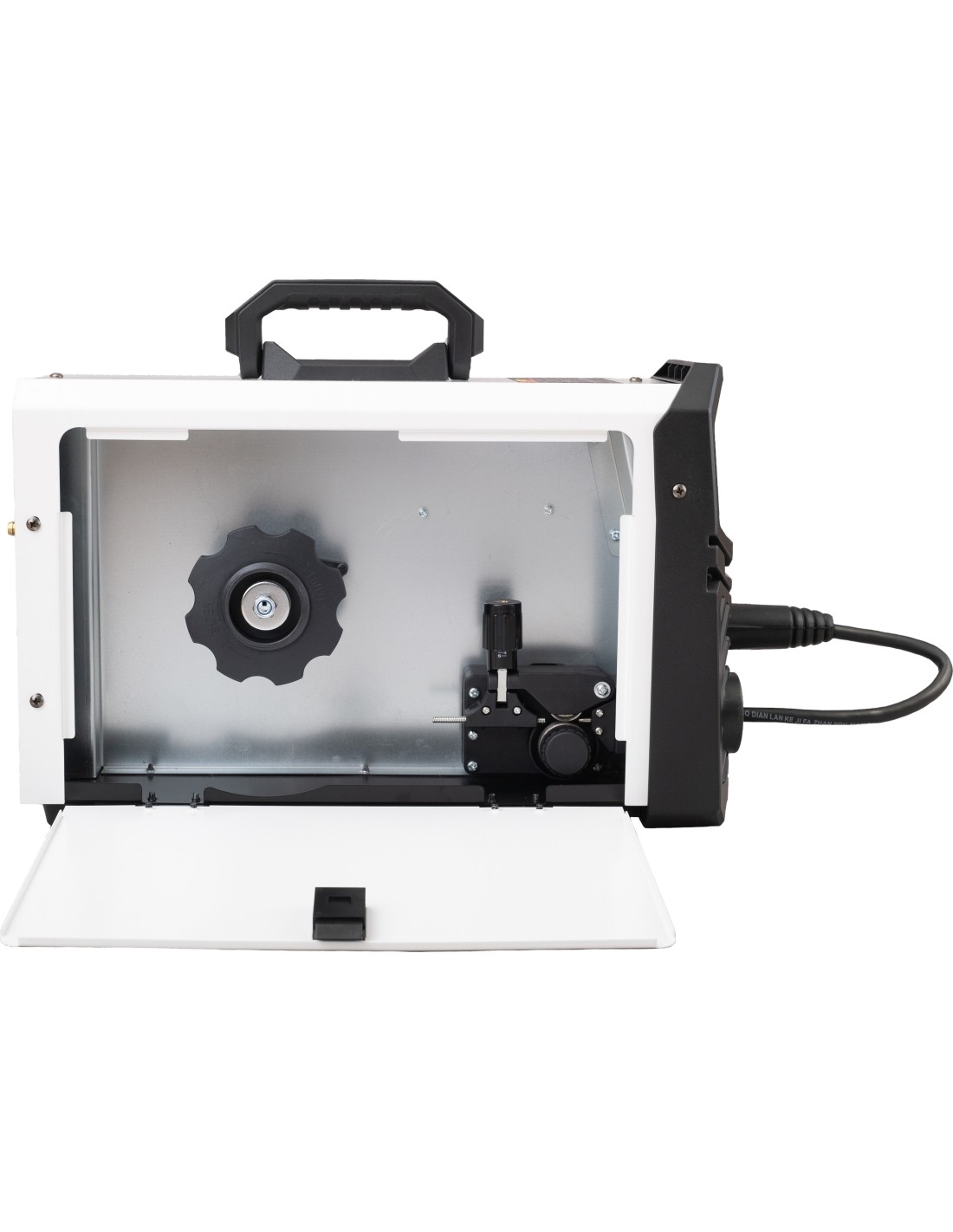

Easily accessible wire compartment - the wide opening compartment allows quick spool changes and convenient maintenance as well as wire threading.

Reliable 2-roll wire feed mechanism - ensures stable, smooth feeding and precise tension adjustment with anti-slip protection. Supplied with a 0.8mm / 1.0mm drive roll.

Key design advantages

• Compact, sturdy and durable design - the powder-coated housing is more resistant to scratches, corrosion and intensive daily use.
• Solid design with no external protrusions - reduces the risk of impacts when working in tight spaces and makes transport easier.

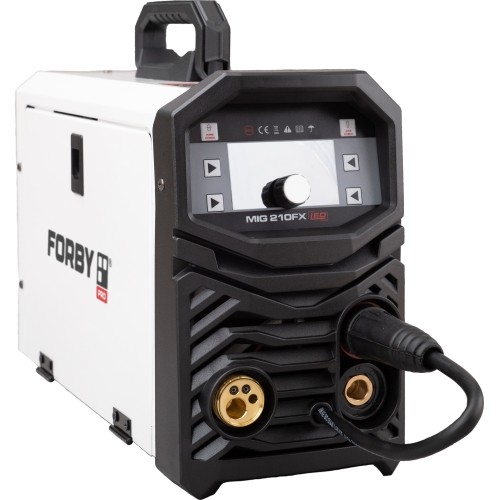

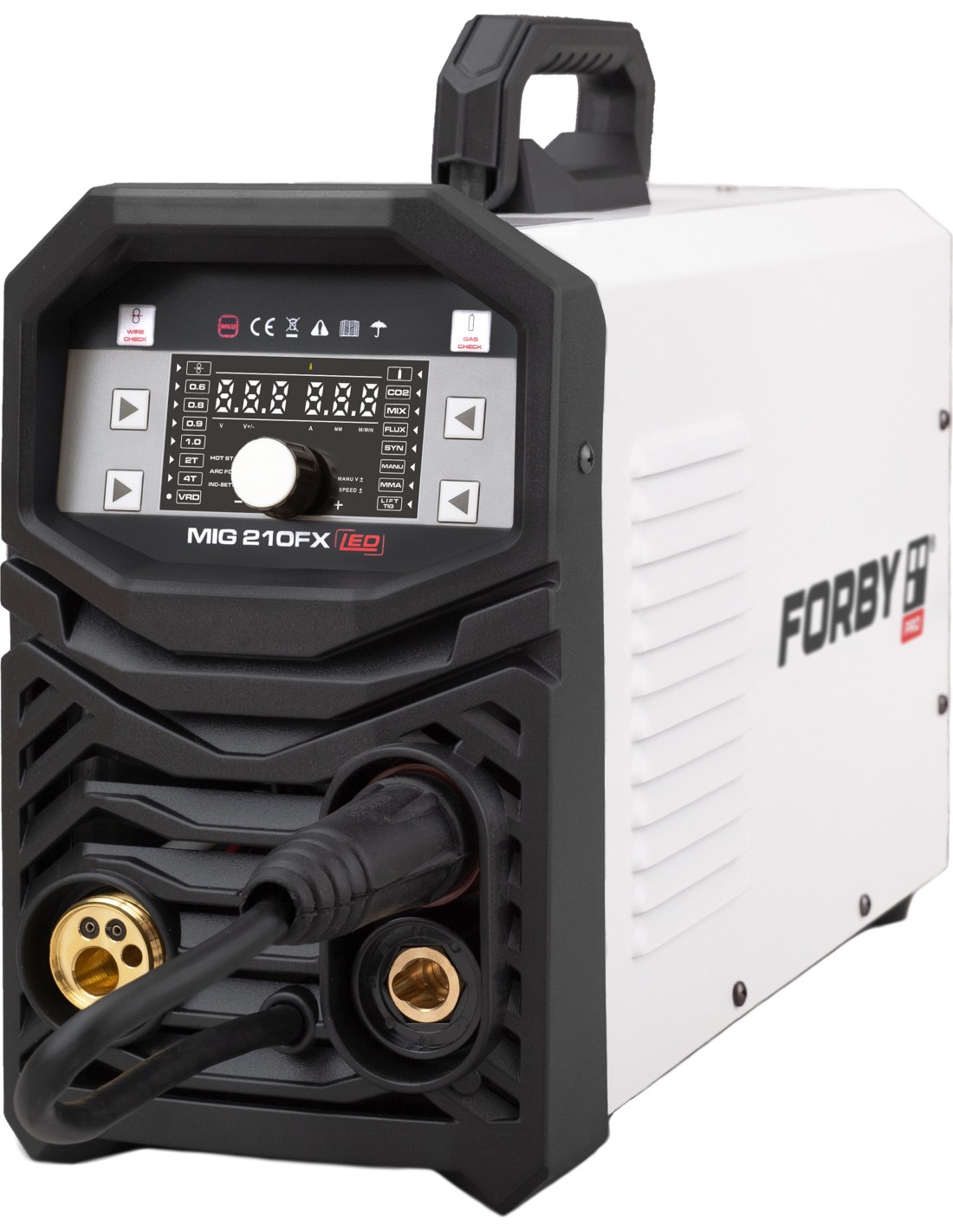

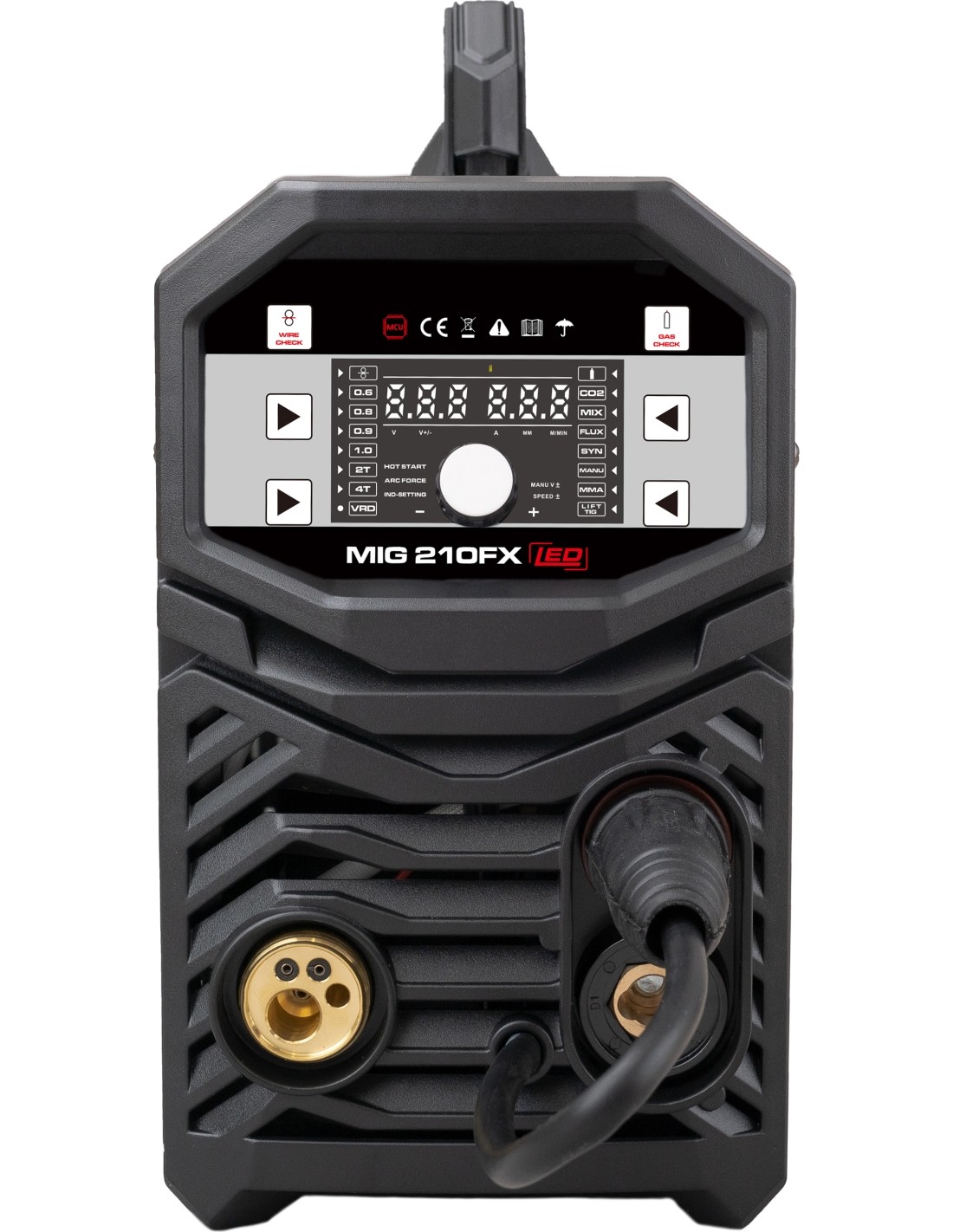

• Ergonomically designed control panel - clearly arranged buttons, synergic control and a bright LED display allow quick changes of settings.

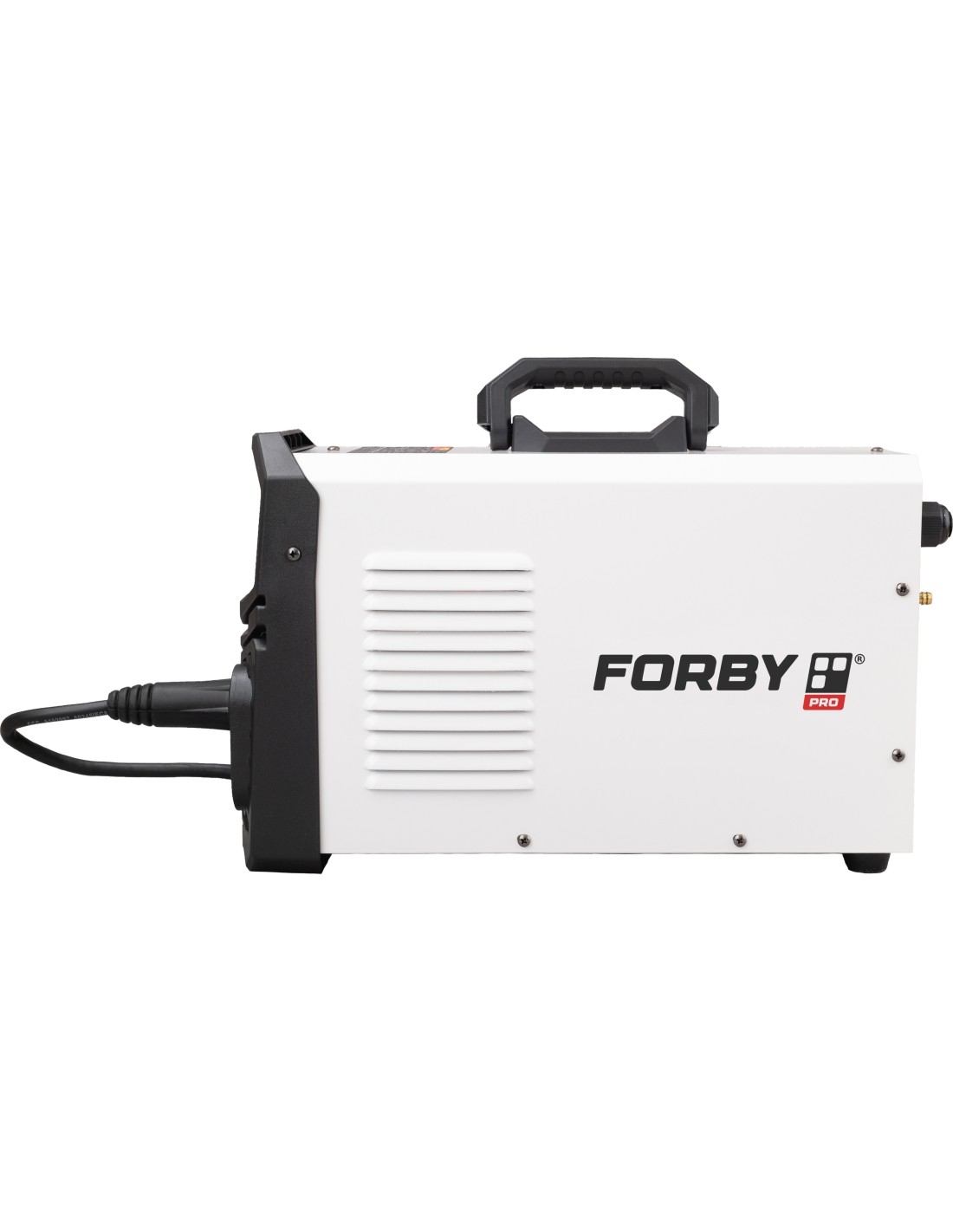

• Convenient top carrying handle - the machine is lightweight (approx. 7.6 kg), so it is easy to carry between workplaces.
• Protected electronics zones - electronic components are separated from wire and dust entry areas, making the machine more reliable in long-term operation.

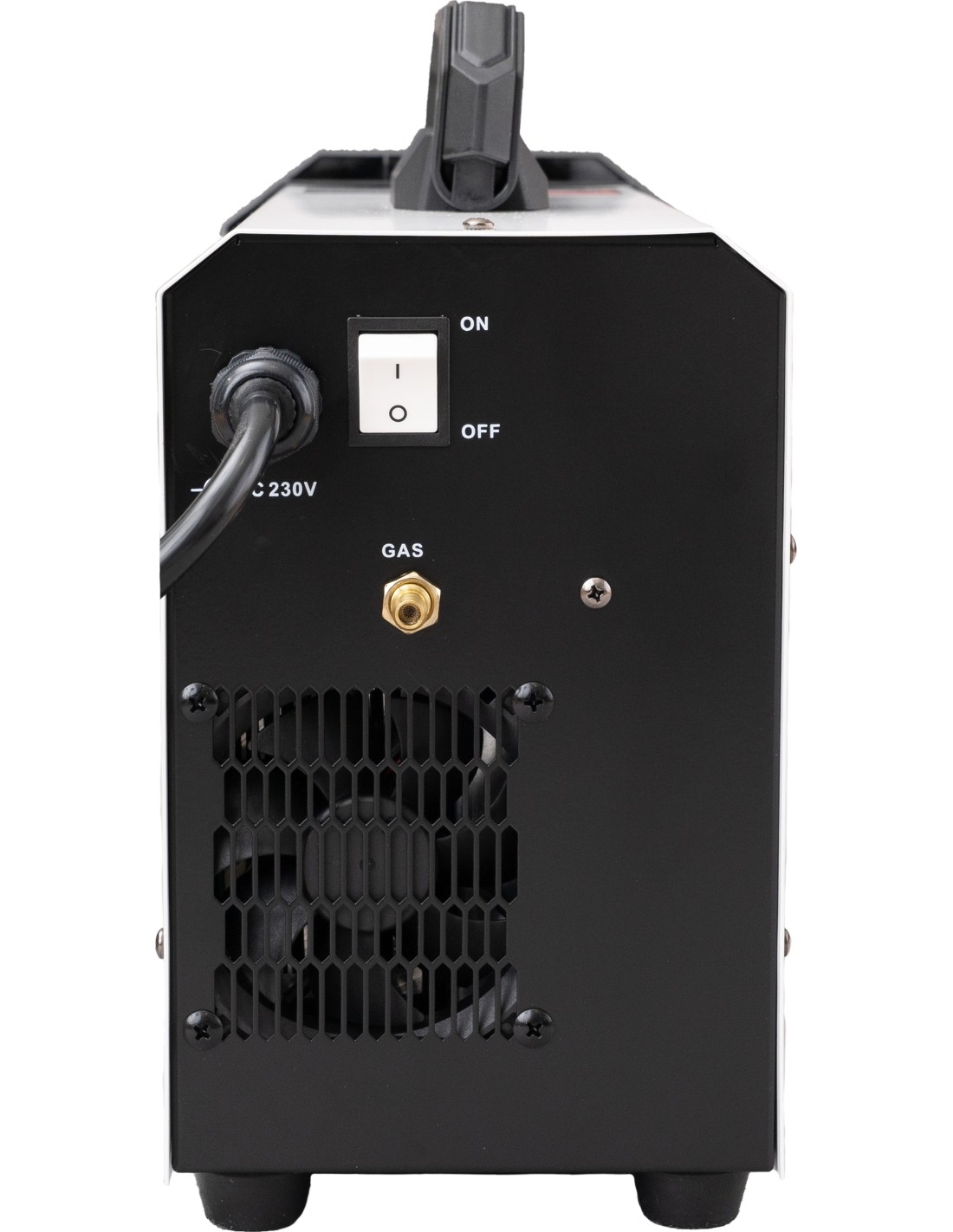

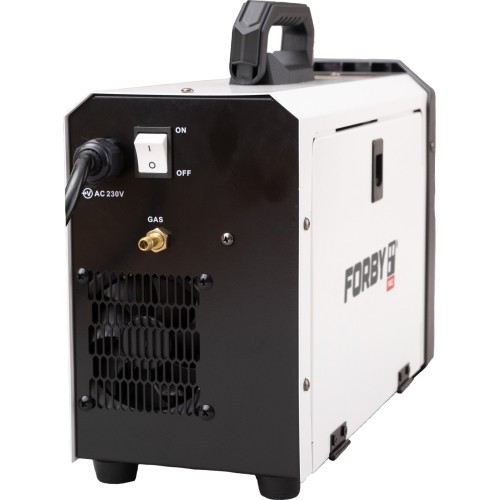

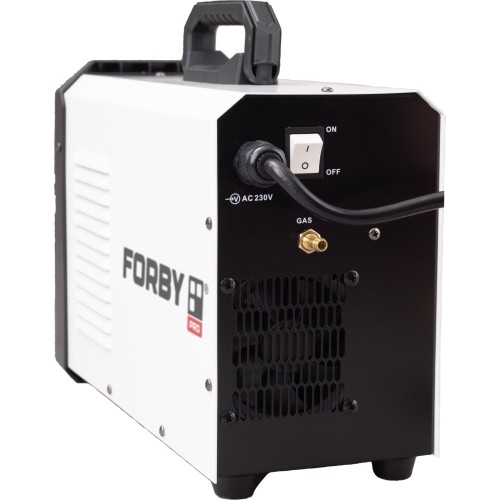

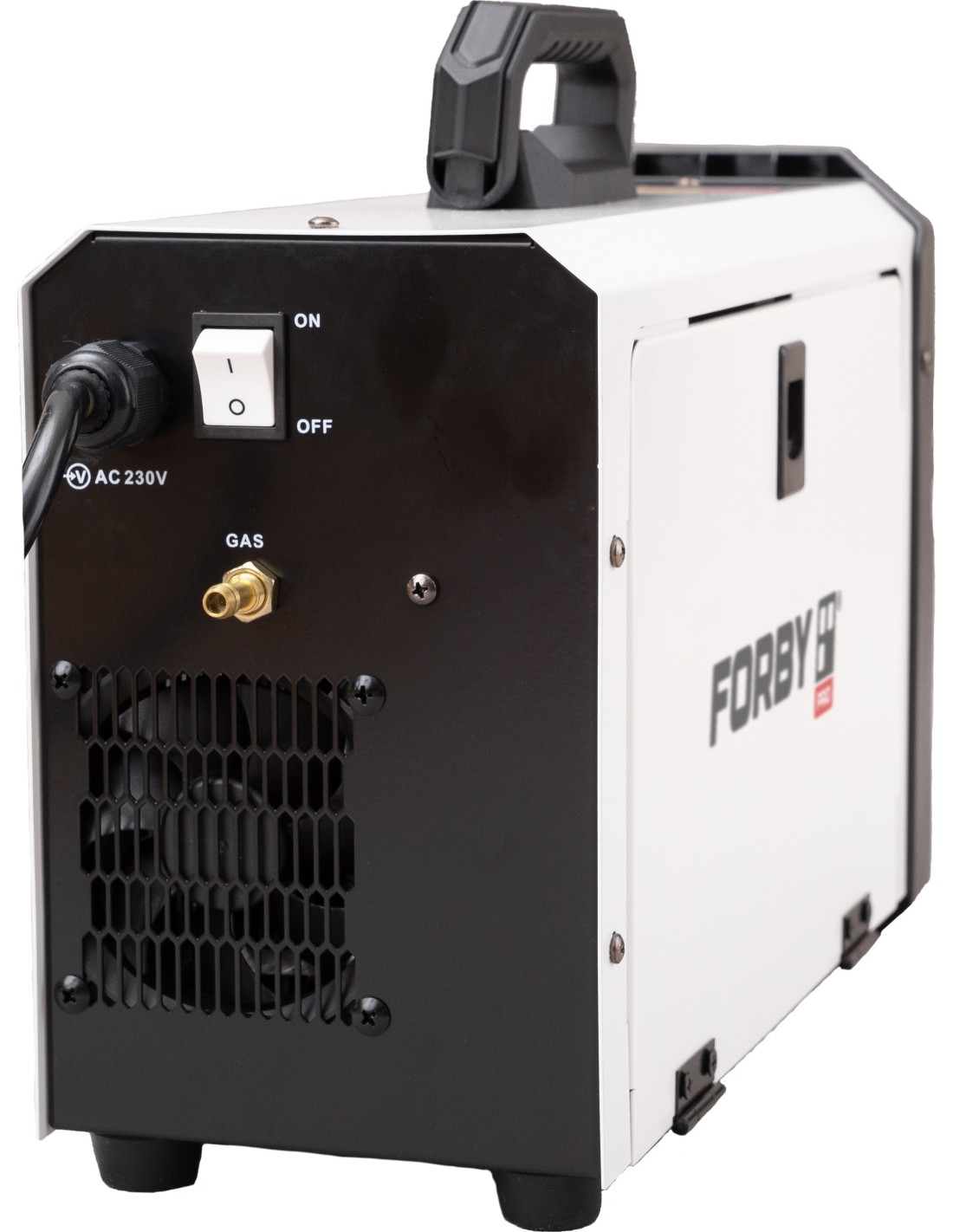

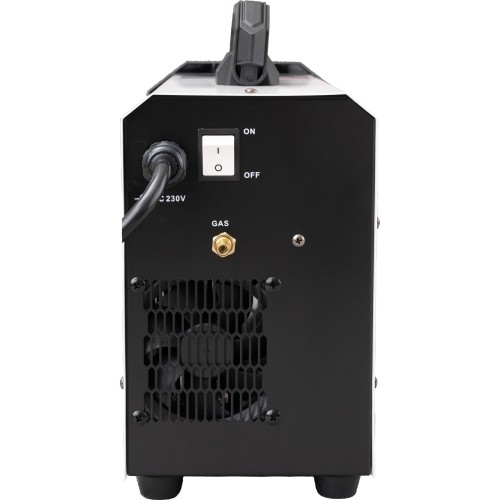

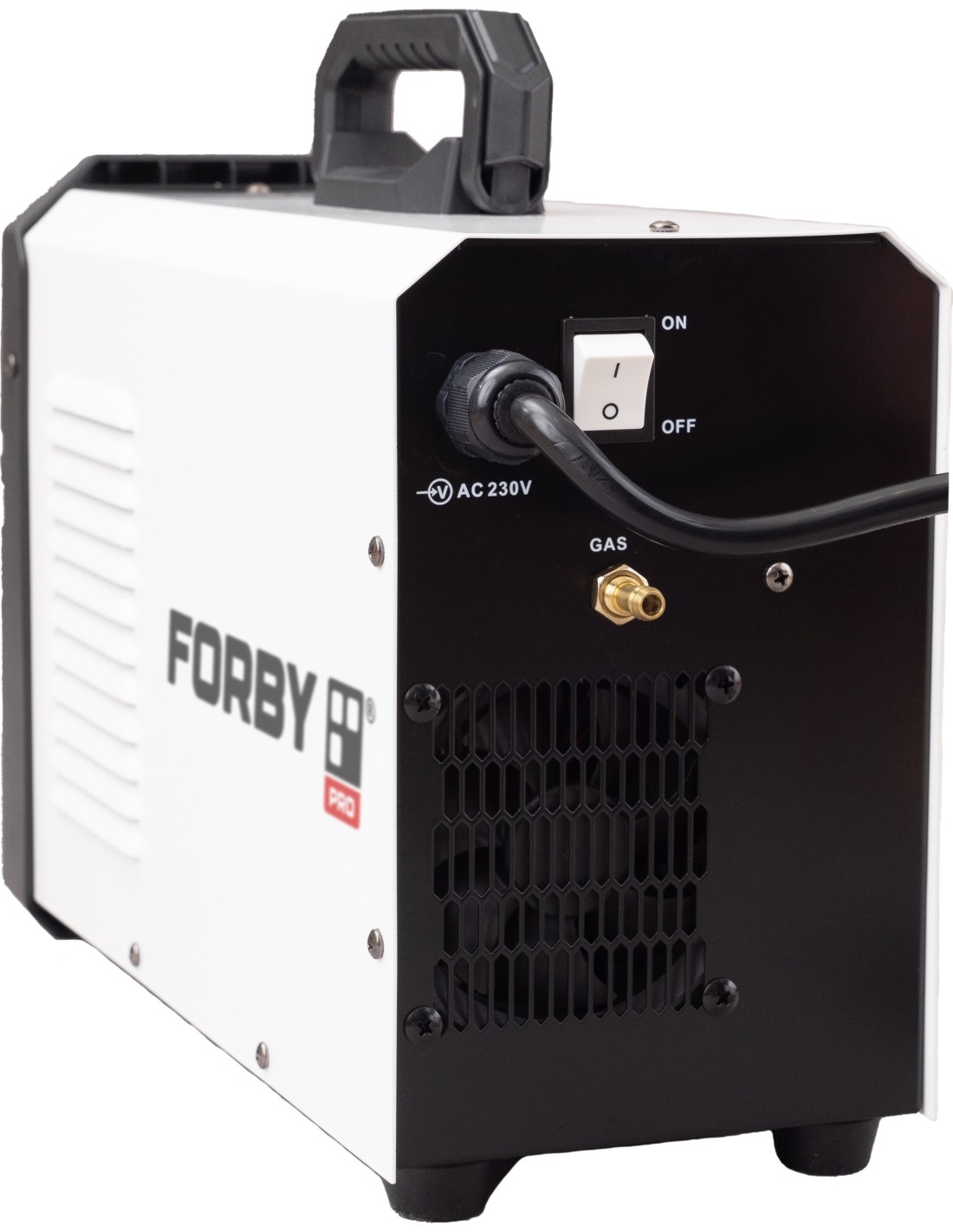

• Fan cooling and IP21S protection class - longer service life and protection against dust and moisture.
• Large 35/50 connectors - ensure even greater welding current stability.

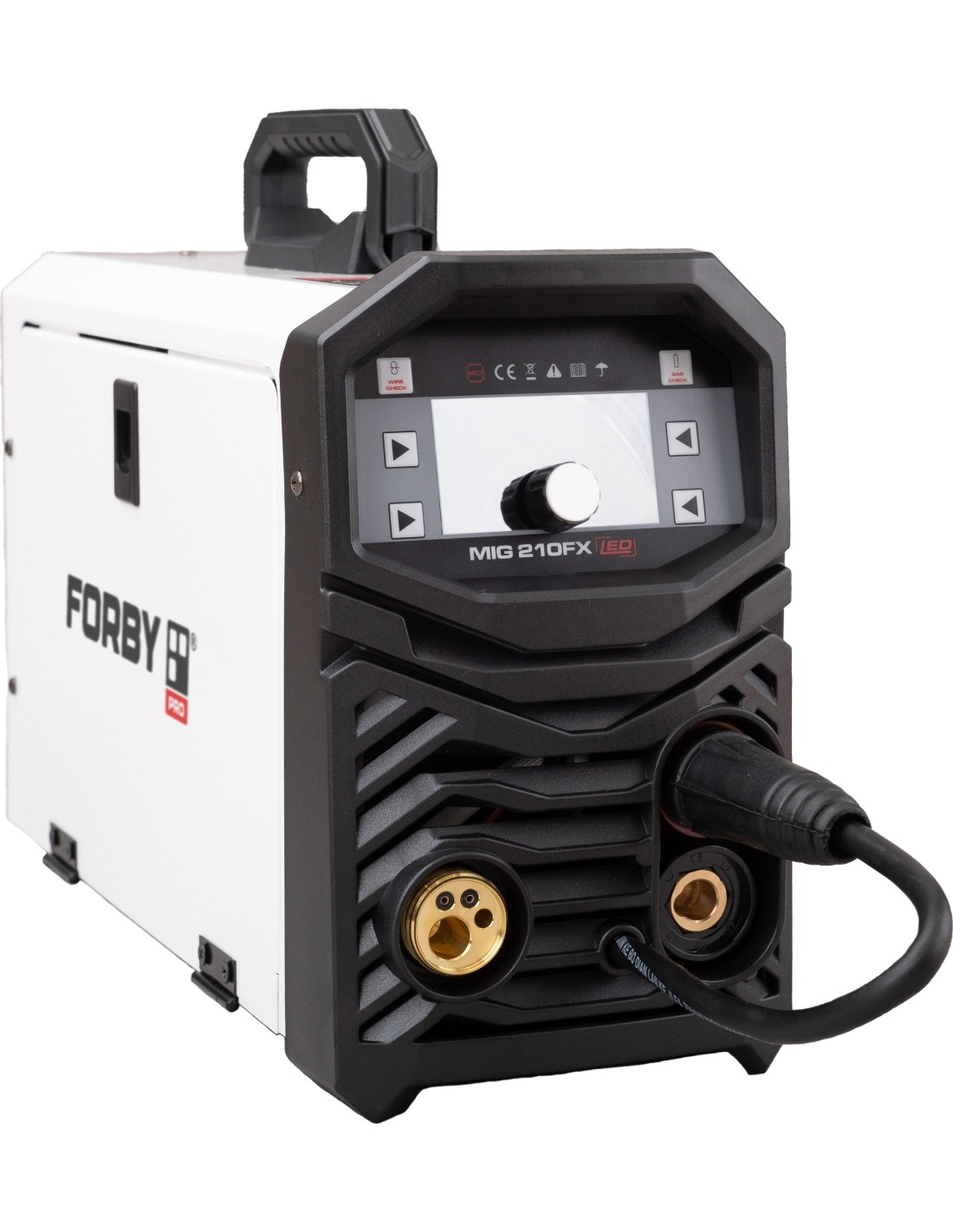

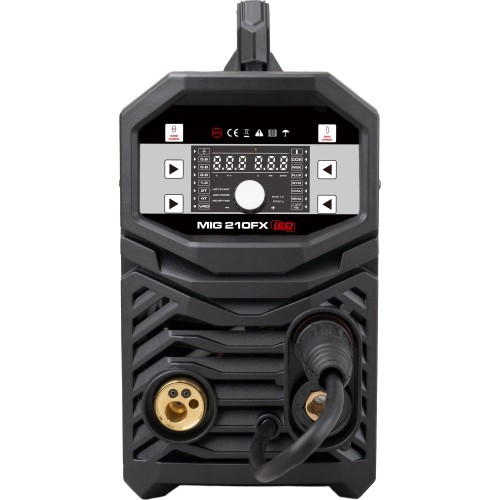

• Torch and ground clamp connection points - all necessary connections are ergonomically grouped at the front, making work neater and faster.

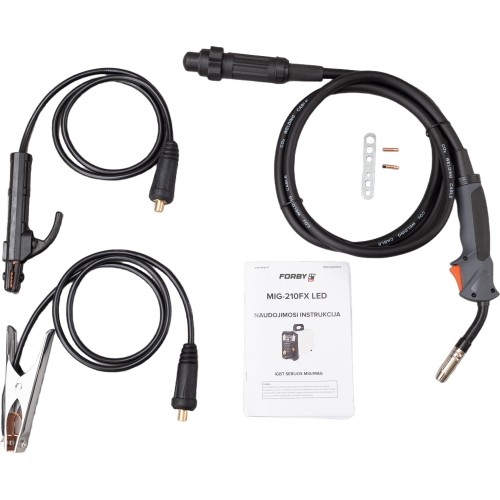

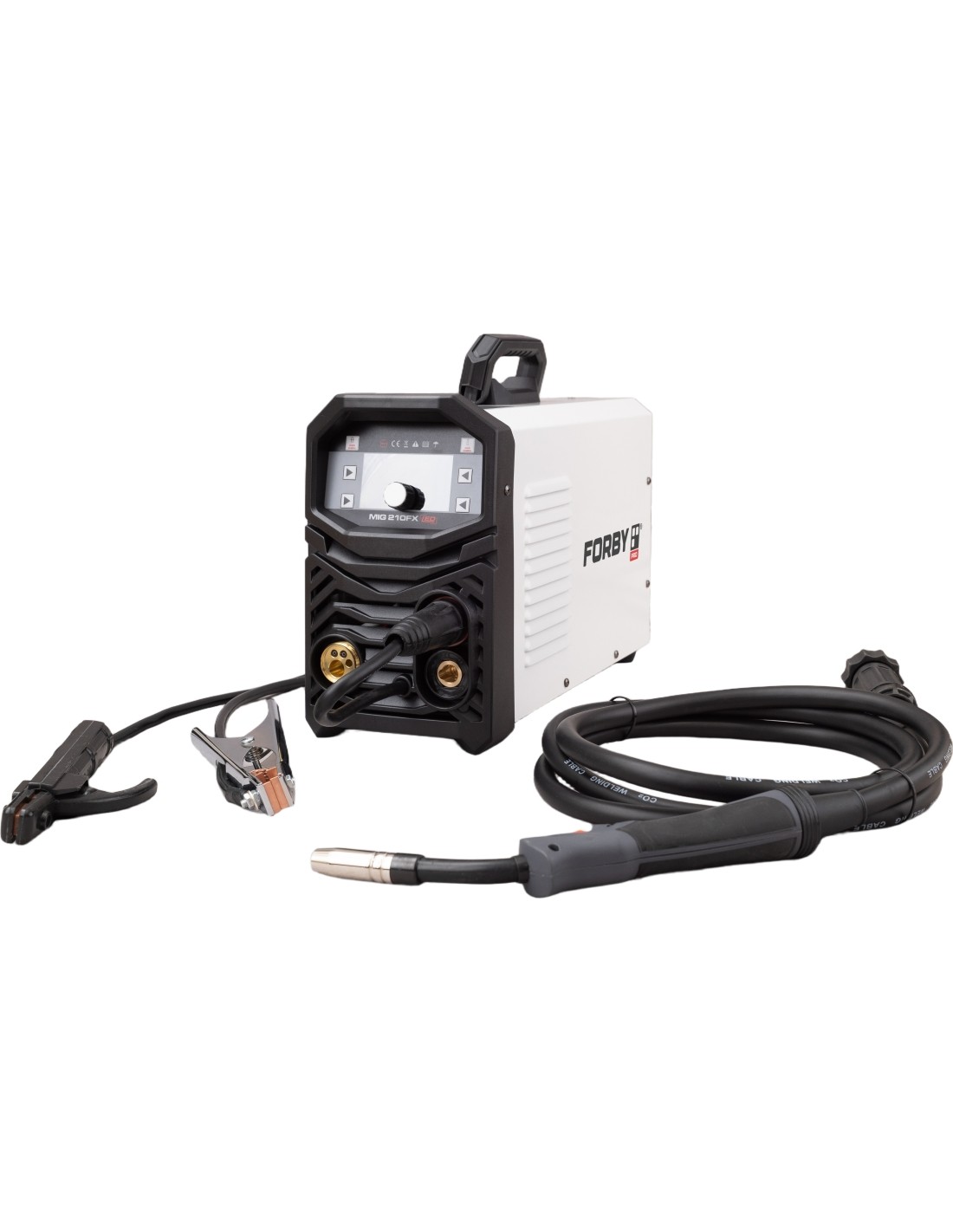

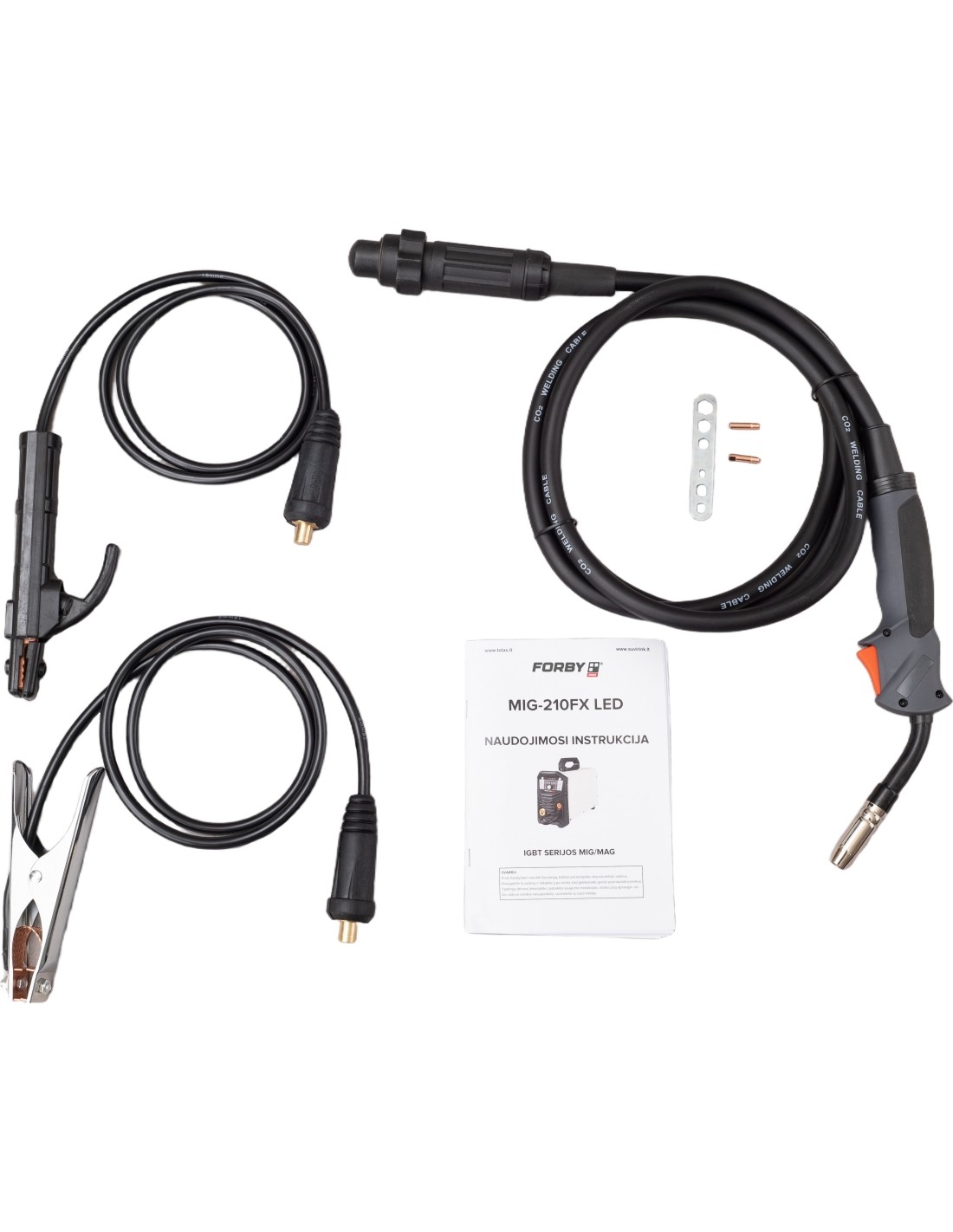

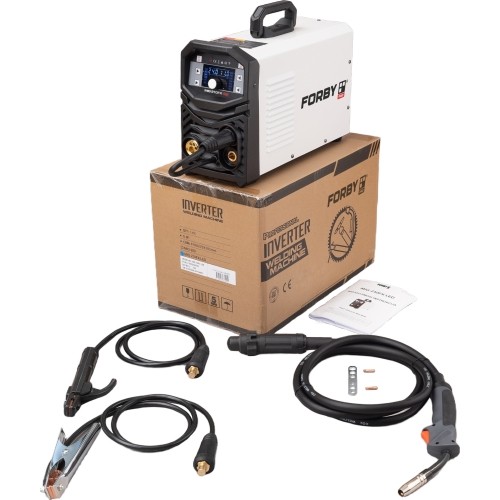

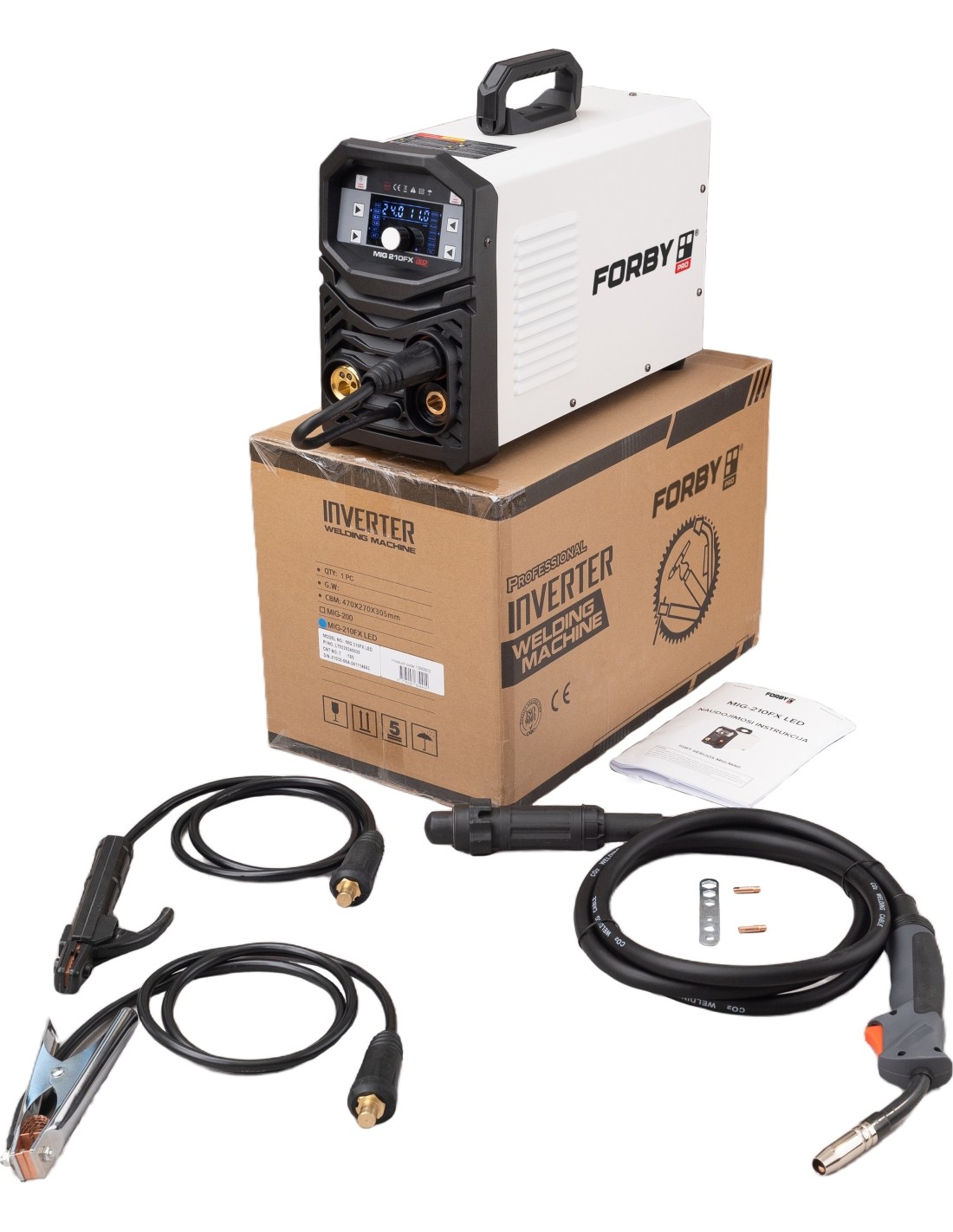

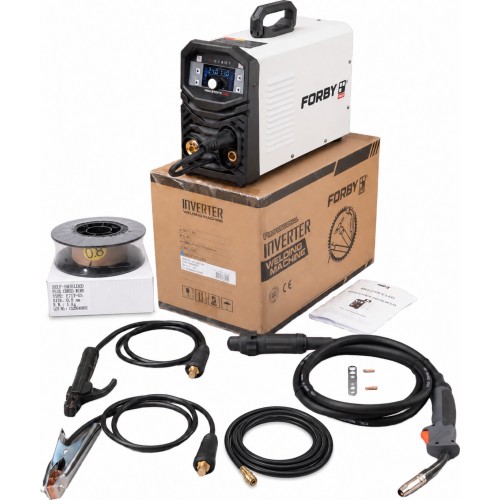

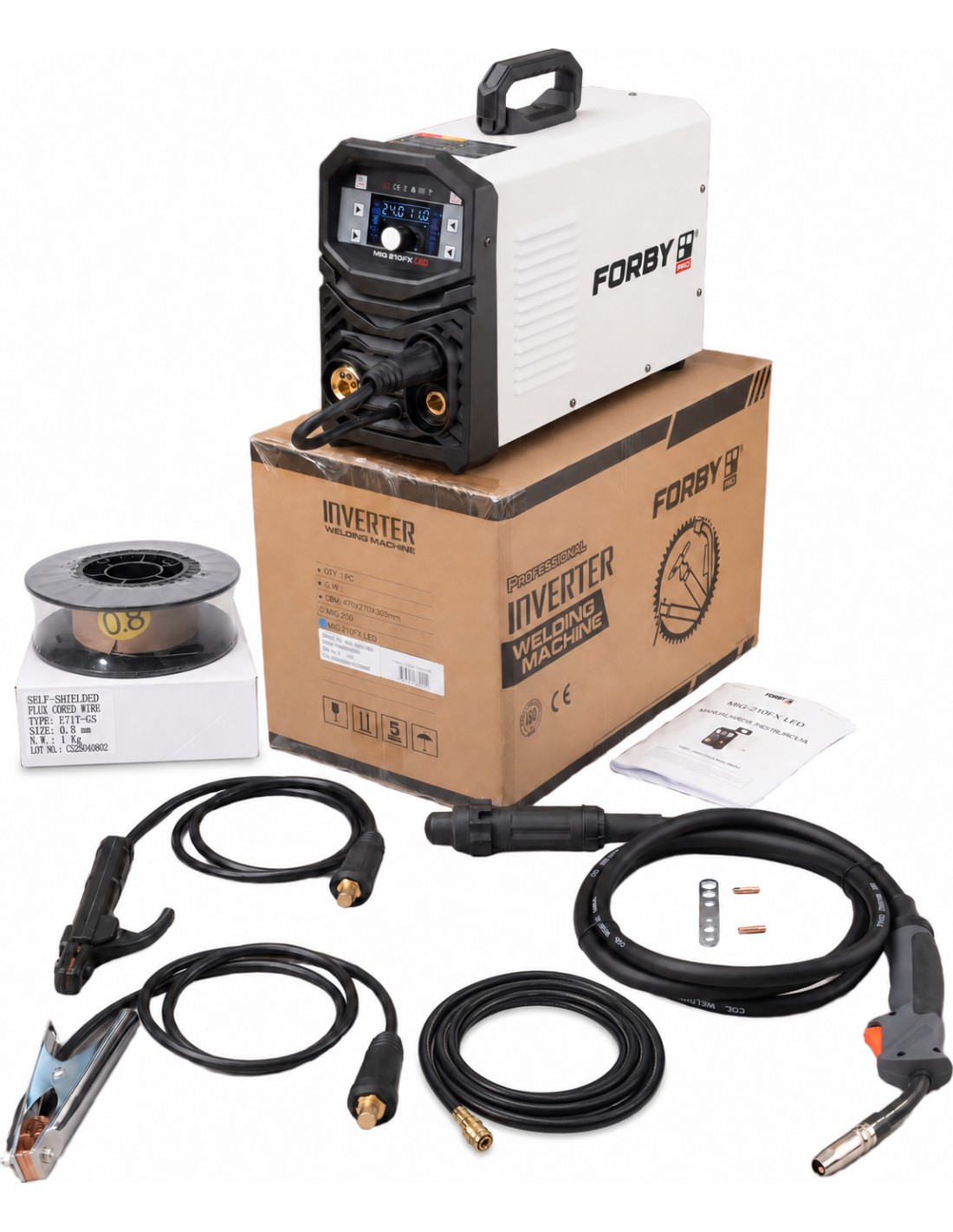

The set includes:

• Welding machine FORBY® MIG 210FX LED
• MIG torch F15, 3 metres (with consumables: nozzle, 0.8 mm contact tip, gas diffuser, steel liner)
• Electrode holder with 3-metre cable, 200 A (20 mm2 cable, 35-50 mm connector)
• Ground clamp with 3-metre cable, 300 A (20 mm2 cable, 35-50 mm connector)
• Spare wire contact tips (0.8 mm and 1.0 mm)

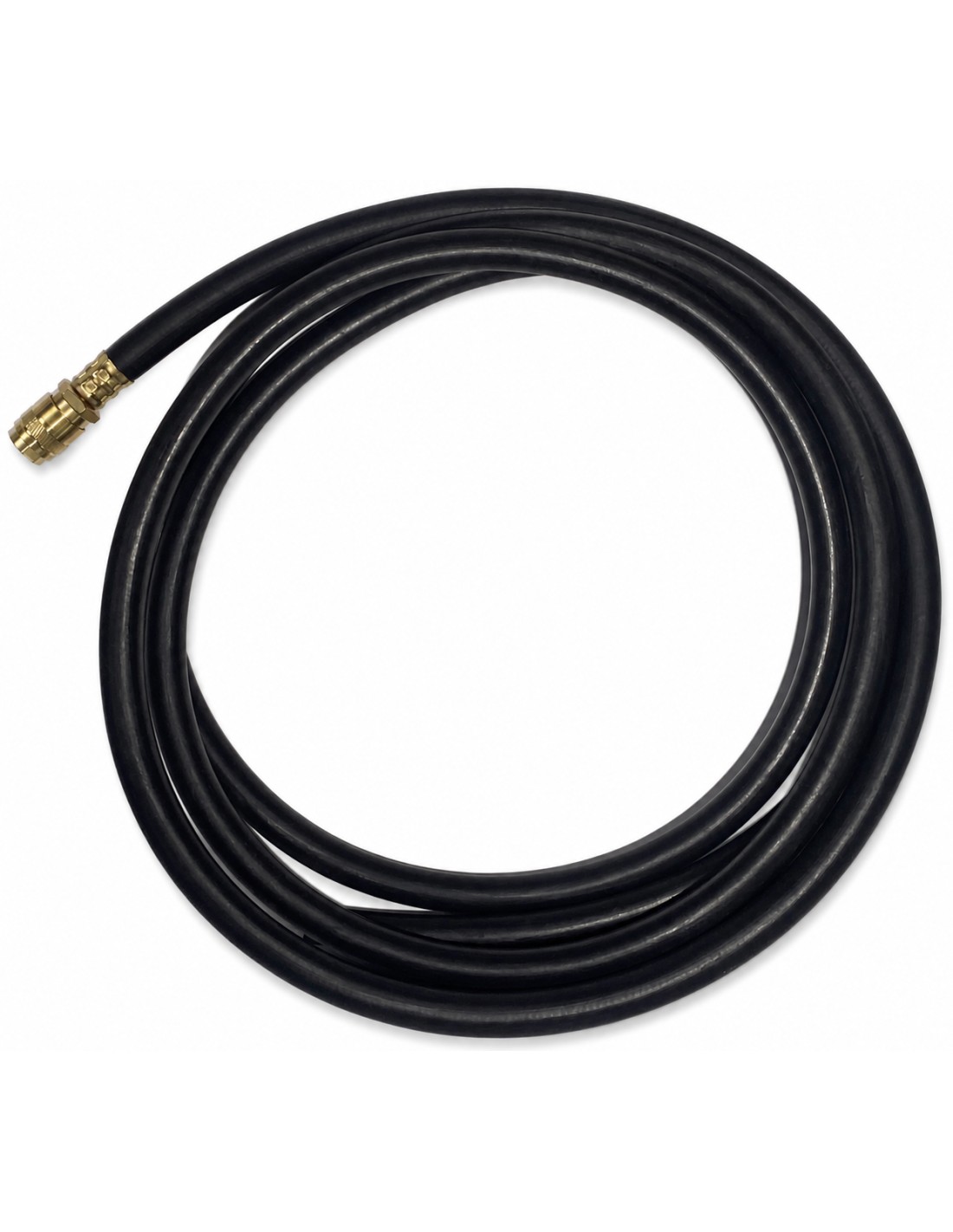

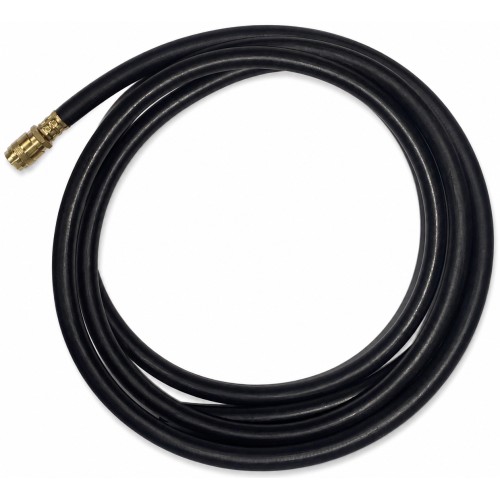

• Gas hose with connector (to the machine) - 3 metres

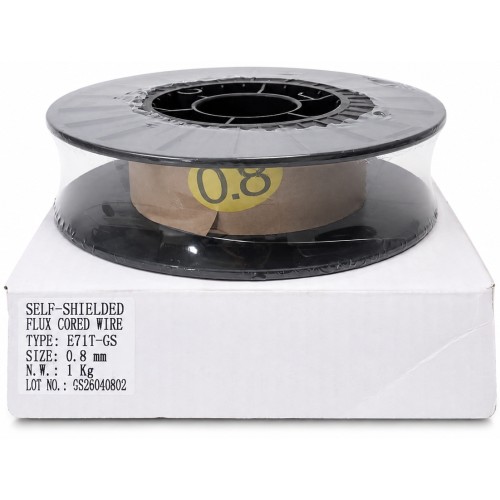

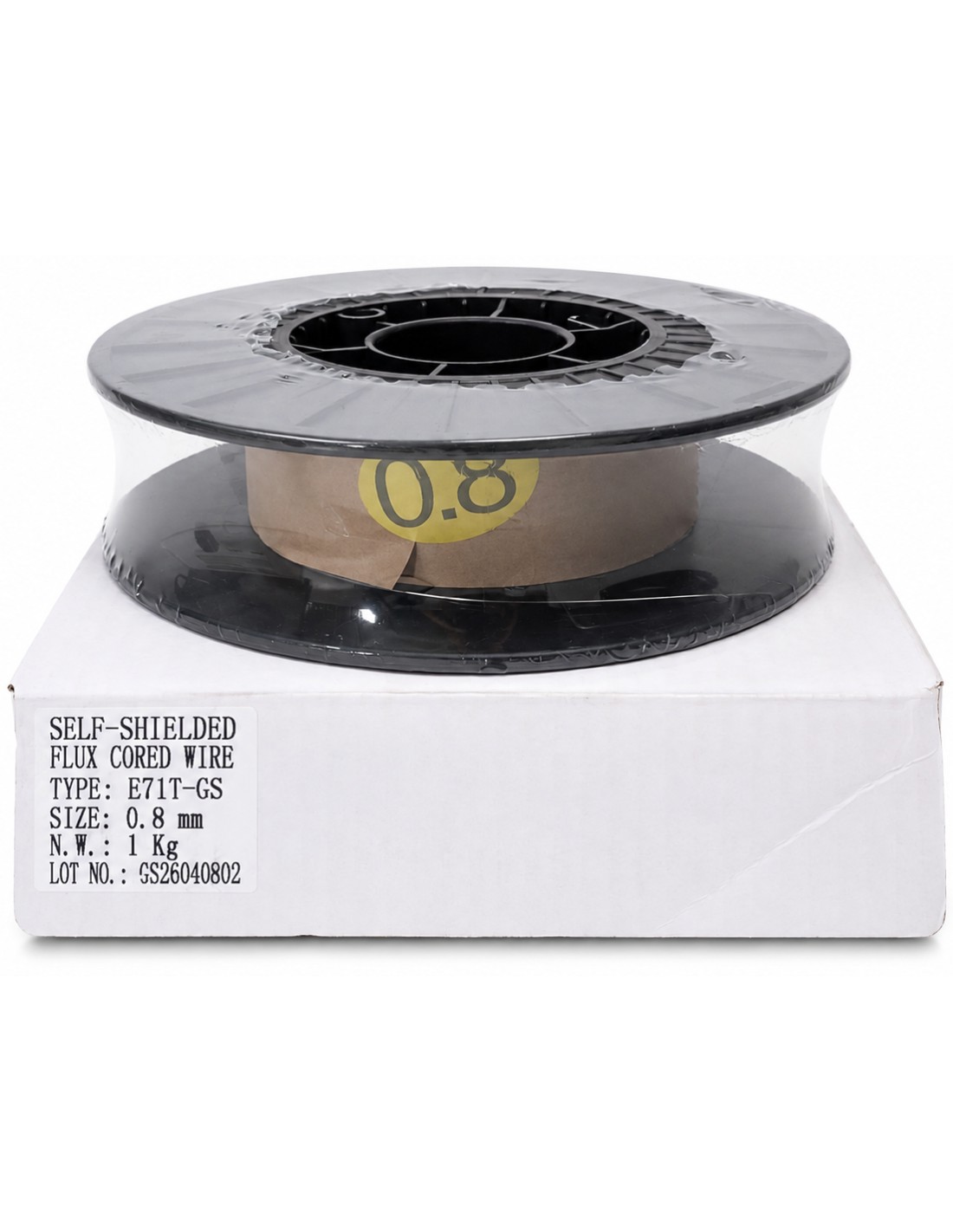

• Self-shielded welding wire D200 0.8 mm 1.0 kg
• Tightening tool
• User manual EN/LT
