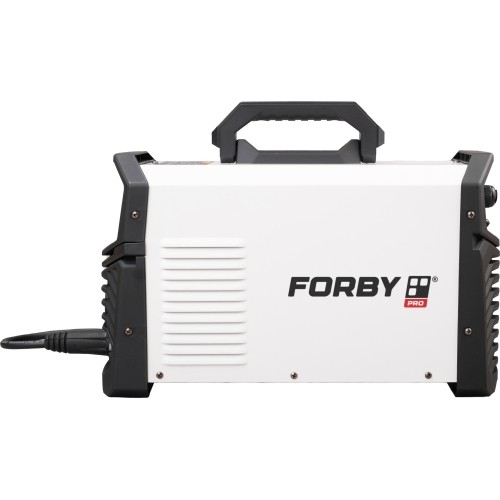

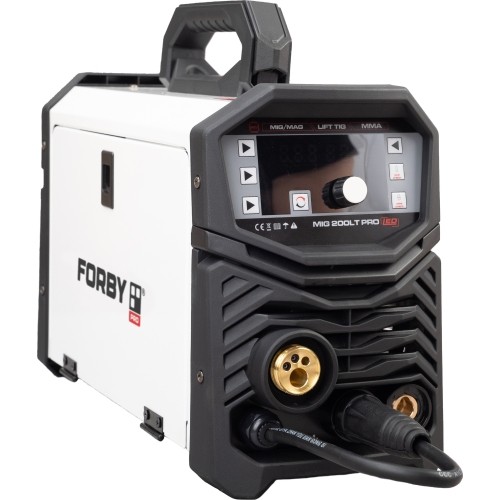

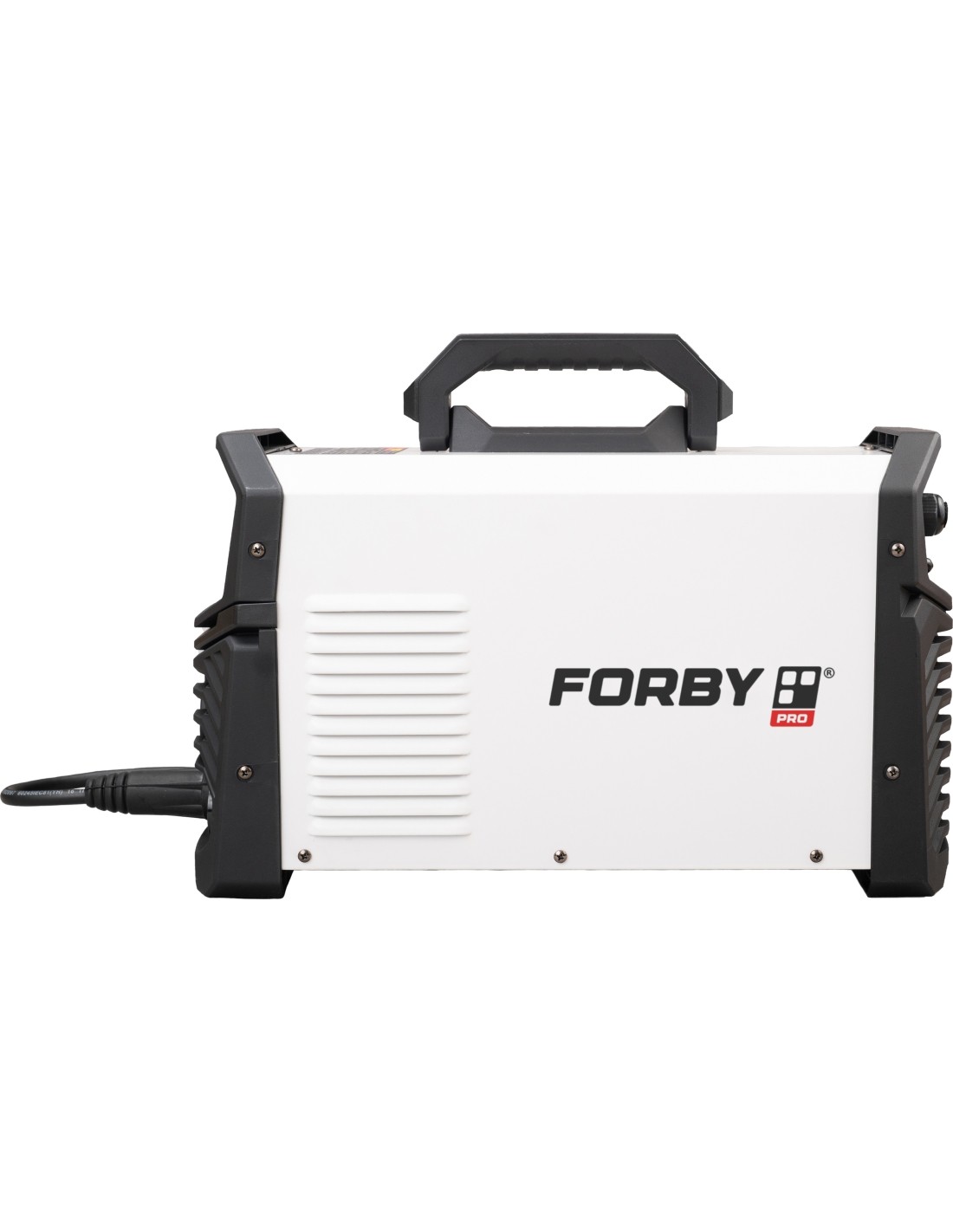

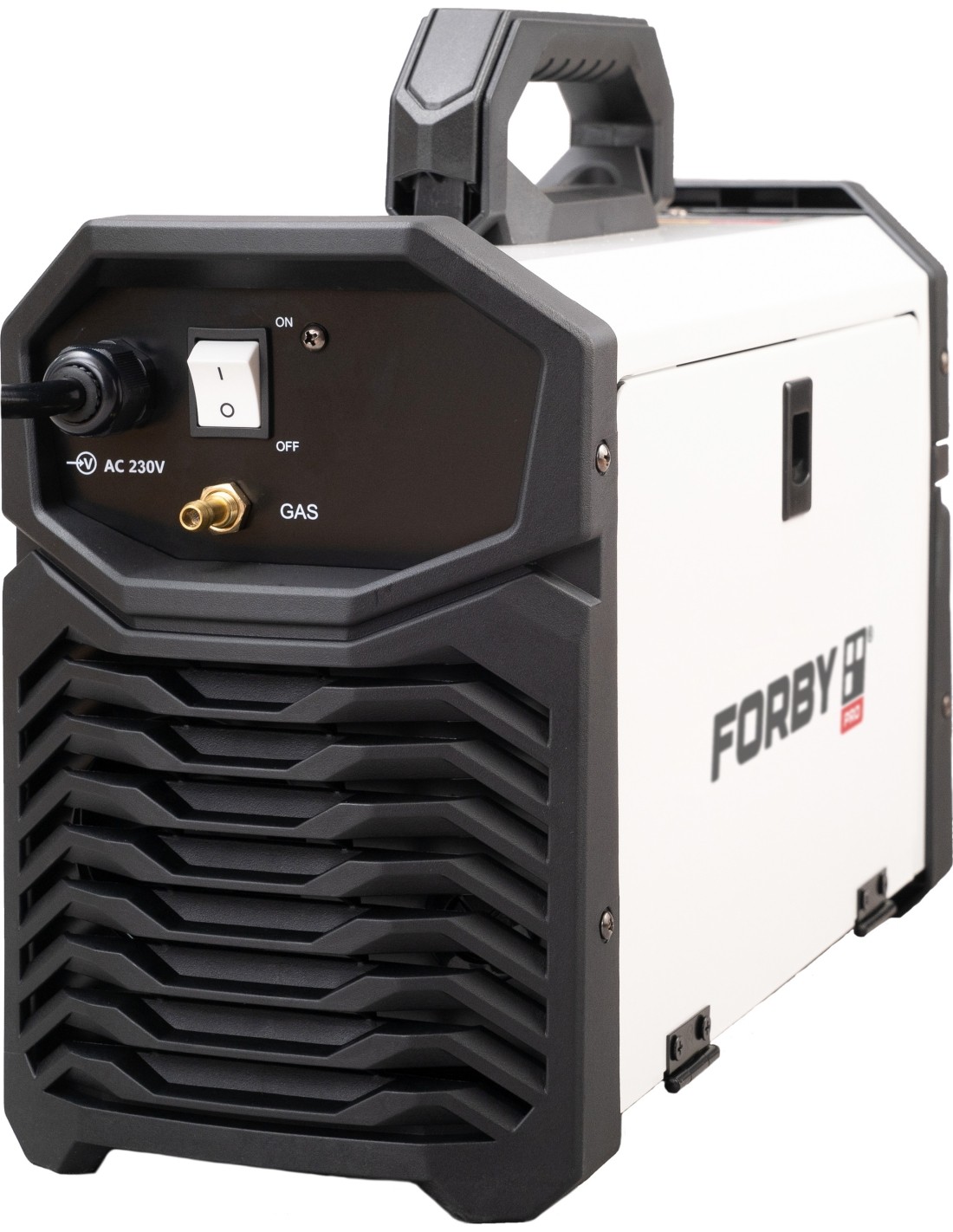

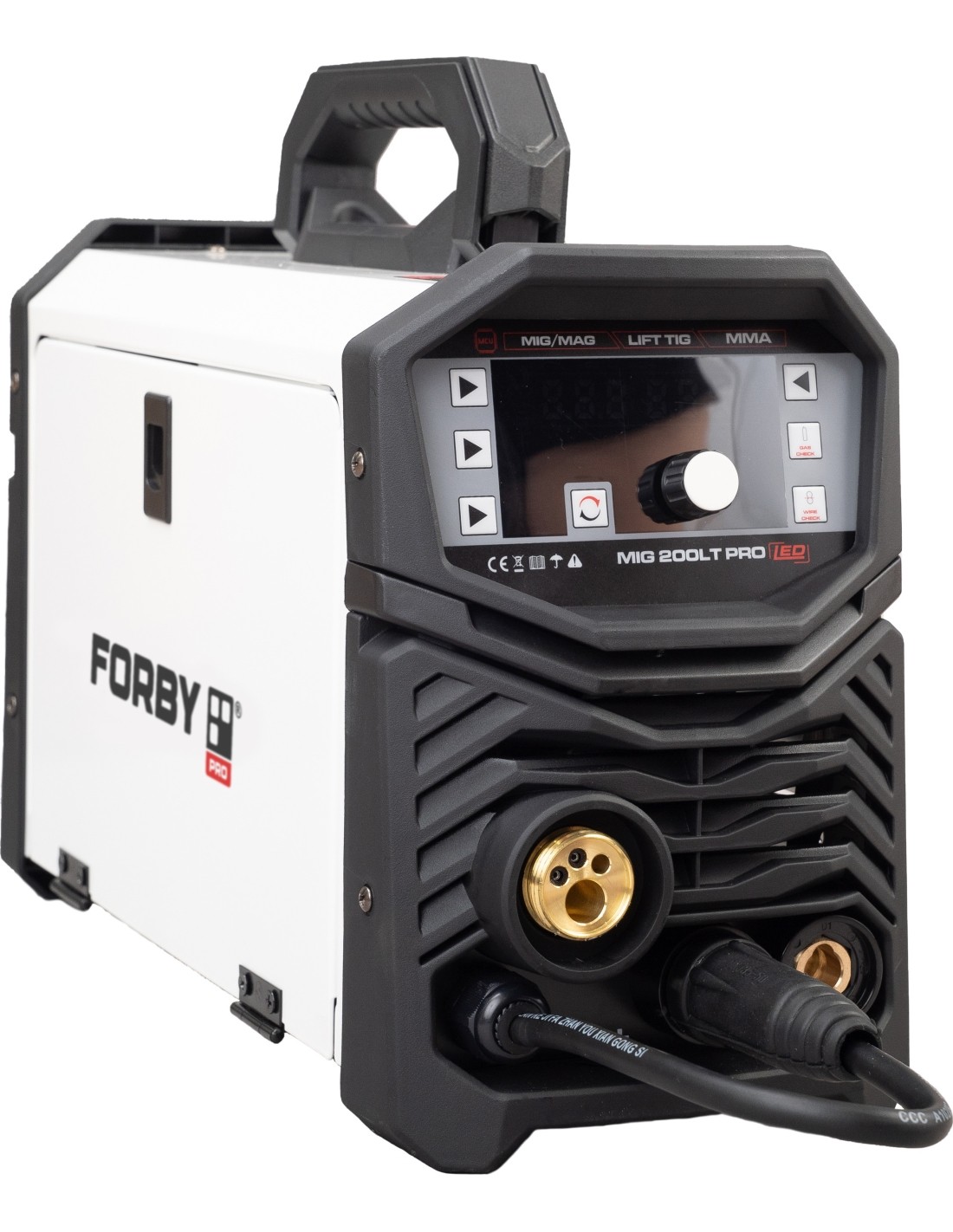

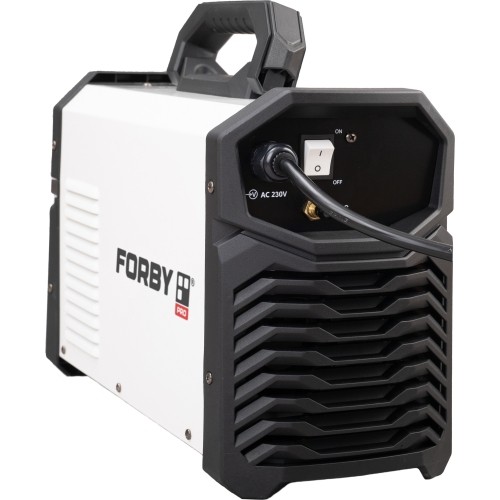

Semi-automatic welding machine FORBY® MIG 200LT PRO (200A - 60%) (synergic)

The welding machine is an inverter type and uses advanced IGBT technology. The inverter converts the 50Hz/60Hz AC mains voltage into DC voltage. A high-frequency (20 kHz) converter then transforms it back into AC voltage.

IGBT technology allows welding parameters to be adjusted efficiently, keeps the arc stable and reduces energy losses.

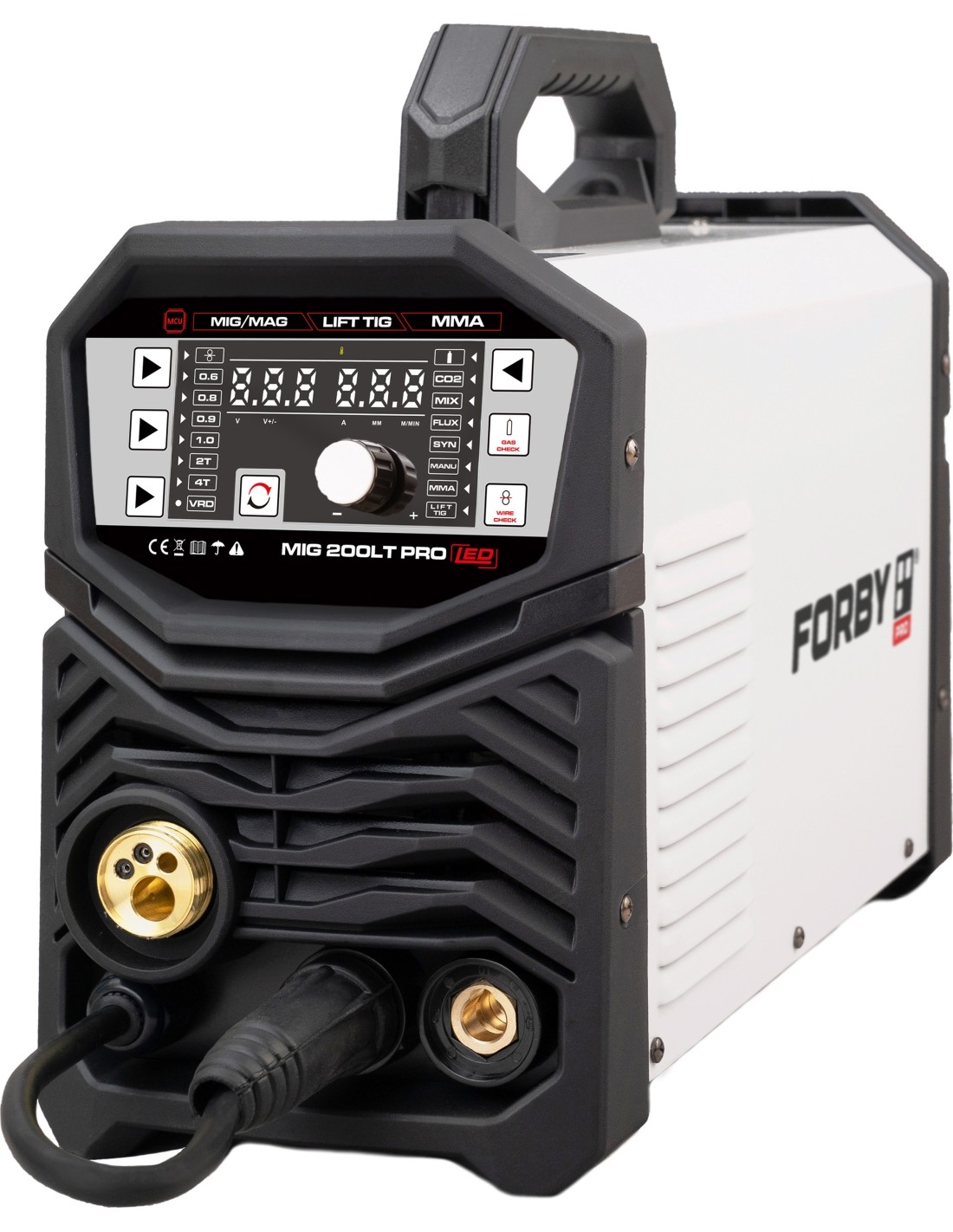

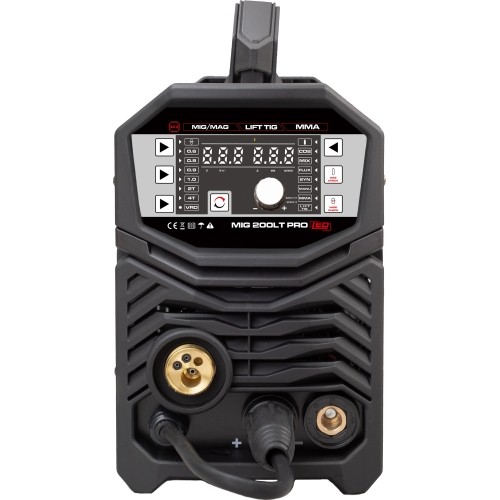

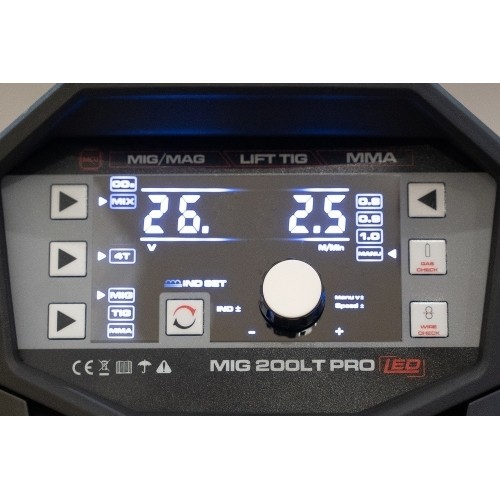

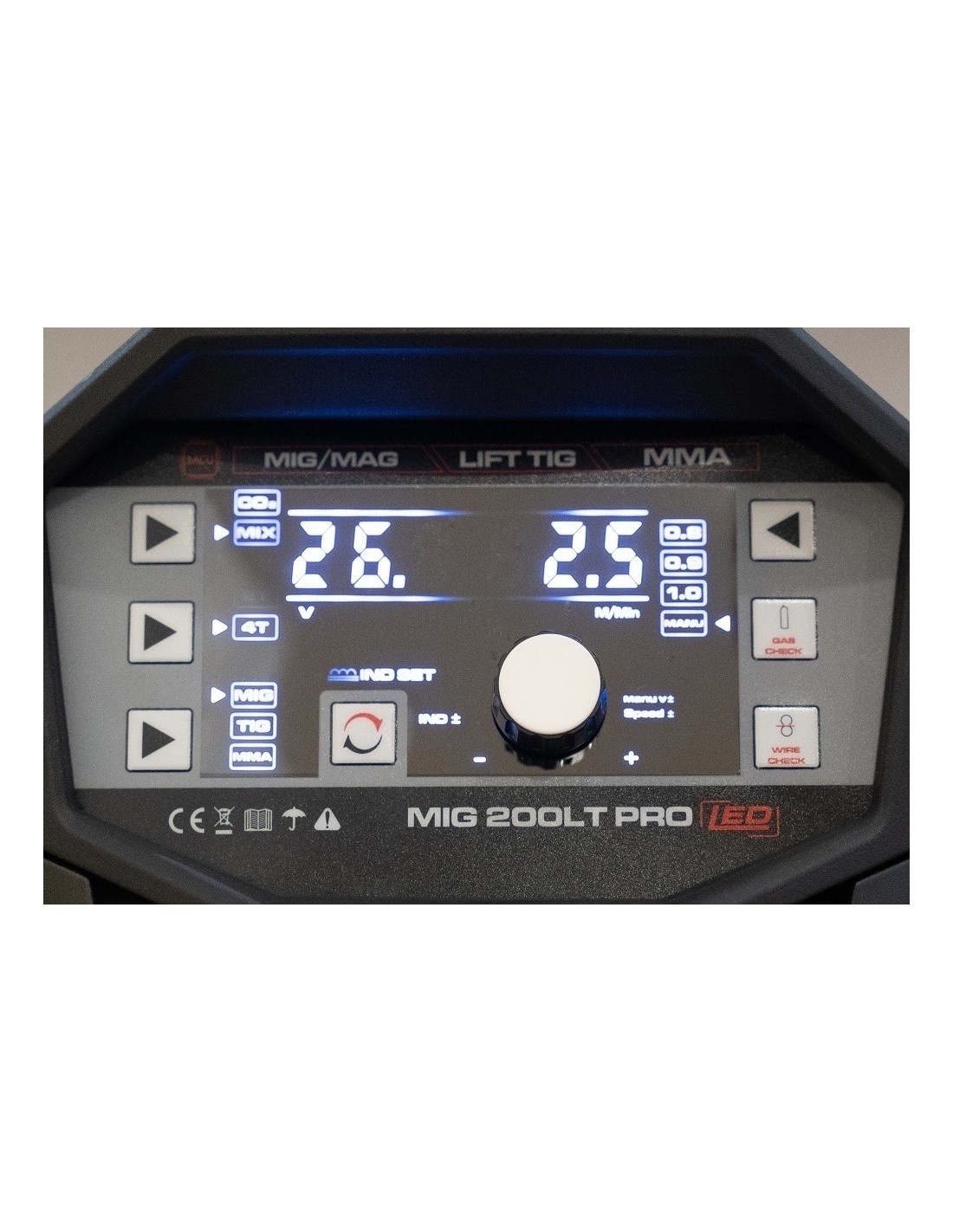

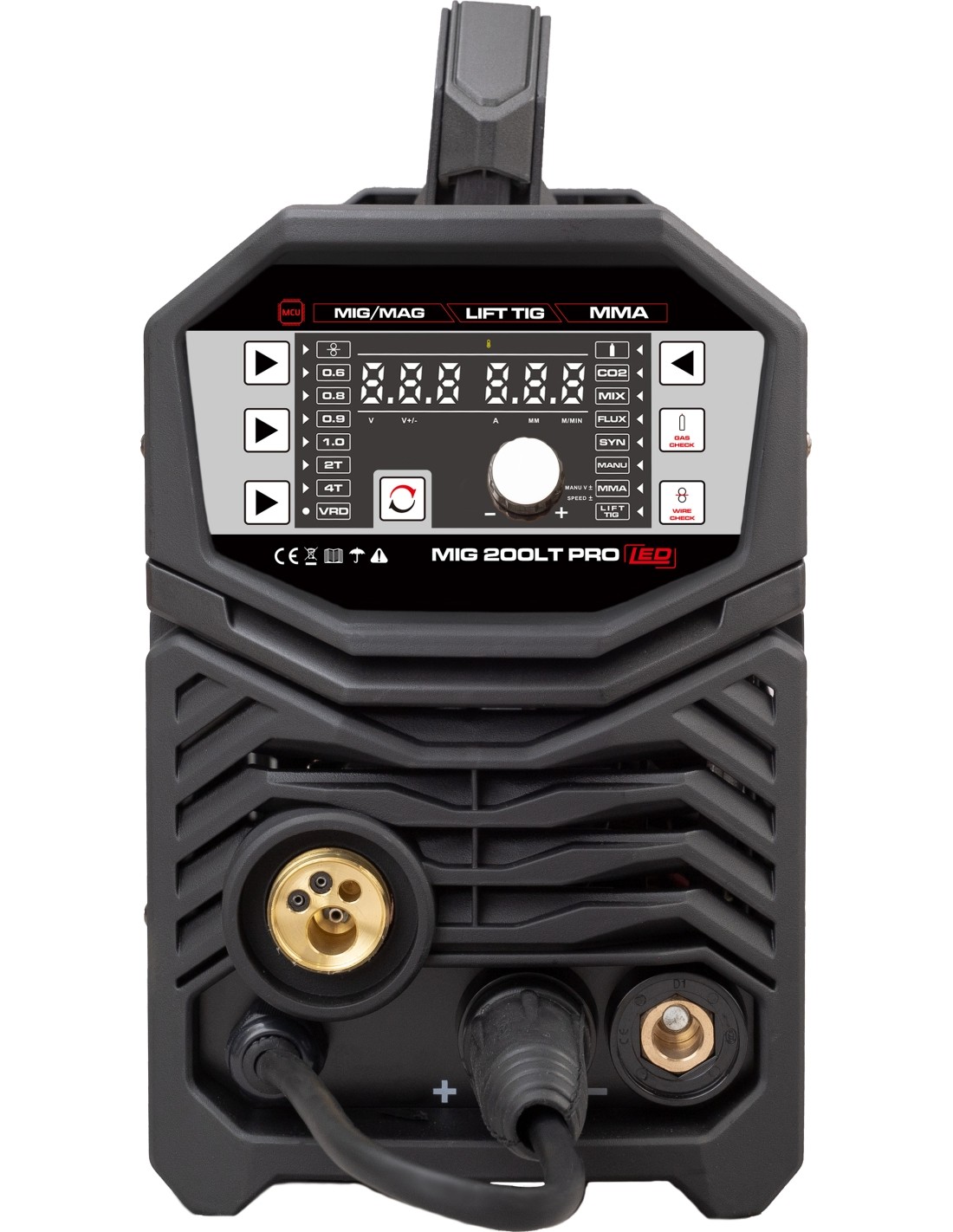

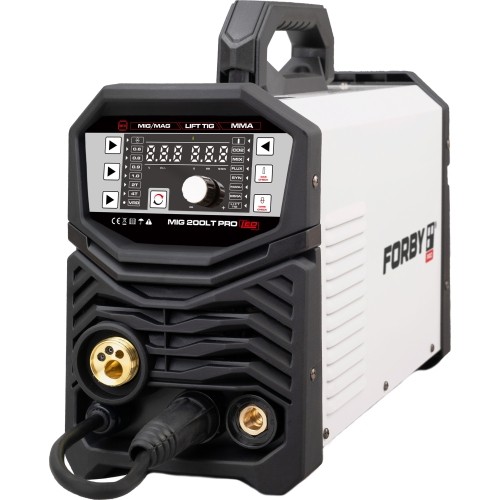

LED panel controls and functions

Digital LED control panel with clear symbols and buttons for easy operation

1. Button - selects the welding mode MIG/MMA/LIFT TIG
2. Button - selects the 2T/4T/VRD function

2T / 4T operating modes for long welds and less operator fatigue.

VRD function (in MMA mode) for greater safety when working in damp environments.

3. Button - selects the gas type: CO2 / MIX gas / No gas
4. Button - selects the wire diameter 0.6/0.8/0.9/1.0 and manual MIG mode
5. Gas check function "Gas check"
6. Wire check function "Wire check"
7. Button - selects the Inductance / "Hot Start" / Arc Force function
8. Knob - adjusts fine voltage / welding current and voltage / wire feed speed / inductance / "Hot Start" / "Arc Force" (easier ignition and a more stable arc).

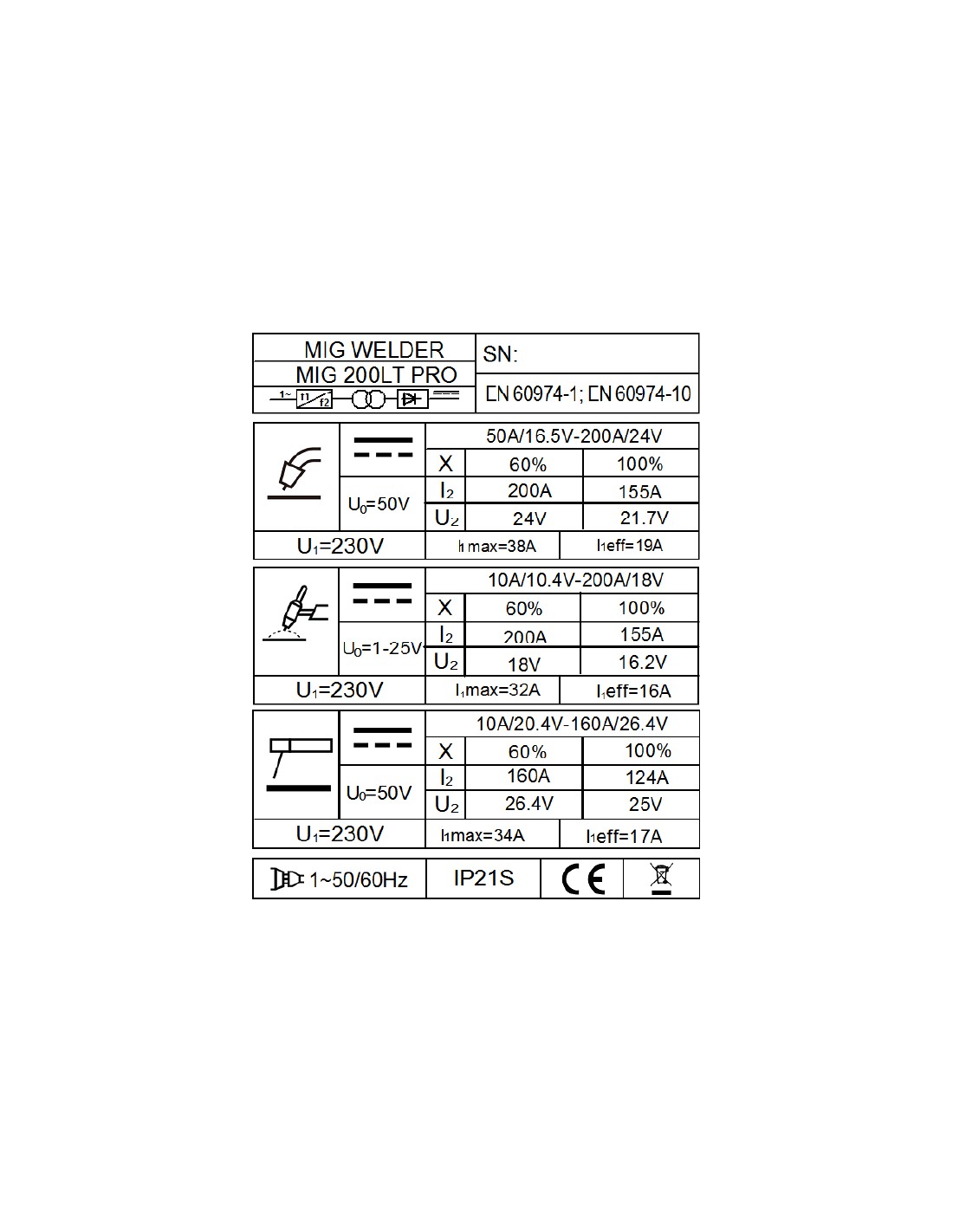

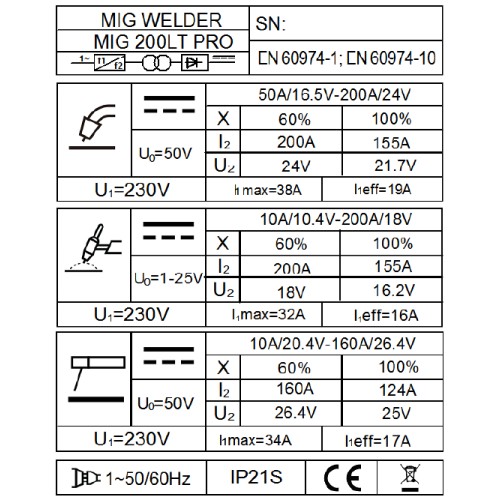

Main parameters of the operating modes:

MIG/MAG (with gas) mode

• Current range: 50 A - 200 A
• Current (I₂) at 60% duty cycle: 200 A
• Current (I₂) at 100% duty cycle: 155 A
• Voltage (U₂):

-24 V @ 60 %

-21.7 V @ 100 %

• Open-circuit voltage (U₀): 50 V
• Maximum input current (Imax): 38 A
• Effective input current (Ieff): 19 A

MMA (stick electrode) mode

• Current range: 10 A - 200 A
• Current (I₂) at 60% duty cycle: 200 A
• Current (I₂) at 100% duty cycle: 155 A
• Voltage (U₂):

-18 V @ 60 %

-16.2 V @ 100 %

• Open-circuit voltage (U₀): 75 V (1-25 V with VRD)
• Maximum input current (Imax): 32 A
• Effective input current (Ieff): 16 A

TIG (Lift-TIG) mode

• Current range: 10 A - 160 A
• Current (I₂) at 60% duty cycle: 160 A
• Current (I₂) at 100% duty cycle: 124 A
• Voltage (U₂):

-26.4 V @ 60 %

-25 V @ 100 %

• Open-circuit voltage (U₀): 50 V
• Maximum input current (Imax): 34 A
• Effective input current (Ieff): 17 A

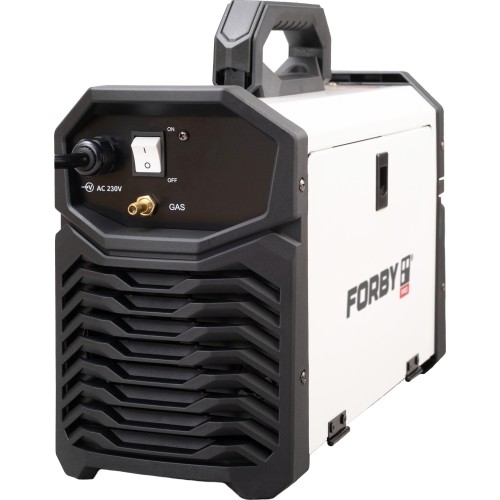

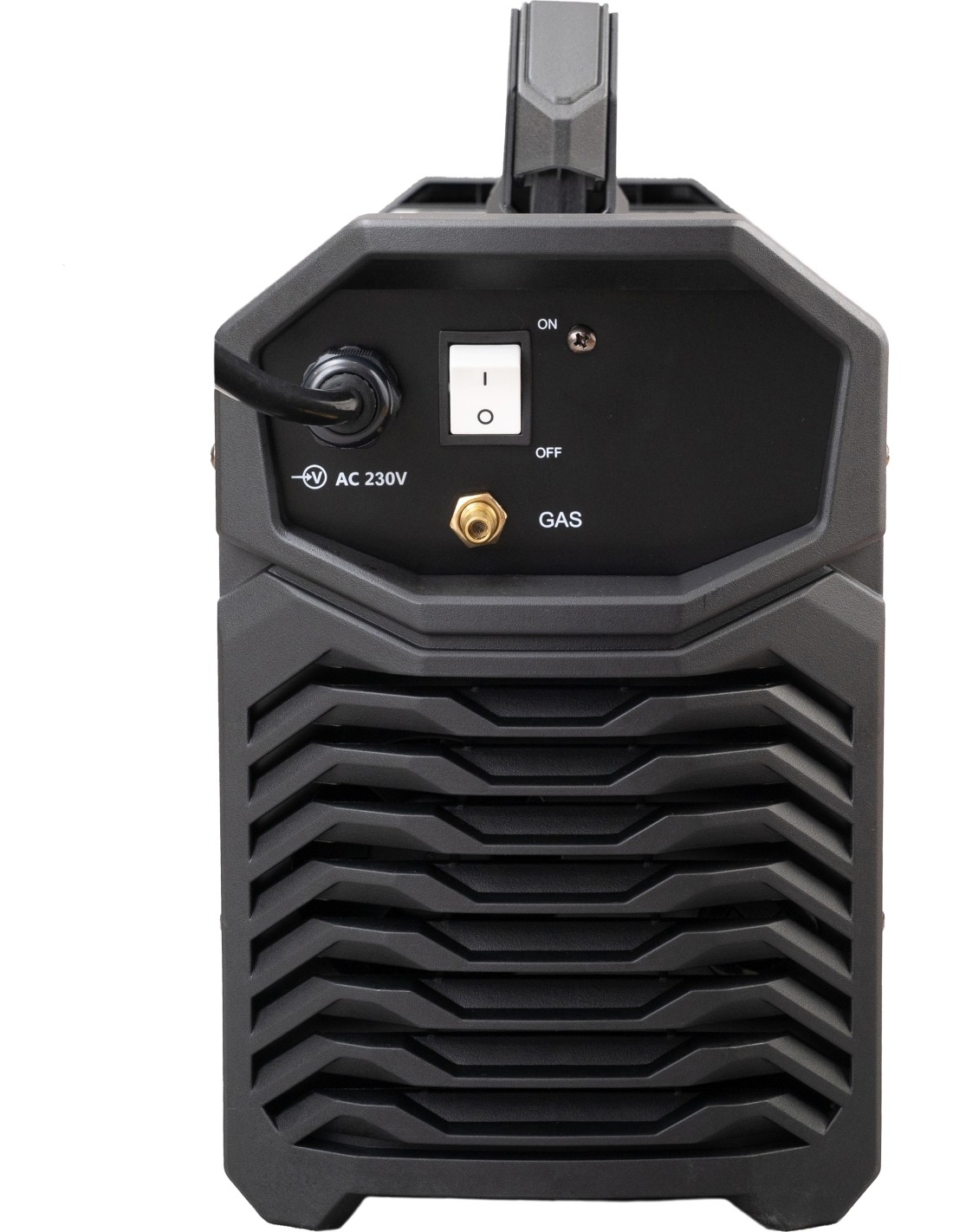

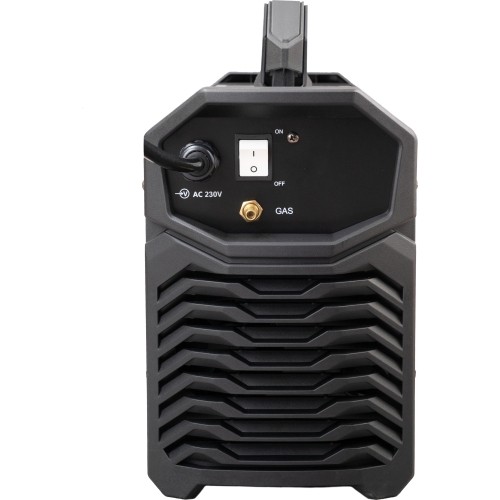

QUICK AND EASY GAS HOSE CONNECTION

1. The integrated gas quick coupling lets you connect or disconnect the gas hose quickly and easily. This shortens setup time and makes the machine easier to move and transport.

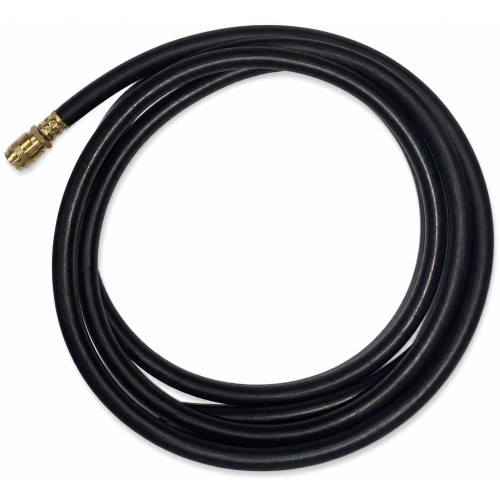

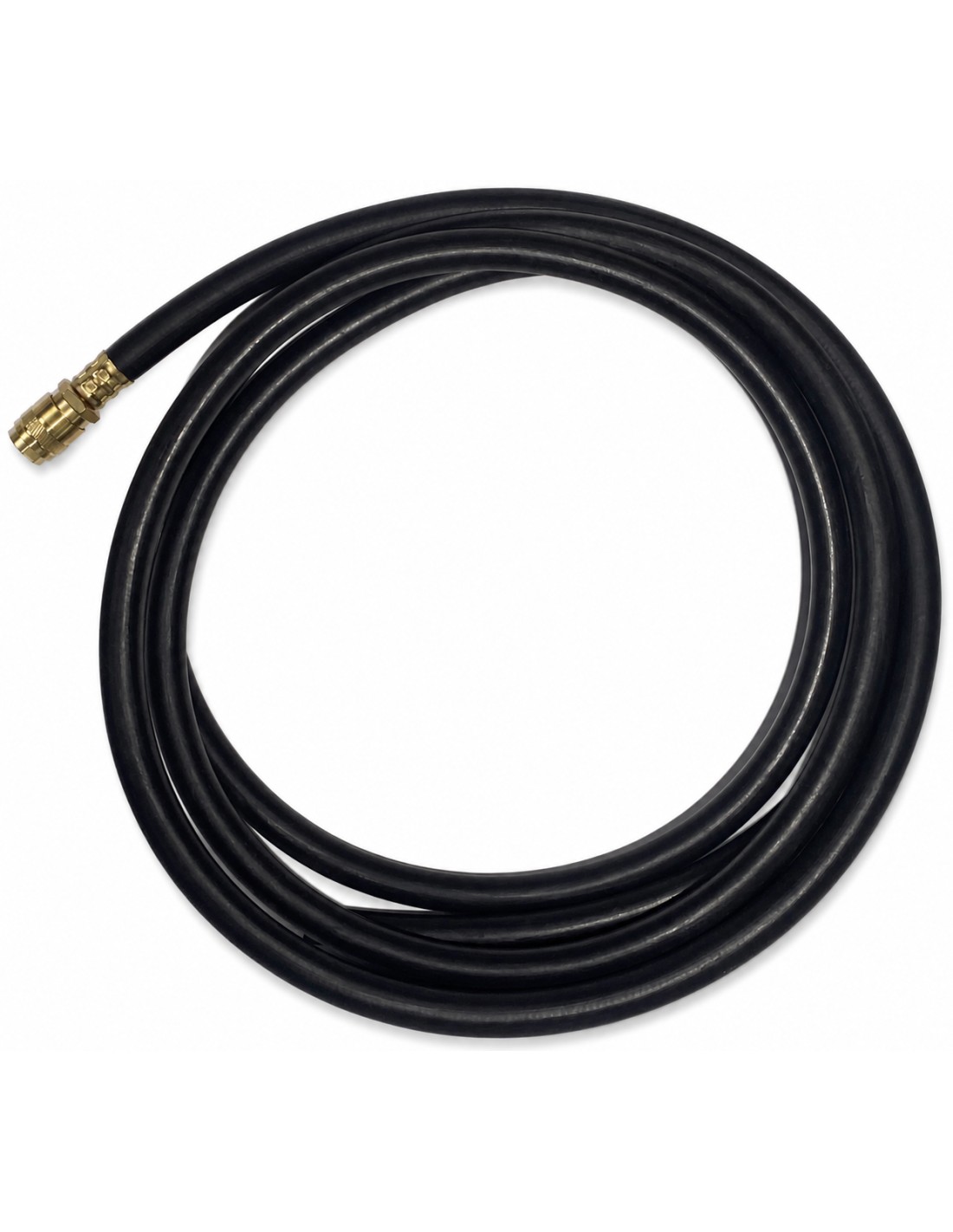

2. A 3-metre pressure-resistant gas hose is included with a quick coupling on the machine side. The hose length gives you more freedom to position the welder and the gas cylinder at the workplace.

STURDY CONNECTORS BUILT FOR HIGHER LOADS

Heavy-duty 35-50 welding cable connectors provide reliable contact and stable current transfer. They are built for higher loads and help reduce connector heating and energy losses. Budget machines often use 10-25 connectors. Compared with these, 35-50 welding cable connectors provide an extra reliability margin.

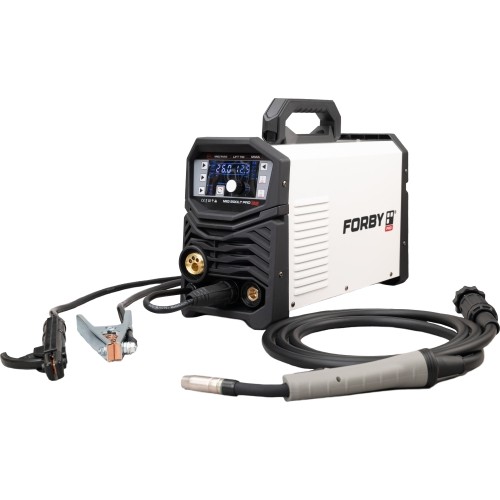

The standard EURO connector for the MIG torch carries the welding current, gas, wire feed and control contacts in a single connection. The torch can be quickly connected, disconnected or replaced with another compatible MIG torch, and the threaded lock keeps the connection secure during work.

FORBY welding equipment focuses on quality, durability and ease of use, so even compact machines use higher-grade solutions such as heavy-duty 35-50 cable connectors and a universal EURO connector for the MIG torch.

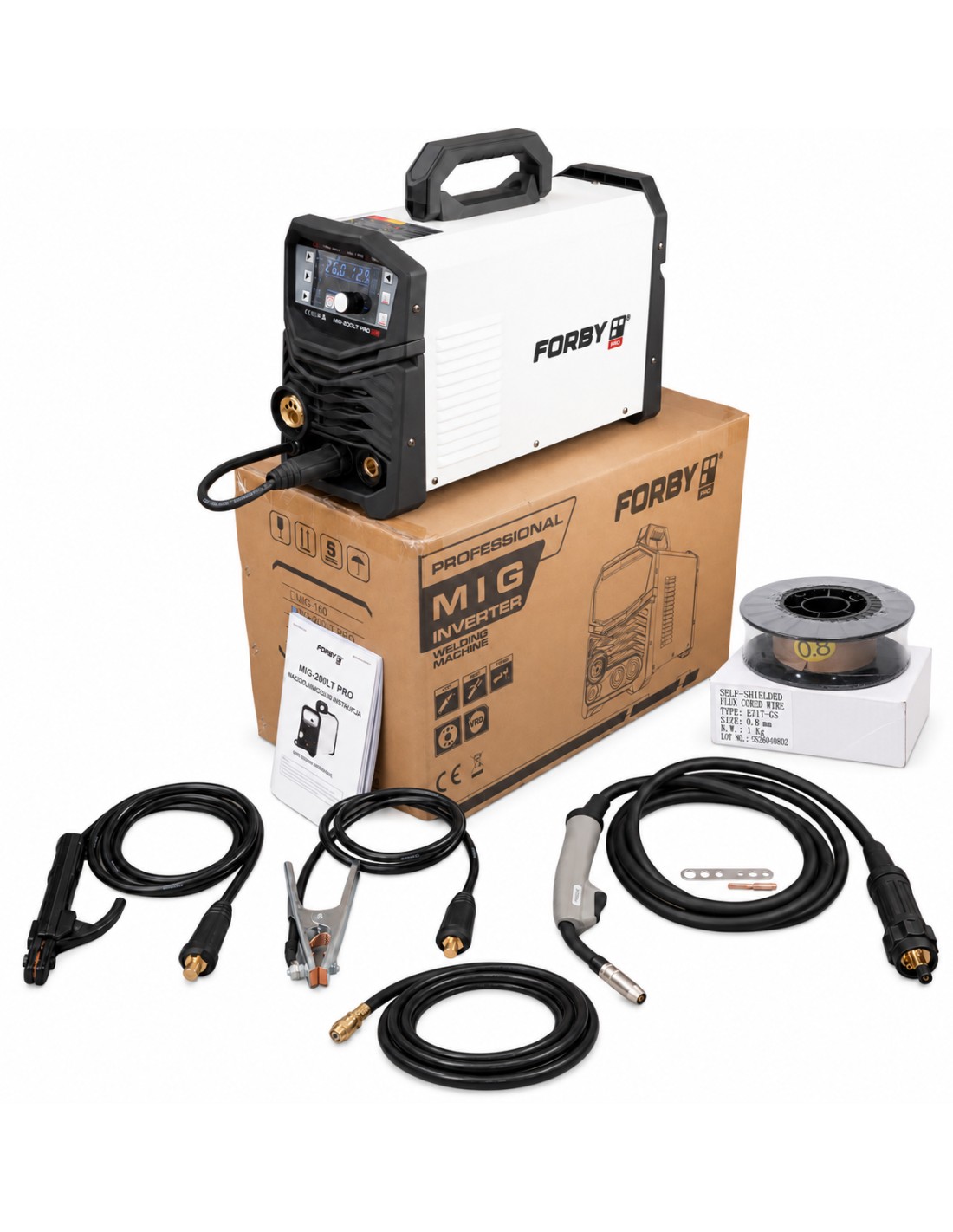

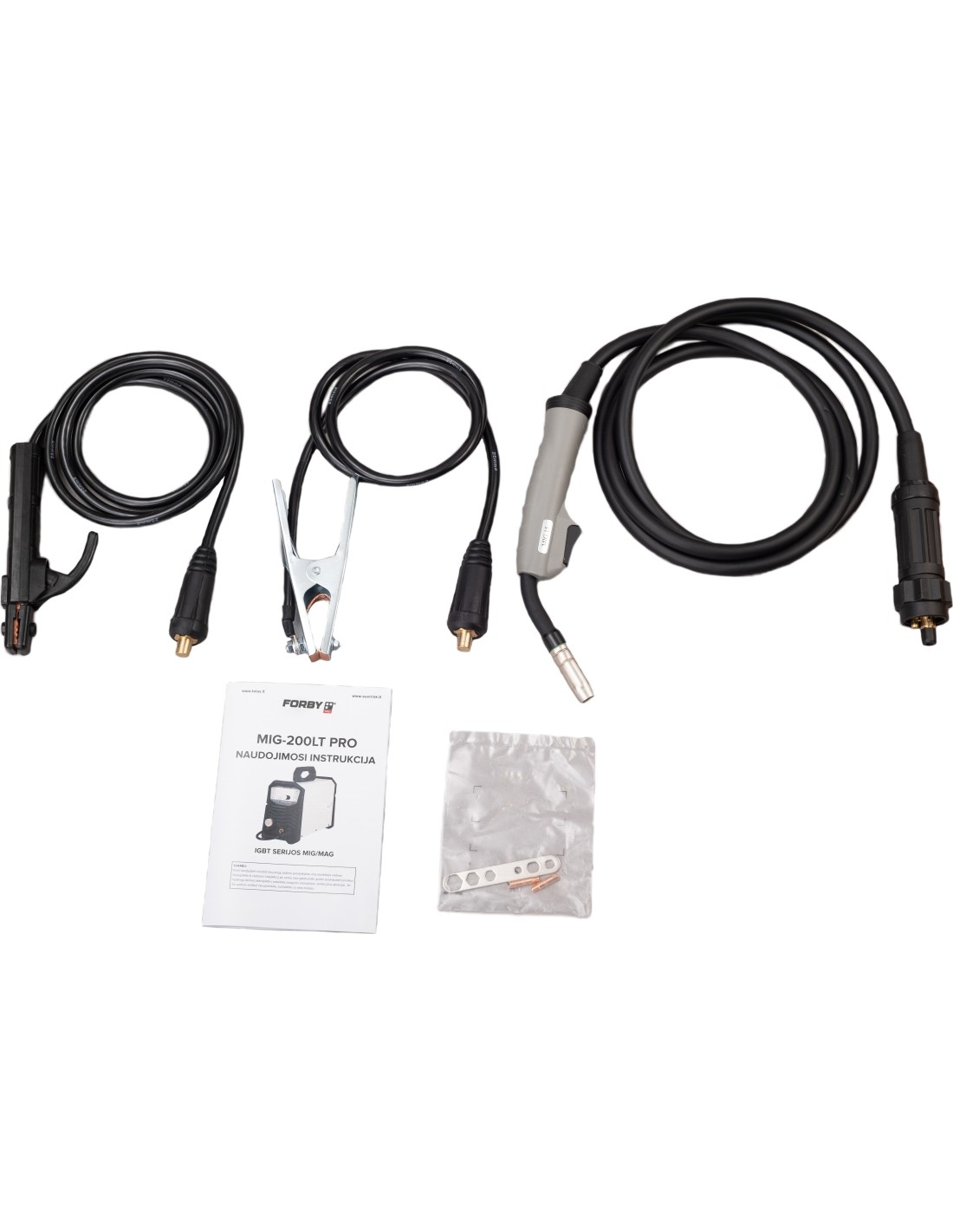

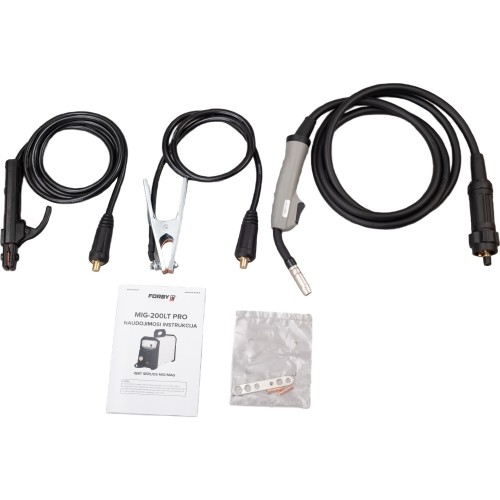

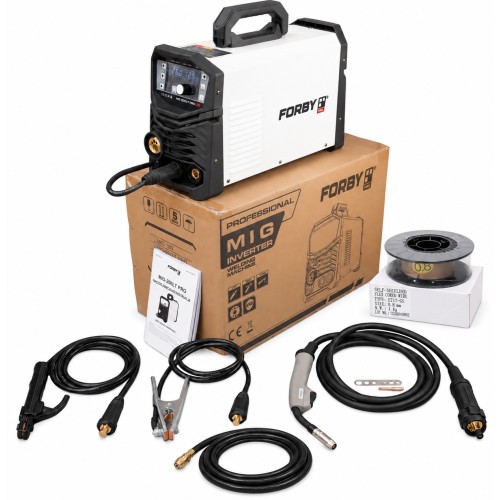

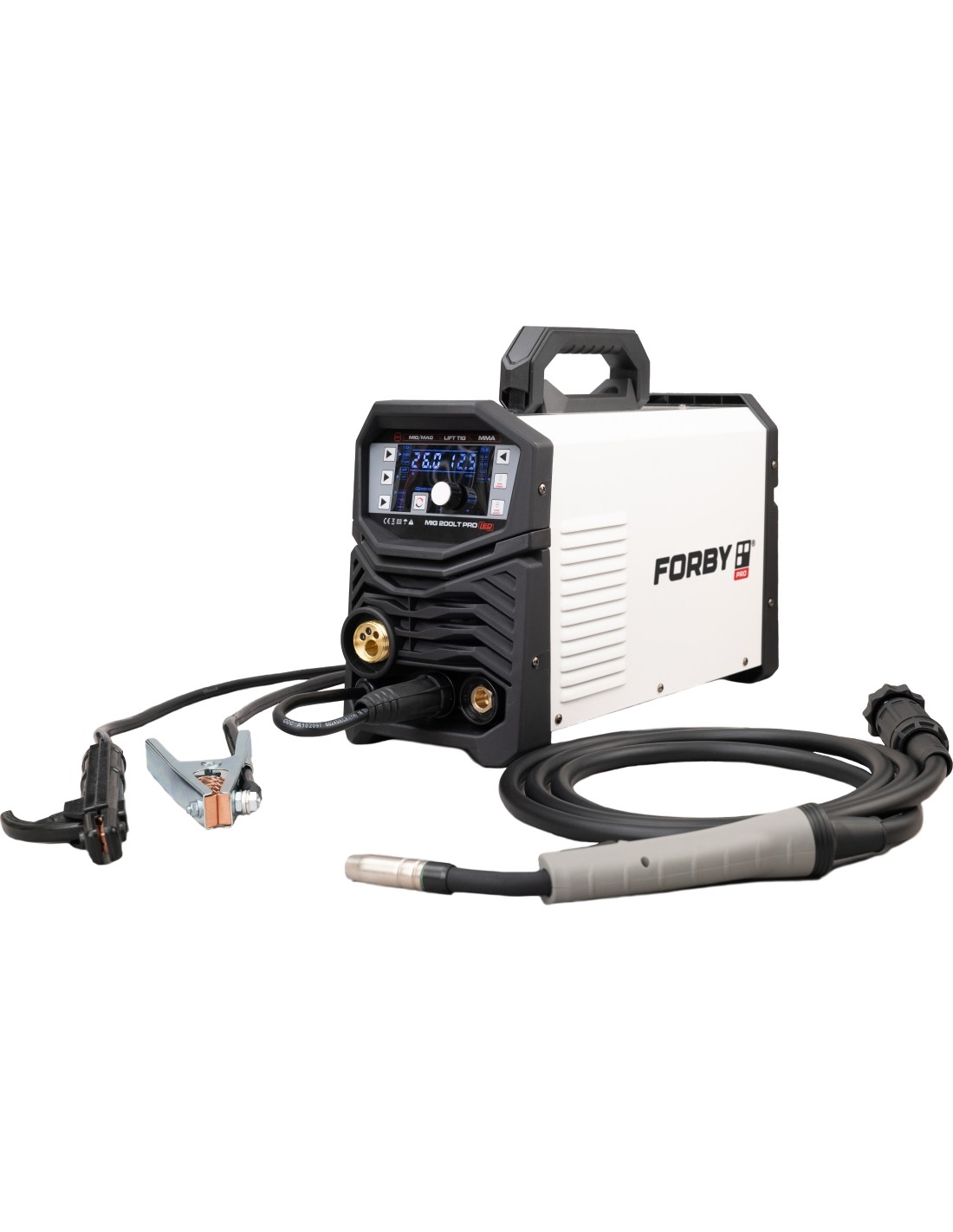

Package contents:

• Welding machine FORBY® MIG 200 LT PRO
• Earth clamp with 3 m cable, 300 A (25 mm² cable, DINSE 35-50 connector)
• MIG torch F15, 3 m (with consumables: nozzle, 0.8 mm contact tip, gas diffuser, steel liner)
• Electrode holder with 2.5 m cable, 200 A (25 mm² cable, DINSE 35-50 connector)
• Spare contact tips (0.8 mm and 1.0 mm)

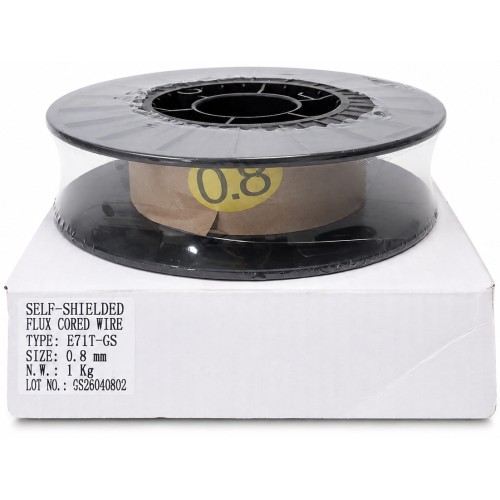

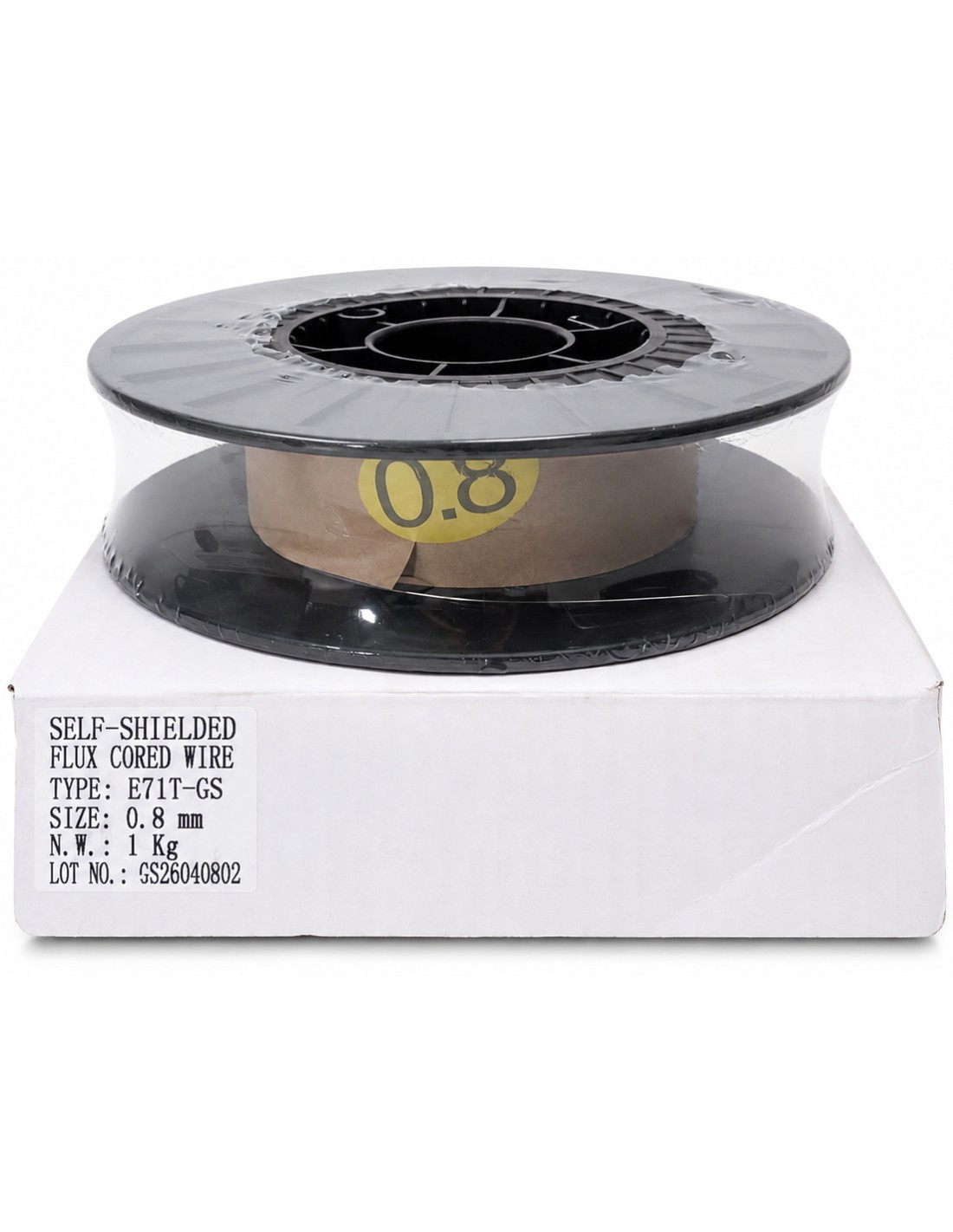

• Self-shielded welding wire D200 0.8 mm 1.0 kg
• 3-metre pressure-resistant gas hose with quick coupling (machine side)
• Tightening tool
• User manual EN/LT
