- Distance between centers
- 420 mm
- Taper of tailstock sleeve
- MT 2
- Travel of tailstock sleeve
- 50 mm
- Weight approx.
- 34 kg
- Machine dimension (W x D x H)
- 820 x 260 x 380 mm
- Motor power output S1 100%
- 0,37 kW (0,5 HP)
- Motor power input S6 40%
- 0,50 kW (0,68 HP)
- Spindle speeds
- L: 650 - 1450 rpm
- - over guideway
- 260 mm
- - over support
- 190 mm
- Spindle thread
- M 33 x 3,5 mm

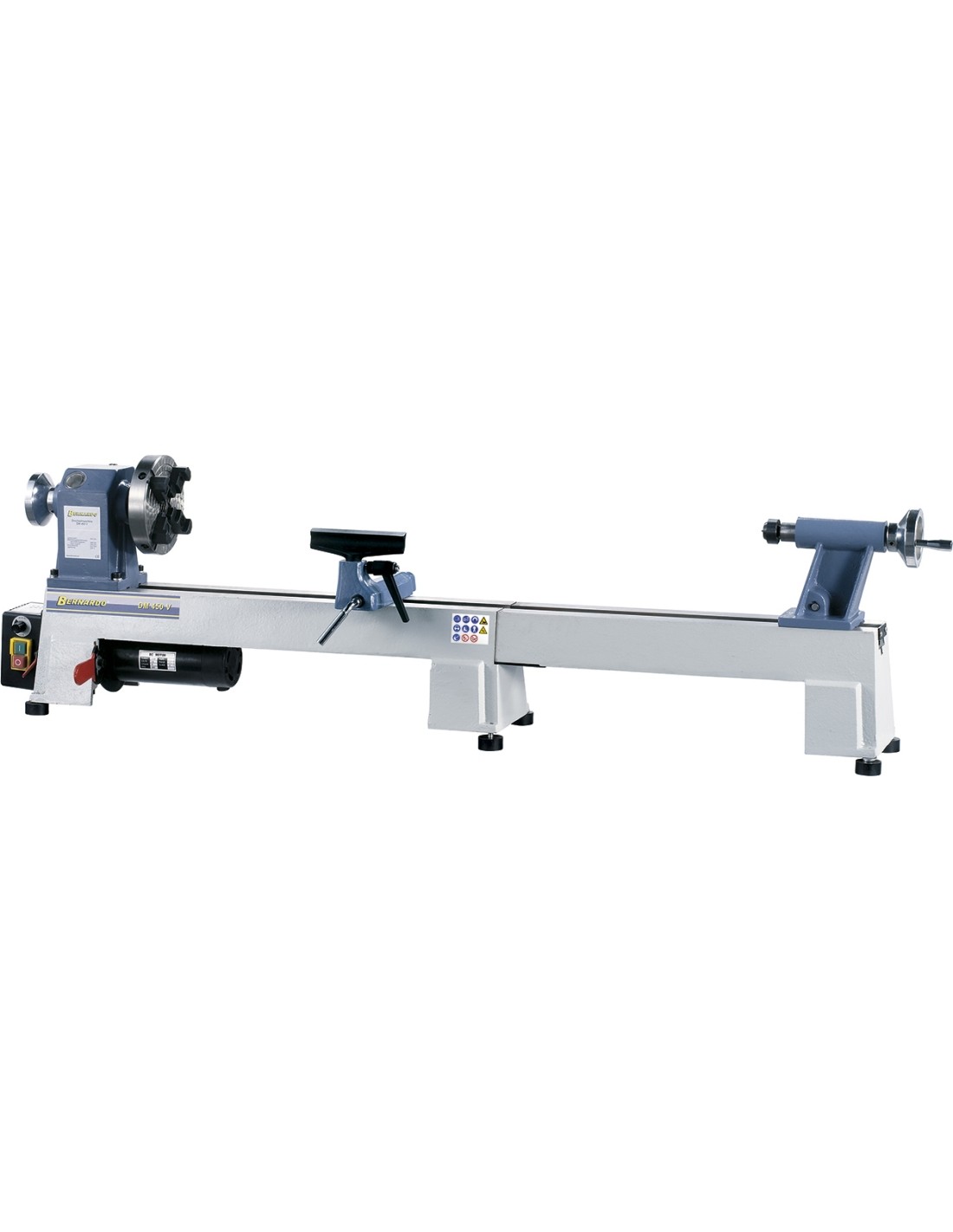

- Distance between centers with extension *
- 980 mm
- Speed steps
- 3
- Phase
- 230 V

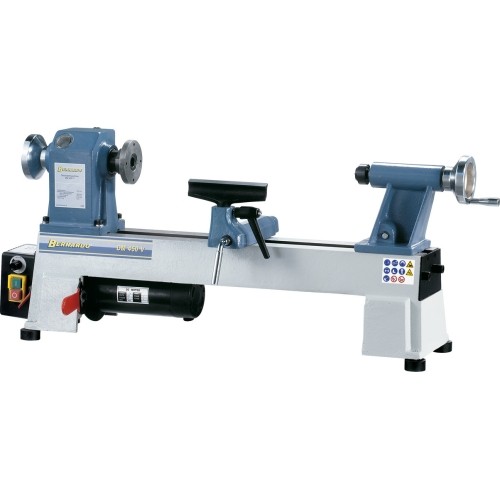

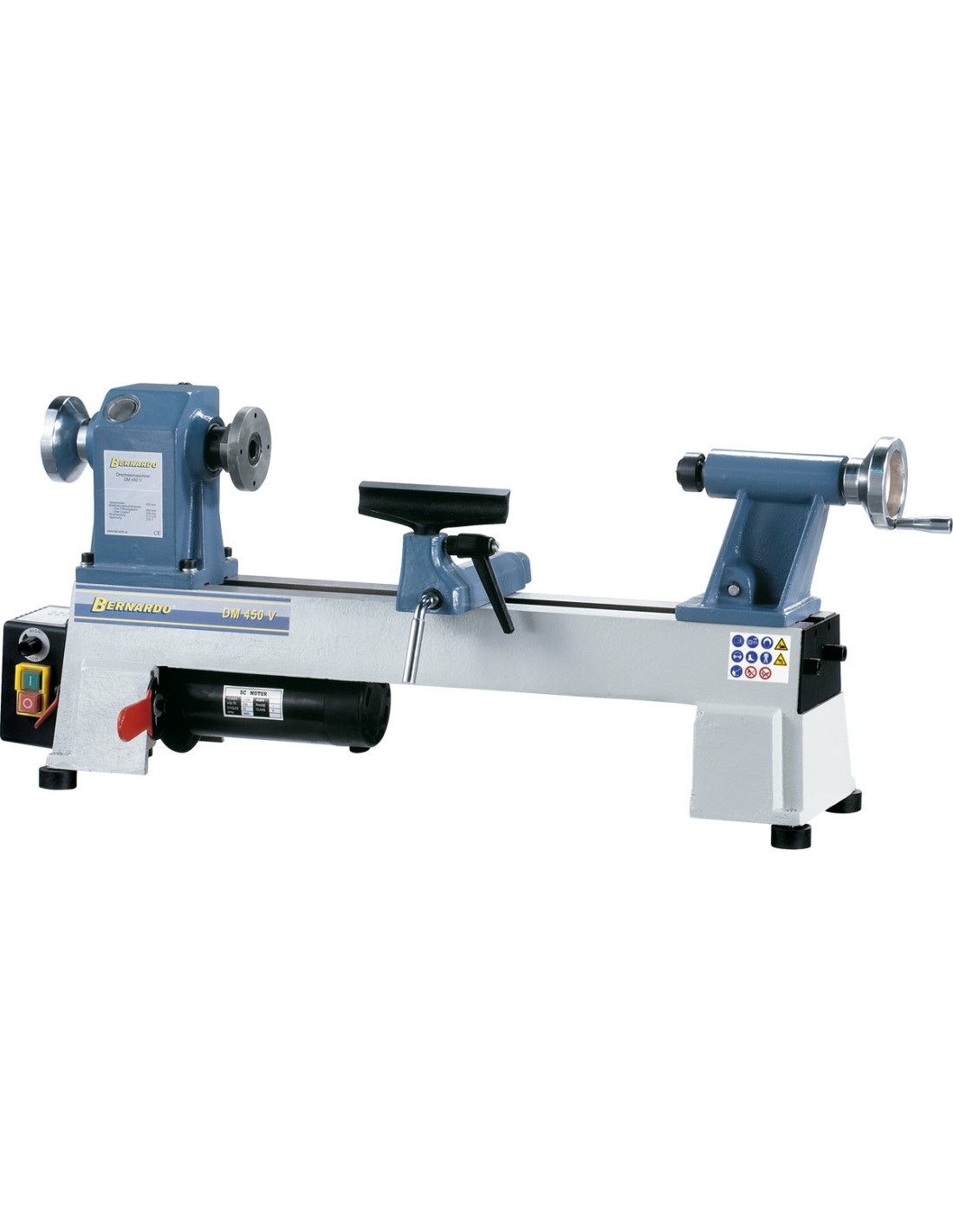

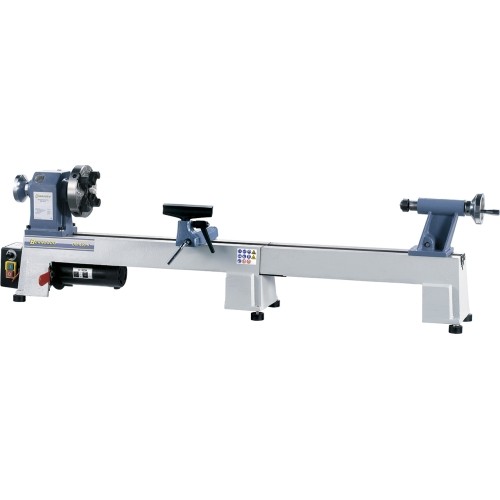

DM 450 V
1091867
Price
€621.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 18 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 34 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€10.00) Weight: 34 kg.
Description
Properties
- Ideal for craftsmen with high demands
- Comes complete with stepless speed adjustment

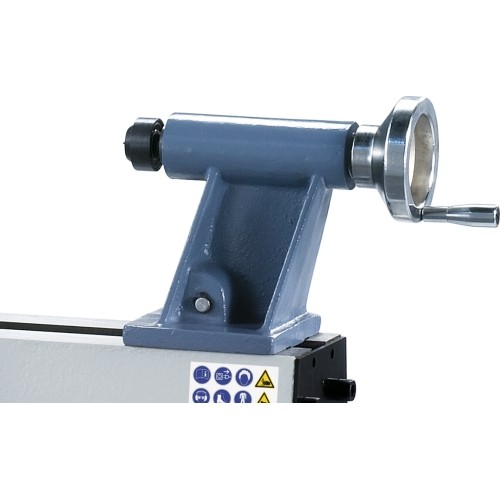

- Robust tailstock with MT 2 taper and quick clamping lever
- Solid construction eliminates vibrations

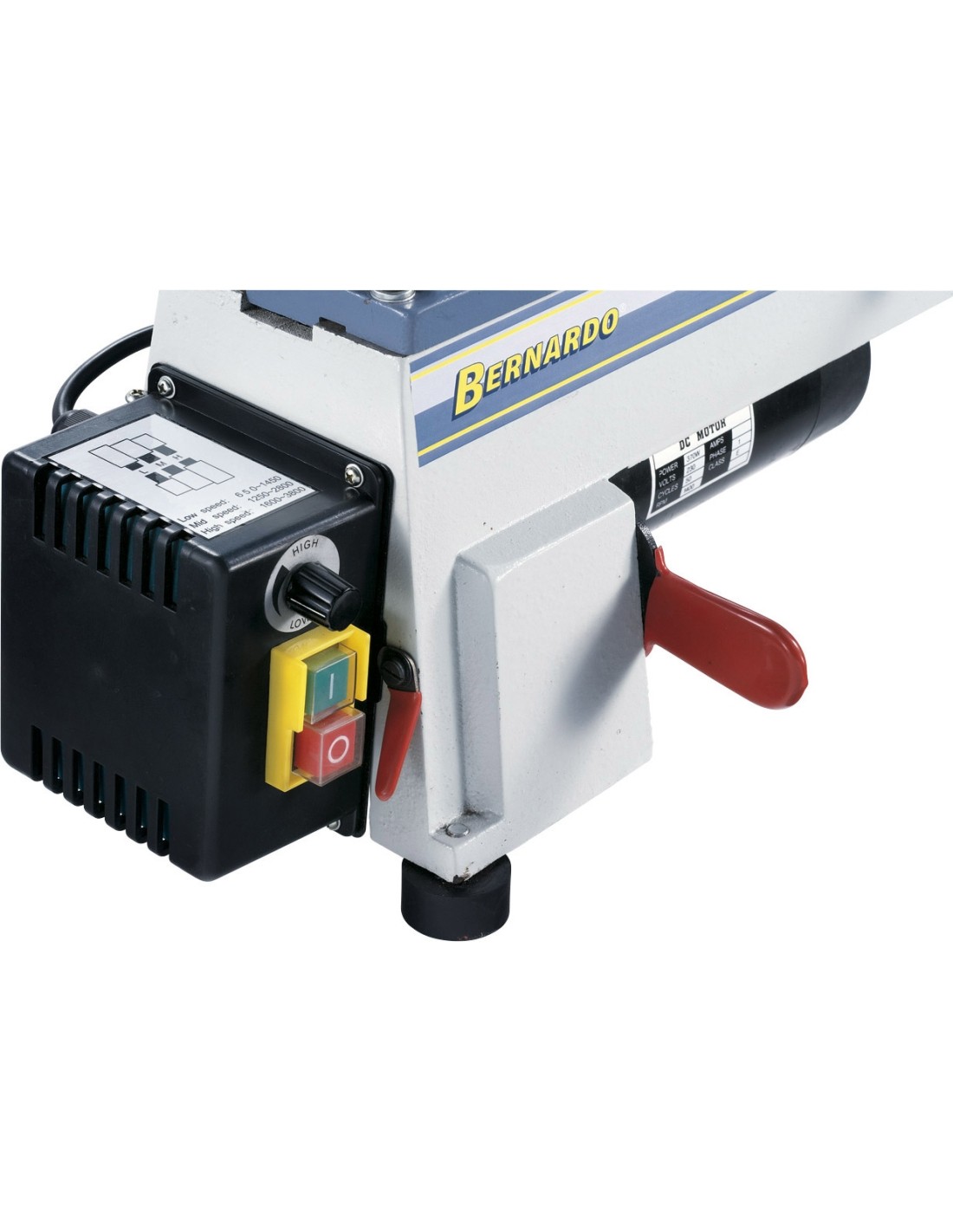

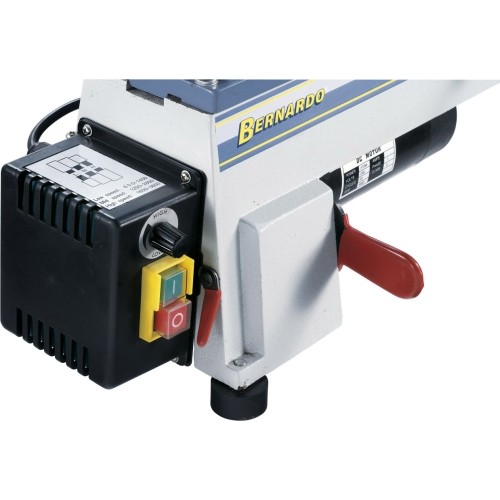

- Clearly arranged switches and control elements on the front of machine
- Tool rest 150 mm and face plate 75 mm are part of standard equipment
- Extensive range of extra equipment to widen the choice of applications

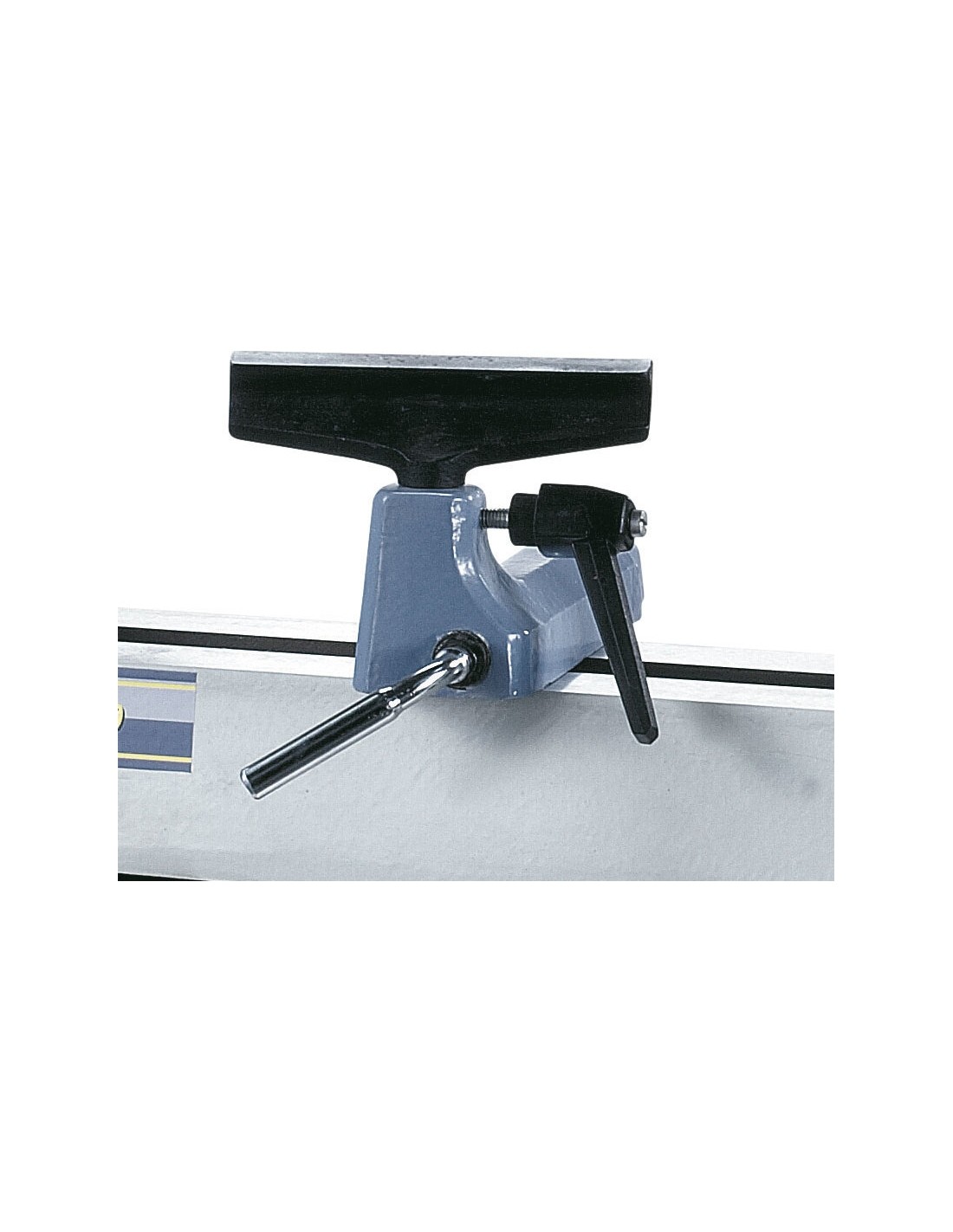

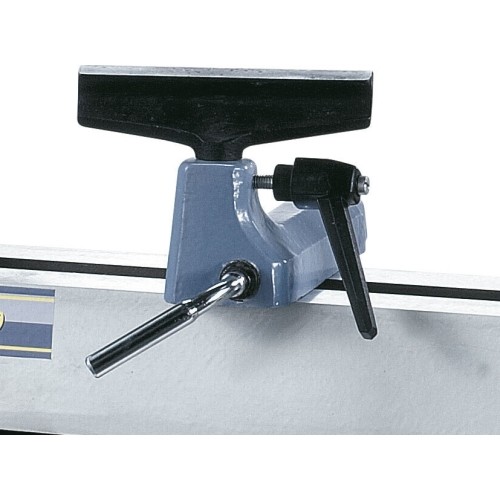

- Quick clamping lever allows for easy locking of tool rest
Standard accessories
- Tool rest 150 mm
- Face plate 75 mm
- Spore drive center
- Live center
- Stepless speed adjustment
- Tools
