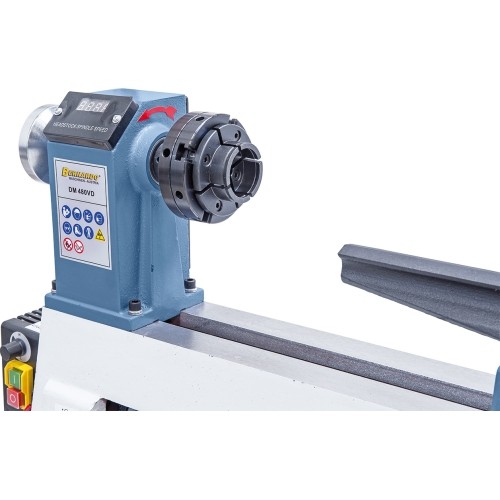

DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
  • Online only
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD
DM 480 VD

Distance between centers
460 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
55 mm
Weight approx.
38 kg
Machine dimension (W x D x H)
950 x 300 x 410 mm
Motor power output S1 100%
0,75 kW (1,0 HP)
Motor power input S6 40%
1,1 kW (1,5 HP)
Spindle speeds
300 - 3700 rpm, stepless
- over guideway
310 mm
- over support
240 mm
Spindle thread
M 33 x 3,5 mm
Distance between centers with extension *
1020 mm
Speed steps
L: 300 - 1200 1/min, H: 1000 - 3700 1/min
Phase
230 V

DM 480 VD

1090931
Price €640.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, september 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 38 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€10.00)
Weight: 38 kg.

Description

Properties

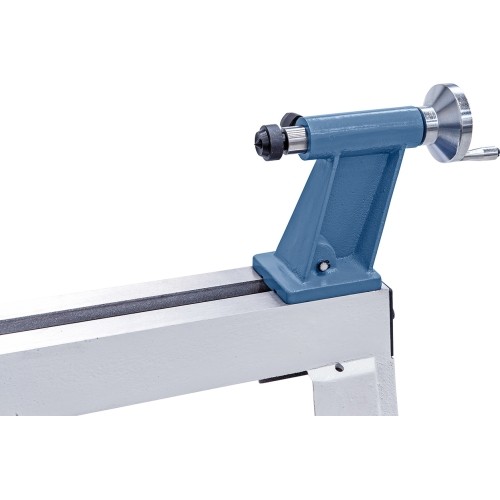

  • Quick clamping lever allows for fast clamping of tailstock to machine bed
  • Large speed range (2 steps) from 300 – 3700 rpm
  • Tailstock spindle features hole to allow processing of long workpieces
  • Machine bed, tailstock and headstock made from rigid grey cast iron to eliminate vibrations
  • Robust spindle, mounted with precision to ensure concentricity

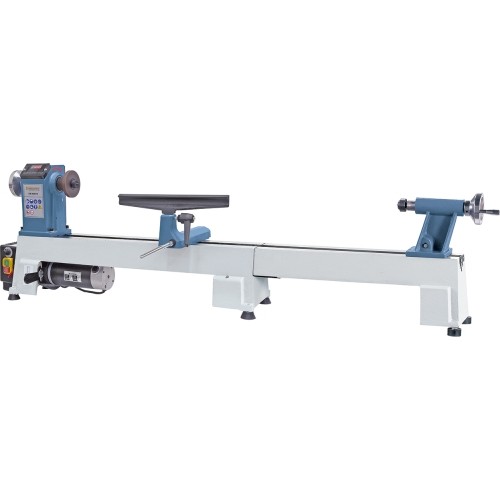

  • Bed extension optionally available to extend distance between centers to 1020 mm

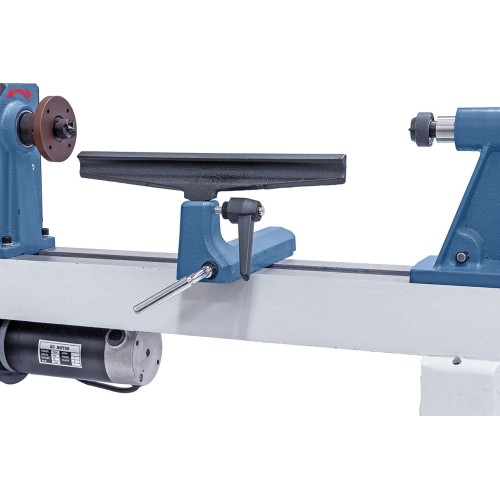

  • Quick clamping lever allows for easy locking of tool rest

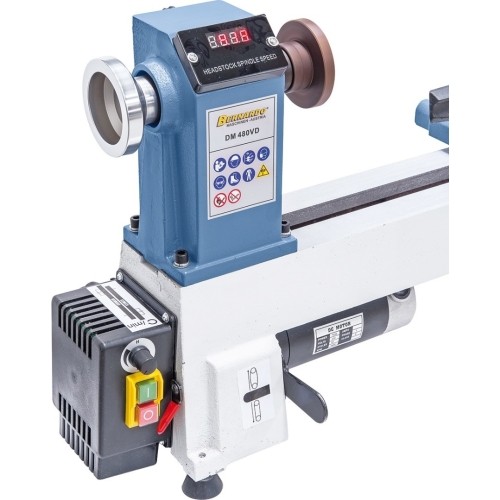

  • Digital display allows for convenient adjustment of speed settings

Standard accessories

  • 2 pcs. tool rest 150 / 300 mm
  • Face plate 80 mm
  • Spore drive center
  • Live center
  • Stepless speed adjustment
  • LED speed indication
  • Tools
