Distance between centers
600 mm
Taper of tailstock sleeve
MK 2
Travel of tailstock sleeve
95 mm
Weight approx.
125 kg
Machine dimension (W x D x H)
1500 x 540 x 1180 mm
Spindle speed, stepless
250 – 720 rpm
Motor power output S1 100%
0,75 kW (1,0 HP)
Motor power input S6 40%
1,1 kW (1,5 HP)
Voltage
230 V
- over guideway
370 mm
- over support
270 mm
Spindle thread
M 33 x 3,5 mm

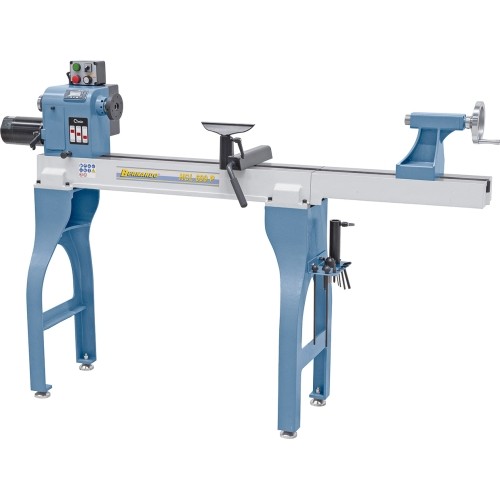

Distance between centers with extension *
1180 mm

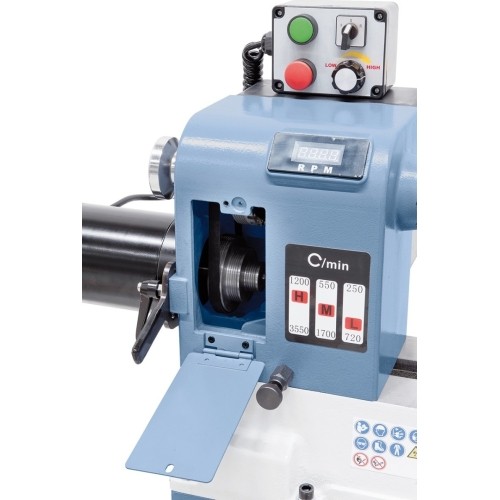

Speed steps
Stepless, 3 steps

HCL 600 P

1090907
Price €2,283.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up monday, july 27 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 125 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 125 kg.

Description

Properties

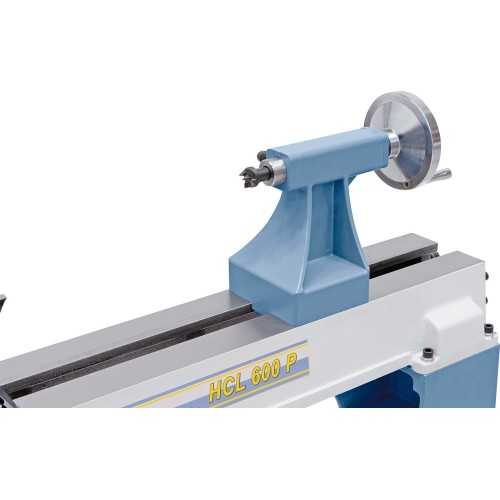

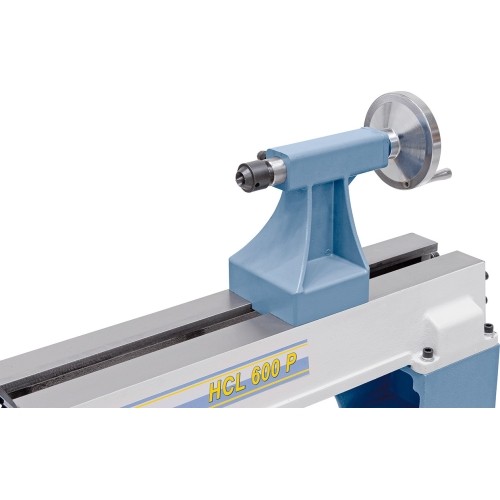

  • Solid tailstock sleeve with MT 2 taper and bore to allow operating of long workpieces
  • Quick clamping lever ensures fast clamping of tailstock to machine bed

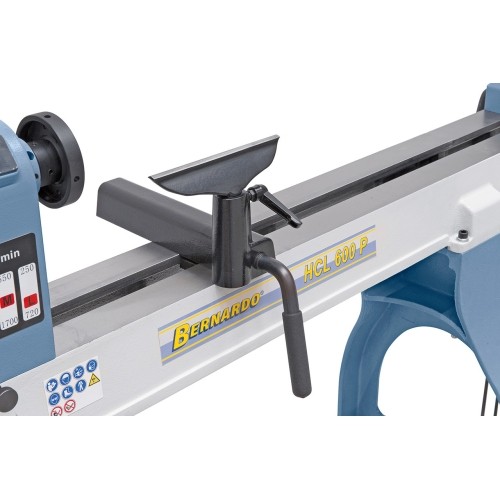

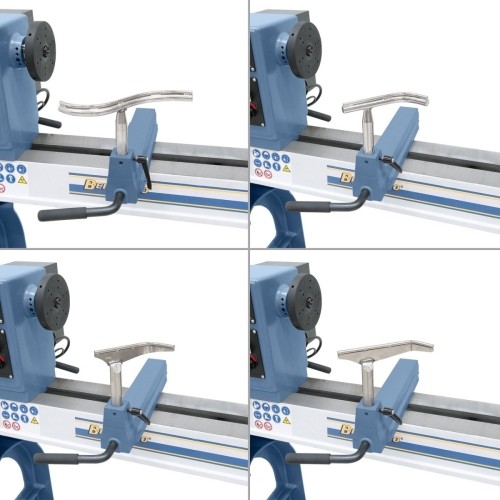

  • Includes steel tool rest, easily adjustable for various workpiece diameters
  • Heavy cast-iron construction eliminates vibrations

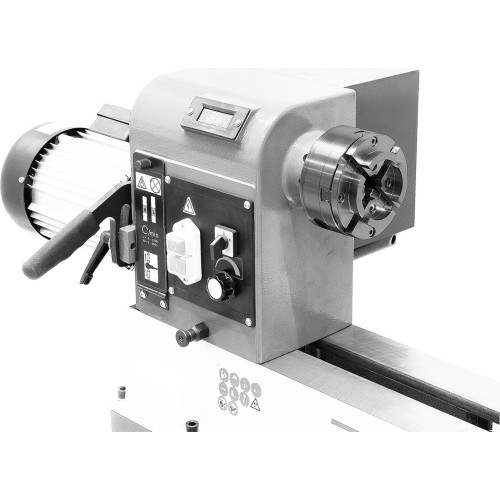

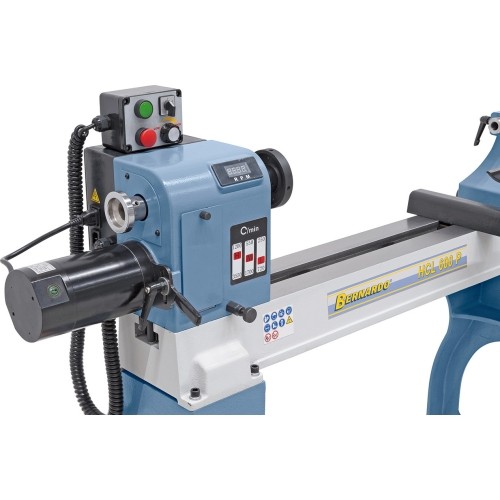

  • Digital display allows for convenient adjustment of speed settings
  • Comes complete with right and left turning device
  • Precisely bedded spindle ensures high concentricity
  • Smooth running, powerful DC drive, steplessly adjustable

Standard accessories

  • Tool rest 200 mm
  • Face plate 100 mm
  • Live center
  • Spore drive center
  • LED speed indication

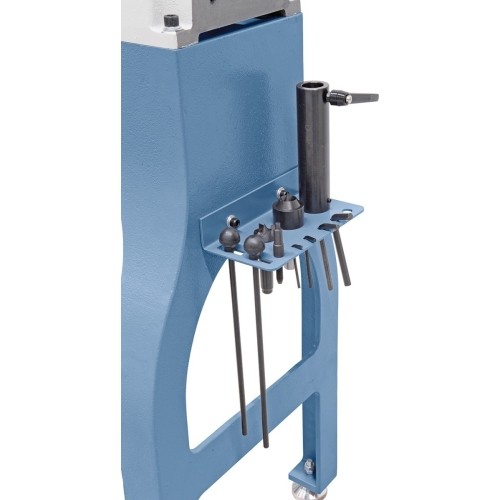

  • Tools
