- Distance between centers
- 345 mm
- Taper of tailstock sleeve
- MT 1
- Travel of tailstock sleeve
- 38 mm
- Weight approx.
- 20 kg
- Machine dimension (W x D x H)
- 660 x 250 x 310 mm
- Motor power output S1 100%
- 0,25 kW (0,34 HP)
- Motor power input S6 40%
- 0,31 kW (0,42 HP)
- Spindle speeds
- 750 - 3200 rpm, stepless
- Voltage
- 230 V
- - over guideway
- 210 mm
- - over support
- 140 mm
- Spindle thread
- M 33 x 3,5 mm

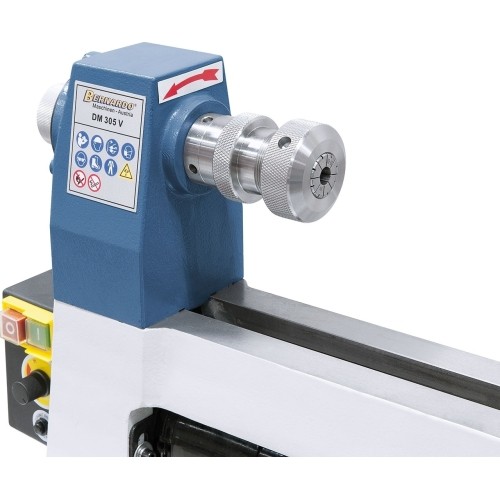

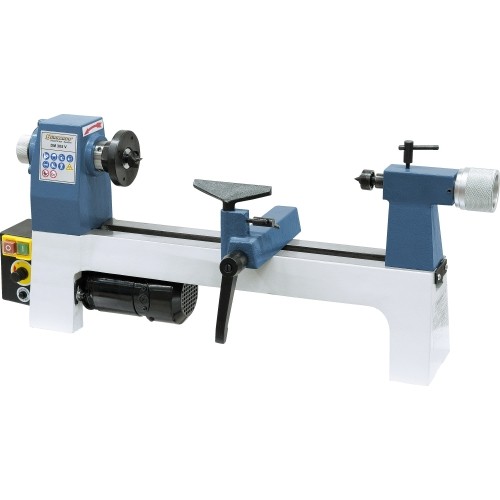

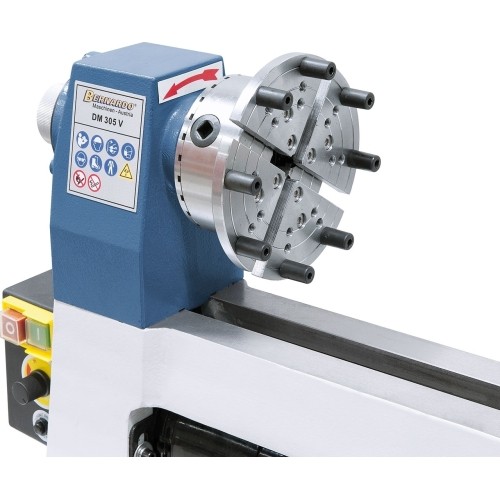

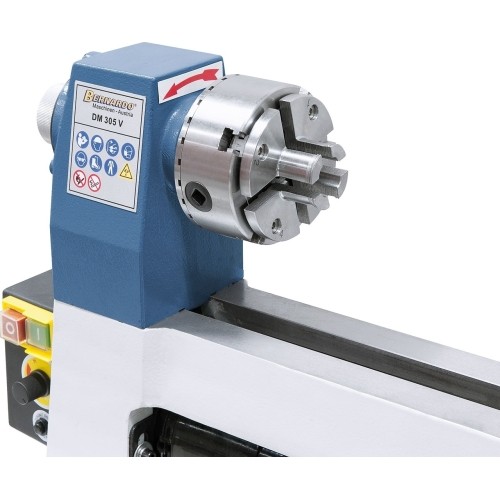

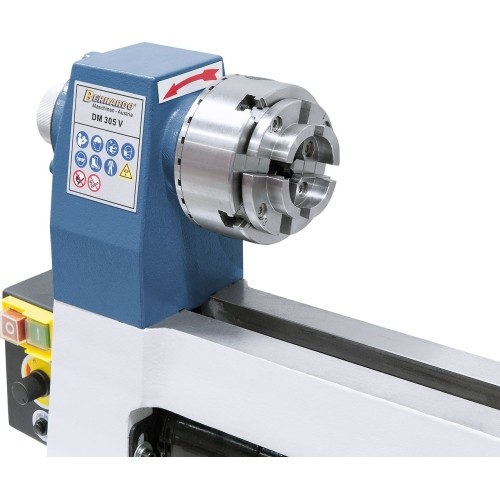

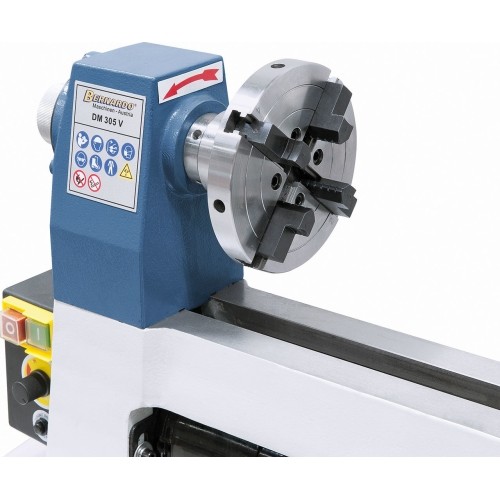

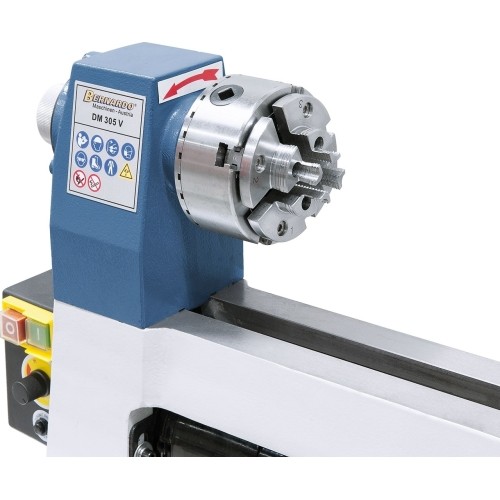

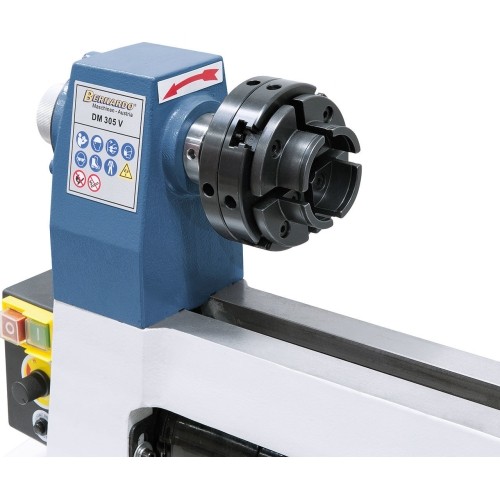

Medienos tekinimo staklės Bernardo DM 305 V
1055951
Price
€481.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 18 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00)
We will deliver the product to you via: 5-11 w.d. Venipak
(€8.00)
Description
Properties
- Steplessly adjustable spindle speed allows for optimal adjustment to workpiece
- Machine bed, tail- and spindle stock consists of solid grey cast-iron to eliminate vibrations
- Large speed range from 750 – 3200 rpm, steplessly adjustable
- Robust spindle, mounted with precision to ensure concentricity

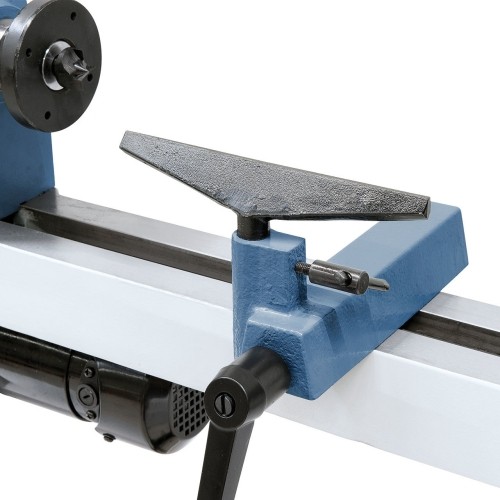

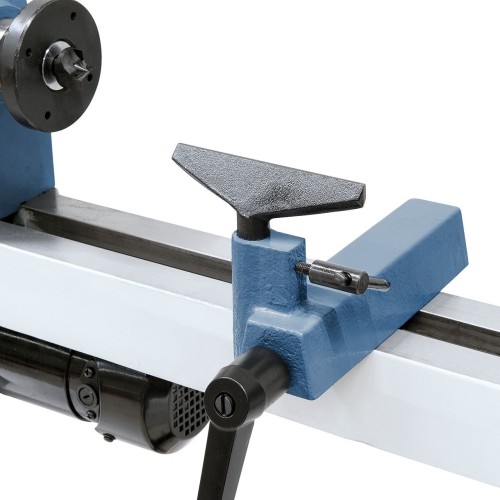

- Solid tool rest ensures sufficient support for chisels
- Extensive range of extra equipment to widen the choice of applications

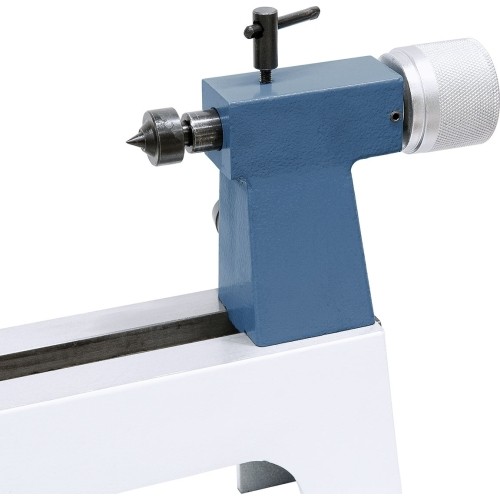

- Tailstock spindle features hole to allow processing of long workpieces
- Quick clamping lever allows for fast clamping of tailstock to machine bed
Standard accessories
- 2 pcs. tool rest 110 / 175 mm
- 2 pcs. face plate 80 / 145 mm
- Spore drive center
- Live center

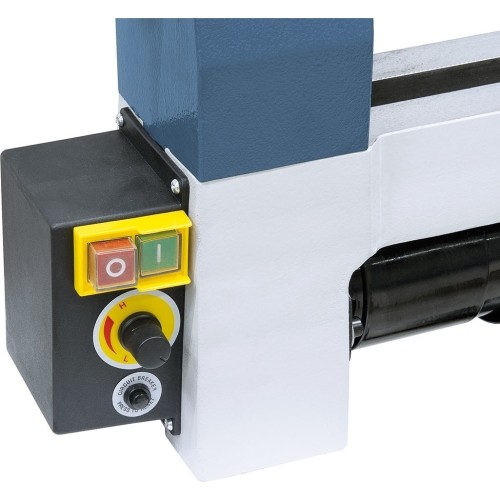

- Stepless speed adjustment
- Tools
