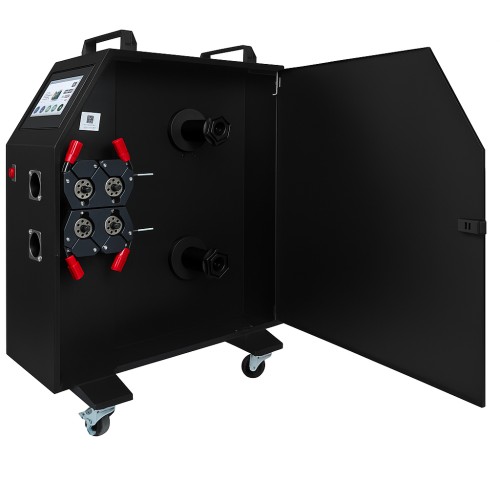

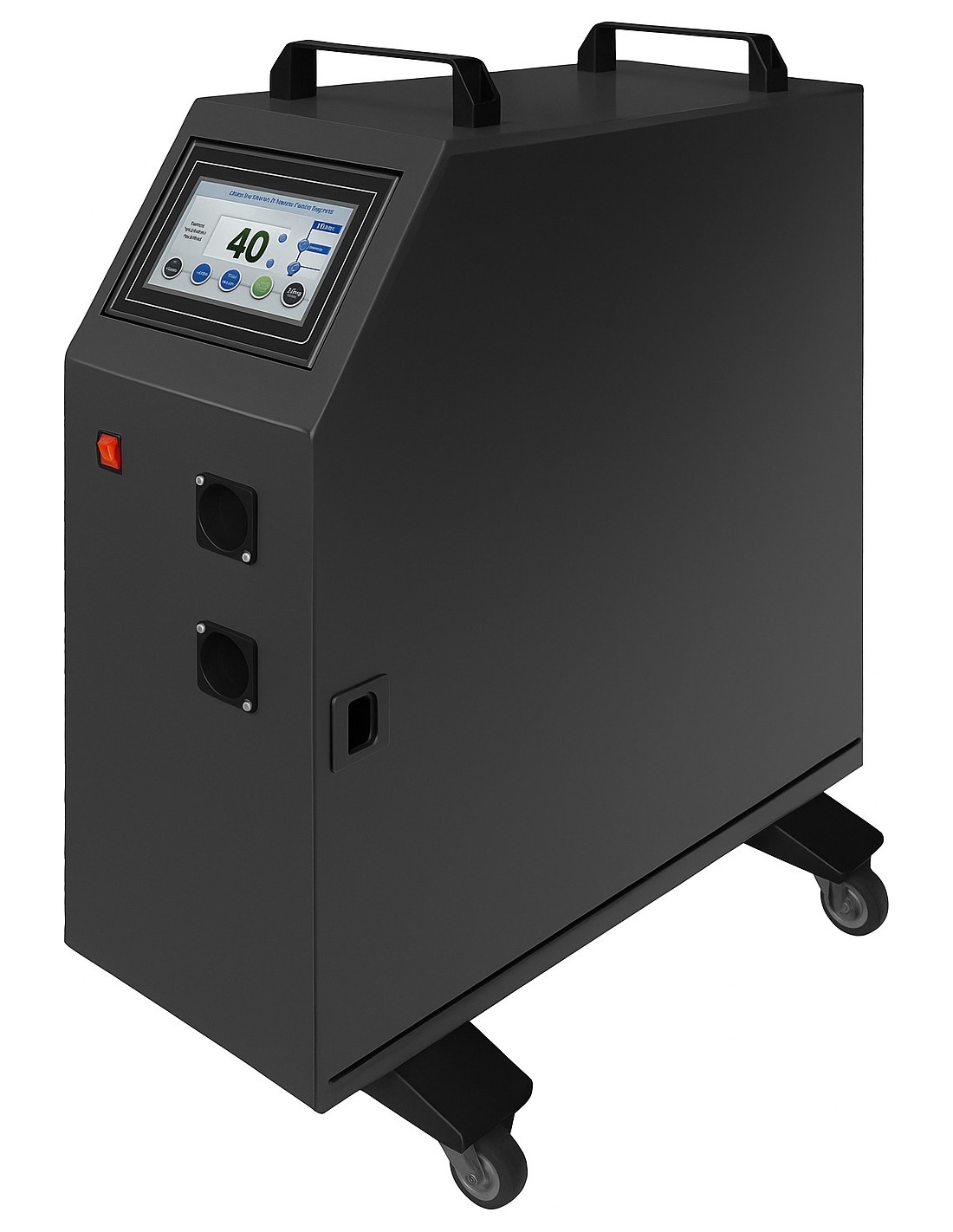

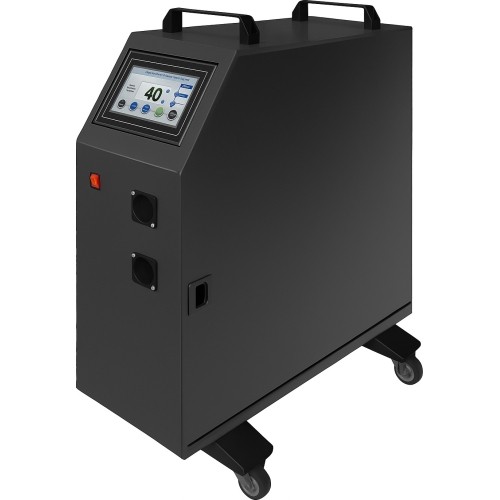

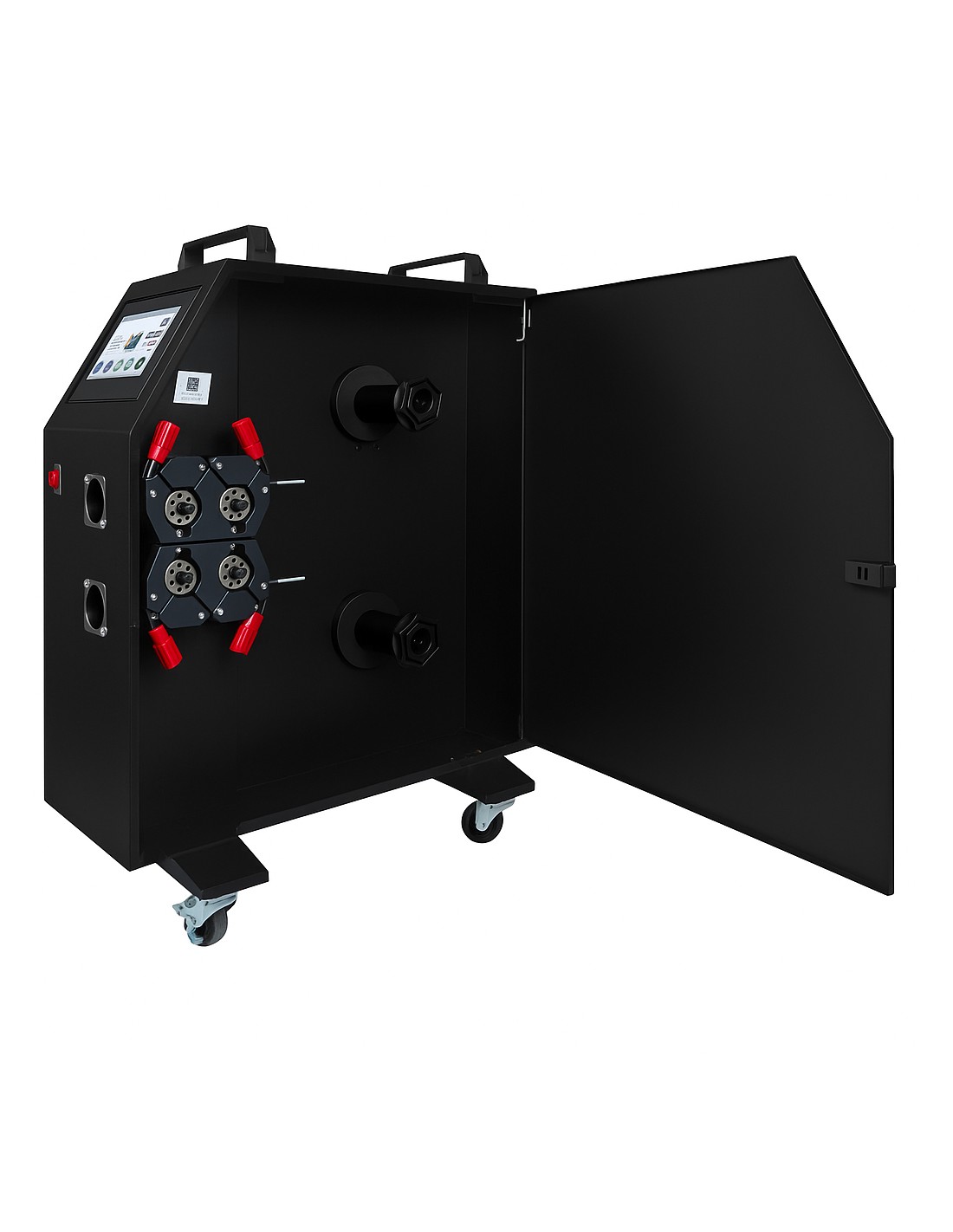

Wire feeder for laser welding machine (dual spool)
Wire feeder for laser welding machine (dual spool)
Wire feeder for laser welding machine (dual spool)
Wire feeder for laser welding machine (dual spool)

Control
automatinis
Išmatavimai
575 x 250 x 670 mm
Lazerio klasifikacija
Optinio pluošto lazeris
Stilius
Viengubas / Dvigubas
Palaikoma suvirinimo viela
0.8 , 1.0 , 1.2 , 1.6 mm (viengubas vielos padavimas)
Dvigubo vielos palaikymo vielos skersmuo
1.6 , 2.0 , 2.5 mm (dvigubas vielos padavimas)
Nominali įvestis
220 +/- 5 % 50/60 Hz
Maksimali galia ir srovė
150 W / 6,5 A
Nominalus vielos padavimo greitis
15~600 cm/min
Reikalavimai vielos ritėms
MIN 50 mm / MAX 300 mm, plotis MAX 105 mm, svoris < 20 kg
Pakuotės išmatavimai
600 x 300 x 700 mm
Įrenginio svoris
30 kg
Bendras pakuotės svoris
35kg

Wire feeder for laser welding machine (dual spool)

1506174
Price €890.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
(1 pcs)
In Manufacturer / Supplier warehouse
(10+ pcs)
Delivery terms:
FREE pick up today, in the store, Raudondvario pl. 141, Kaunas (€0.00)
FREE We will deliver the product to you via: 1-2 w.d. Venipak (€0.00)
