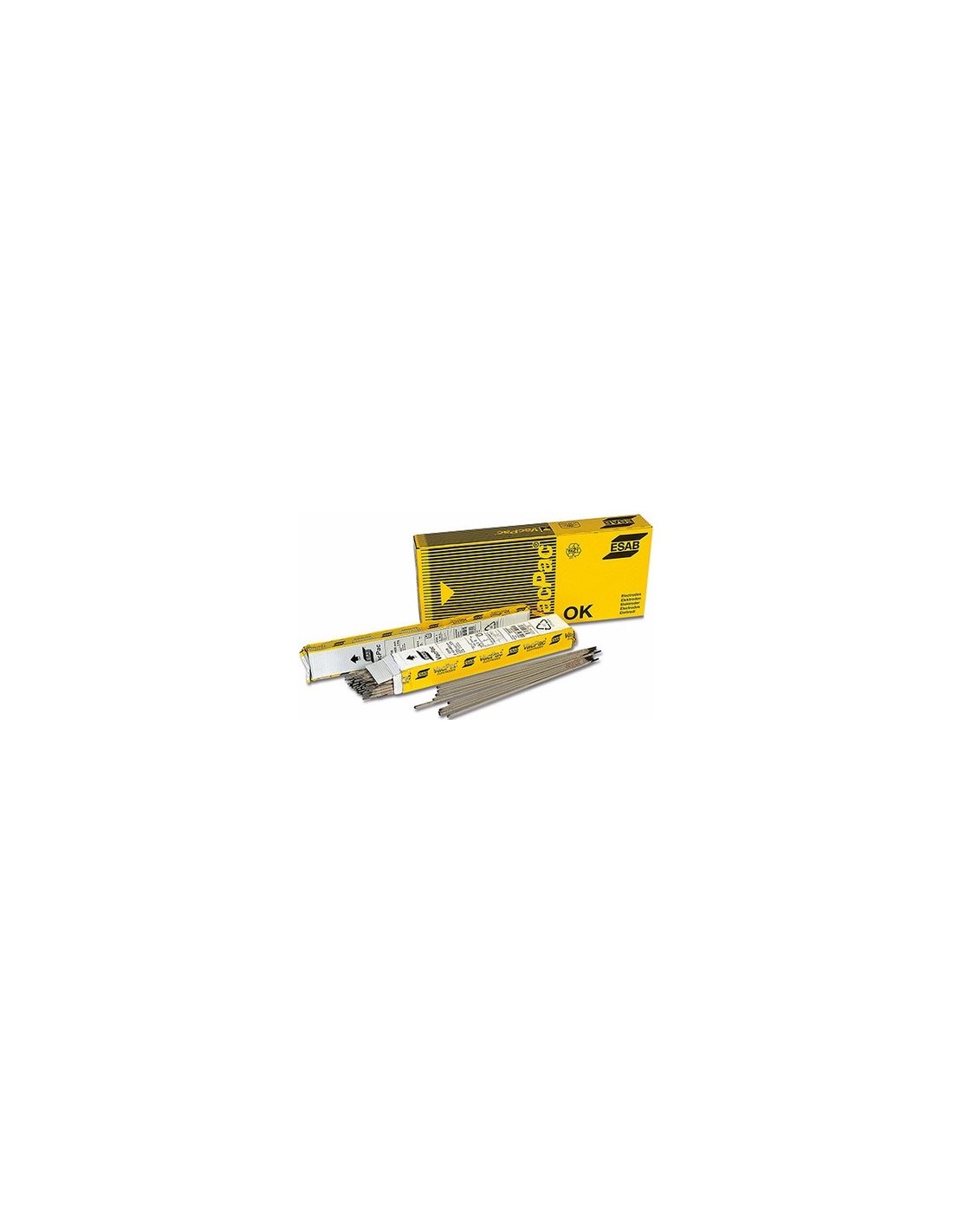

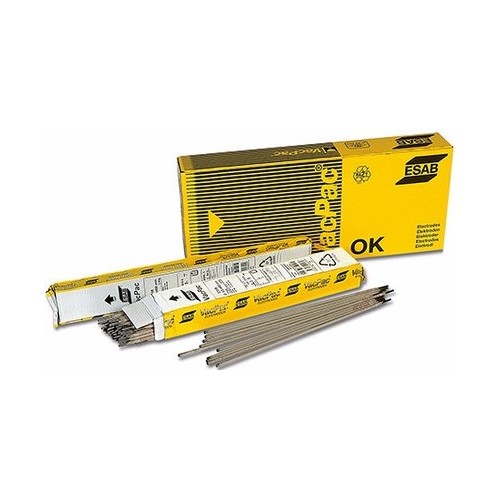

Elektrodai ESAB OK 74.46 - 3.2mm x 450mm / 2.0kg

On sale!

Classifications: EN ISO 3580-A : E Mo B 3 2 H5
SFA/AWS A5.5 : E7018-A1
Approvals: CE : EN 13479
DB : 10.039.45
VdTÜV : 01043
Alloy Type: Low alloyed (0.5 % Mo)
Welding Current: AC, DC+
Coating Type: Basic covering
Diffusible Hydrogen: < 5ml/100g
Packaging: 3.2mm x 450mm / 2.0kg
Diameter (Ø): 3.2mm

Brand

Elektrodai ESAB OK 74.46 - 3.2mm x 450mm / 2.0kg

Name: Elektrodai ESAB OK 74.46 - 3.2mm x 450mm / 2.0kg
Brand: Esab
SKU: 1267461
Price: 12.85 EUR
Availability: InStock

Reference 1267461

Price €12.85 VAT incl.

‹

2.0mm x 300mm / 0.6kg

2.5mm x 350mm / 0.6kg

3.2mm x 450mm / 2.0kg

›

Quantity, pcs	Unit price	Pack Type
6+	€12.00 VAT incl.	PAK €72.00 (-7%)

*If you add more than the specified quantity of items to your cart, the price will adjust automatically.

Stock Quantity:

Kaunas Shop
(5+ pcs)

Central warehouse
not available

Delivery terms:

FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas (€0.00)

We will deliver the product to you via: 1-2 w.d. Venipak (€3.00)

We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas) (€2.50)

Description

OK 74.46 is an LMA electrode alloyed with 0.5% Mo for welding steels for pressure vessels. The running characteristics make it suitable for welding joints in the inclined positions. The composition of the coating is adapted for welding with low currents, making it very suitable for the welding of pipes.

Specifications

Approvals are based on factory location. Please contact ESAB for more information.

Typical Tensile Properties
Condition	Yield Strength	Tensile Strength	Elongation
ISO
PWHT 1 hour(s) 620 °C	460 MPa	560 MPa	27 %

Typical Charpy V-Notch Properties
Condition	Testing Temperature	Impact Value
ISO
PWHT	20 °C	175 J

Typical Weld Metal Analysis %
C	Mn	Si	Cr	Mo
0.05	0.77	0.38	0.04	0.57

Deposition Data
Diameter	Current	Voltage	Efficiency (%)	Fusion time per electrode at 90% I max	Deposition Rate
2.0 x 300.0 mm	55-80 A	22 V	59 %	40 sec	0.7 kg/h
2.5 x 350.0 mm	75-110 A	23 V	59 %	55 sec	0.9 kg/h
3.2 x 350.0 mm	105-150 A	23 V	54 %	66 sec	1.0 kg/h
3.2 x 450.0 mm	105-150 A	25 V	59 %	81 sec	1.2 kg/h
4.0 x 450.0 mm	140-200 A	26 V	65 %	90 sec	1.8 kg/h
5.0 x 450.0 mm	190-270 A	27 V	65 %	104 sec	2.4 kg/h
