- Speed
- 1400Â rpm
- Weight approx.
- 190 kg
- Motor power
- 1,1 kW (1,5 HP)
- Machine dimension (W x D x H)
- 650 (1255)* x 550 x 1820 mm
- Table size
- 500 x 150 mm
- Chisel size max.
- 25,4 mm
- Drill stroke
- 180 mm
- Max. workpiece height
- 1150 mm
- Max. mortising depth
- 76 mm
- Max. workpiece width
- 210 mm
- Table tiltable left / right
- 45° / 45°
- Drill head sidewise movable
- 235 mm
- Drill head forward / backward movable
- 100 mm
- Phase
- Trifazis (400V)
HM 30 Porta
1091863
Price
€2,955.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
Delivery terms:
FREE pick up wednesday, june 17 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 190 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 190 kg.
Description
Properties
- Powerful drive motor, also suitable for continuous operation
- Adjustable eccentric clamp secure workpiece to table

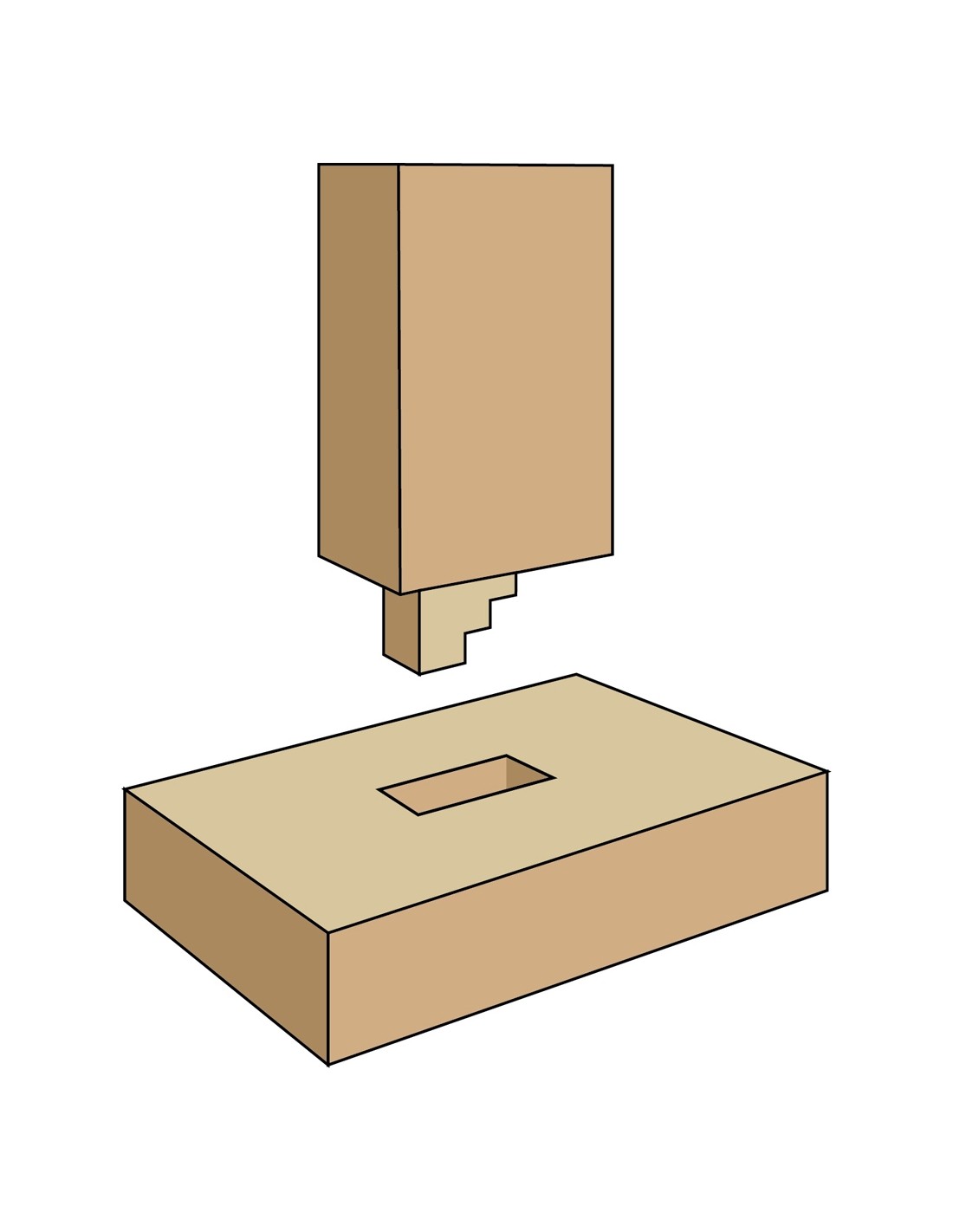

- Ideal for mortising of rectangular shaped holes for tenon joints and more
- Optimal device for slotting and mortising of hard and soft timbers
- Adjustable drill depth stop for high repeat accuracy when mortising
- Includes gas pressure cylinder to support mortising
Standard accessories
- Drill chuck 16 mm
- 2 pcs. eccentric holder
- Longitudinal fence
- Drill depth stop with scale
- Quick clamping vice
- Mortising chisel 15,87 mm
- Gas pressure balancing cylinder
- Tiltable working table
- Closed machine base with tool shelf
