Wire tracker anti-interference design | RJ11 RJ45

Signal transmission range >1 km
Operating relative humidity Rh 10-95 %
Functions location and routing of the cable, location of a break in the cable, verification of the order of connections in the RJ45 cable, telephone line voltage control, checking the polarity of the voltage on the telephone line, checking for the presence of a short circuit, Tracking sensitivity/volume adjustment
Power supply battery cell type 3x1.5V; AAA (transmitter), 9V; 6F22 (receiver)
Dimensions 63x134x31 (transmitter), 40x200x32 (receiver) mm
Material ABS
Laser no
Front lighting yes
Display type LED
Low battery indicator yes
Weight 138 (transmitter), 120 (receiver) g

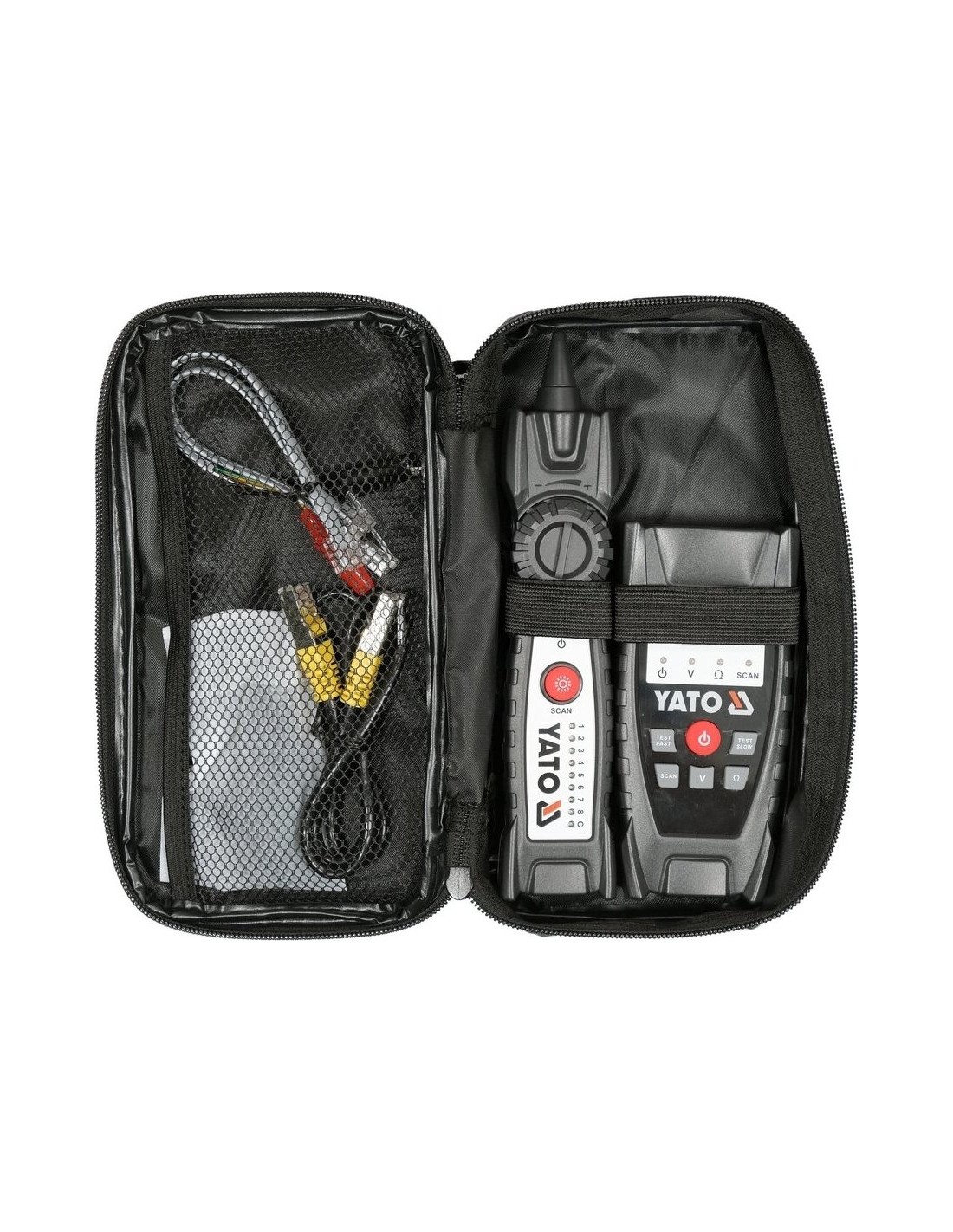

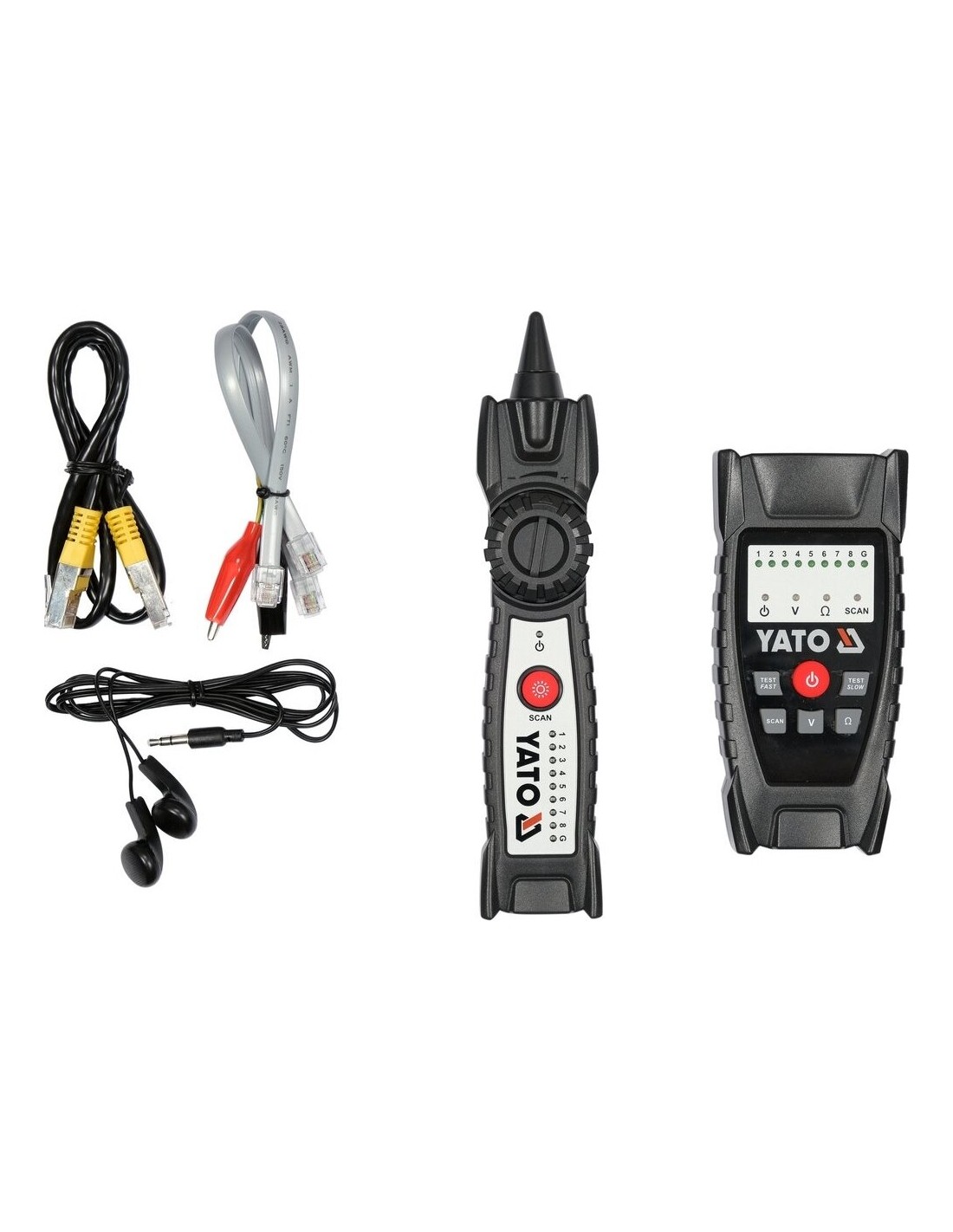

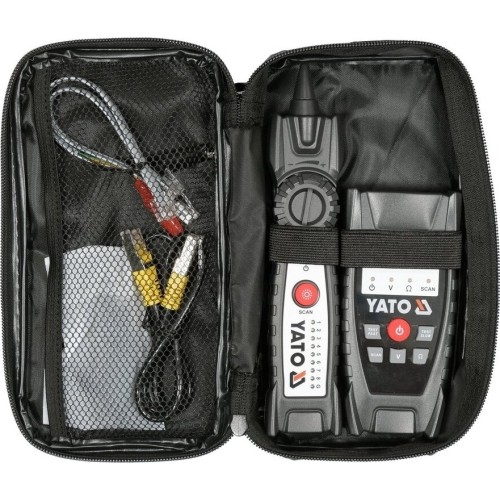

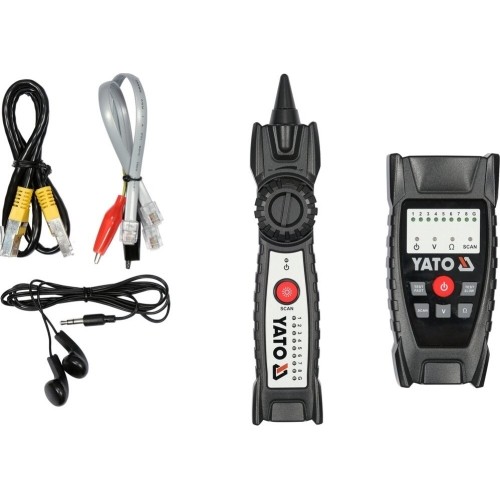

Set includes: Transmitter and receiver
Application for inspecting and locating cabling

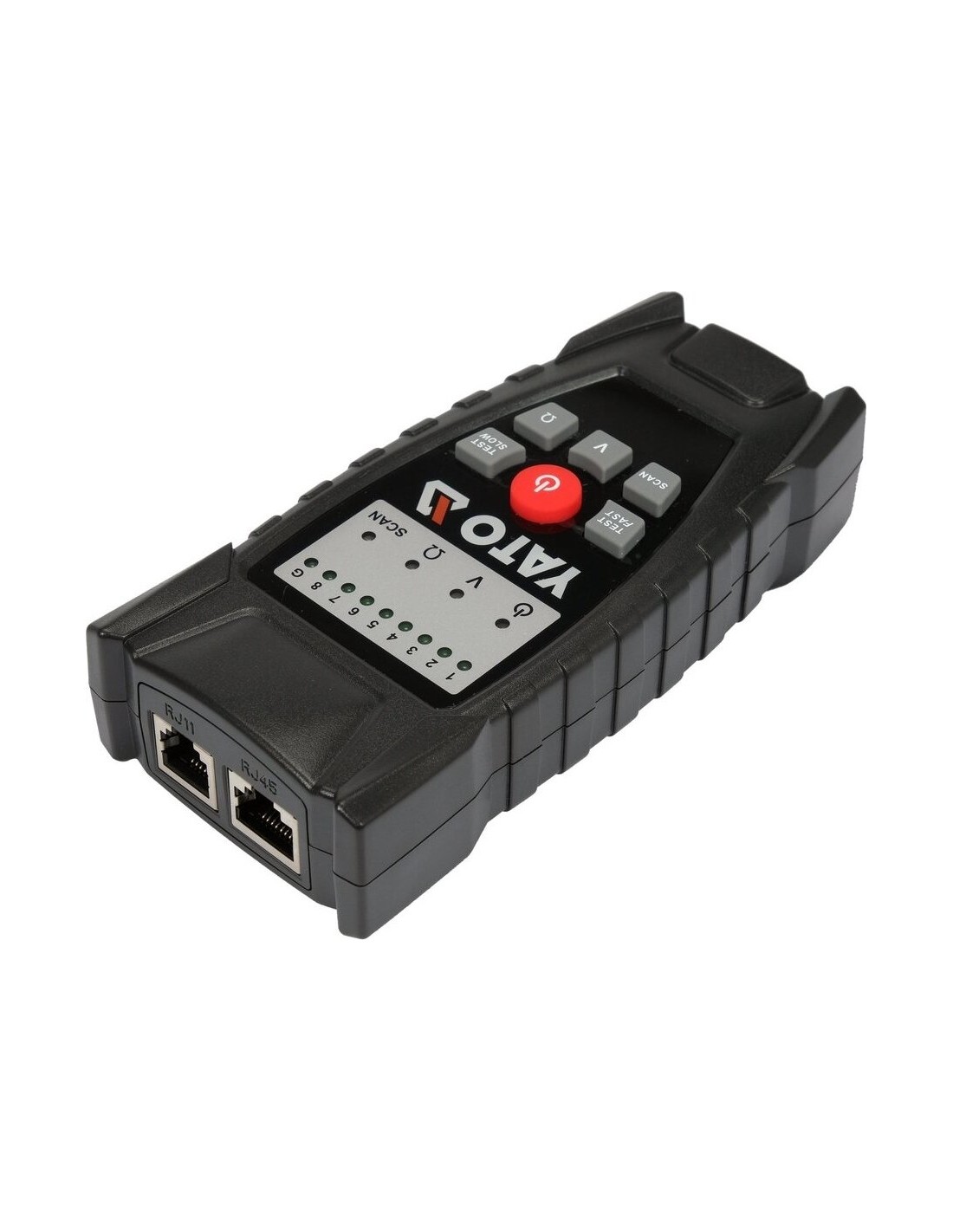

Cable Locator YT-73137 is a wiring inspection and locating device. It is used to determine the route of a cable in a wall, identify a network cable in a server room, locate a break in a car's electrical system, verify the order of connections in an RJ-45 cable, and check the condition of a telephone line.

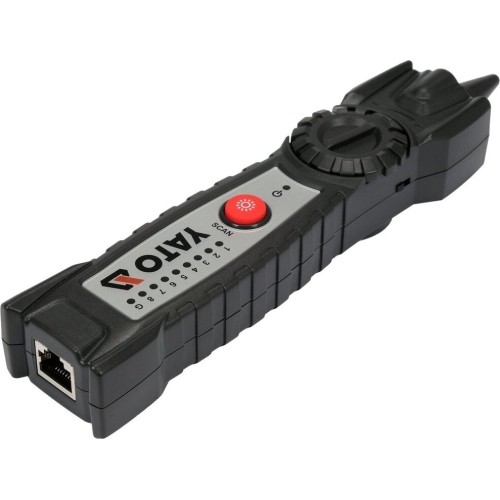

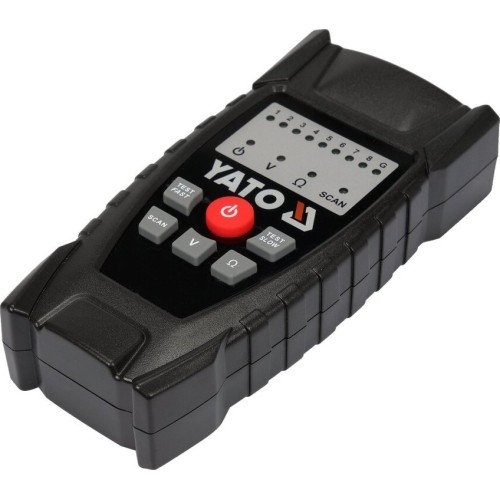

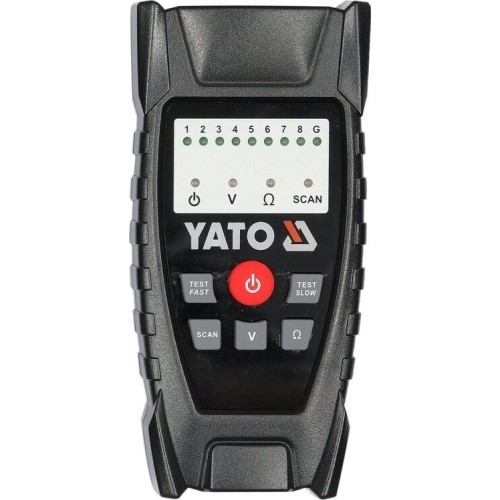

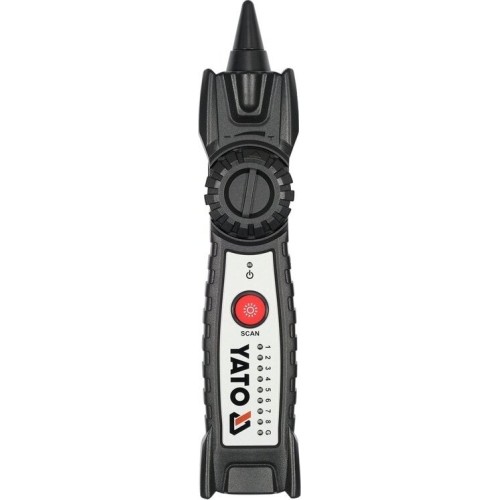

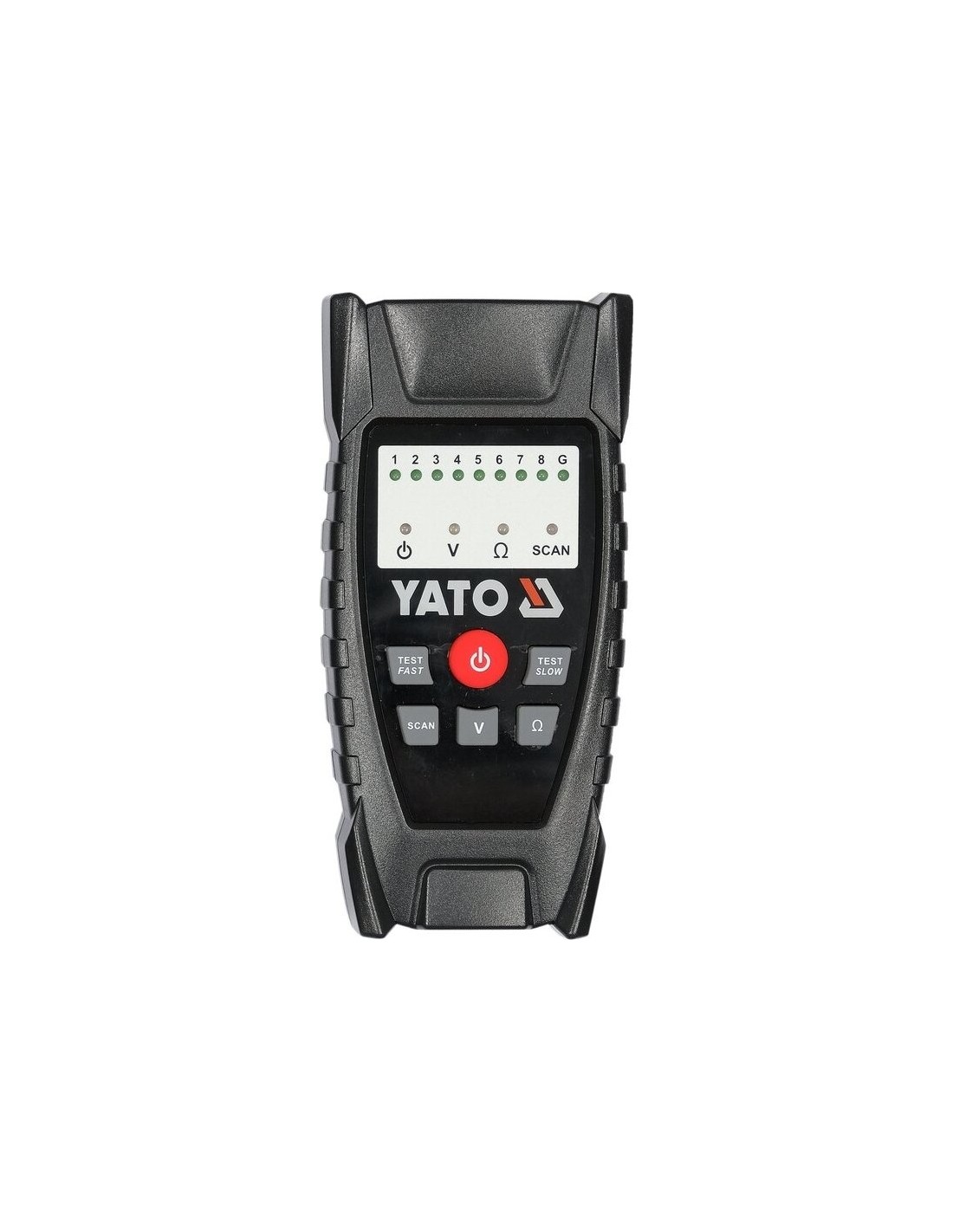

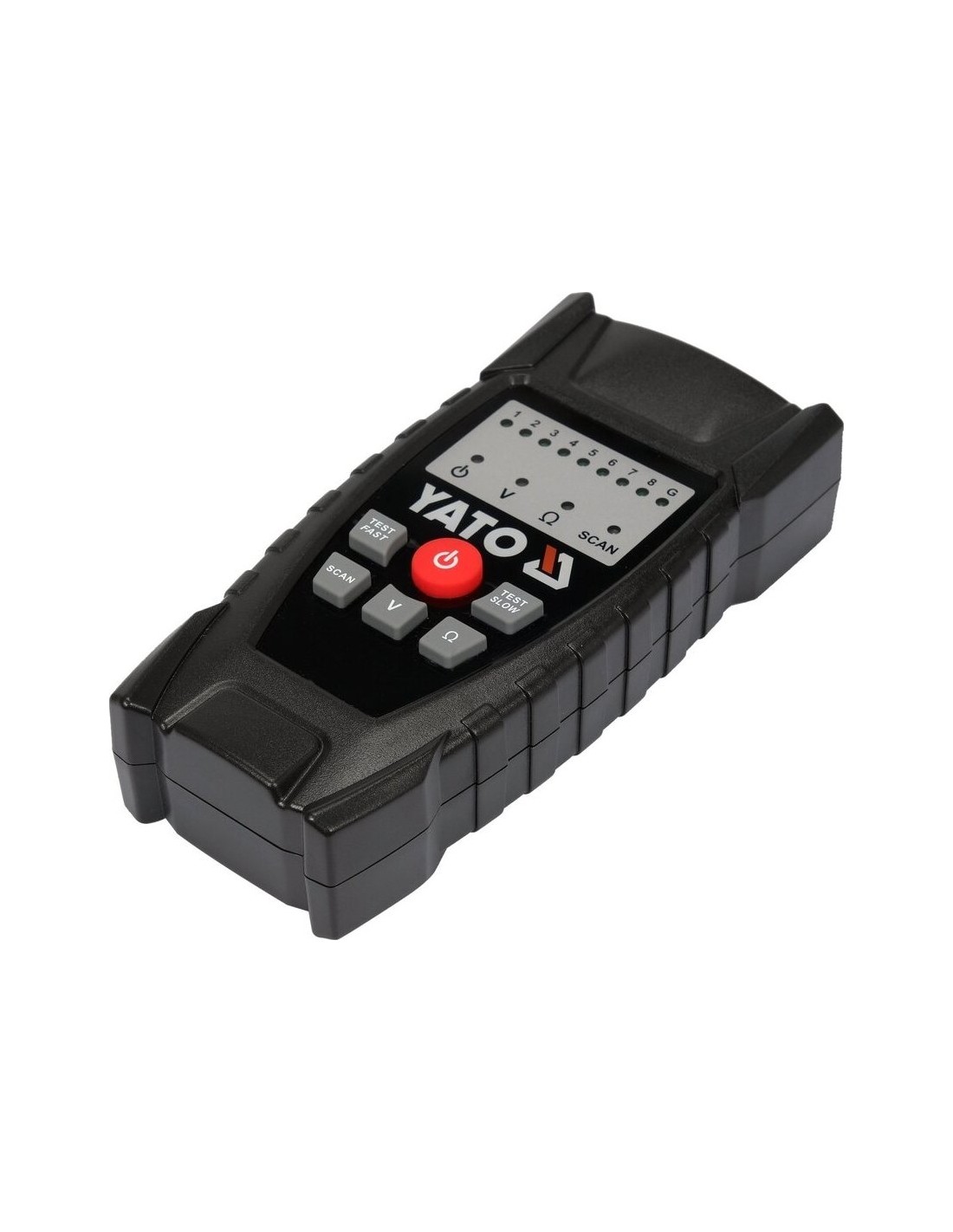

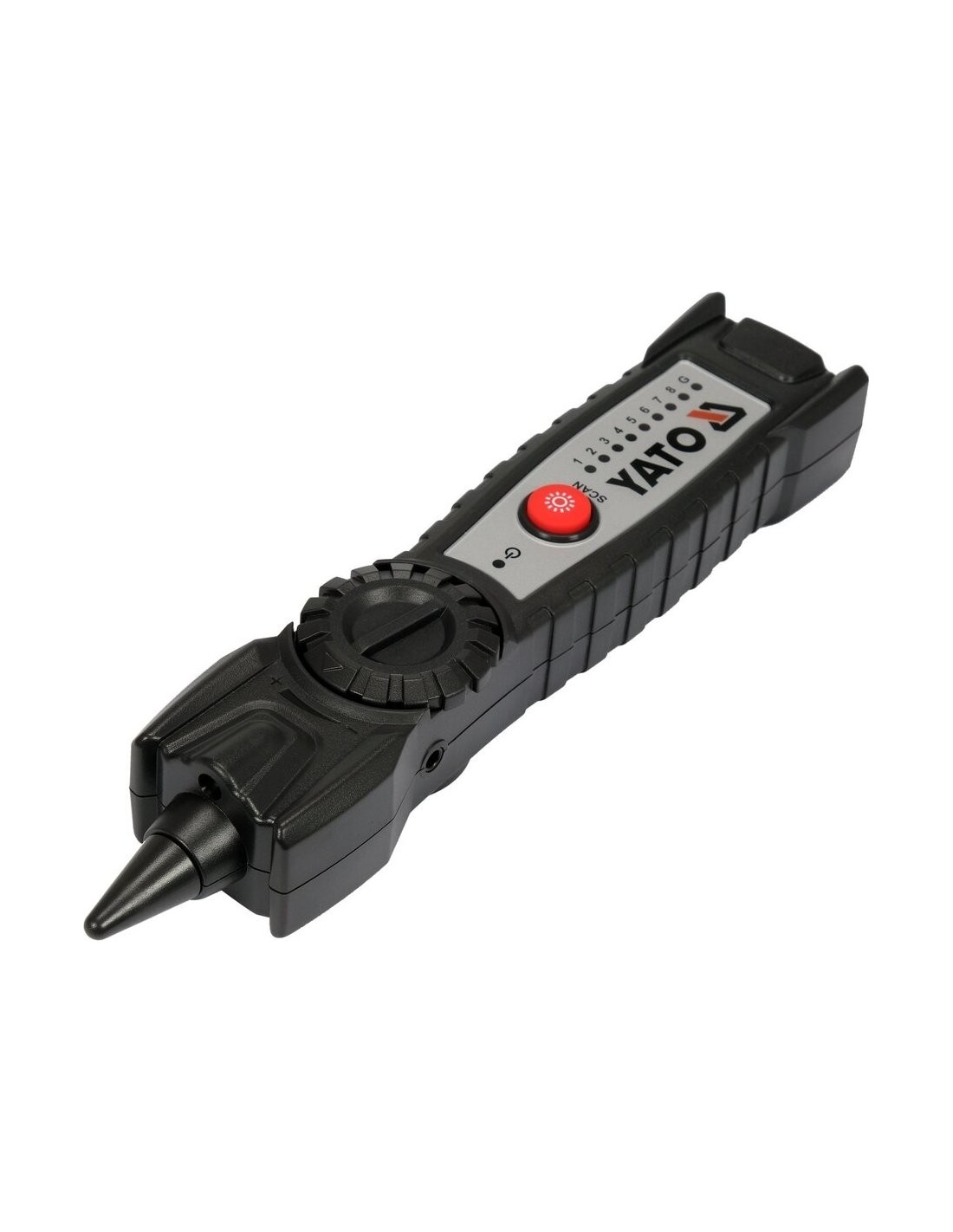

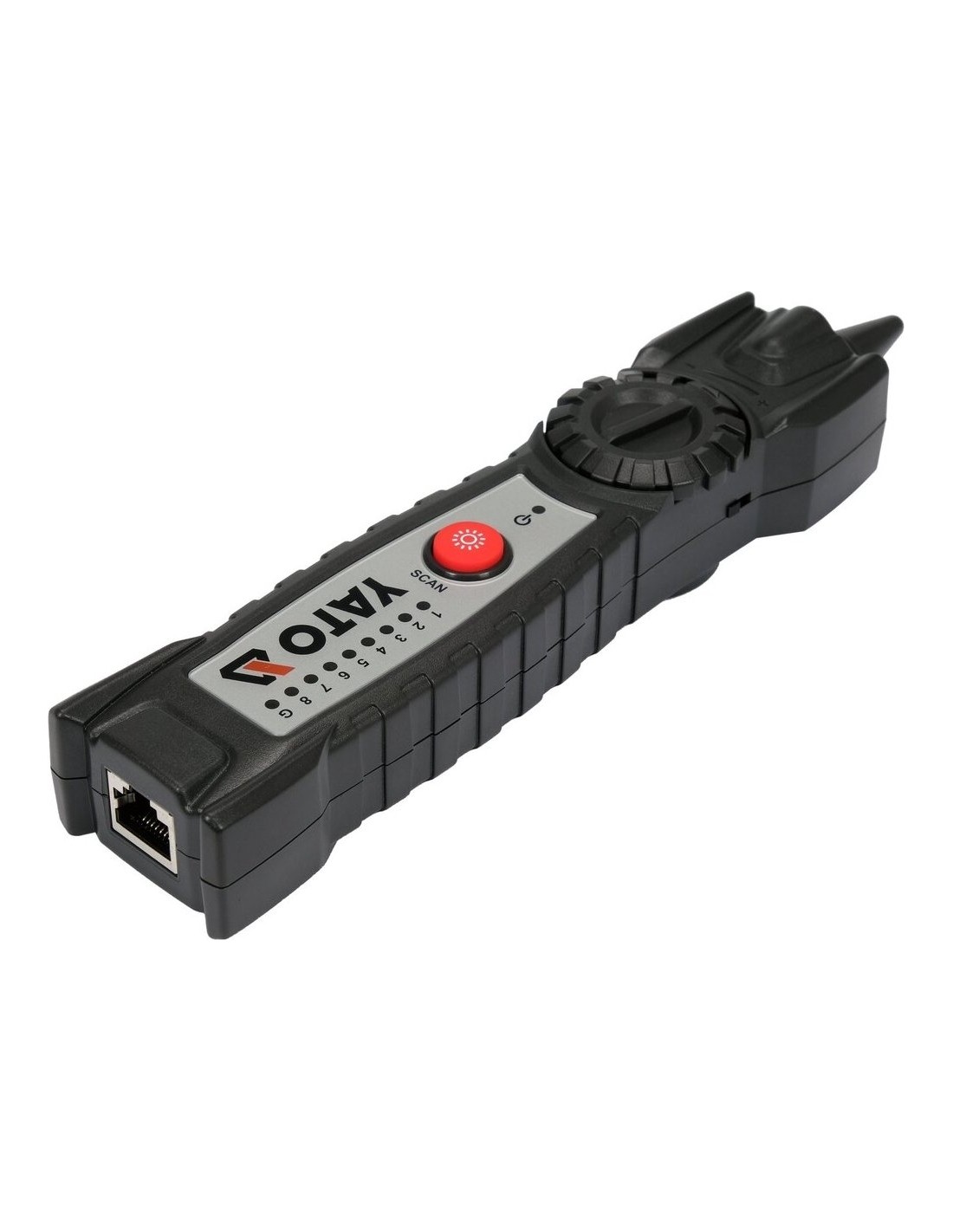

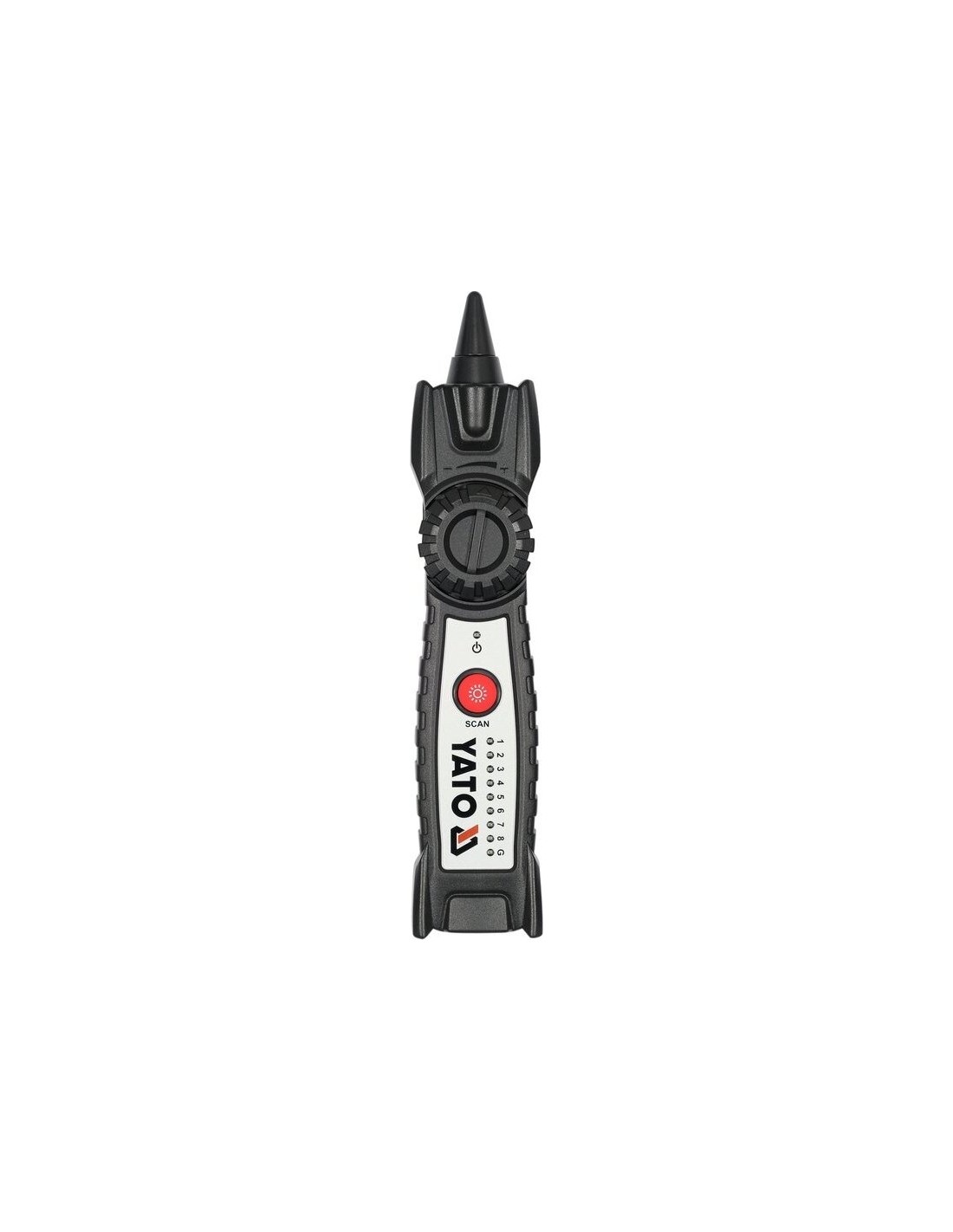

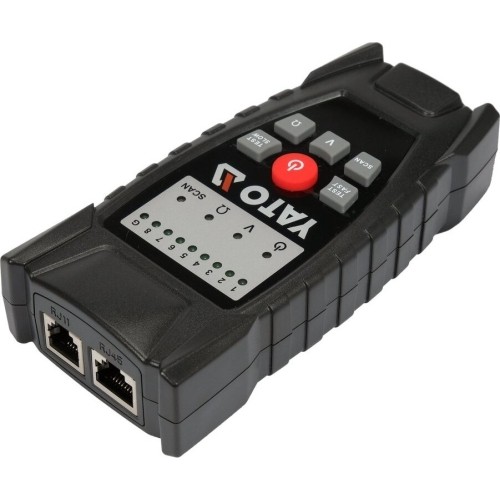

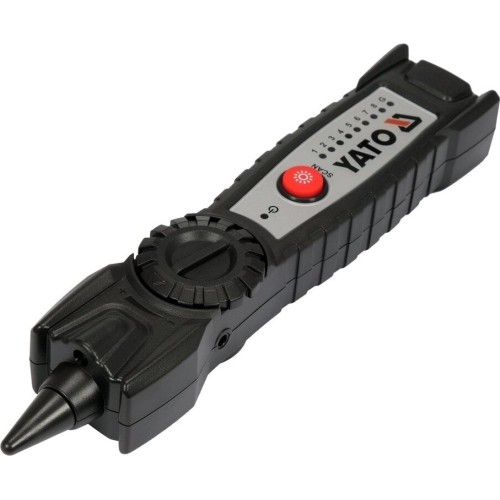

It consists of two devices: a transmitter and a receiver. The transmitter is connected to the cable being searched for, to then transmit a signal with a frequency known to the receiver when the SCAN function is activated. The receiver can wirelessly capture the signal from as far as several centimeters* away from the cable being searched.

It is immune to interference. The signal received by the receiver is converted into noise- and crackle-free sound. The power of the transmitter allows the signal to be transmitted in the wire over a minimum distance of 1 kilometer. The built-in jack socket on the receiver allows you to connect, for example, the included headphones.
