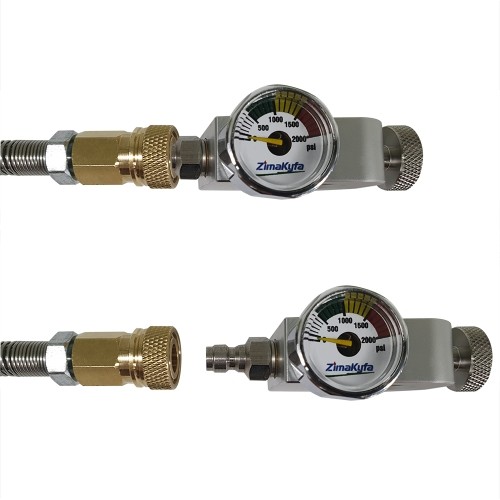

Sodastream Pink Cartridge Filling Shuttle

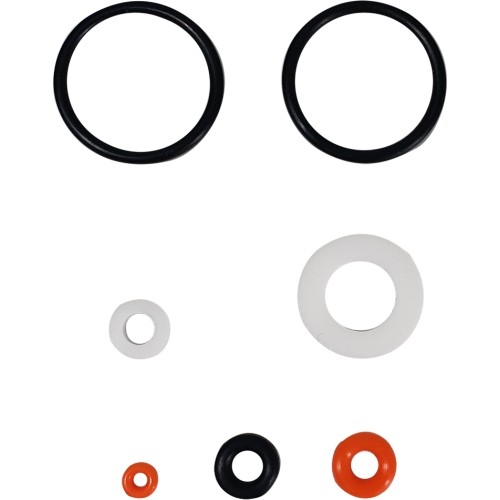

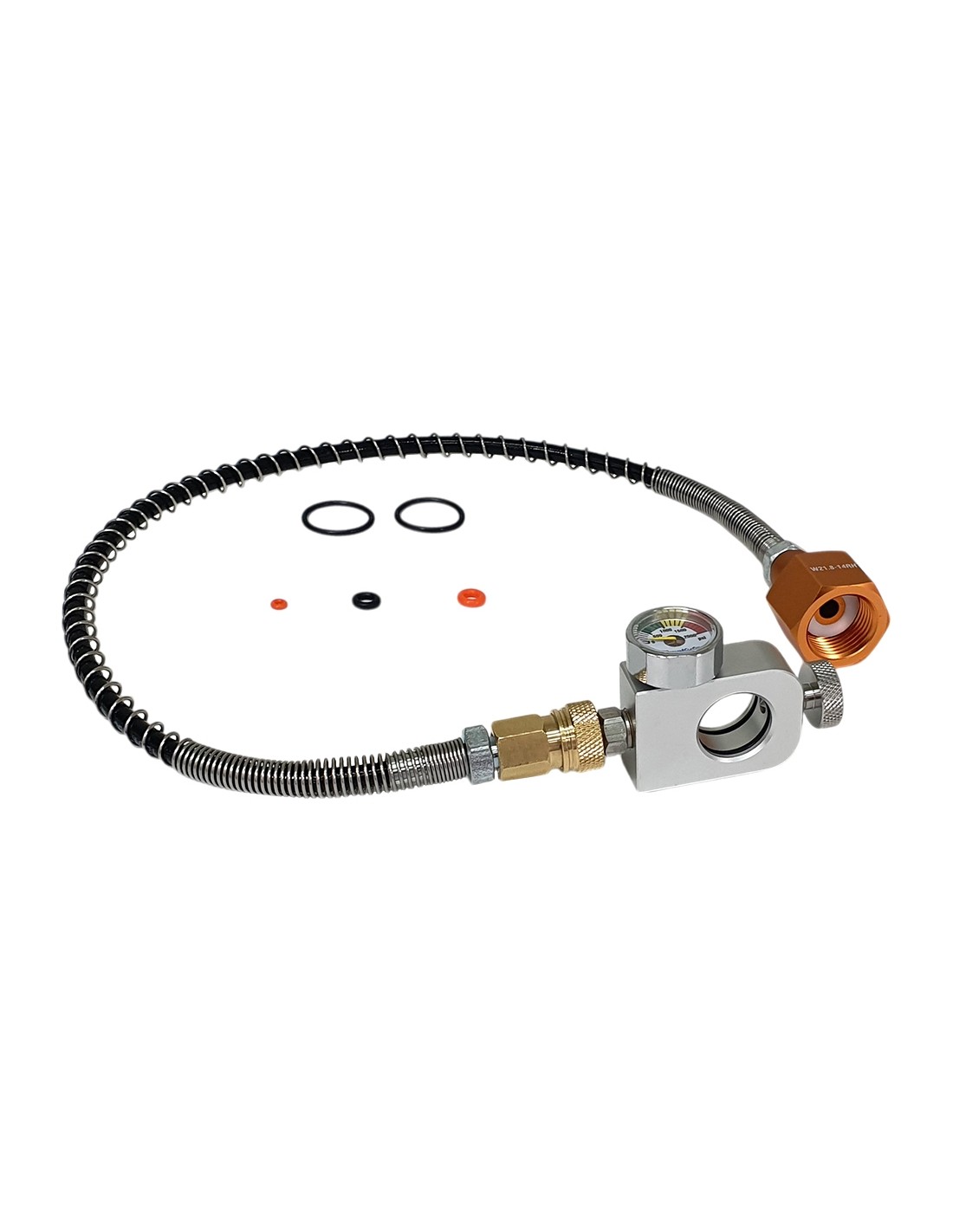

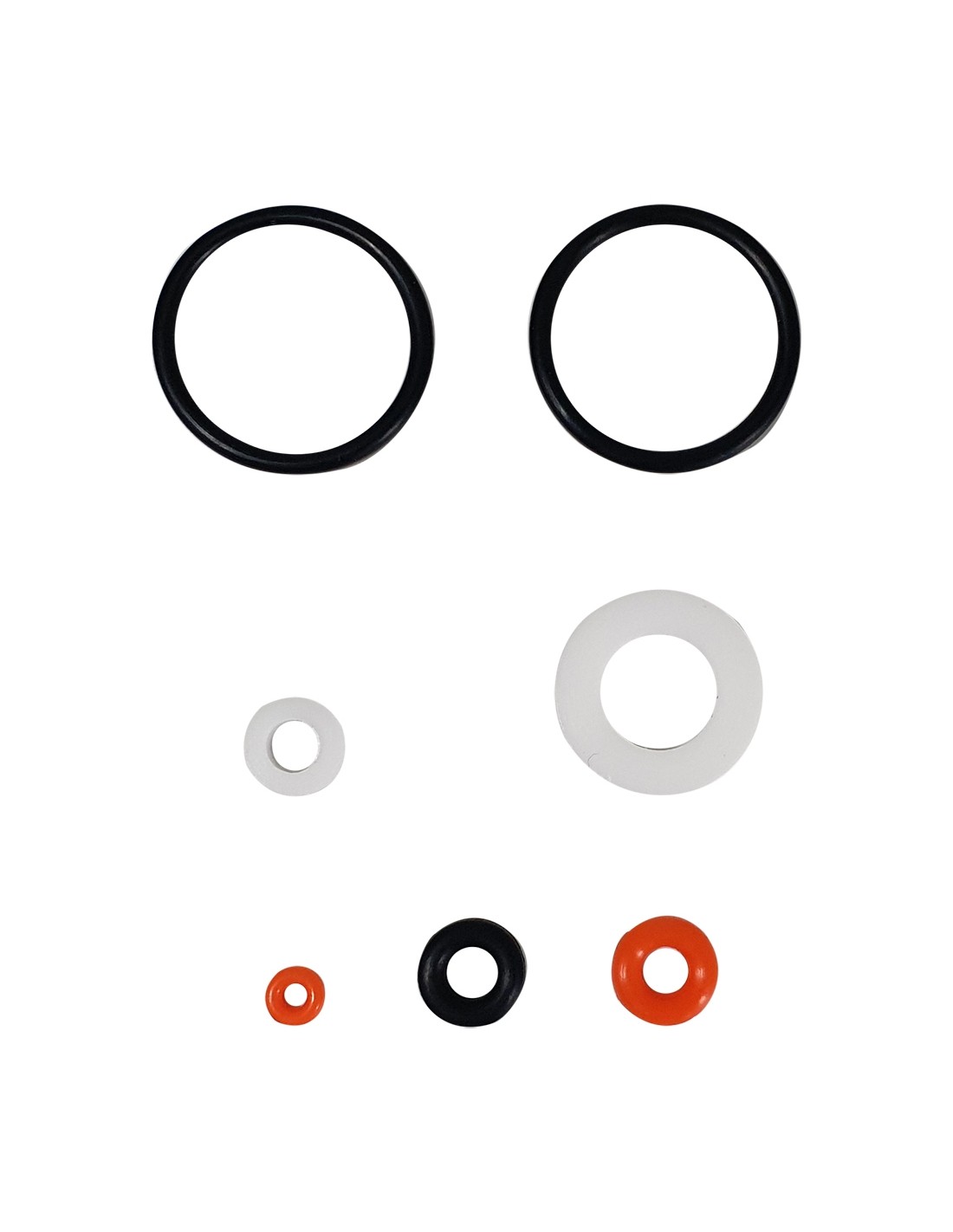

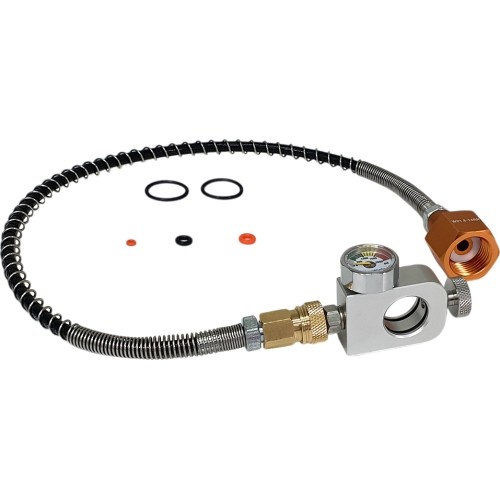

Filling nozzle for Sodastream cartridges, pink version, pink Duo, Art, Terra + set of spare seals

• length of the shroud: 65 cm
• cable length: 53 cm
• input: thread W21.8×1/14
• output:  Quick Connect
• air vent:  YES
• pressure gauge:  YES
• weight:  100g
• material: aluminum

Filling Instructions:

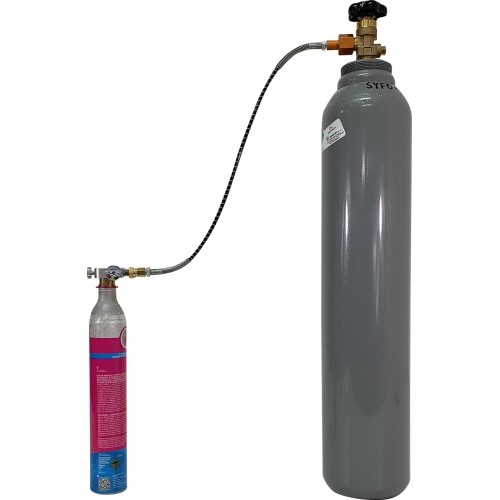

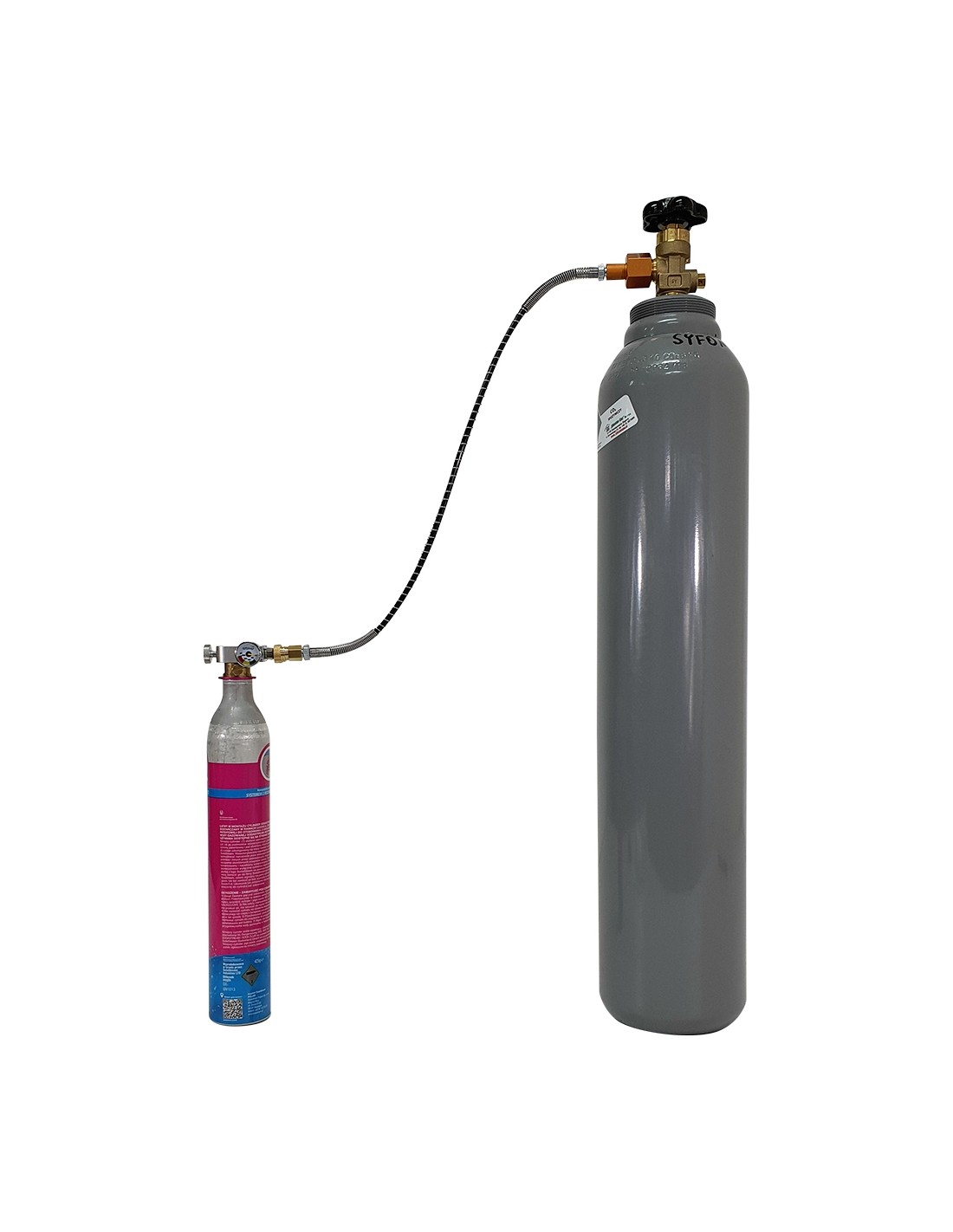

1. Screw the shunt onto the mother's CO2 cylinder.

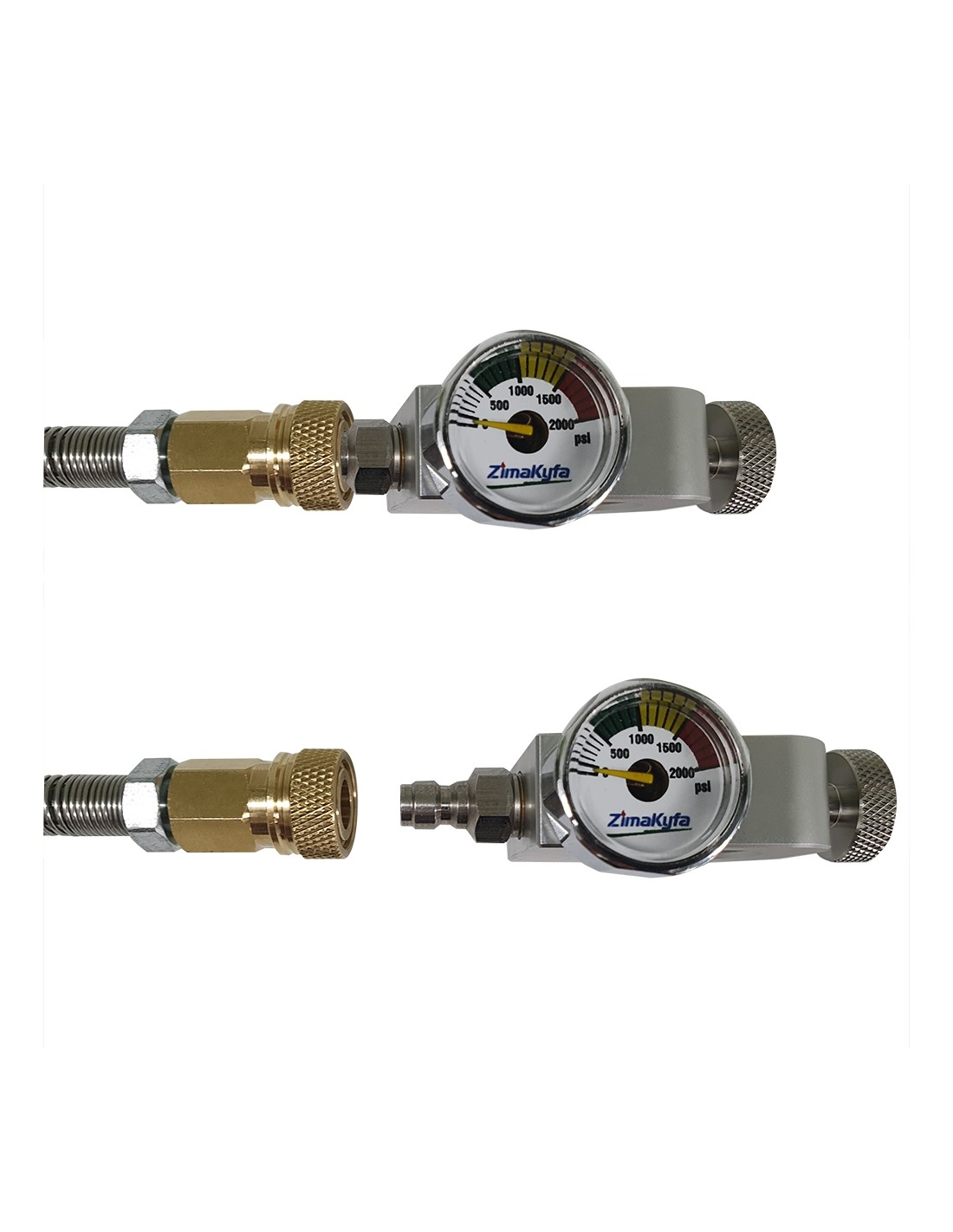

2. Insert the cartridge into the Quick Connect socket of the shunt
3. Check if the air vent valve (silver) is closed, if not, close it.
4. Gently unscrew the valve on the cylinder (you will hear a hissing sound).
5. The filling process is in progress.
6. Once the filling process is complete, close the cylinder valve.
7. Unscrew the vent valve (silver) – you will hear a short hissing sound (if it hisses constantly, check that the cylinder valve is properly tightened).
8. Remove the cartridge from the Quick Connect socket.
9. Ready!

Our advice:

• when using a mother bottle without a sedimentation tube, you must turn it upside down
• Before refilling, release any remaining gas from the cartridge
• you can fill the empty cartridge completely, if you put it in the freezer before filling it, it should be cold
• When filling, place the cartridge on the scale to control the amount of CO2 being transferred, you can transfer a maximum of 425g of carbon dioxide
