- Weight approx.
- 360 kg
- Machine dimension (W x D x H)
- 540 x 900 x 2120 mm
- Distance spindle to column
- 300 mm
- Spindle stroke
- 160 mm
- Motor power output S1 100%
- 1,5 kW / 400 V
- Motor power input S6 40%
- 2,2 kW / 400 V
- Drilling capacity max.
- 32 mm
- Thread cutting max.
- M22
- Morse taper
- MT 4
- Feed range
- 0,06 / 0,12 / 0,18 mm/rev.
- Distance spindle to base
- 1285 mm
- Distance spindle to table max.
- 670 mm
- Table size / T-slot size
- 460 x 460 mm / 14 mm
- Drill chuck
- 1 - 13 mm / B 16
- Column diameter
- 125 mm
- Working surface of base
- 420 x 340 mm
- Spindle speed / 2 steps
- 90 – 980 / 1000 – 3000 rpm

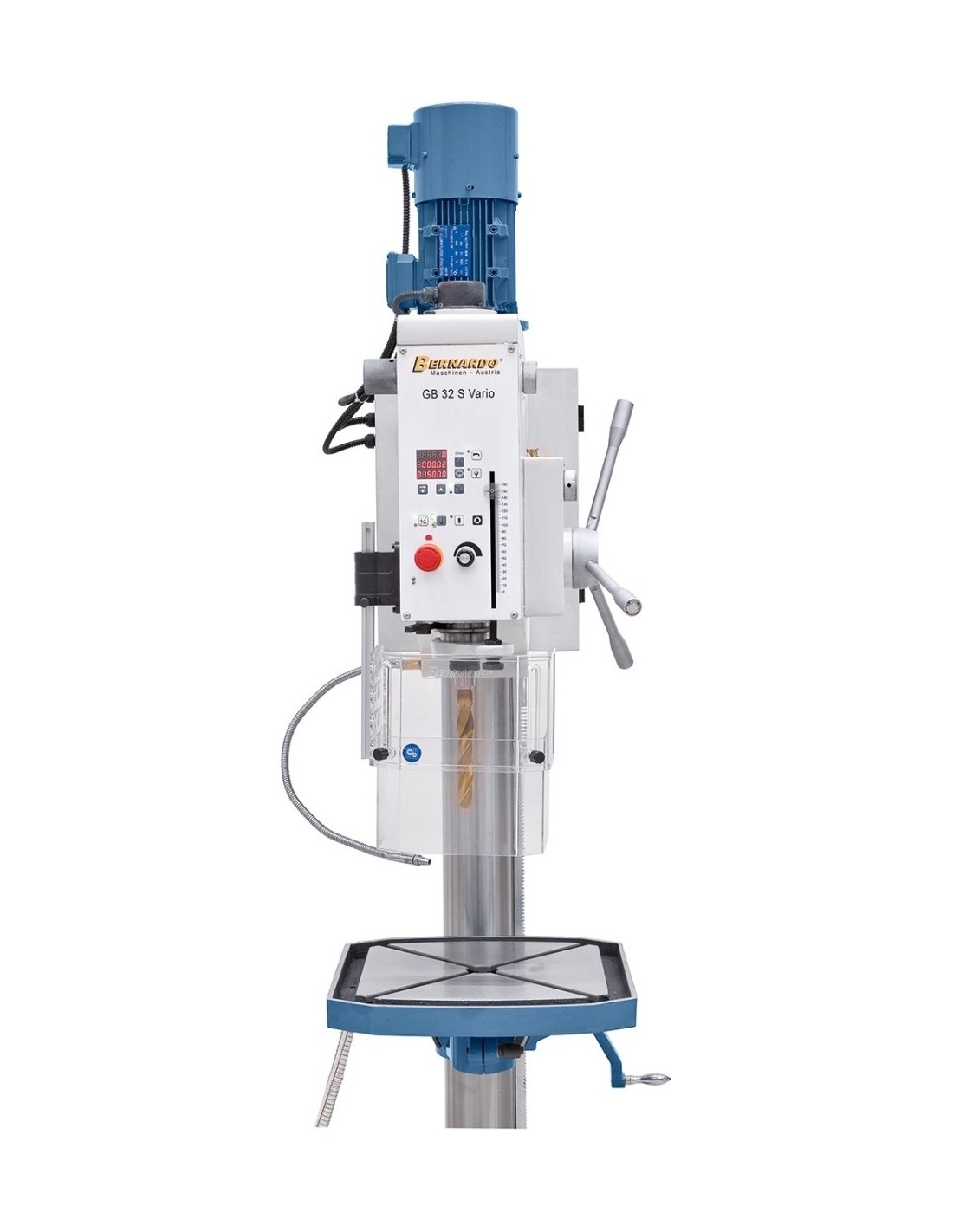

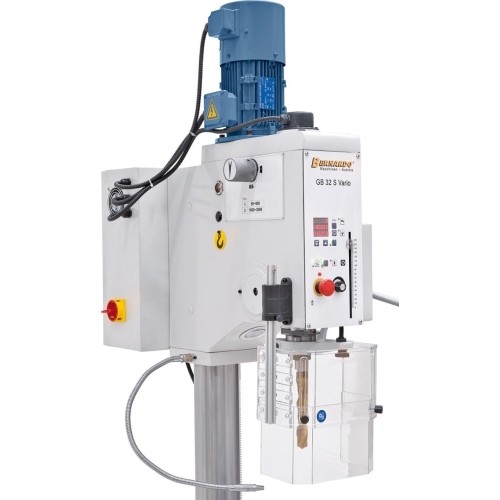

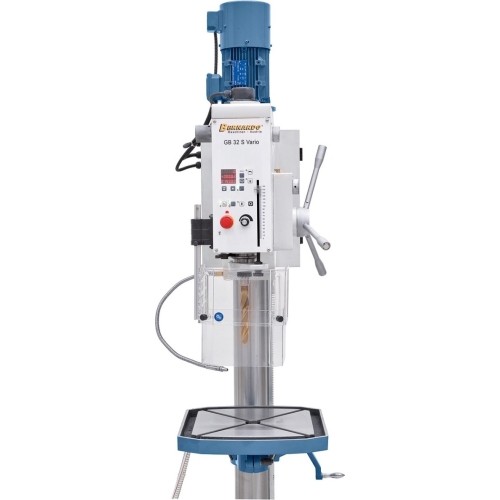

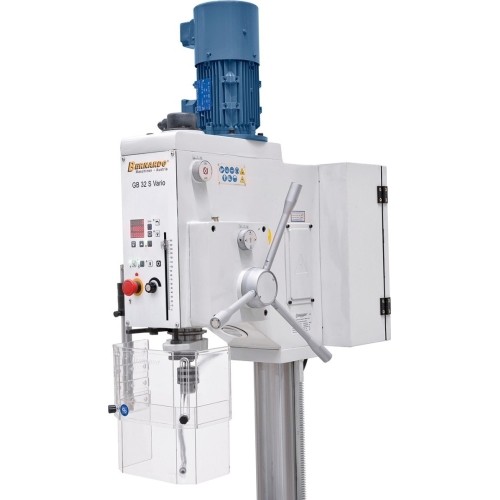

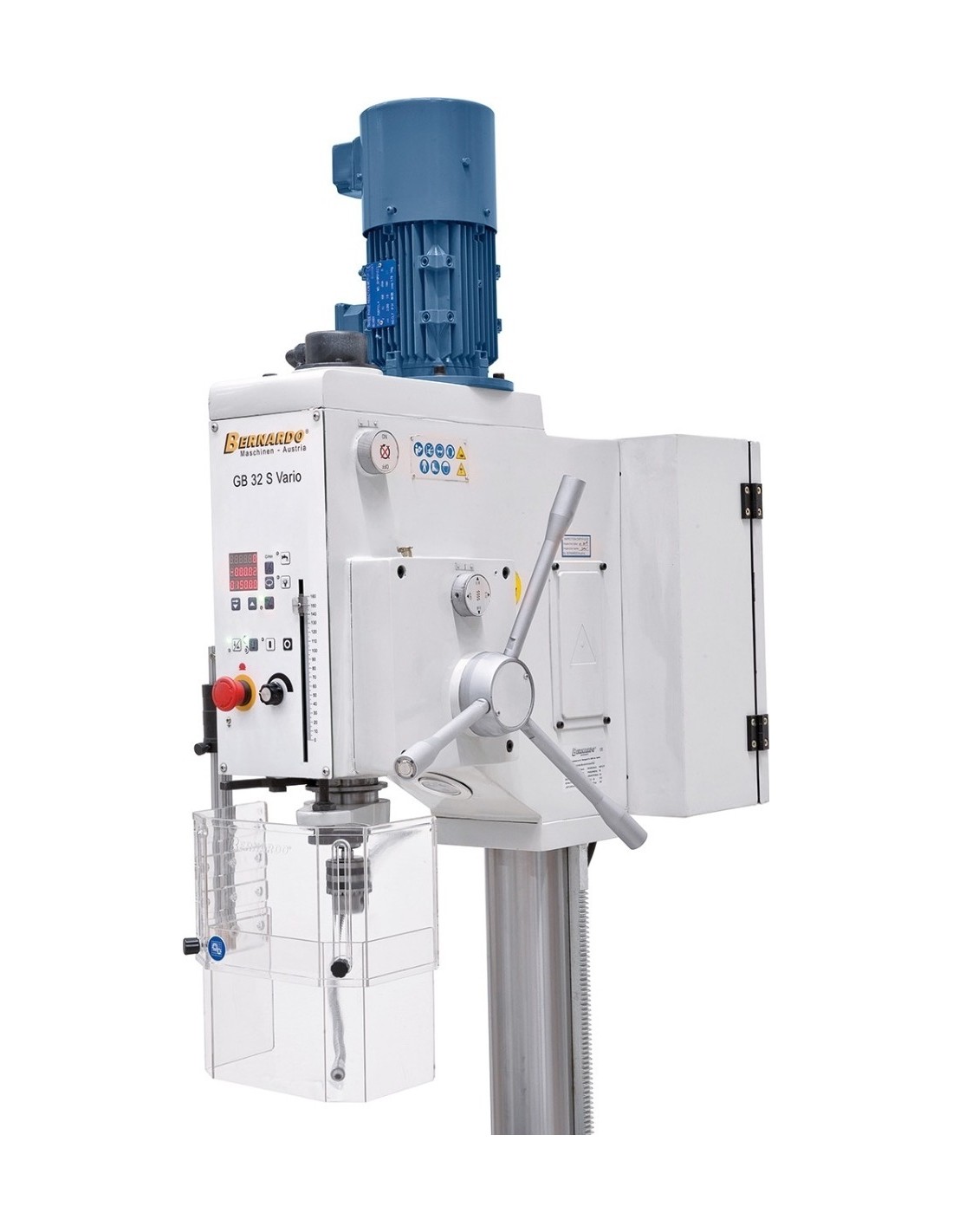

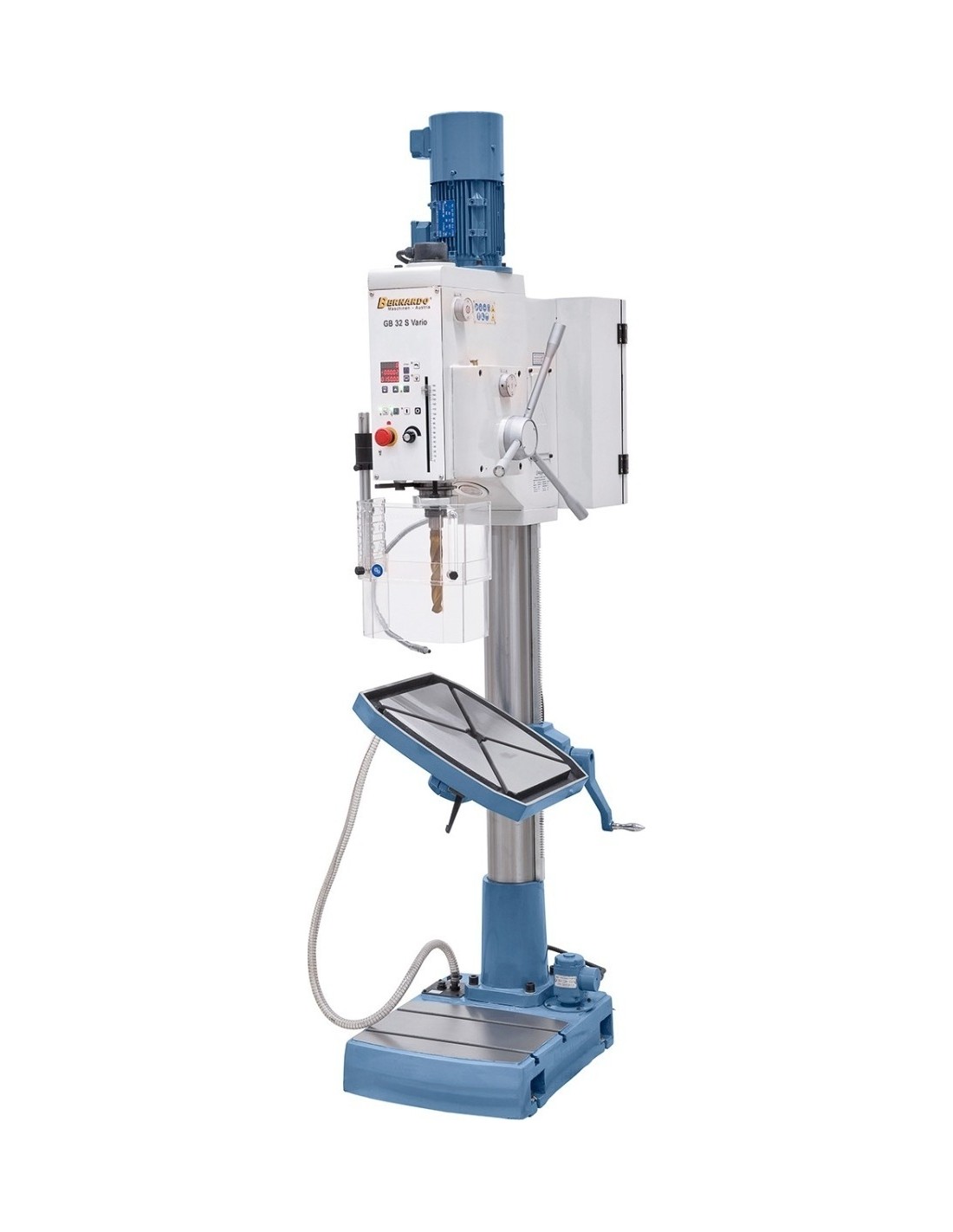

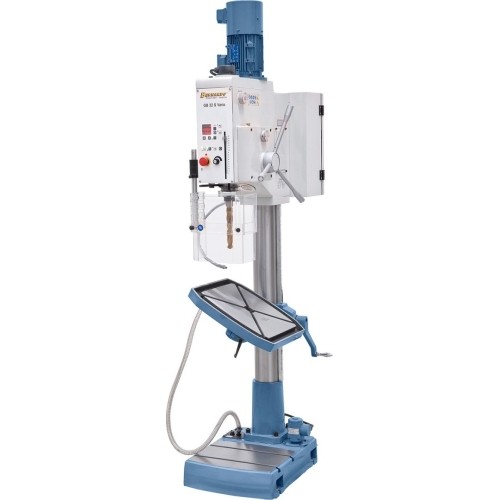

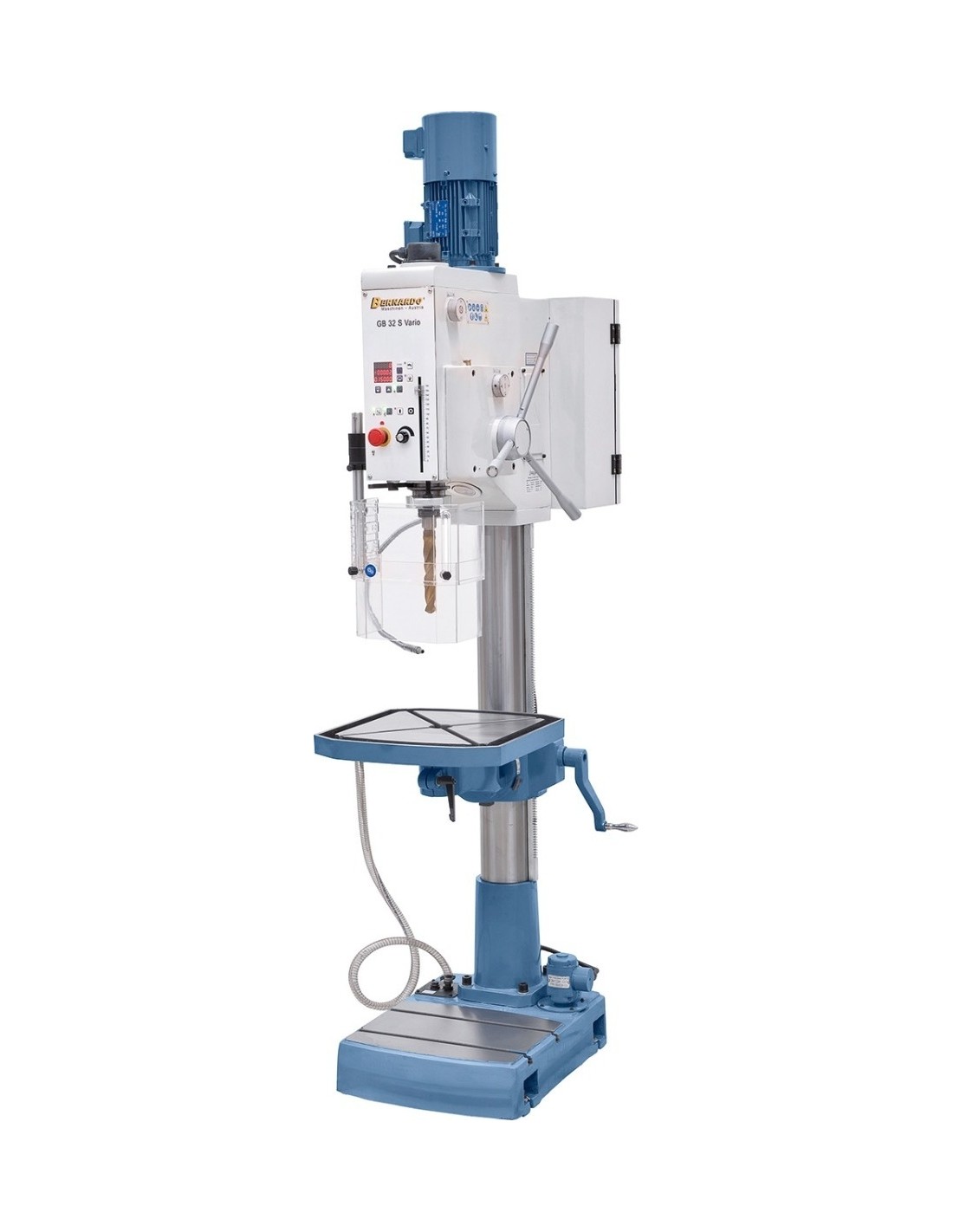

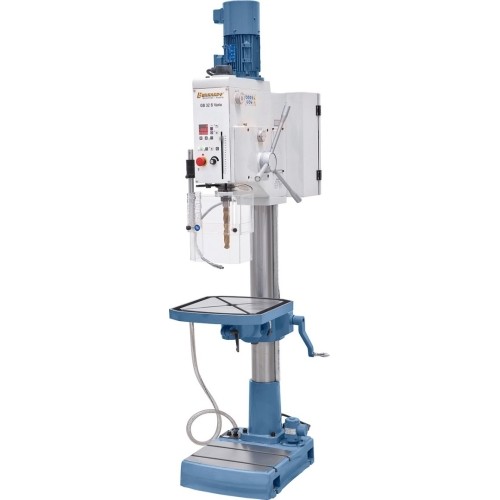

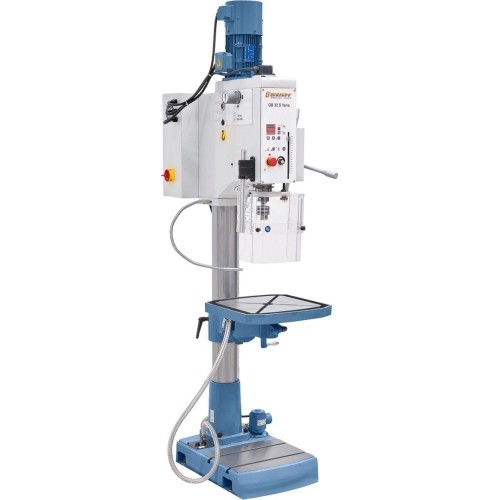

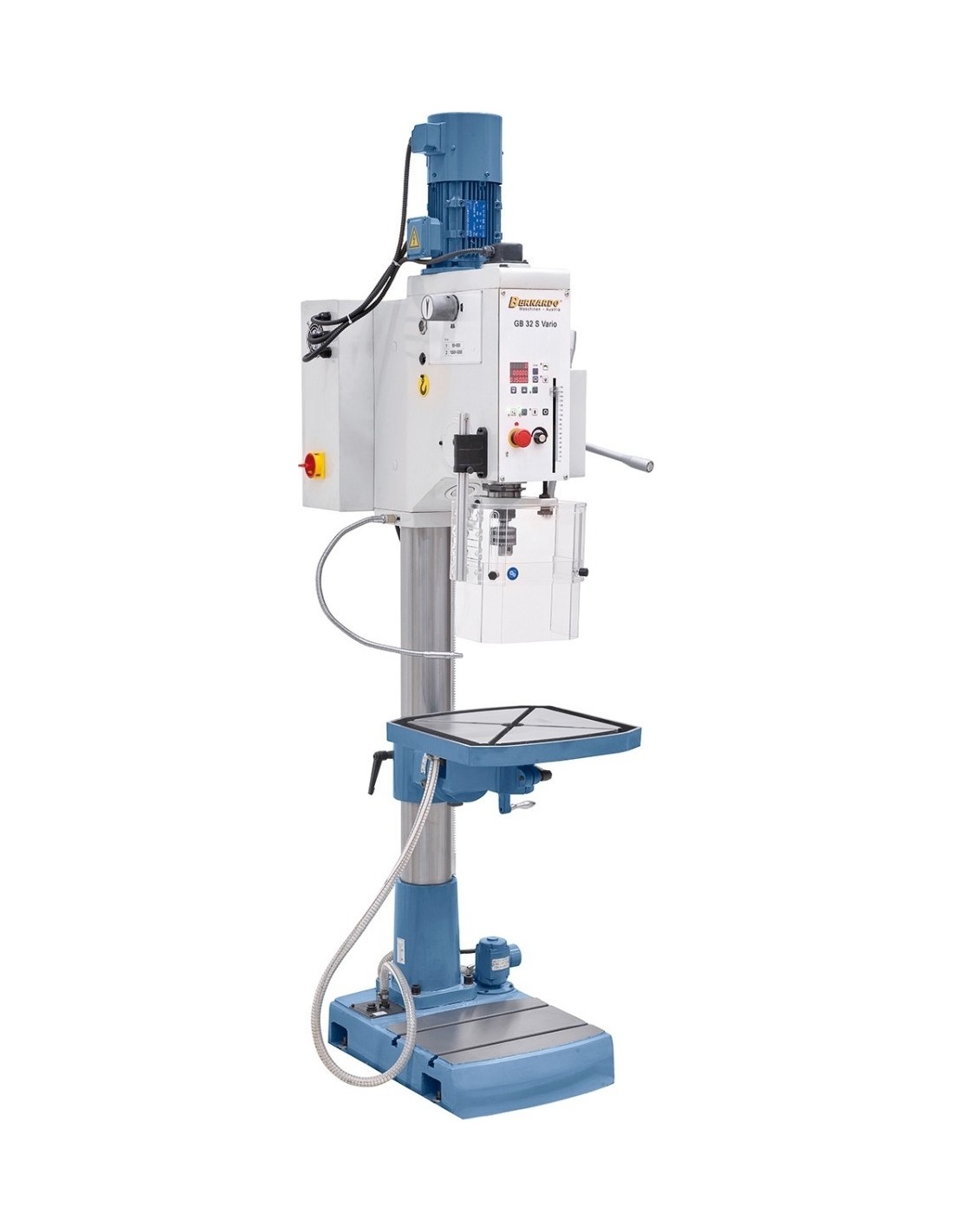

GB 32 S Vario
1248880
Price
€6,048.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 360 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 360 kg.
Description
Properties
- Stepless speed setting allows optimal adjustment of cutting speed

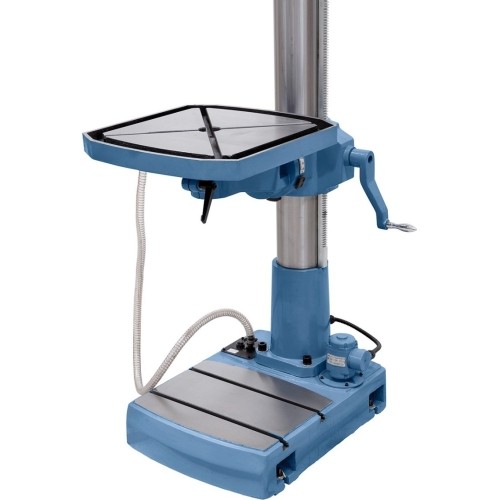

- Treated machine base (420 x 340 mm) with integrated coolant pump

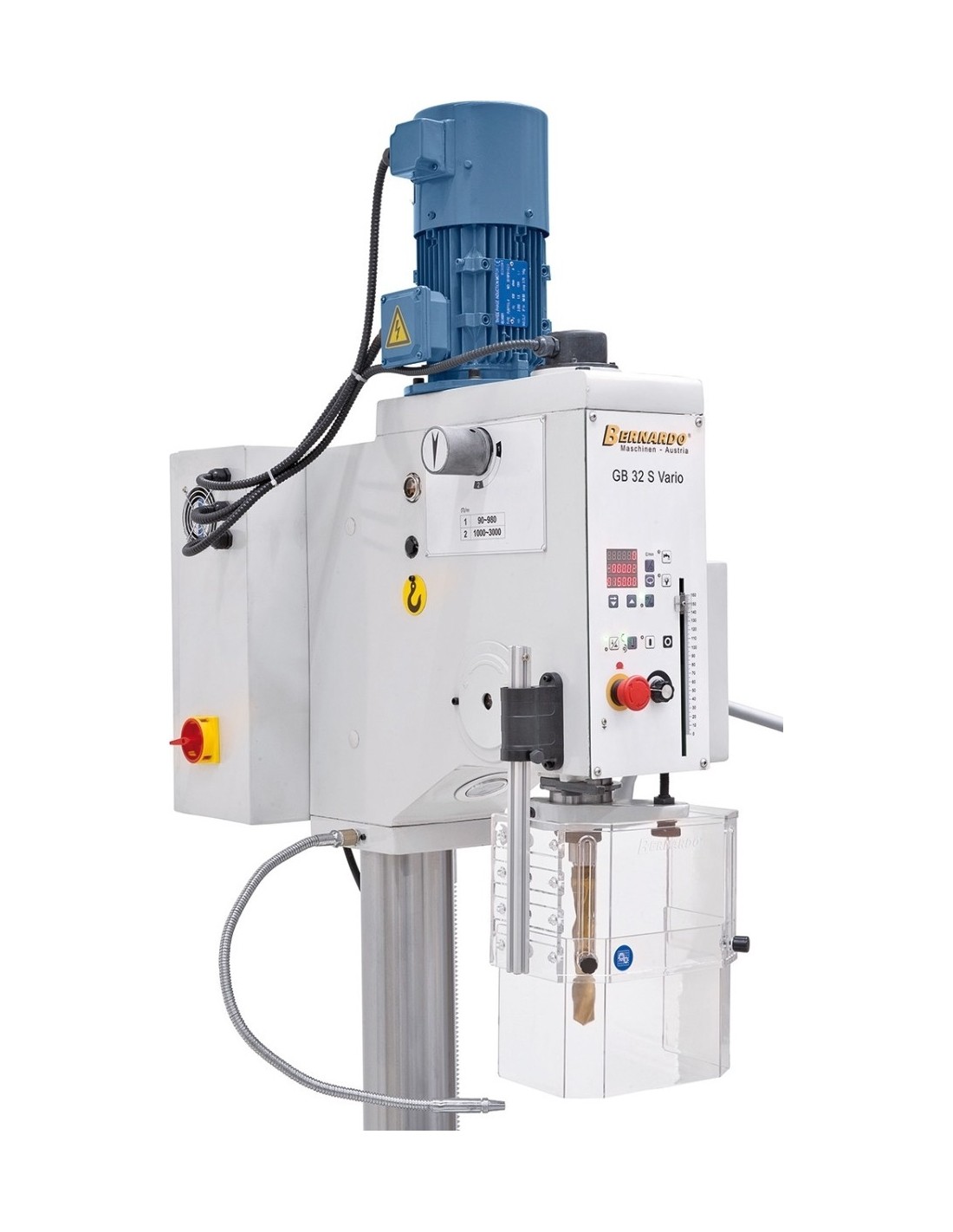

- Integrated digital display to show the speed and drilling depth

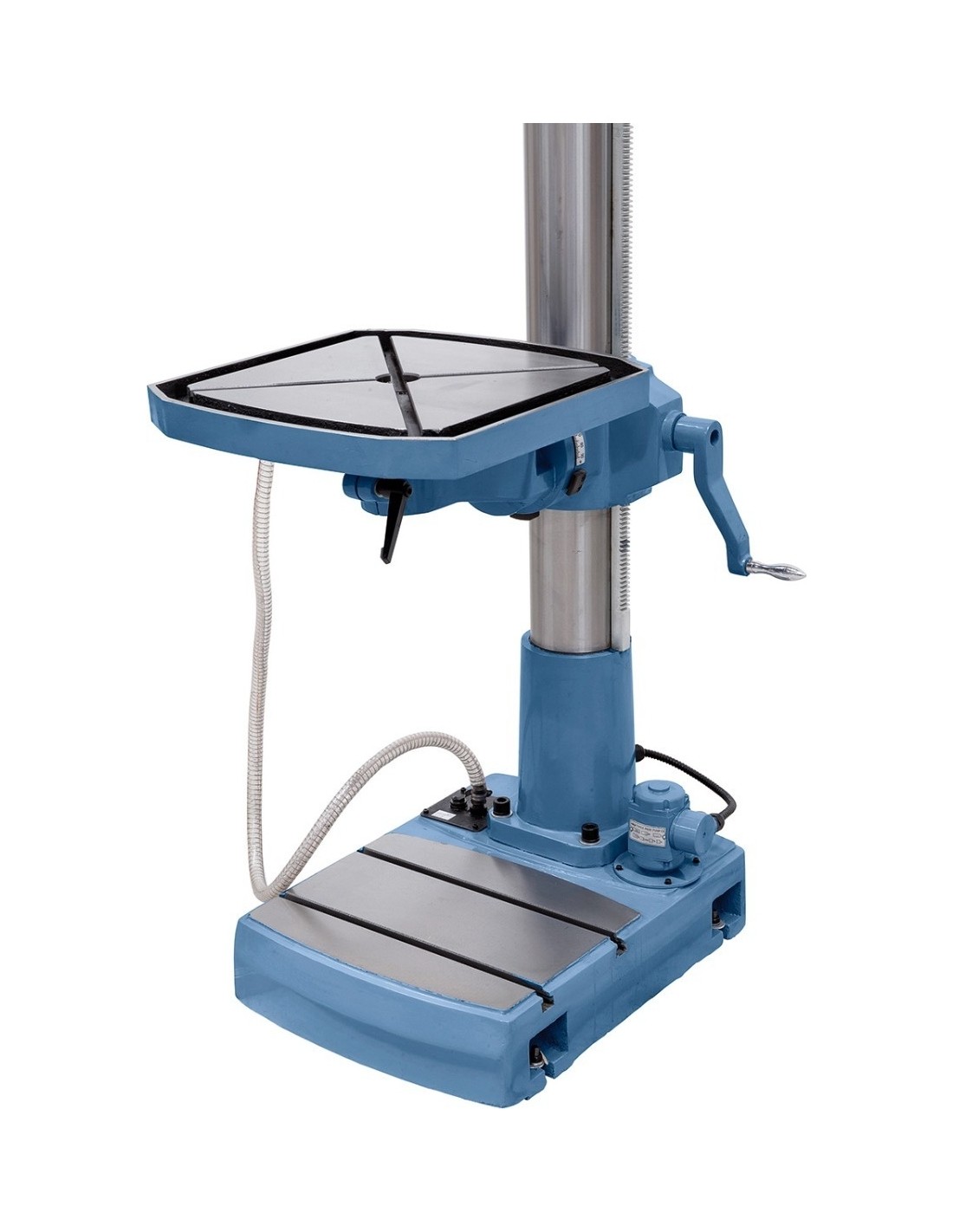

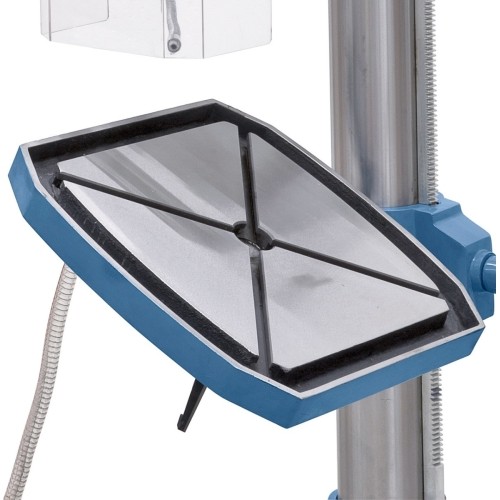

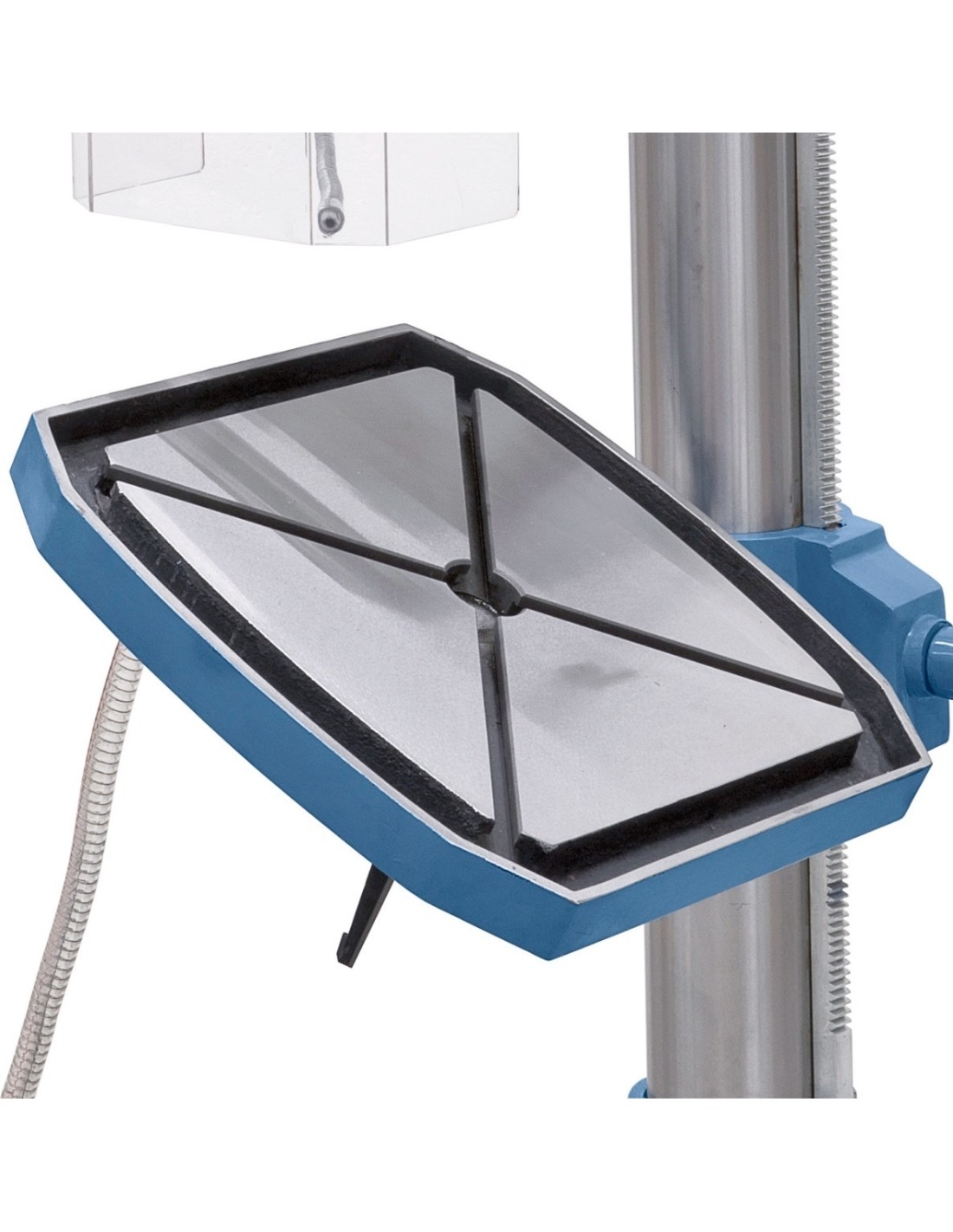

- Solid, grey cast iron table features a tilt- and turnable supportÂ
- 3 automatic spindle feeds come standard
- Guaranteed concentricity of ≤ 0.02 mm, measured at spindle
- Membrane keyboard ensures user-friendly operation
- Serially equipped with automatic spindle feed and thread cutting device
- Solid and polished steel column, designed for heavy workloads
Standard accessories
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3, MT 3 / 2
- Frequency inverter Delta VFD
- Automatic tool release device
- Coolant deviceÂ
- Electromagnetic spindle feed
- Thread cutting device
- LED-machine light
- Digital speed indication
- Digital drill depth indication
- Height adjustable protective cover
