Spindle taper
MT 2
Weight approx.
12,5 kg
Motor power
1550 W
Machine dimension (W x D x H)
170 x 280 x 430 mm

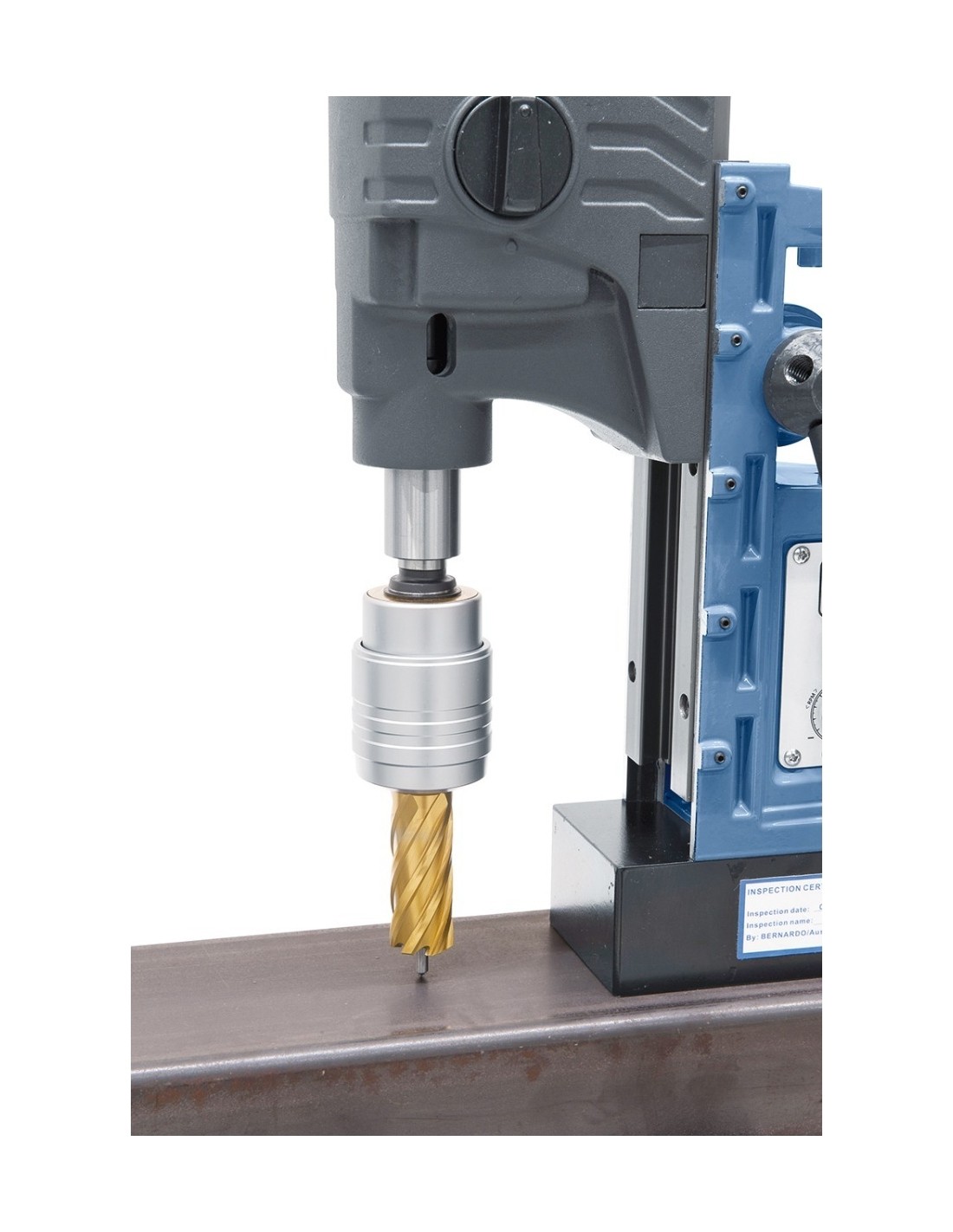

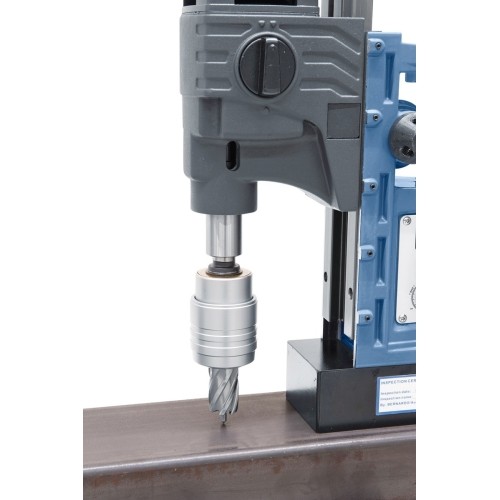

Core drill max. Ø
36 mm
Core drill max. drill depth
50 mm

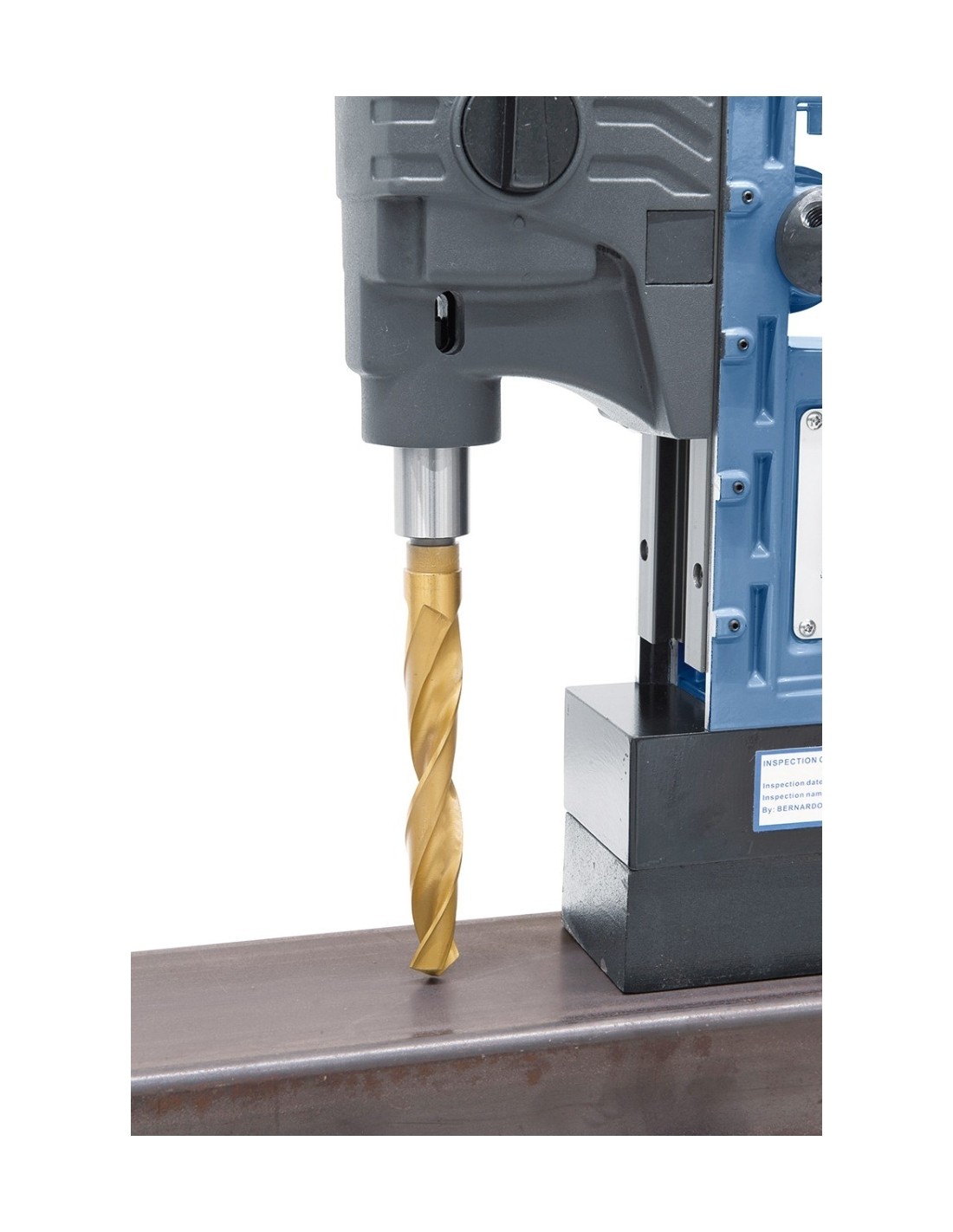

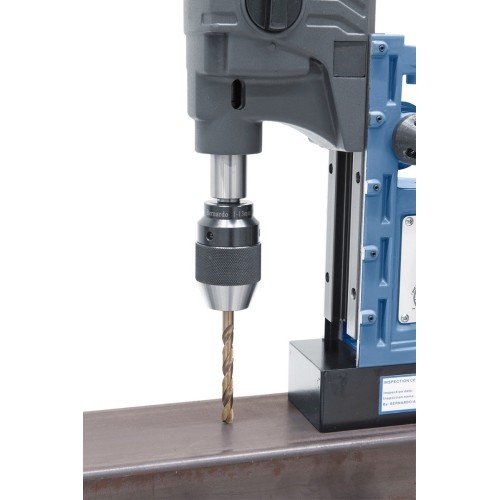

Twist drill max. Ø
18 mm
Travel of drill head max.
170 mm

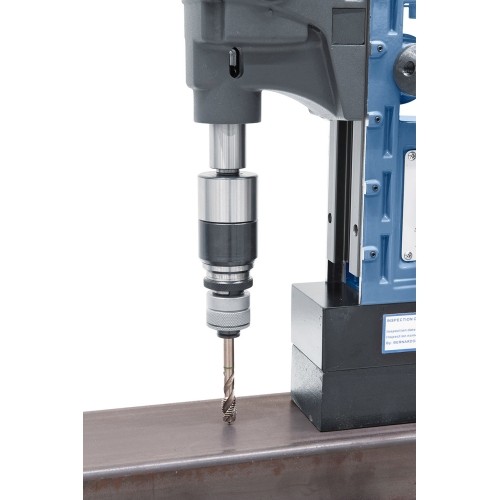

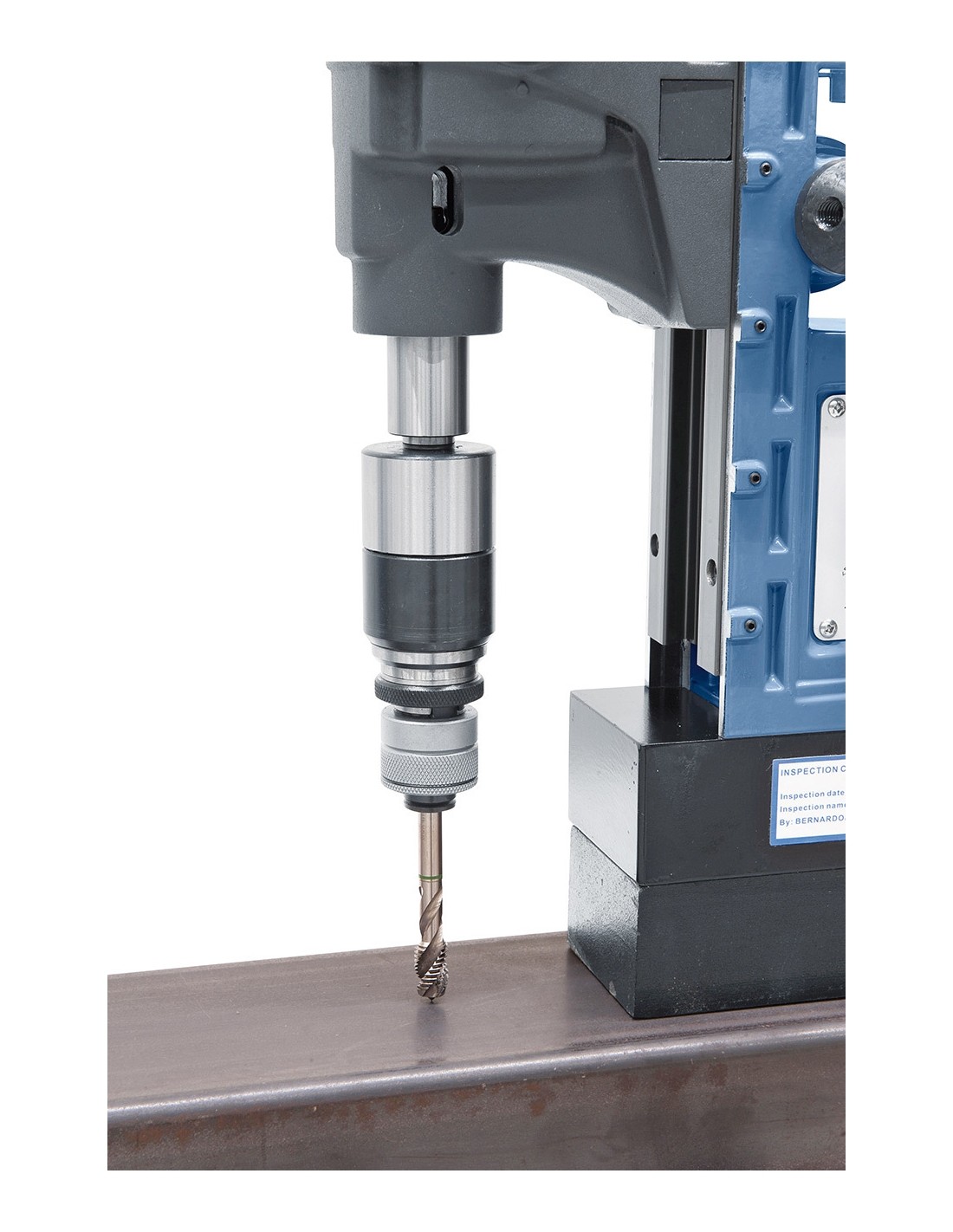

Tapping max.
M 18
Idle speed, stepless
100 - 270 / 100 - 520 rpm
Arbor weldon shank
19 mm
Distance spindle / base max.
180 mm
Distance weldon shank / base max.
80 mm
Magnetic adhesion
14200 N
Dimension magnetic base (L x W x H)
165 x 80 x 50 mm
Phase
230 V

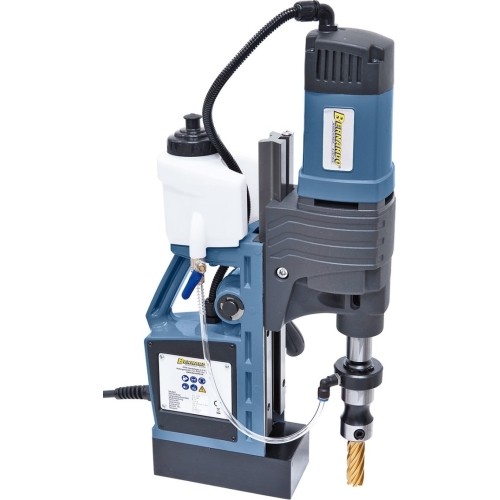

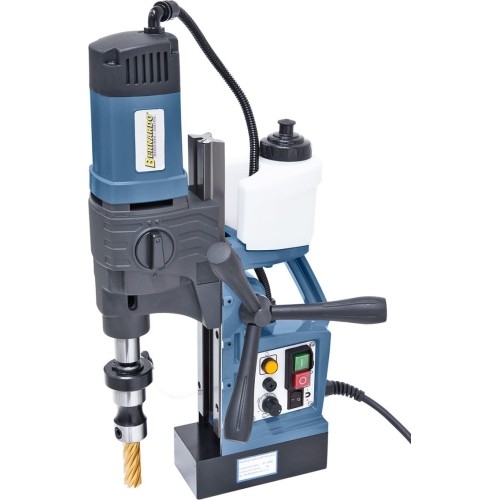

TPC 1000

1334309
Price €1,009.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, august 4 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
We will deliver the product to you via: 5-11 w.d. Venipak (€5.00)

Description

Properties

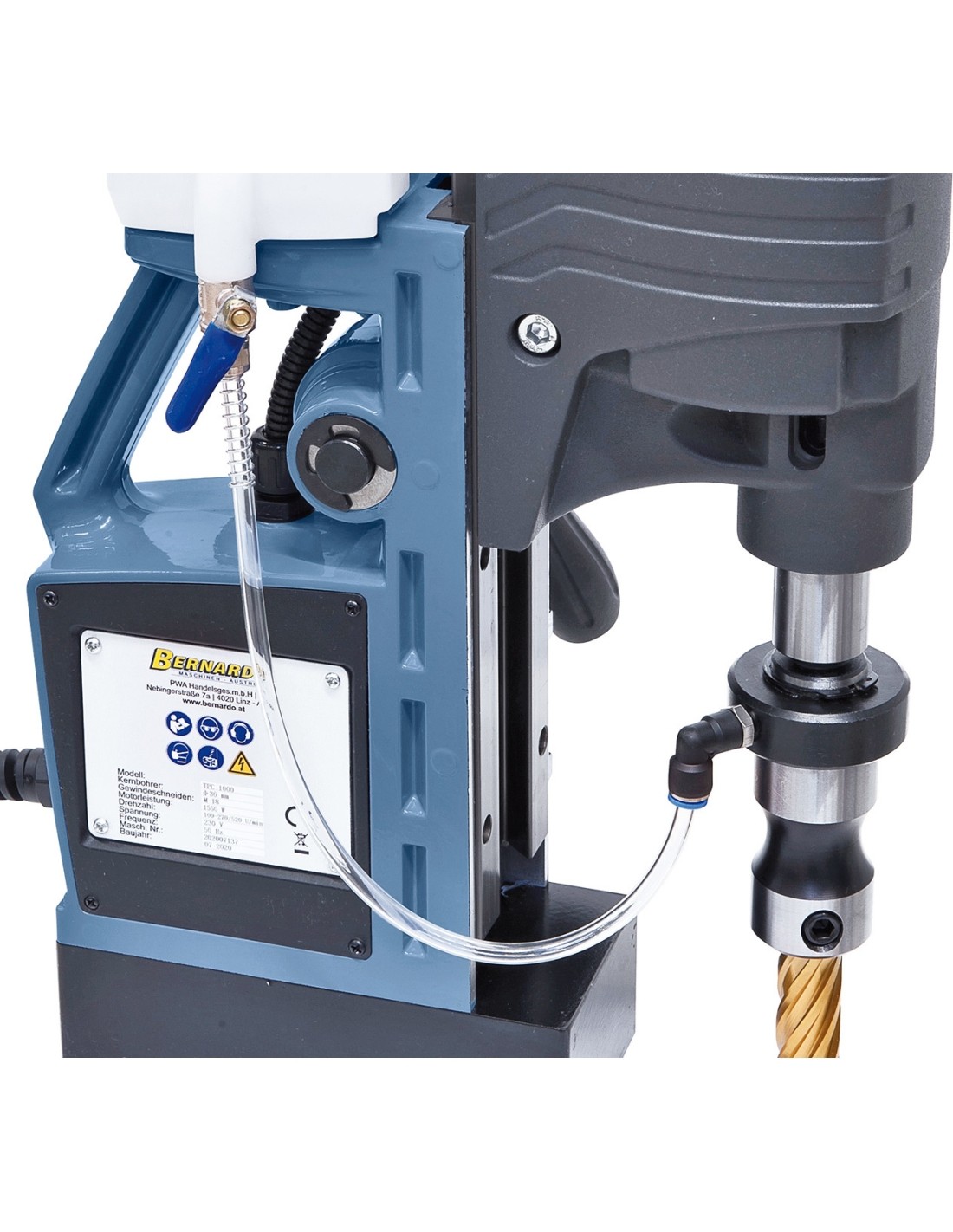

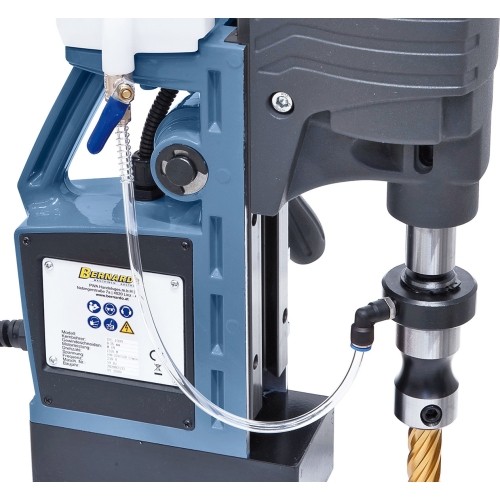

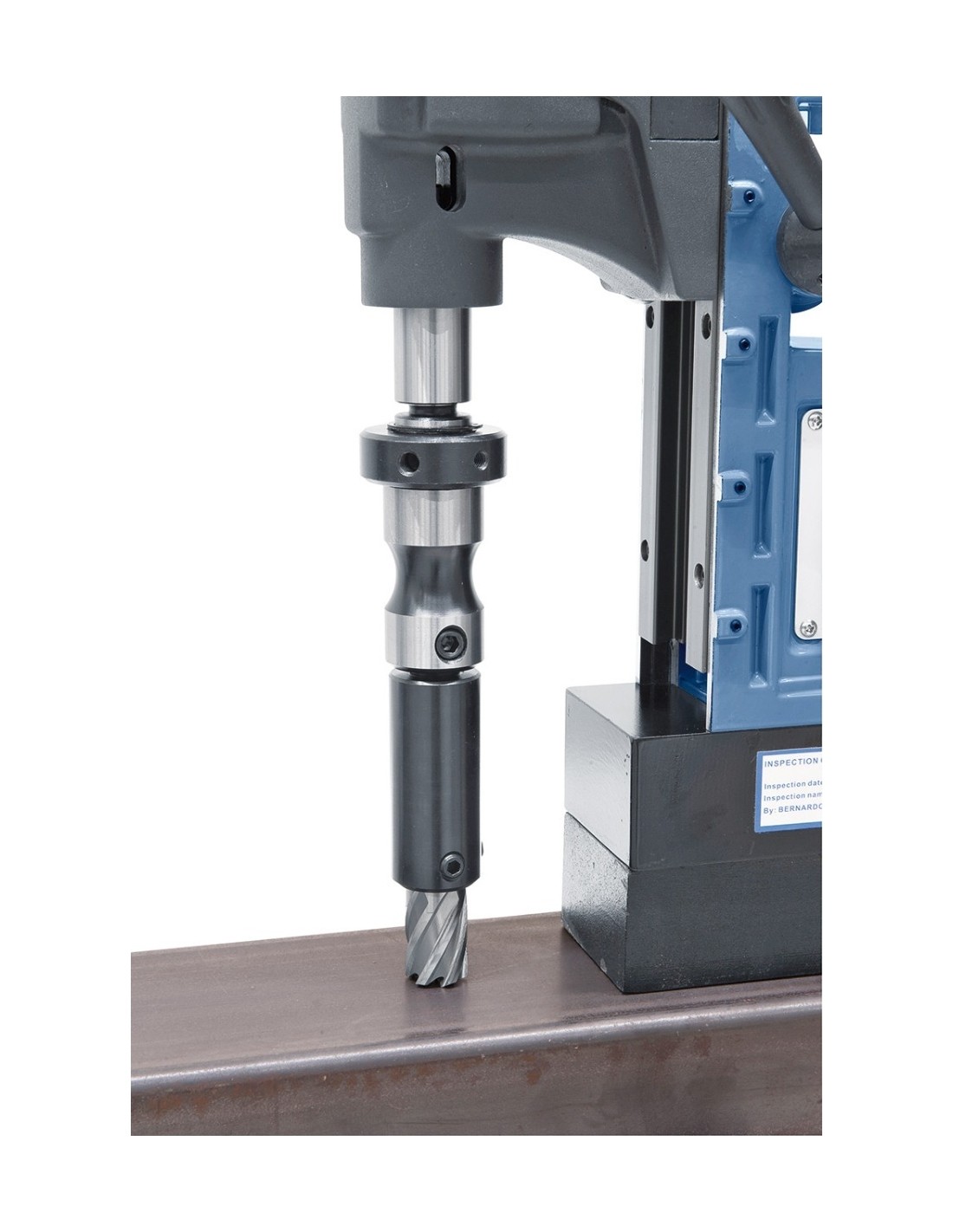

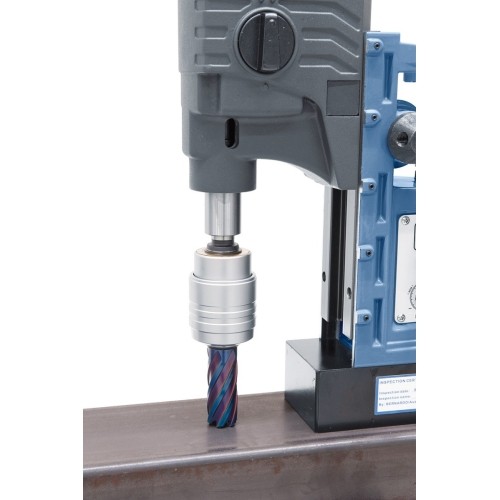

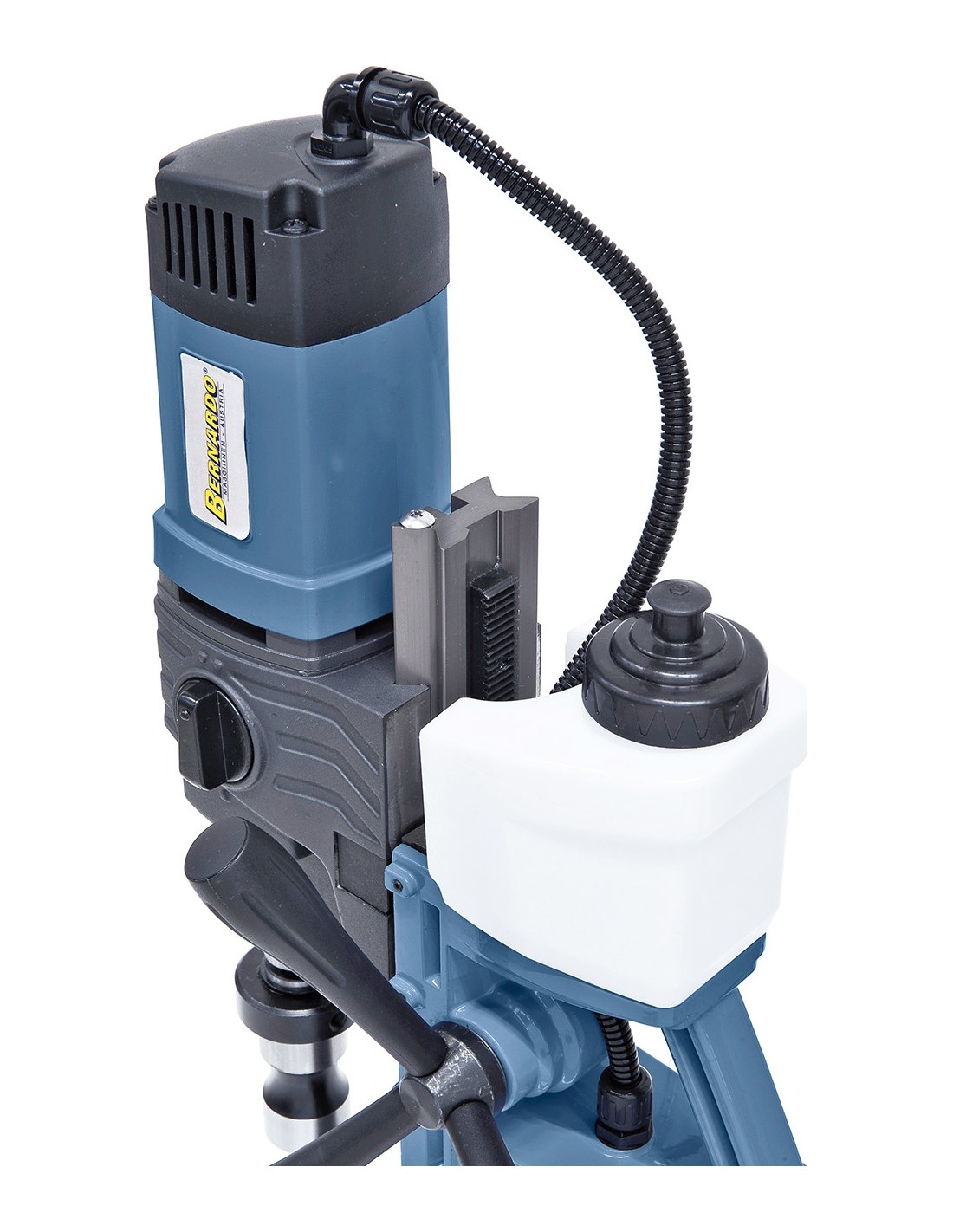

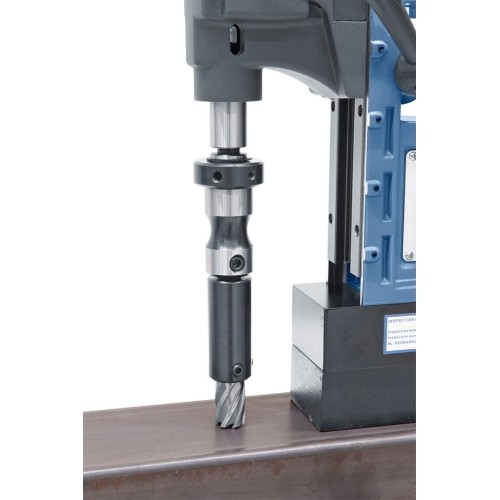

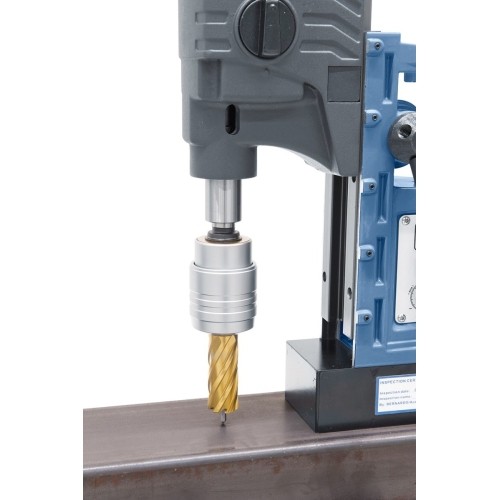

  • Automatic internal lubrication – coolant spreads direct on core drill

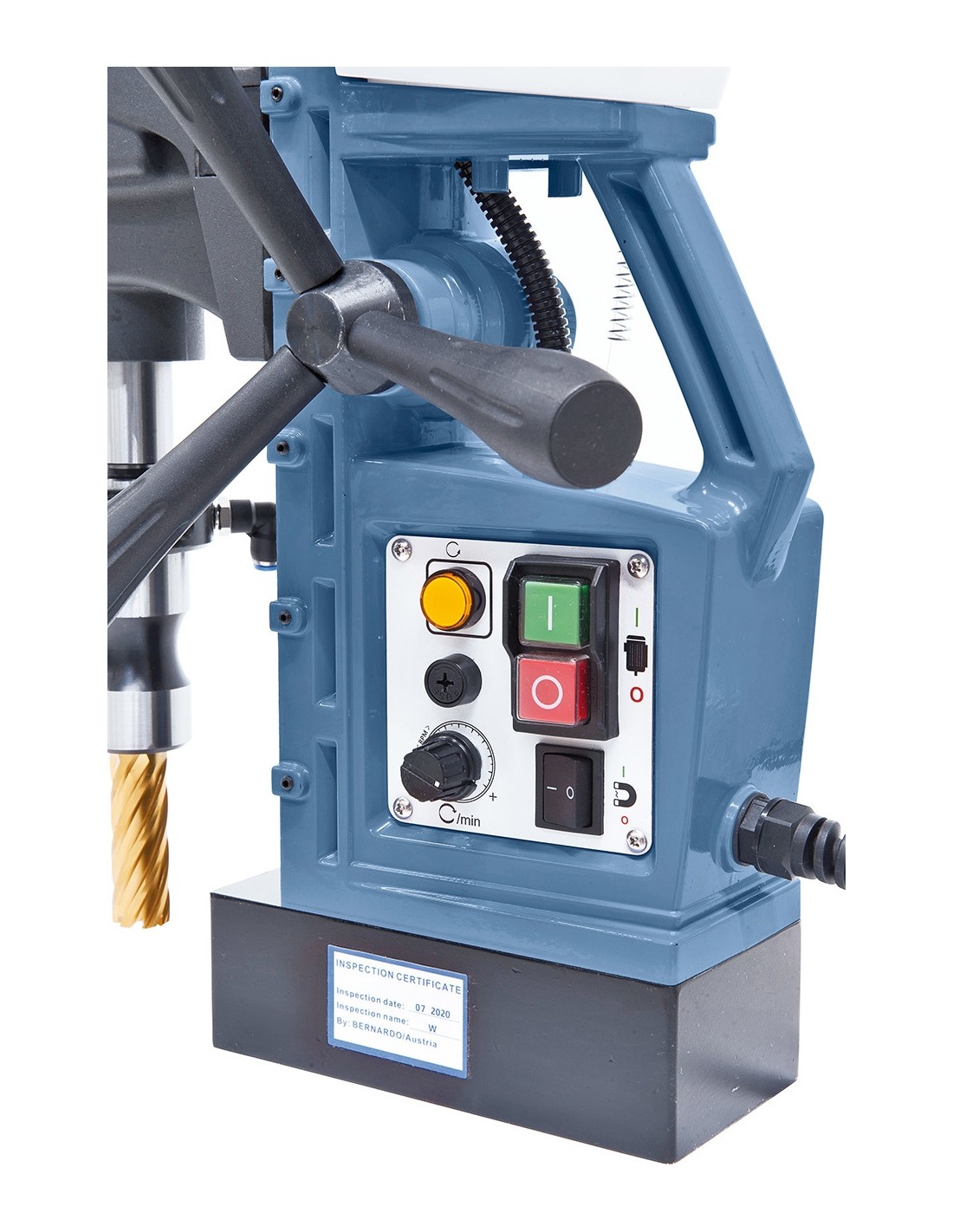

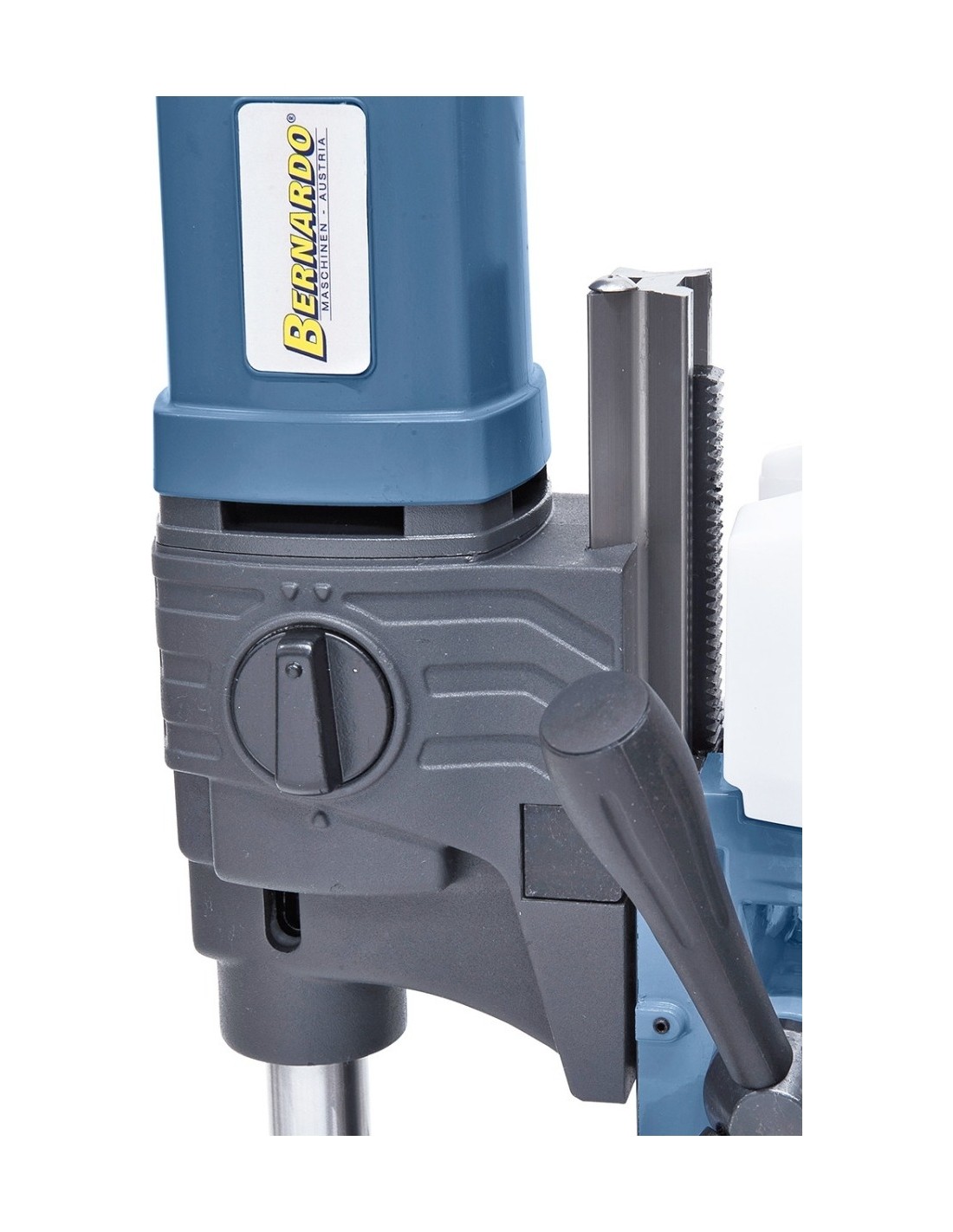

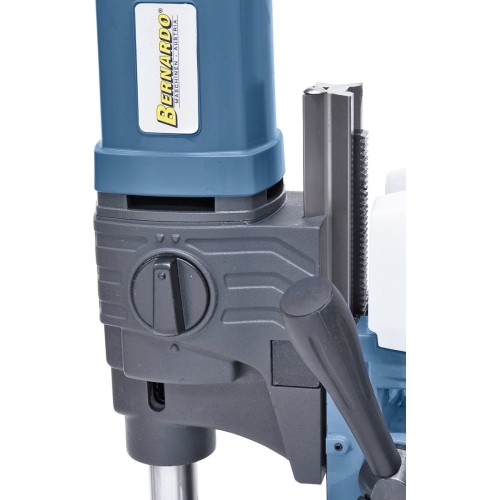

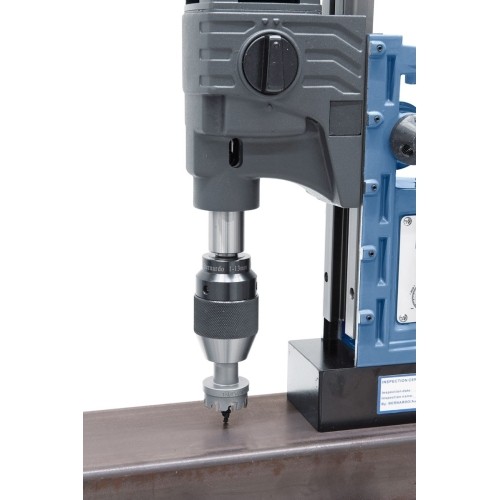

  • Variable speed setting allows optimal adjustment of speed when core drilling, tapping, countersinking or reaming

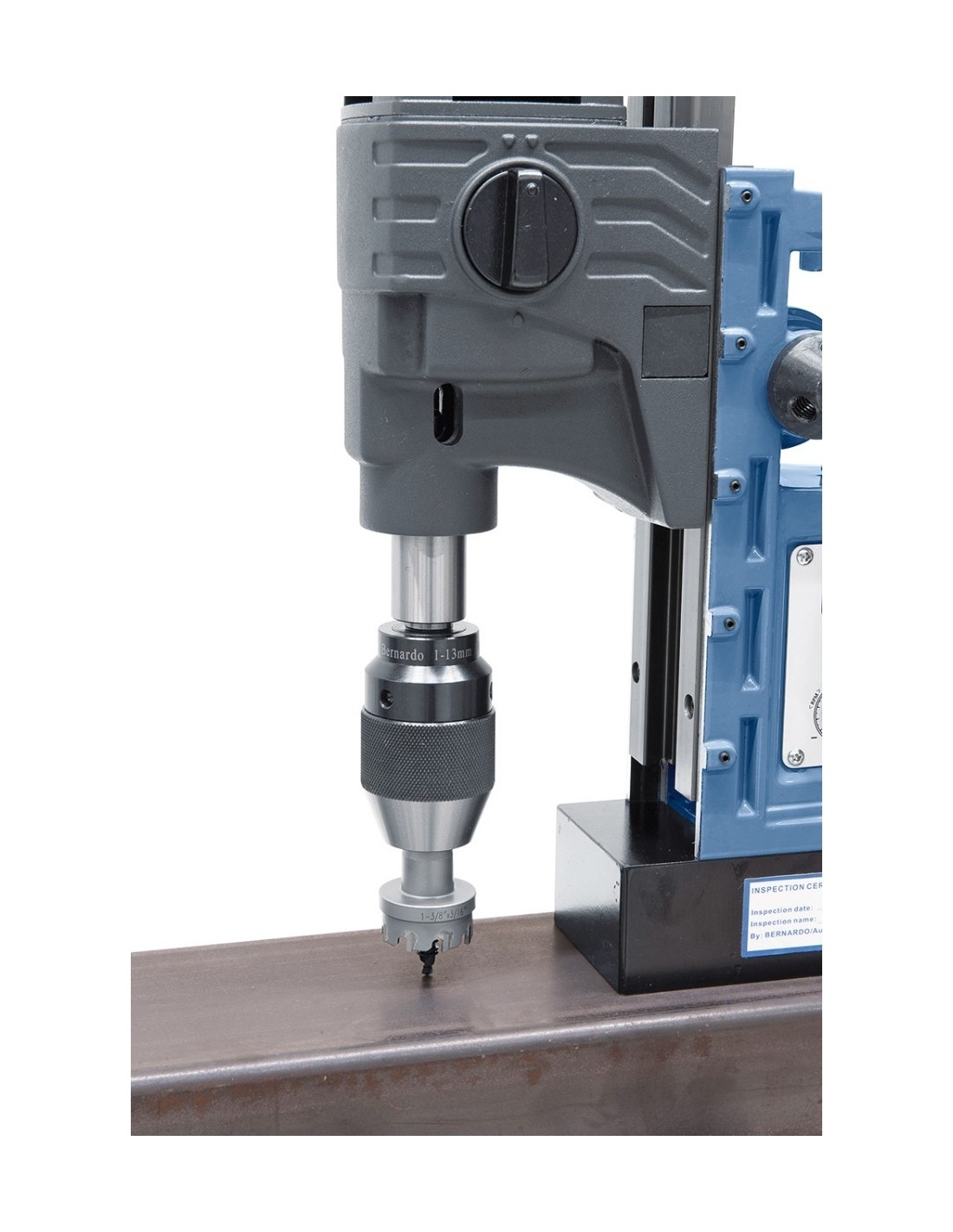

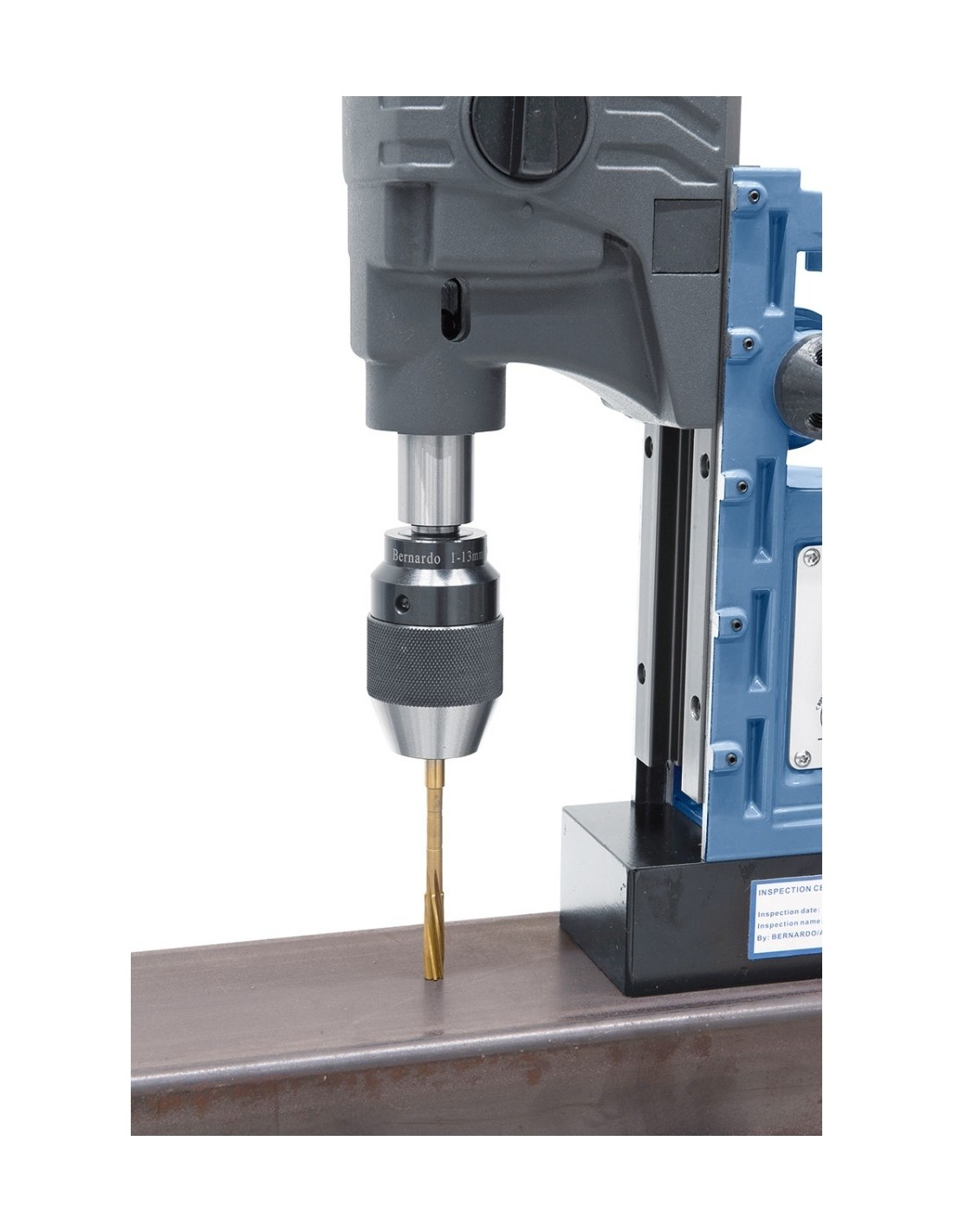

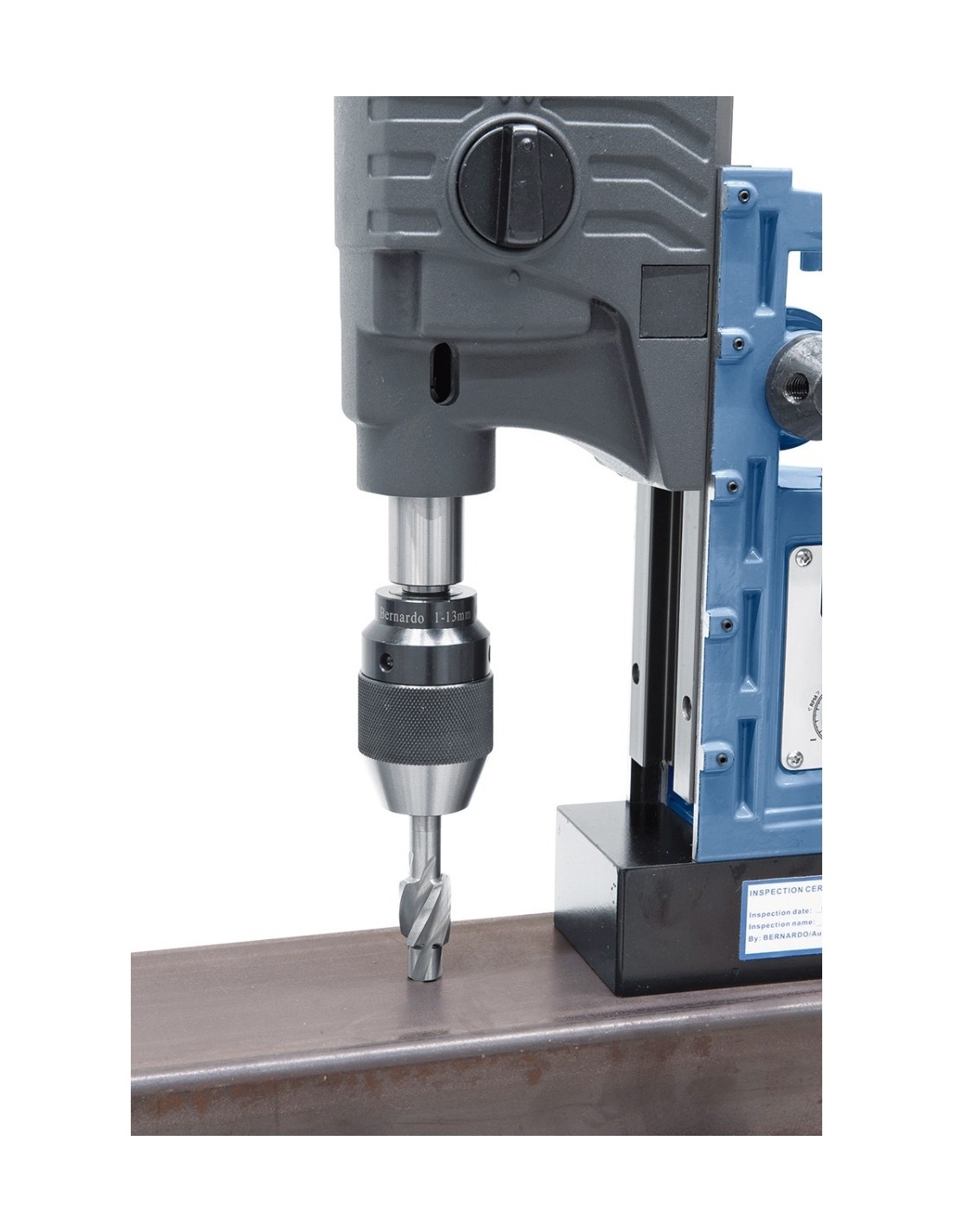

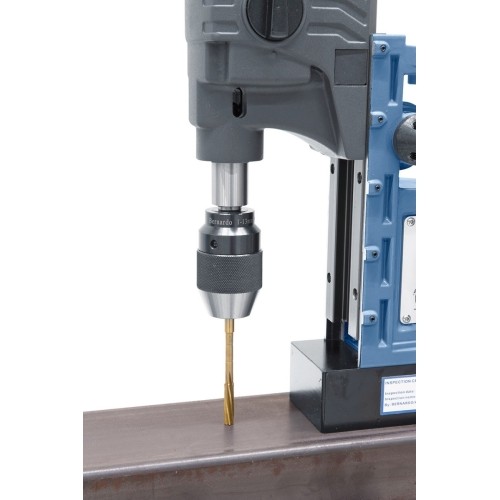

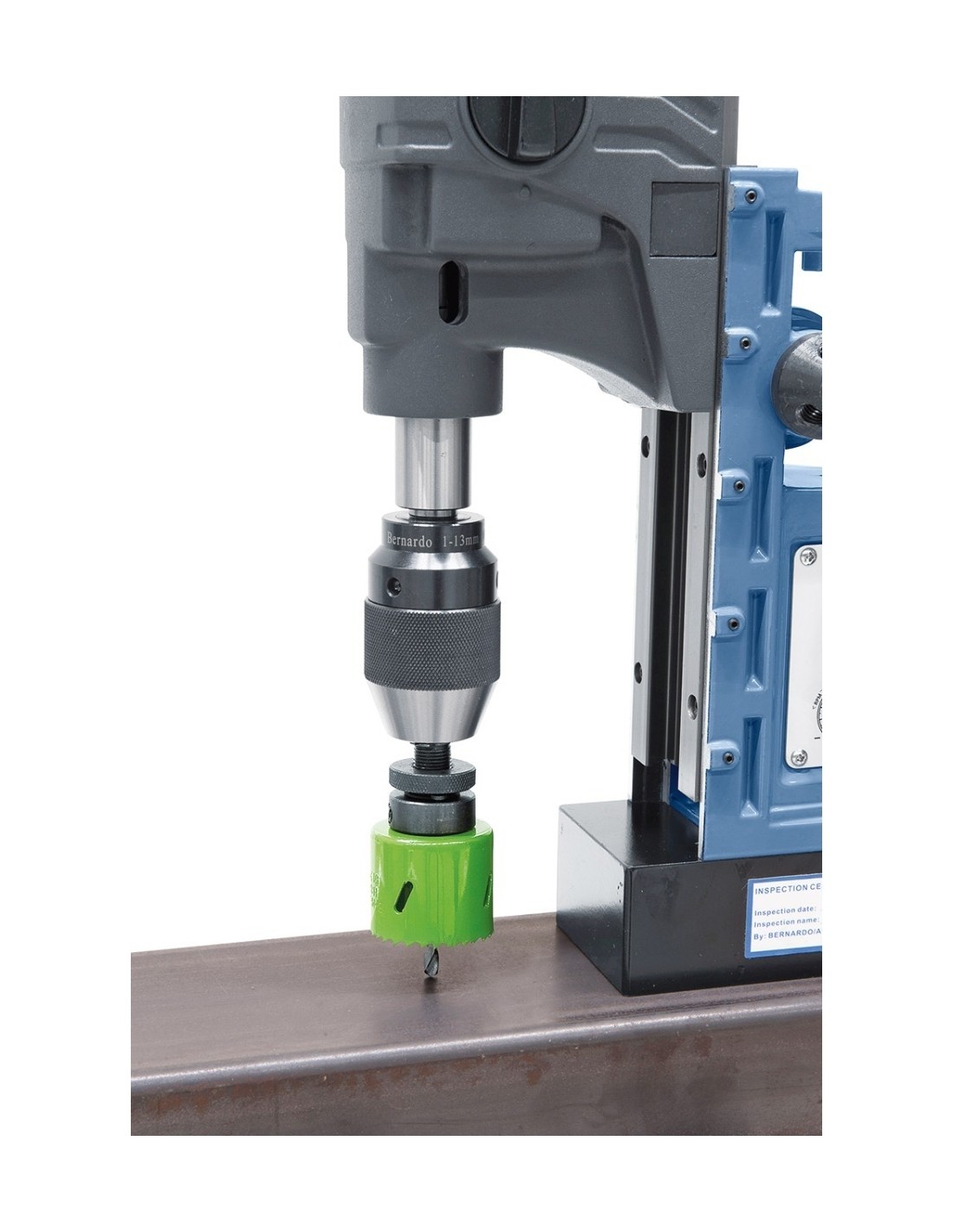

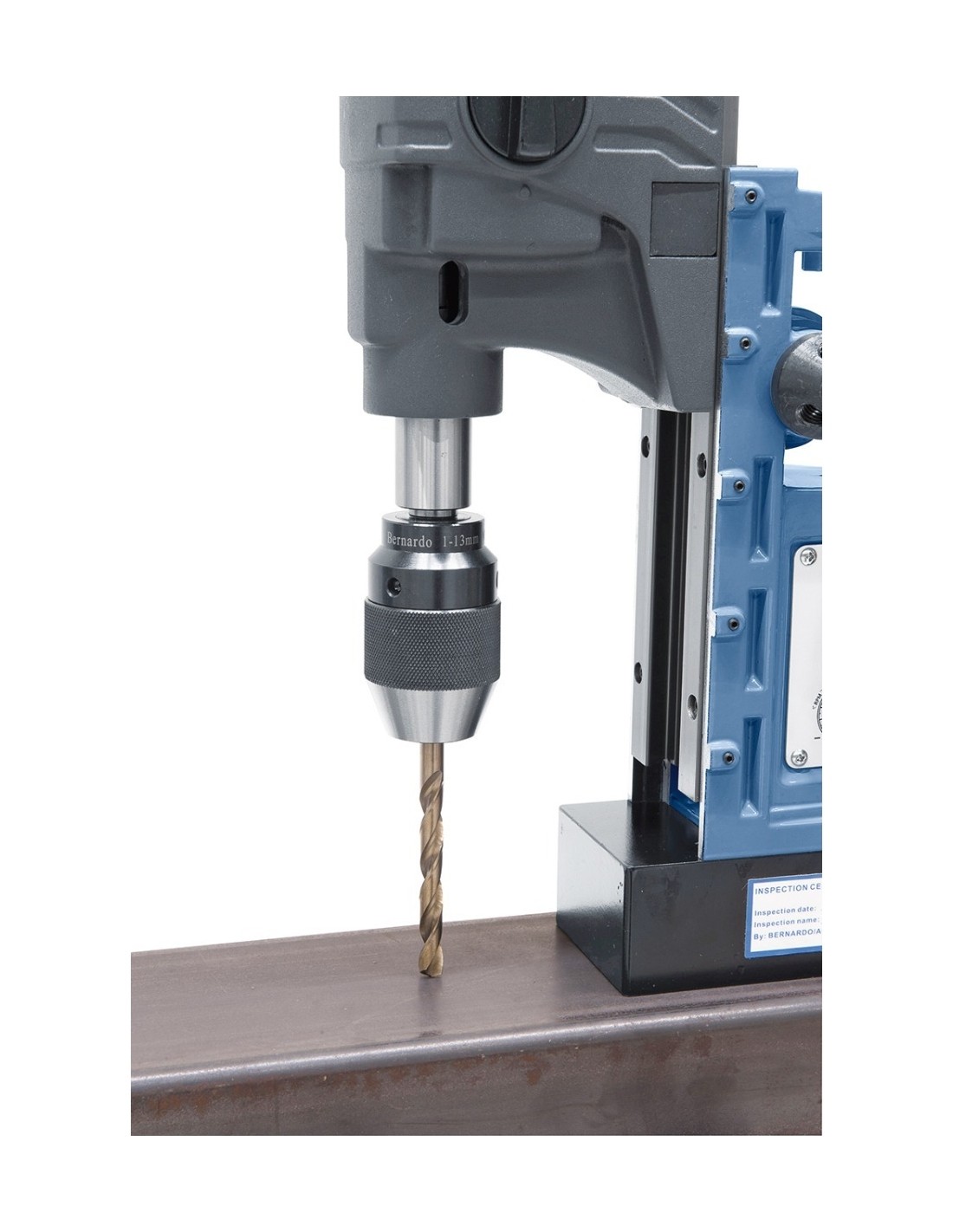

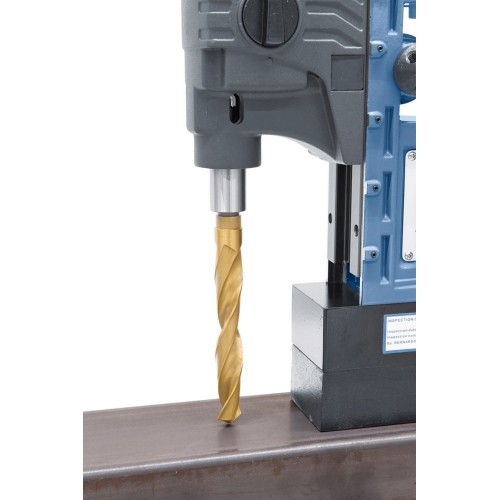

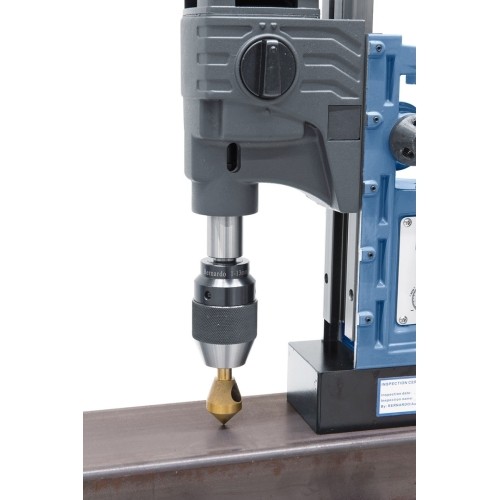

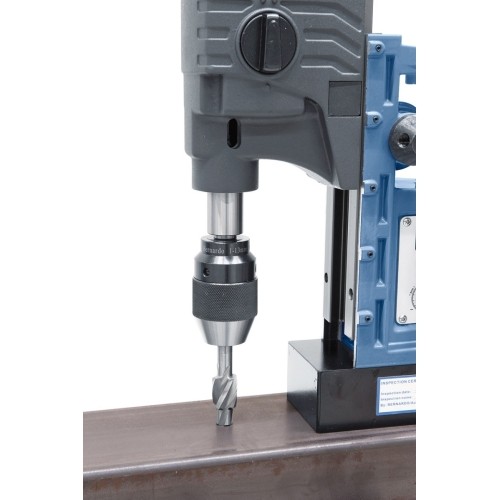

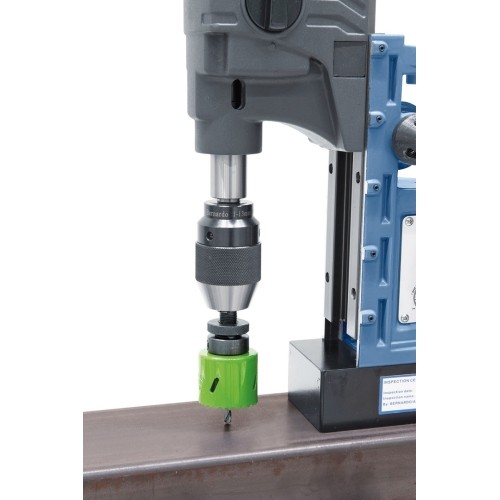

  • Complete with MT 2 taper for mounting of several tools (twist drills, countersinking bits, reamers, tapping chucks, keyhole saws etc.)
  • Powerful, high torque drive motor features soft start and overload protection
  • Powerful electro magnet guarantees high magnetic force

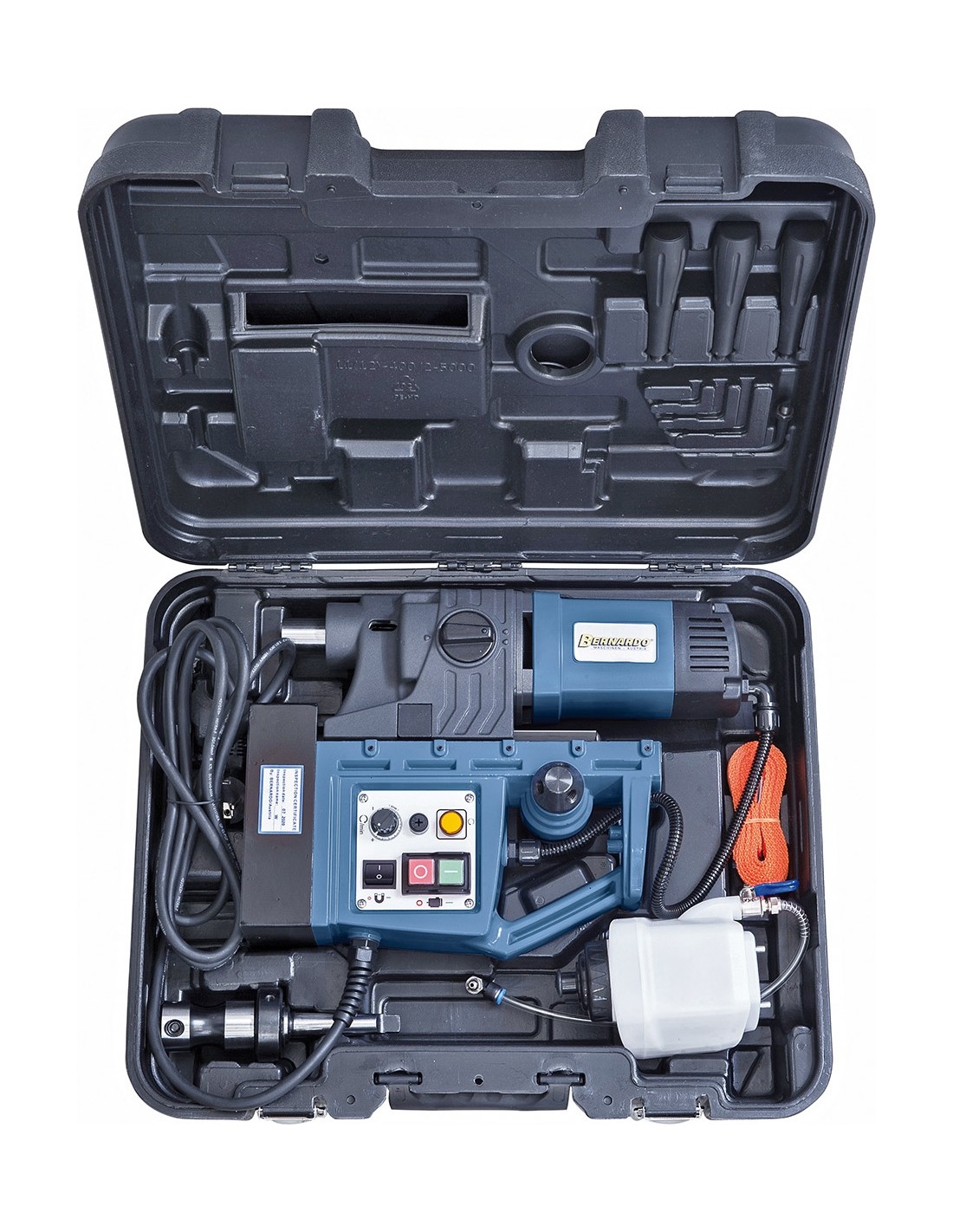

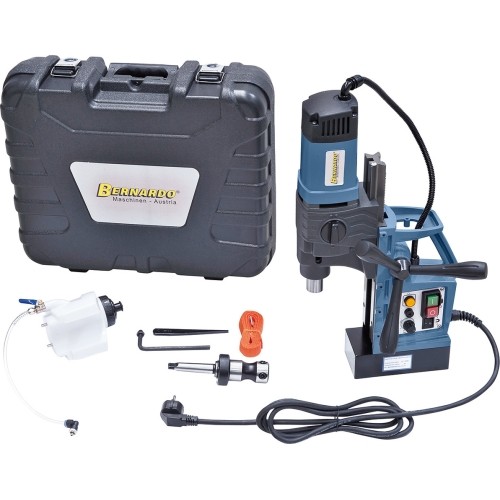

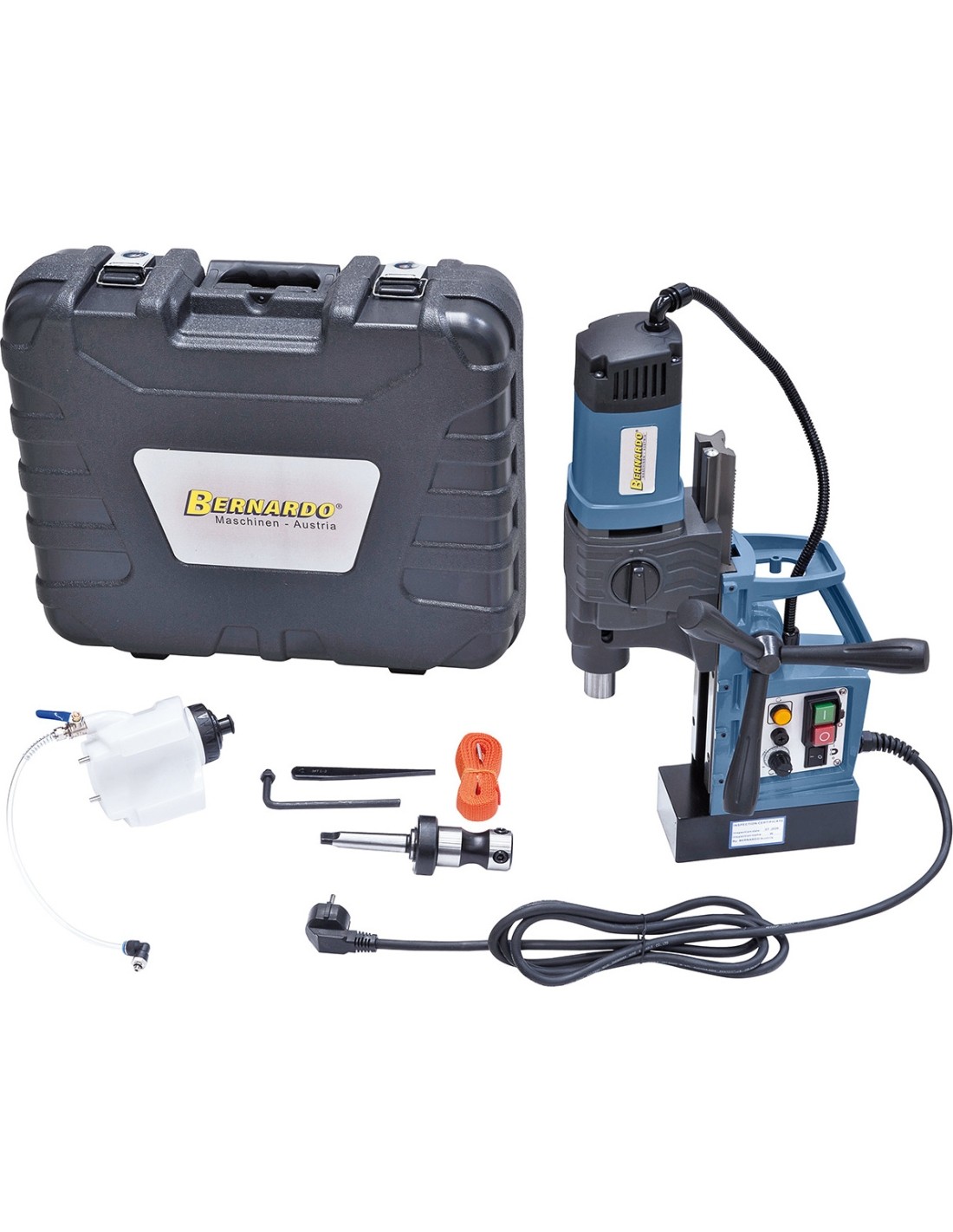

Standard accessories

  • Plastic container

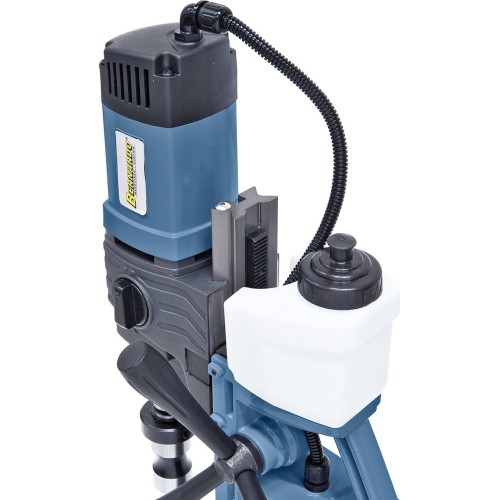

  • Coolant tank

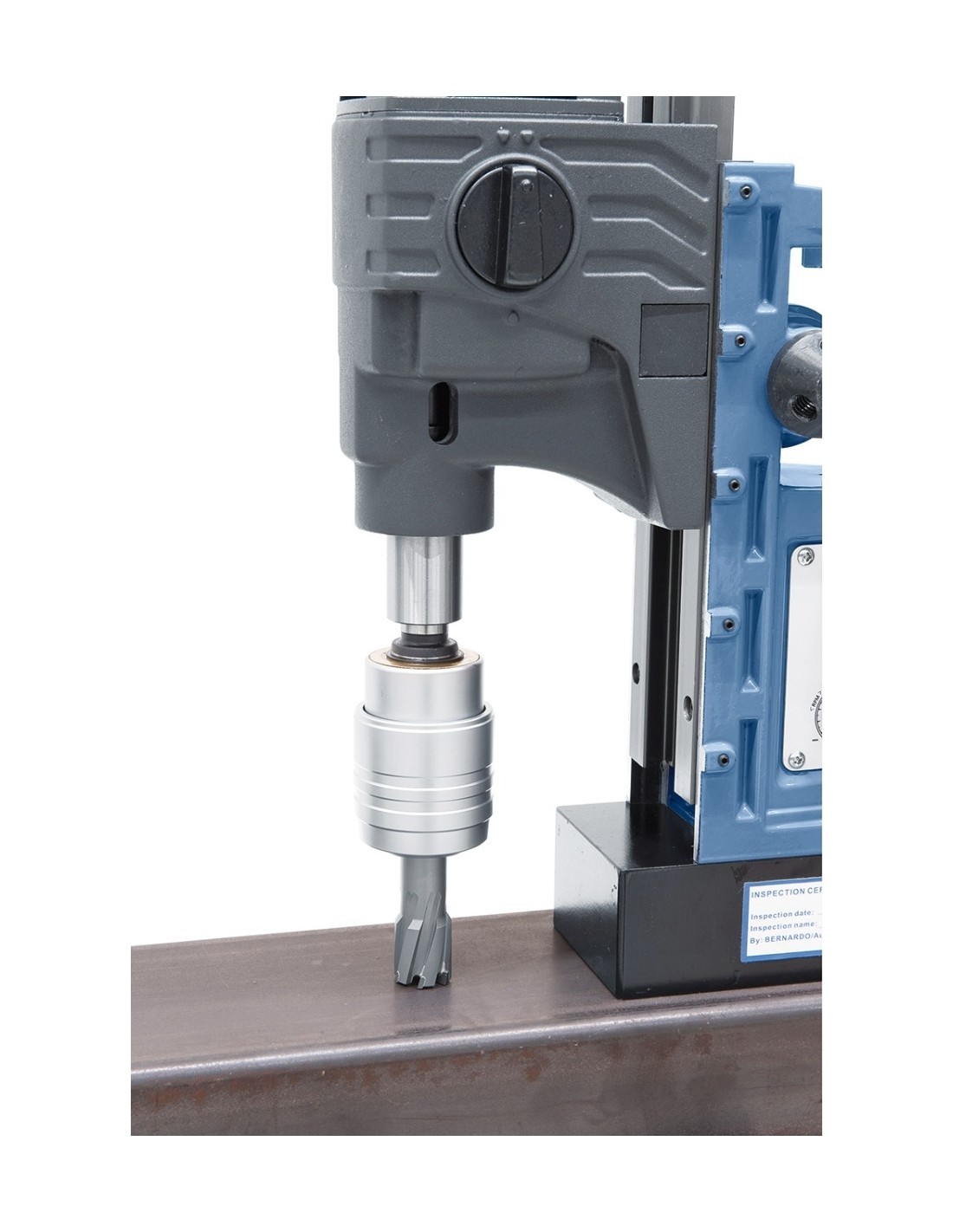

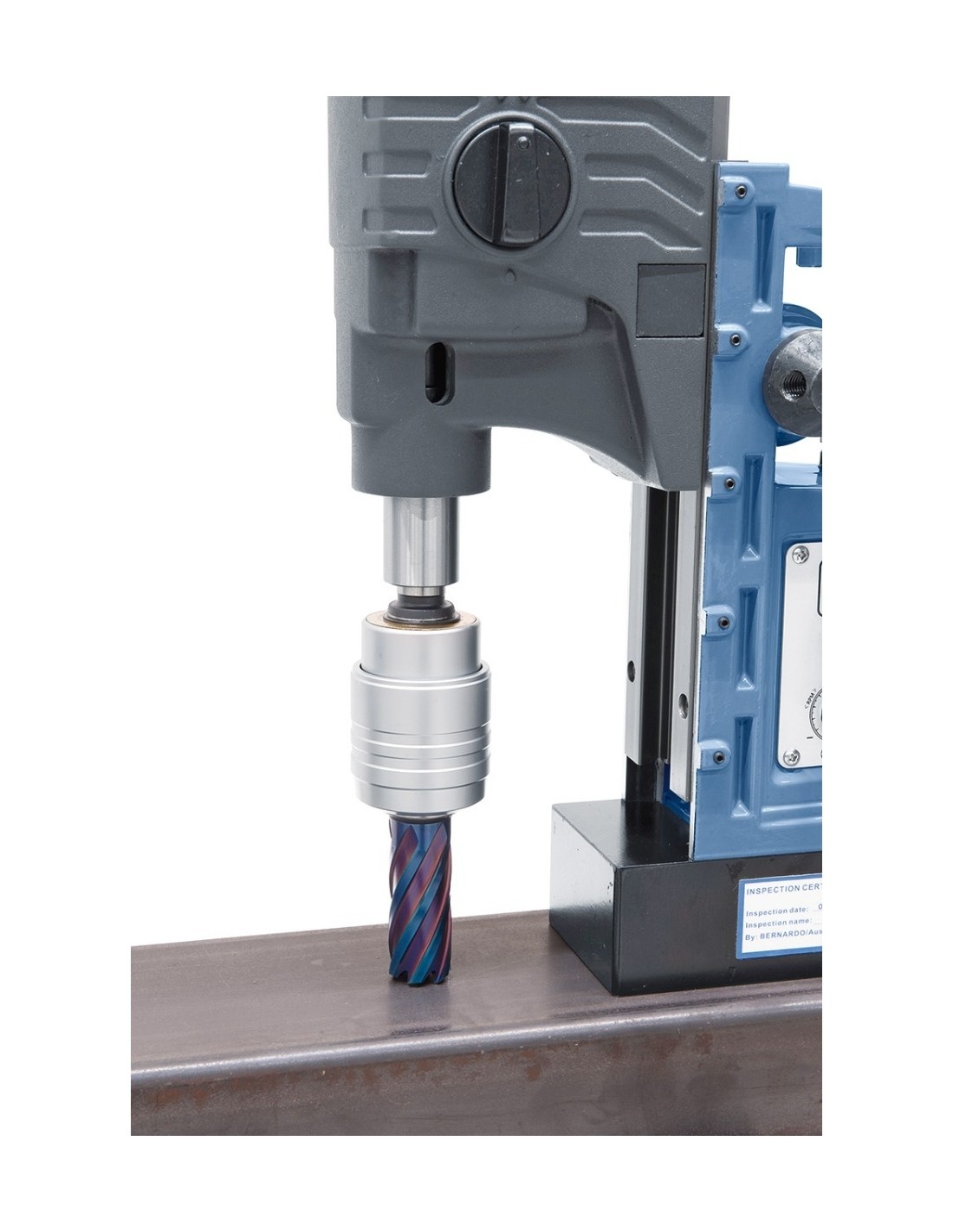

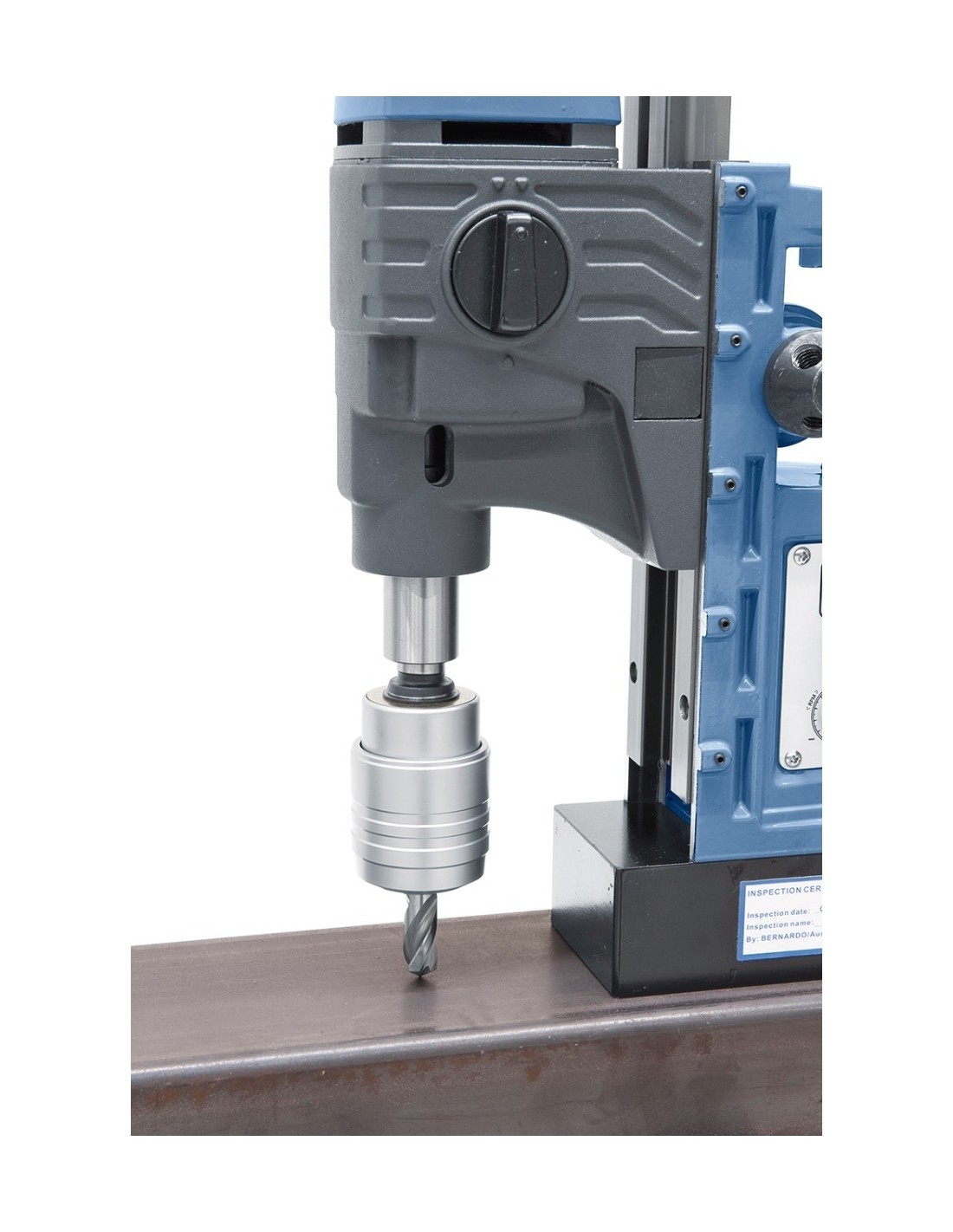

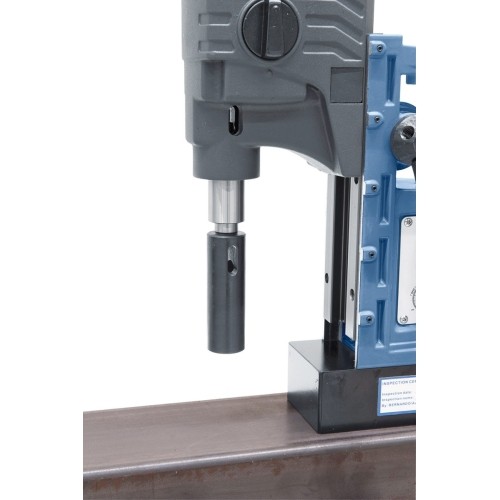

  • Arbor with automatic internal cooling MT 2 / Weldon shank 19 mm
  • Safety belt
  • User manual
  • Tools
