Spindle taper: ISO 40
Weight approx.: 1023 kg
Motor power: 2,2 kW
Machine dimension (W x D x H): 1700 x 1750 x 2120 mm
Distance spindle to column: 135 - 485 mm
Spindle stroke: 125 mm
Spindle speed, stepless: 60 - 4200 rpm
T-slot size: 16 mm
Table size: 1245 x 230 mm
Distance spindle to table: 45 - 355 mm
Spindle feed: 0,038 / 0,076 / 0,152 mm/rev.
Travel longitudinal (x): 690 mm
Travel cross (y): 315 mm
Travel vertical (z): 310 mm
Head tilting range: -90° to +90°
Mill head swivel range: -45° to +45°

Brand

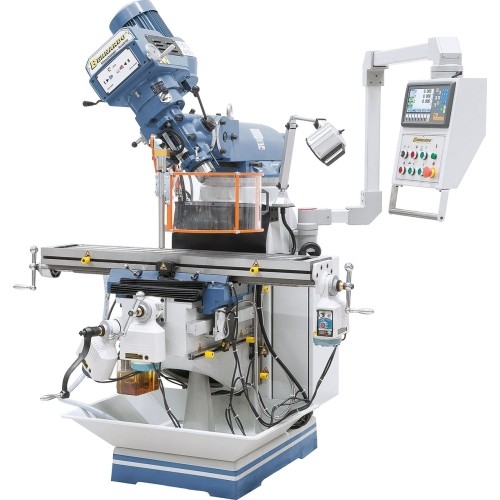

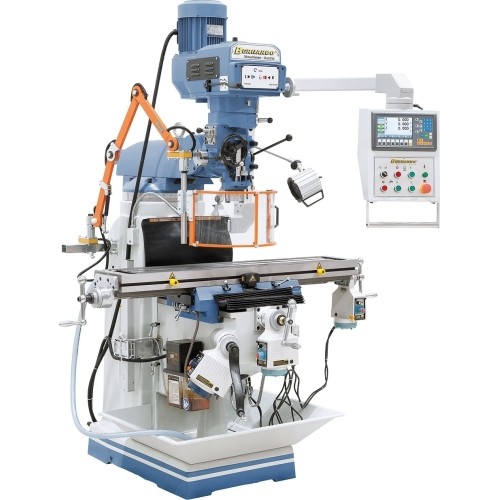

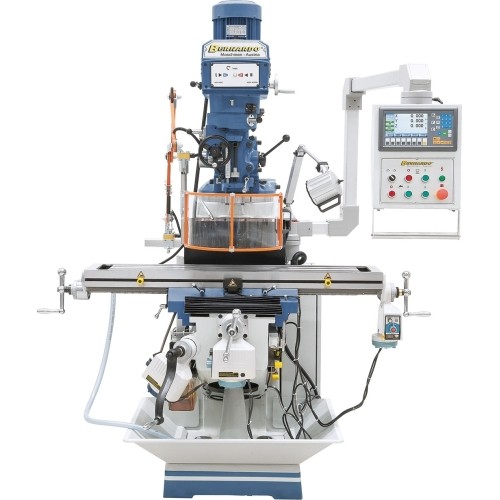

MFM 230 Super

Name: MFM 230 Super
Brand: Bernardo
SKU: 1092074
Price: 18920 EUR
Availability: PreOrder

Reference 1092074

Price €18,920.00 VAT incl.

Stock Quantity:

Kaunas Shop
not available

Central warehouse
not available

In Supplier store
(5+ pcs)

Delivery terms:

FREE pick up tuesday, july 8 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1023 kg.

Description

Properties

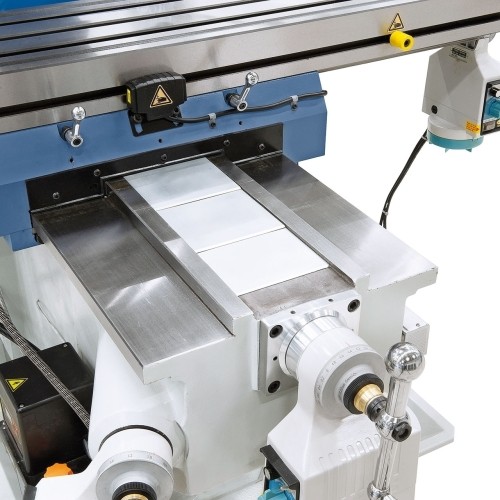

Work table features large clamping area, surface hardened and polished
Steplessly adjustable spindle speed with mechanic spindle brake

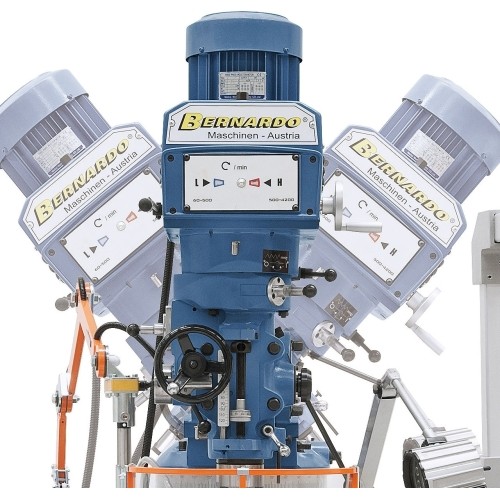

Universal mill head can be turned, tilted and swivelled
Hardened and polished guideways in all axis
3 automatic spindle feeds come standard
Spindle is chromium plated and features micrometer depth stop
Powerful coolant device included in machine base

Standard accessories

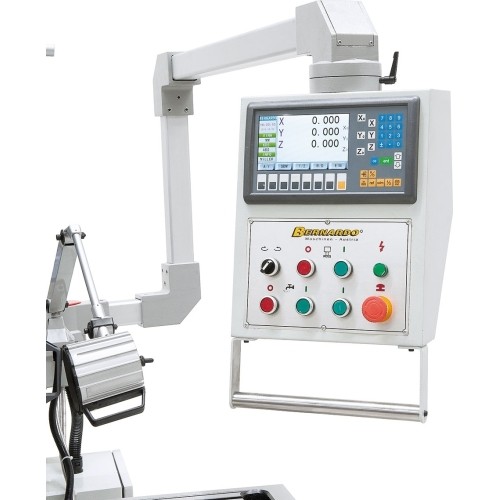

3-axis digital readout ES-12 H with LCD-display
Drawbar M 16
Coolant device
LED machine light

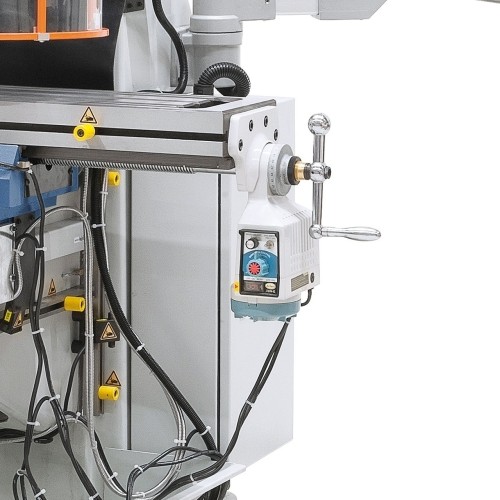

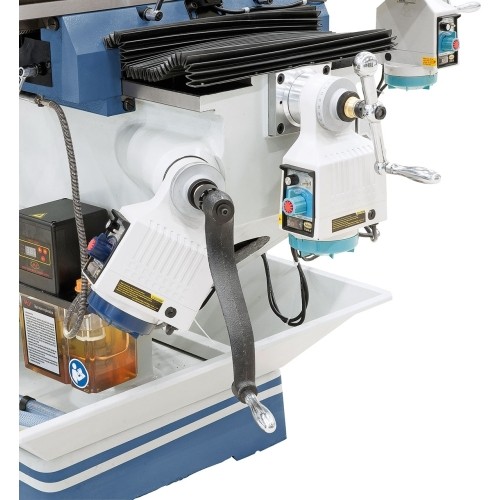

Power feed for x-, y- and z-axis

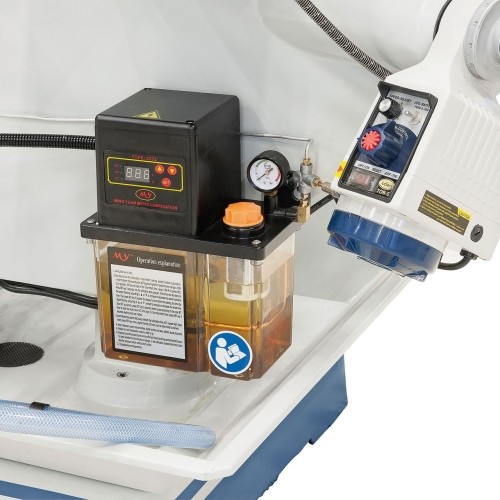

Central lubrication

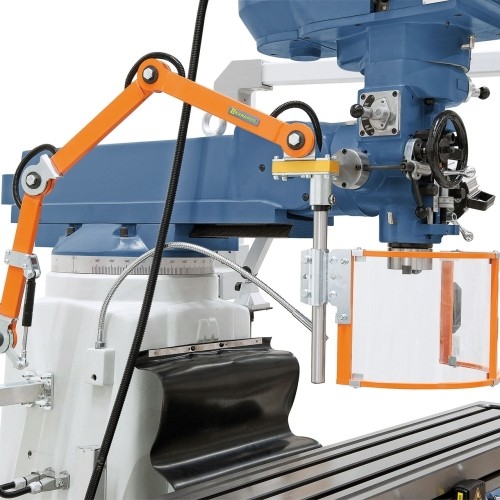

Adjustable protective device
Coolant tray
