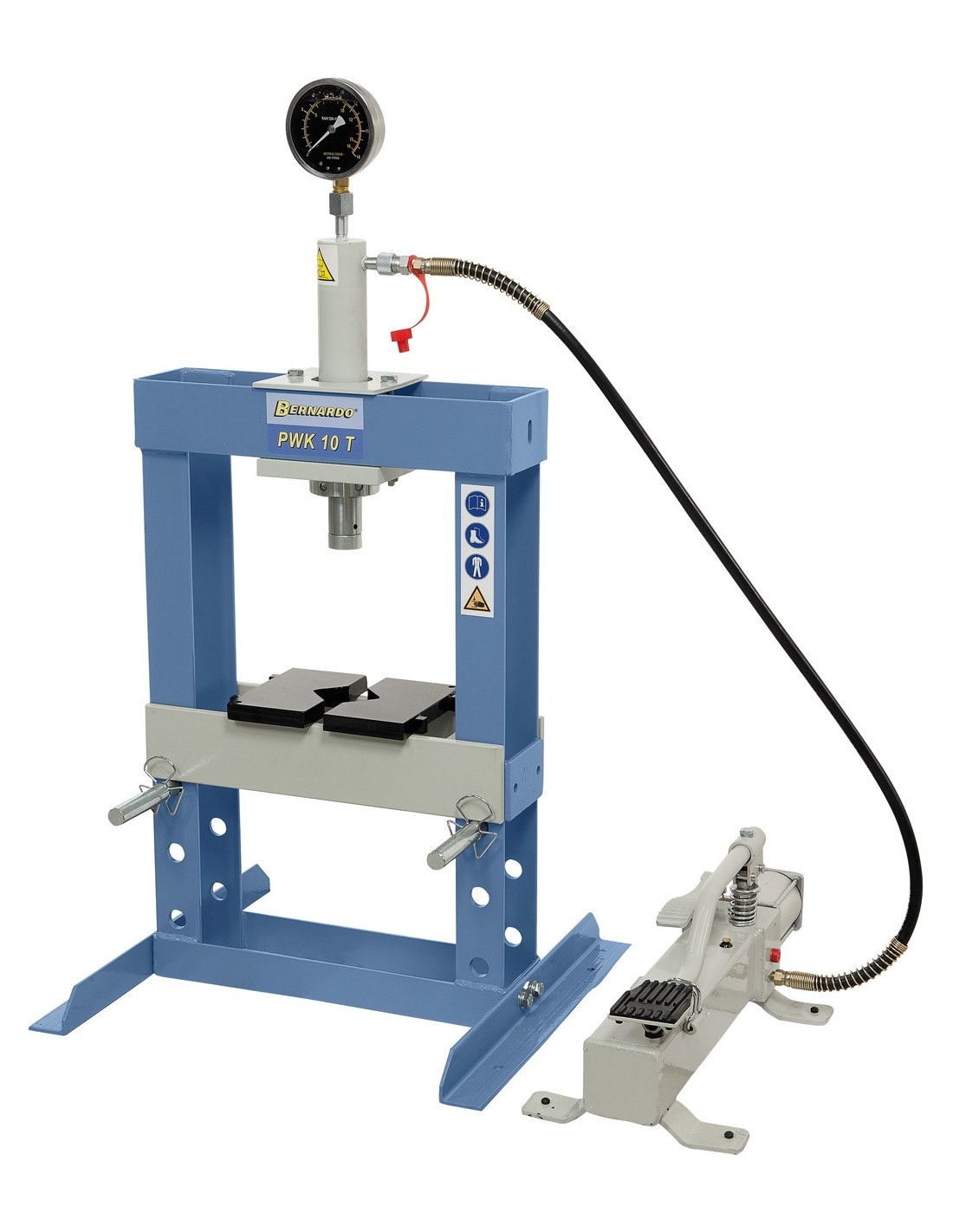

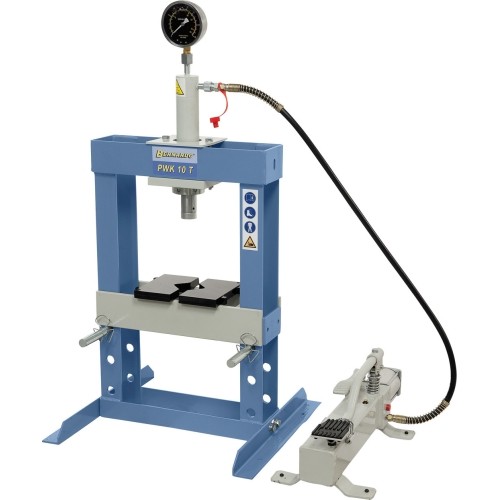

Pneumatinis presas Bernardo PWK 10 T
Pneumatinis presas Bernardo PWK 10 T
Pneumatinis presas Bernardo PWK 10 T
  • Online only
Pneumatinis presas Bernardo PWK 10 T
Pneumatinis presas Bernardo PWK 10 T
Pneumatinis presas Bernardo PWK 10 T

Weight approx.
60 kg
Table width
140 mm
Pressure force
10 to
Piston stroke
180 mm

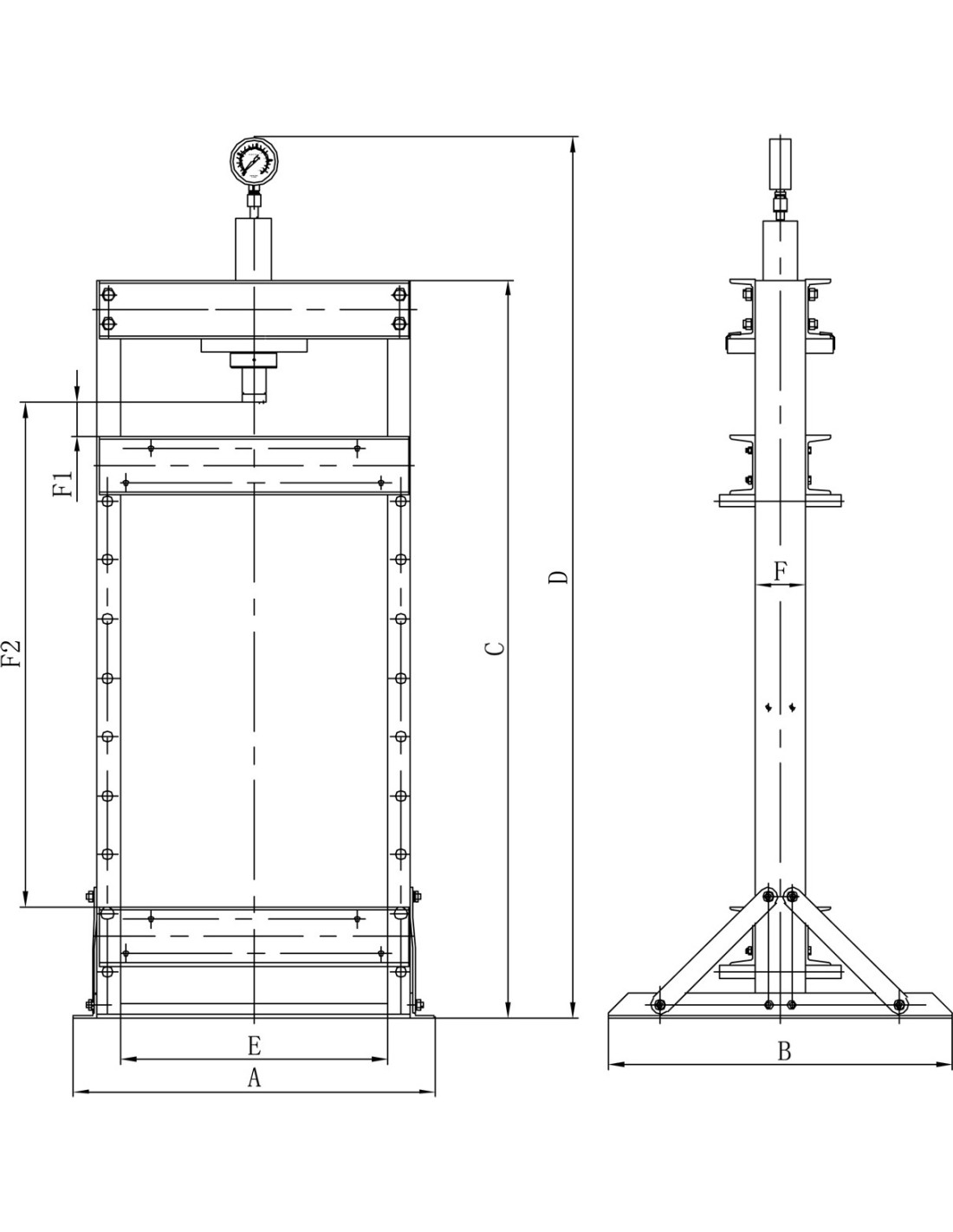

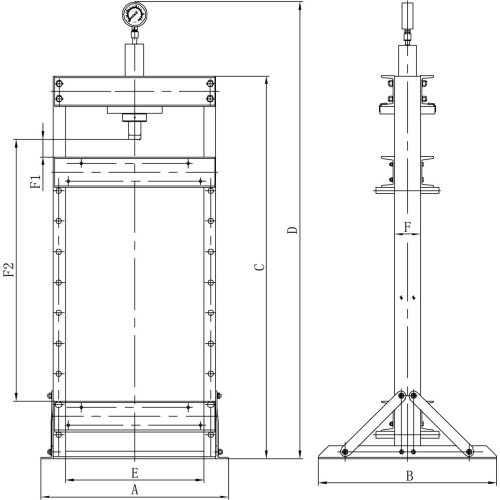

Pass (E)
330 mm
Distance cylinder - table (F1)
200 mm
Distance cylinder - table (F2)
365 mm
Cylinder moveable (M)
180 mm
Width (A)
570 mm
Depth (B)
500 mm
Height 1 (C)
735 mm
Height 2 (D)
1070 mm
Pass (F)
95 mm

Pneumatinis presas Bernardo PWK 10 T

1053233
Price €578.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, november 3 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 60 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 60 kg.

Description

Properties

  • Standard with automatic piston retraction
  • Simple reading of the pressure via pressure gauge
  • Versatile in assembly and workshop use
  • Ideal for bushing, straightening, bending, broaching, ...
  • Robust construction due to welded steel frame
  • Height-adjustable support table, fixation with bolts
  • Prism supports included
