Classifications: EN ISO 14343-A : G 19 9 L Si
SFA/AWS A5.9 : ER308LSi
Werkstoffnummer : ~1.4316
Approvals: BV : 308L SA BT (M12)
CE : EN 13479
CWB : ER308LSi
DB : 43.039.01
DNV-GL : VL 308 L (M13)
NAKS/HAKC : 0.8-1.2 mm
UKCA : EN 13479
VdTÜV : 04267
Alloy Type: Austenitic (with approx. 8 % ferrite) 19% Cr - 9% Ni - Low C - High Si
Shielding Gas: M12, M13 (EN ISO 14175)
Packaging: 1.0mm / 15kg
Diameter (Ø): 1.0 mm

Brand

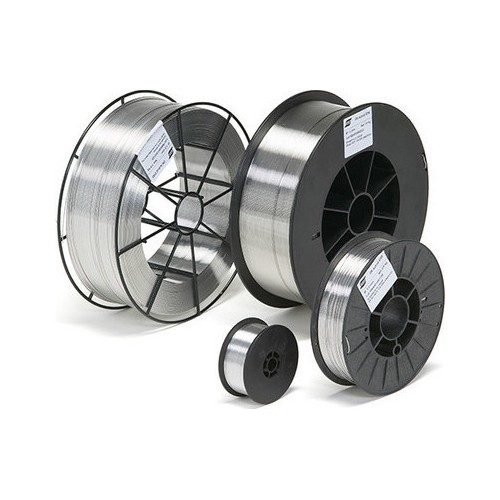

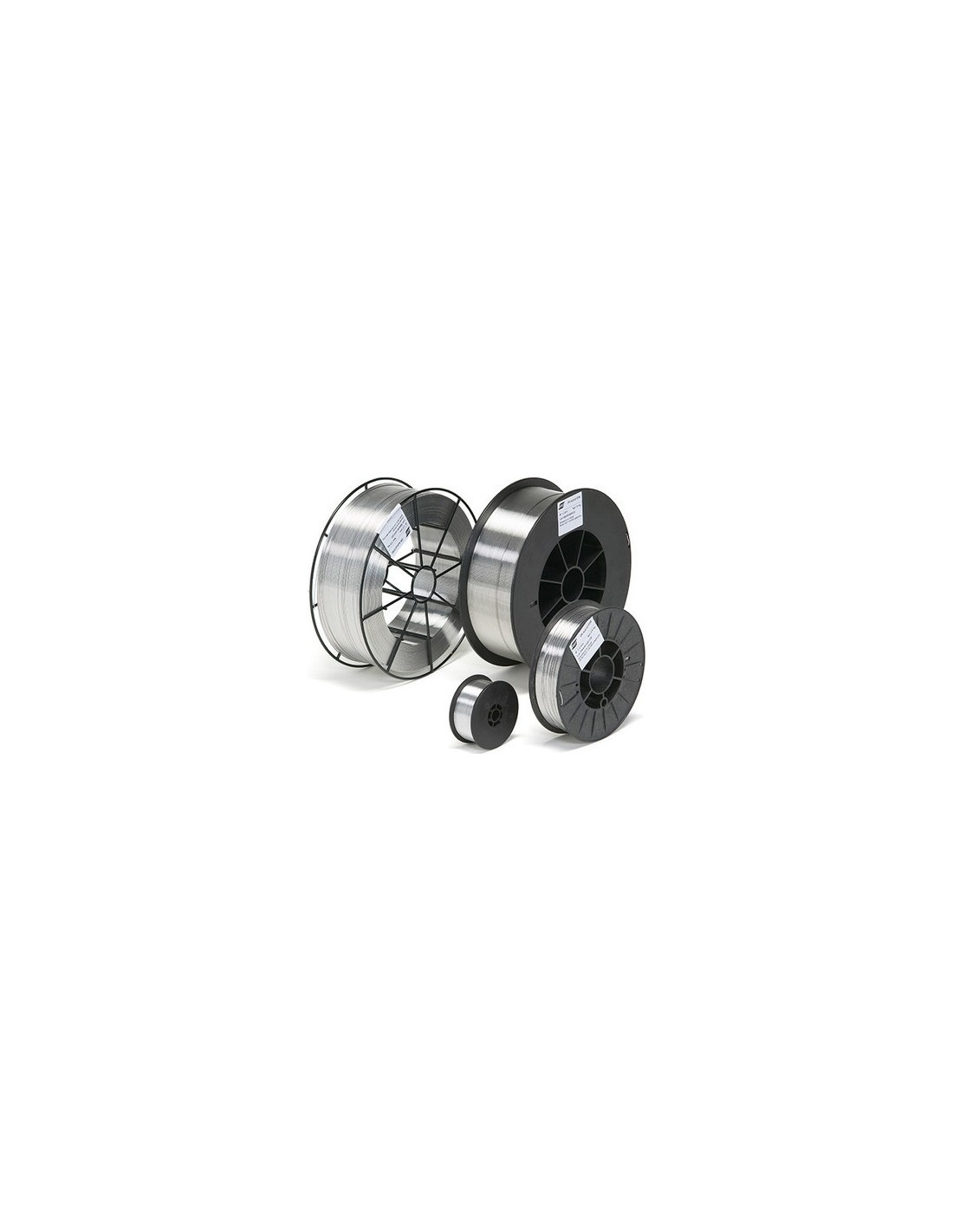

OK Autrod 308LSi - 1.0mm / 15kg

Name: OK Autrod 308LSi - 1.0mm / 15kg
Brand: Esab
SKU: 1263046
Price: 200 EUR
Availability: InStock

Reference 1263046

Price €200.00 VAT incl.

(€13.47 /kg)

Special price

A discounted price is currently applied to this product.

-4%

Standard price
€208.00 incl. VAT

Stock Quantity:

Kaunas Shop
(1 pcs)

Central warehouse
not available

Delivery terms:

FREE pick up today, in the store, Raudondvario pl. 141, Kaunas (€0.00)

We will deliver the product to you via: 1-2 w.d. Venipak (€6.00)

Show all delivery methods

Description

A continuous solid corrosion resisting chroumium-nickel wire for welding of austenitic chromium nickel alloys of 18% Cr - 8% Ni-type. OK Autrod 308LSi has a good general corrosion resistance. The alloy has a low carbon content which makes this alloy particularly recommended where there is a risk of intergranular corrosion. The higher silicon content improves the welding properties, such as wetting. The alloy is widely used in the chemical and food processing industries as well as for pipes, tubes and boilers.

Specifications

Approvals are based on factory location. Please contact ESAB for more information.

Typical Tensile Properties
Condition	Yield Strength	Tensile Strength	Elongation

As Welded	420 MPa	570 MPa	36 %
Tested at 350°C.
As Welded	370 MPa	490 MPa

Typical Charpy V-Notch Properties
Condition	Testing Temperature	Impact Value
As Welded	20 °C	105 J
As Welded	-60 °C	70 J
As Welded	-196 °C	40 J

Typical Wire Composition %
C	Mn	Si	S	P	Ni	Cr	Mo	Cu	N	Nb	FN WRC-92
0.01	1.8	0.8	0.012	0.013	10.0	20.0	0.1	0.10	0.06	0.02	8

Typical Weld Metal Analysis %
C	Mn	Si	S	P	Ni	Cr	Mo	Cu	N	Nb	FN WRC-92
0.03	1.8	0.7	0.009	0.020	10.0	19.5	0.03	0.1	0.04	0.01	6

Deposition Data
Diameter	Current	Voltage	Wire Feed Speed	Deposition Rate
0.8 mm	55-160 A	15-24 V	4.0-17.0 m/min	1.0-4.1 kg/h
0.9 mm	65-220 A	15-28 V	3.5-18.0 m/min	1.1-5.4 kg/h
1.0 mm	80-240 A	15-28 V	4.0-16.0 m/min	1.5-6.0 kg/h
1.2 mm	100-300 A	15-29 V	3.0-14.0 m/min	1.6-7.5 kg/h
1.6 mm	230-375 A	23-29 V	5.5-9.0 m/min	5.2-8.6 kg/h
