Weight approx.
157 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Working height
840 mm
Machine dimension (W x D x H)
930 x 760 x 1160 mm
Motor power output S1 100%
2,2 kW (3,0 HP)
Motor power input S6 40%
3,0 kW (4,0 HP)
Dust extraction outlet
100 mm
Table size
700 x 700 mm
Spindle diameter
30 mm
Working length of spindle
100 mm
Height adjustment of spindle
105 mm
Max. tool diameter
200 mm
Max. tool diameter concealed
95 mm
Phase
Trifazis (400V)

T 700 / 400 V

1091053
Price €2,057.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, may 14 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 157 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 157 kg.

Description

Properties

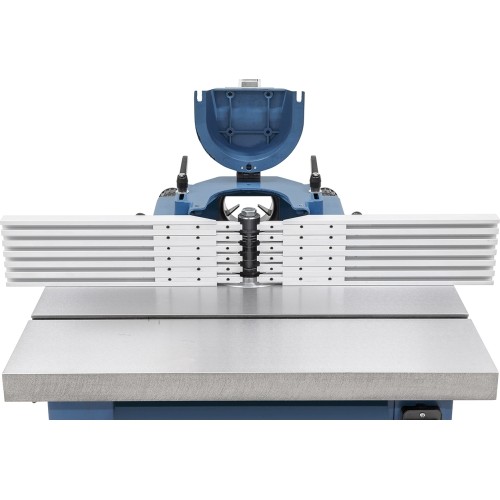

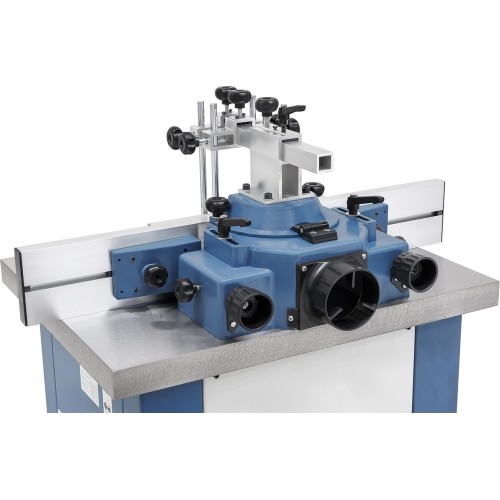

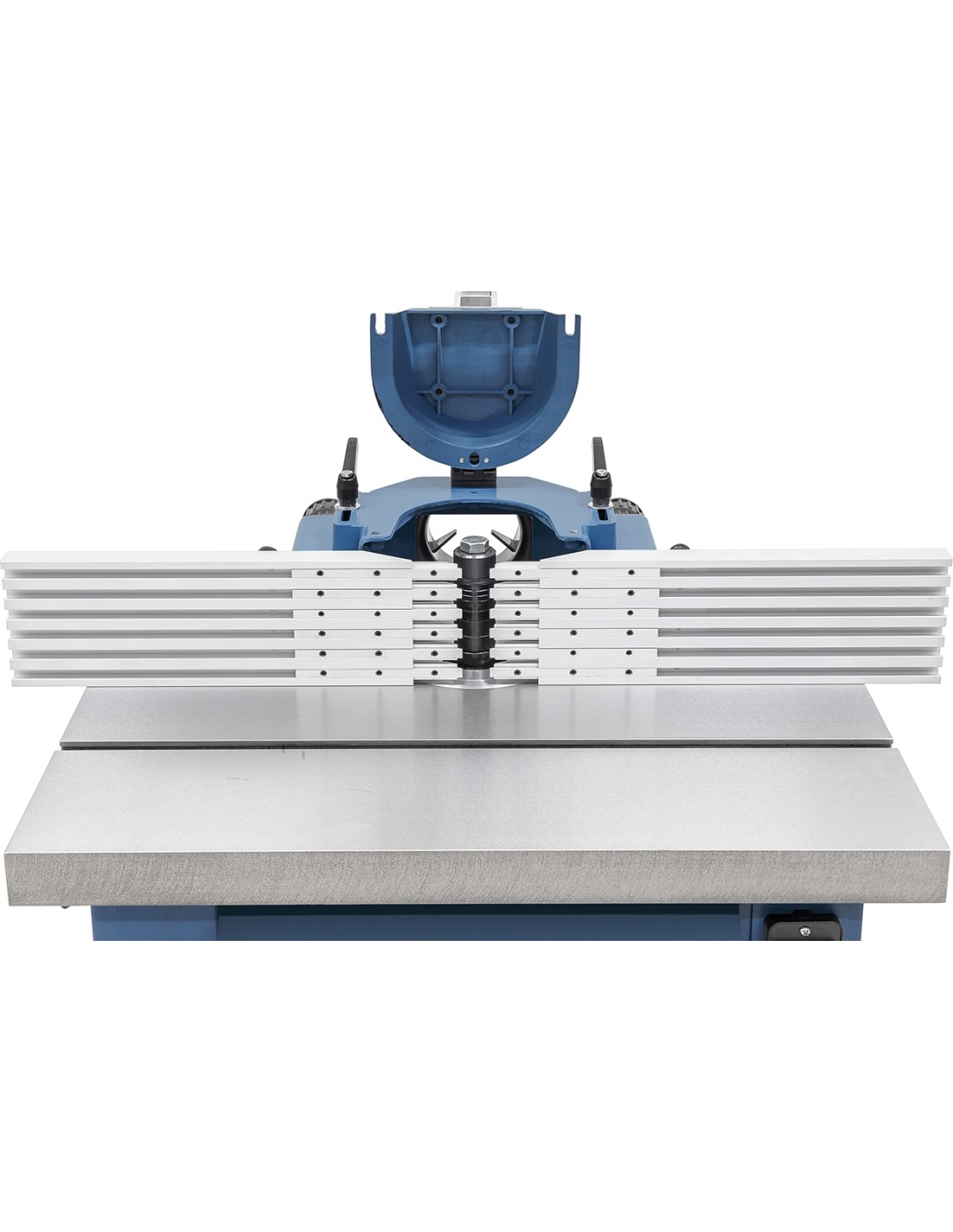

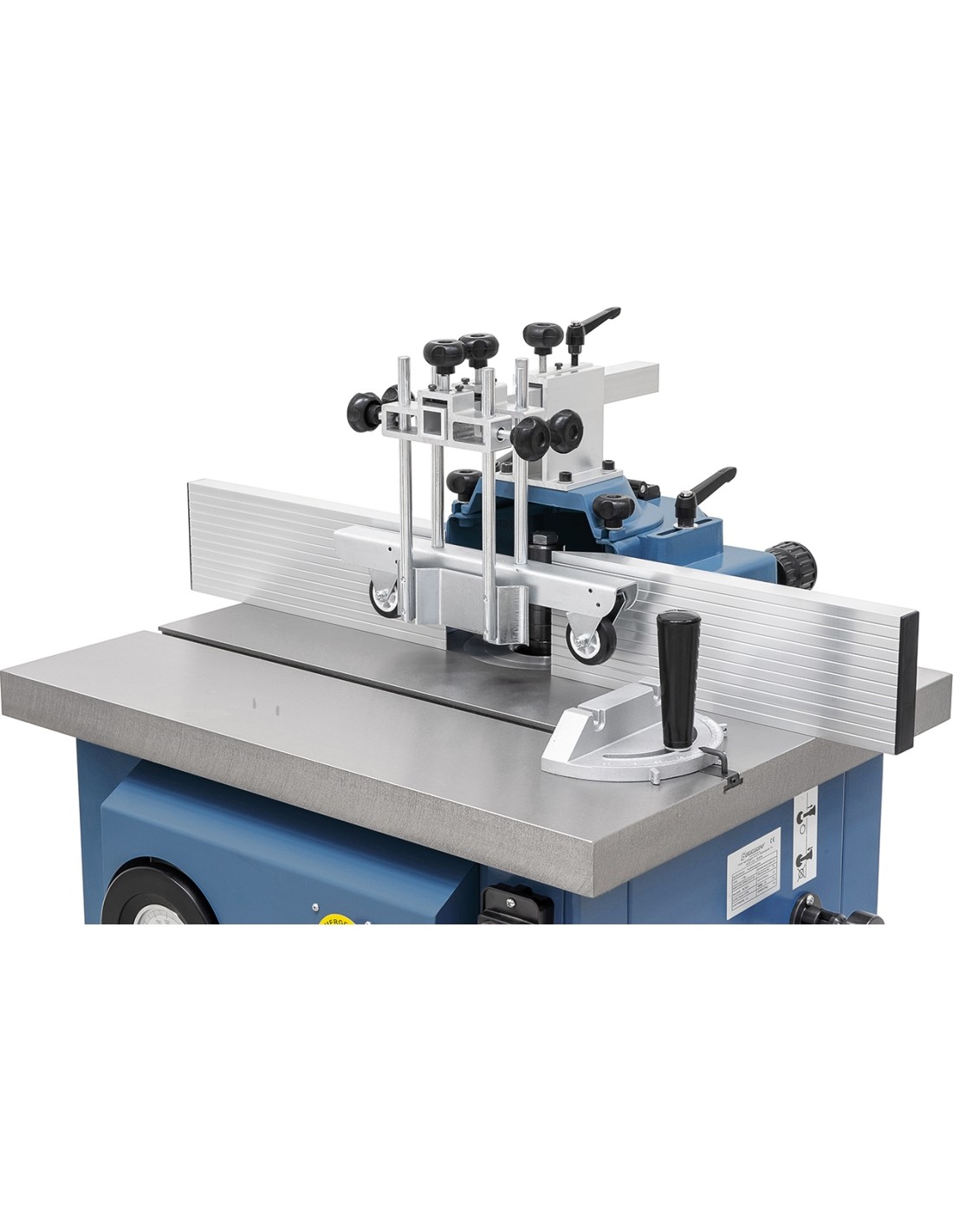

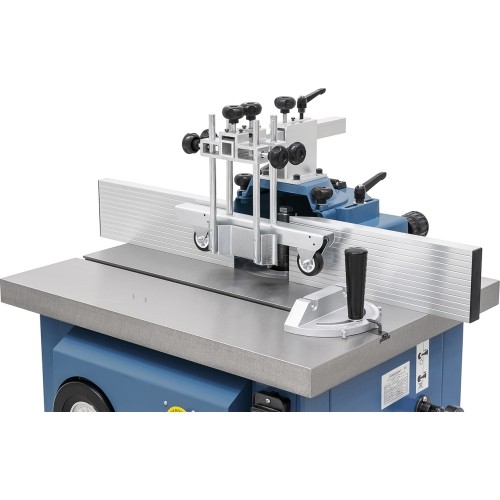

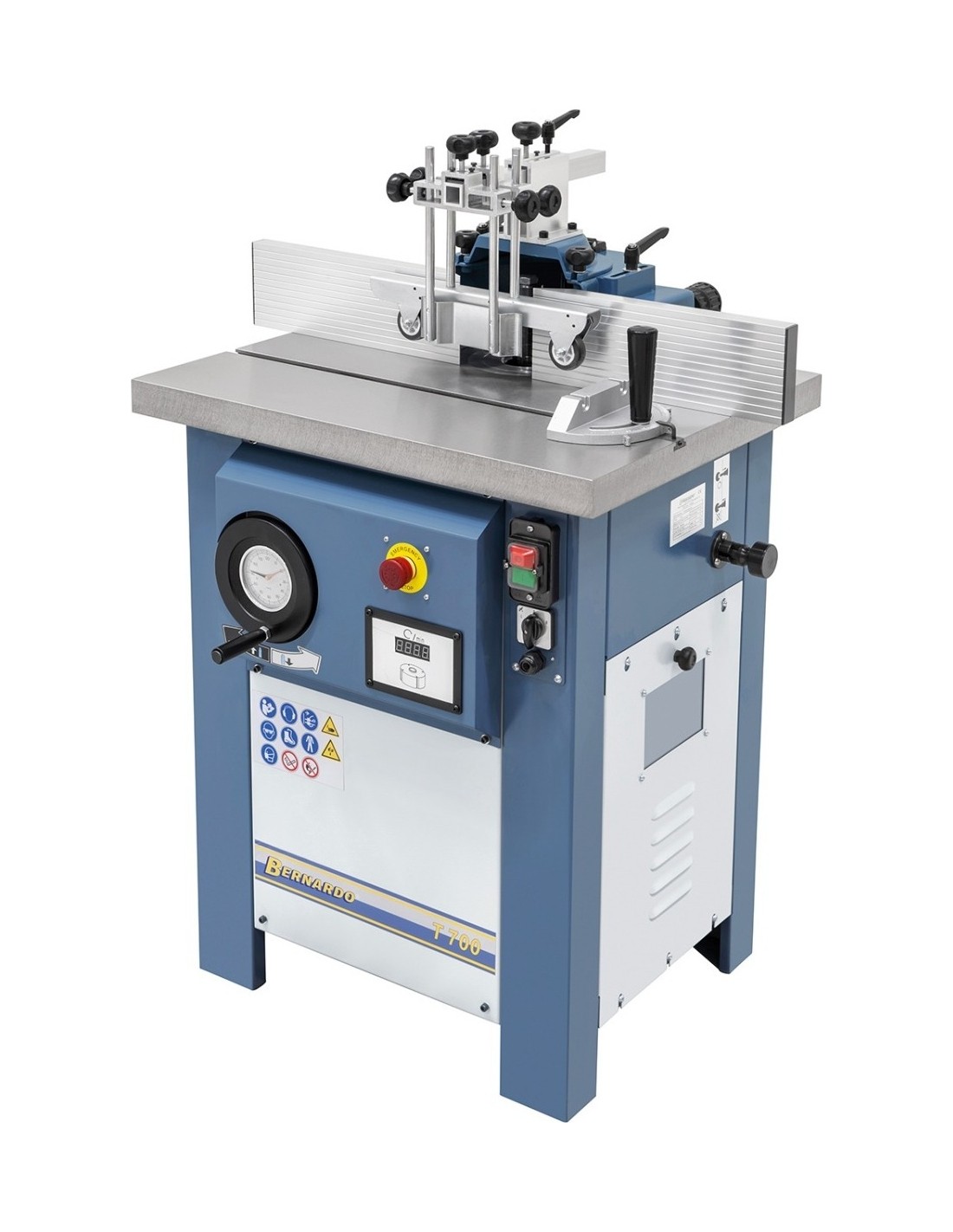

  • Solid moulding fence features finely adjustable aluminium stop bars

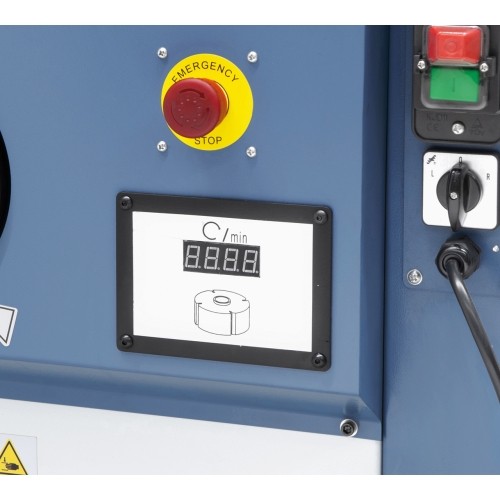

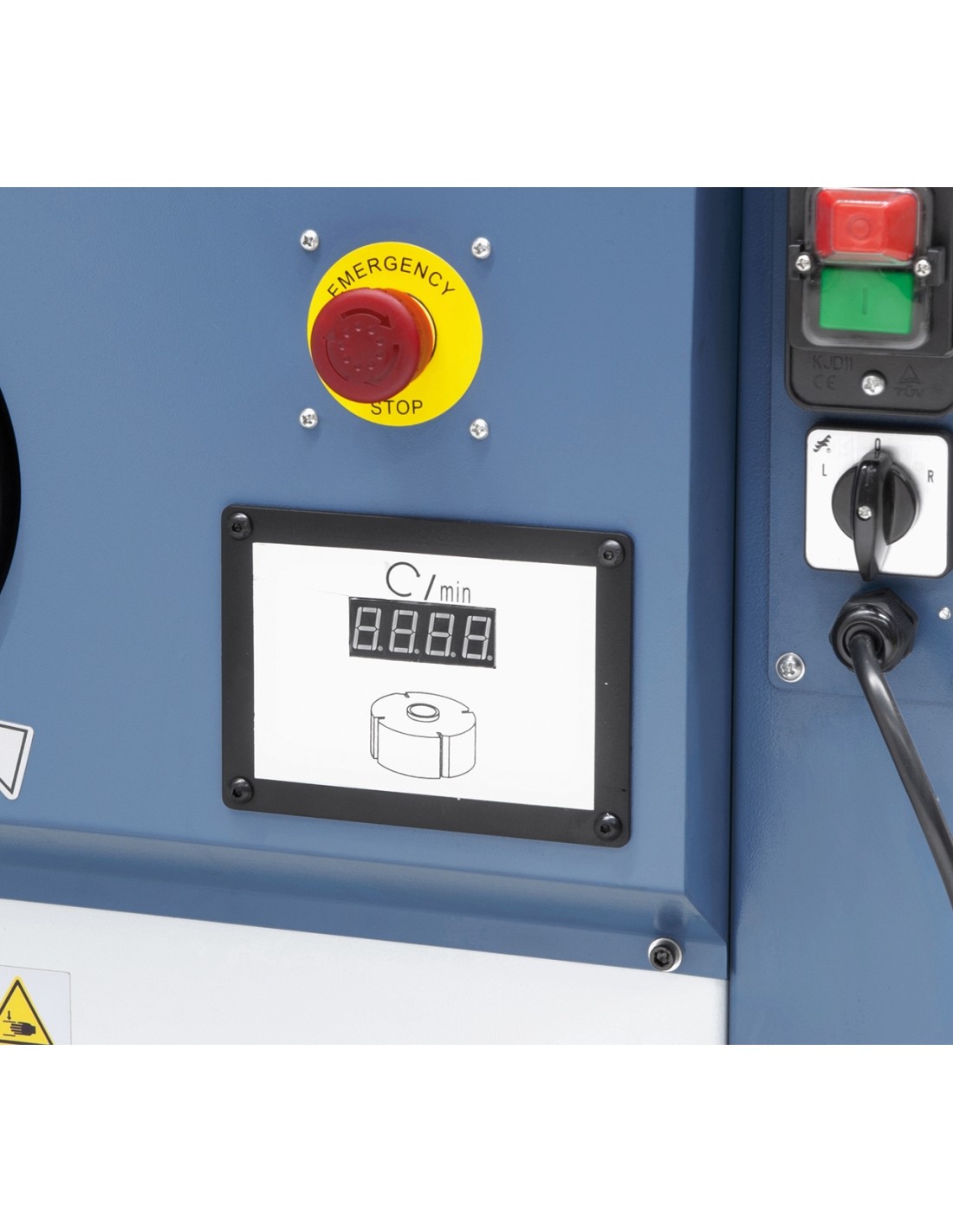

  • Quick and easy readout of spindle speed on digital display

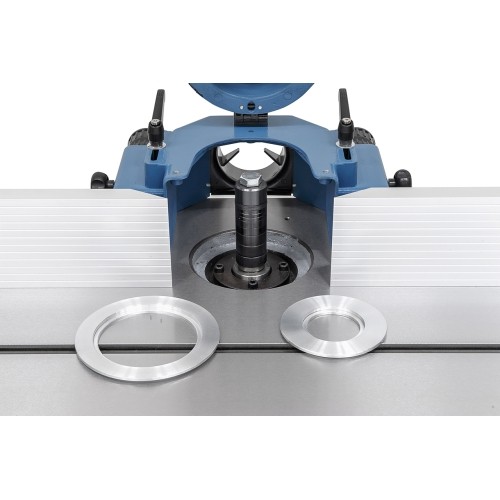

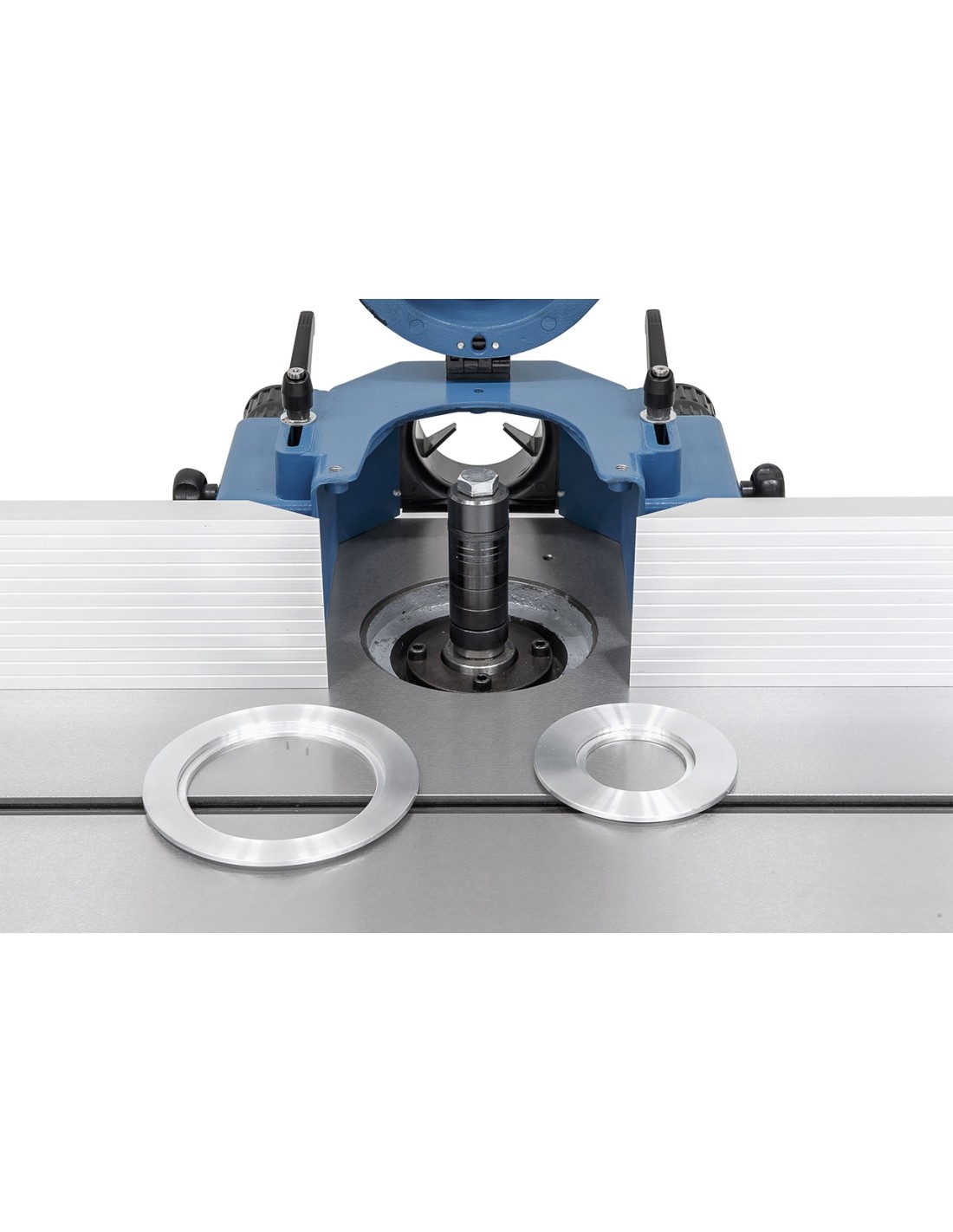

  • Dynamically balanced moulder spindle ensures precise running

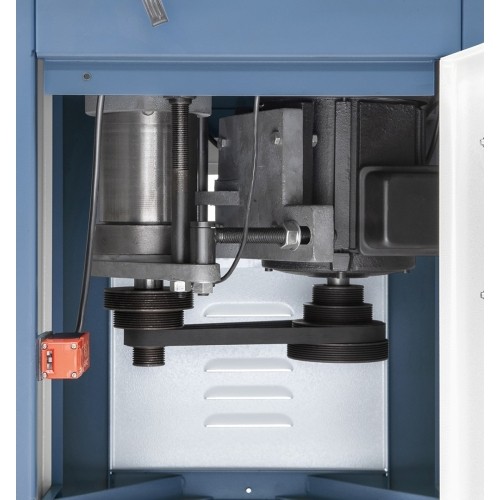

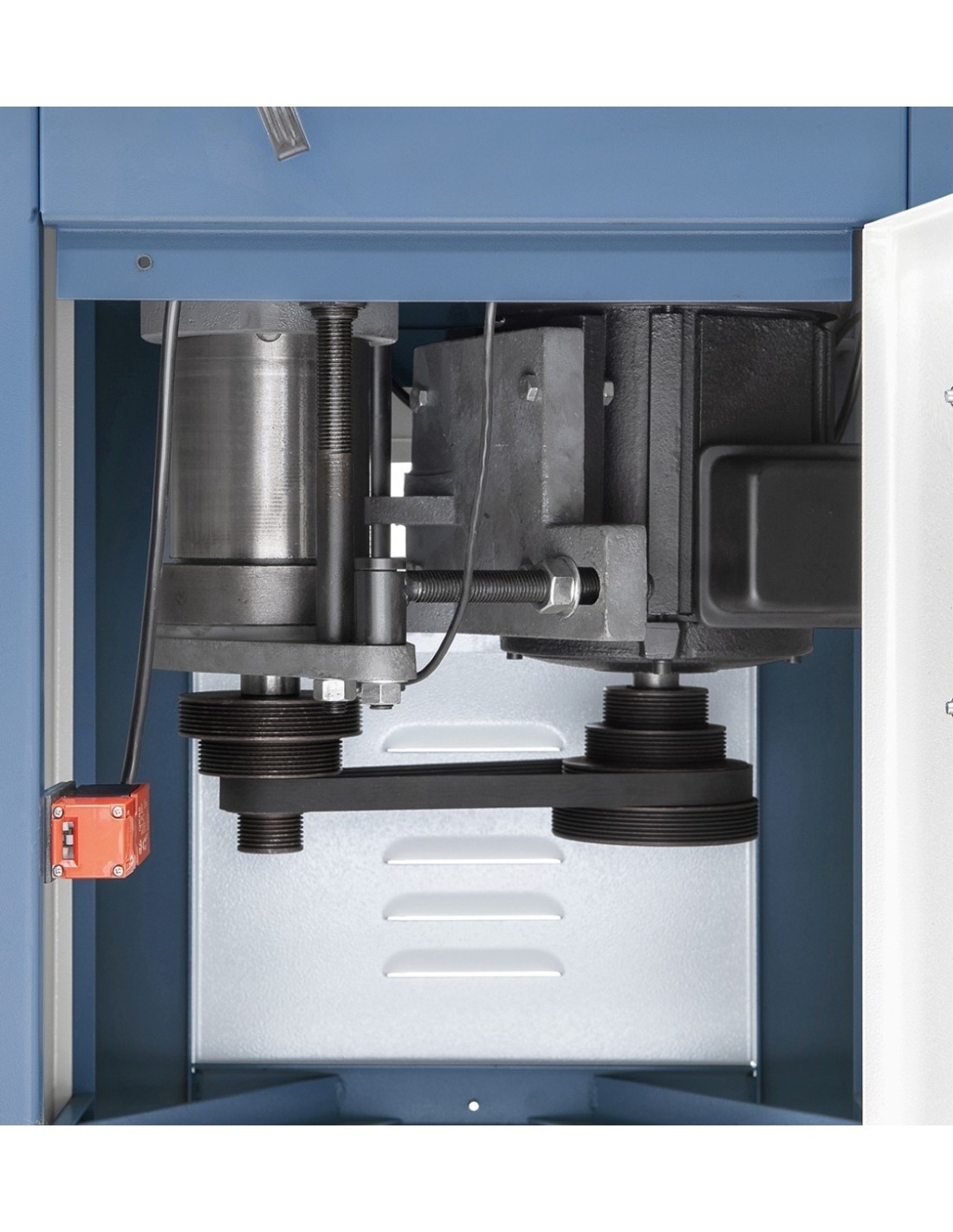

  • V-belt allows for quick and easy speed change

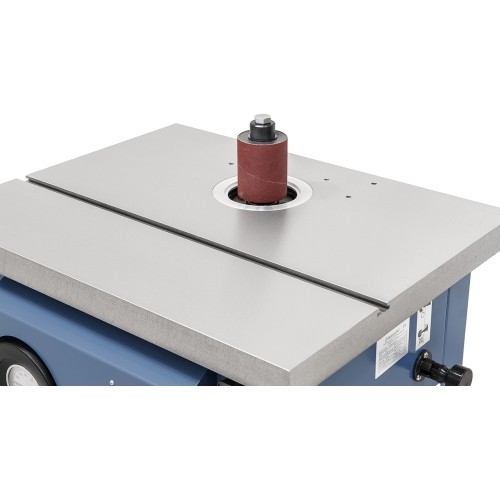

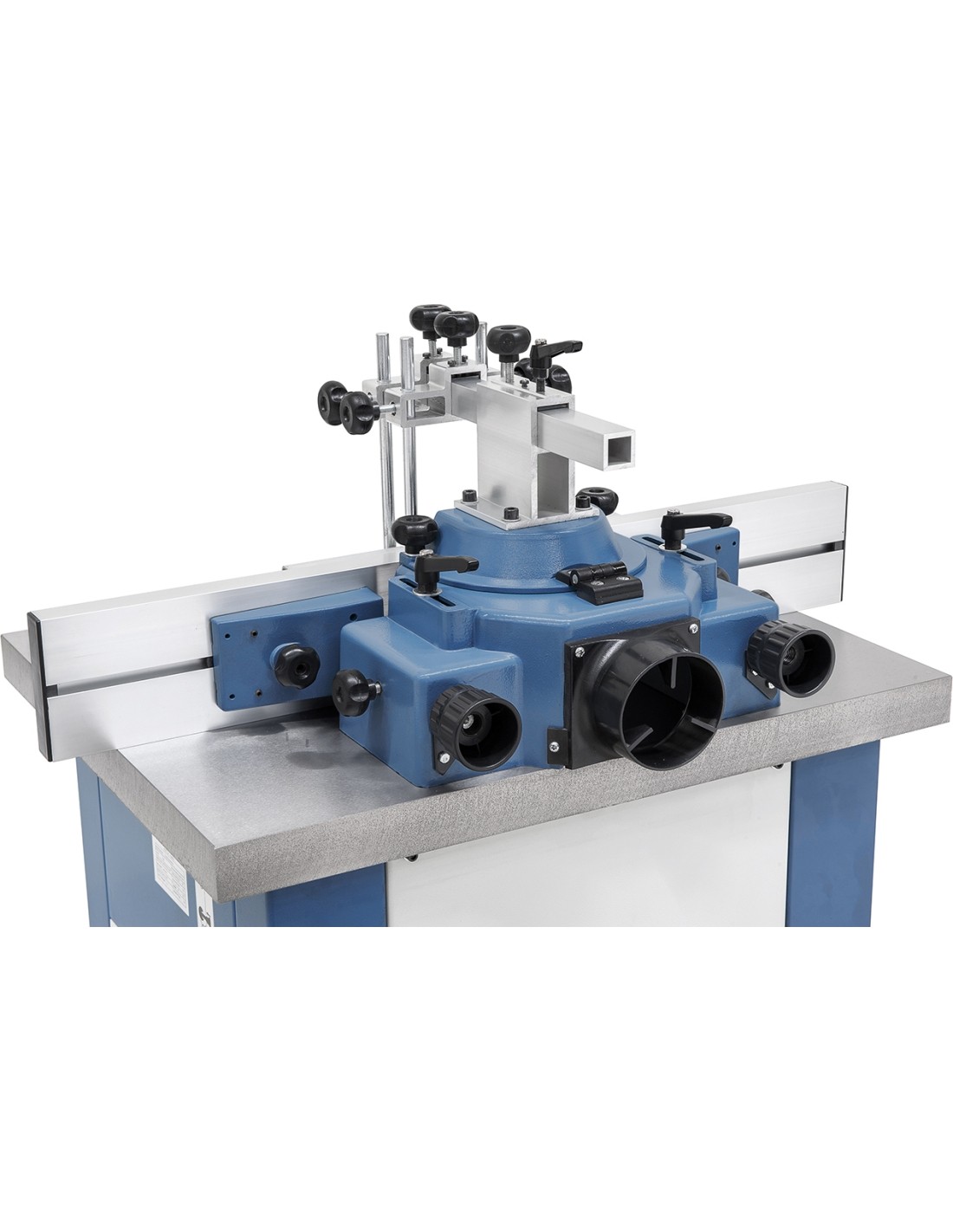

  • Complete with moulding fence featuring a dust port (diameter 100 mm) and sanding sleeve (diameter 75 mm)
  • Torsion-free, grey cast-iron machine table for maximum accuracy
  • Ergonomically arranged switches and control elements guarantee high work comfort
  • Machine body consists of torsion-free steel construction
  • Large speed range – 4 settings from 1800 - 9000 rpm

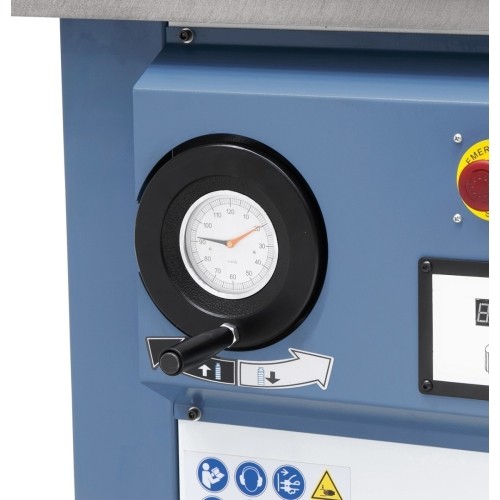

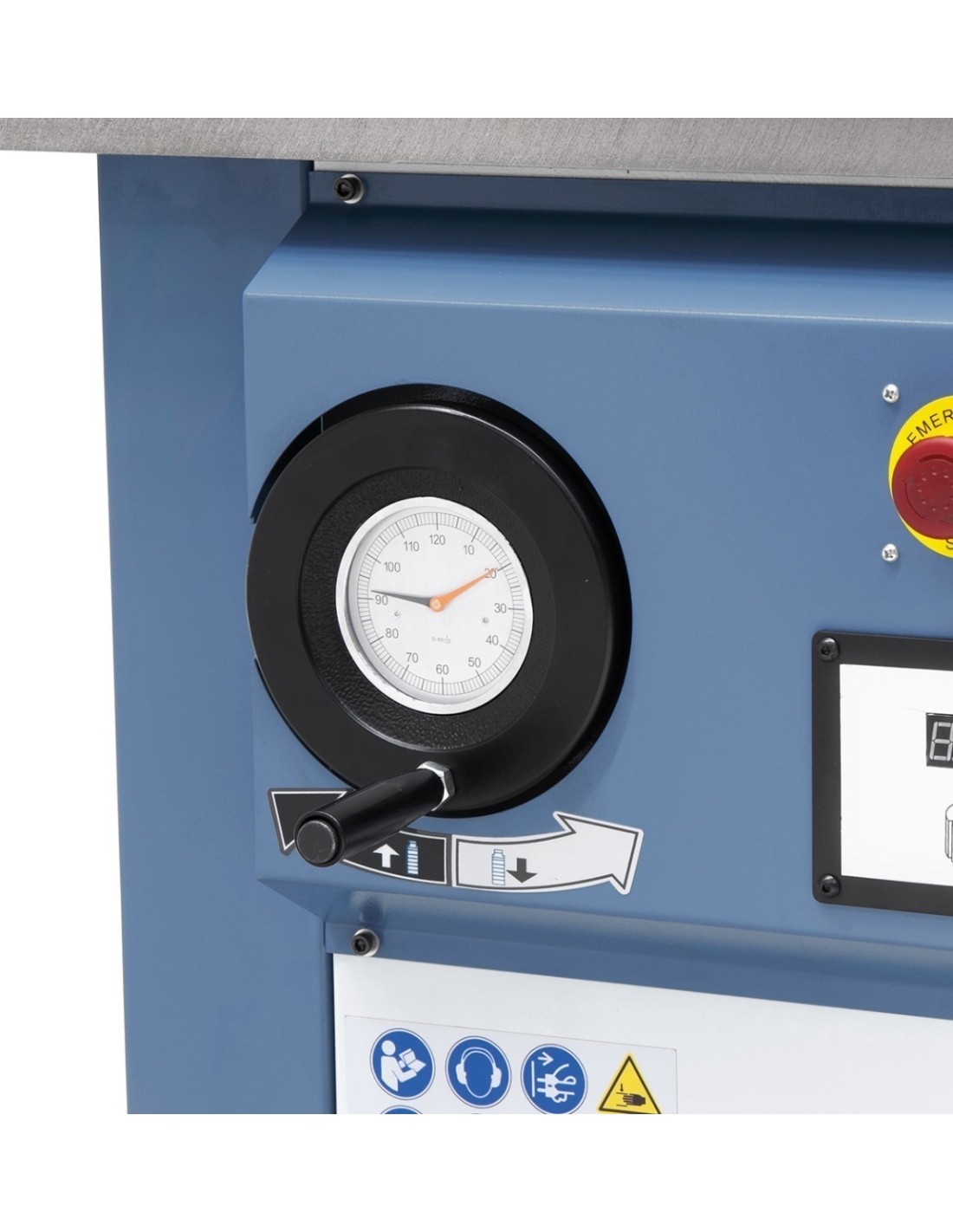

  • Hand wheel with scale for adjusting the height of the milling spindle

Standard accessories

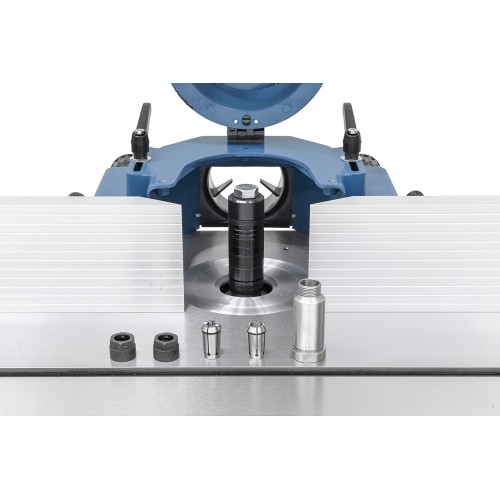

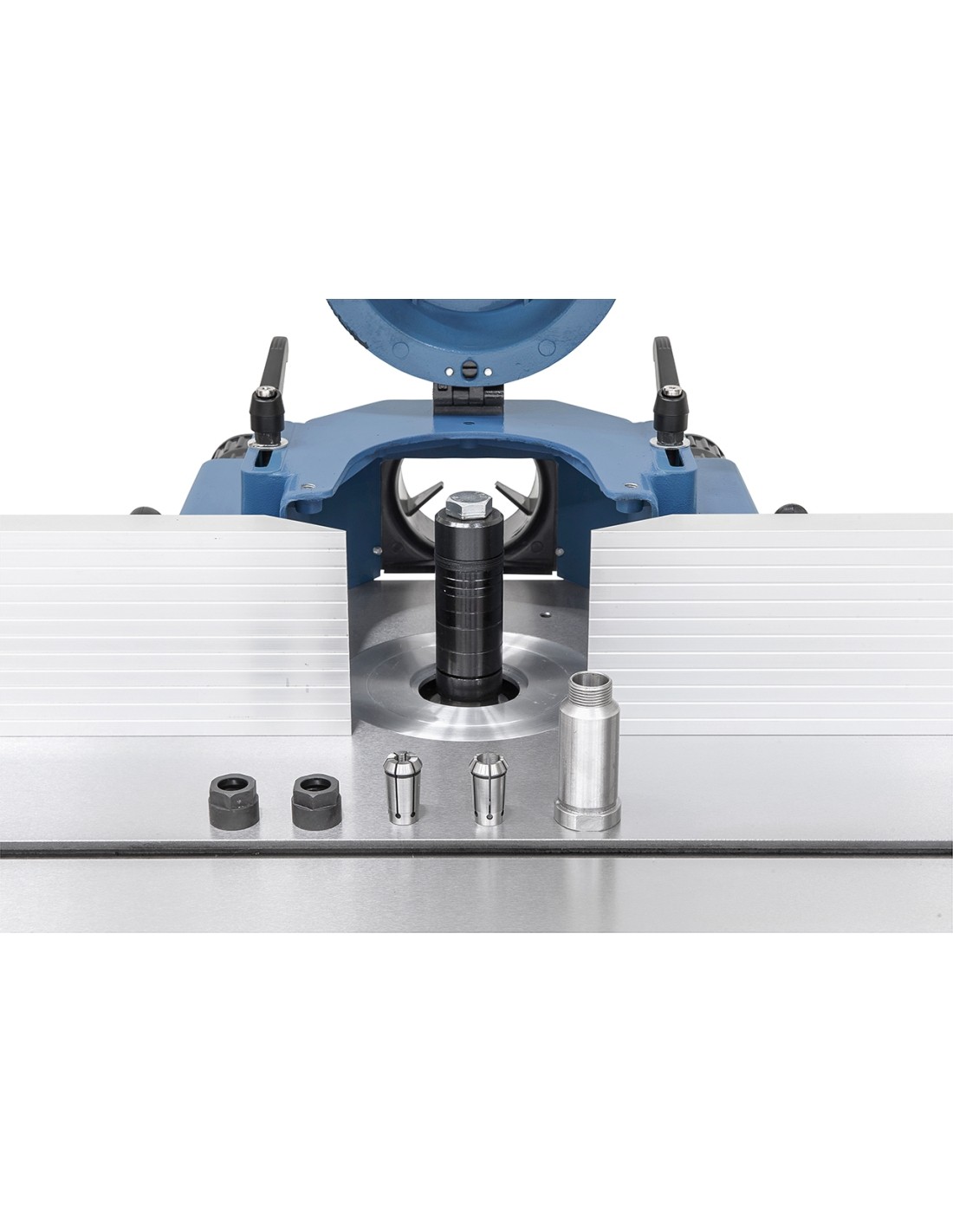

  • Interchangeable spindle 30 mm
  • Interchangeable spindle for end mills 6, 8, 12 mm
  • Collets 6, 8, 12 mmv

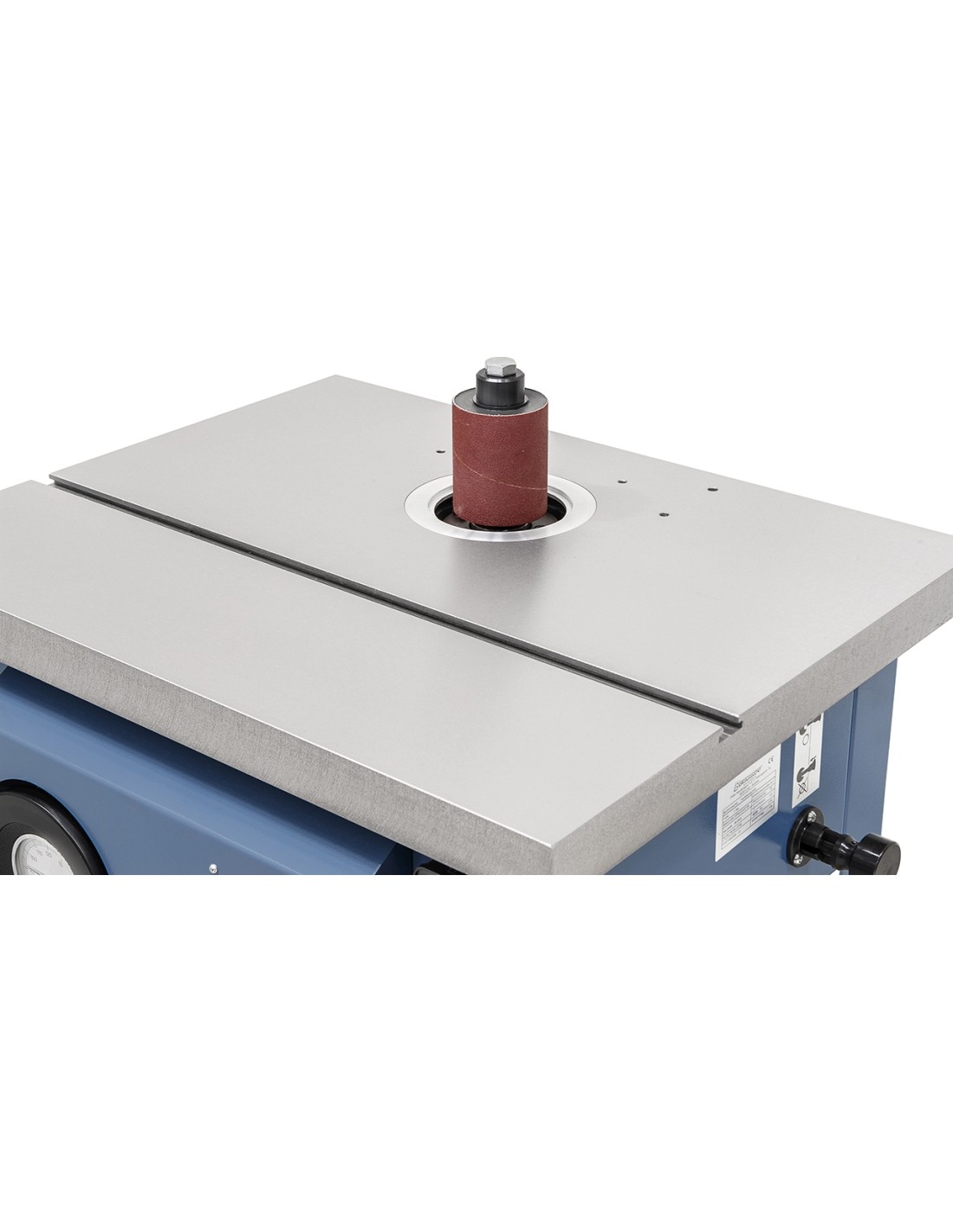

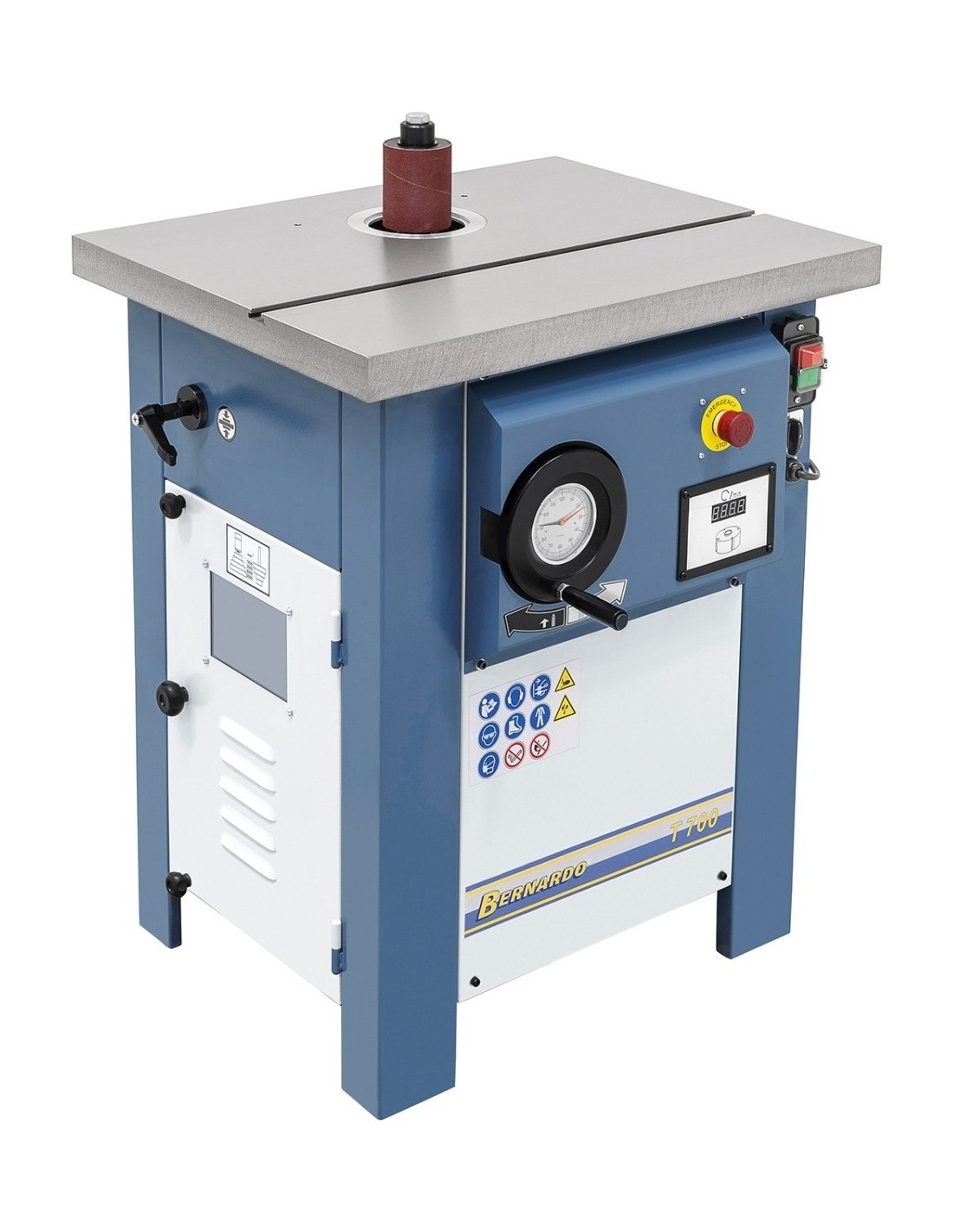

  • Sanding sleeve diam. 75 mm - G 100

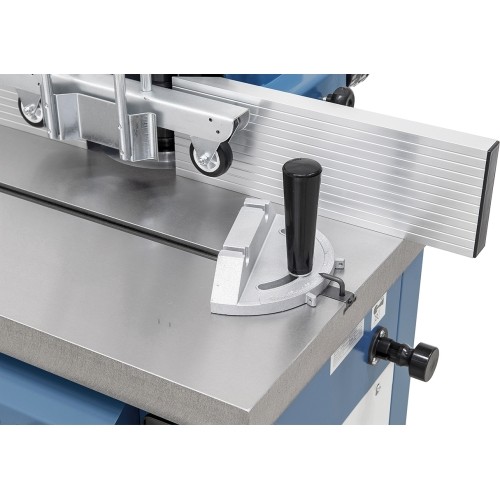

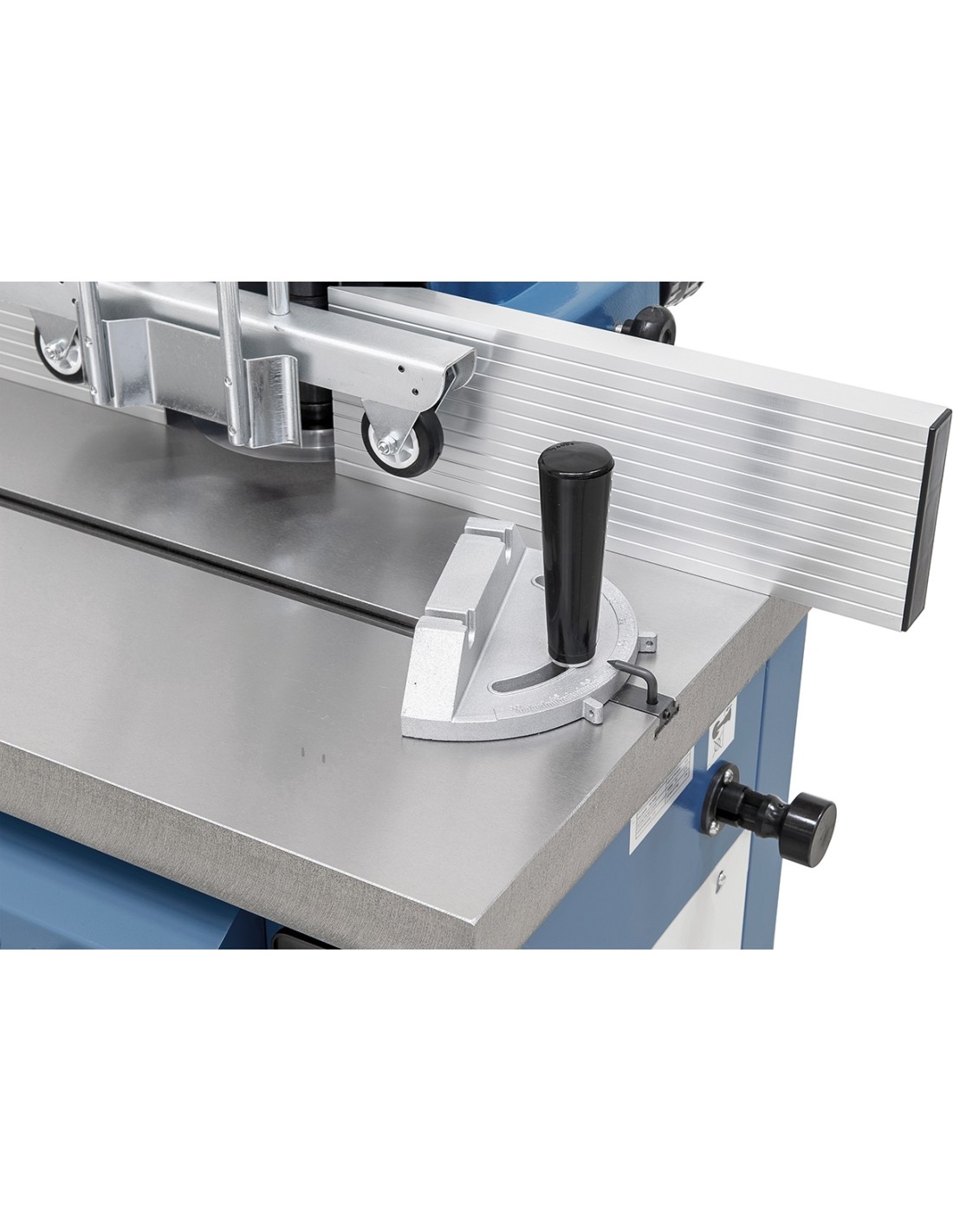

  • Mitre fence
  • Digital speed indication
  • Left and right turning
  • Protective and pressing device
