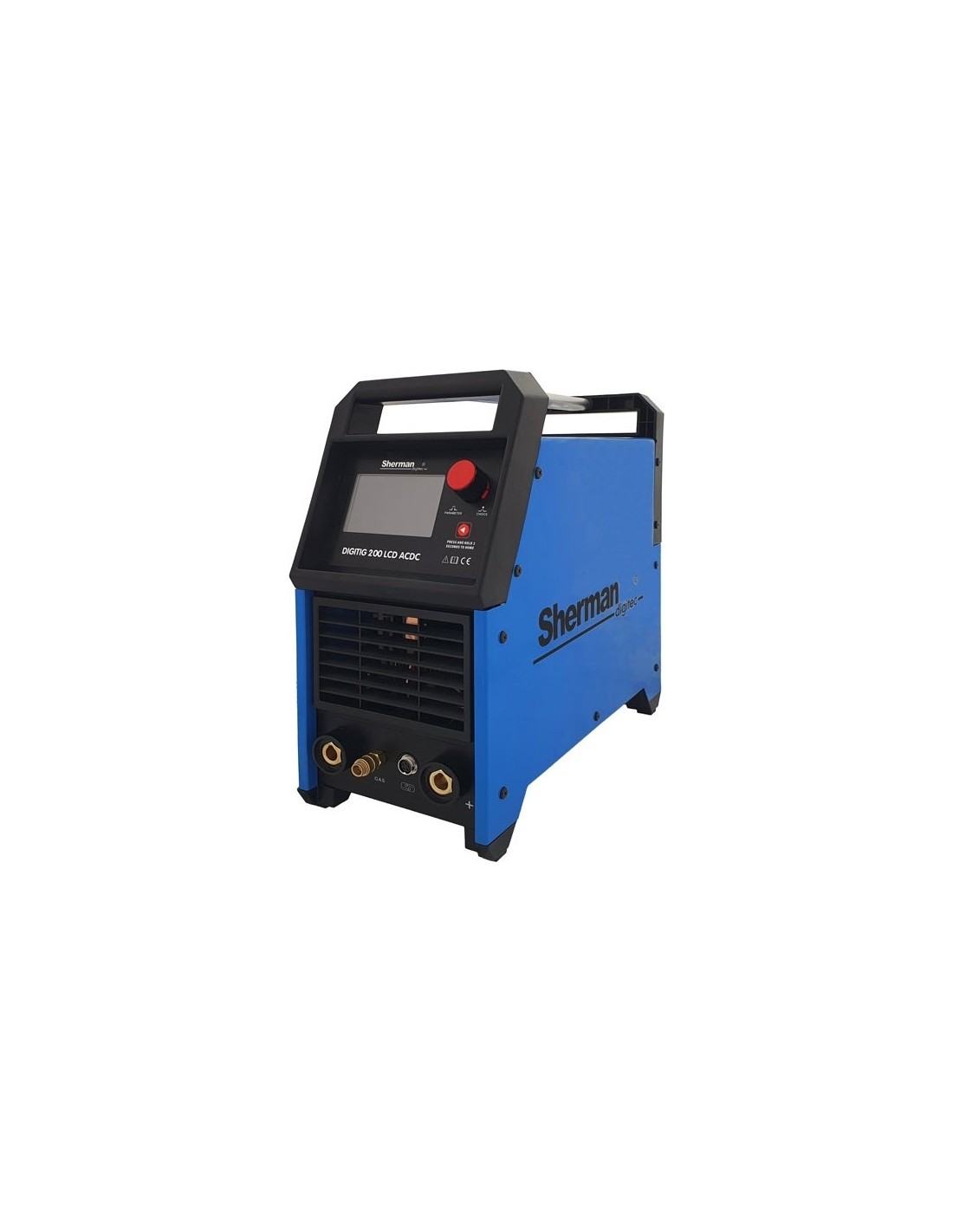

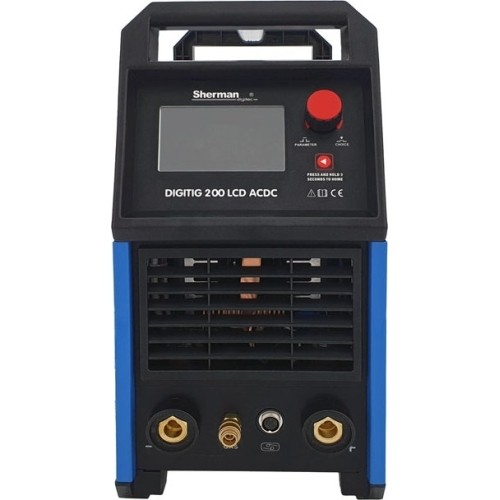

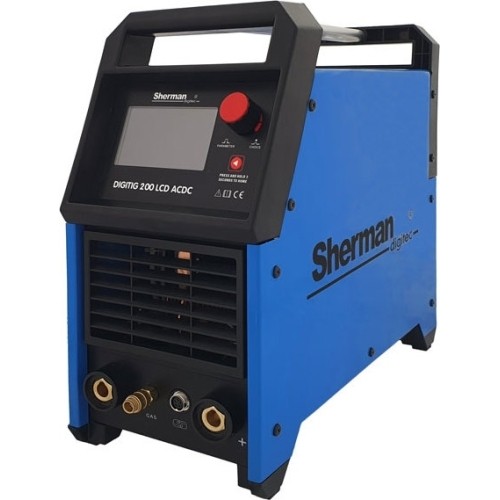

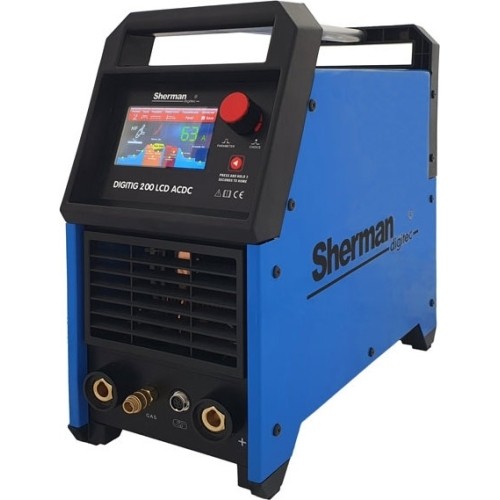

Inverter welder DIGITIG 200 LCD AC/DC

DIGITIG 200 LCD ACDC is a digitally controlled welding machine built with IGBT inverter technology. It is designed for welding structural steels with coated electrodes using both direct and alternating current (MMA), as well as for welding stainless steels and non‑ferrous metals with non-consumable electrodes in inert gas (TIG).

The unit enables precise, magnetism‑free TIG welding and offers fully digital adjustment and control of arc and pulse characteristics, including AC waveform selection. It features HF ignition and supports 2T and 4T trigger modes.

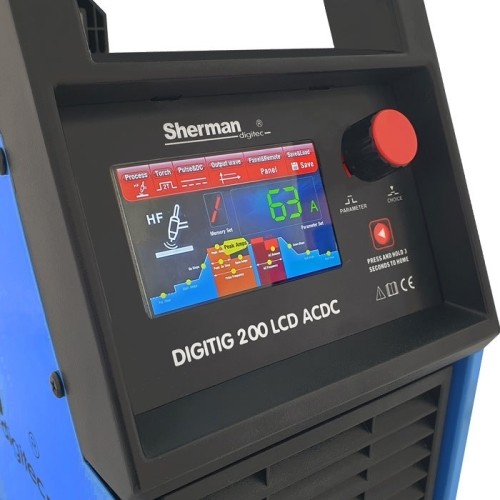

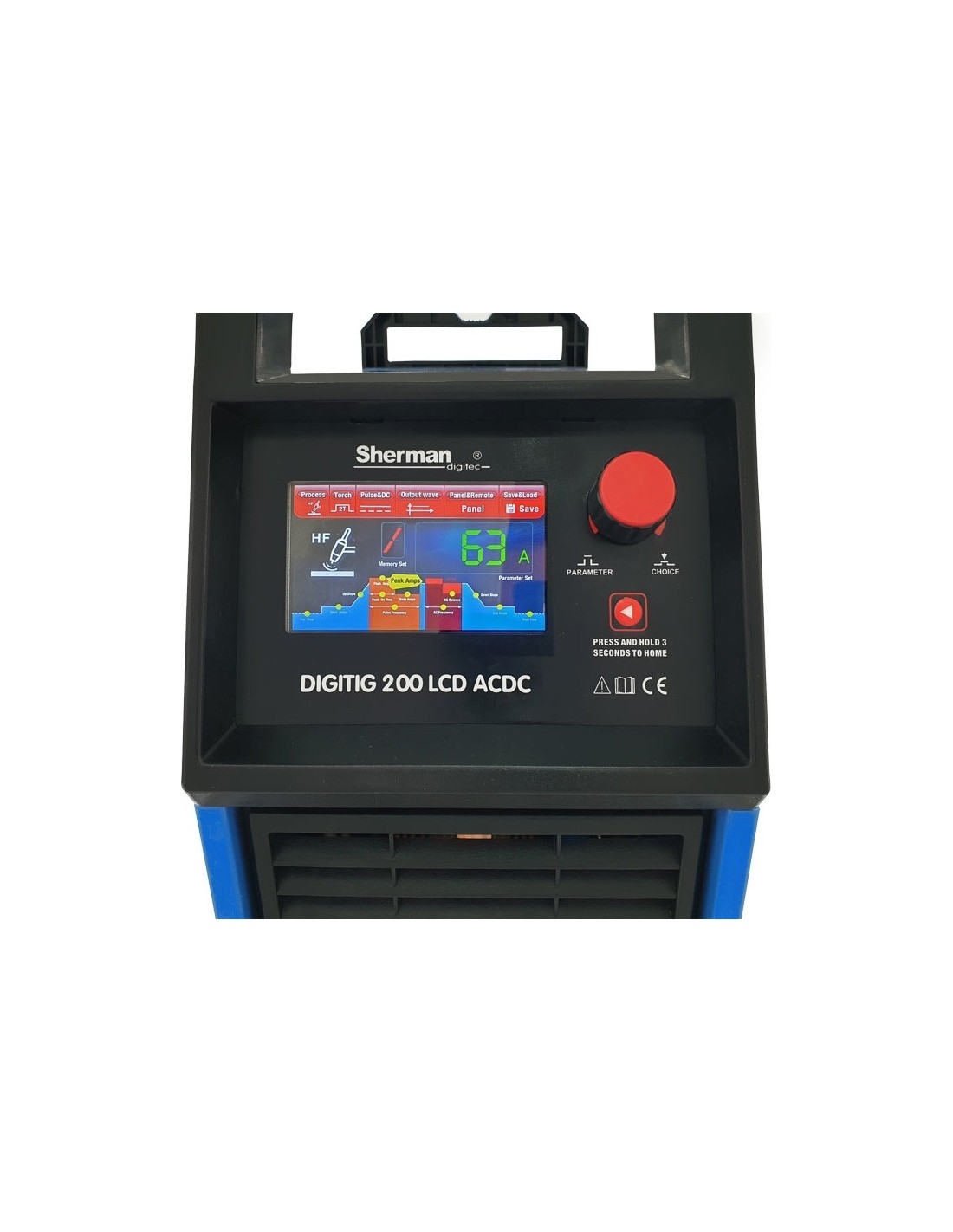

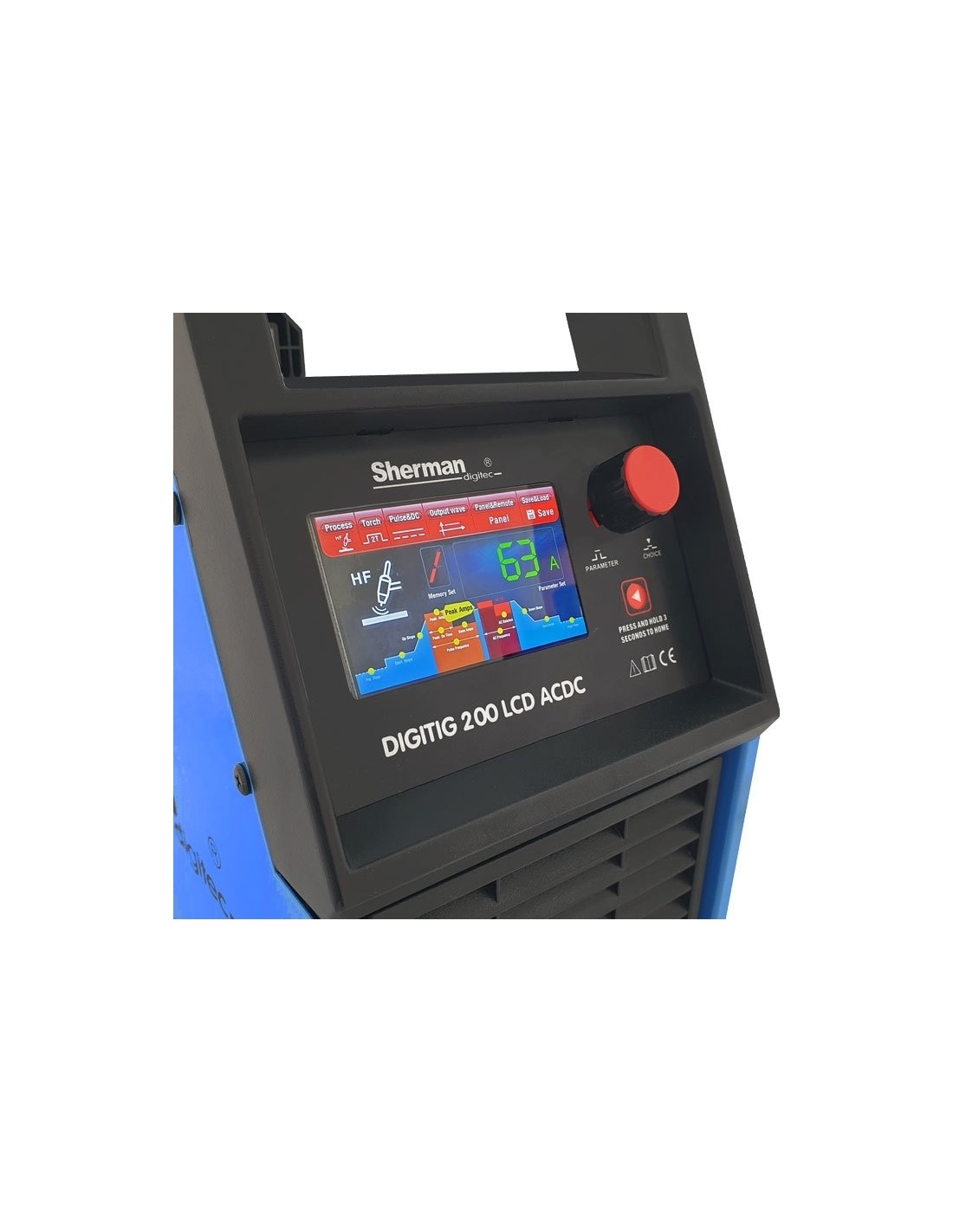

For MMA welding, it provides VRD safety plus adjustable ARC FORCE and HOT START. A clear color LCD display simplifies setup, and you can store up to 9 parameter presets for each welding process.

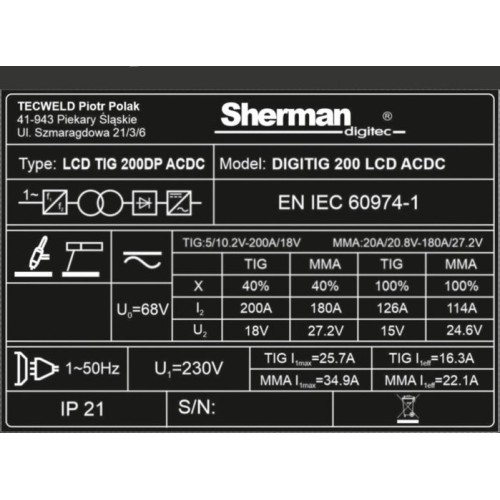

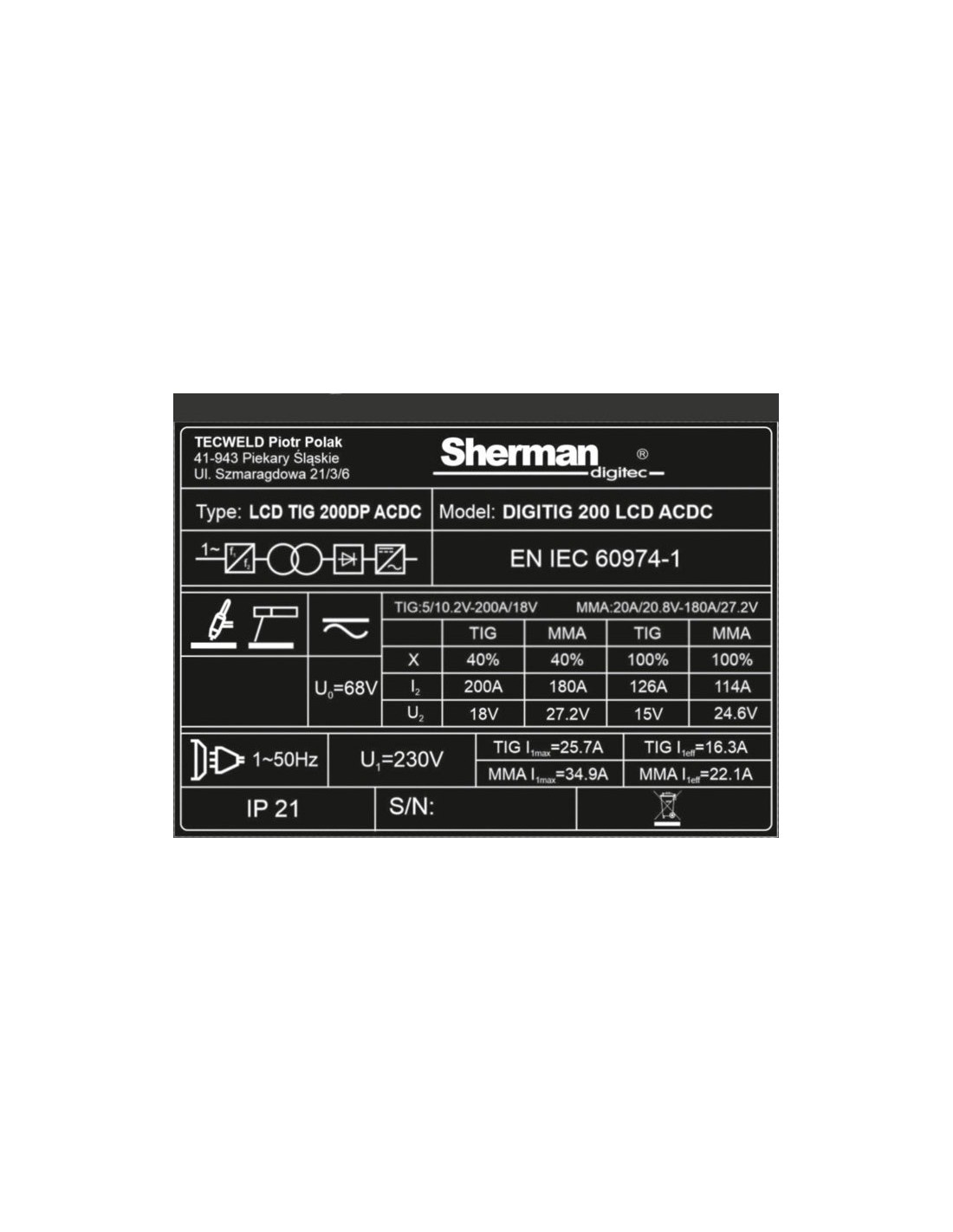

Key capabilities include TIG current up to 200 A, MMA up to 180 A, a 40% duty cycle for both processes, and an open‑circuit voltage of 68 V. Typical power draw is up to 4.1 kVA (TIG) and 6.5 kVA (MMA). Supply protection is 25 A. The unit weighs 14.2 kg; dimensions: 47.5 × 20 × 41 mm (per supplier data). Functions include current upslope/downslope, crater current, TIG pre/post‑flow, pulse control, memory, and AC cleaning adjustment.

The set includes a TIG torch, electrode cable, and ground cable.
