- Funkcijos
- 2T/4T, lanko jėga, karštas paleidimas, srovės didinimas, srovės mažinimas, nustatymų atmintis, dviejų ritinėlių tiektuvas, MIG dujų srautas, TIG dujų srautas, išankstinis dujų srautas, TIG
- Phase
- Vienfazis (230V)
- Weight, kg
- 15
- Suvirinimas / pjaustymas / kiti metodai
- MMA DC, TIG HF DC, TIG Lift (trinant) DC, COLD TIG.
- IÅ¡matavimai mm
- 41,5 x 16,5 x 32
- Gamybos technologija
- IGBT
- Maximum current MMA [A]
- 180
- Maximum current TIG [A]
- 200
- MMA darbo ciklas [%].
- 60
- TIG darbo ciklas [%].
- 40
- Įtampa be apkrovos [V].
- 20
- Maksimalus MMA suvartojamos galios kiekis [kVA}
- 6,5
- Maksimalus TIG sunaudojamas galingumas [kVA].
- 4,1
- Maksimalus MMA srovÄ—s suvartojimas [A].
- 36,5
- Maksimalus TIG srovÄ—s suvartojimas [A].
- 26,8
- Pagrindinis metodas
- TIG
- Tinklo apsauga [A].
- 25
- Įmonių garantijos laikotarpis [metai].
- 2
- SrovÄ—s kilimo laikas [s]
- 0 - 15
- PradinÄ— srovÄ— [A].
- 5-200
- BazinÄ— srovÄ— [A].
- 5-95%
- Dabartinis kritimo laikas [s]
- 0-25
- Kraterio srovÄ— [A].
- 5-200
- Išankstinis dujų srautas [s].
- 0,1 - 1
- TIG dujų srautas [s].
- 0 - 15
- TIG impulsų dažnis [Hz].
- 0,5 - 200
- TIG impulsų plotis [%].
- 10-90
- Maximum cutting current [A]
- 200 A 40%
- Current type
- DC
- Suitable for welding
- Non-ferrous and other rare metals (Titanium, Copper, Brass, Nickel)
Stainless steel (Inox)
Structural steel - Inverter technology
- IGBT

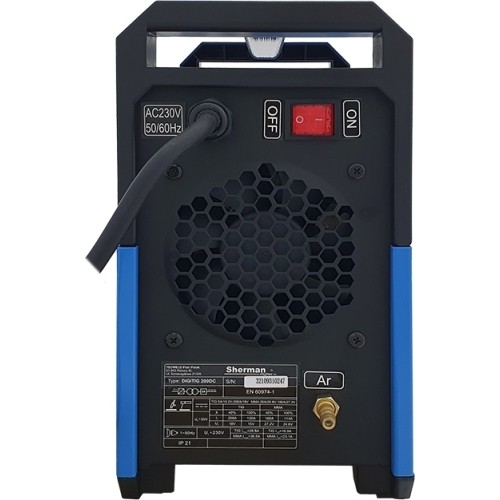

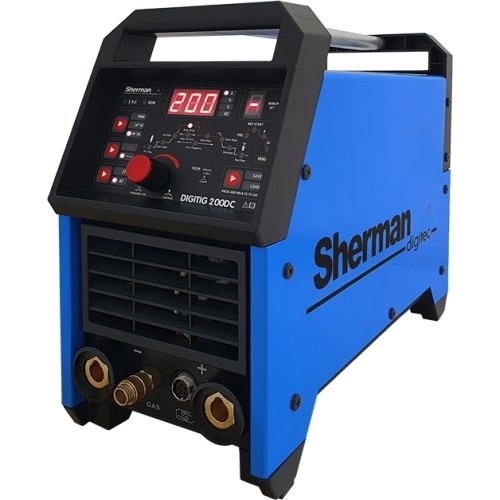

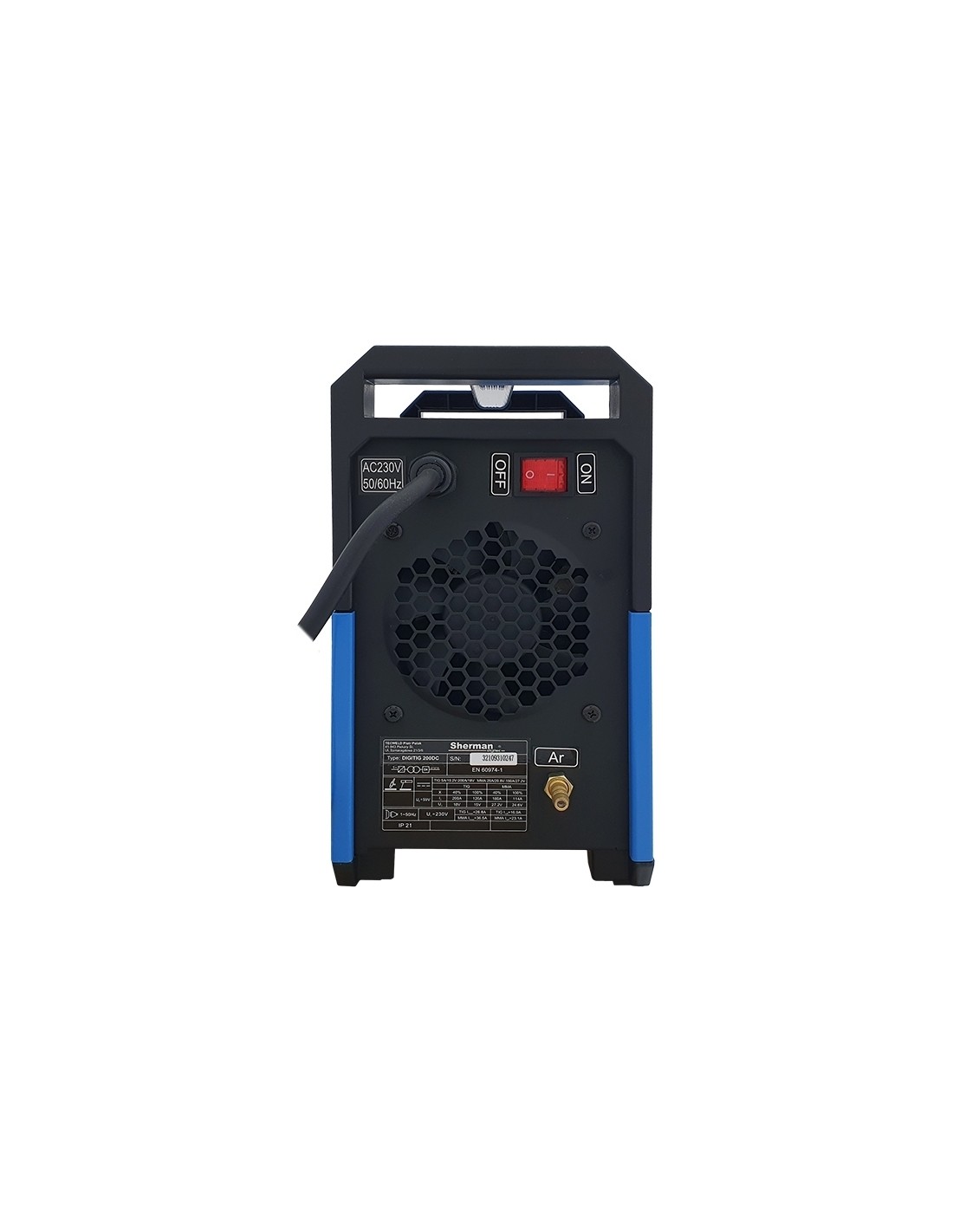

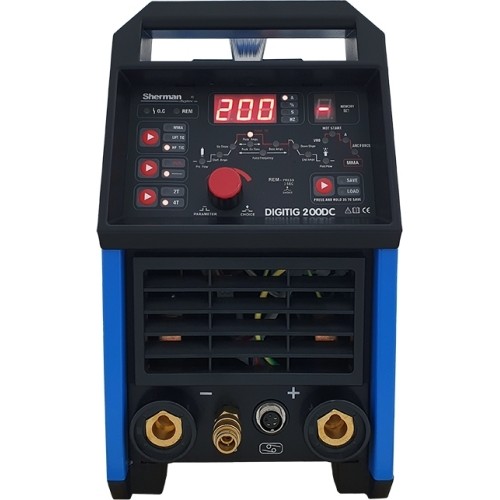

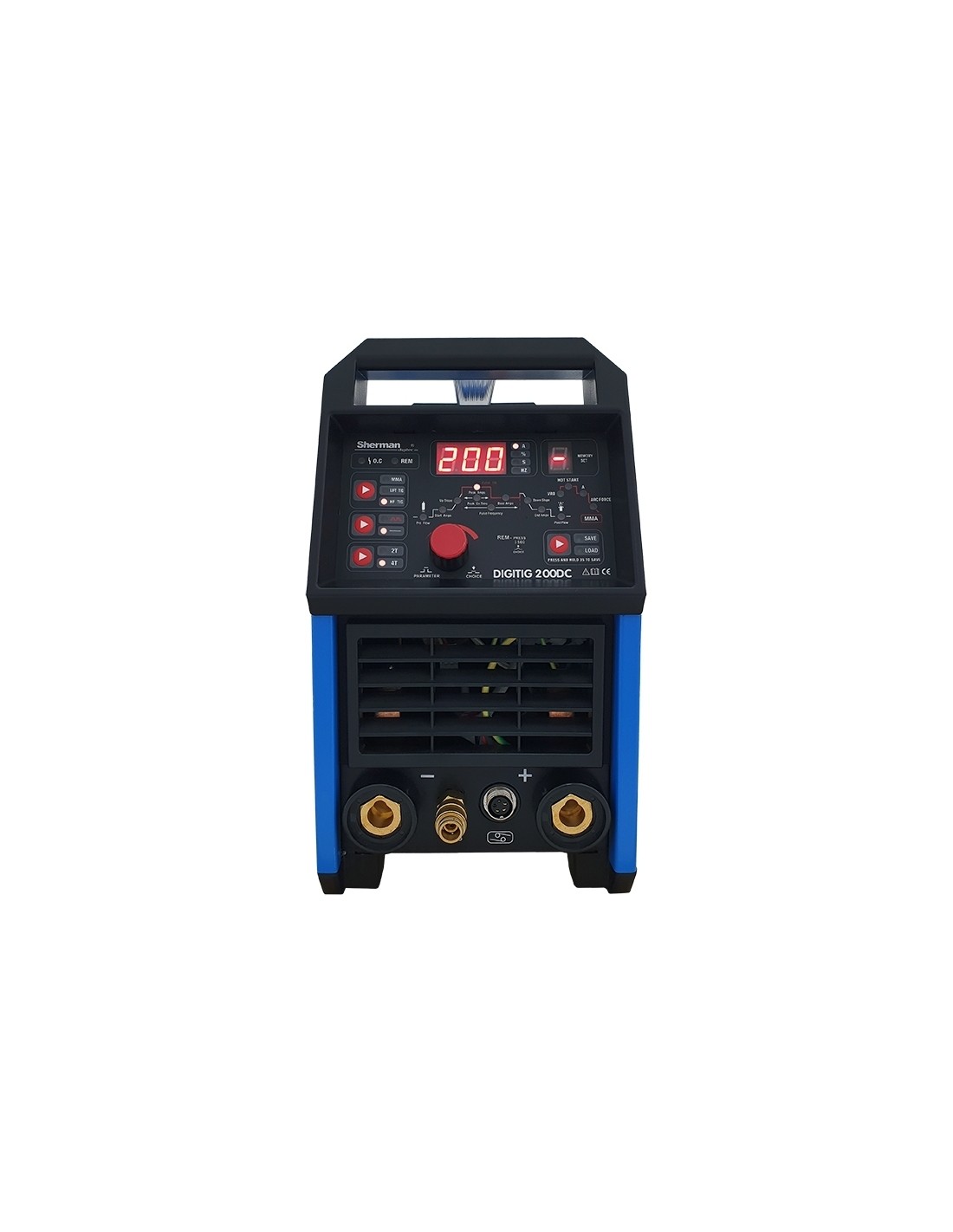

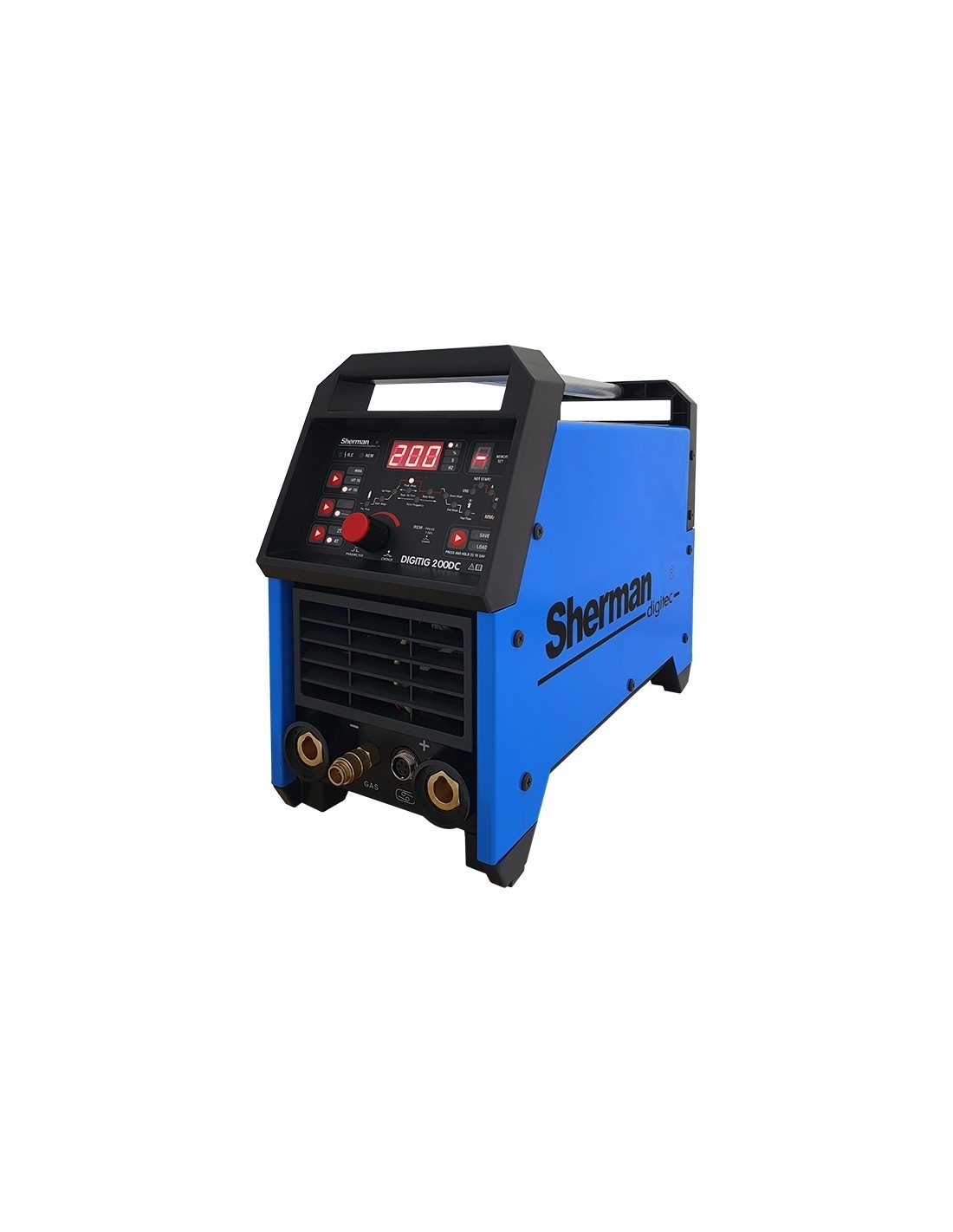

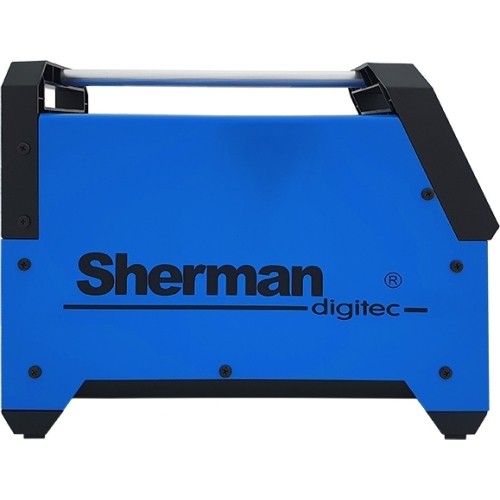

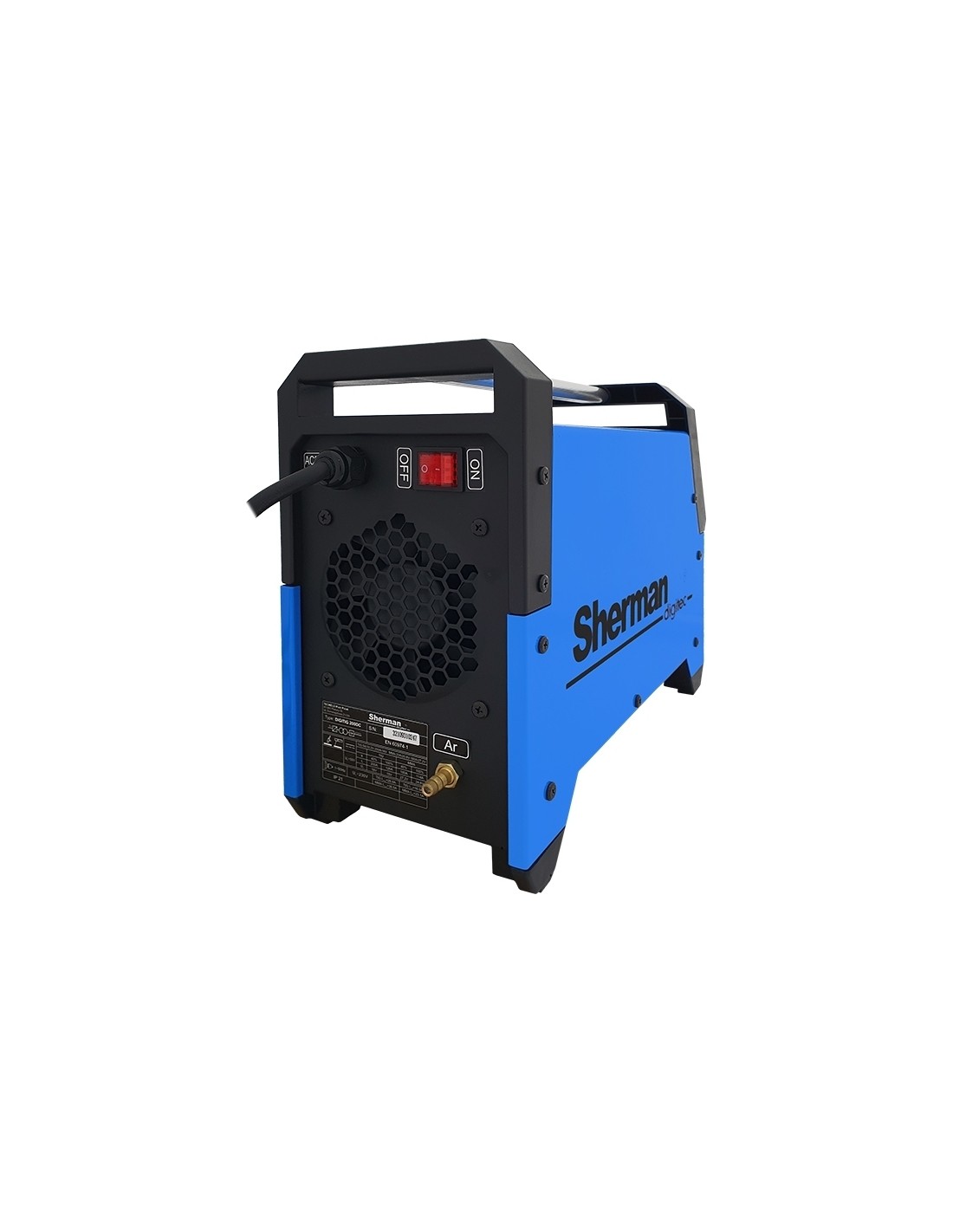

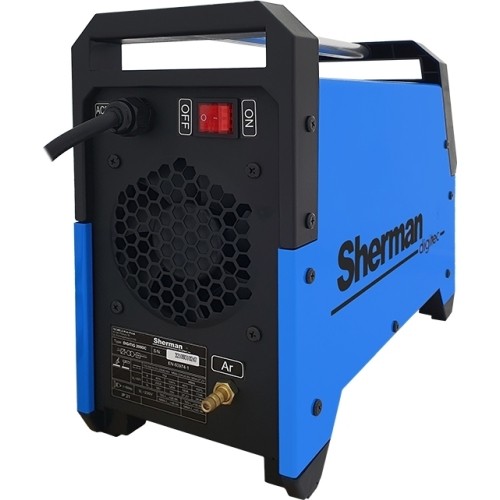

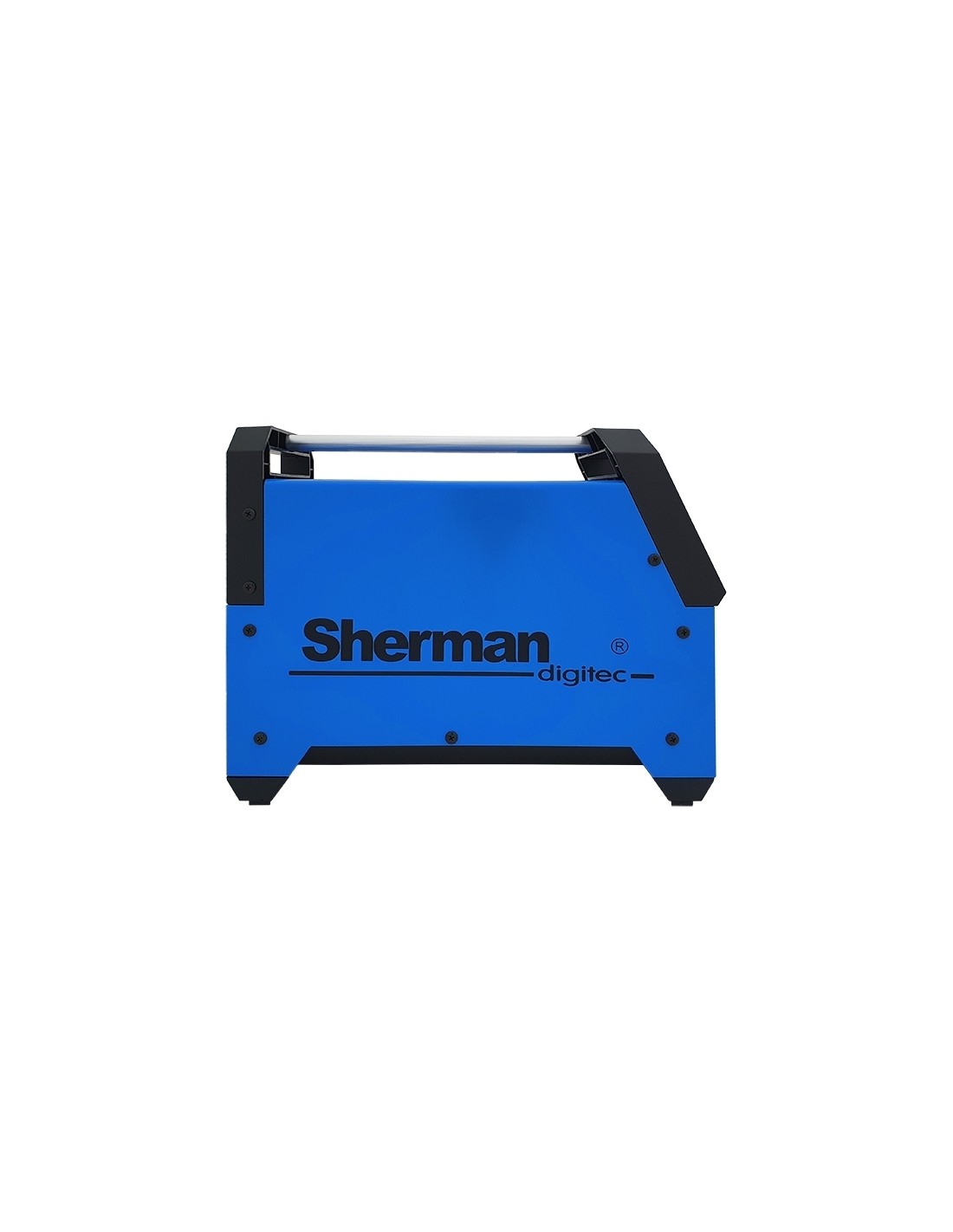

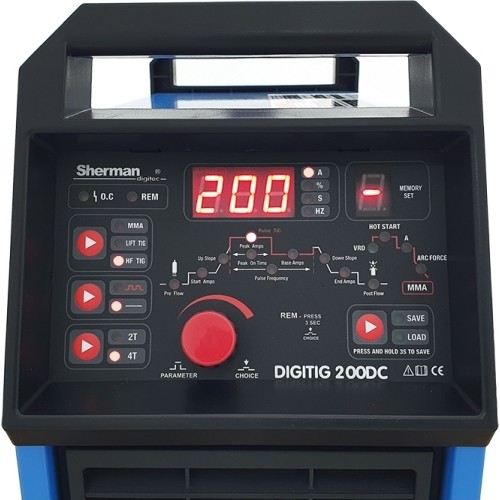

Inverter welder Sherman DIGITIG 200DC
1052827
Price
€420.00
VAT incl.
Stock Quantity:
Kaunas Shop
(1 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas
(€0.00)
We will deliver the product to you via: 1-2 w.d. Venipak
(€6.00)
We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas)
(€8.00)
Description
The DIGITIG 200DC welder is a digitally controlled machine built with the latest-generation IGBT inverter technology for professional use. It supports manual DC welding using TIG HF and TIG Lift methods and offers extended MMA capabilities.

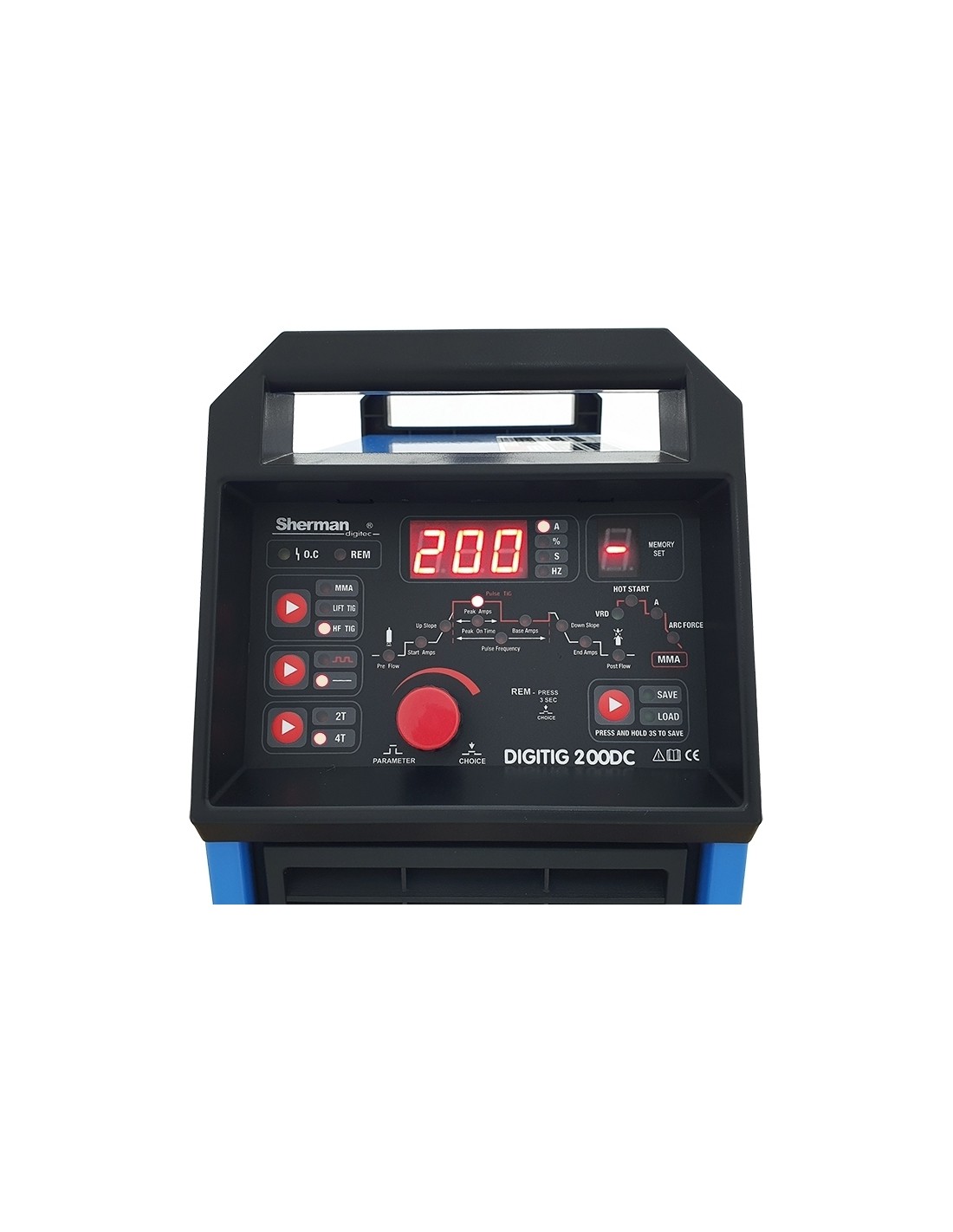

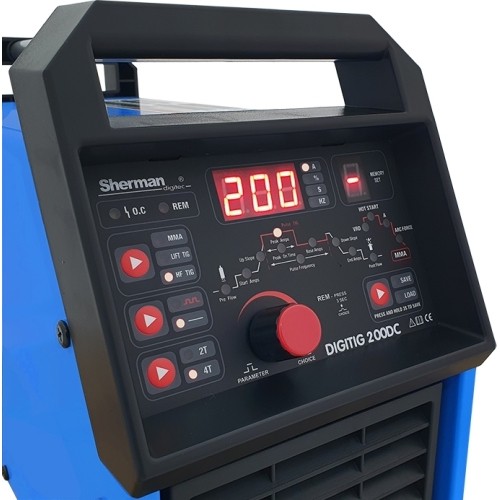

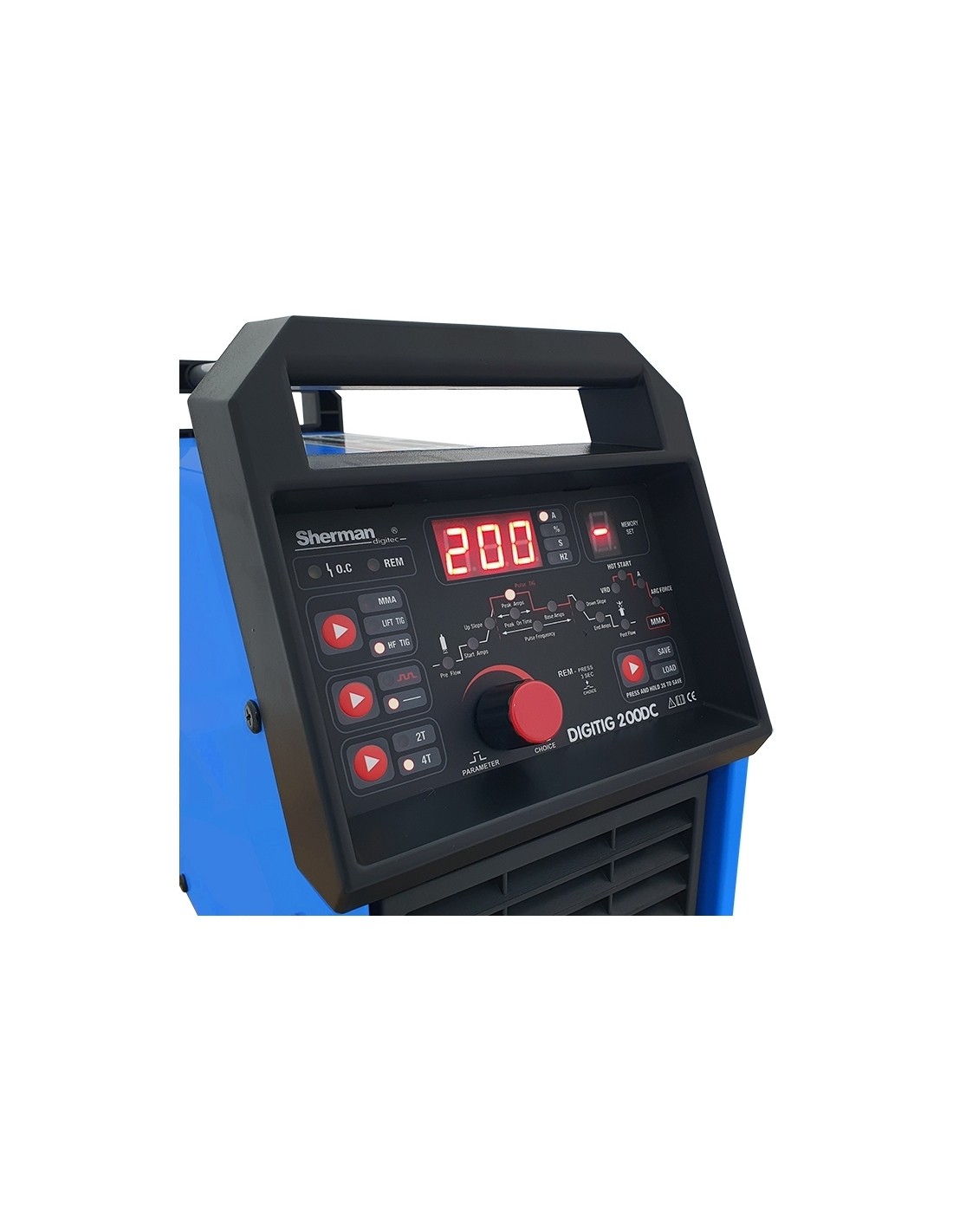

The unit enables fully digital adjustment and control of welding parameters, arc characteristics, and TIG pulse. For MMA, it provides VRD, ARC FORCE, and HOT START functions. It operates in 2T/4T modes and features separate readouts for welding current and memory set selection.
The welder includes last-setting memory, restoring the most recent parameters after power-off/on, and it can store up to 30 custom parameter sets. With a maximum TIG current of 200 A (40% duty cycle) and MMA up to 180 A (60% duty cycle), it delivers precise performance. The compact IGBT design helps keep the weight to 15 kg, with dimensions of 41.5 × 16.5 × 32 cm and an open-circuit voltage of 20 V. Supplied with a TIG torch, electrode holder cable, and ground cable.
Included equipment

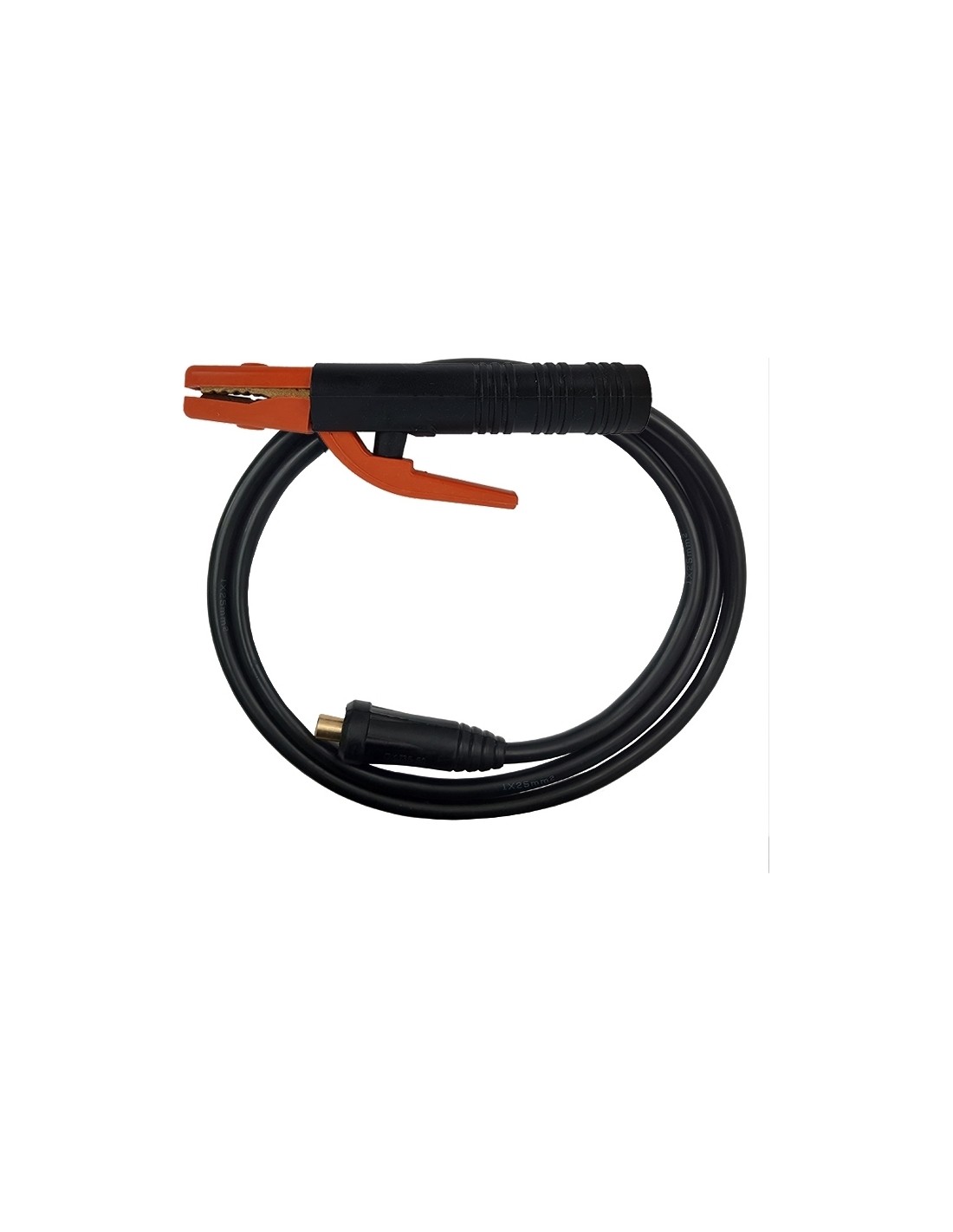

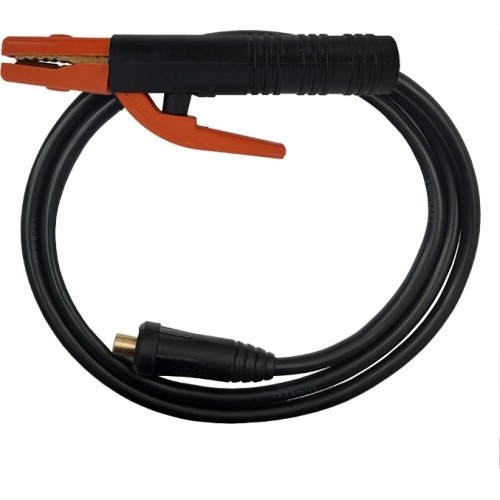

- Electrode holder cable
- TIG torch T-26, 4 m
- Ground cable
