- Spindle taper
- ISO 40
- Weight approx.
- 2200kg
- Machine dimension (W x D x H)
- 1460 x 2080 x 1720 mm
- Spindle stroke
- 60 mm
- Spindle speeds
- (18) 40 - 2000 rpm
- Table size
- 800 x 400 mm
- Spindle feed
- 0,03 / 0,06 / 0,12 mm/rev.
- Travel longitudinal (x)
- 500 mm
- Travel cross (y)
- 350 mm
- Travel vertical (z)
- 400 mm
- Spindle head tilting range
- -90° to +90°
- T-slot (Quantity / Width / Distance)
- 8 / 14 mm / 45 mm
- Main motor
- 3,0 kW
- Distance spindle / table
- 5 - 405 mm
35 - 435 mm - Vertical clamping area
- 950 x 250 mm
- Table load
- 300 kg
- Distance spindle to column max.
- 520 mm
- X-axis
- (18) 10 - 500 mm/min
- Y-axis
- (18) 10 - 500 mm/min
- Z-axis
- (18) 10 - 500 mm/min
- Rapid feed (x / y / z)
- 1200 mm/min
- T-slot vertical table (quantity / width / distance)
- 5 / 14 mm / 45 mm
- Feeding motor
- 1,5 kW

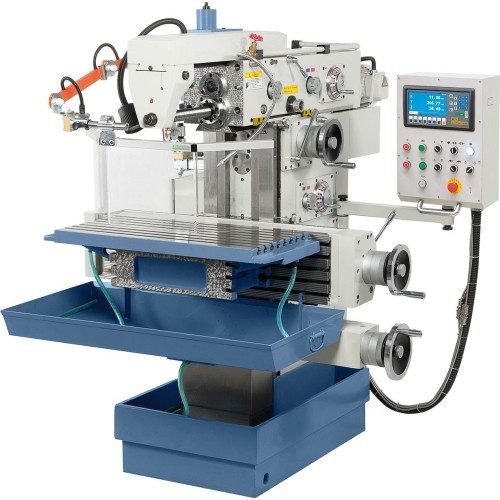

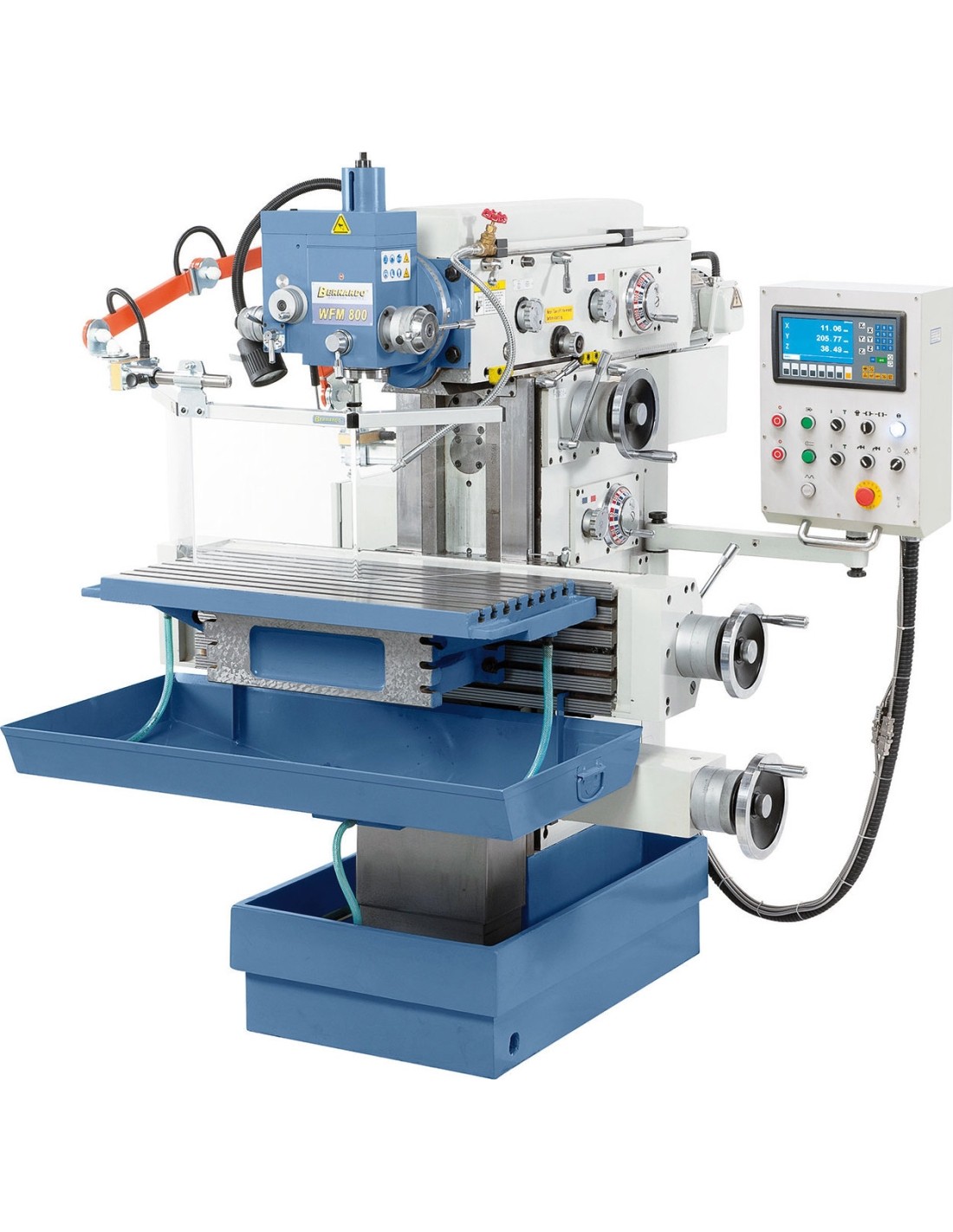

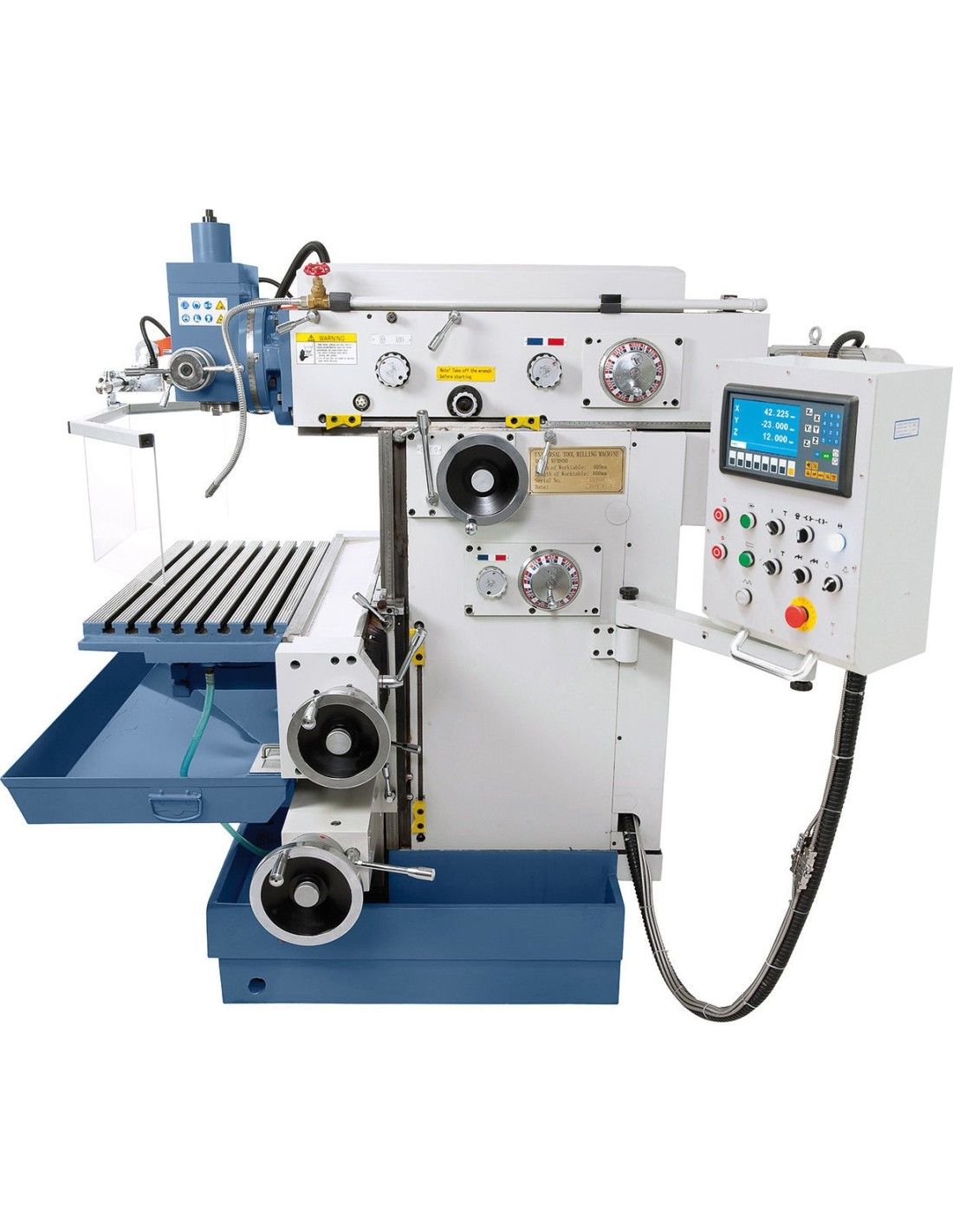

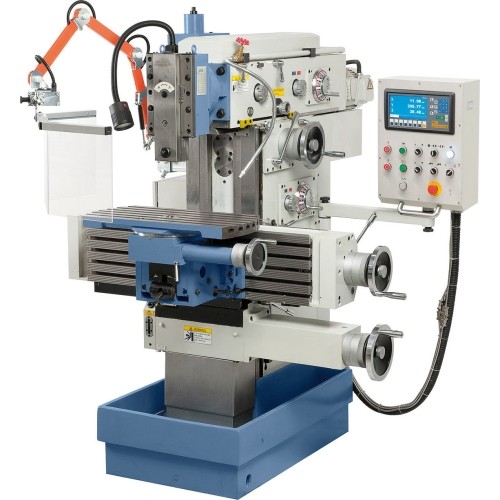

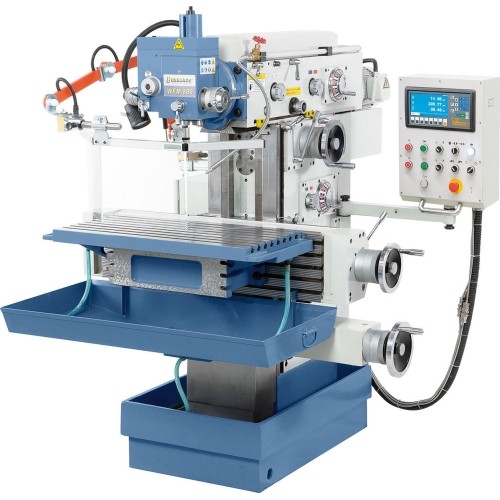

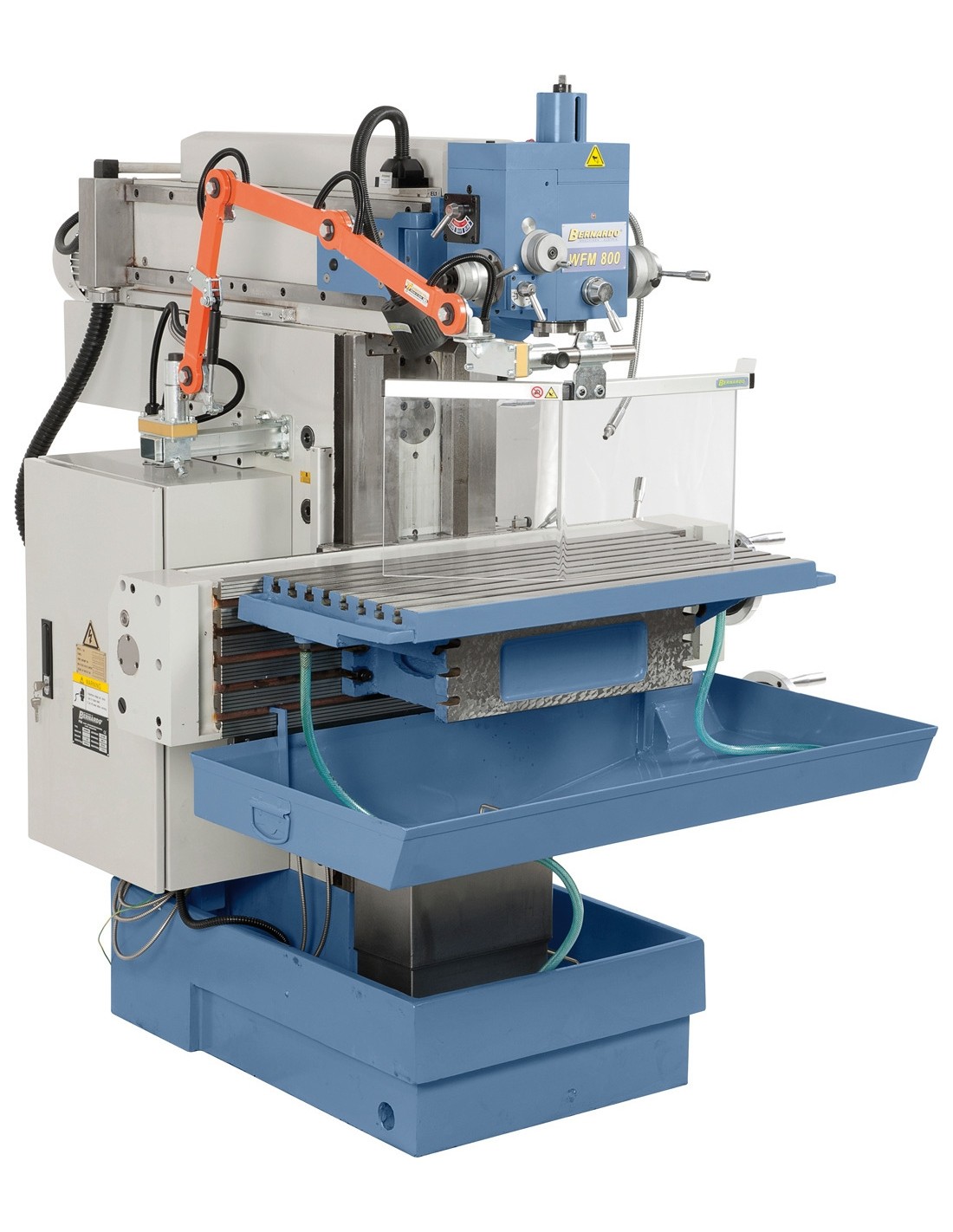

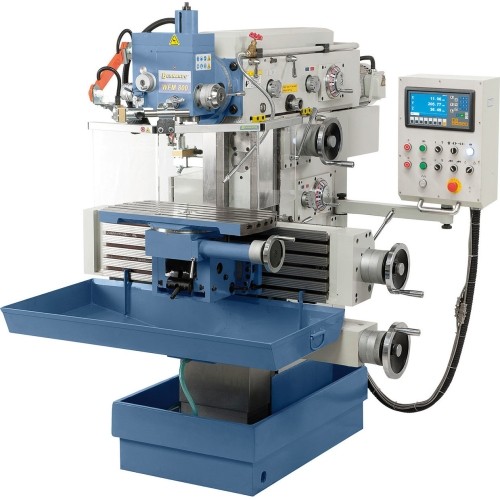

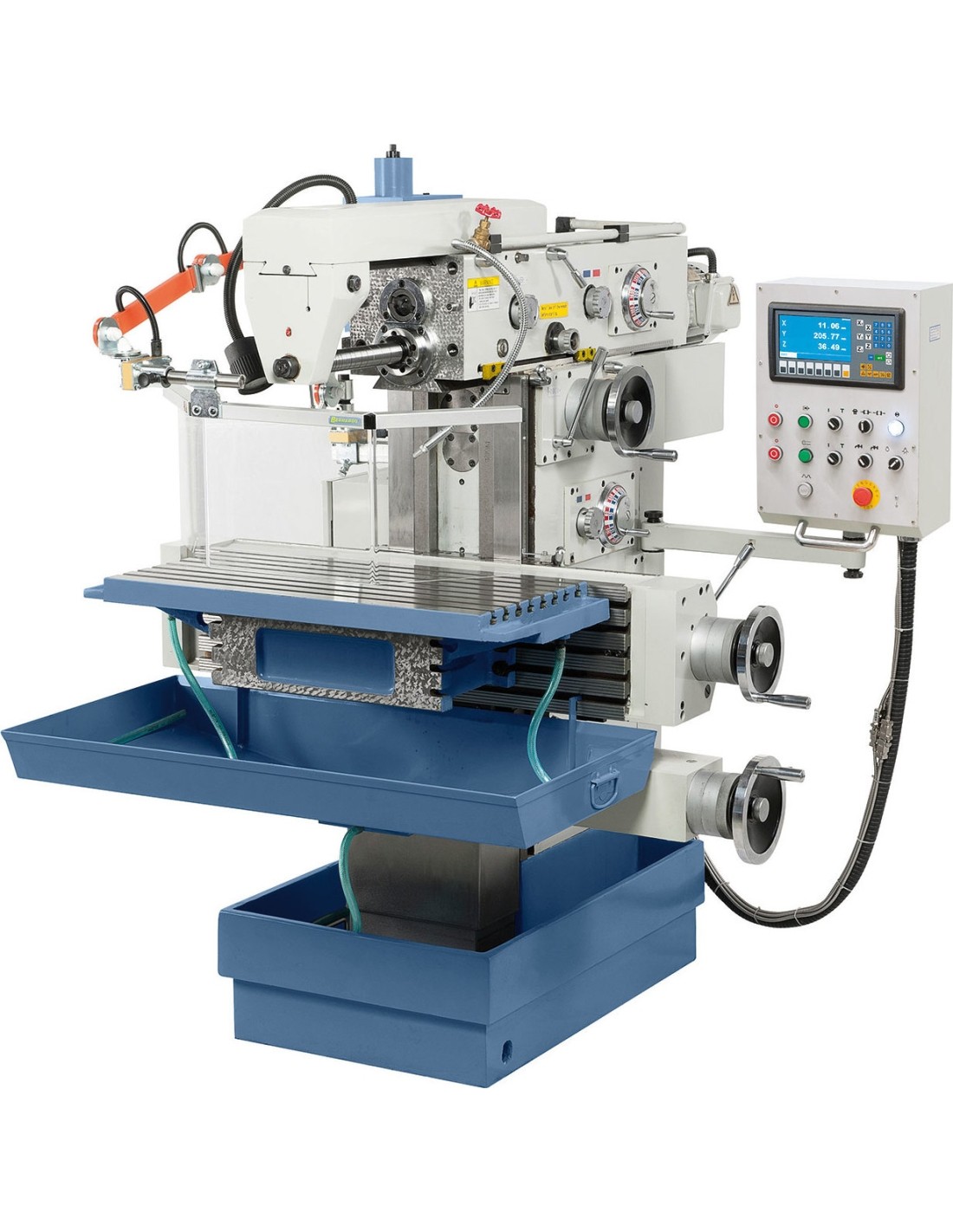

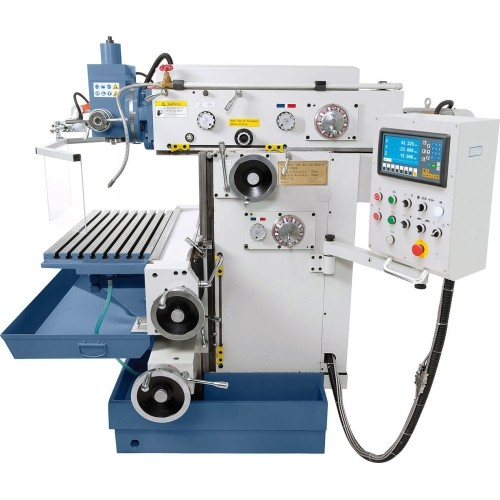

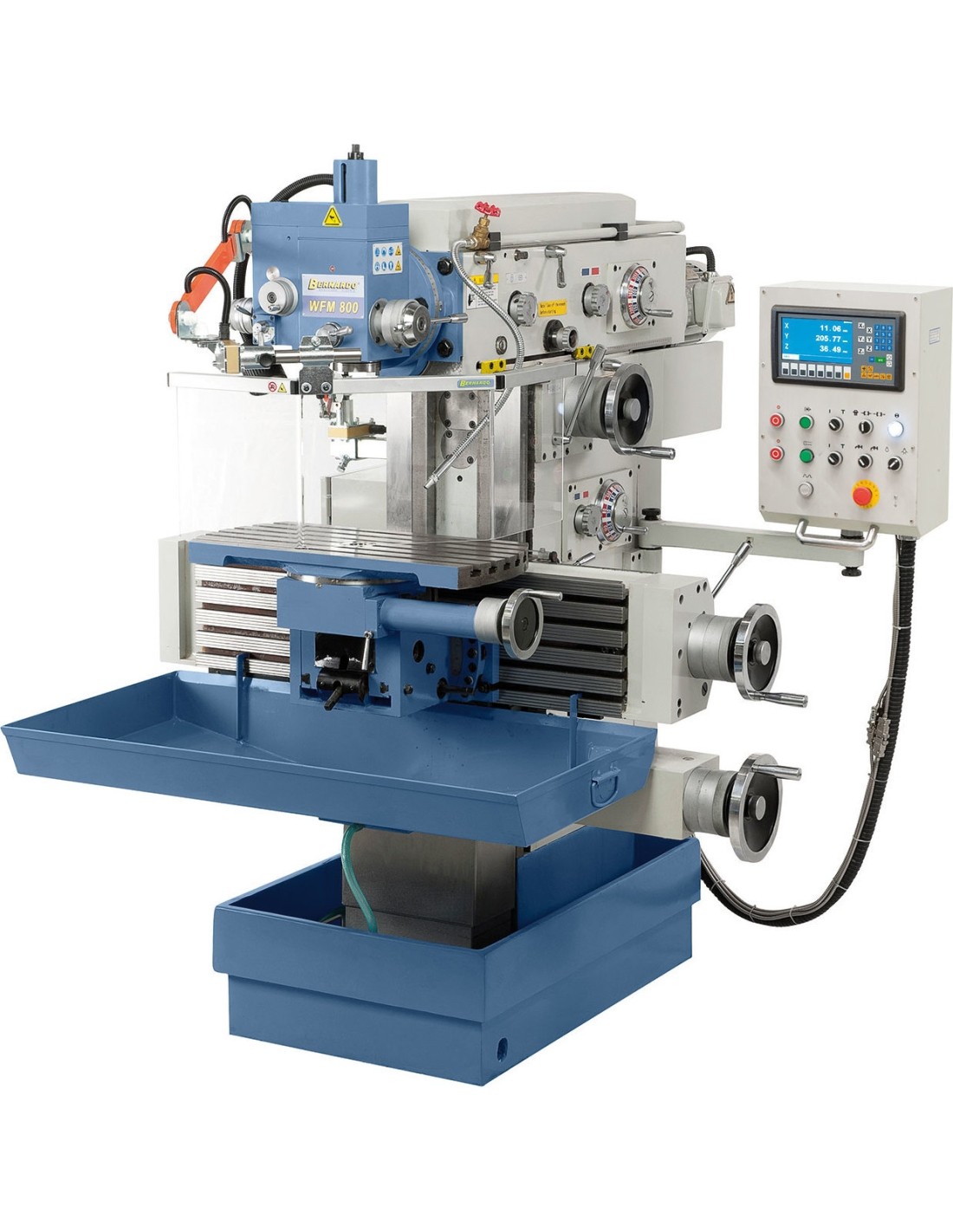

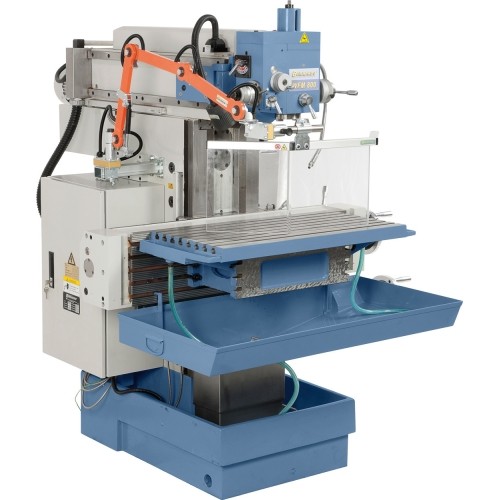

WFM 800
1092075
Price
€56,177.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 2200 kg.
Description
Properties
- Hand wheel guarantees simple and precise feed settings
- Complete with manual, automatic and rapid feed in all three axis
- Central lubrication in guideways comes standard
- Clear design of speed and feed controls

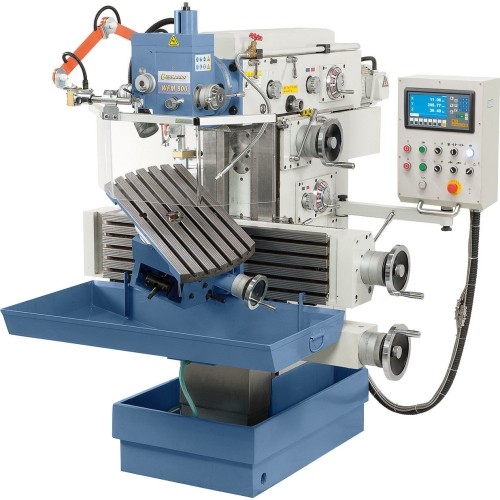

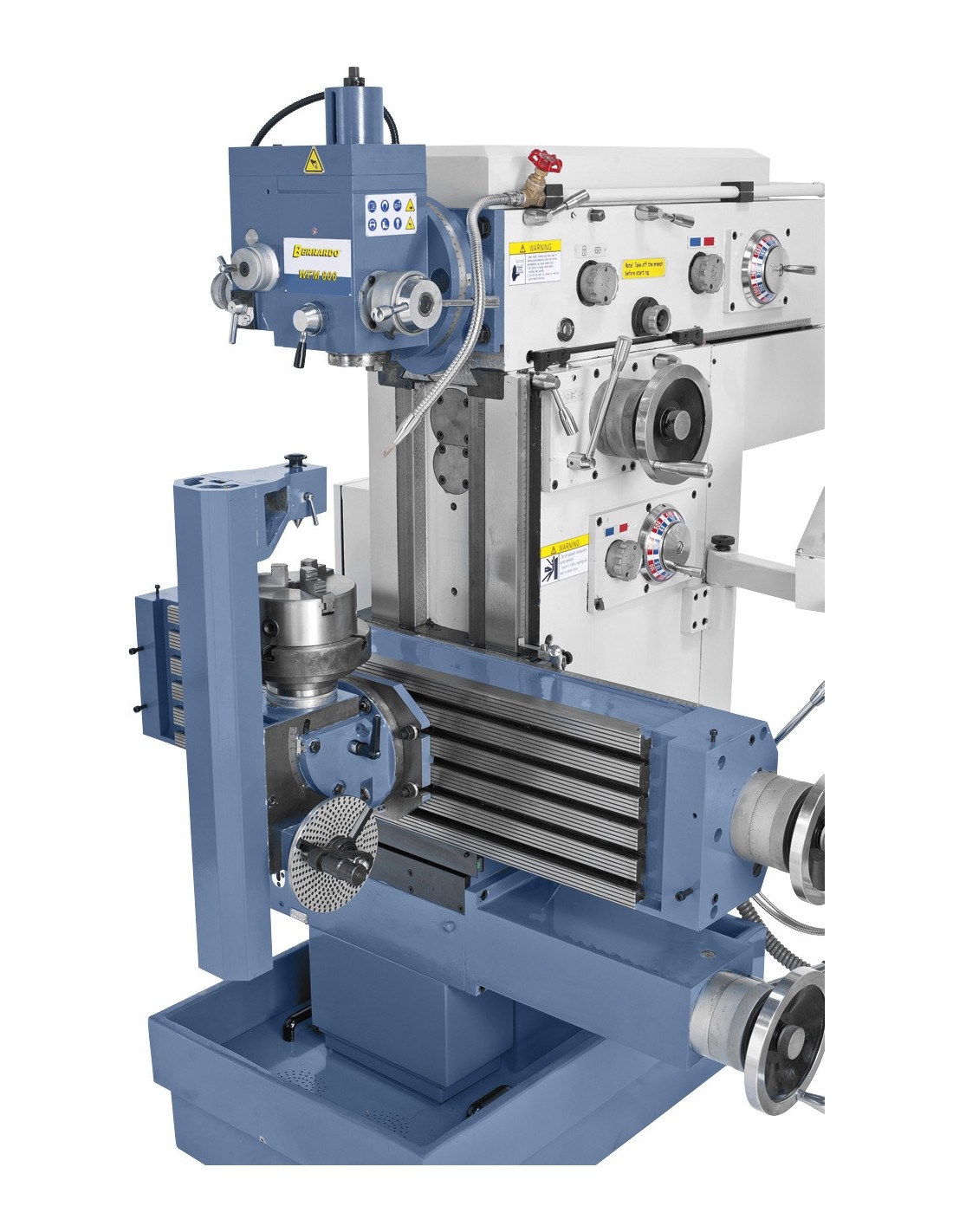

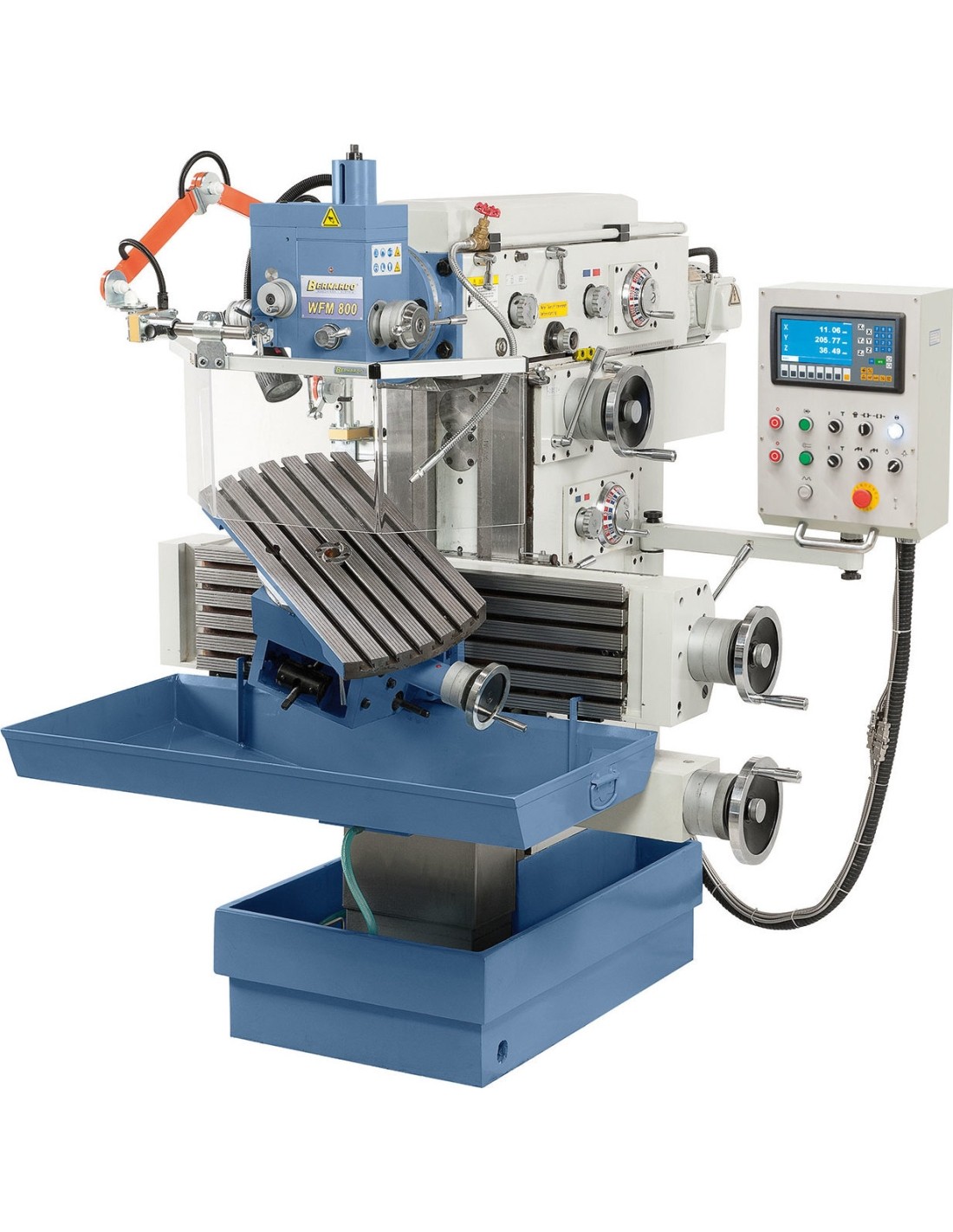

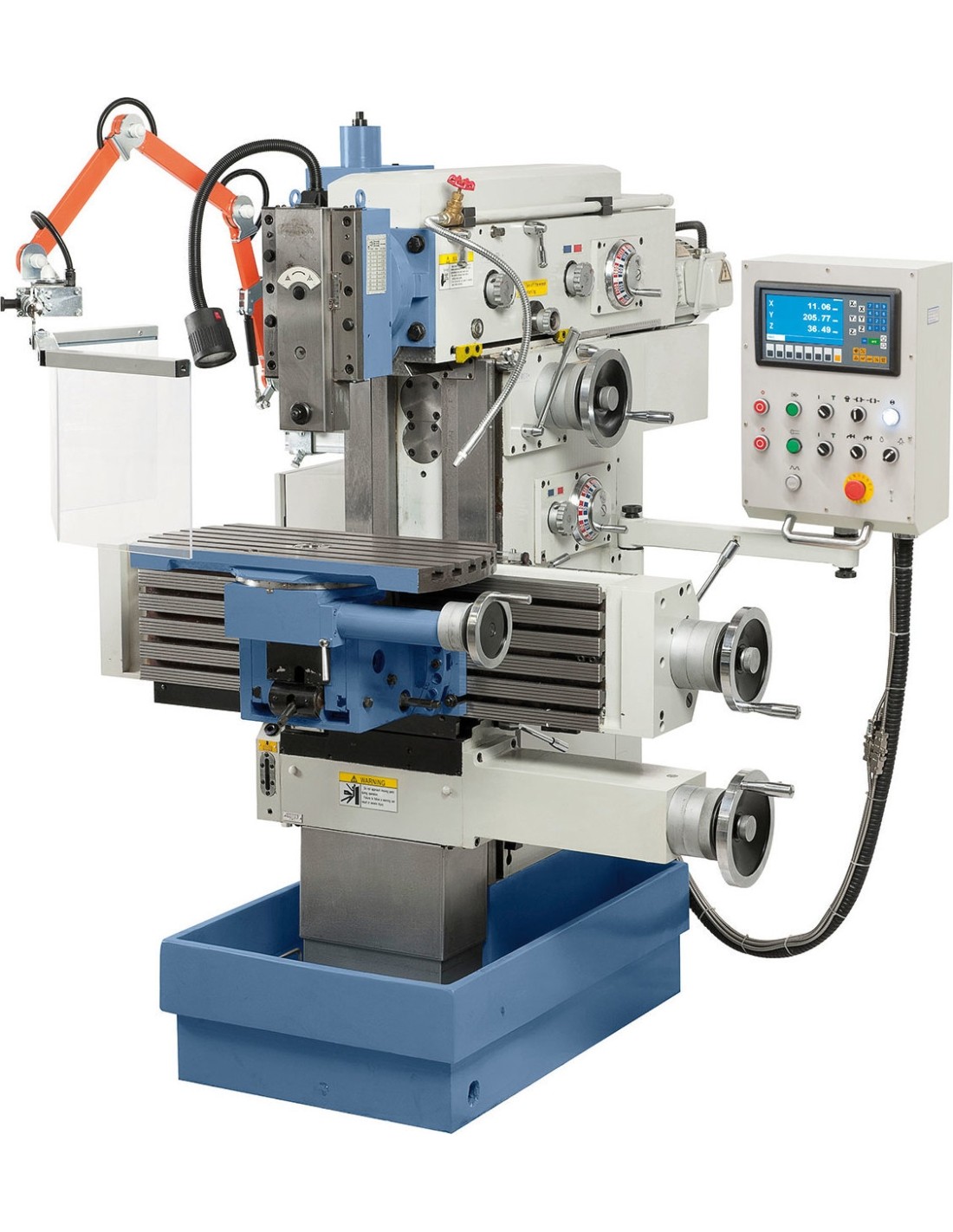

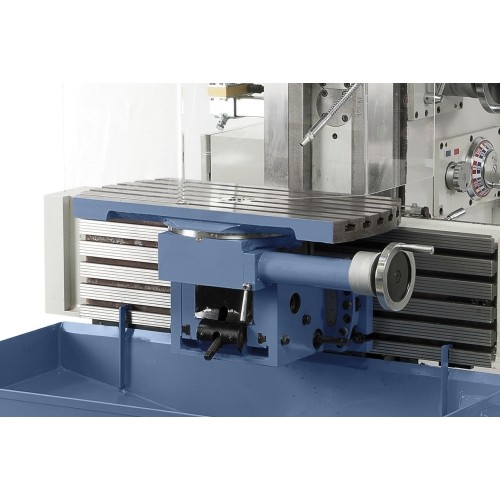

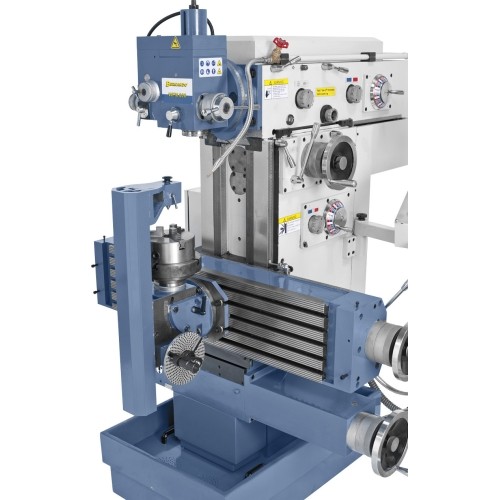

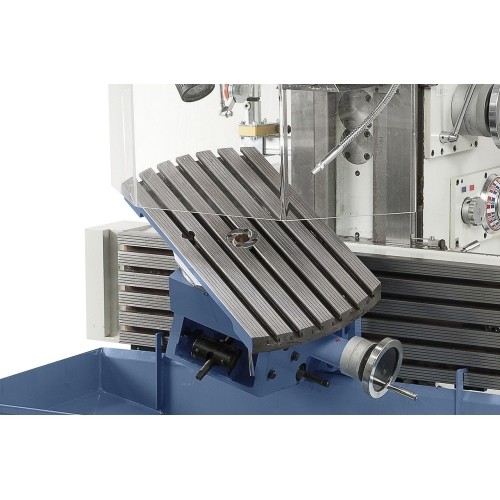

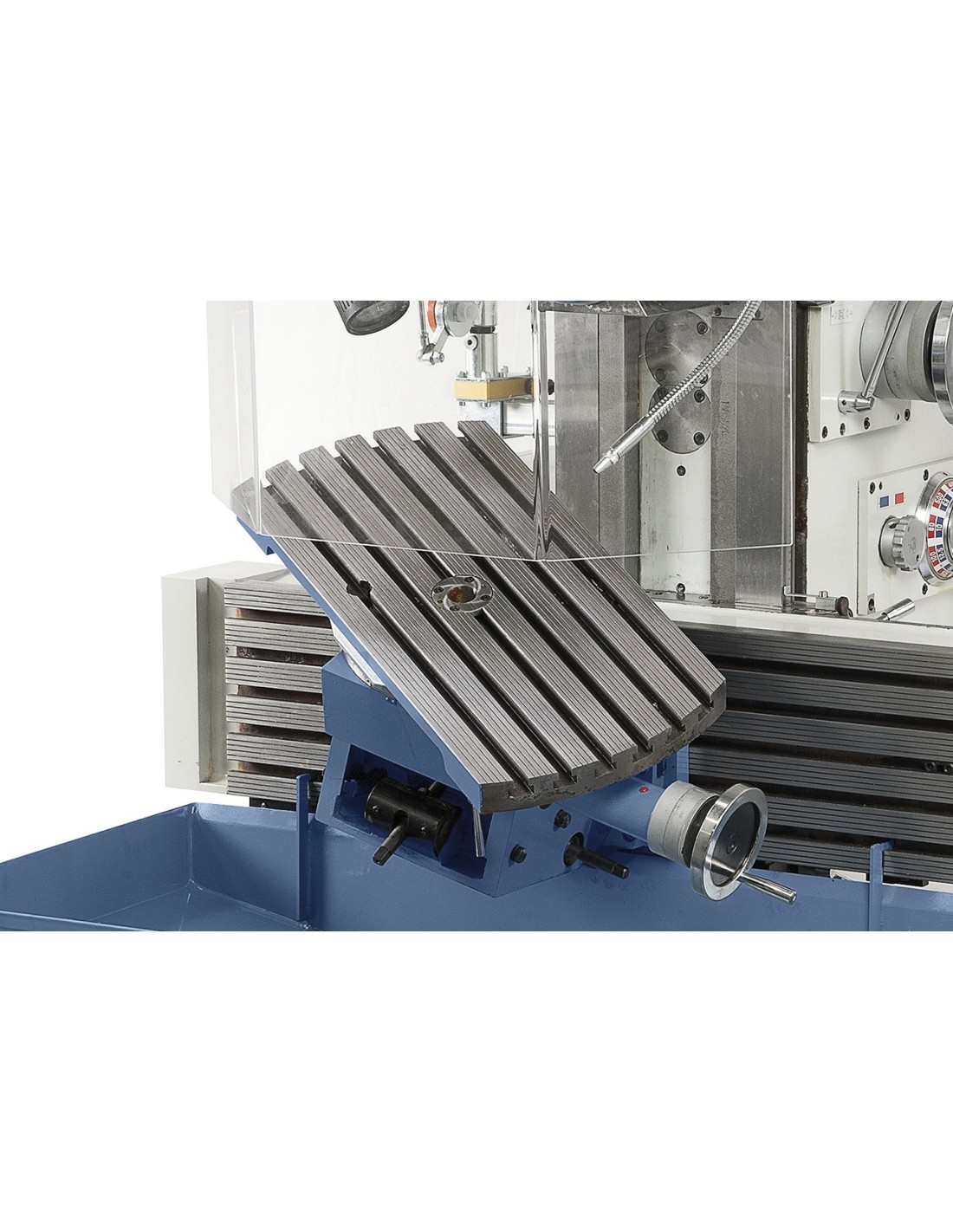

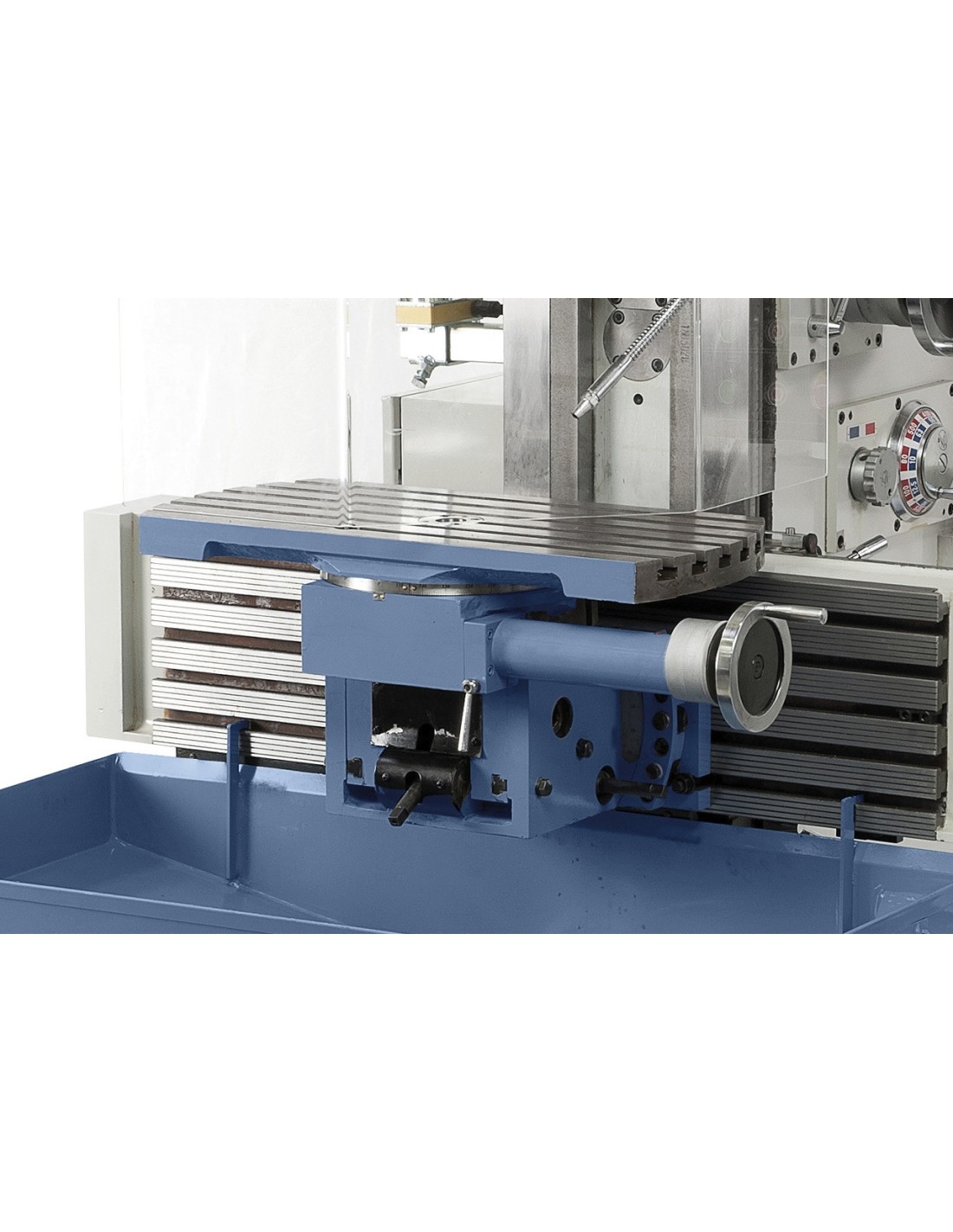

- Vertical clamping area with 5 T-slots allows clamping of work table, universal tilting table and oversize workpieces
- Optimal adjustments of spindle speed and feed allow for economic machining of various materials
- Solid grey cast-iron machine base guarantees precision and minimizes vibrations
- Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc.
- Hardened and polished guideways guarantee top accuracy

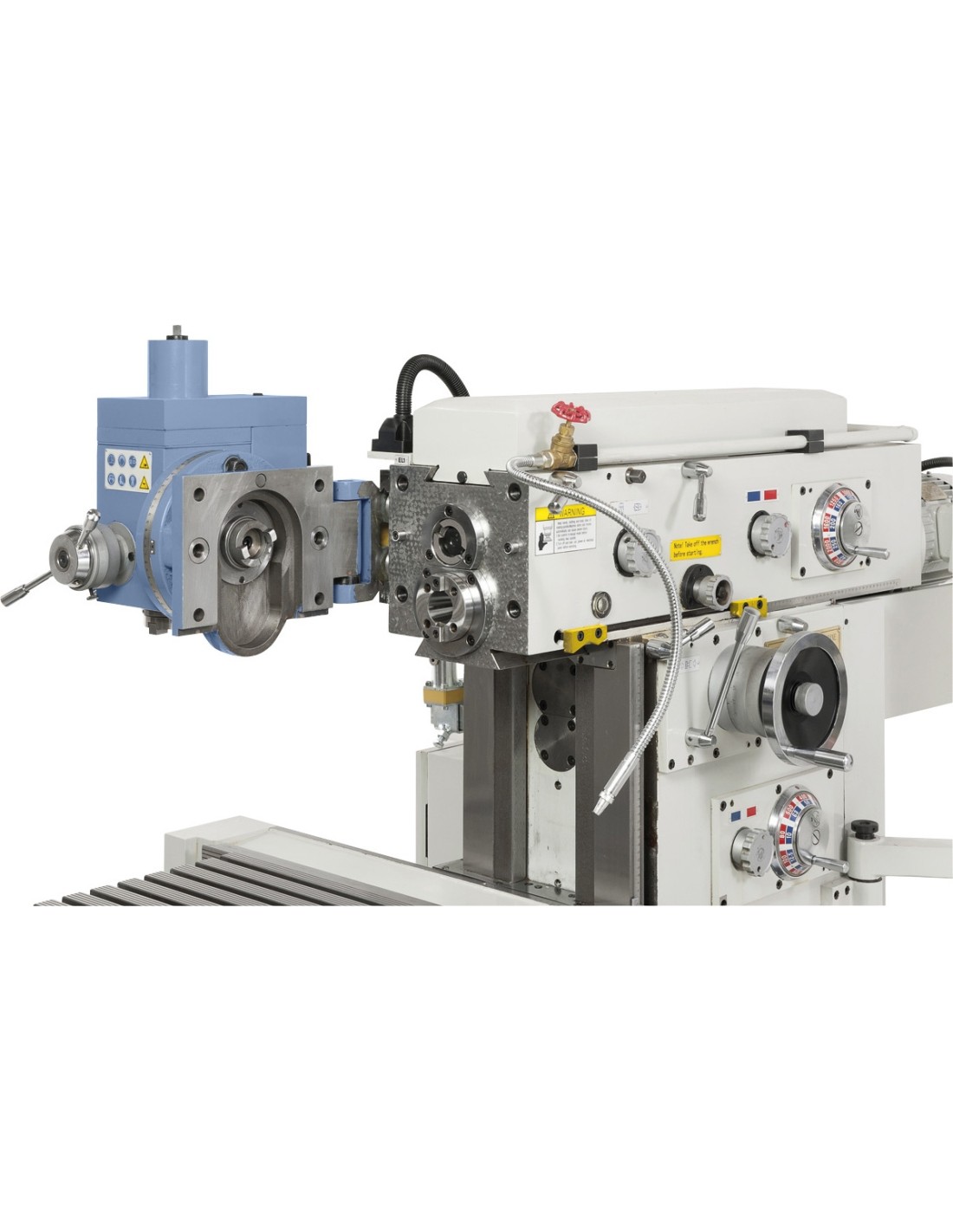

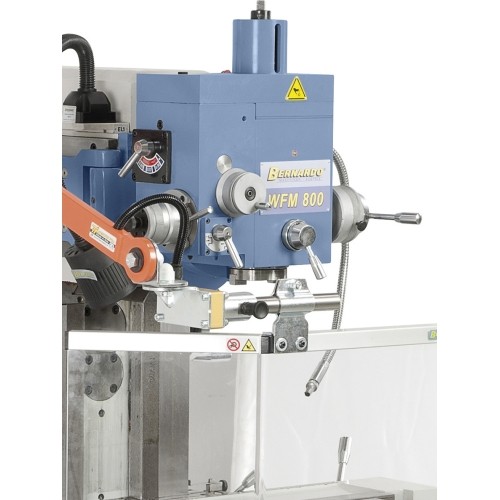

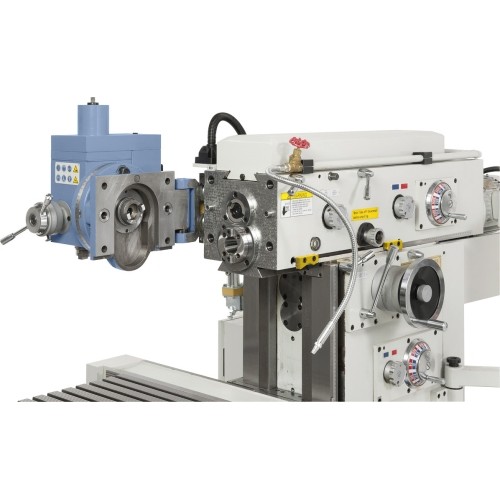

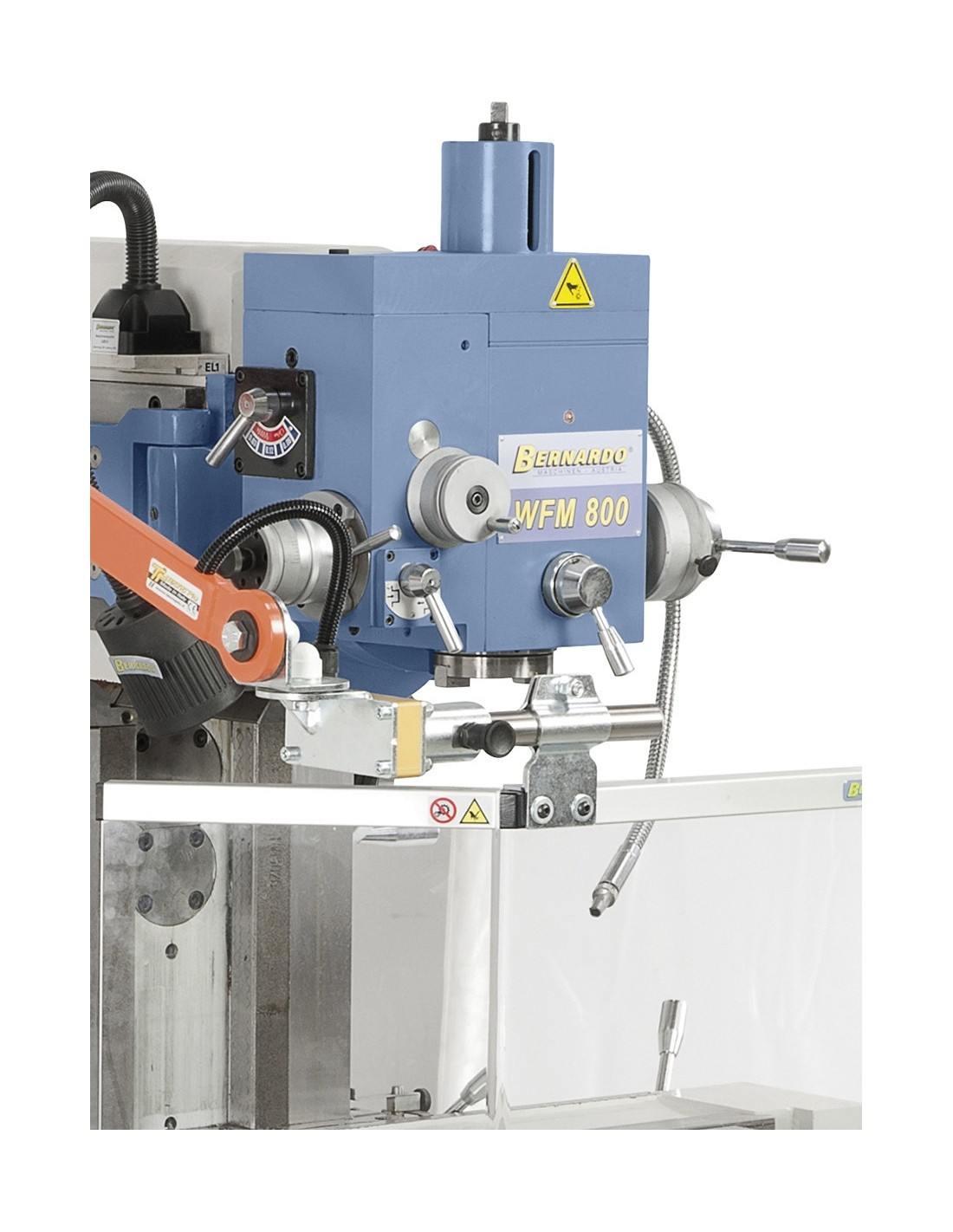

- Tiltable vertical milling head with spindle adjustment and three automatic drill feeds
Standard accessories

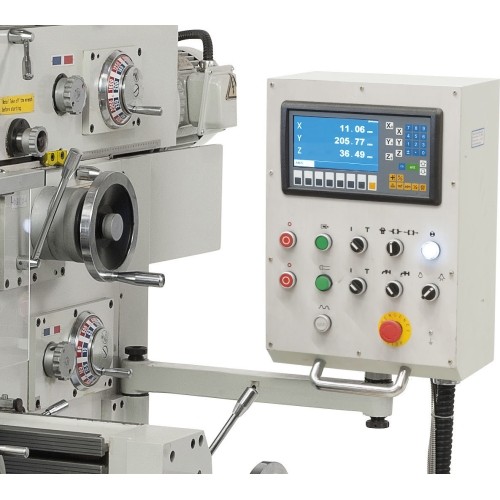

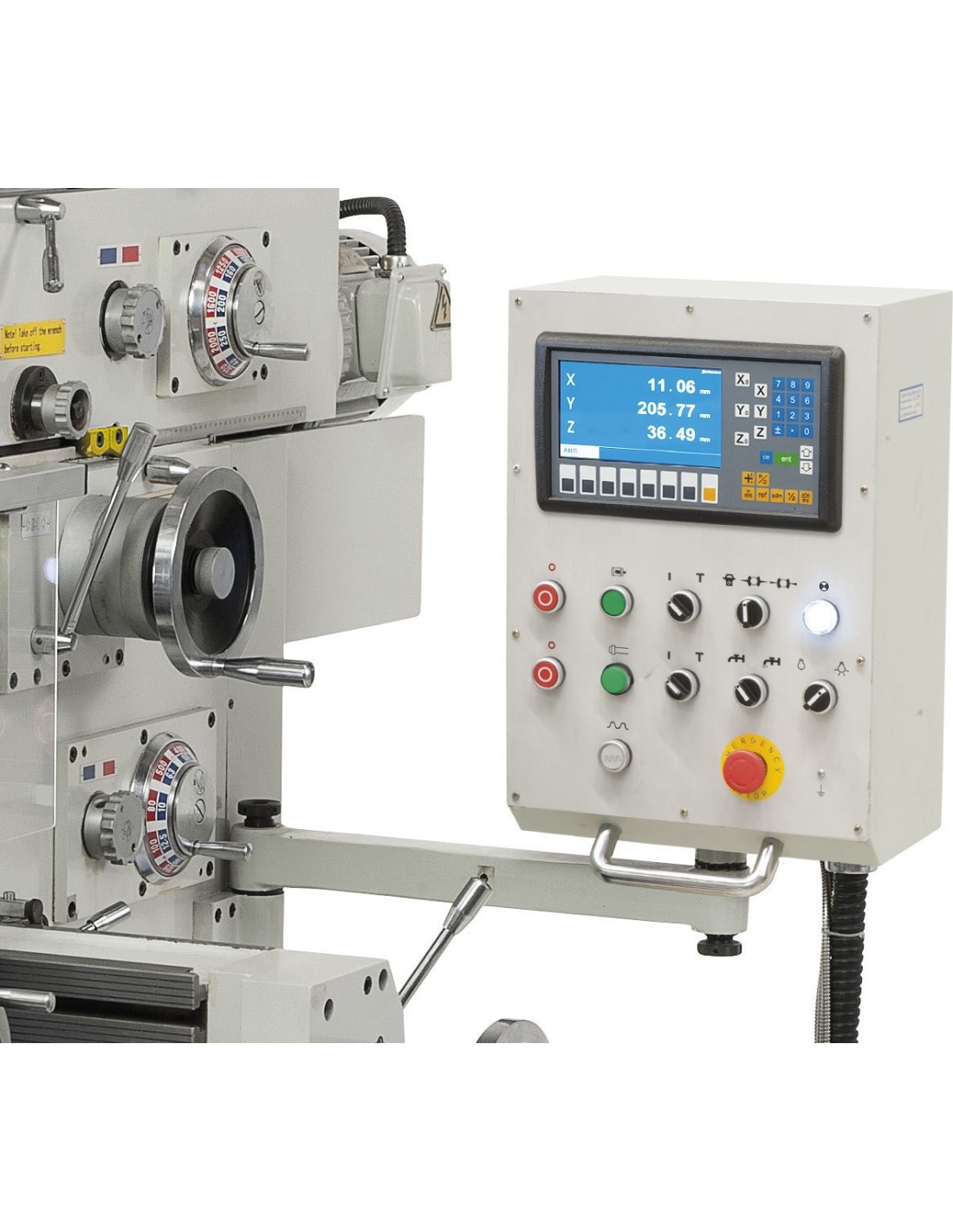

- 3-axis digital readout ES-12 H with LCD-display
- Drawbar M16
- LED machine light
- Coolant device
- Power feed for x-, y- and z-axis

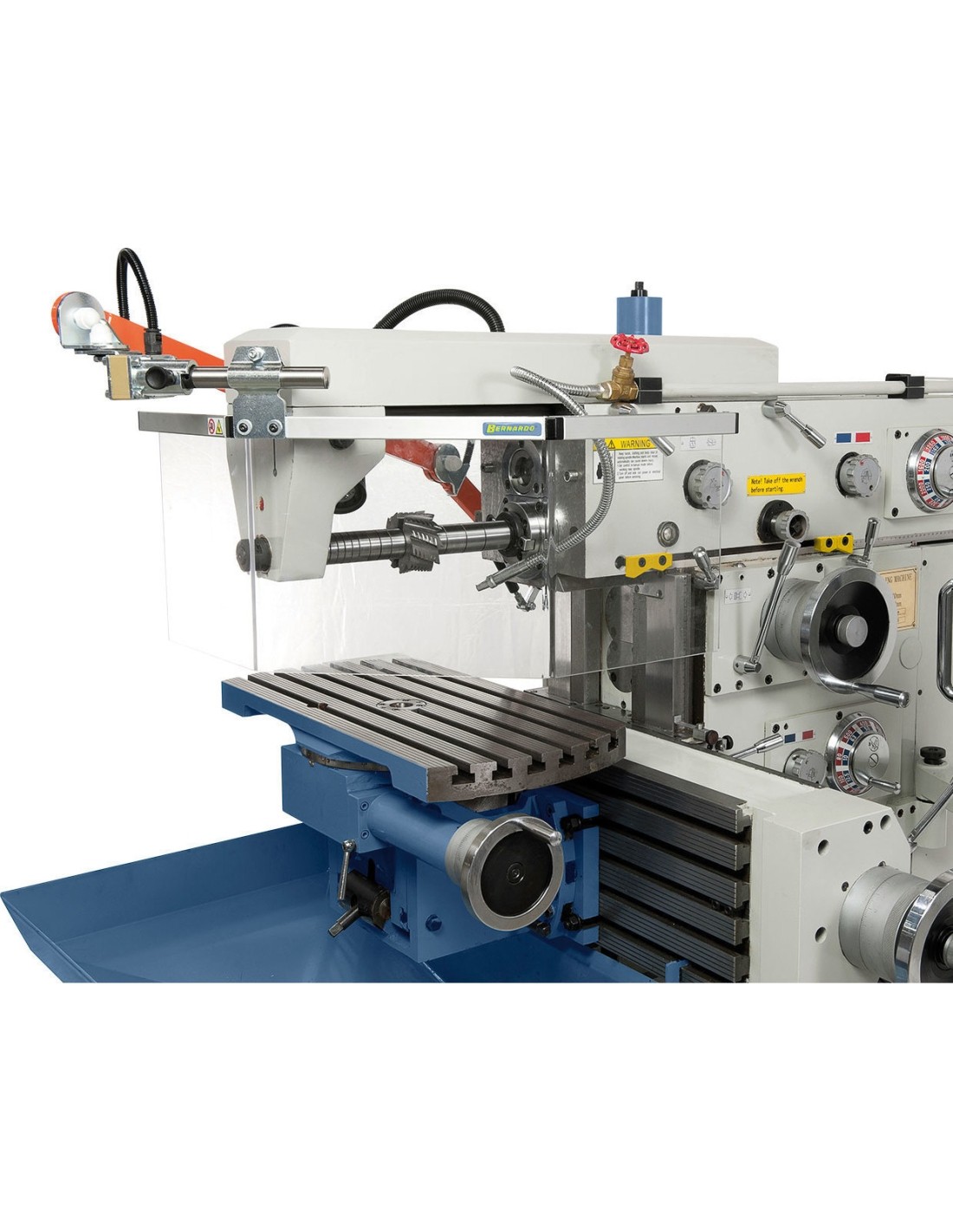

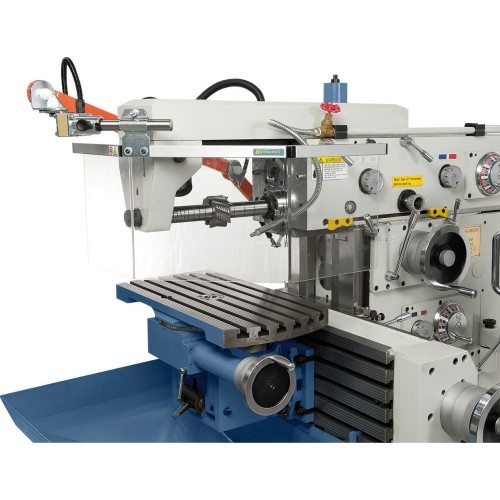

- Horizontal counter bearing
- Long milling arbor ISO 40/22 mm
- Long milling arbor ISO 40/27 mm
- Taper shell end mill holder ISO 40 / 22 mm, ISO 40 / 27 mm
- Adapter ISO 40 / MT 1, ISO 40 / MT 2, ISO 40 / MT 3
- Collet chuck with collets 4 - 16 mm
- Universal protective device
- Chip tray
- Tools
