- Svoris
- 700 kg
- Keliamoji galia
- 4 t
- CE
- Taip
- PakÄ—limo/nuleidimo laikas
- 35 / 30 s
- Variklis
- 3.0 kW / 380 V / 3 Ph
- Garantija
- 12 mÄ—n.
- Alyvos talpa
- 12l
- Specifikacija
- Sinchronizacija viršuje su elektromagnetiniais fiksatoriais
- Sujungimas
- Per viršų
- Kėlimo aukštis (+išsukti padukai)
- 1900 (+45) mm
- Min aukštis (+ išsukti padukai)
- 100 mm
- Guminiai padukai
- Įstatomi ir įsukami (galimybė naudoti paaukštinimus)
- Ilgosios letenos ilgis
- 920 - 1515 mm (3 pakopų), tiesi
- Trumposios letenos ilgis
- 570 - 1120 mm (2 pakopų), tiesios
- Rėmo vidinis aukštis x plotis
- 3906 x 2560 mm

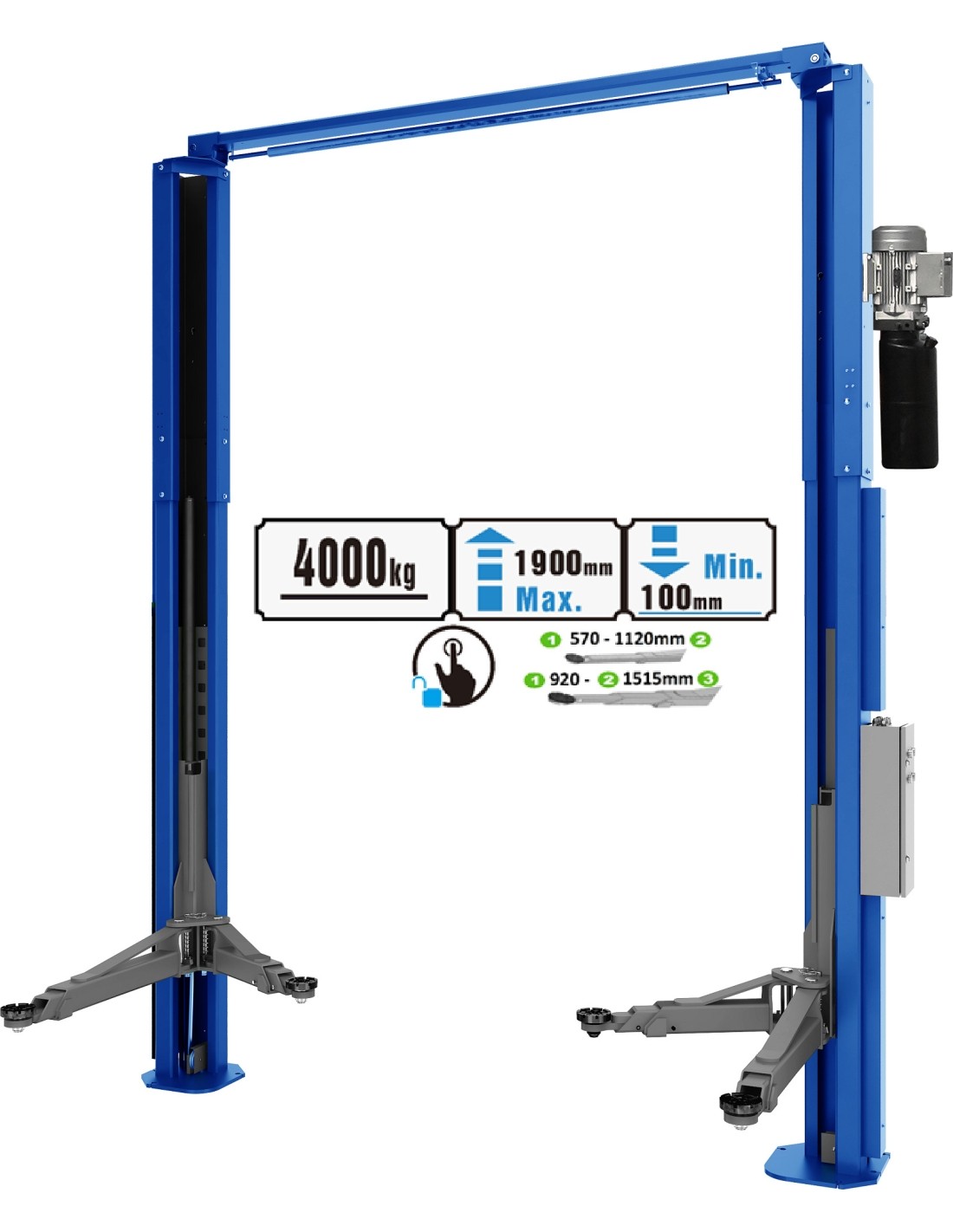

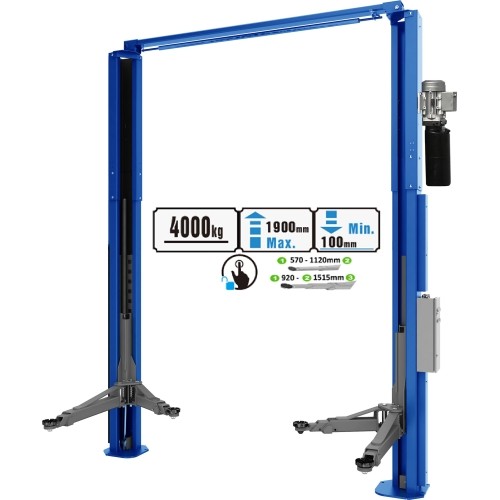

Clearfloor 2-post lift with electromagnetic release, 4.0t
1322438
Price
€2,369.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
In our warehouse
(3+ pcs)
Delivery terms:
FREE pick up monday, june 22 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 705.65 kg.
We will deliver the product to you via: 1-2 w.d. Venipak
(€40.99) Weight: 705.65 kg.
Description
Capacity 4.0 t
Electromagnetic release with synchronization at the top("Clear floor")
Lifting height 1900(+45) mm
Max height limit switch
Min height 100 mm
Short straight arm length 570 - 1120 mm (2 stages)
Long straight arm length 920 - 1515 mm (3 stages)
Rubber pads are inserted and screwed (there is the possibility to use long sleeve)

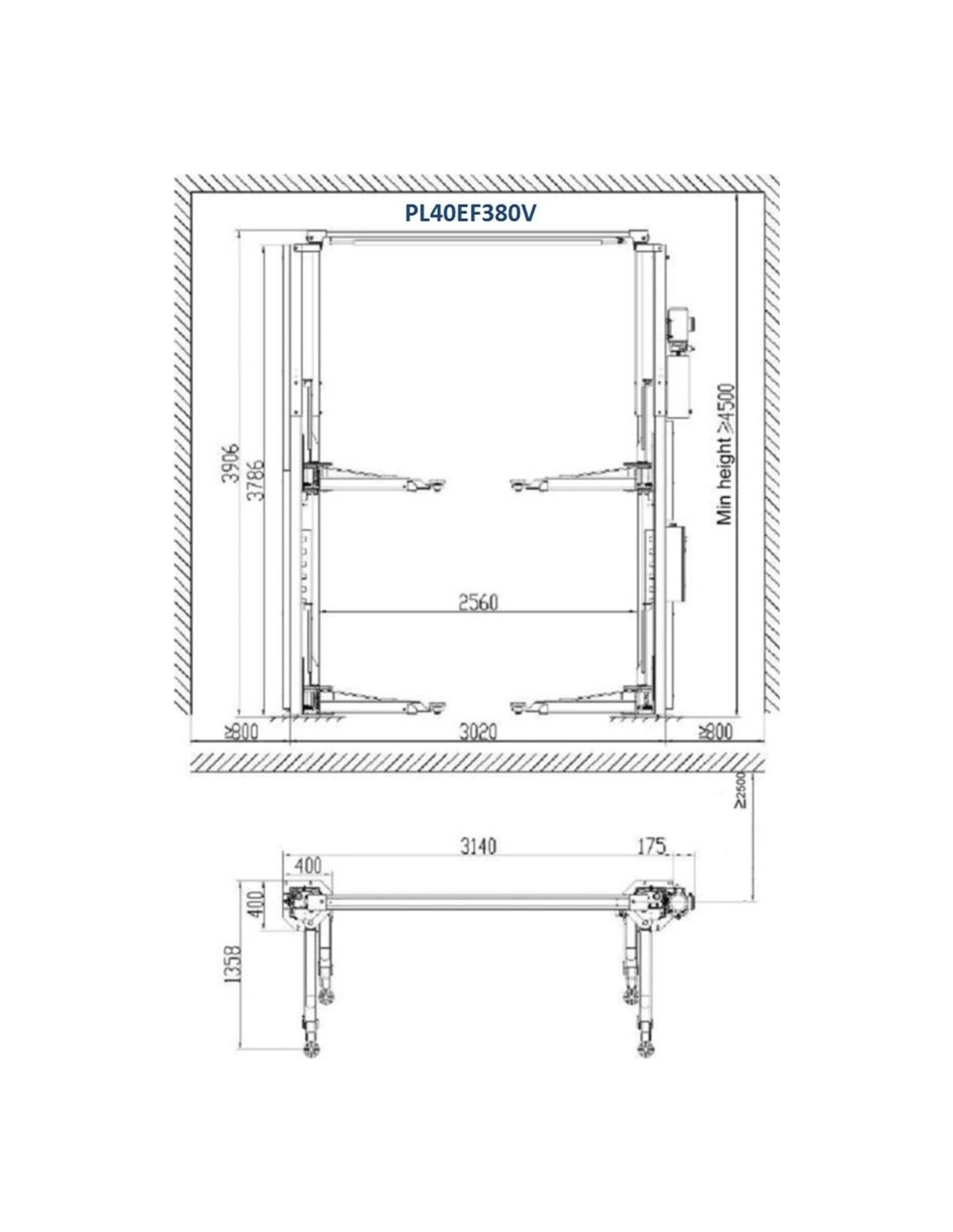

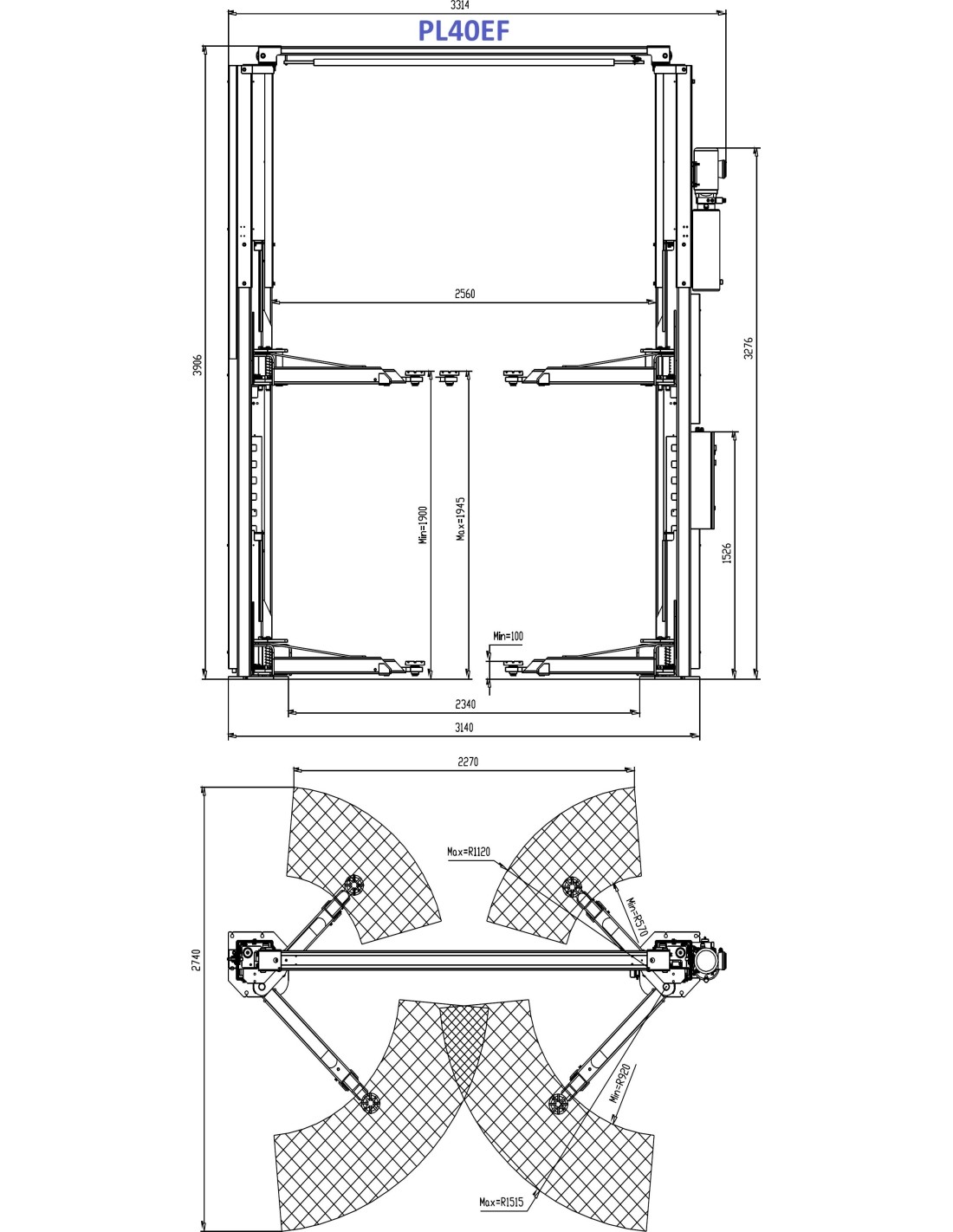

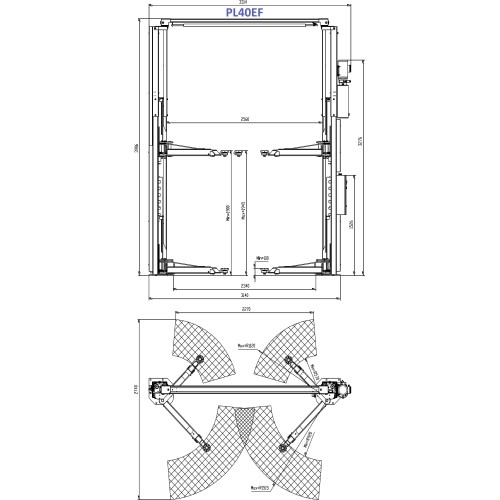

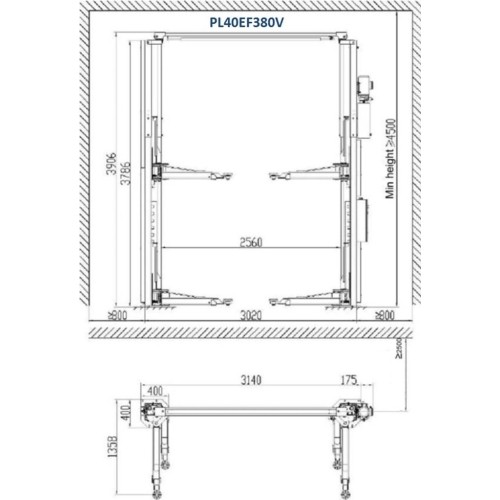

Frame height x width 3906 x 2560 mm
Rise / drop time 35 / 30 s
Motor power 3.0 kW, 380 V
Oil capacity 12 l
Weight 700 kg
CE conformity
12 month warranty
