Weight approx.
280 kg
Spindle speed
6500 rpm
Machine dimension (W x D x H)
1510 x 1330 x 1120 mm
Motor power output S1 100%
1,1 kW (1,5 HP)
1,4 kW (1,9 HP)
1,5 kW (2,0 HP)
Motor power input S6 40%
1,5 kW (2,0 HP)
2,0 kW (2,7 HP)
2,1 kW (2,8 HP)
Voltage
230 V
Dust extraction outlet
100 mm
Table size
365 x 145 mm
900 x 410 mm
Table height
860 mm
Planing width
250 mm
Table length
600 mm
1090 mm
Shaft rotation speed
4000 rpm
Planer shaft diameter
75 mm
Planer fence
720 x 130 mm
Fence tiltable
90° to 45°
Max. cutting depth
2,5 mm
3 mm
Working width
245 mm
Working thickness, min./max.
5 - 195 mm
Feed speed
8 m/min
Cutting length
670 mm
Height adjustment
75 mm
100 mm
Max. sawblade diameter
200 x 30 mm
Max. cutting height 90° / 45°
60 / 50 mm
Cutting width on rip fence
530 mm
Speed main sawblade
4750 rpm
Spindle diameter
30 mm
Table opening
145 mm
Working length of spindle
70 mm
- at profiling
140 mm
- at tenoning
140 mm
Cutter knives
3 pcs.
Westcott drill chuck
0 - 16 mm
Max. drill depth
95 mm
Drill width
140 mm
Roller table
400 x 250 mm

CWM 250 R - 230 V

1091860
Price €5,849.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, april 30 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 280 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 280 kg.

Description

Properties

  • Solid grey, cast-iron table eliminates vibrations, precisely manufactured and polished

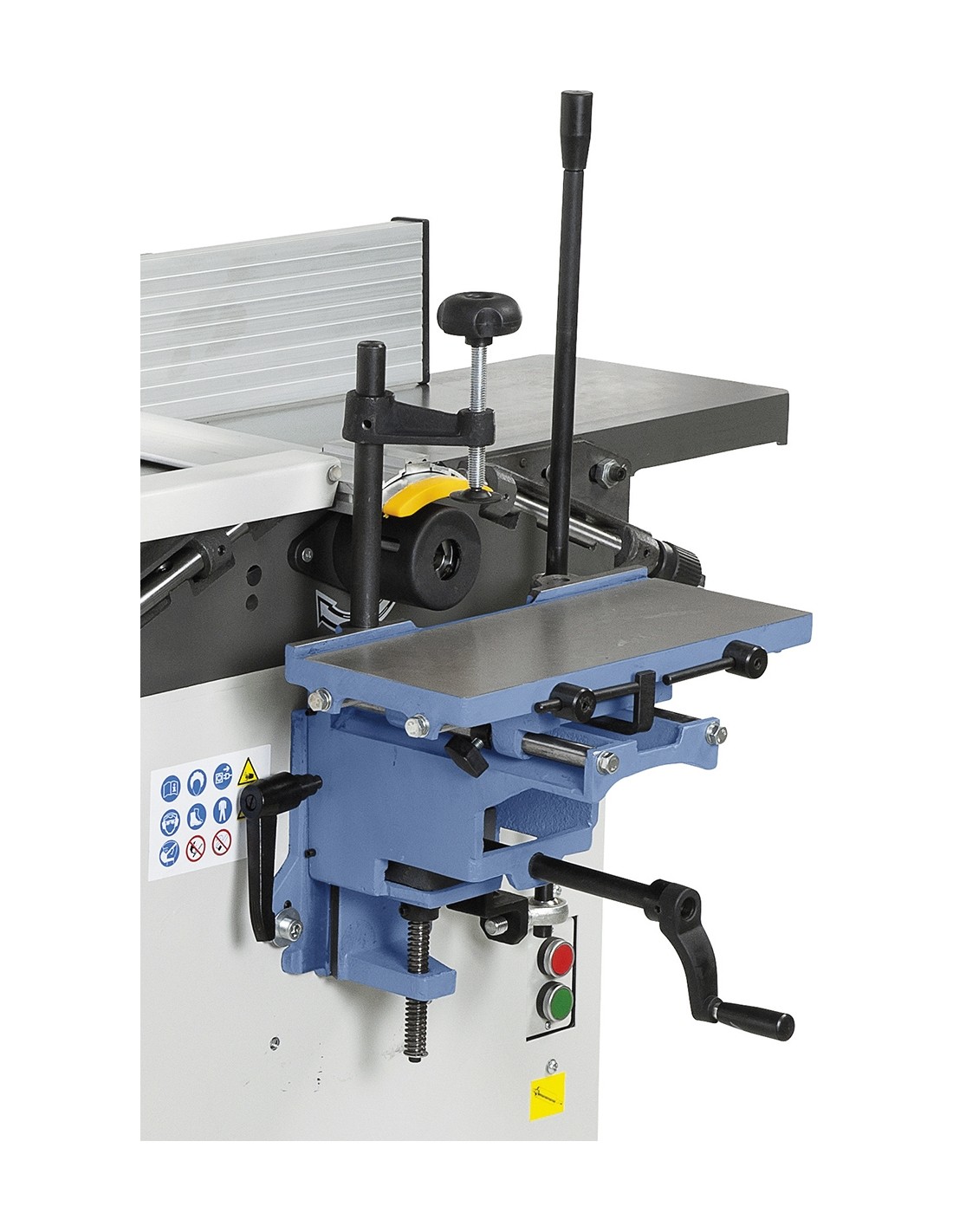

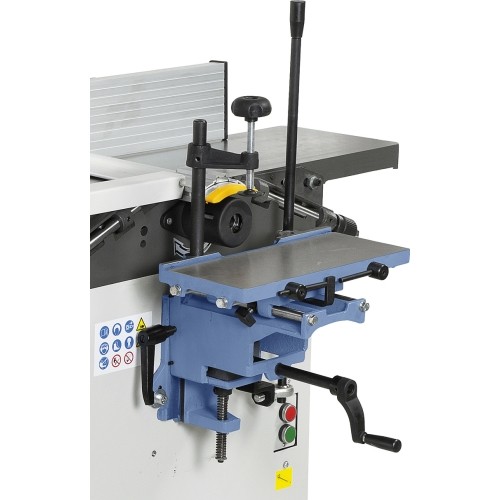

  • Optional with mortising unit (16 mm capacity) available
  • Ergonomically arranged handwheels allow for setting of saw unit
  • Equipped with roller table featuring aluminium fence to increase user comfort
  • Emergency stop button on front of machine guarantees high level of safety
  • Integrated, tiltable dust hood when thicknessing, extraction outlet 100 mm
  • Perfectly suitable for accurate processing of panels, boards, planks etc.
  • Dynamically balanced moulder spindle ensures vibration-free run
  • Torsion-free planer table made of reinforced grey cast-iron
  • Workpiece feed can be switched off when planing

Standard accessories

  • Cutter knives 250 x 30 x 3 mm

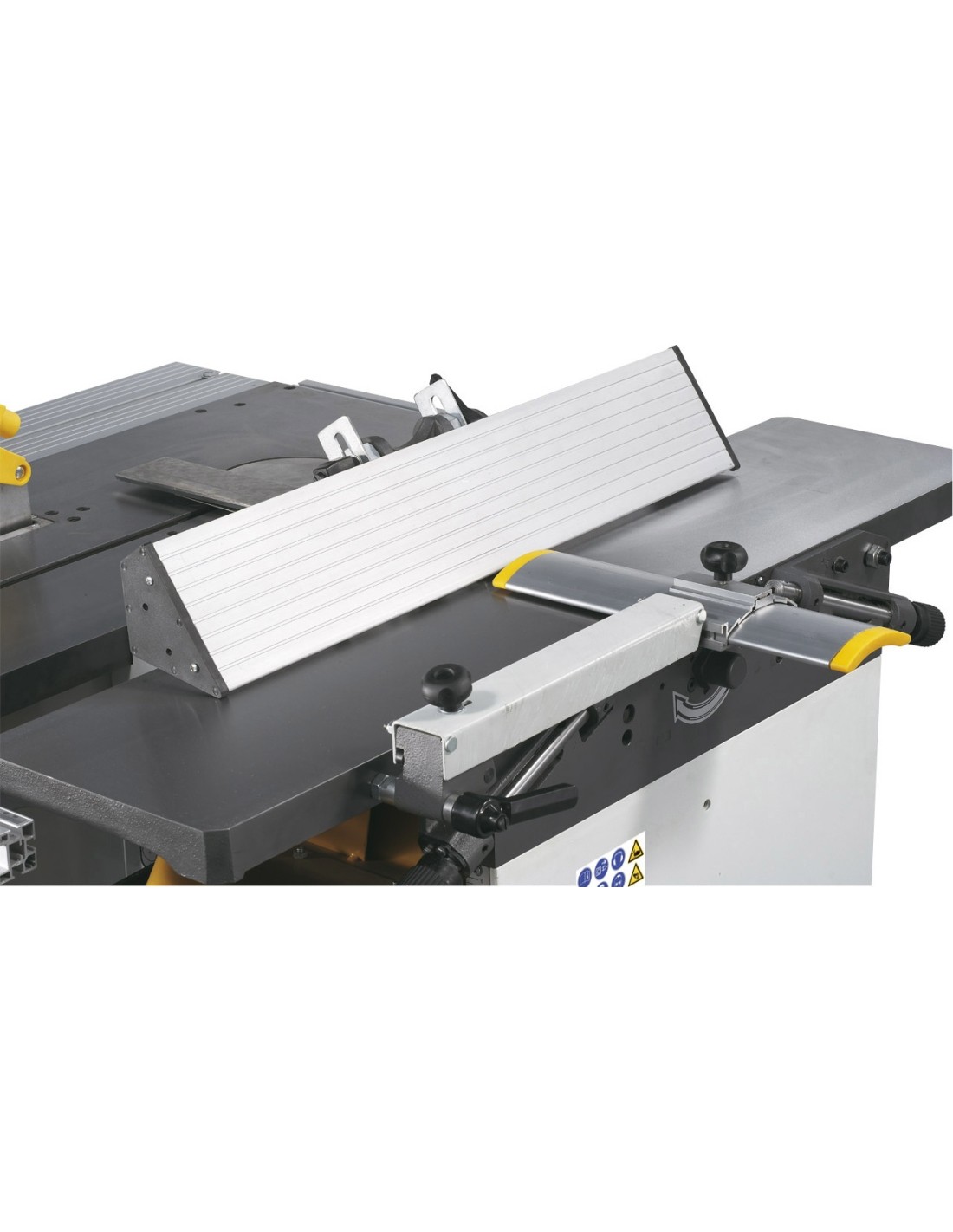

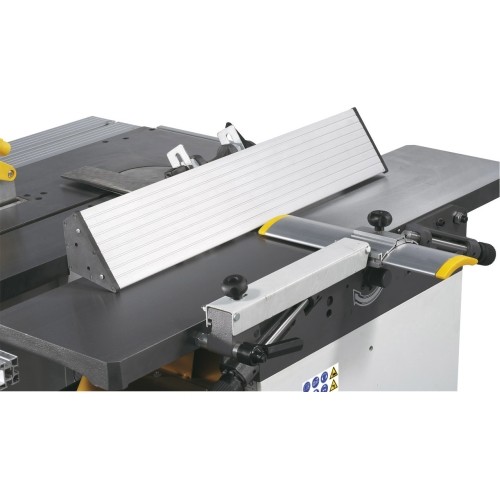

  • Planer fence
  • Downholder

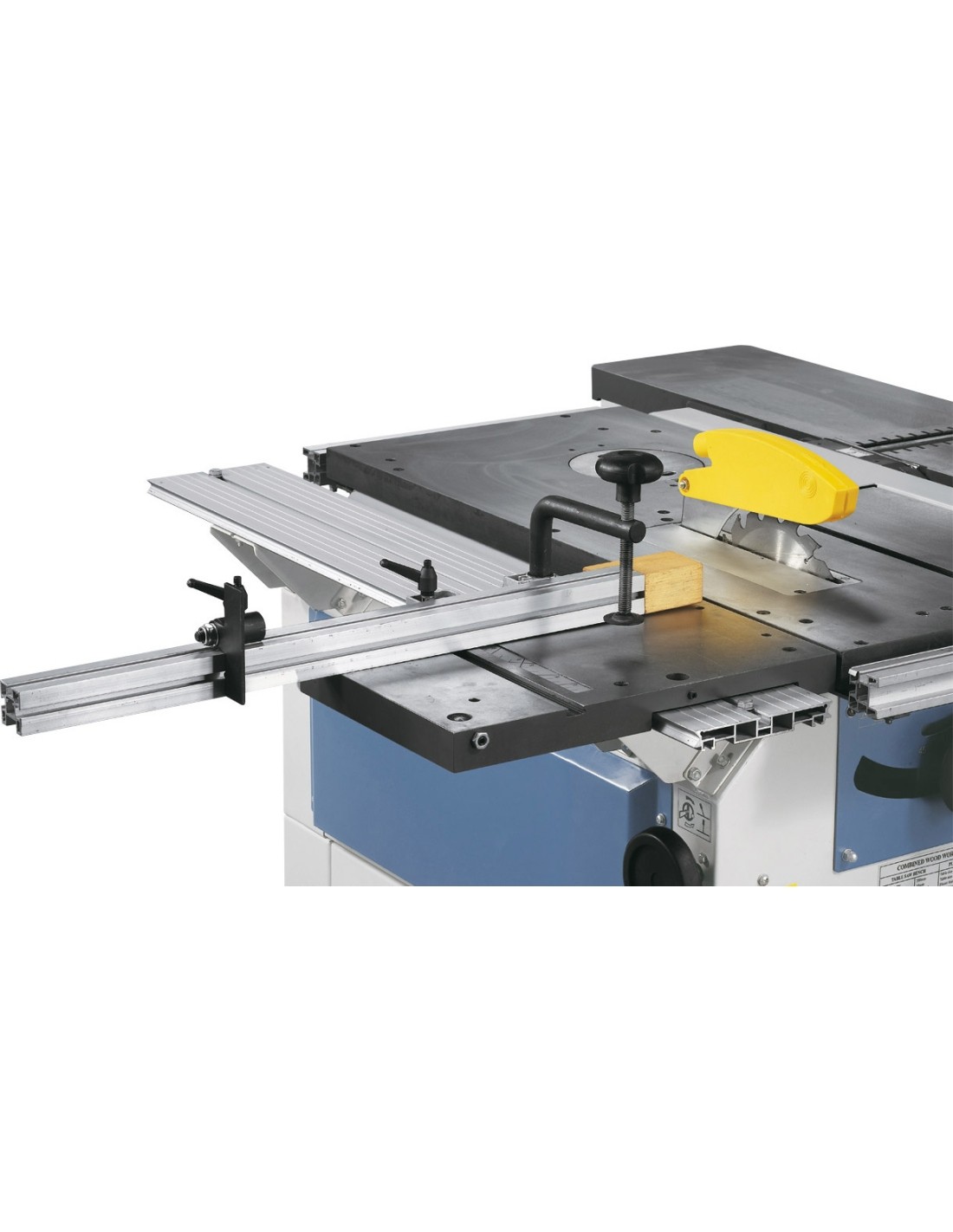

  • Mitre fence

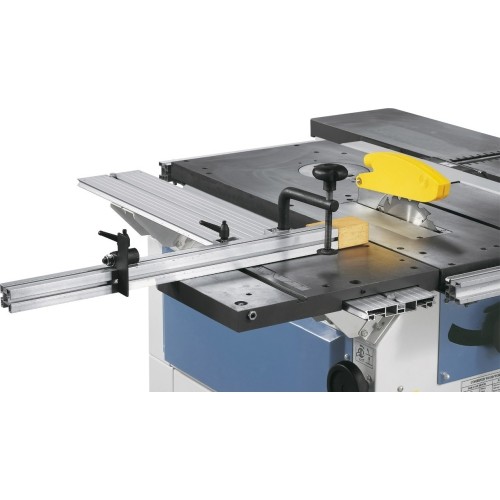

  • Roller table

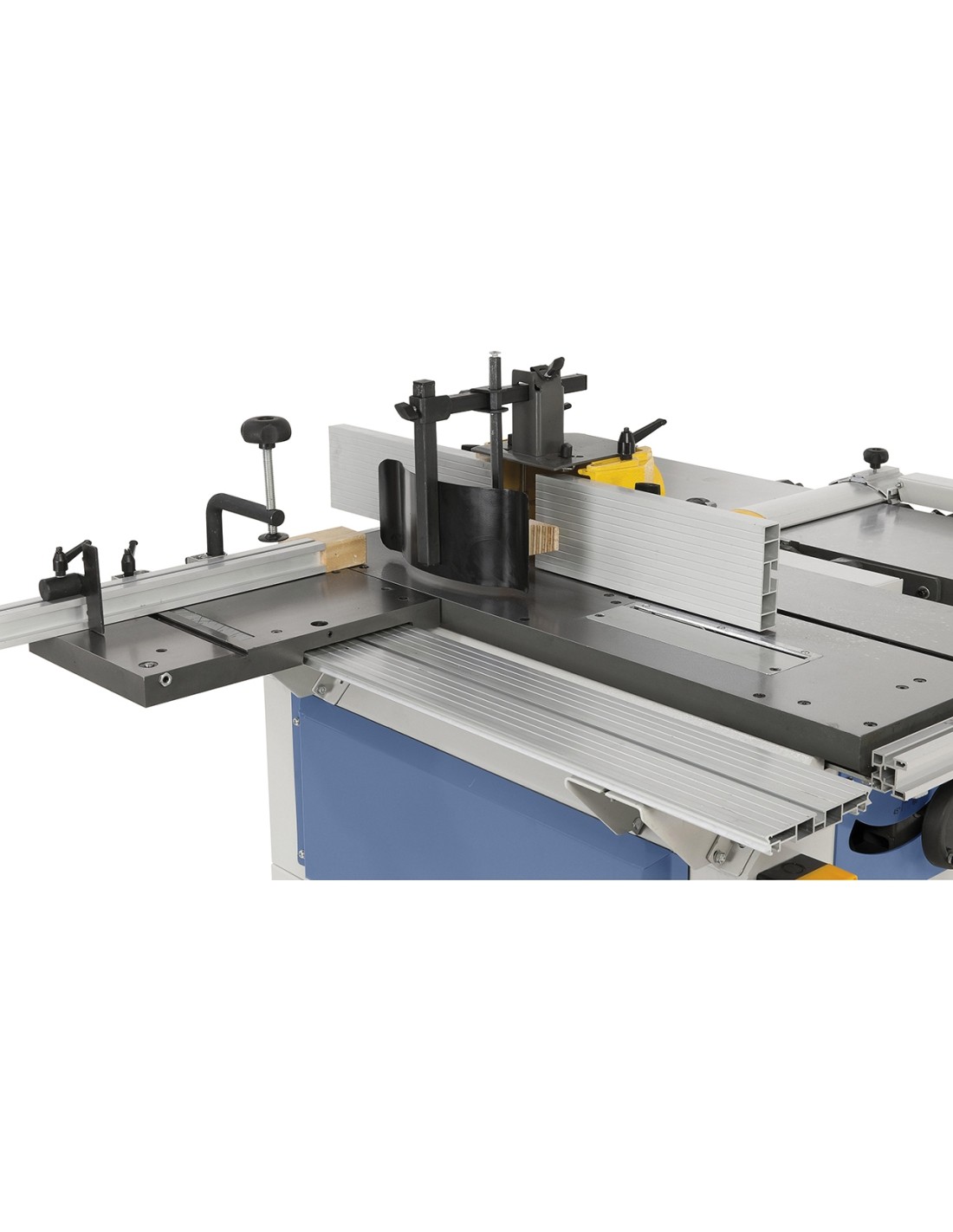

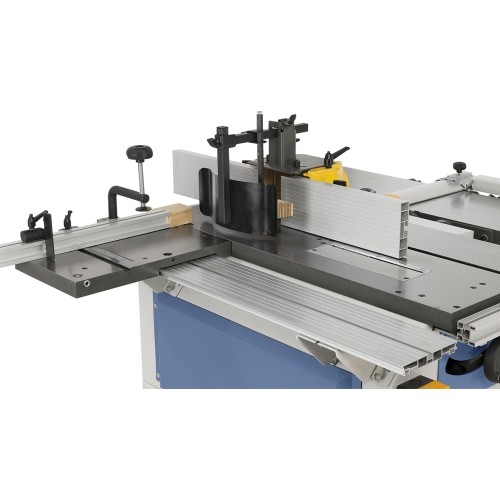

  • Moulding fence

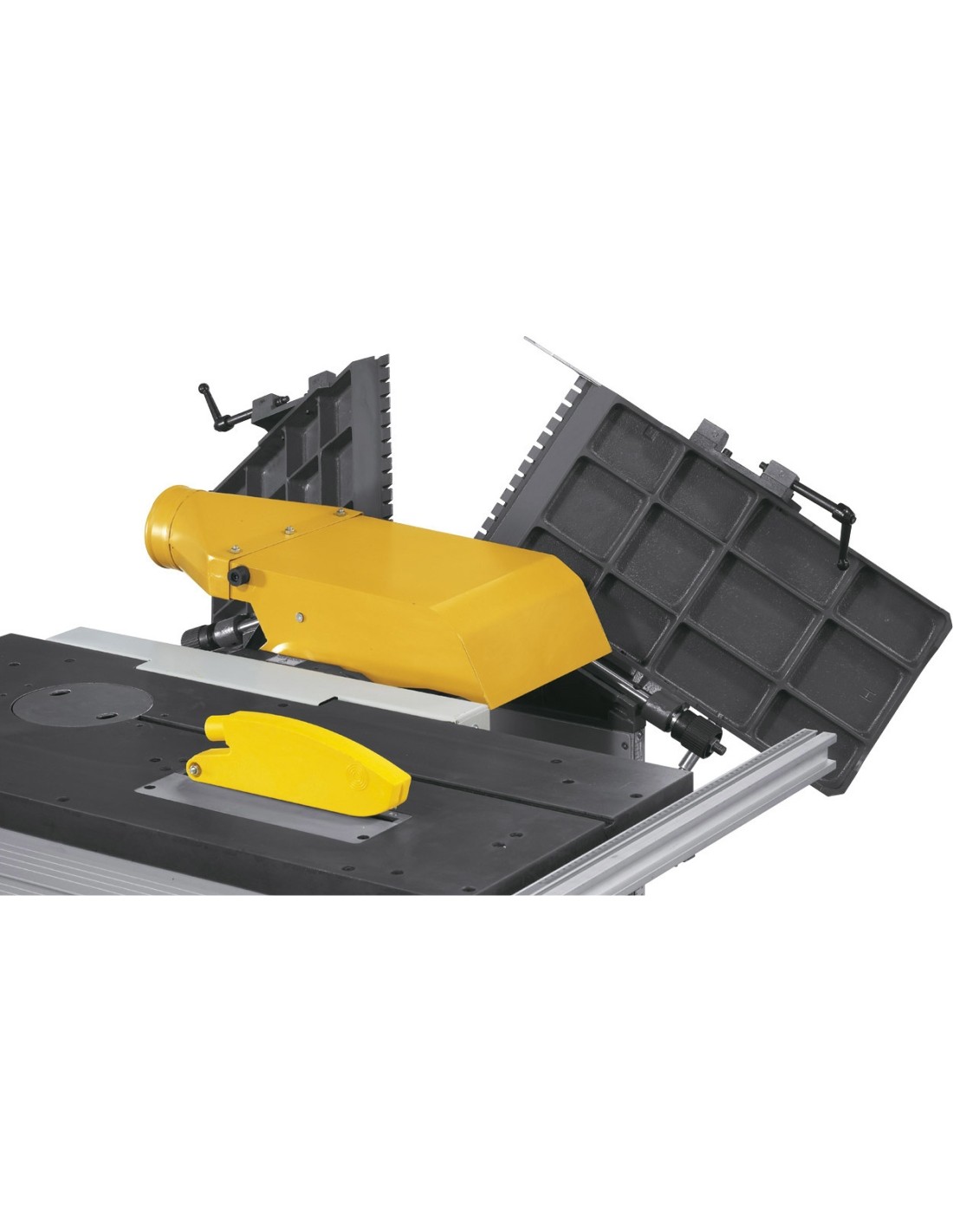

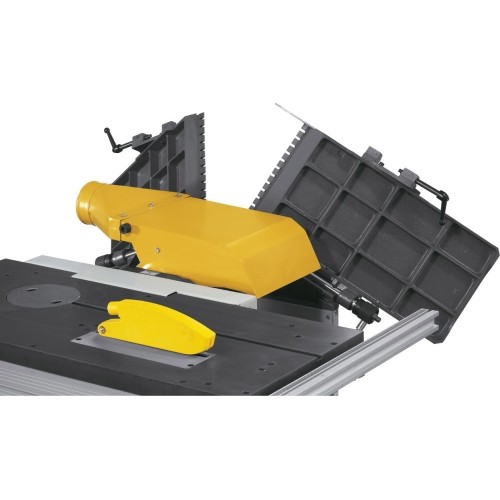

  • Protective cover with dust extraction outlet
  • Connector tube with Y-piece
  • Aluminium fence with stop
  • Sawblade 200 x 3,0 x 30 mm / 18T
  • Push stick
  • Tools
