Speed
1300 rpm
Weight approx.
197 kg
Motor power
0,55 kW
90 W
Machine dimension (W x D x H)
870 x 650 x 800 mm
Table size
640 x 130 mm
Workpiece diameter max.
260 mm
Table longitudinal travel
330 mm
Table cross travel
195 mm
Speed grinding spindle
5000 rpm
Vertically tiltable
-35° to +35°
-45° to +45°
Horizontally tiltable
-45° to +45°
360°
Phase
Trifazis (400V)

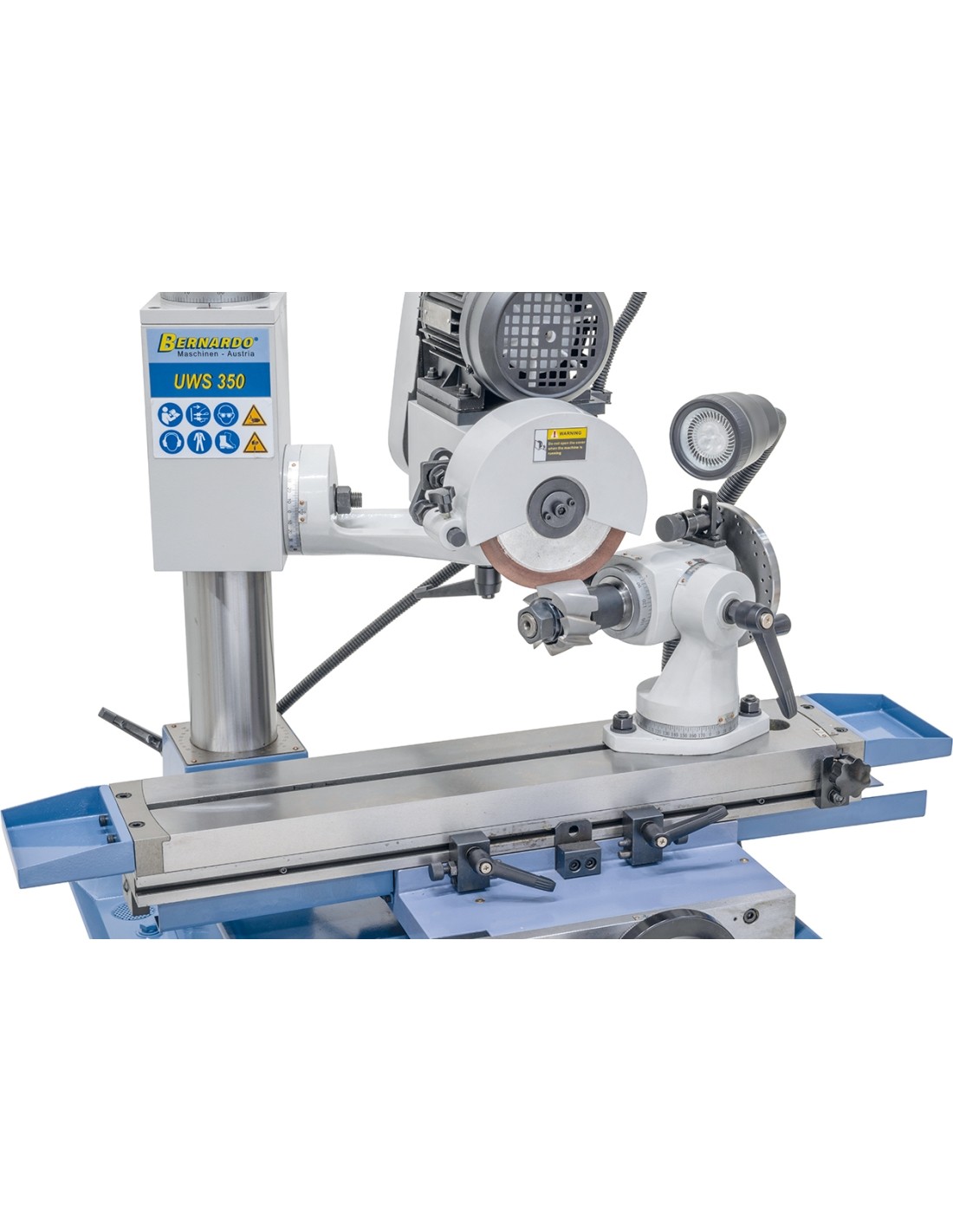

UWS 350

1322609
Price €4,641.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, august 3 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 197 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 197 kg.

Description

Properties

  • For grinding of various tools, e.g. drills, milling cutters, turning tools etc.
  • Large number of standard accessories
  • Solid construction for vibration-free run
  • Ergonomically arranged control elements
  • Headstock adjustable in height and tiltable (-45° to +45°)
  • Drive unit with 3-jaw chuck (Ø 80 mm) for shaft grinding
  • Various application areas increase productivity
  • Table can be tilted for conical grinding operations and scale allows adjustment to desired position

Standard accessories

  • Tailstock
  • Adjustable table end stops
  • Center 60°
  • 1 Corundum grinding wheel type B, 150 x 32 mm
  • 1 Corundum cup grinding wheel type A, 150 x 50 x 32 mm
  • 1 Diamond grinding wheel type B, 150 x 32 mm
  • Drive unit with 3-jaw chuck, diam. 80 mm
  • Lathe tool grinding attachment
  • Clamping mandrel for milling cutter 22, 27, 32 mm
  • Diamond dressing stone
  • LED working light
  • Left and right turning
  • Tools
