WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
1500 mm

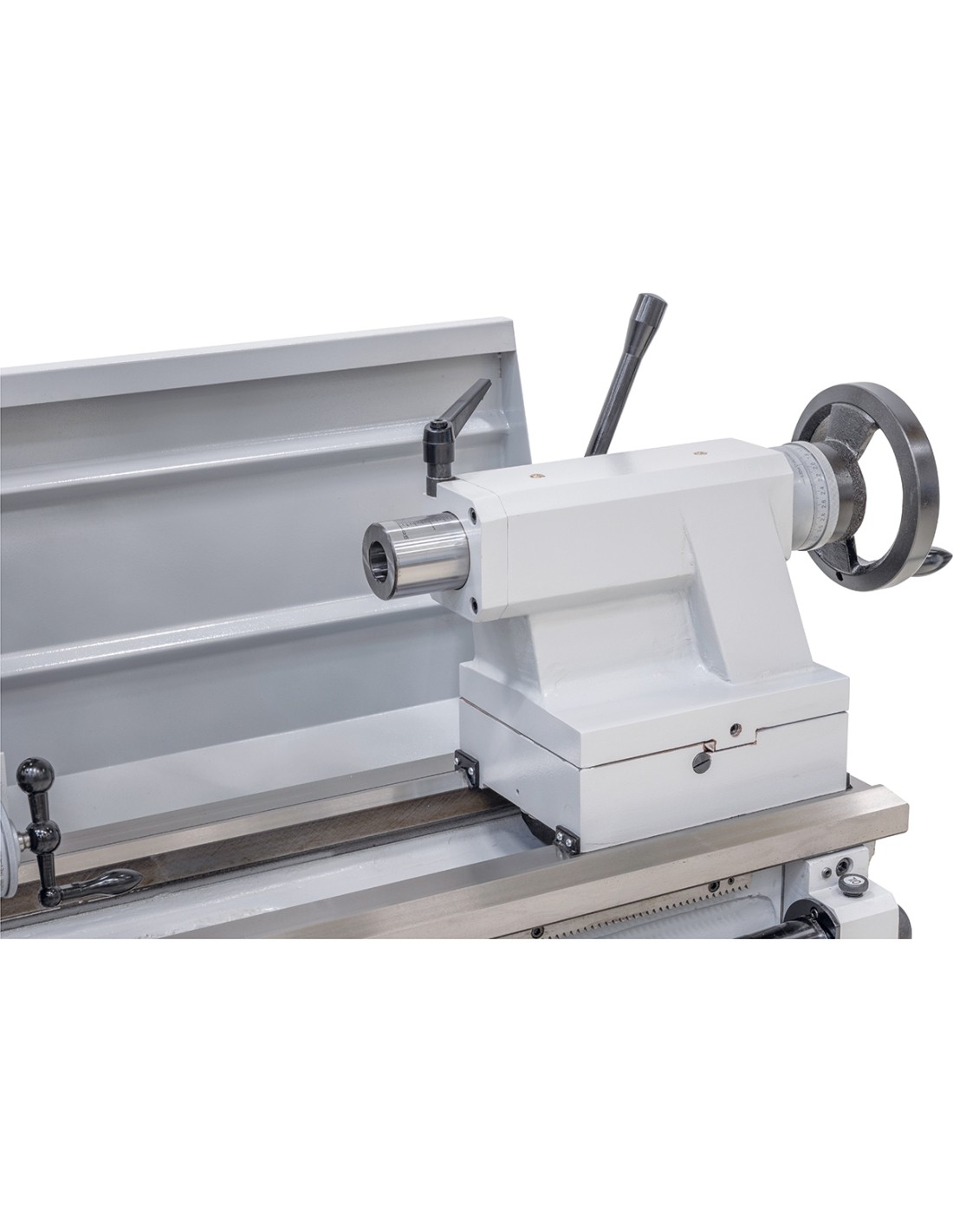

Taper of tailstock sleeve
MT 4
Travel of tailstock sleeve
130 mm
Weight approx.
1880 kg
Motor power
5,5 kW (7,5 HP)
Center height
230 mm
Swing over bed
460 mm
Swing over gap*
690 mm
Swing over cross slide
274 mm
Spindle bore
80 mm
Spindle nose fixture
DIN 55029, D1-8
Longitudinal feed
(42) 0,055 - 3,065 mm/rev.
Cross feed
(42) 0,025 - 1,386 mm/rev.
Metric thread
(41) 0,1 - 14 mm
Inch thread
(60) 2 - 112 threads/1“
Diameter of tailstock sleeve
60 mm
Machine dimension (W x D x H)
2750 x 1080 x 1370 mm
Bed width
300 mm
Speed range, 2 steps
25 - 250 / 250 - 1700 rpm

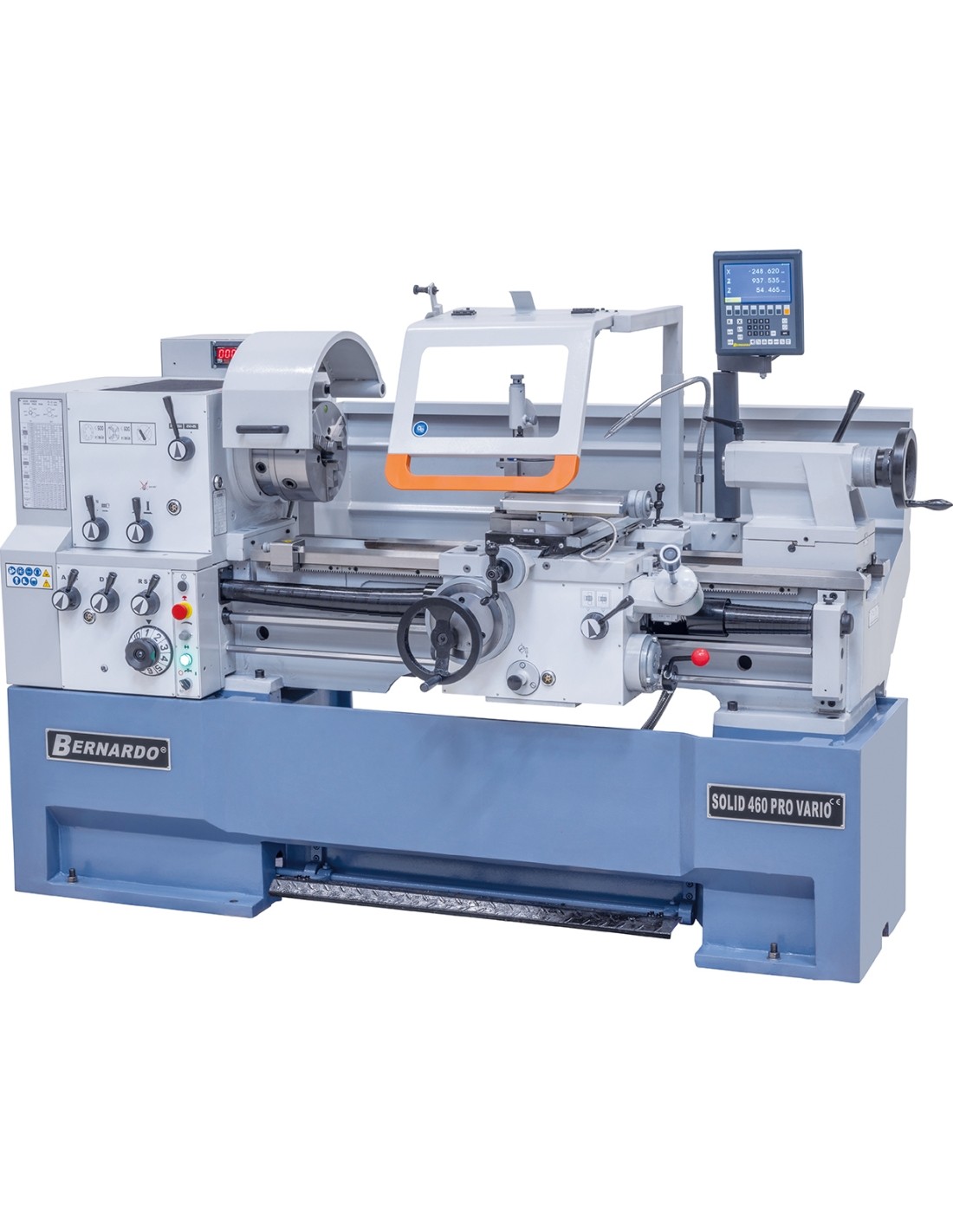

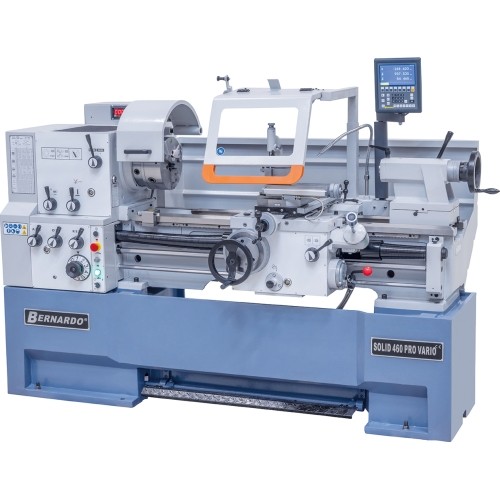

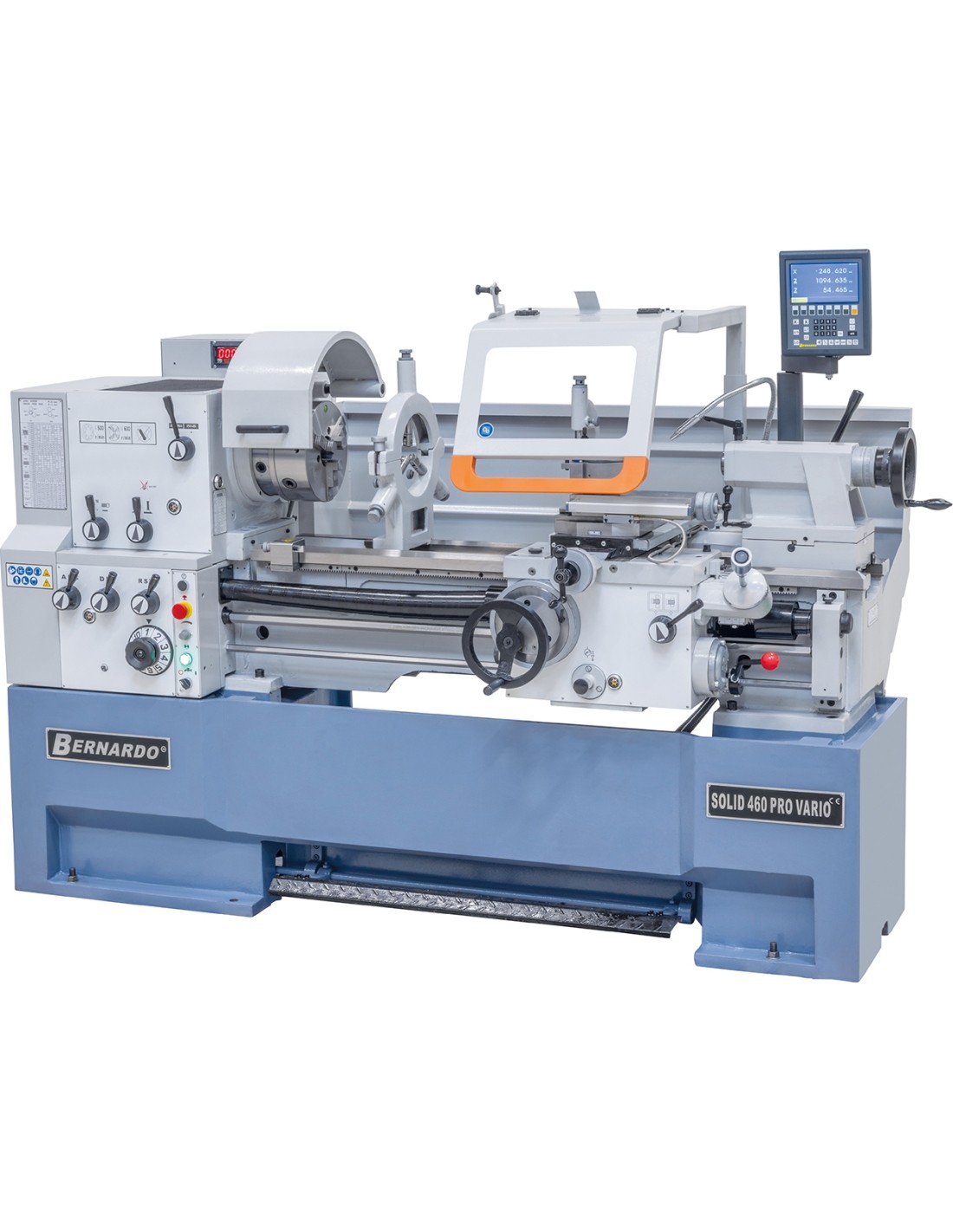

Solid 460 x 1500 Pro Vario

1322598
Price €34,502.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up friday, july 18 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1880 kg.

Description

Properties

  • State-of-the-art main spindle bearing with high-quality angular ball bearings
  • Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

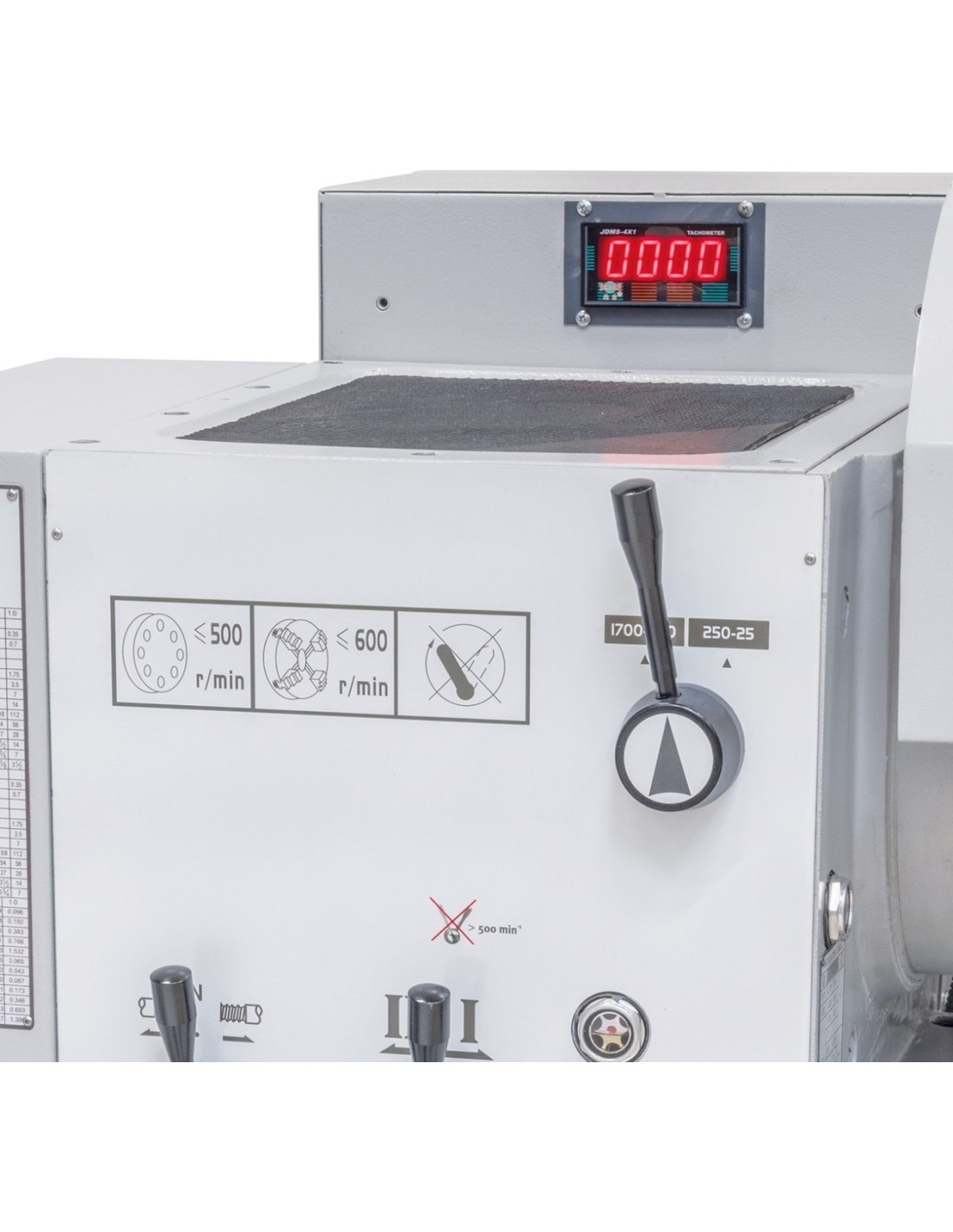

  • Stepless speed adjustment, set speed can be read on digital display
  • Hardened, polished gear wheels and shafts, even in feed unit

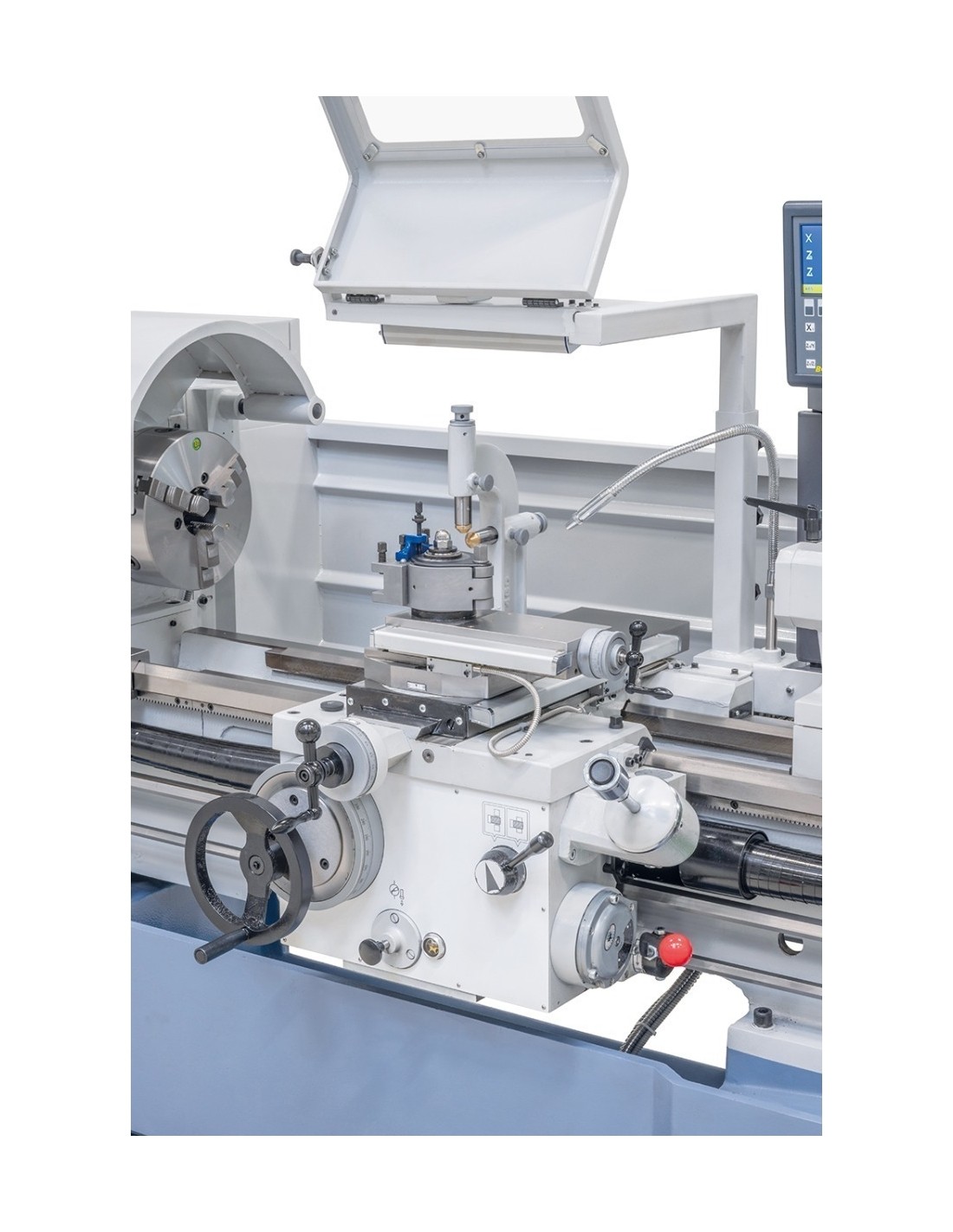

  • Complete with longitudinal and cross rapid feed to reduce downtime
  • Centrally positioned, practical feed and thread cutting controls (with leadscrew and feed rod)
  • Large gear wheels, hardened and polished

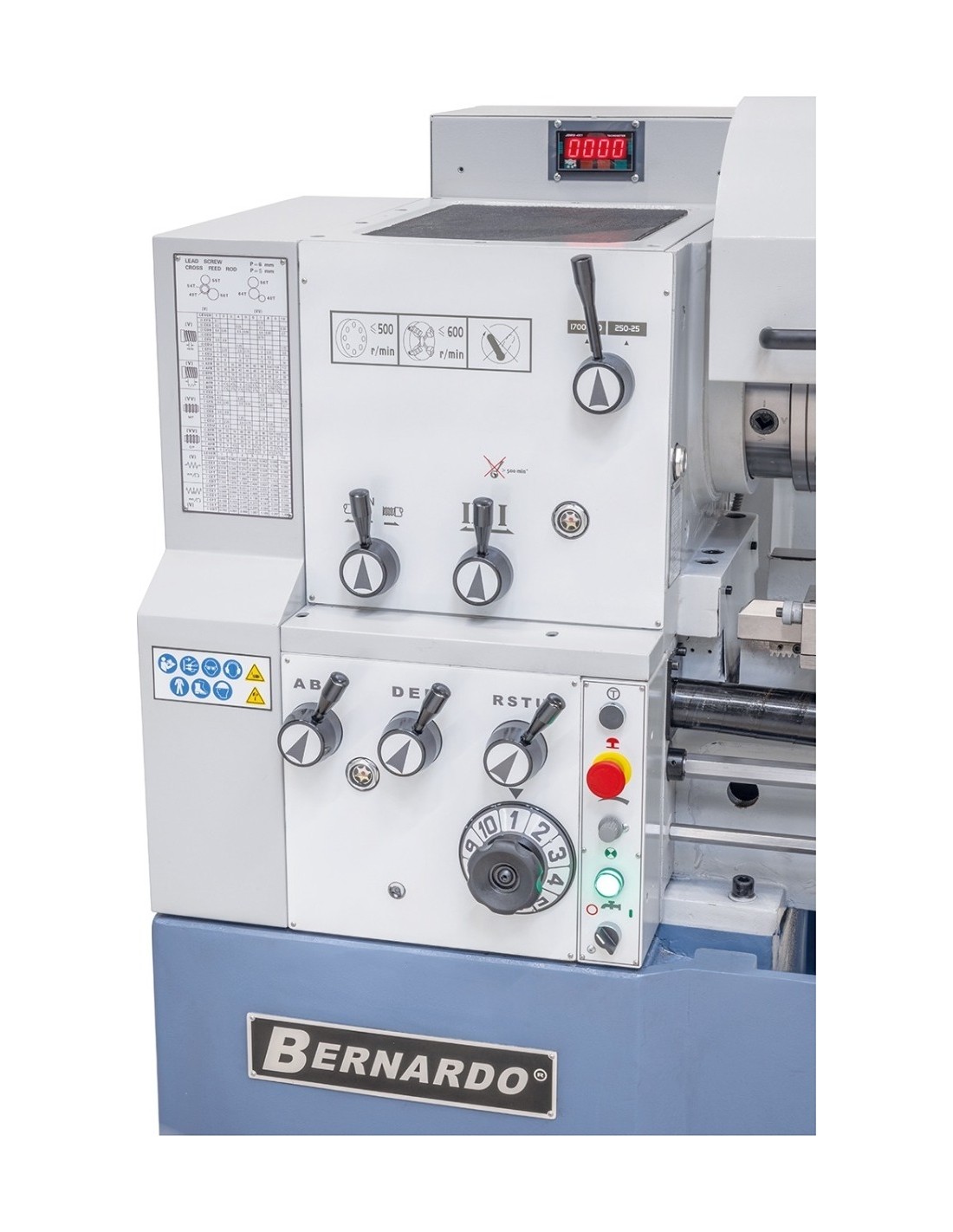

  • Straightforward speed and feed adjustments allow for easy and accurate settings
  • Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy

Standard accessories

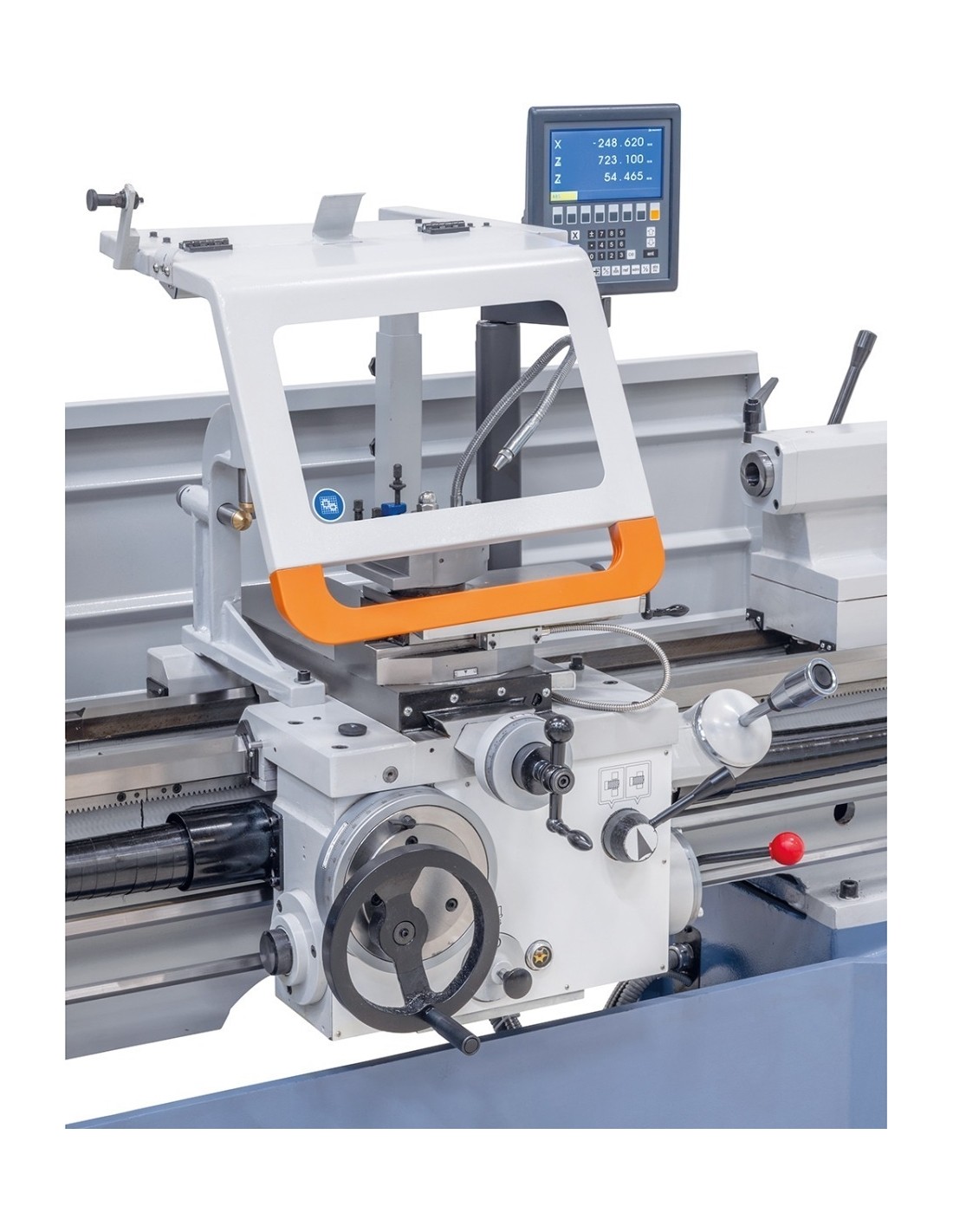

  • 3-axis digital readout with ES-12 V display

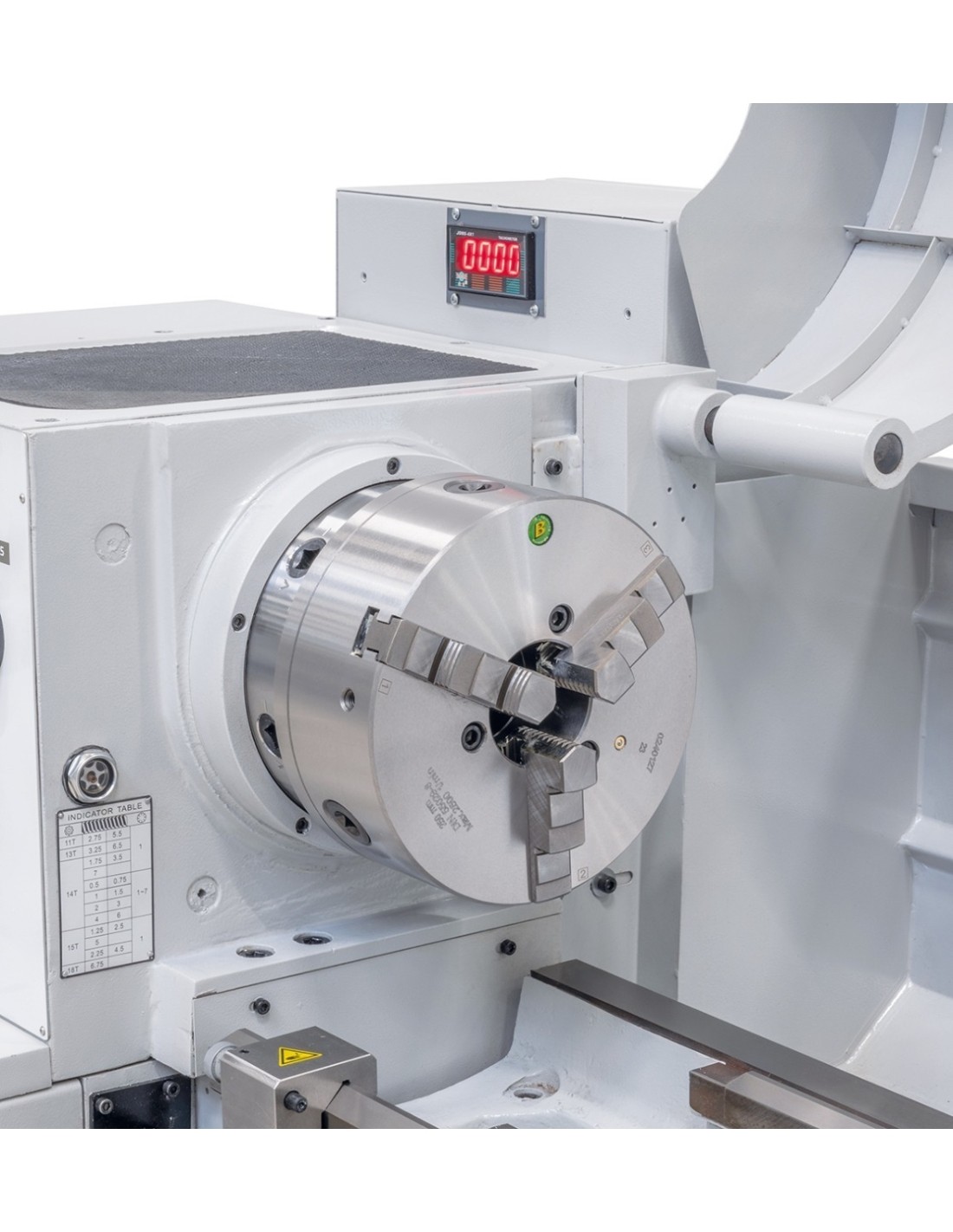

  • 3-jaw chuck PS3-250 mm / D8

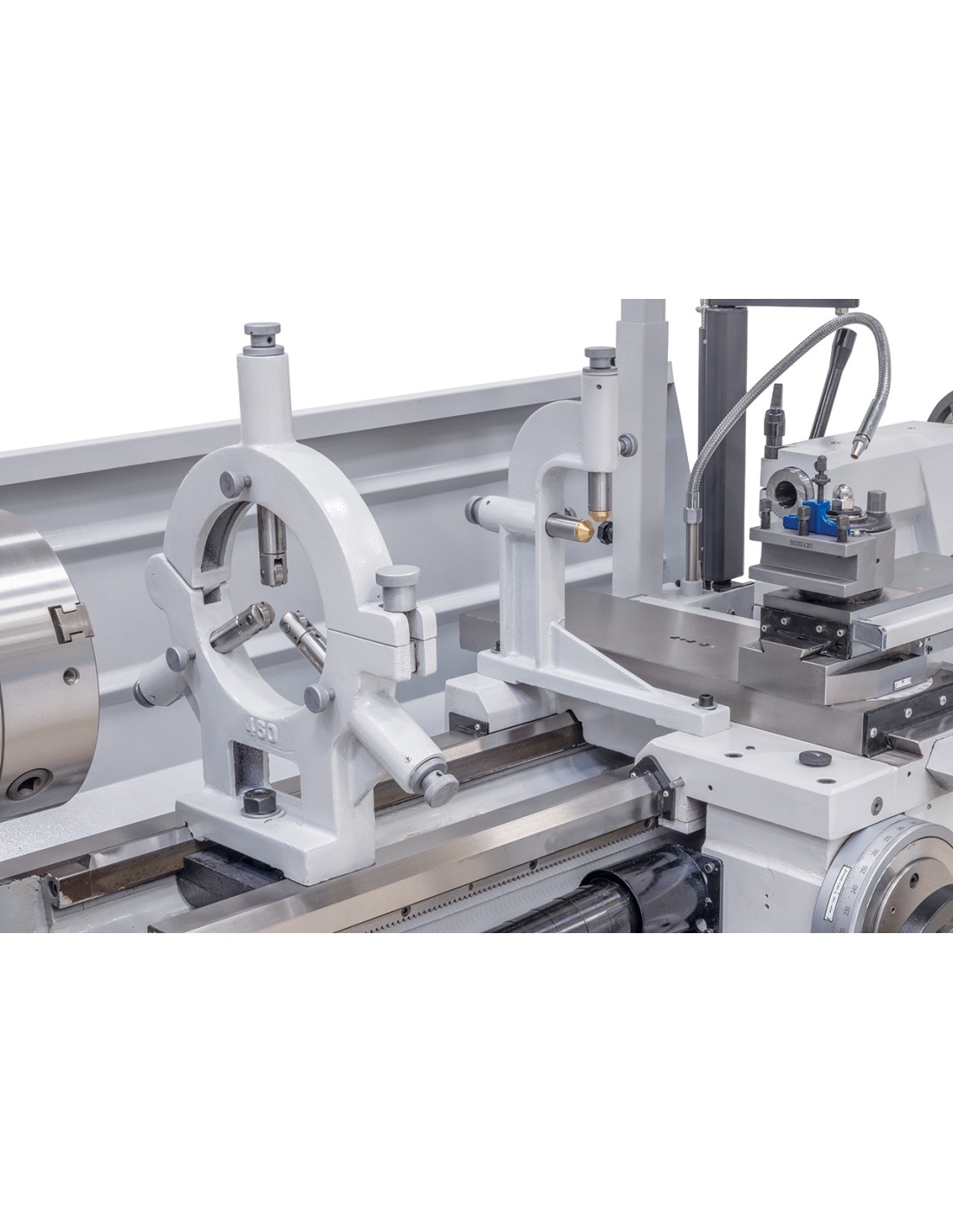

  • Steady rest - Passage up to max. 150 mm
  • Follow rest - Passage up to max. 110 mm
  • Initial filling with Shell Tellus 46
  • Face plate 350 mm

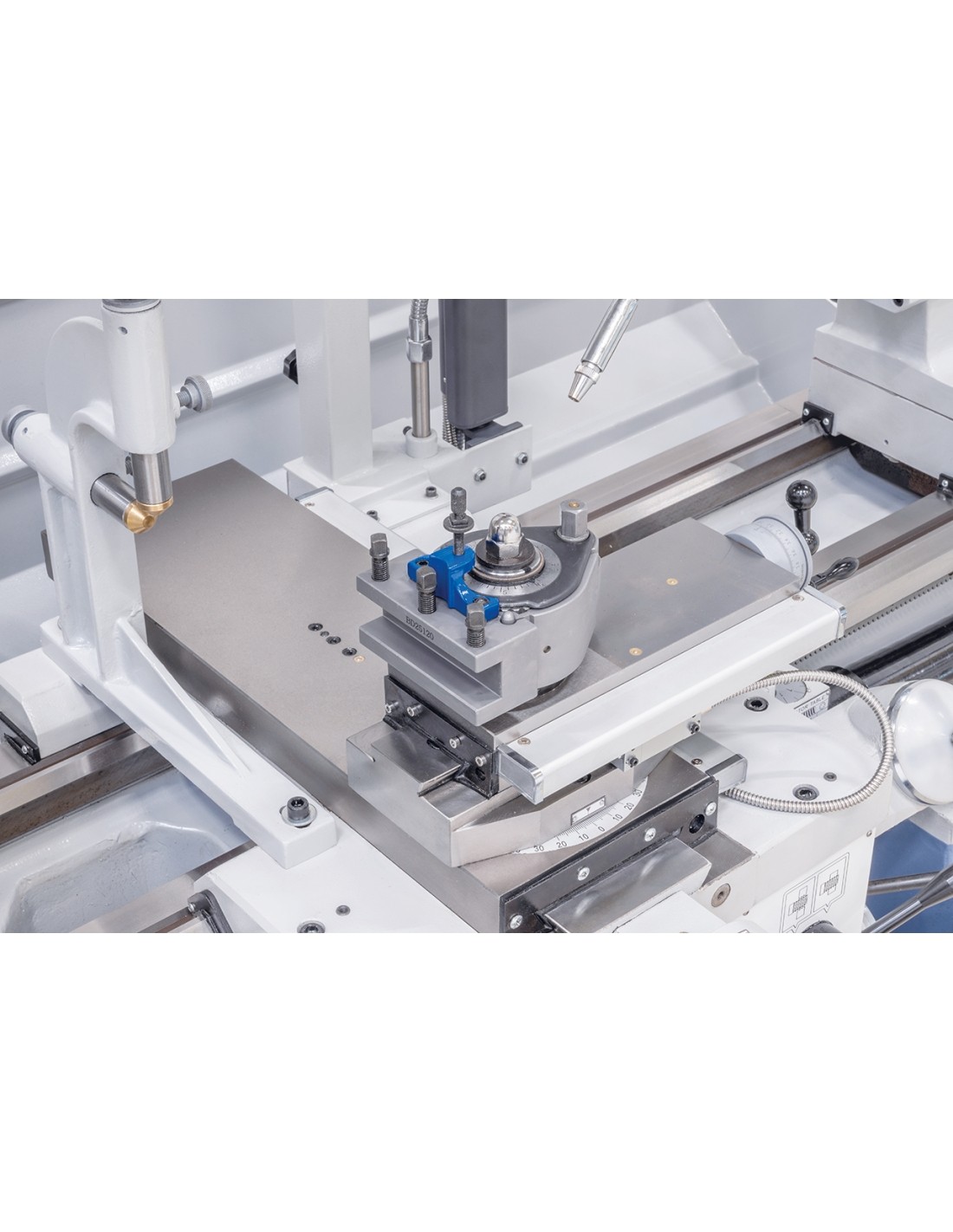

  • 40 pos. tool post and holder set with 4 inserts

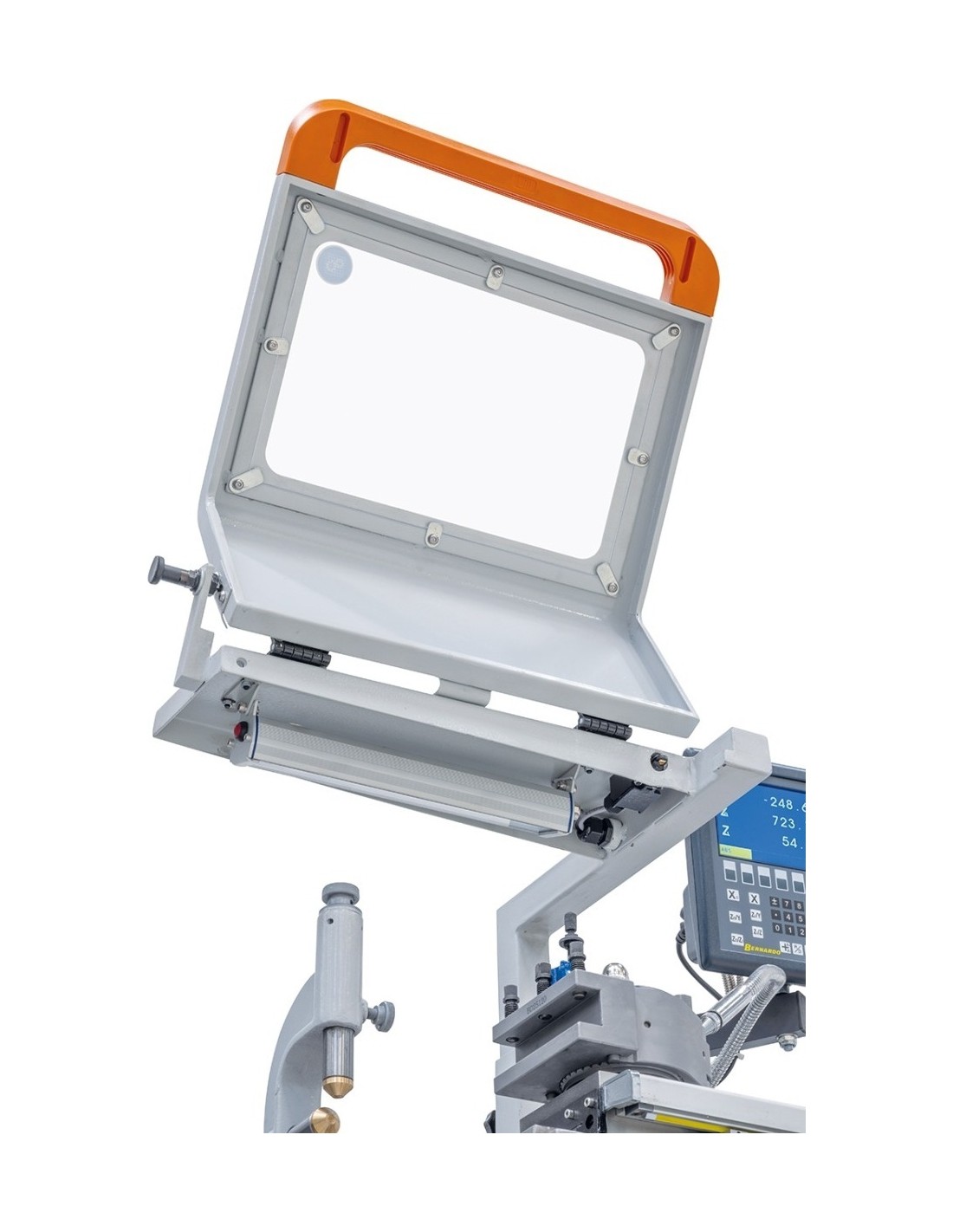

  • Protective device at tool post holder
  • Foot pedal with brake function according to CE
  • Coolant device
  • Frequency inverter
  • Safety clutch
  • Rapid feed longitudinal and cross

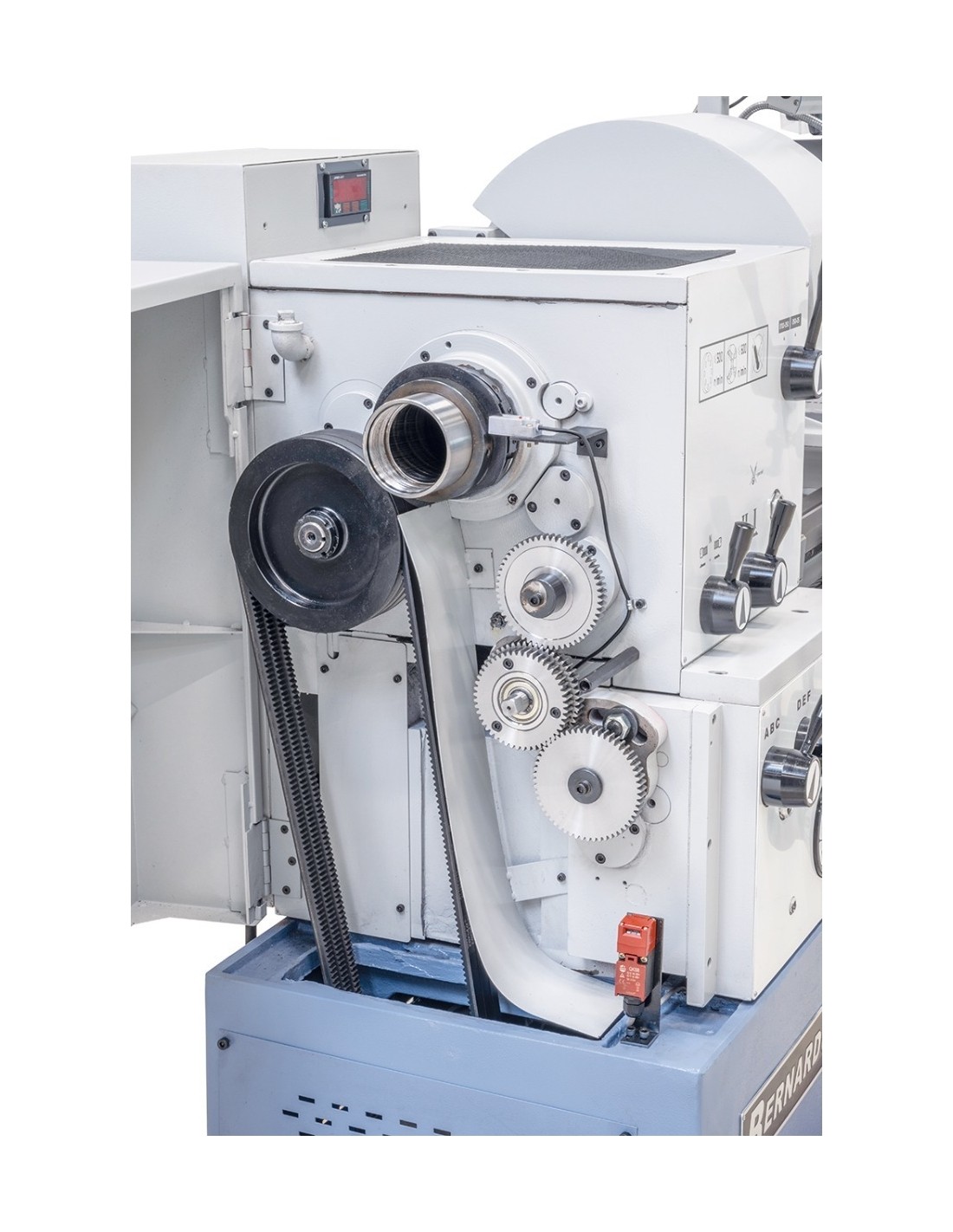

  • Change gears
  • Morse taper drill sleeve
  • 2 dead centers
  • Thread dial
  • LED machine light
  • Splash guard
  • Tools
