- Weight approx.
- 54 kg
- Spindle speed
- (16) 220 - 2840 rpm
- Machine dimension (W x D x H)
- 380 x 620 x 1000 mm
- Distance spindle to column
- 180 mm
- Spindle stroke
- 80 mm
- Motor power output S1 100%
- 0,55 kW / 230 V
- Motor power input S6 40%
- 0,80 kW / 230 V
- Drilling capacity max.
- 20 mm
- Morse taper
- MT 2
- Distance spindle to base
- 605 mm
- Distance spindle to table max.
- 415 mm
- Table size / T-slot size
- 290 x 290 mm / 16 mm
- Drill chuck
- 1 - 16 mm / B 16
- Column diameter
- 72 mm
- Work surface base
- 205 x 205 mm
- Drilling table tiltable
- -45° to +45°

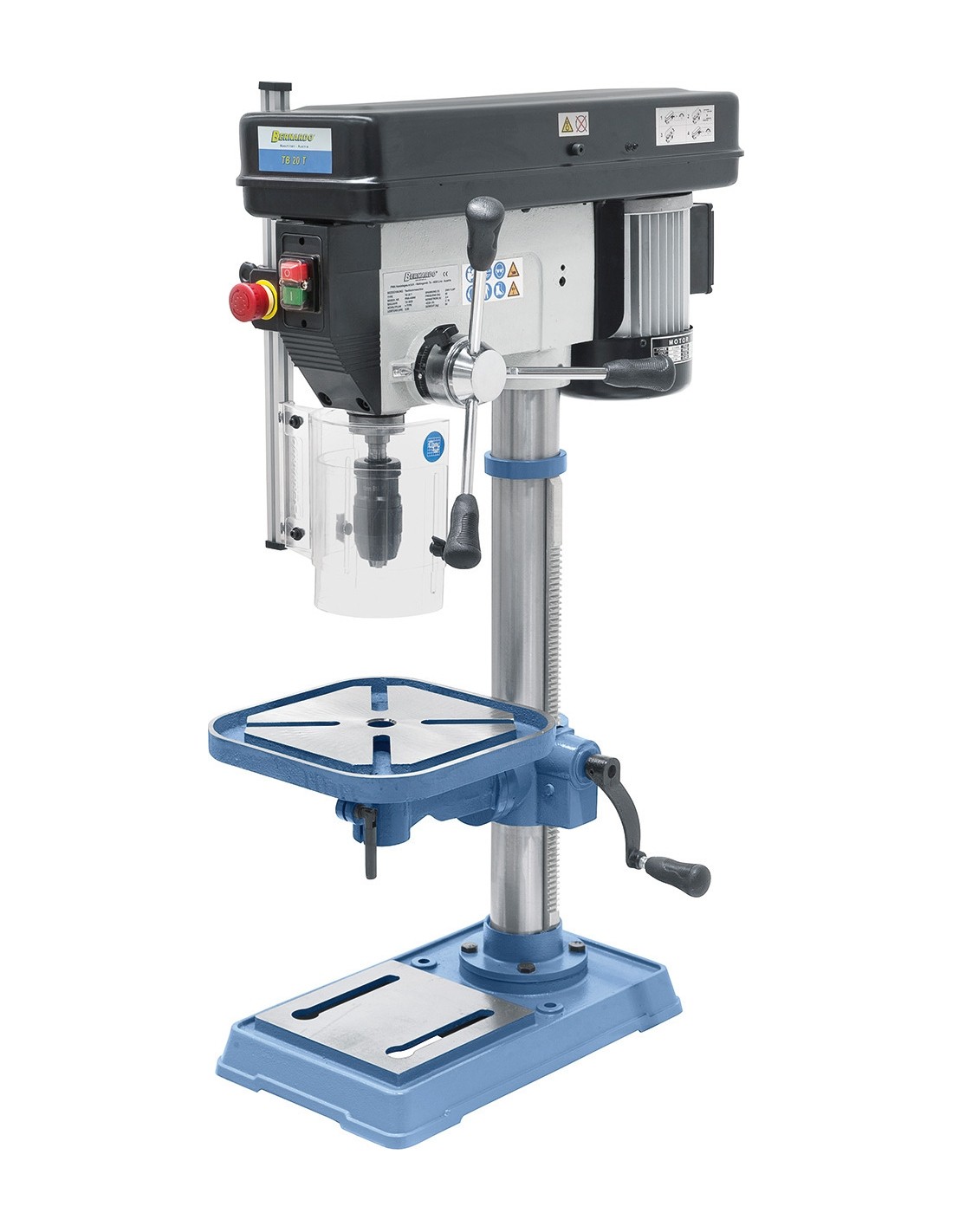

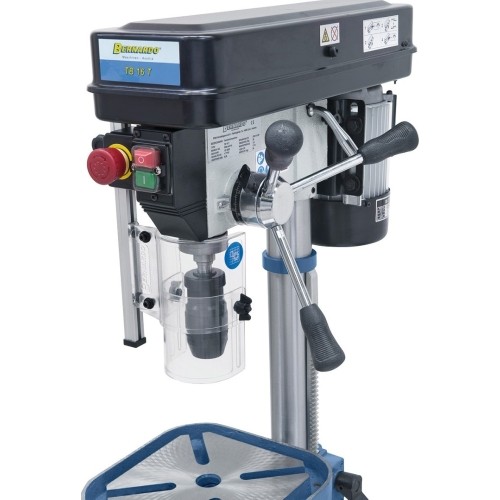

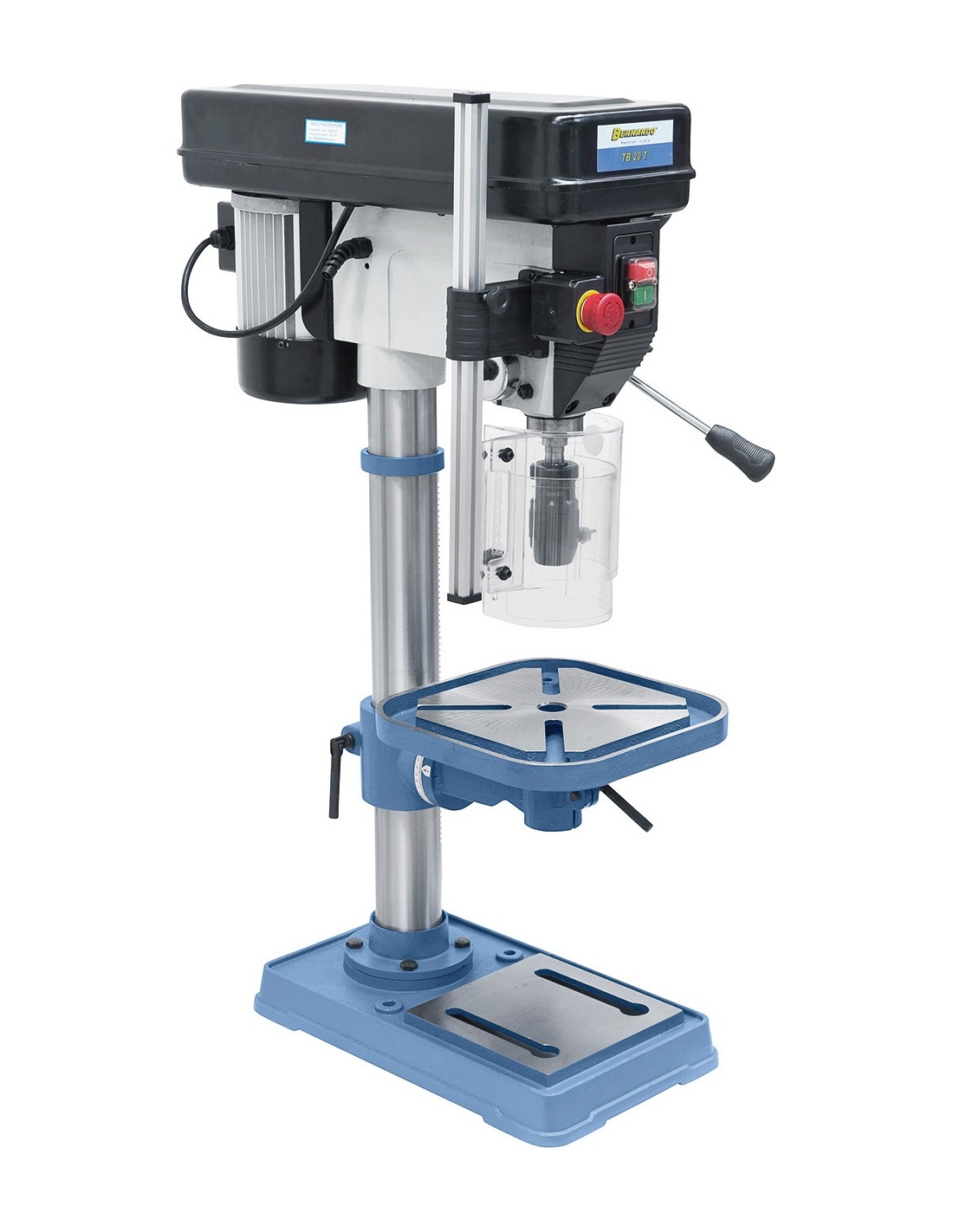

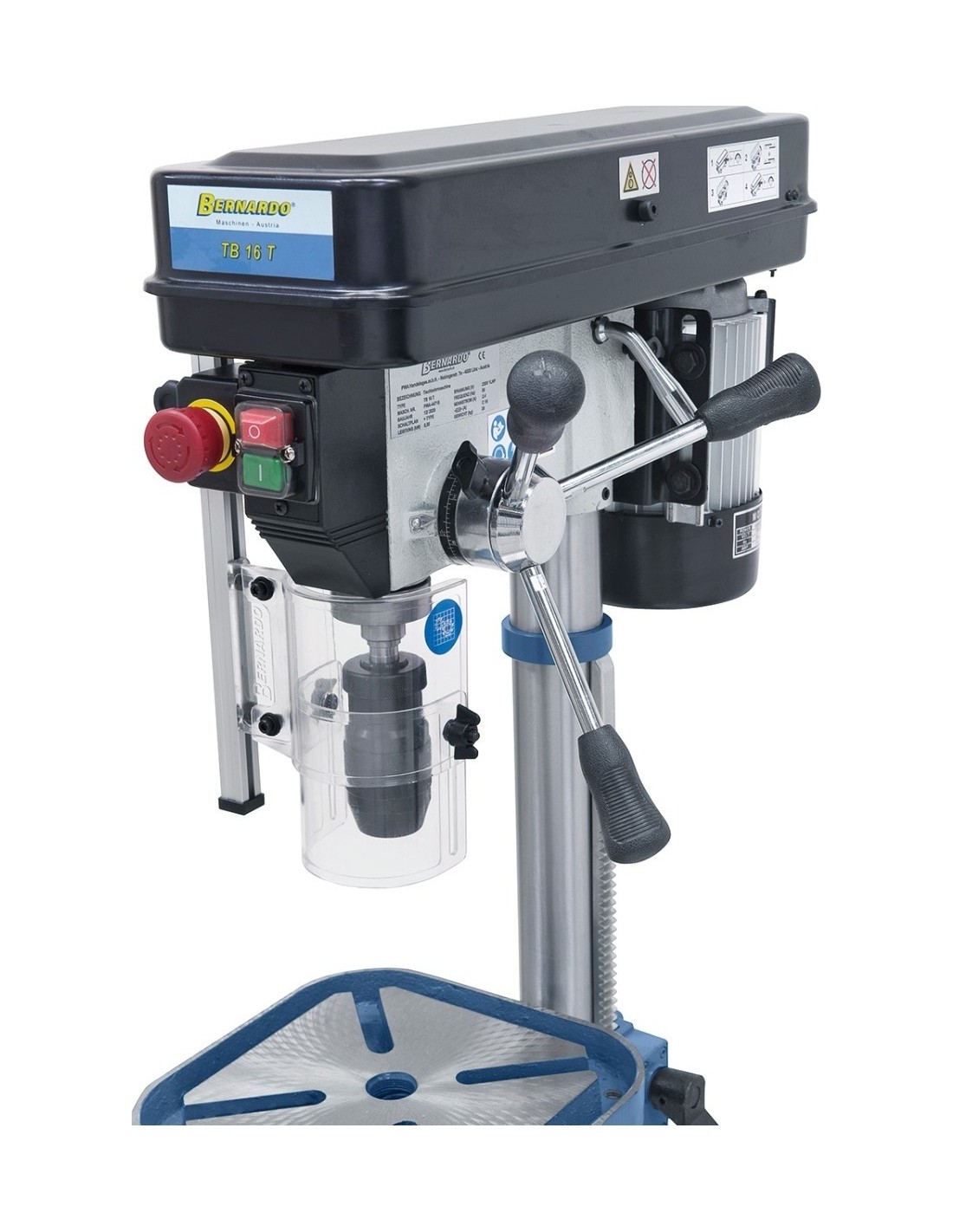

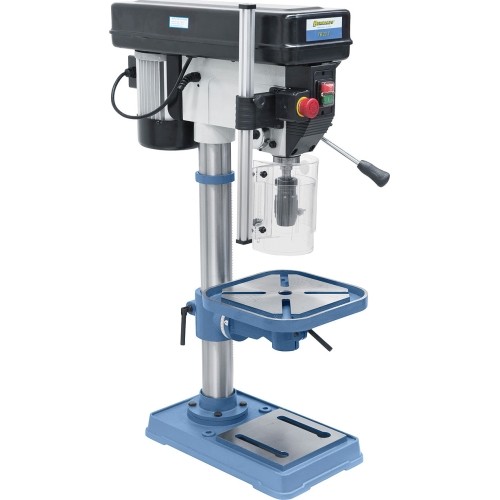

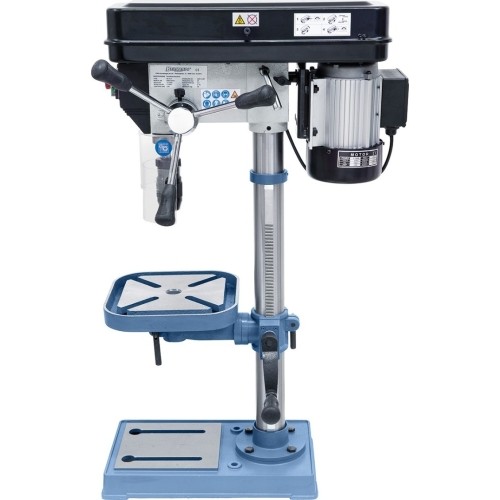

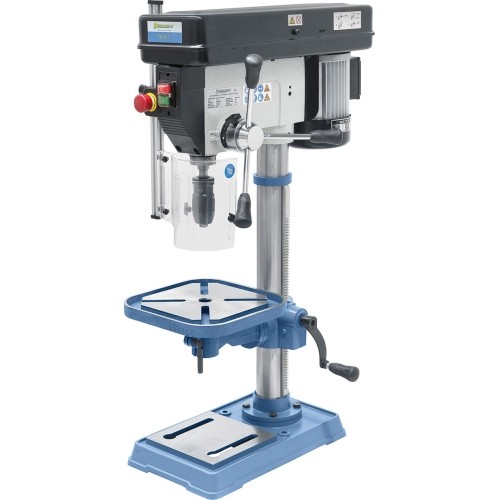

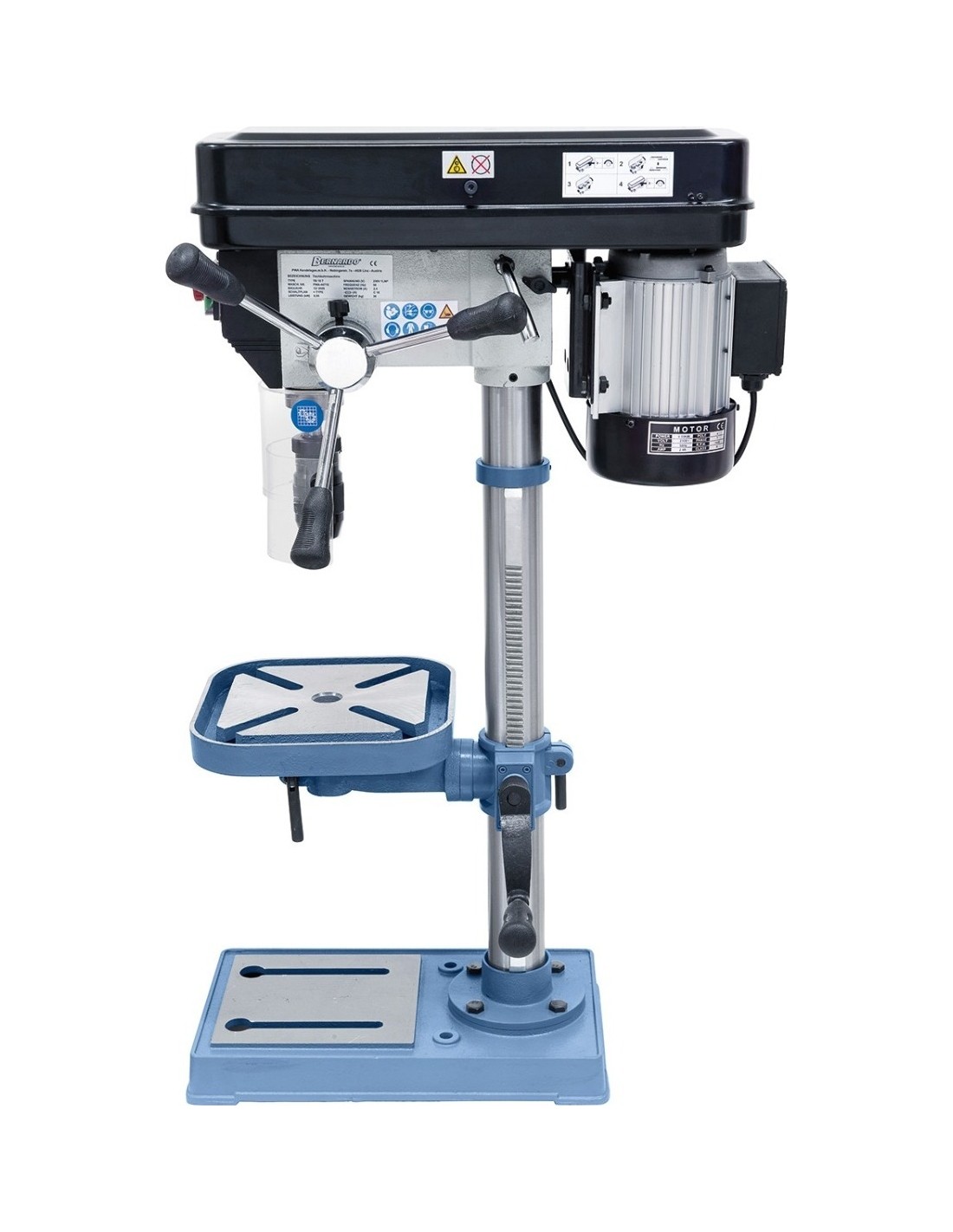

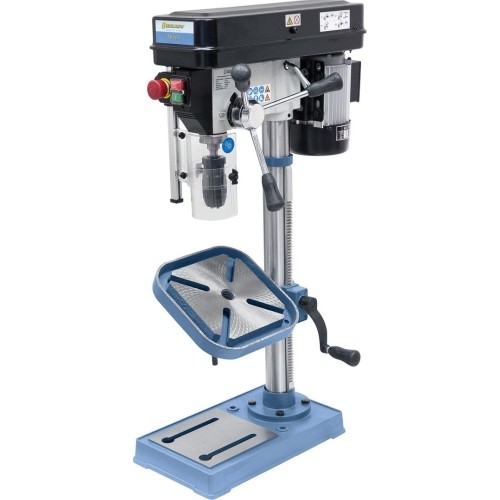

Stalinės gręžimo staklės Bernardo TB 20 T - 230V
1052624
Price
€782.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 54 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 54 kg.
Description
Properties
- High-quality ball bearings ensure high spindle concentricity
- Large drill table features diagonal T-slots

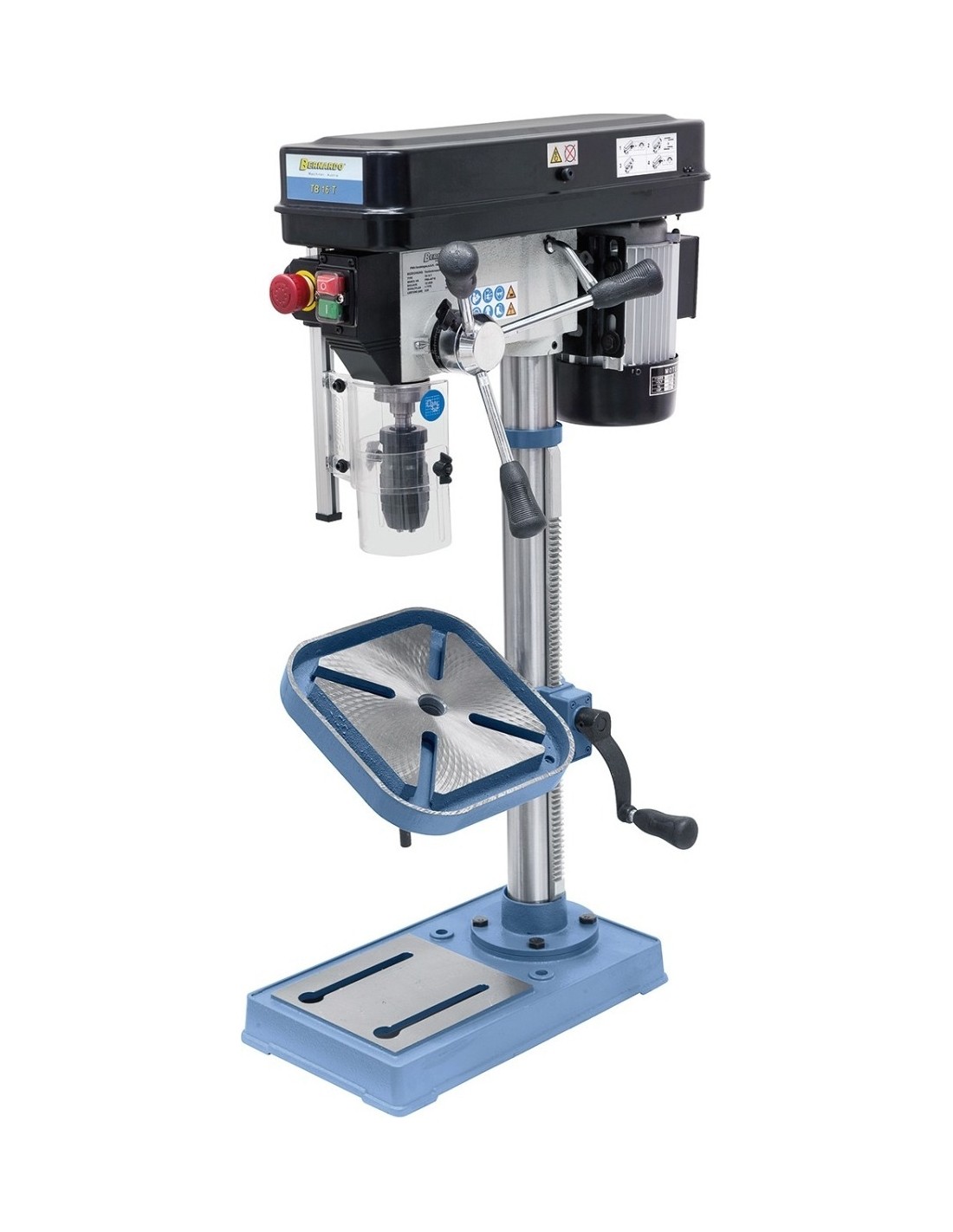

- Drill table tilts (±45°), height adjustment via gear rack

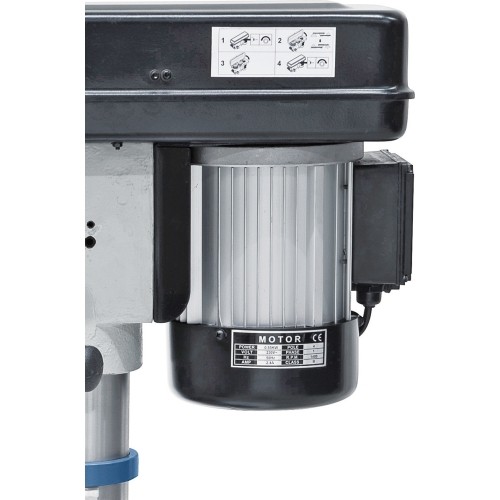

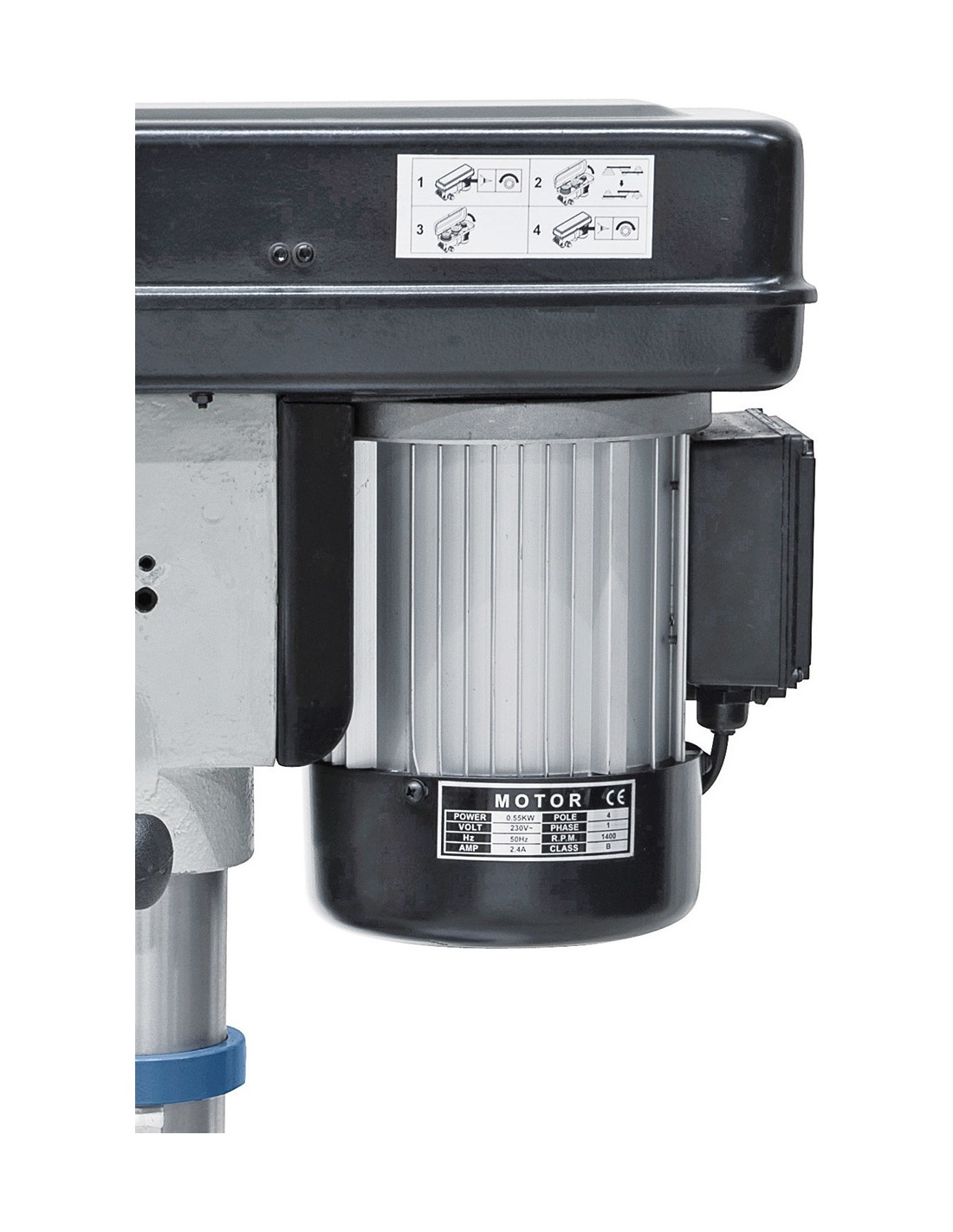

- Powerful, high-torque aluminium motor according to IP 54 standard
- High grade keyless drill chuck comes standard

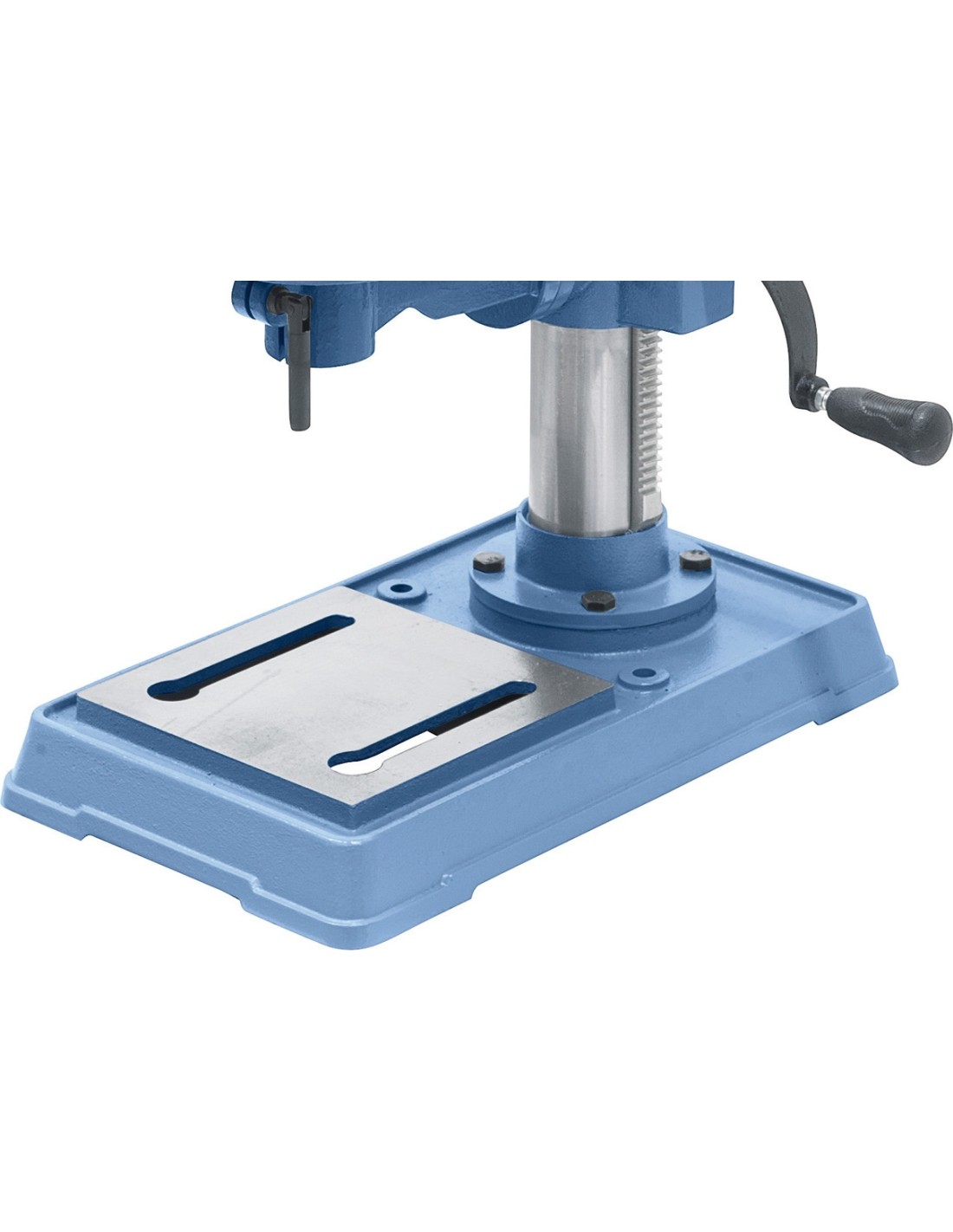

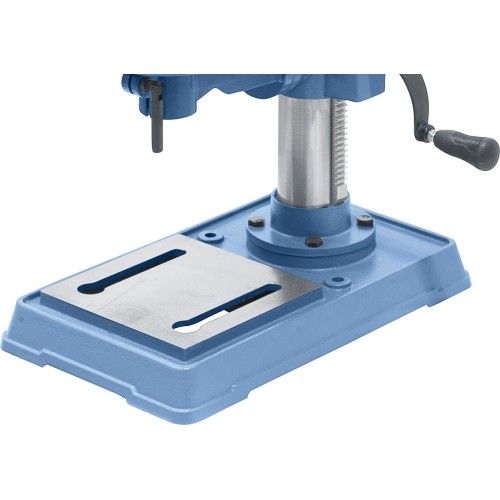

- Treated machine base allows clamping of oversize workpieces
- Features T-slots on polished base
- Ergonomical handles allow for high work comfort
Standard accessories
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 2 / B 16

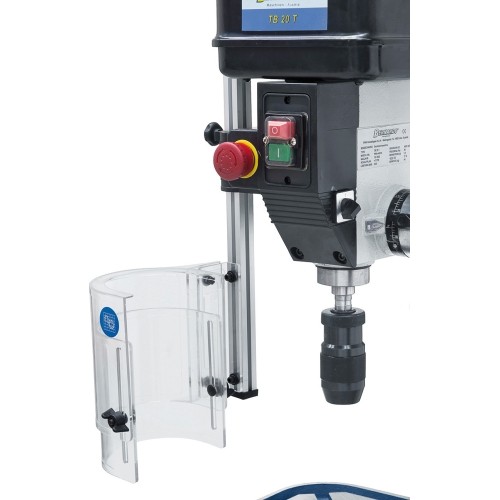

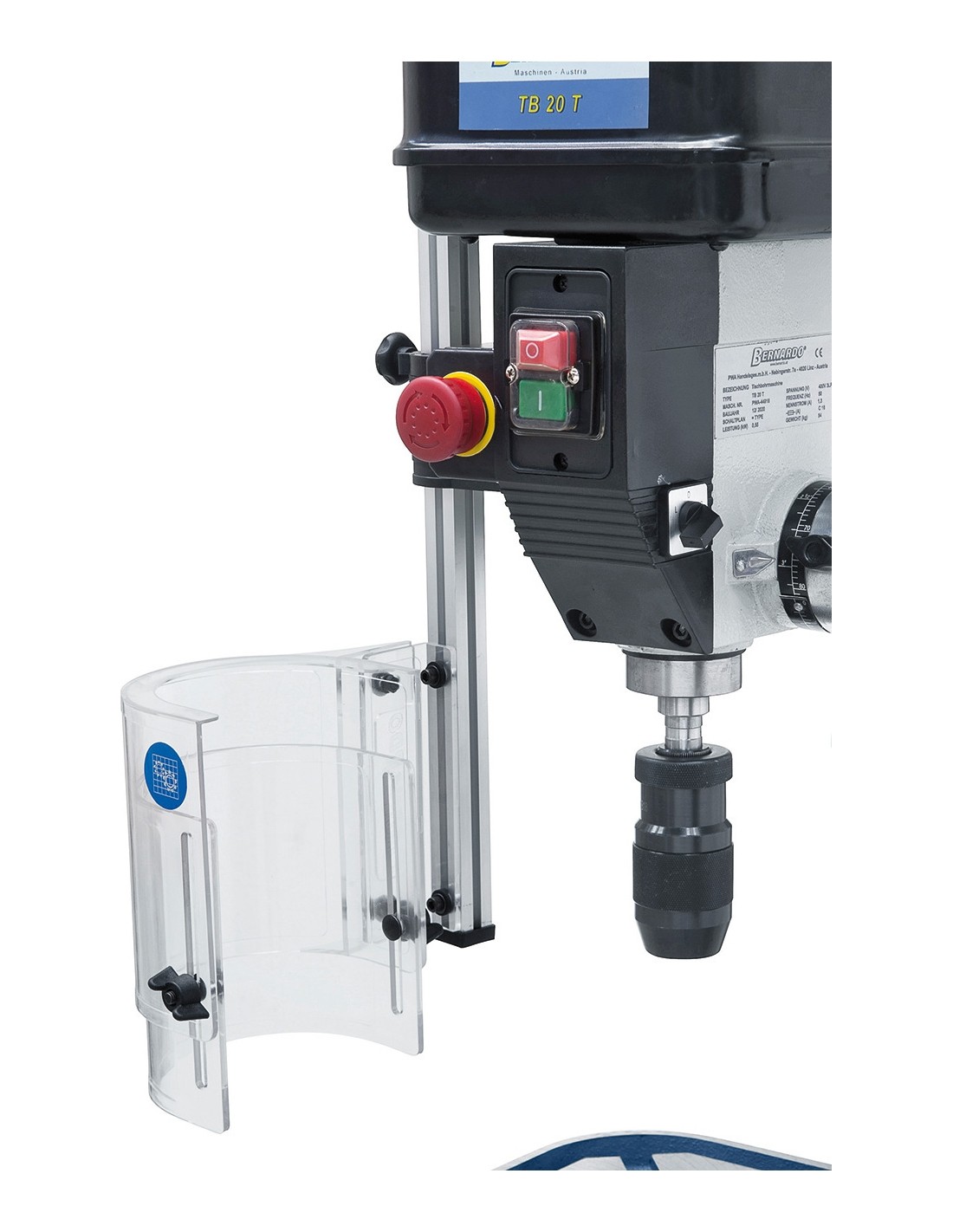

- Height adjustable protective cover
- Separate emergency stop switch
- T-slot nuts
- Tools
