Weight approx.
26 kg
Machine dimension (W x D x H)
300 x 510 x 690 mm
Distance spindle to column
130 mm
Spindle stroke
65 mm
Motor power output S1 100%
0,37 kW / 230 V
Motor power input S6 40%
0,55 kW / 230 V
Drilling capacity max.
14 mm
Morse taper
Steady / B 16
Spindle speeds
(5) 620 - 2620 rpm
Distance spindle to base
395 mm
Distance spindle to table max.
285 mm
Table size / T-slot size
185 x 185 mm / 14 mm
Drill chuck
1 - 13 mm / B 16
Column diameter
58 mm
Working surface of base
155 x 155 mm
Table tiltable
-45° to +45°

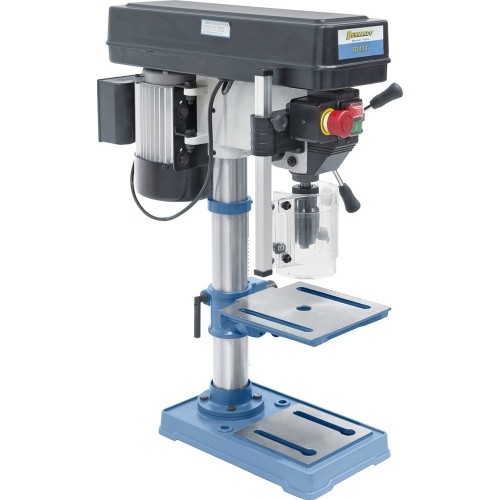

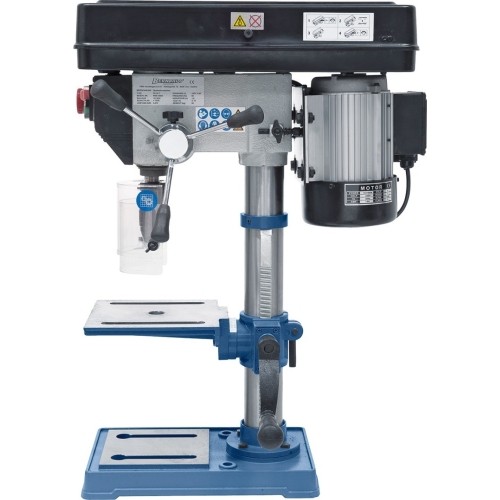

TB 14 T

1090331
Price €539.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, august 4 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
We will deliver the product to you via: 5-11 w.d. Venipak (€8.00)

Description

Properties

  • High-quality ball bearings ensure high spindle concentricity

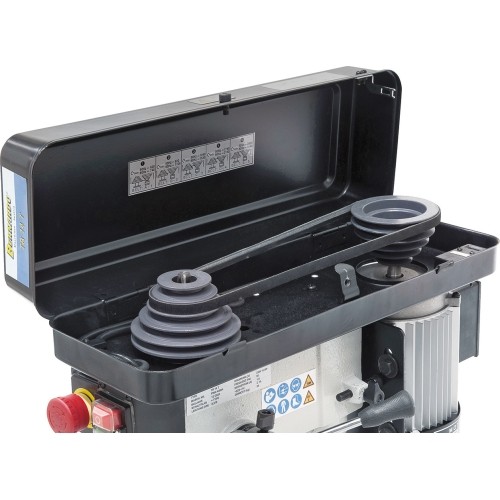

  • Balanced drive wheels and high-quality belt ensure extremely smooth operation

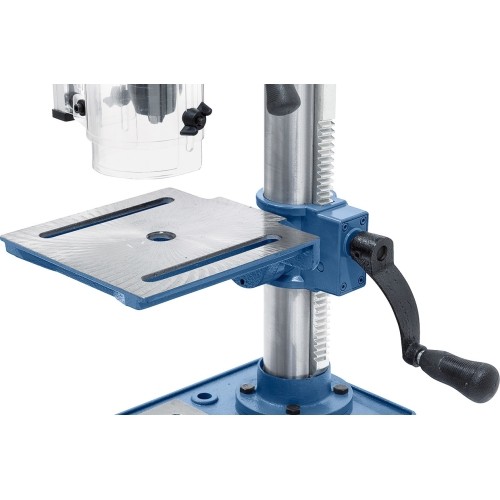

  • Drill table swivels (±45°), height adjustable via gear rack
  • Complete with T-slots in polished base plate
  • Powerful, high-torque aluminium motor in accordance with IP 54

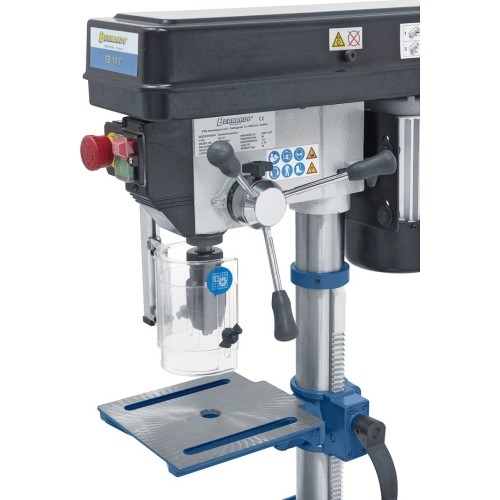

  • Ergonomically arranged handles ensure high work comfort
  • Treated base plate allows clamping of oversize work pieces
  • Top precision keyless drill chuck included

Standard accessories

  • Keyless drill chuck 1 - 13 mm / B 16

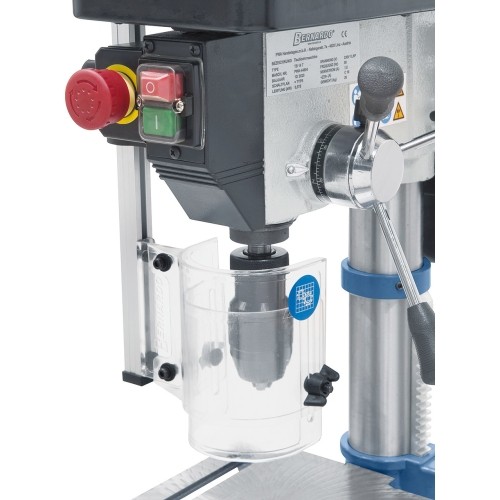

  • Height adjustable protective cover
  • Separate emergency stop switch
  • T-slot nuts
  • Tools
