Weight approx.
125 kg
Machine dimension (W x D x H)
450 x 800 x 1730 mm
Distance spindle to column
255 mm
Spindle stroke
120 mm
Motor power output S1 100%
1,1 kW / 400 V
Motor power input S6 40%
1,6 kW / 400 V
Drilling capacity max.
32 mm
Morse taper
MT 4
Spindle speeds
(12) 150 - 2450 rpm
Distance spindle to base
1210 mm
Distance spindle to table max.
750 mm
Table size / T-slot size
385 x 335 / 16 mm
Drill chuck
1 - 16 mm / B 18
Column diameter
92 mm
Working surface of base
380 x 335 mm
Table tiltable
360°

BM 32 SB

1091968
Price €1,766.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, august 4 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 125 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 125 kg.

Description

Properties

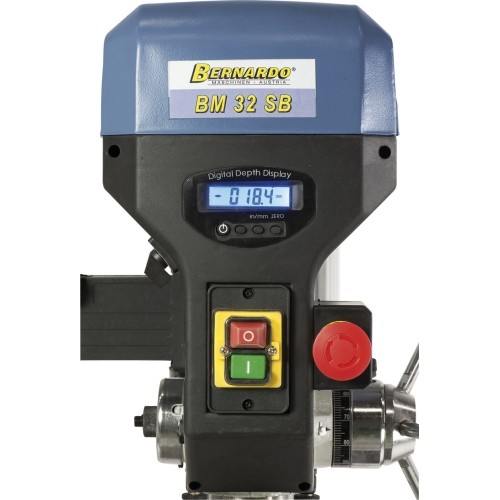

  • Digital display for spindle stroke and LED-lamp comes standard

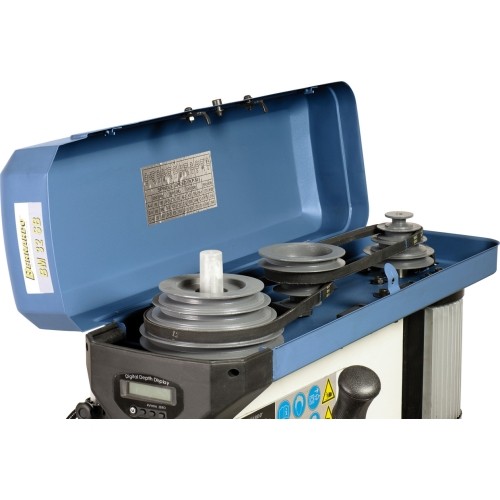

  • Grey cast iron pulleys ensure smooth operation
  • High-quality ball bearings ensure high spindle concentricity

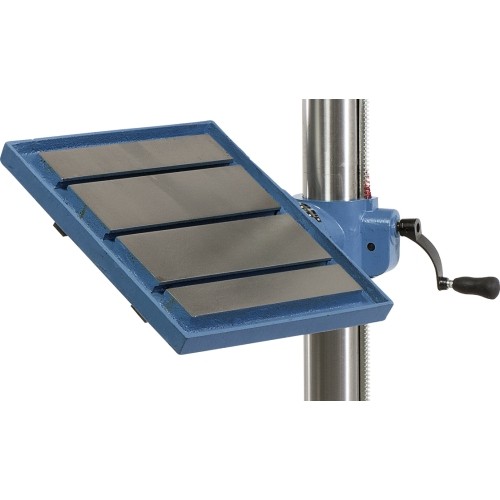

  • Large drill table features diagonal T-slots and coolant grooves

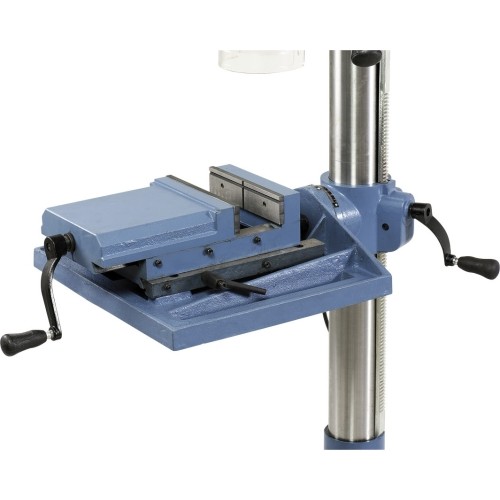

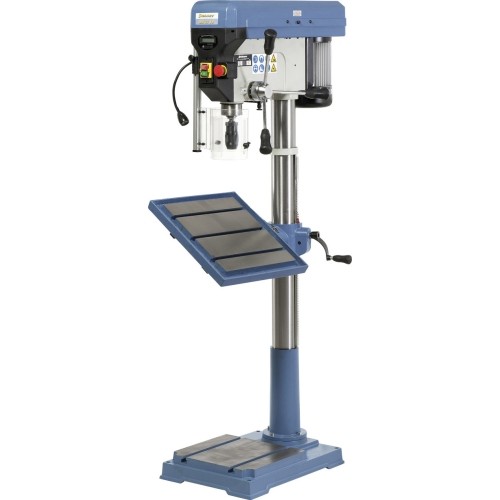

  • Drill table turns 360°, gear rack allows height adjustment
  • Switch controls right and left rotation

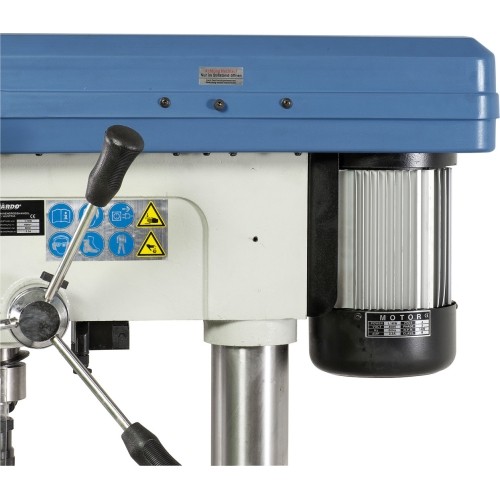

  • Powerful, high-torque aluminium motor in accordance with the IP 54 standard
  • Keyless drill chuck included
  • Comes with T-slots in polished machine base
  • User-friendly handles allow for high comfort when working

Standard accessories

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 4 / B 18
  • Switch fot left and right turning
  • LED working light
  • Cross line laser device
  • T-slot nuts
  • Digital spindle stroke indication

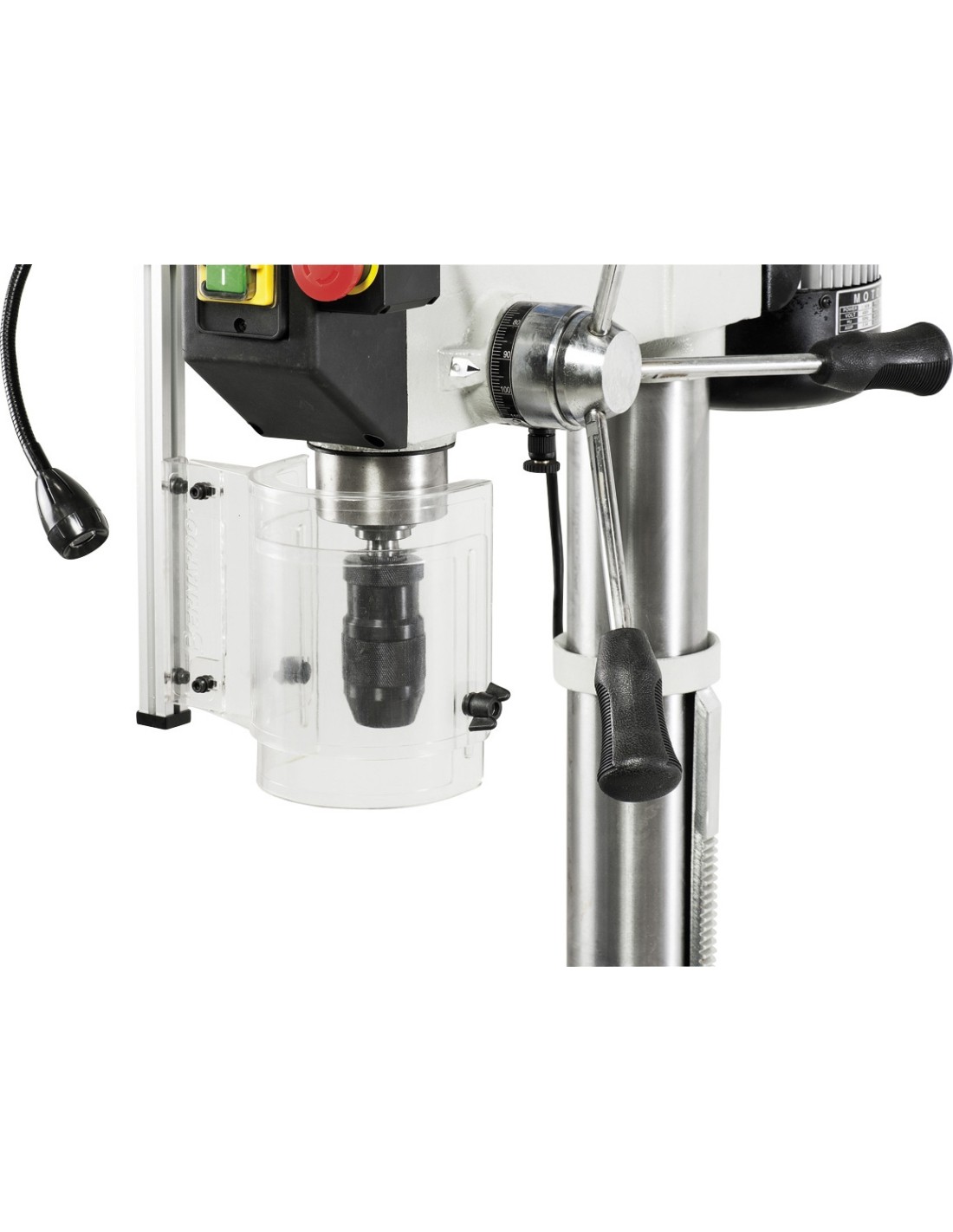

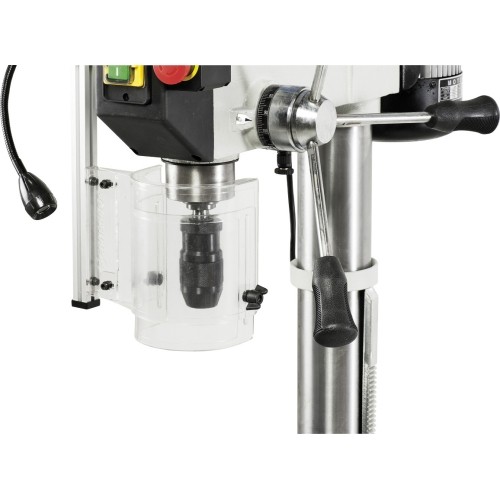

  • Height adjustable protective cover
  • Separate emergency stop switch
