WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
65 kg
Machine dimension (W x D x H)
380 x 660 x 1560 mm
Distance spindle to column
175 mm
Spindle stroke
85 mm
Motor power output S1 100%
0,75 kW / 400 V
Motor power input S6 40%
1,1 kW / 400 V
Drilling capacity max.
25 mm
Morse taper
MT 3
Spindle speeds
(12) 280 - 2380 rpm
Distance spindle to base
1175 mm
Distance spindle to table max.
685 mm
Table size / T-slot size
290 x 290 mm / 16 mm
Drill chuck
1 - 16 mm / B 18
Column diameter
80 mm
Working surface of base
205 x 205 mm
Table tiltable
-45° to +45°

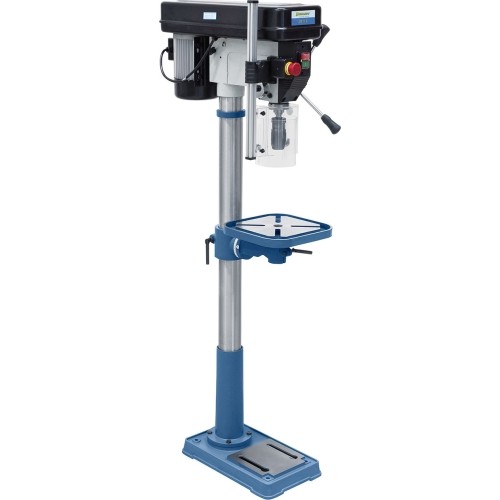

SB 25 S

1091969
Price €978.00 Tax included

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 5 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 65 kg.
We will deliver the product to you via: 5-10 w.d. Venipak (€40.99)
Weight: 65 kg.

Description

Properties

  • High-quality ball bearings ensure high spindle concentricity
  • Surface treated work table can be adjusted in height via gear rack and crank
  • Switch for left and right turning

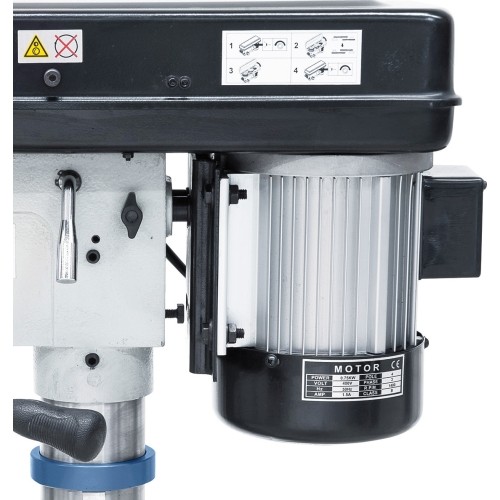

  • Powerful, high torque aluminium motor according to IP 54 standard
  • Precise keyless drill chuck comes standard
  • Treated base allows clamping of oversize workpieces

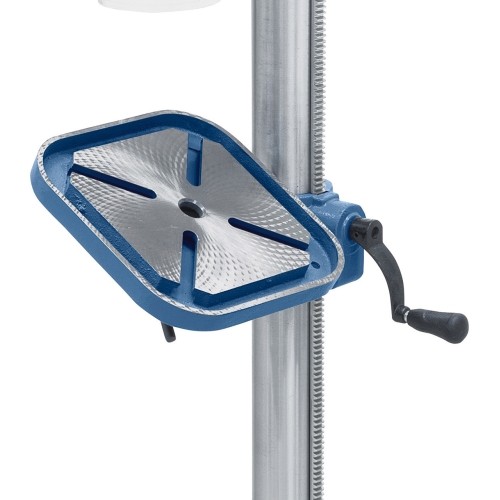

  • Drill table (±45°), height adjustable via gear rack
  • Large drill table features T-slots and coolant groove

Standard accessories

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 3 / B 18
  • Height adjustable protective cover

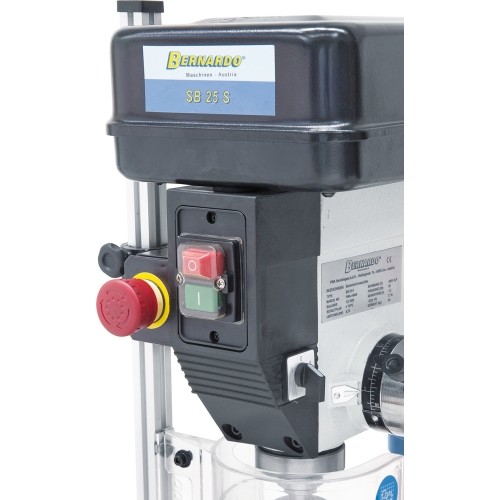

  • Separate emergency stop switch
  • Switch for left and right turning
  • T-slot nuts
  • Tools
