- Spindle taper
- ISO 30
- Weight approx.
- 455 kg
- Motor power
- 1,5 kW (400 V)
- Machine dimension (W x D x H)
- 1270 x 960 x 2120 mm
- Drilling capacity in steel
- 32 mm
- Distance spindle to column
- 220 mm
- Spindle stroke
- 125 mm
- Spindle speed, stepless
- 75 – 480 / 425 – 2750 rpm
- Travel (x / y)
- 420 / 200 mm
- Mill head tiltable
- -60° to +60°
- Height adjustment of mill head
- 390 mm
- Table size
- 800 x 240 mm / 14 mm
- Distance spindle to table
- 95 - 485 mm
- Lifting motor
- 90 W
- Drilling capacity in cast iron
- 40 mm
- Spindle feed
- (3) 0,10 / 0,18 / 0,26 mm/rev.
- Milling head max.
- 80 mm

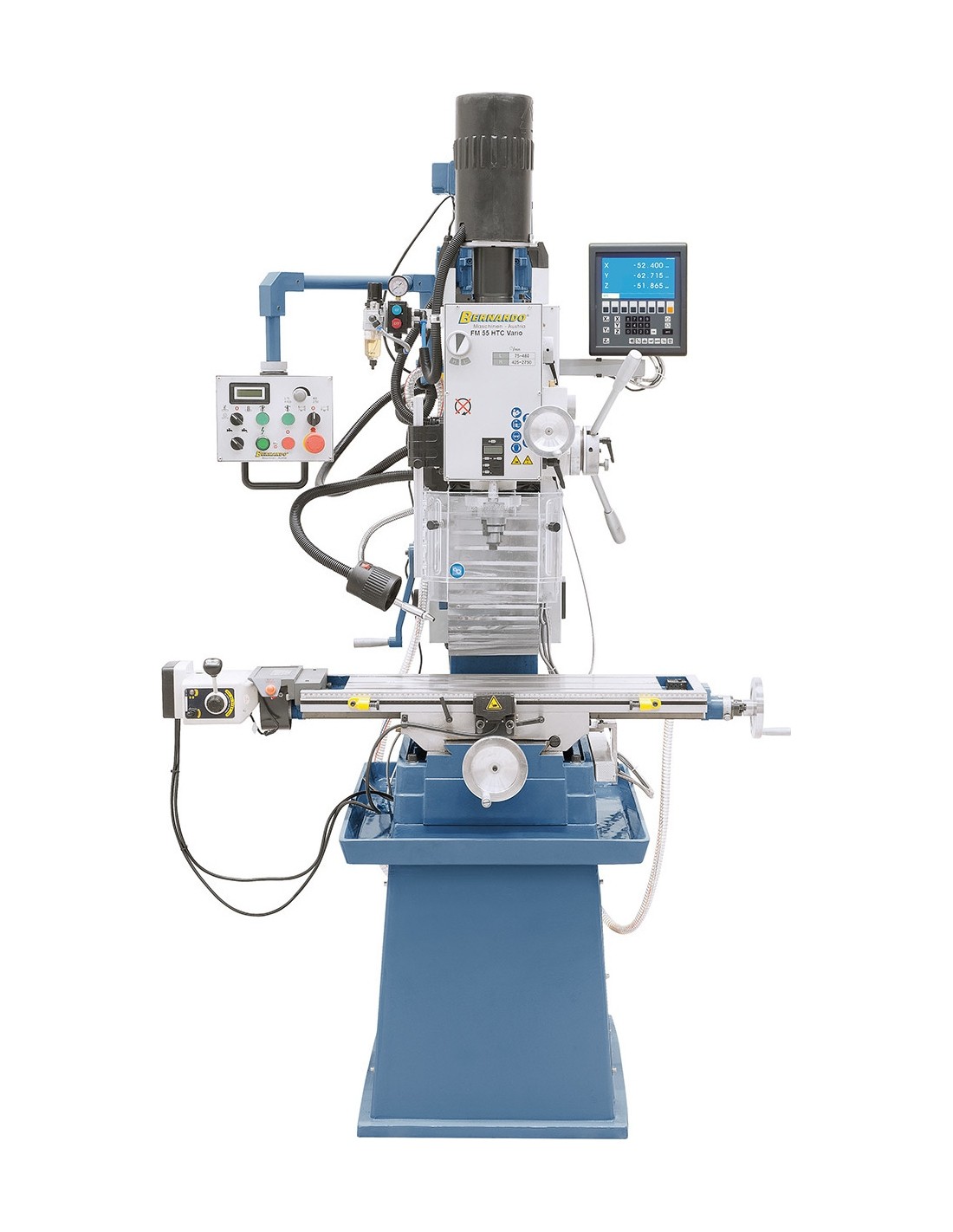

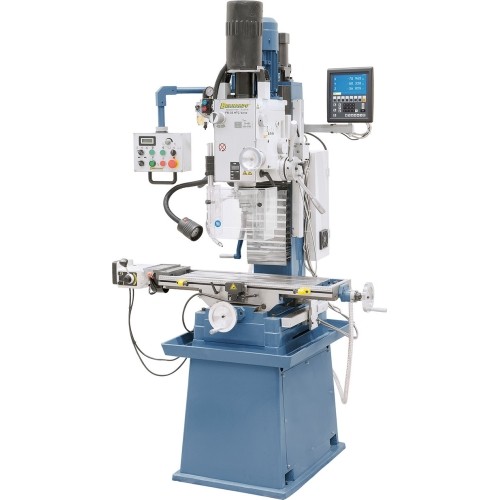

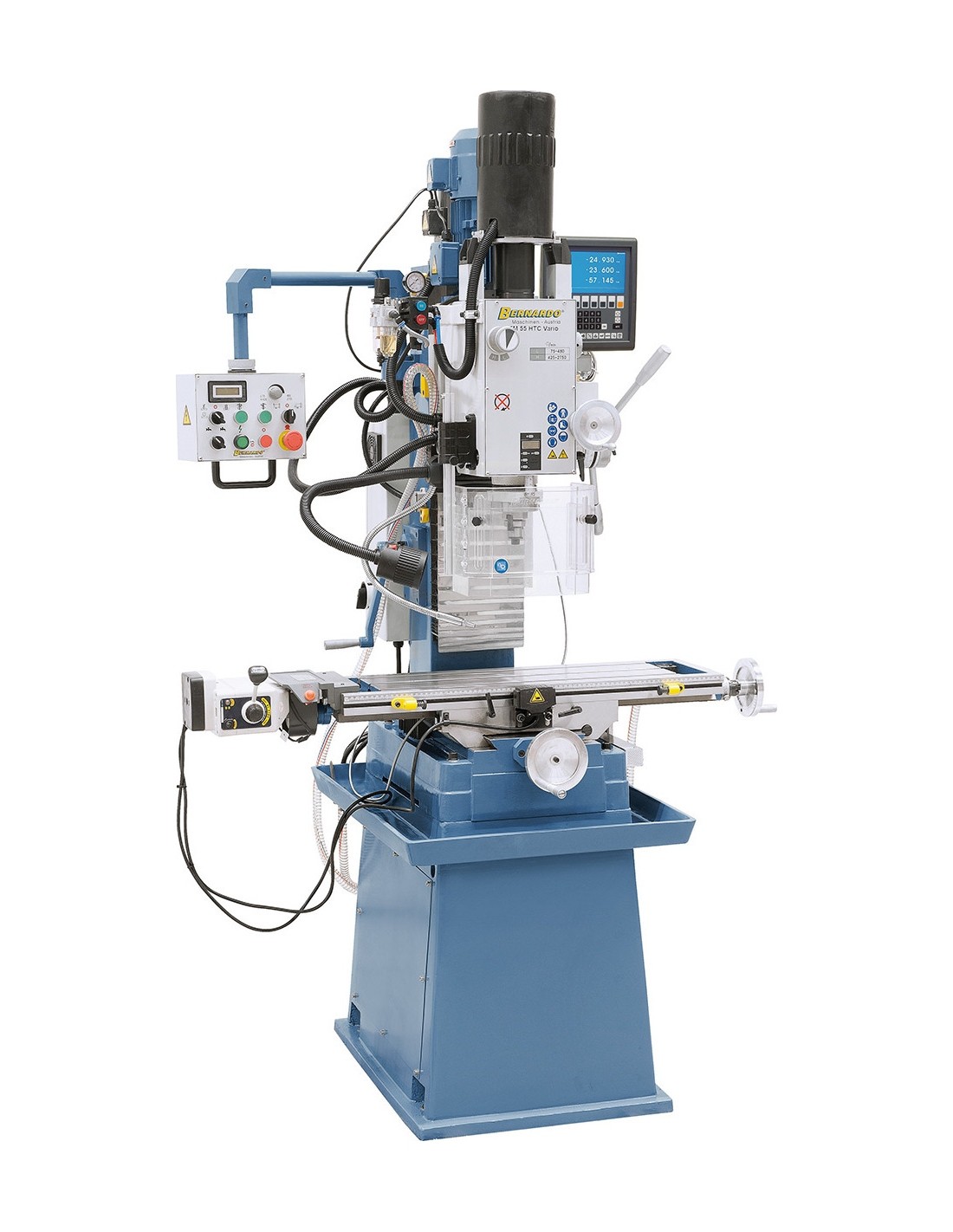

Gręžimo ir frezavimo staklės Bernardo FM 55 HTC Vario
1055658
Price
€10,984.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
Delivery terms:
FREE pick up wednesday, june 17 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 455 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 455 kg.
Description
Properties

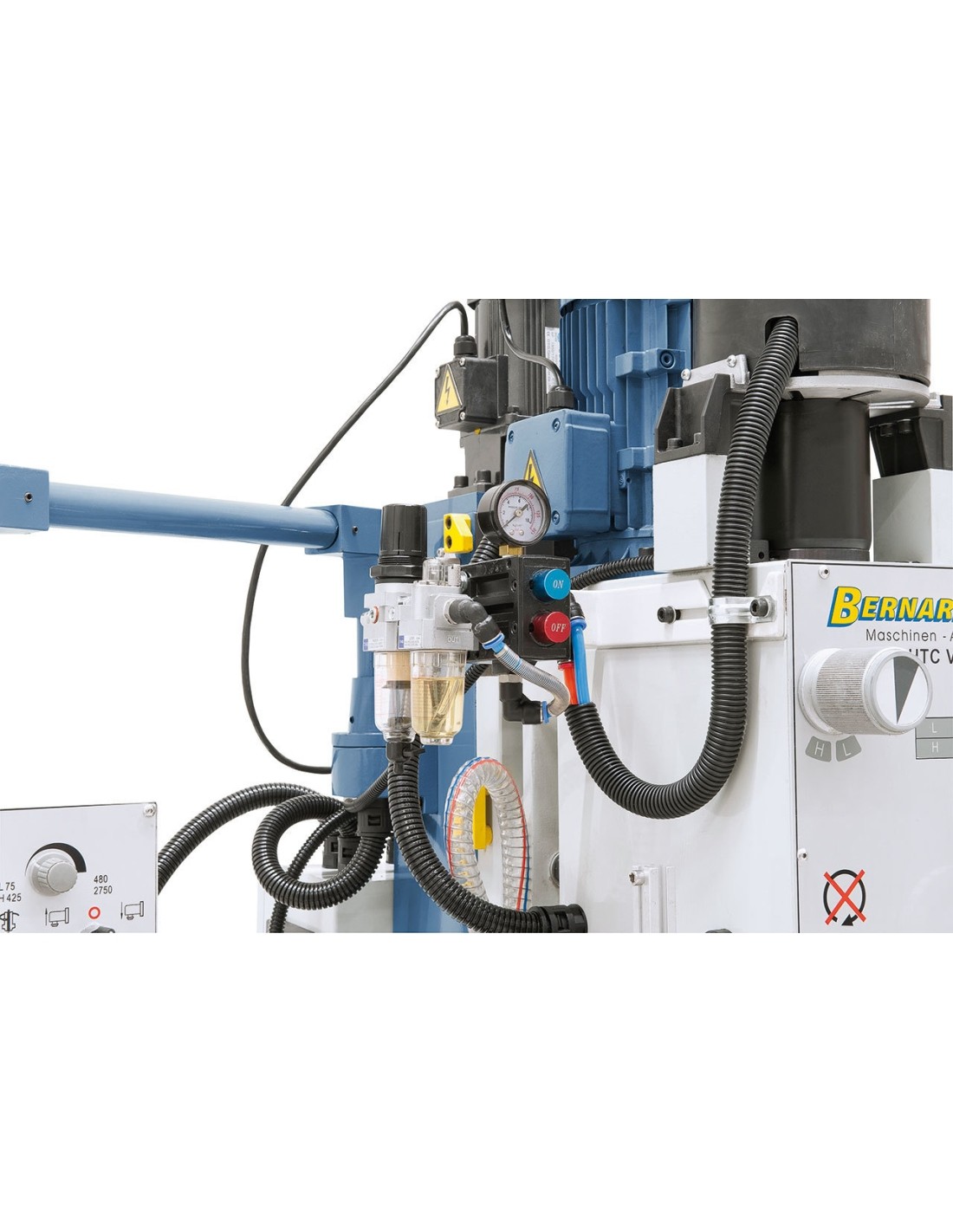

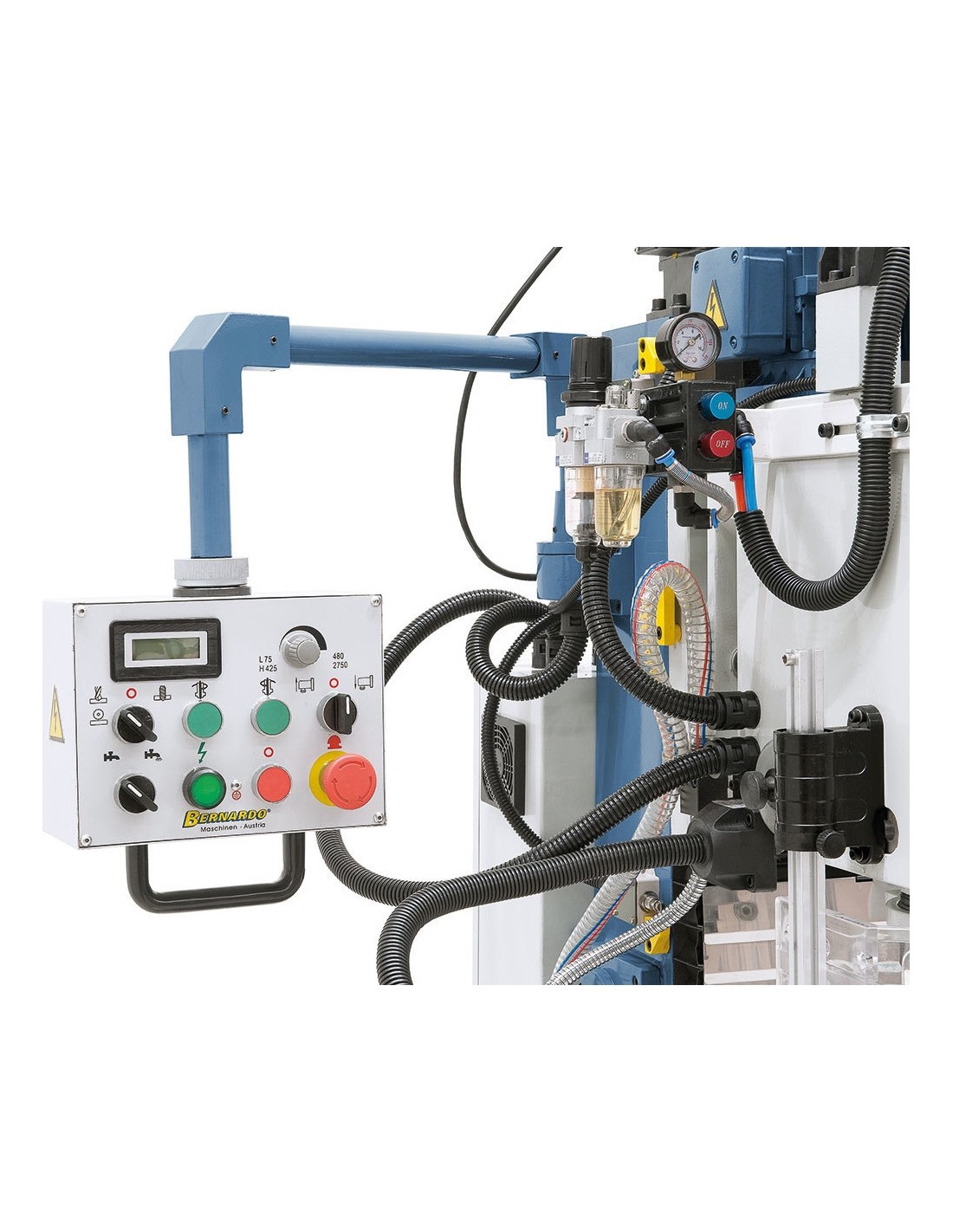

- Pneumatic tool clamping device shortens conversion times significantly
- Automatic spindle feed and thread cutting device come standard

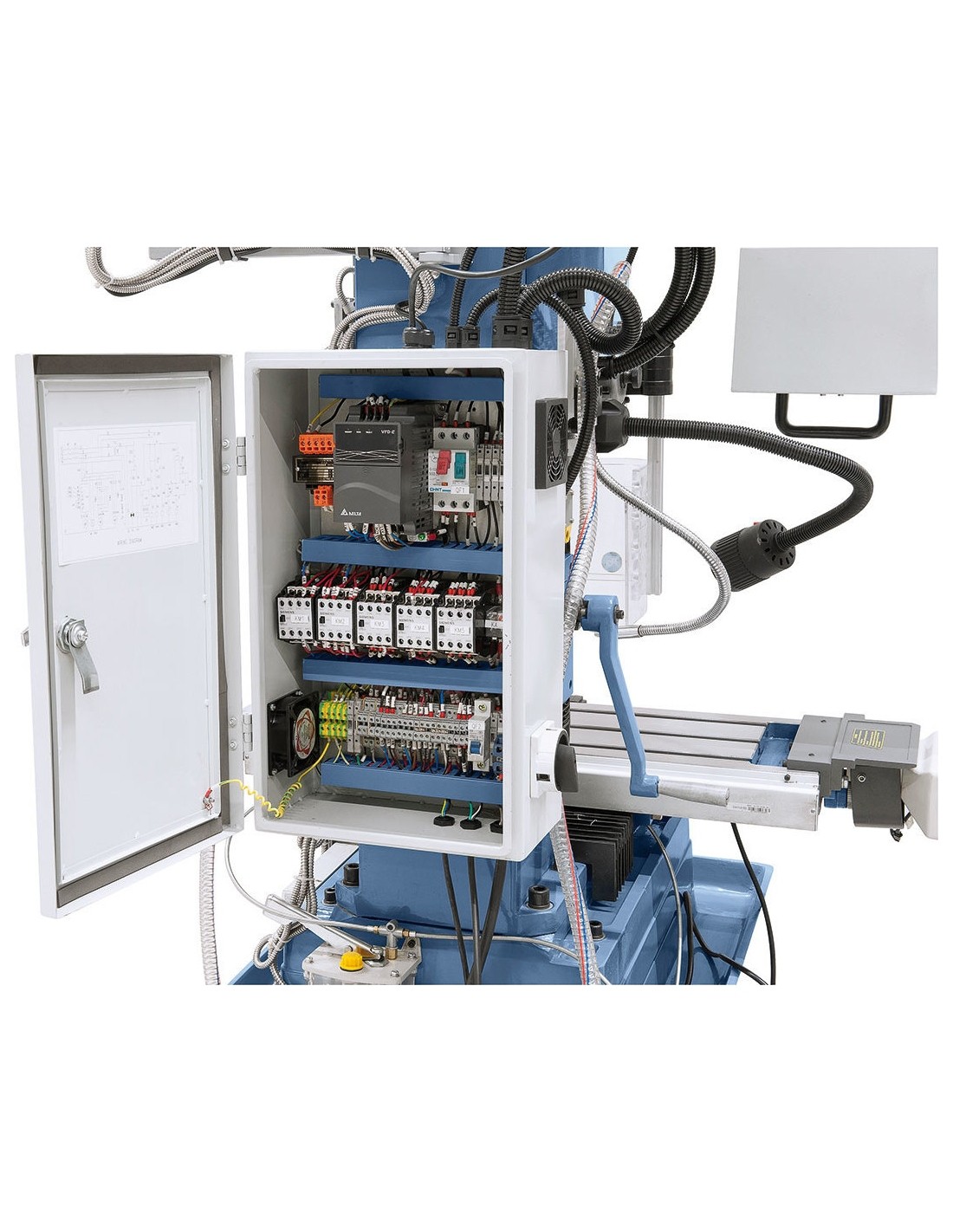

- Delta frequency inverter ensures variable speed adjustment with optimal torque

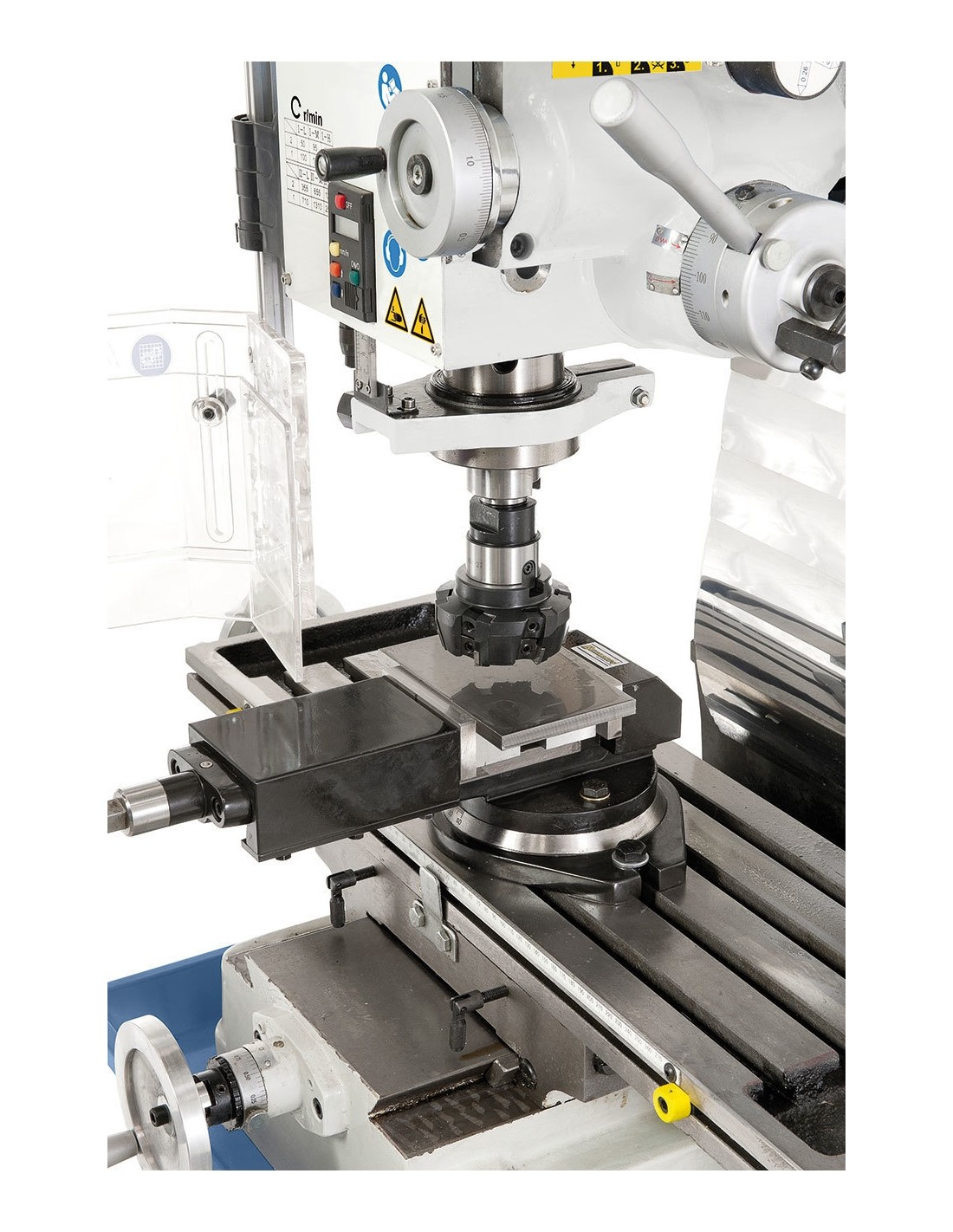

- Many possible applications, such as groove milling, face milling, reboring etc.

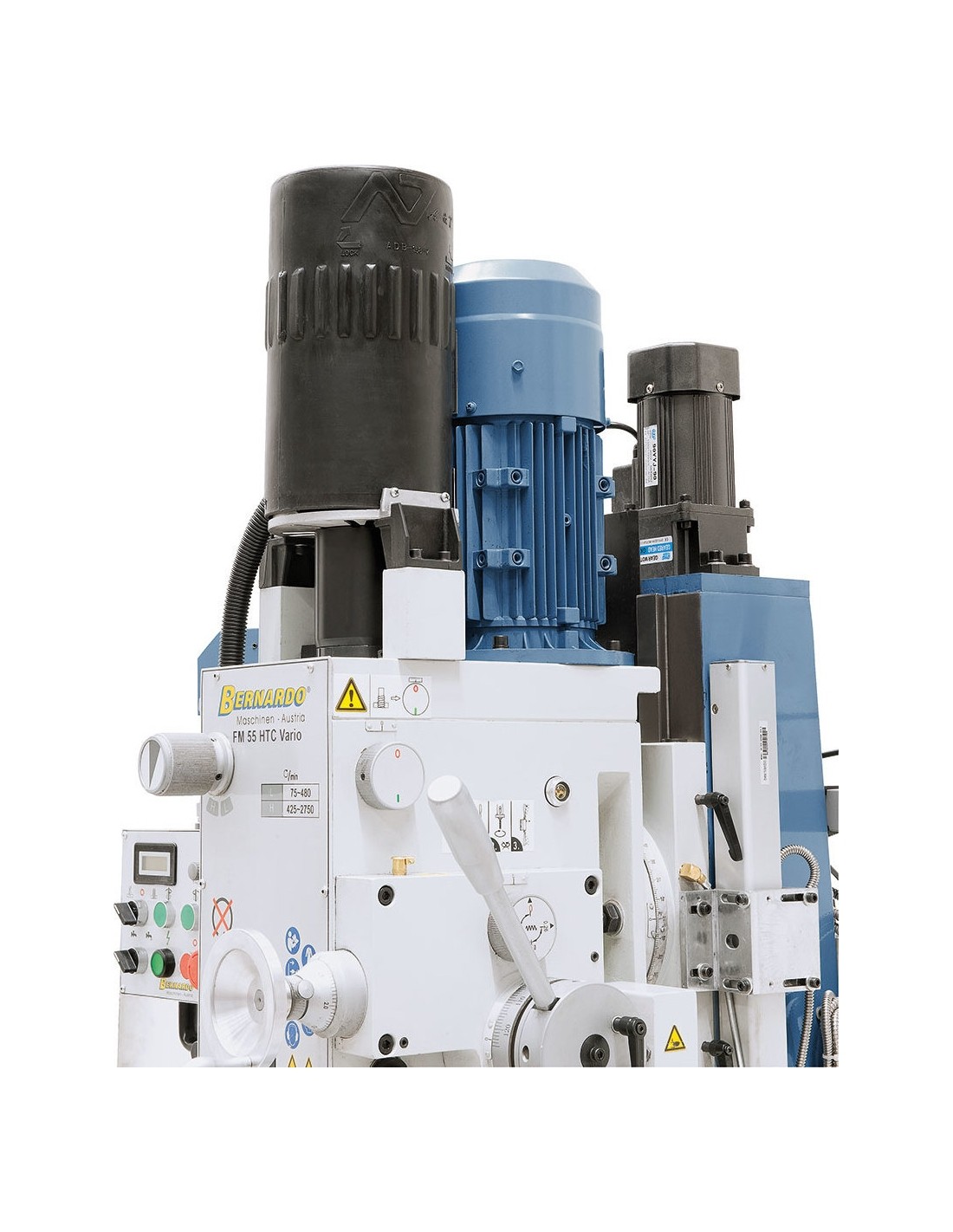

- Lifting motor ensures convenient height adjustment of milling head
- Dovetail guide of gear unit guarantees rigidity

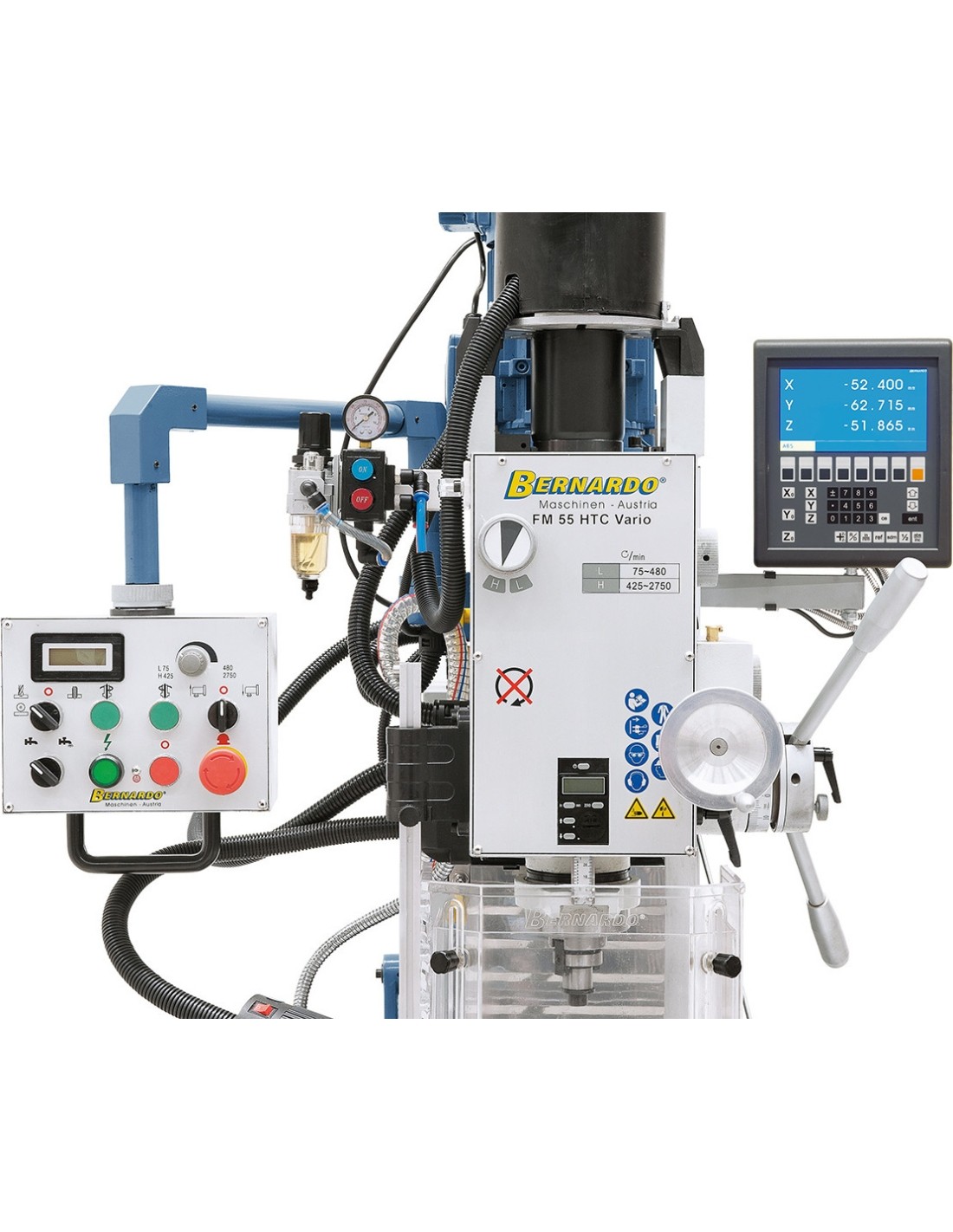

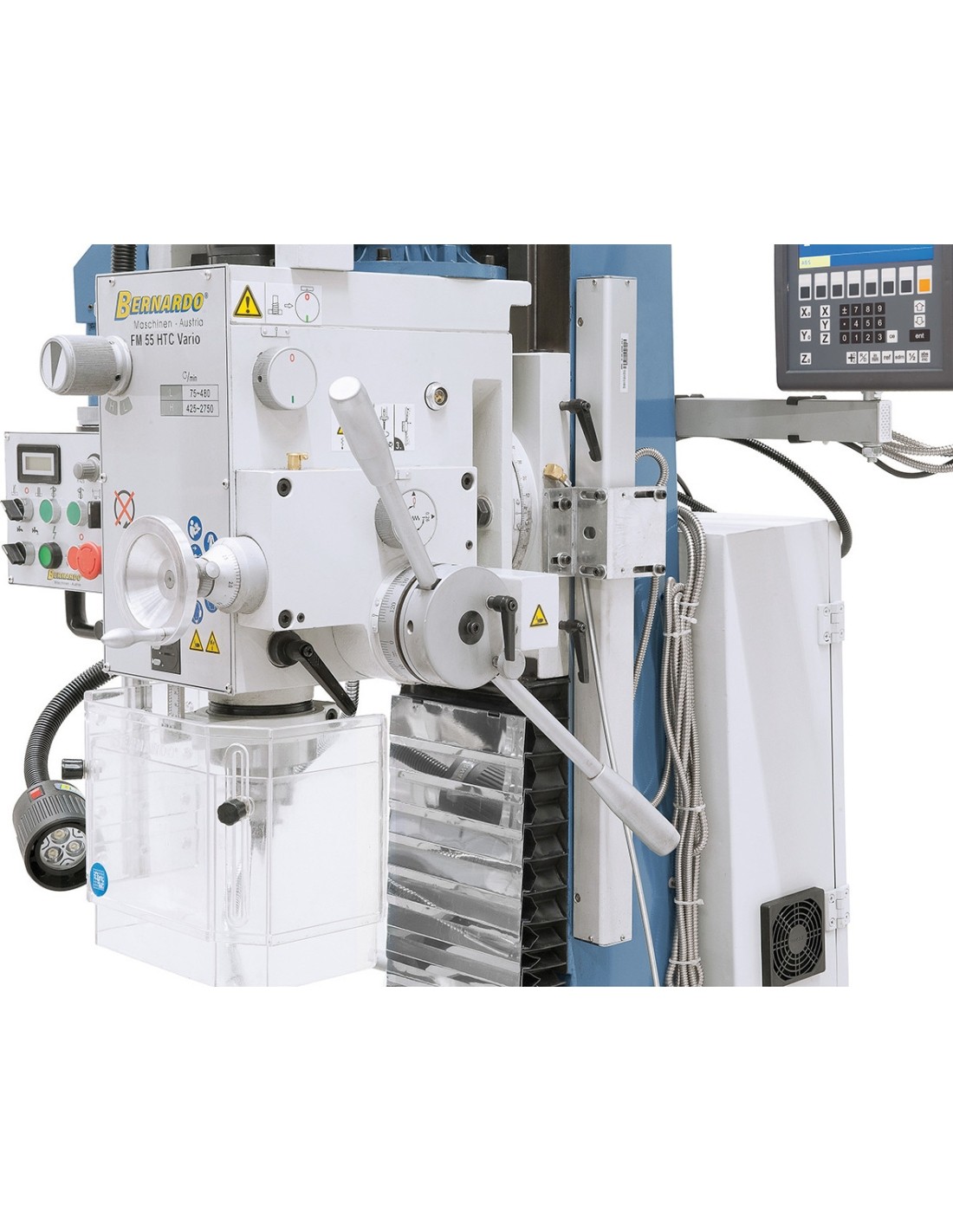

- Digital display for speed and spindle stroke comes standard

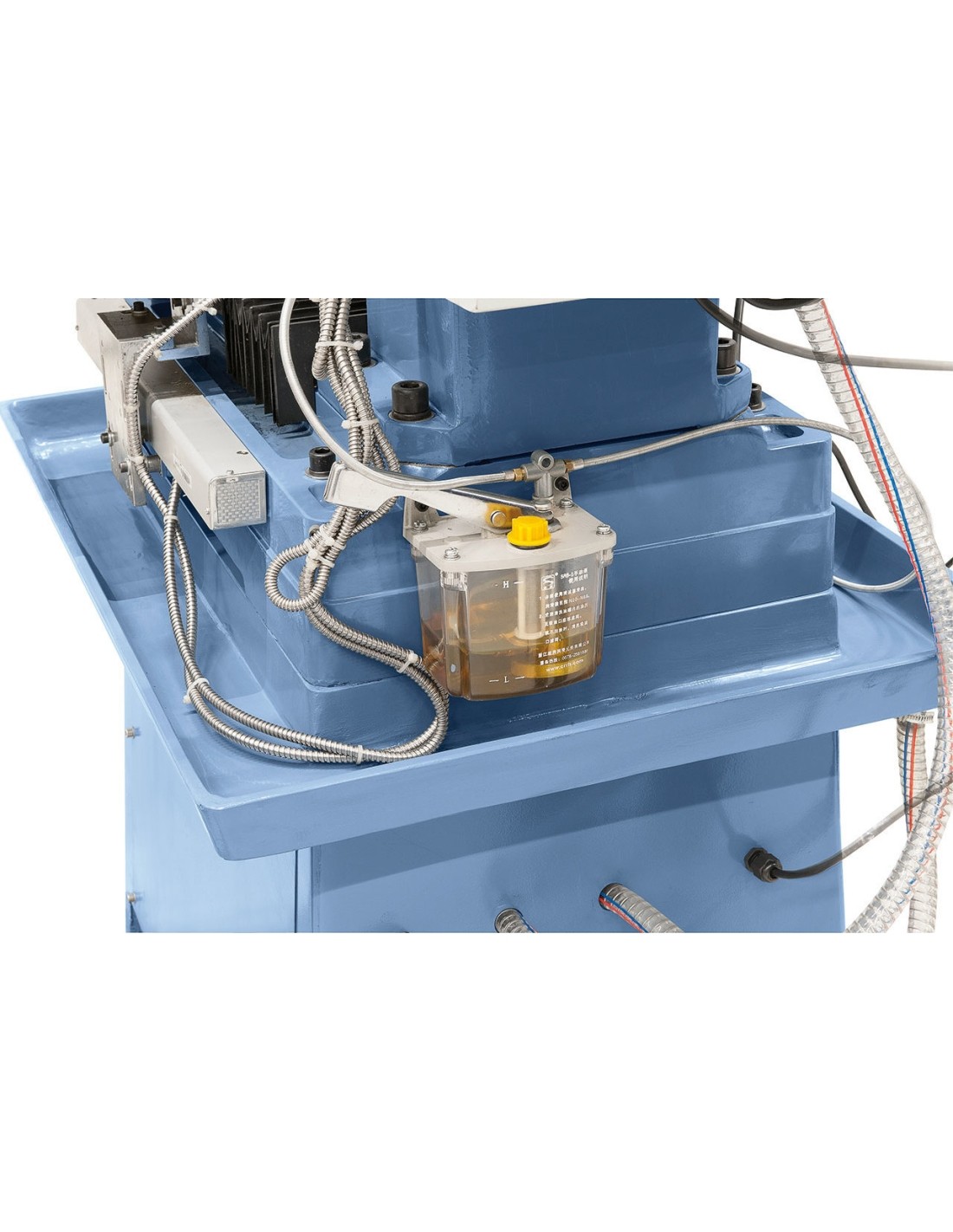

- Manual central lubrication for all guide ways
Standard accessories
- 3-axis digital readout ES-12 V with LCD-display

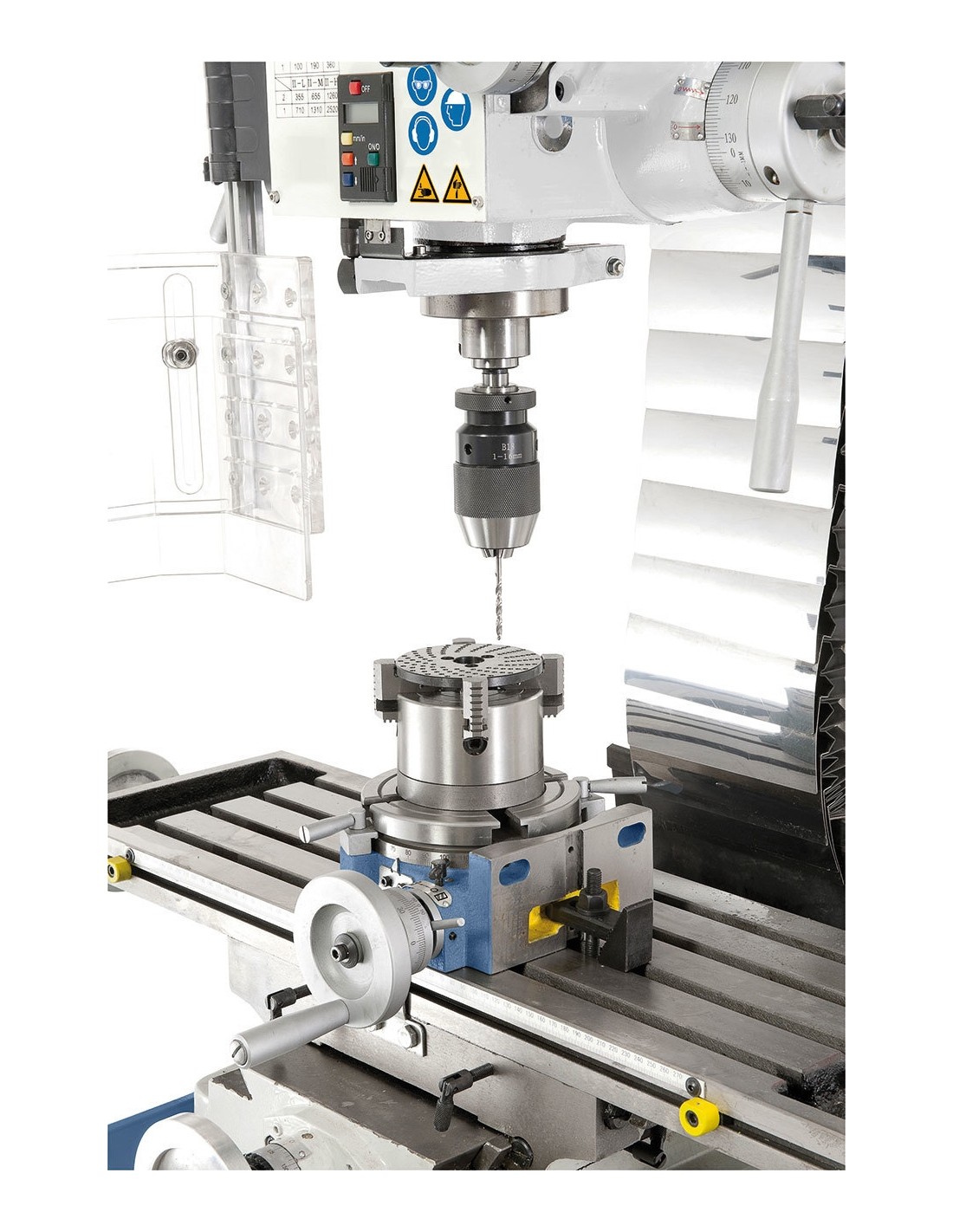

- Keyless drill chuck 3 – 16 mm / B 16
- Drill chuck arbor ISO 30 – B 16
- Drawbar M 16
- Adapter ISO 30 / MT 2
- Taper shell end mill holder ISO 30 / 27 mm
- Automatischer Pinolenvorschub
- Pneumatische Werkzeugklemmung
- Höhenverstellbare Schutzabdeckung
- Hubmotor für Fräskopf
- Zentralschmierung

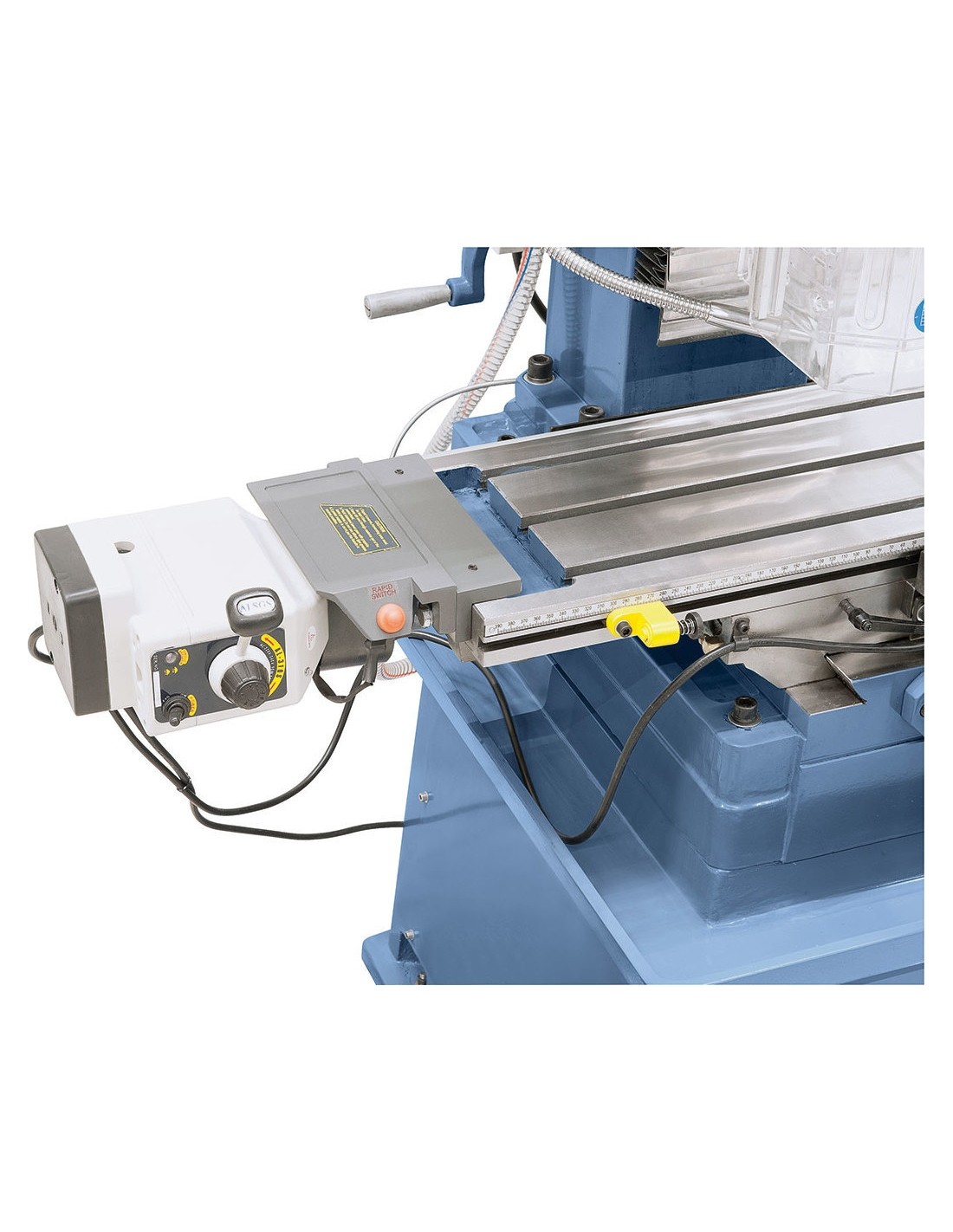

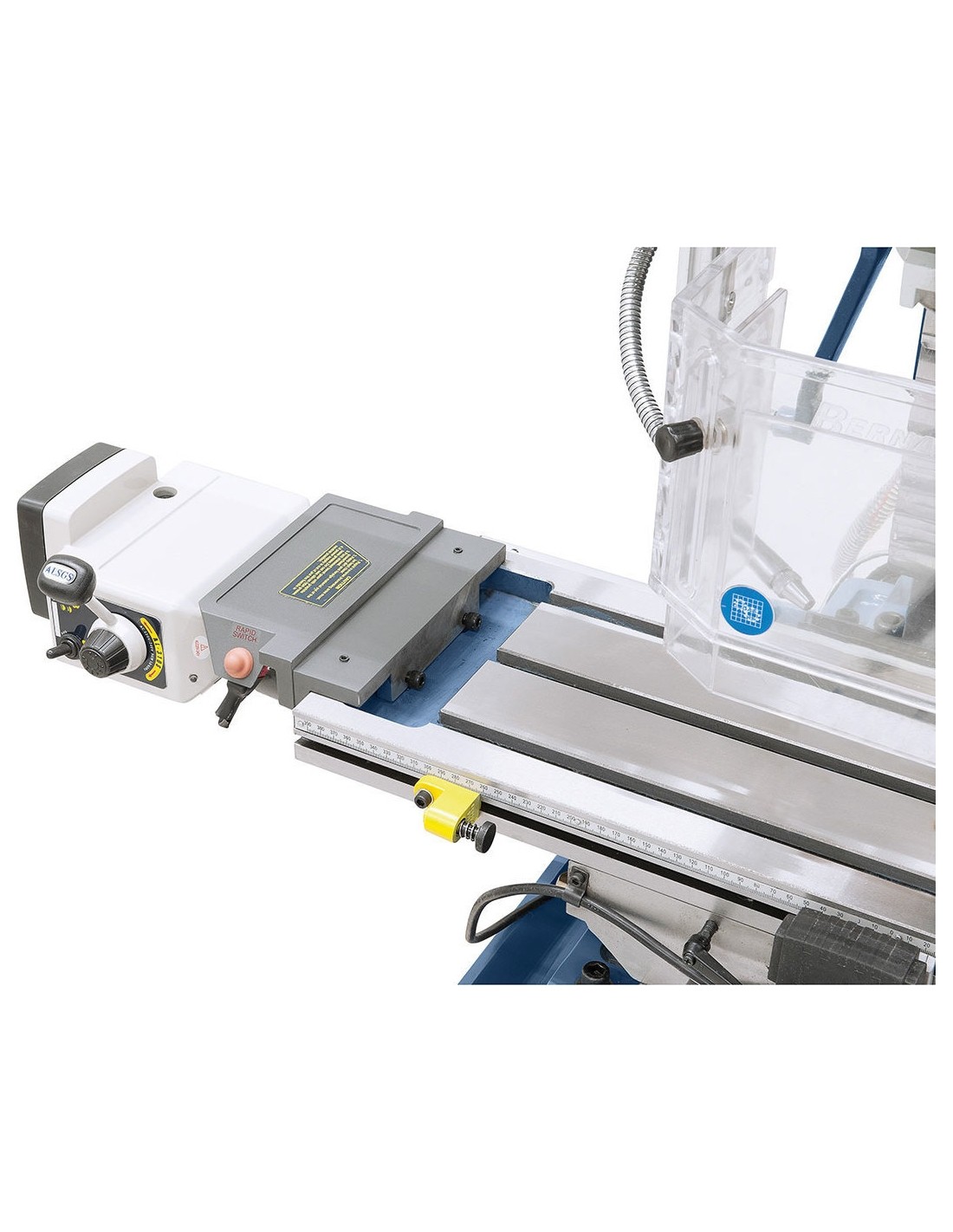

- x-Achsenvorschub AL 450 D
- Frequenzumrichter Delta VFD-E
- LED-Maschinenleuchte
- Digitale Drehzahlanzeige
- Digitale Pinolenhubanzeige
- Gewindeschneideinrichtung
- Lamellen-Schutzabdeckung
- Kühlmitteleinrichtung
- Längsmeßskala
- Gussuntergestell mit Kühlmittelrinne
