- Spindle taper
- ISO 40
- Weight approx.
- 750 kg
- Machine dimension (W x D x H)
- 1300 x 1400 x 2100 mm
- Drilling capacity in steel
- 35 mm
- Distance spindle to column
- 210 - 550 mm
- Spindle stroke
- 125 mm
- T-slot size
- 14 mm
- Motor power output S1 100%
- 0,85 / 1,5 kW
- Motor power input S6 40%
- 1,1 / 2,2 kW
- Thread cutting max.
- M 16
- Spindle speeds
- (8) 115 - 1750 rpm
- Table size
- 1000 x 240 mm
- Table tiltable
- -45° to +45°
- Distance spindle to table
- 120 - 375 mm
- Drilling capacity in cast iron
- 40 mm
- Travel longitudinal (x)
- 590 mm
- Travel cross (y)
- 180 mm
- Travel vertical (z)
- 320 mm
- Head tilting range
- 90°

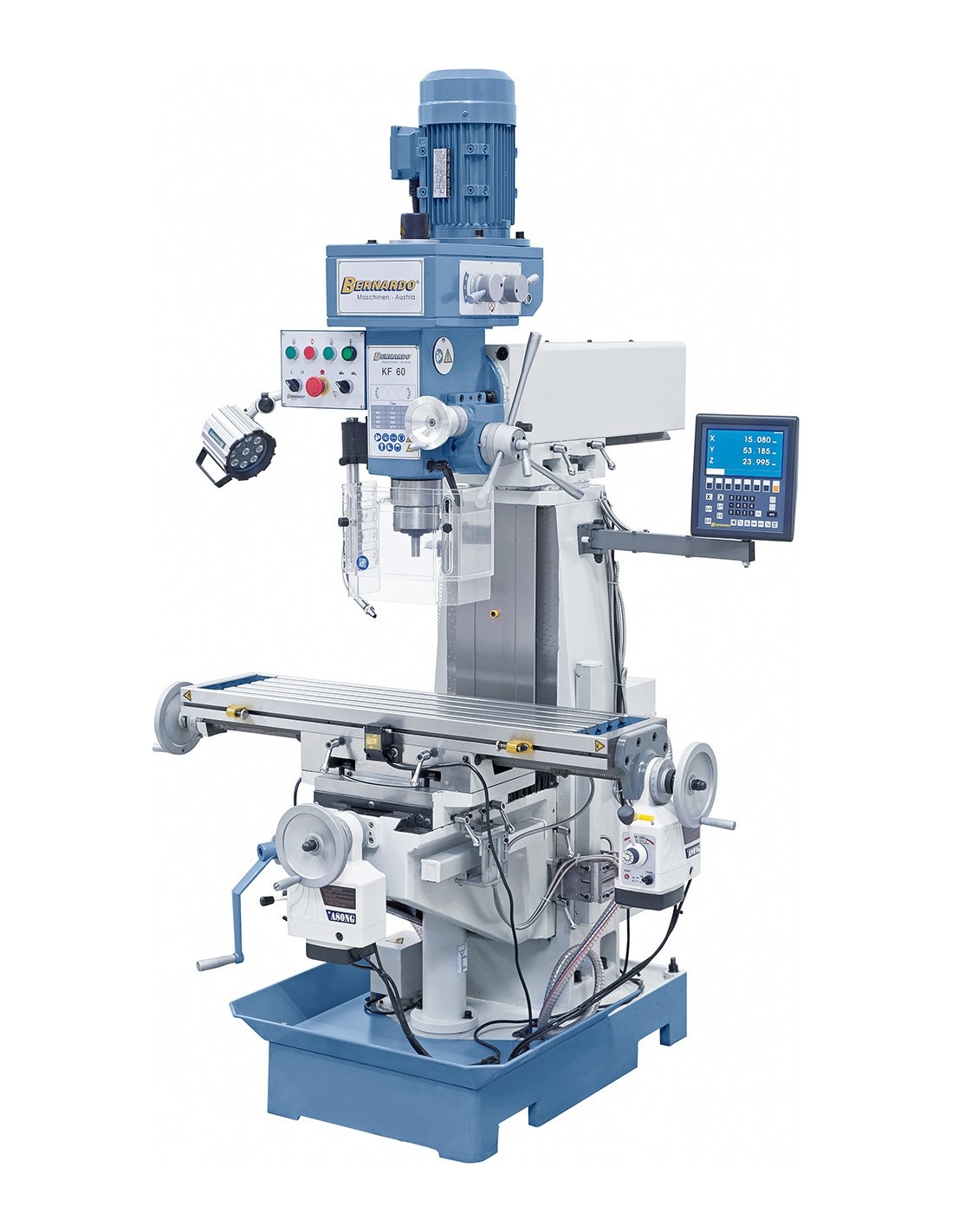

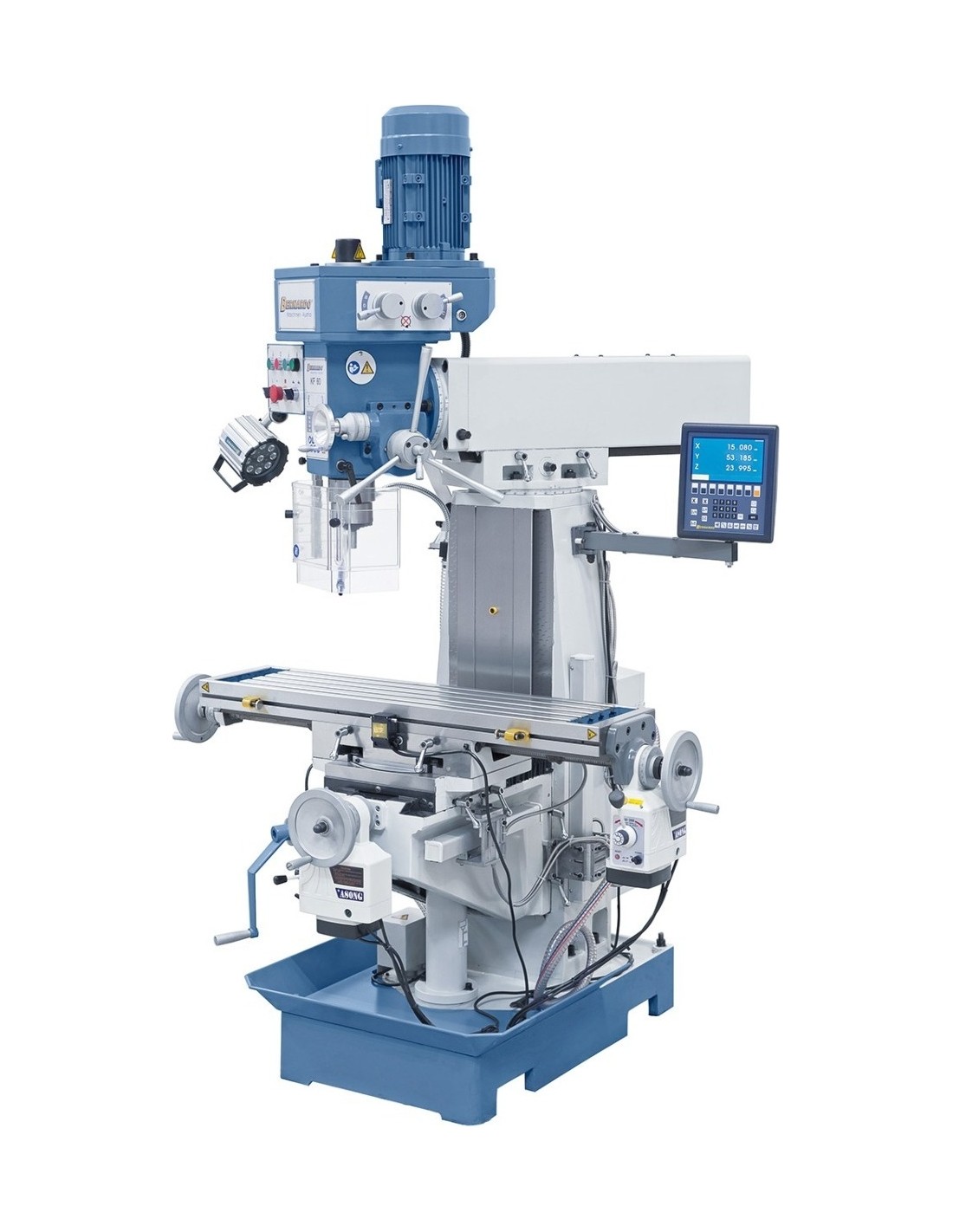

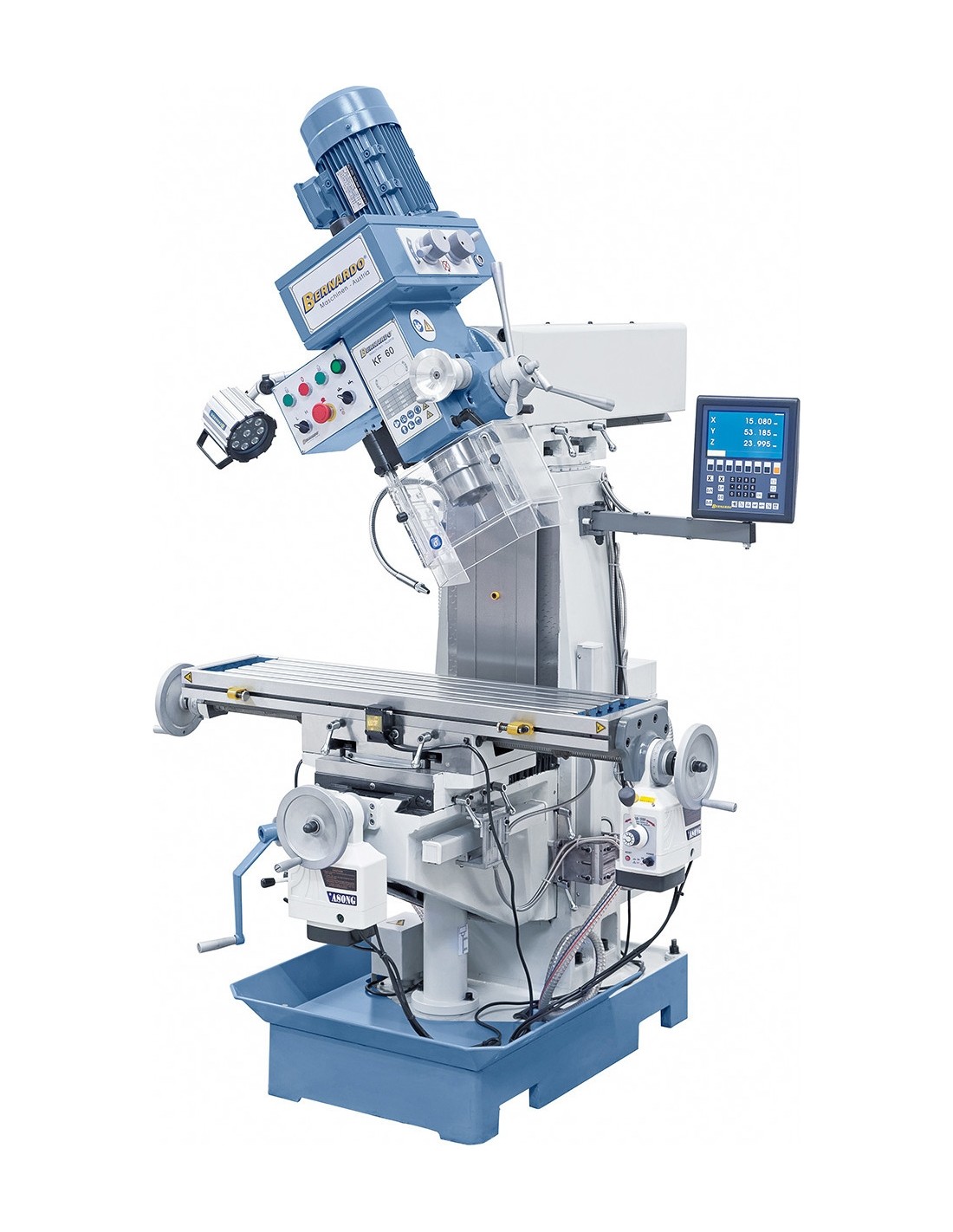

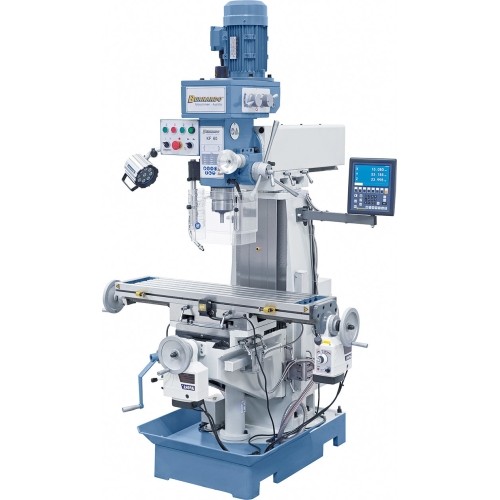

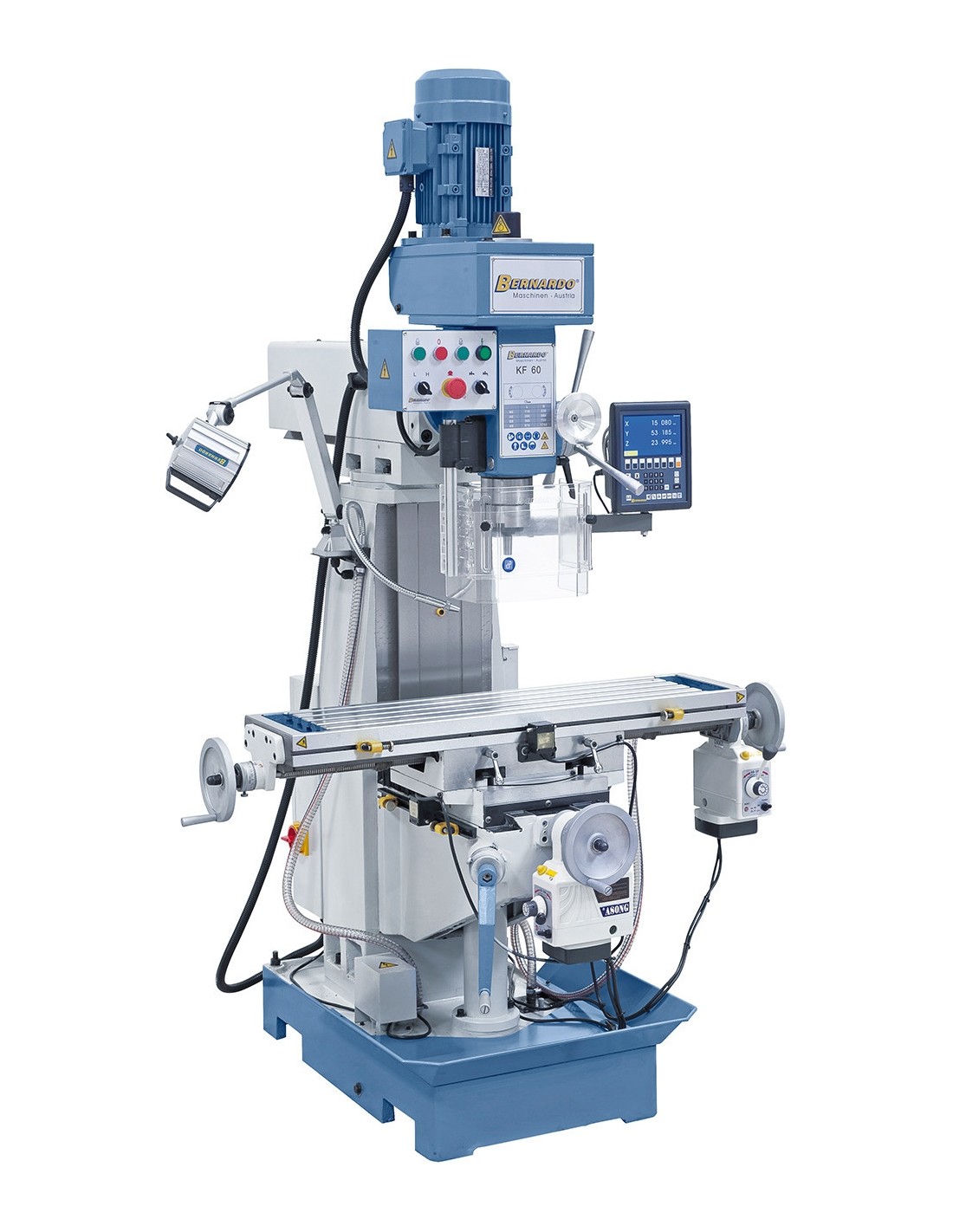

KF 60 incl. 3-axis digital readout ES-12 V and automatic table feed in x/y-axis
1092058
Price
€11,904.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(3+ pcs)
Delivery terms:
FREE pick up monday, june 8 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 750 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 750 kg.
Description
Properties

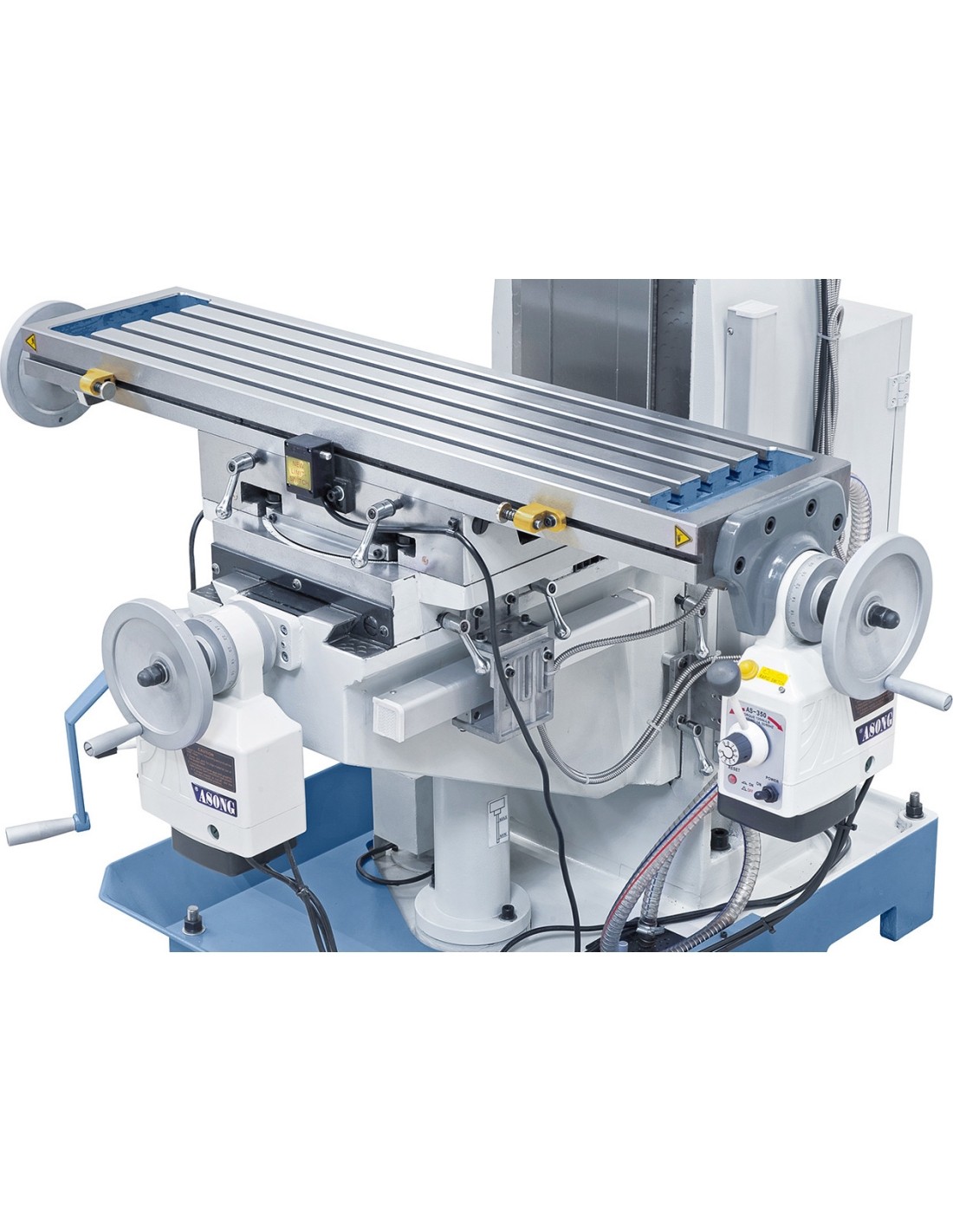

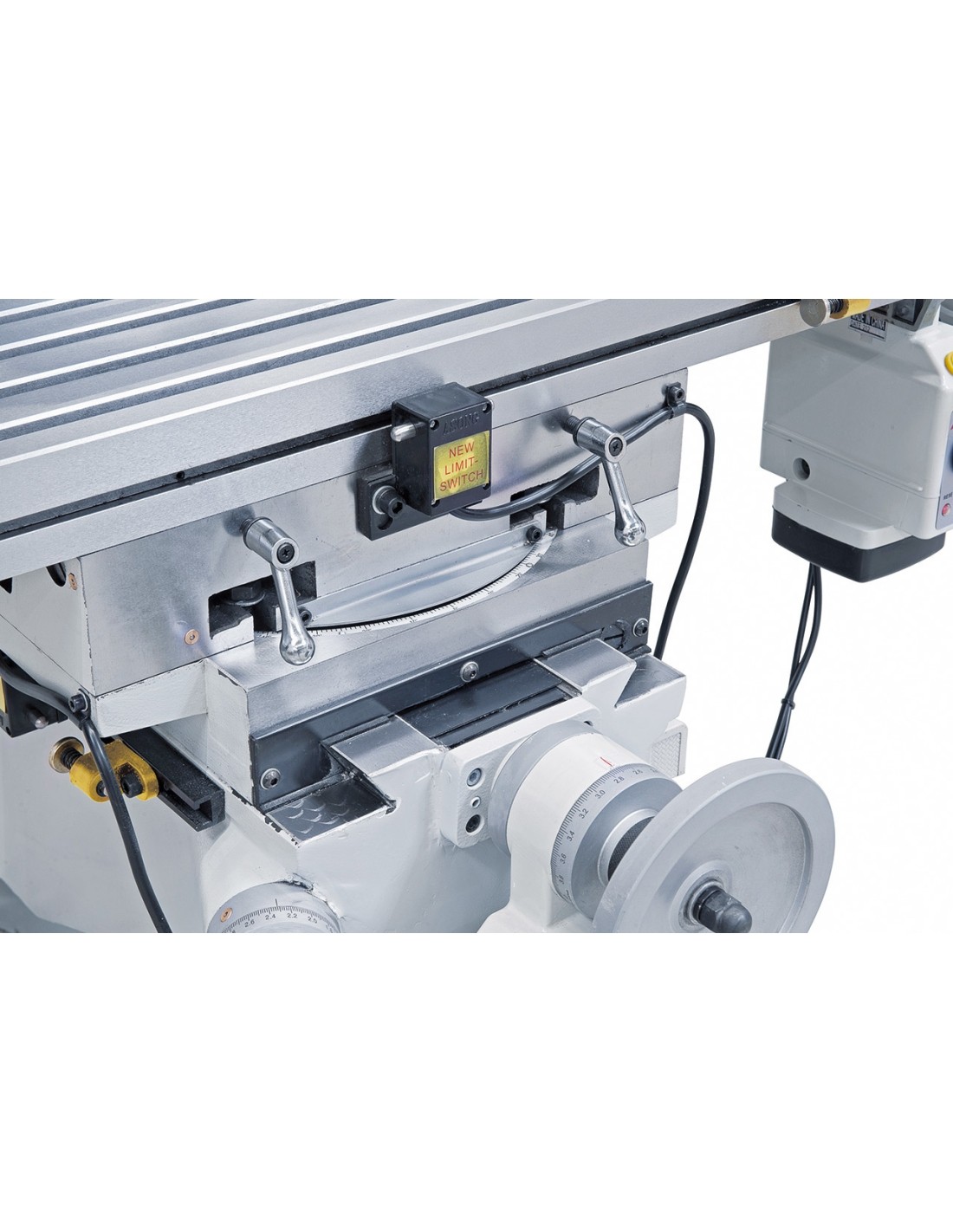

- Automatic table feed with rapid feed allows for convenient table adjustment in x- and y-axisÂ
- Large variety of applications, such as slotting, faces milling, reboring etc.Â
- Tiltable milling table -45° to +45° increases range of applications significantly
- Complete with position display in all 3 axis raises productivity

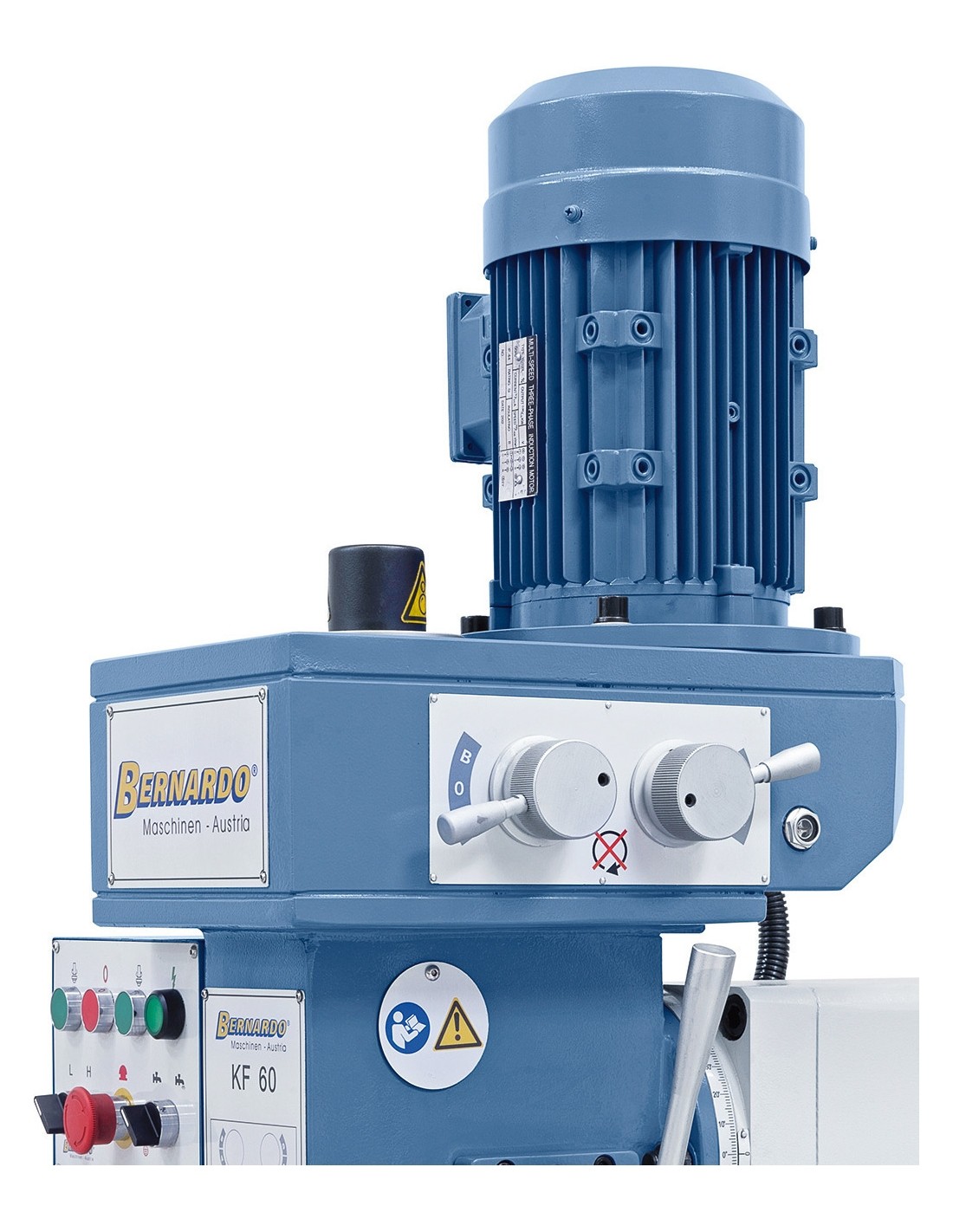

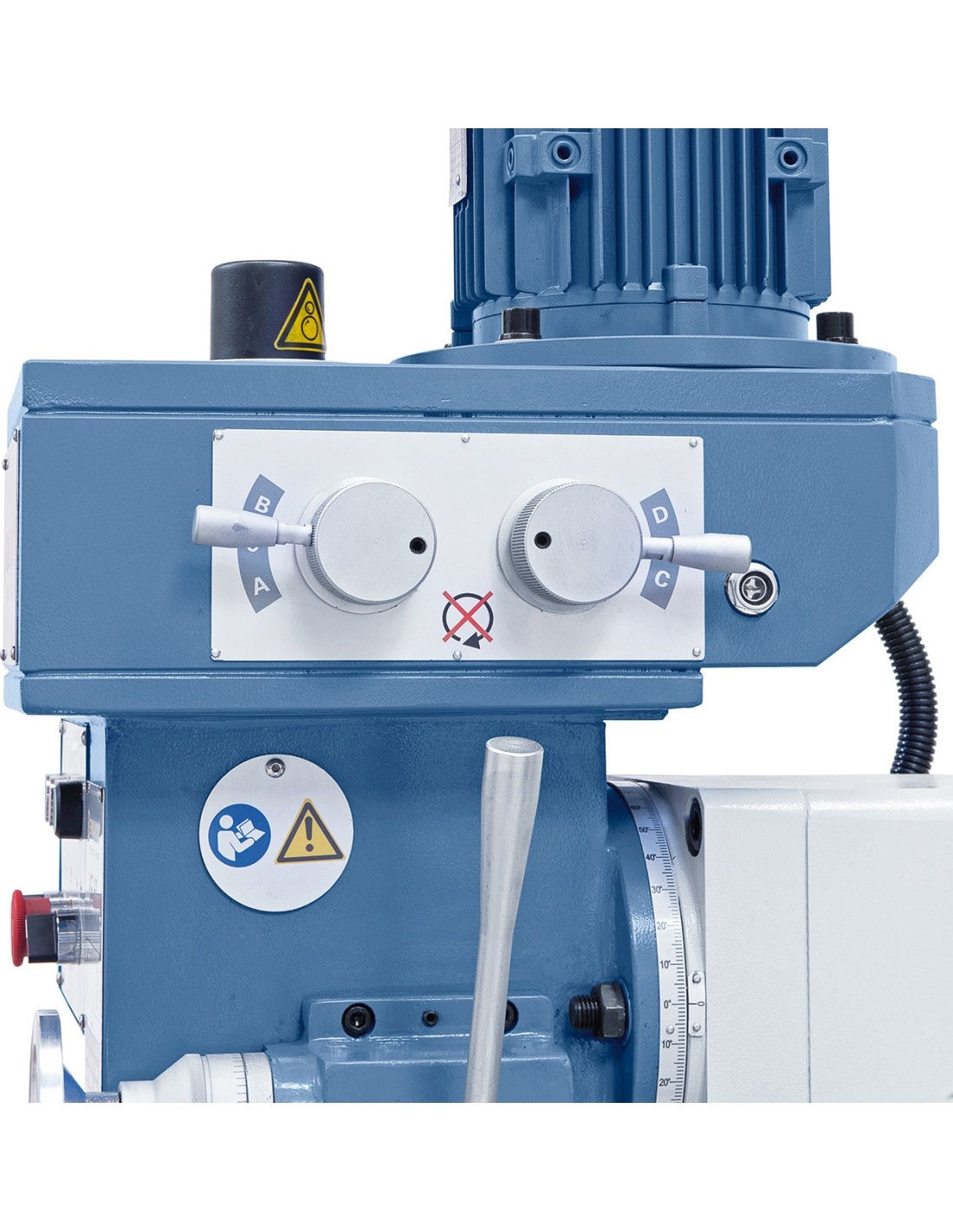

- Polished gear wheels, in oil bath, ensure smooth running

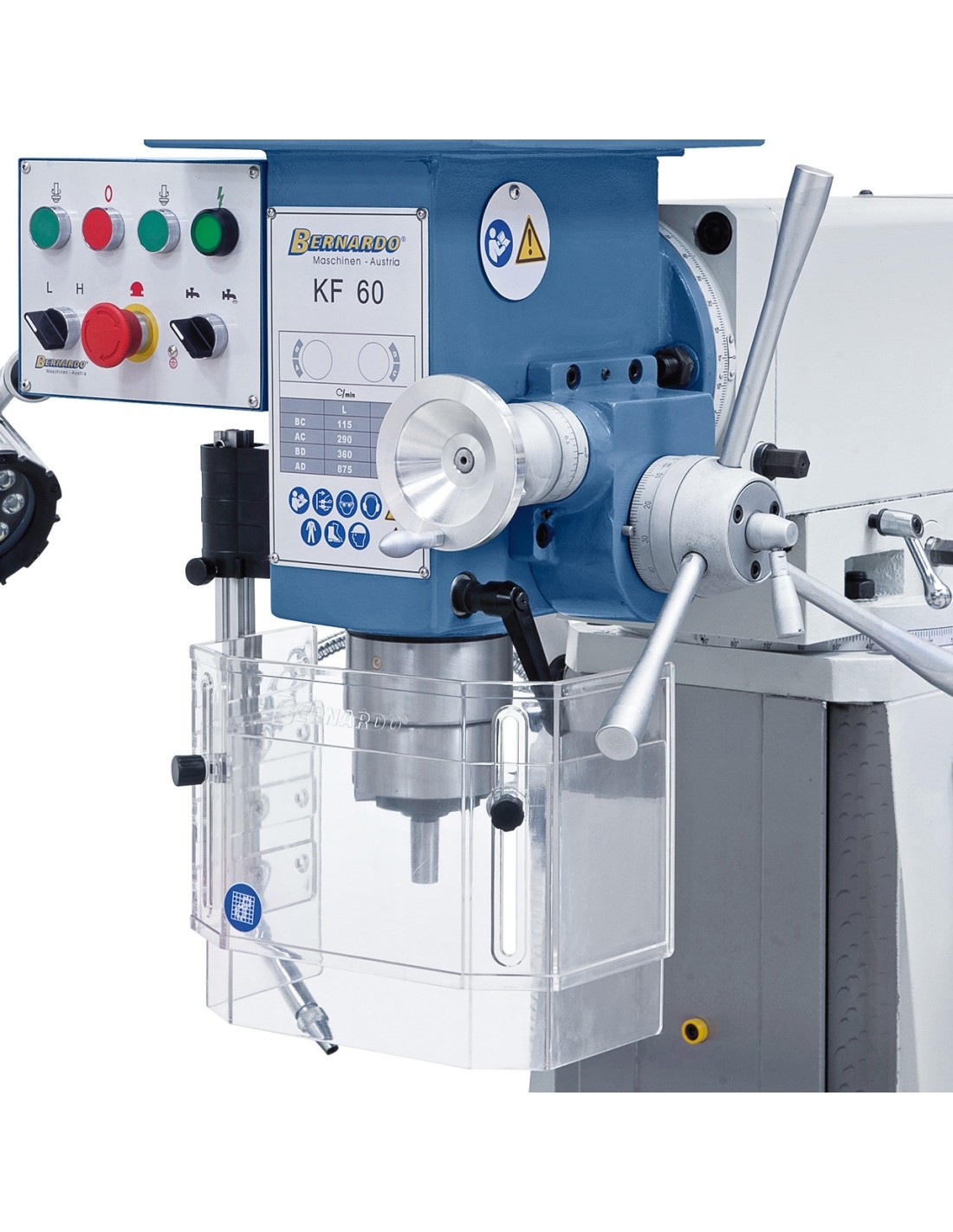

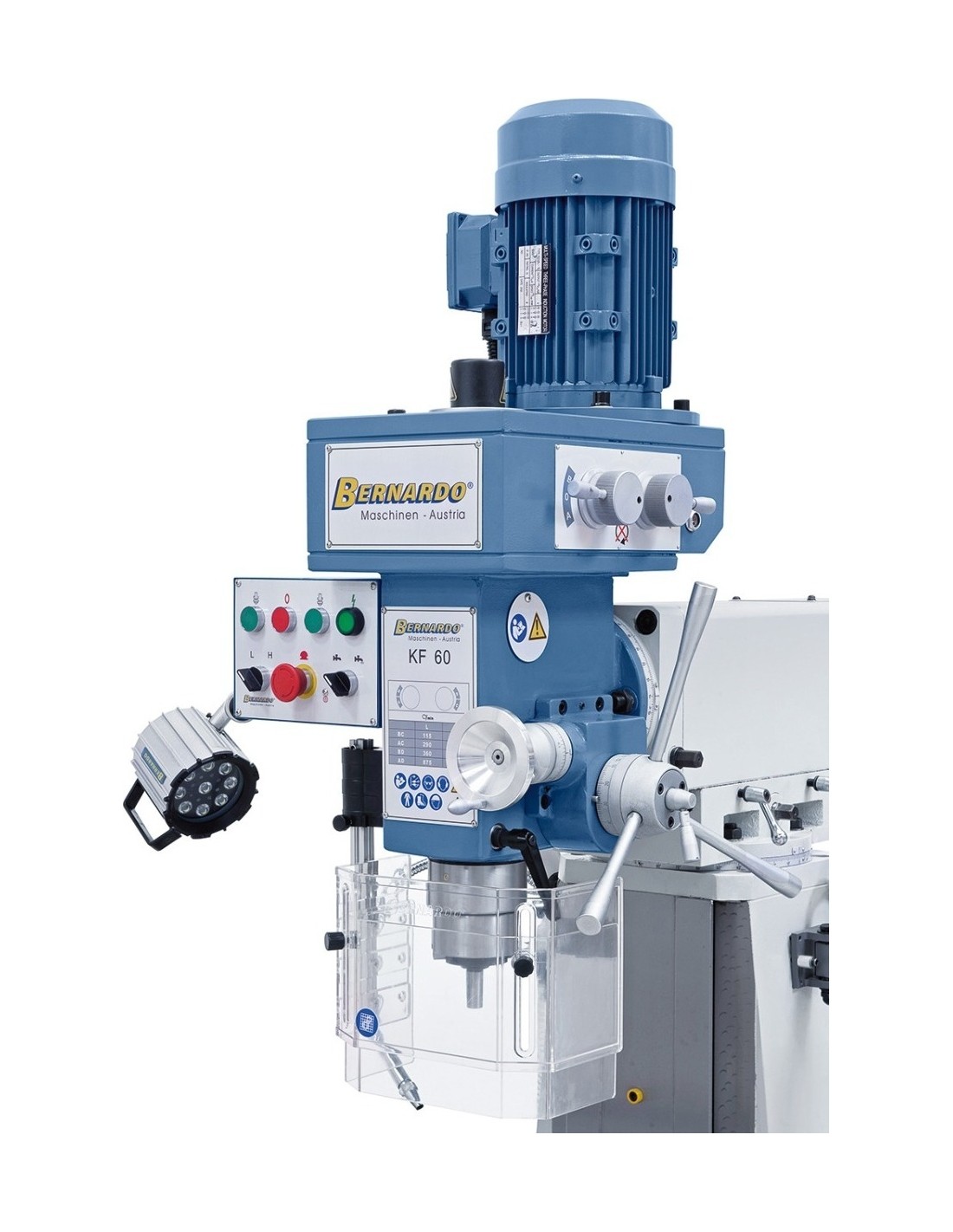

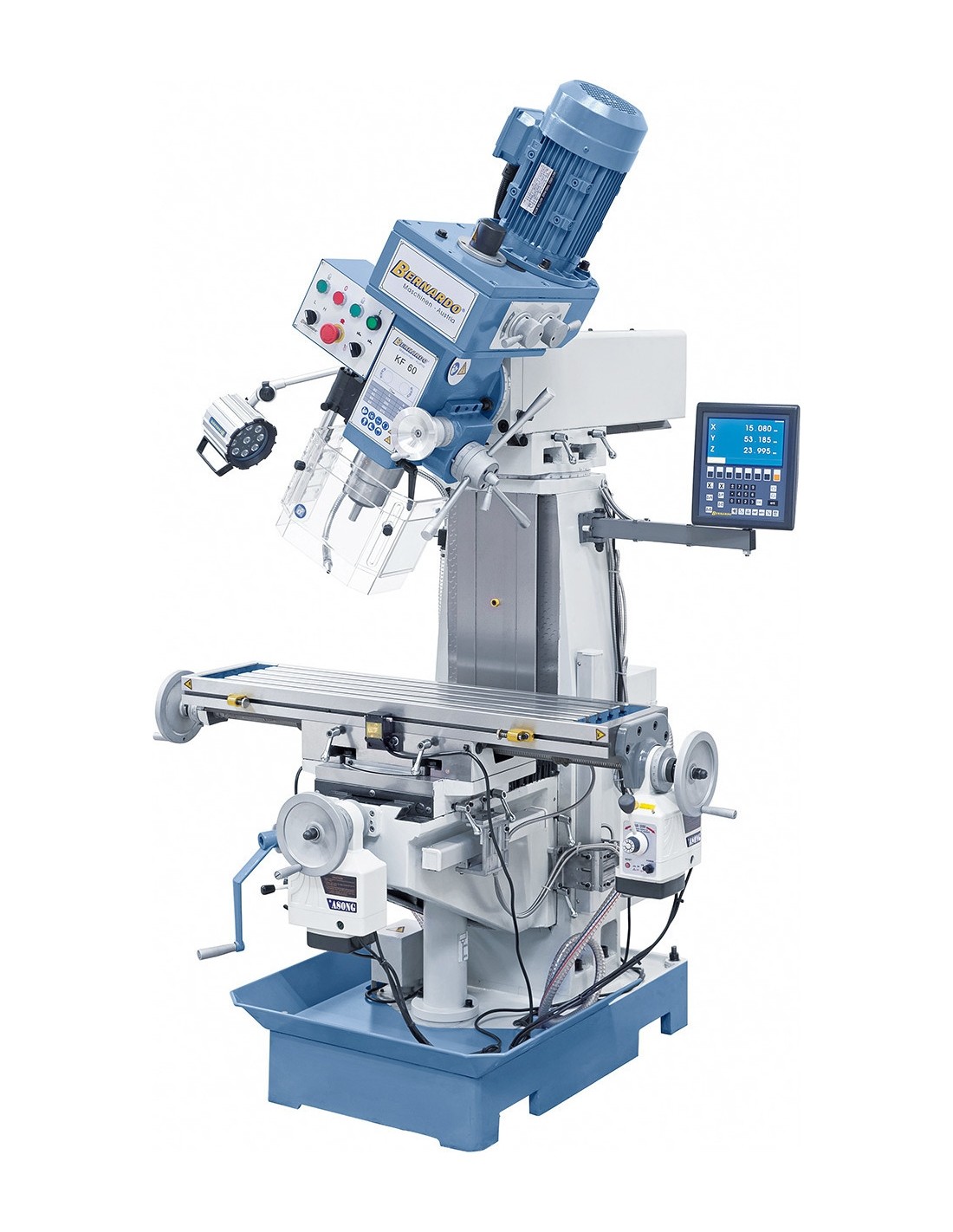

- Milling head tilts to both sides for angular boring, milling of chamfers etc.Â
- Clutch allows easy adjustment from manual to fine feedÂ
- Precision bearings ensure high concentricity of spindle (0.015 mm)Â

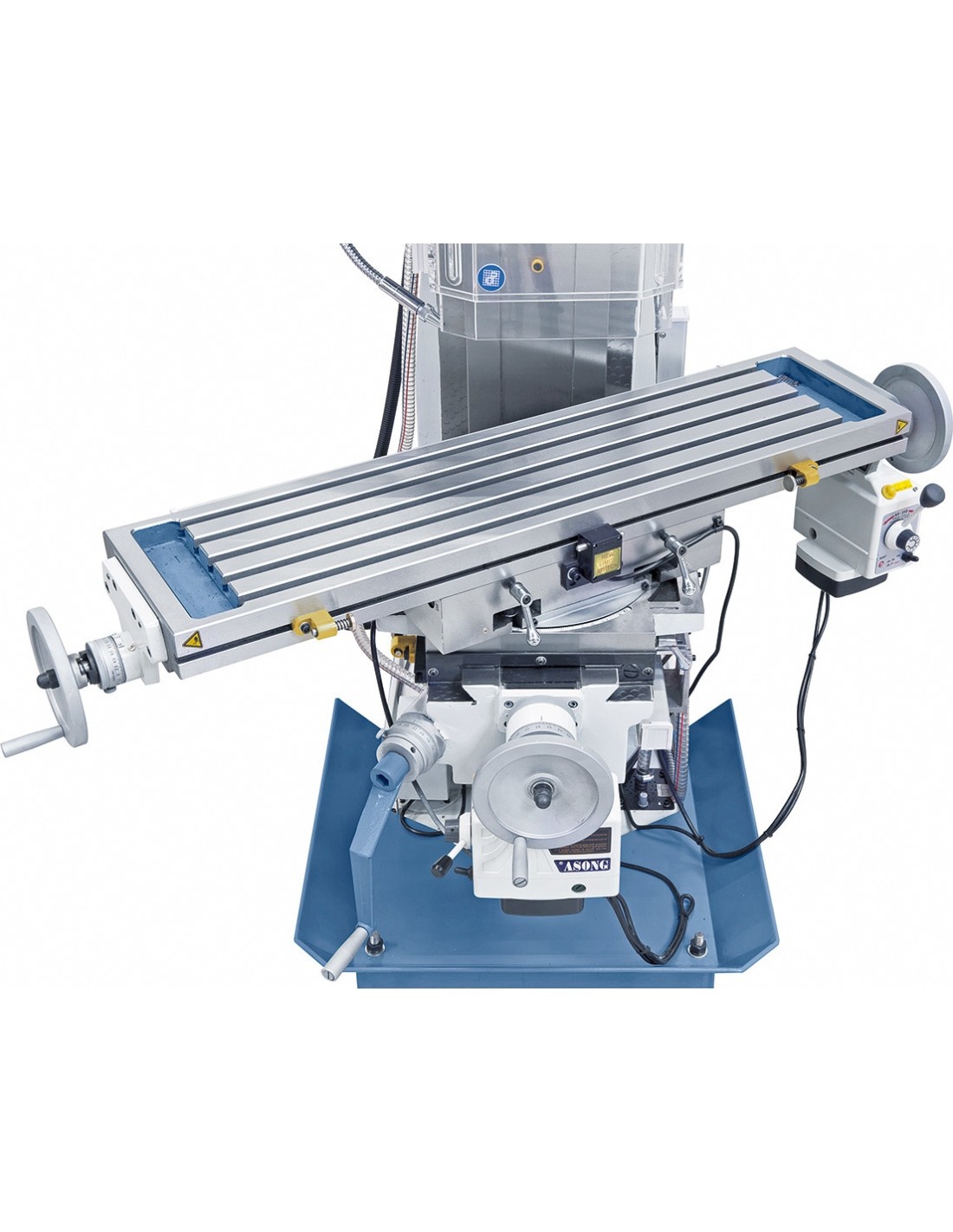

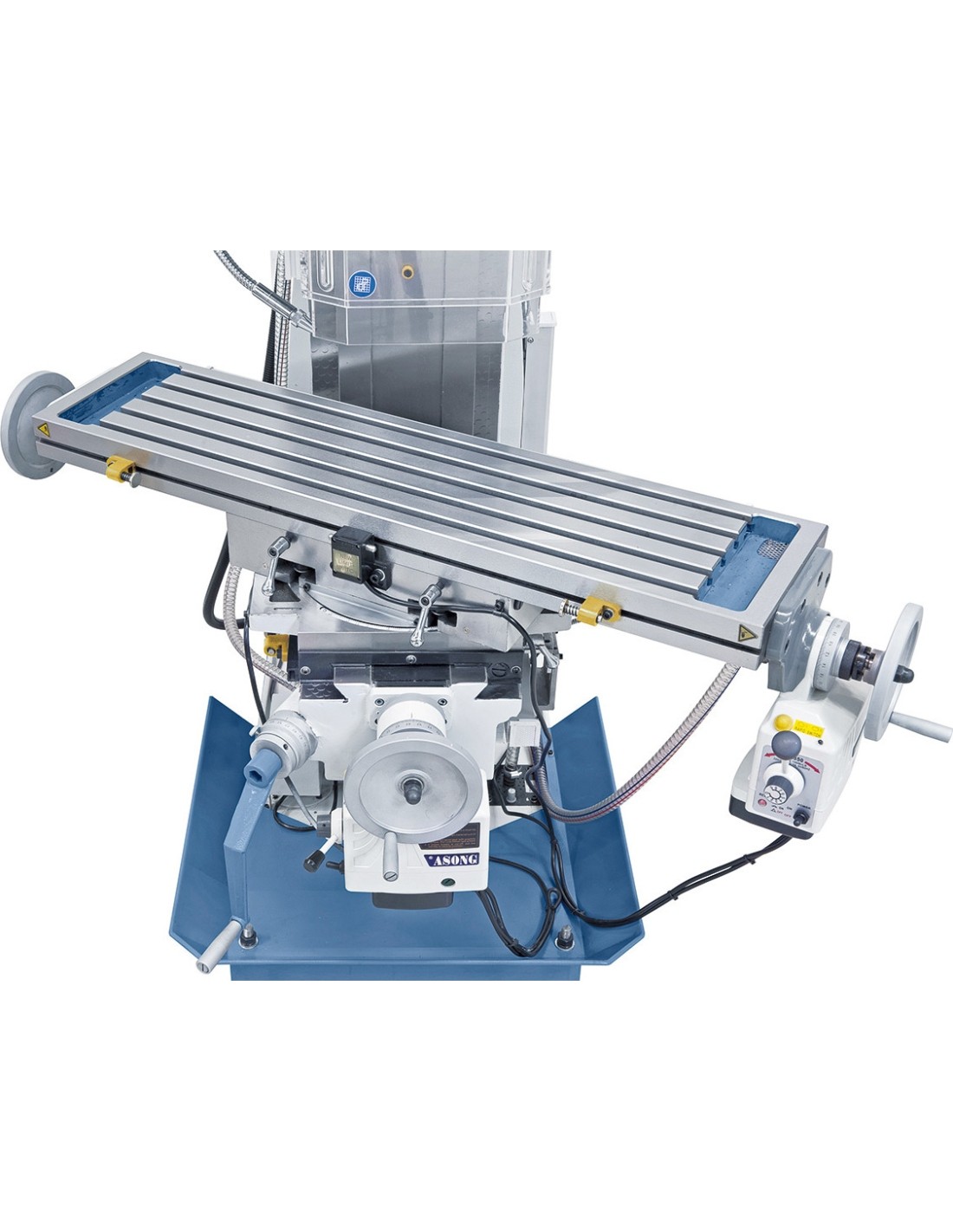

- Large, surface treated, solid cross table
- Extensive range of accessories comes standardÂ
Standard accessories

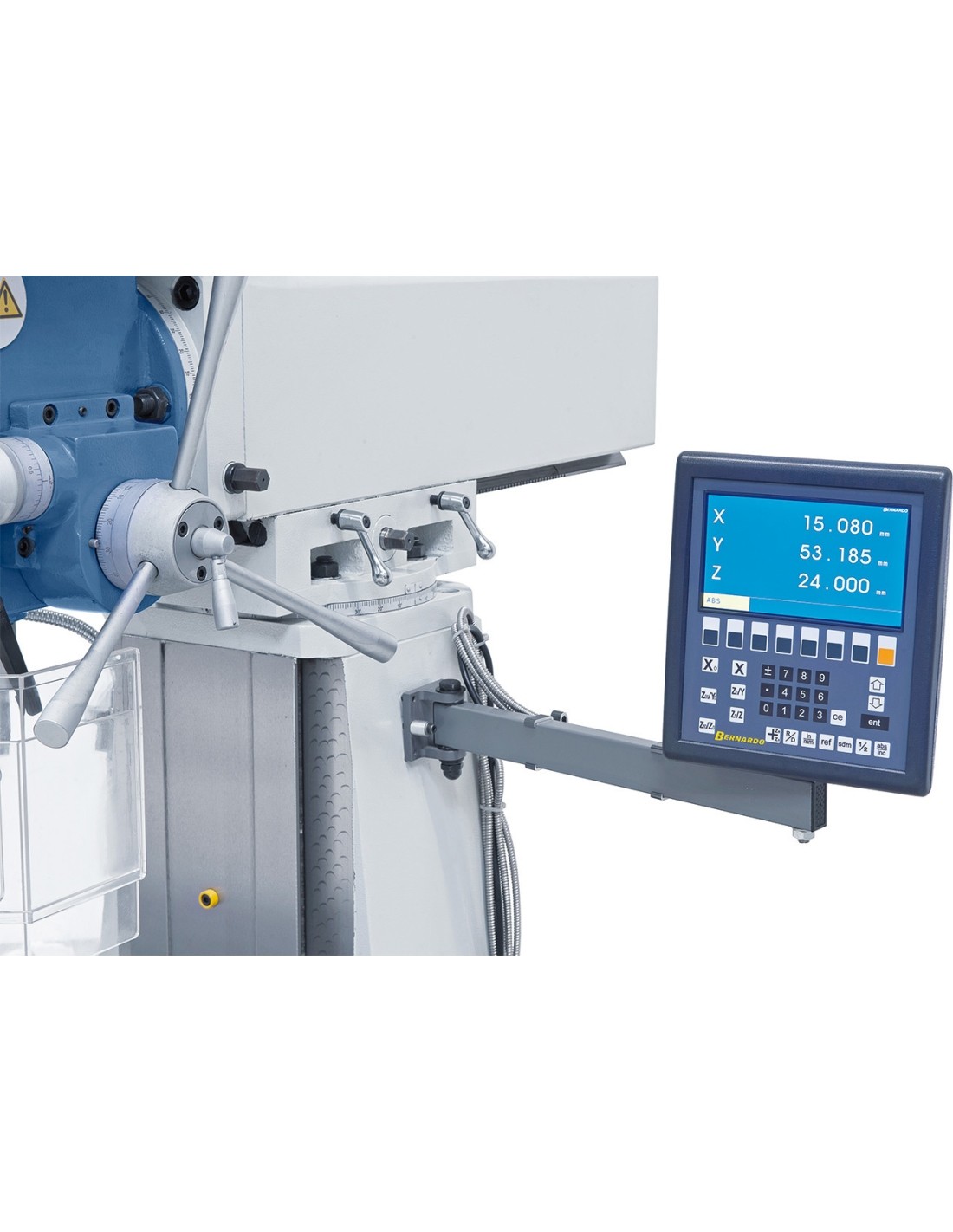

- 3-axis digital readout ES-12 V with LCD-display
- Drawbar M 16
- LED machine light
- Coolant systemÂ
- Adapter ISO 40 / MT 3
- Adapter ISO 40/B18
- Morse taper drill sleeve MT 3/2
- Height adjustable protective cover
- Automatic table feed in x-axisÂ
- Automatic table feed in y-axis
