Spindle taper
MT 2
Weight approx.
60 kg
Machine dimension (W x D x H)
530 x 490 x 820 mm
Drilling capacity in steel
16 mm
Face mill capacity max.
50 mm
End mill capacity max.
20 mm
Distance spindle to column
170 mm
Spindle stroke
50 mm
Spindle speed, stepless
50 - 1125 / 100 - 2250 rpm
Travel (x / y)
230 / 140 mm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
200 mm
T-slot size
10 mm
Motor power output S1 100%
0,50 kW / 230 V
Motor power input S6 40%
0,80 kW / 230 V
Distance spindle to table max.
275 mm
Table size
400 x 120 mm

Gręžimo ir frezavimo staklės Bernardo KF 16 Vario

1055668
Price €1,680.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 30 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 60 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 60 kg.

Description

Properties

  • Height adjustable protective cover with micro switch for increased safety
  • Dovetail guiding in all axes, adjustable via gibs
  • Numerous application possibilities, such as face milling, slotting etc.

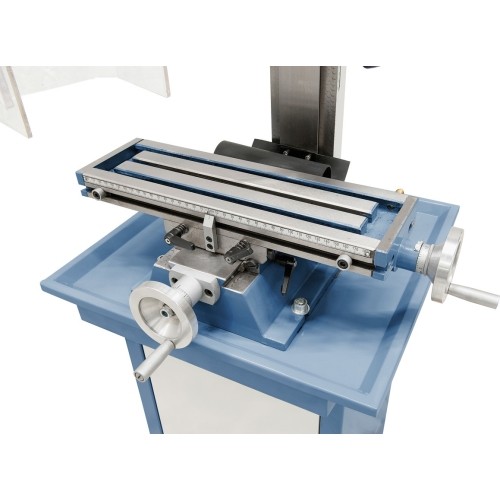

  • Large cross table with scale
  • Electronic stepless drive for precise results
  • Solid and vibration-free grey cast-iron machine base
  • Precise bearings ensure high concentricity of spindle
  • Mill head tilts to both sides (-90º to +90º)
  • Wide speed range (2 steps) from 50 - 2250 rpm

Standard accessories

  • Drawbar M 10
  • Drill chuck arbor MT 2 / B 16
  • EMC filter according to CE standard
  • Height adjustable protective cover
  • Tools
