Spindle taper
MT 4
Weight approx.
445 kg
Machine dimension (W x D x H)
1270 x 960 x 2120 mm
Drilling capacity in steel
32 mm
Distance spindle to column
220 mm
Spindle stroke
125 mm
Spindle speed, stepless
75 – 480 / 425 – 2750 rpm
Travel (x / y)
420 / 200 mm
Mill head tiltable
-60° to +60°
Height adjustment of mill head
390 mm
T-slot size
14 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Table size
800 x 240 mm
Distance spindle to table
95 - 485 mm
Lifting motor
90 W
Drilling capacity in cast iron
40 mm
Spindle feed
(3) 0,10 / 0,18 / 0,26 mm/rev.
Milling head max.
80 mm

Gręžimo ir frezavimo staklės Bernardo FM 55 HSV Vario

1055653
Price €10,206.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 22 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 445 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 445 kg.

Description

Properties

  • Delta- frequency inverter ensures variable speed adjustment with optimal torque
  • Wide range of applications, such as slotting, face milling, circular milling etc.
  • Automatic table feed with rapid feed allows quick table adjustment in x-axis
  • Automatic spindle feed and thread cutting device come standard
  • Dovetail guiding in x-, y- and z-axis, adjustable by gibs
  • Mill head tilts to both sides for angular boring, groove milling and many more

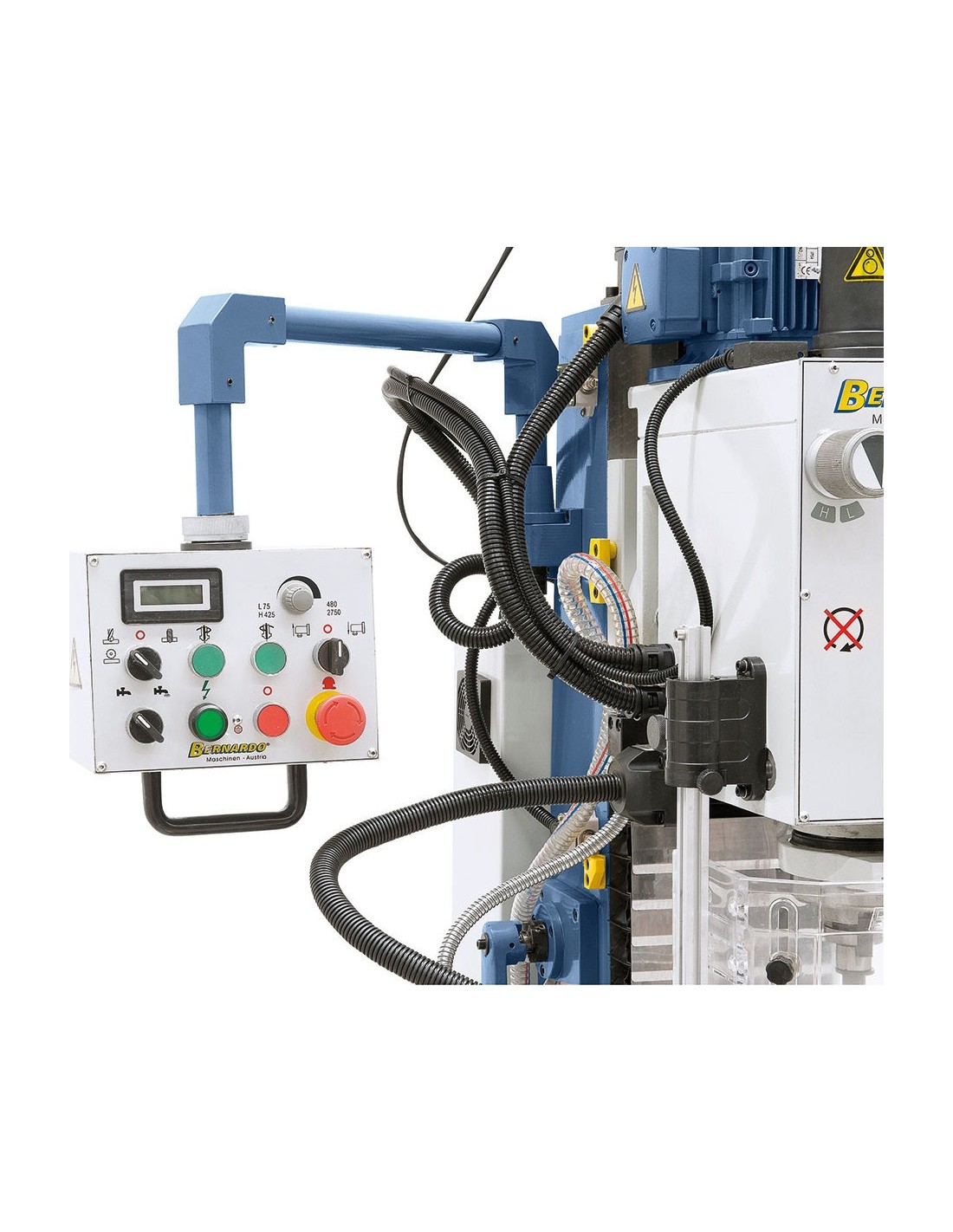

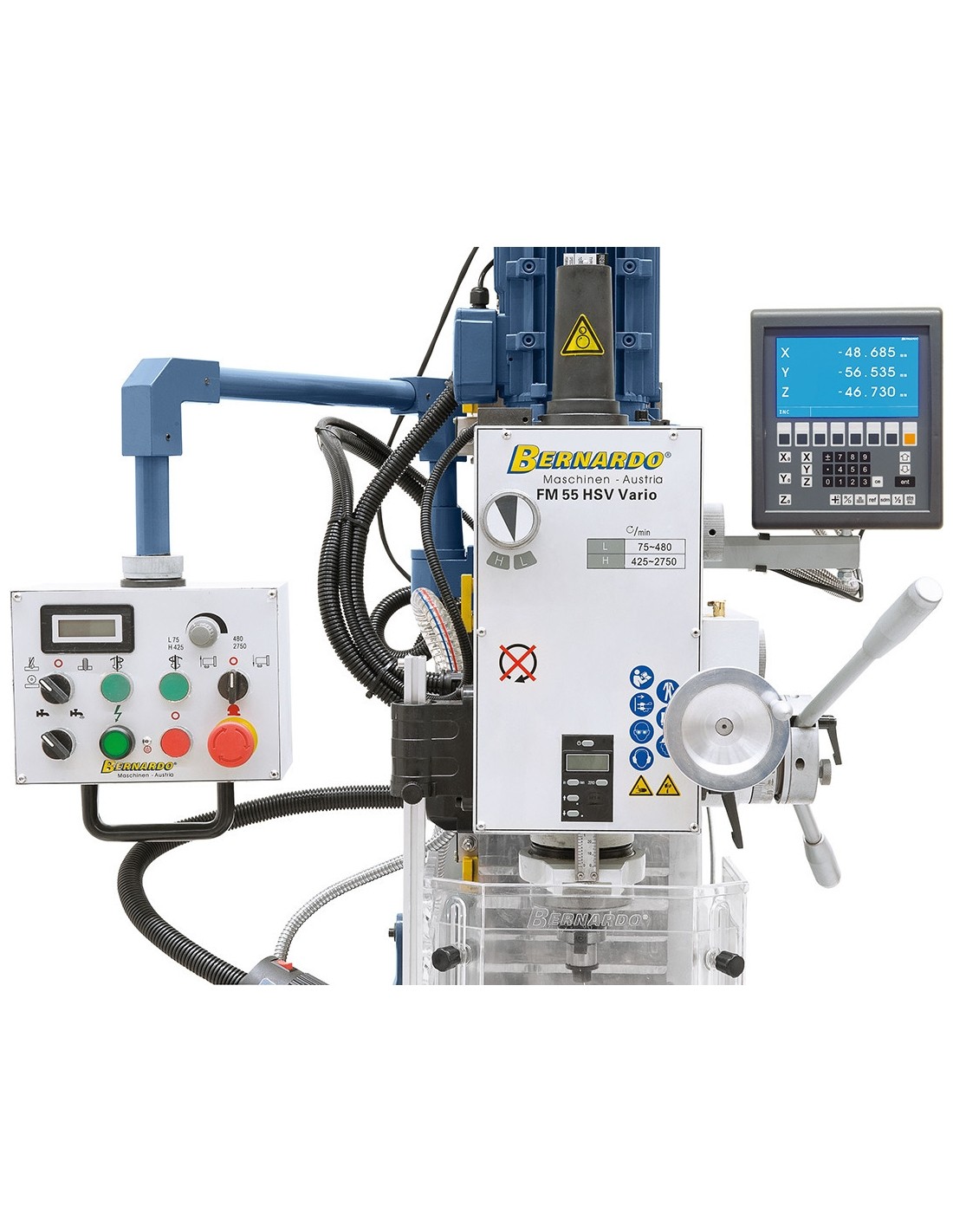

  • Digital display for speed and spindle stroke comes standard
  • Solid, grey cast-iron machine stand eliminates vibrations
  • Powerful coolant device included in machine base

Standard accessories

  • 3-axis digital readout ES-12 V with LCD-Display
  • Keyless drill chuck 3 – 16 mm / B 16
  • Morse taper drill sleeve MT 4 – B 16
  • Drawbar M 16
  • Morse taper drill sleeve MT 4 / 3
  • Taper shell end mill holder MT 4 / 27 mm
  • Automatic spindle feed
  • Height adjustable protective cover

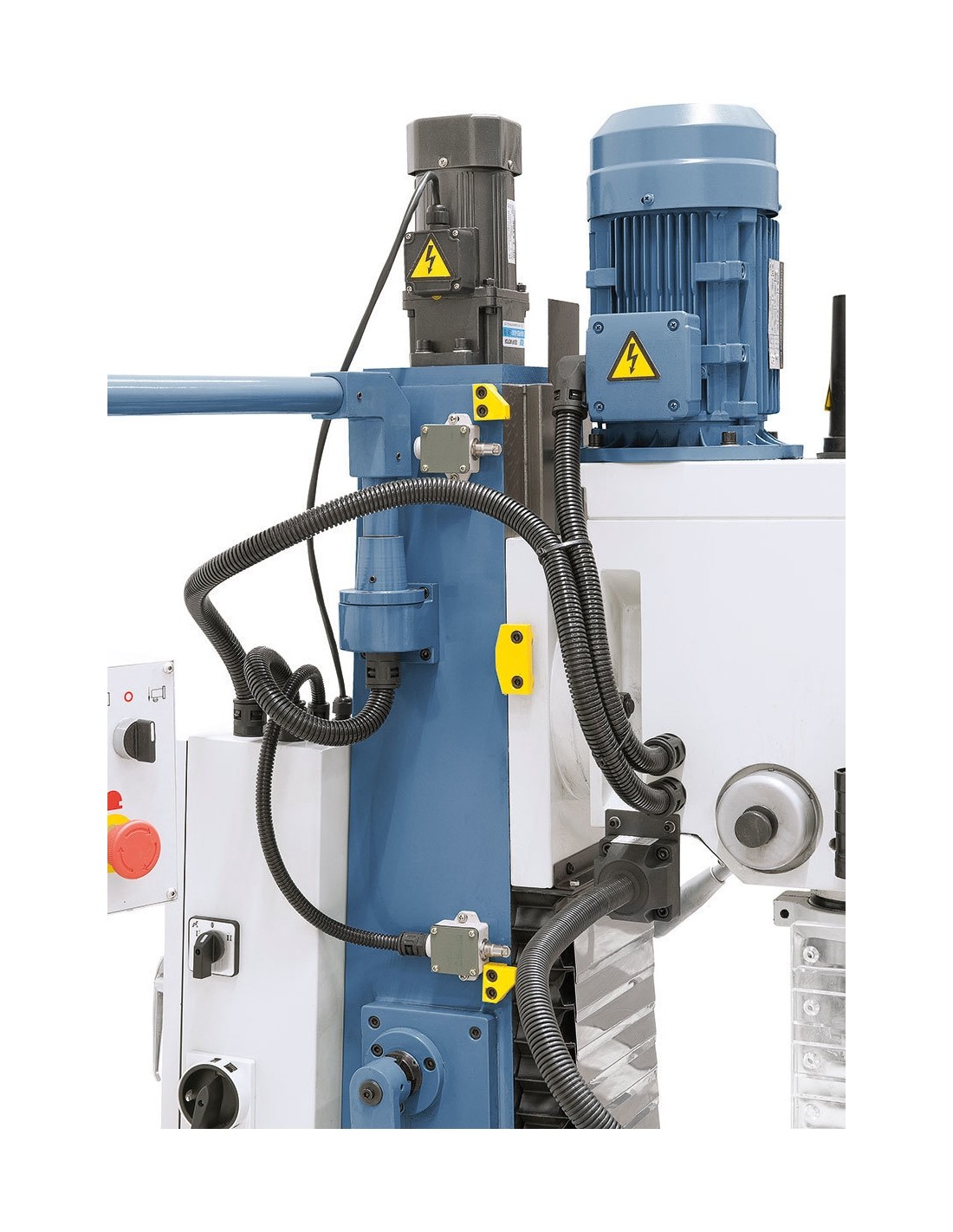

  • Lifting motor for mill head

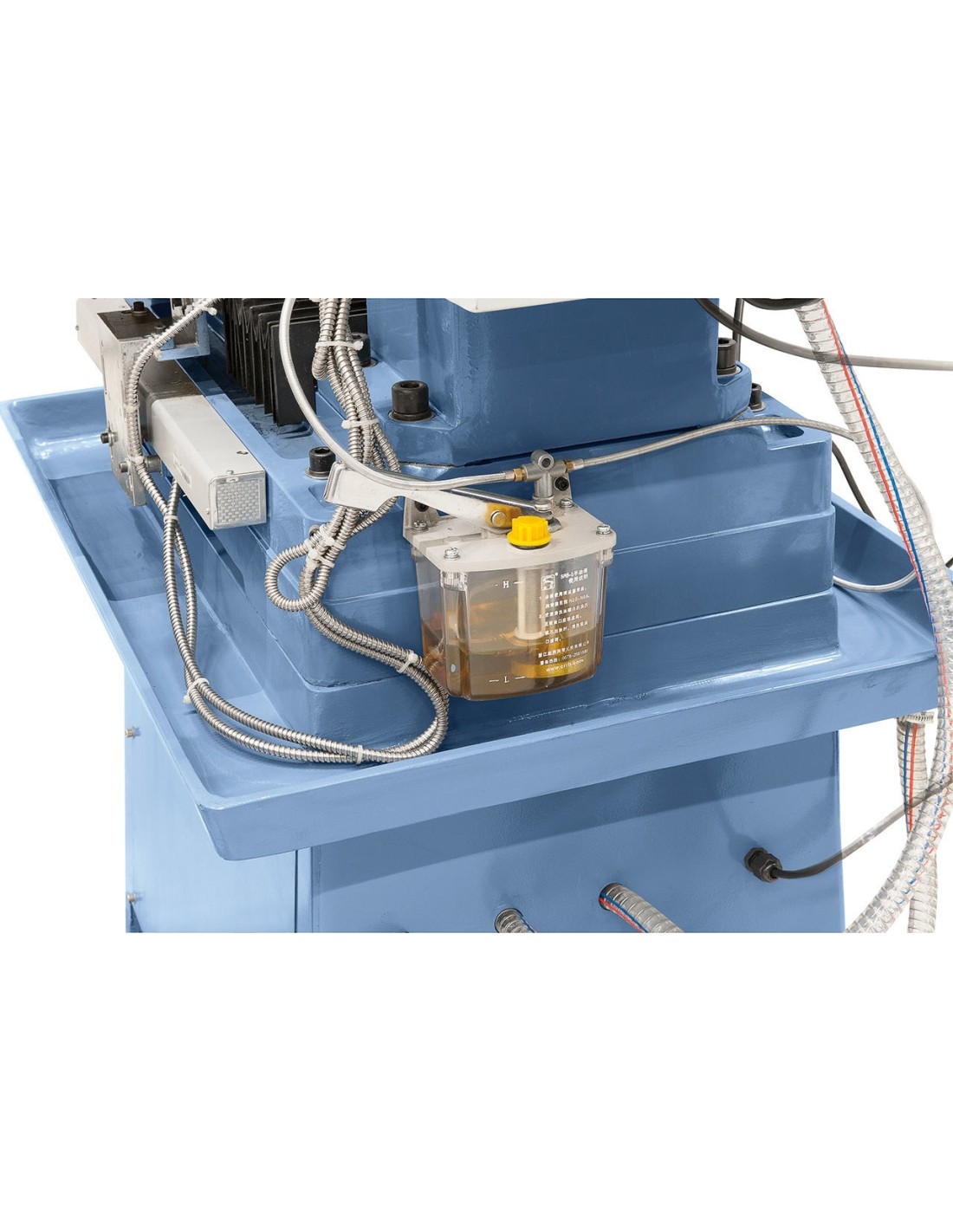

  • Central lubrication

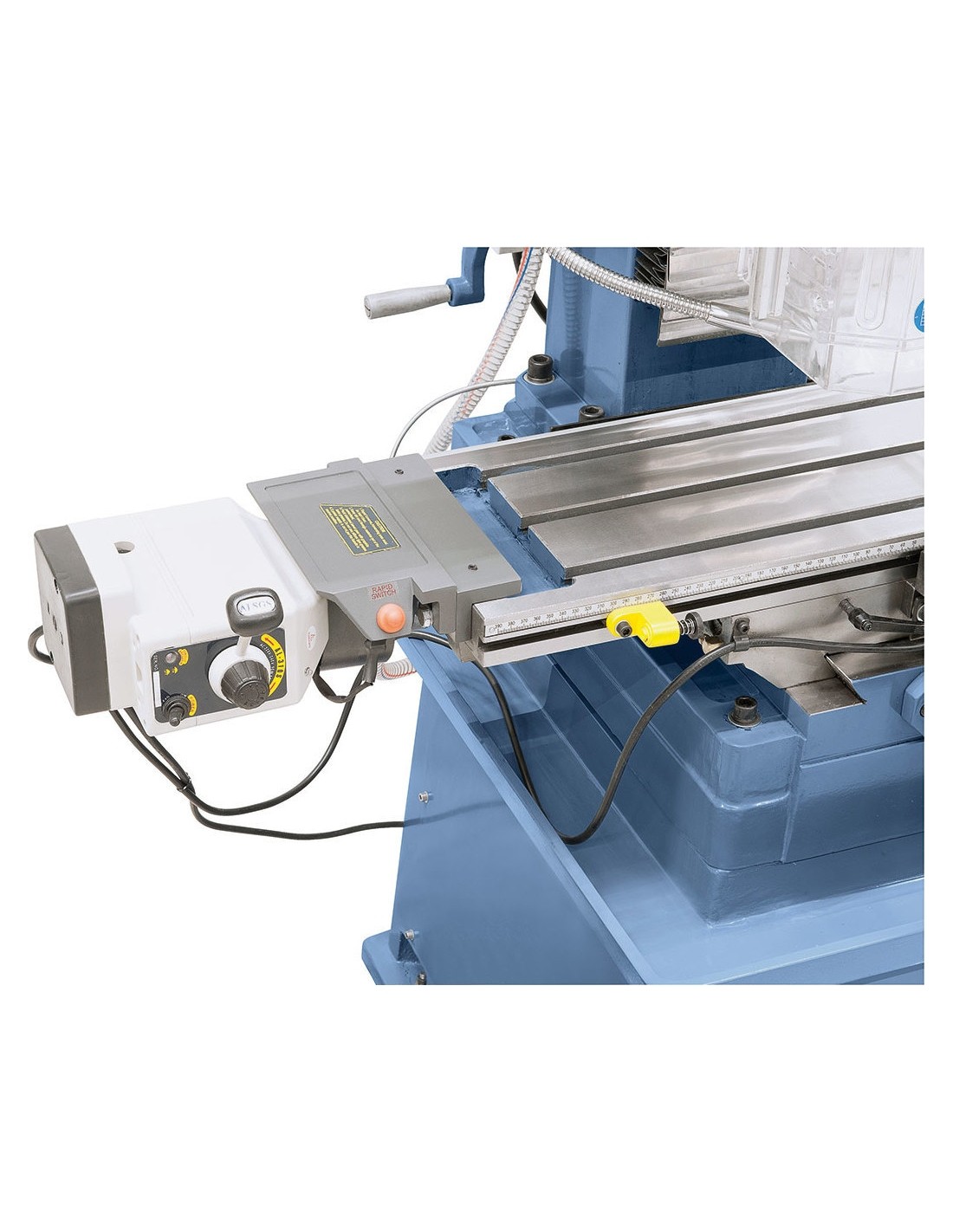

  • x-axis power feed AL 450 D

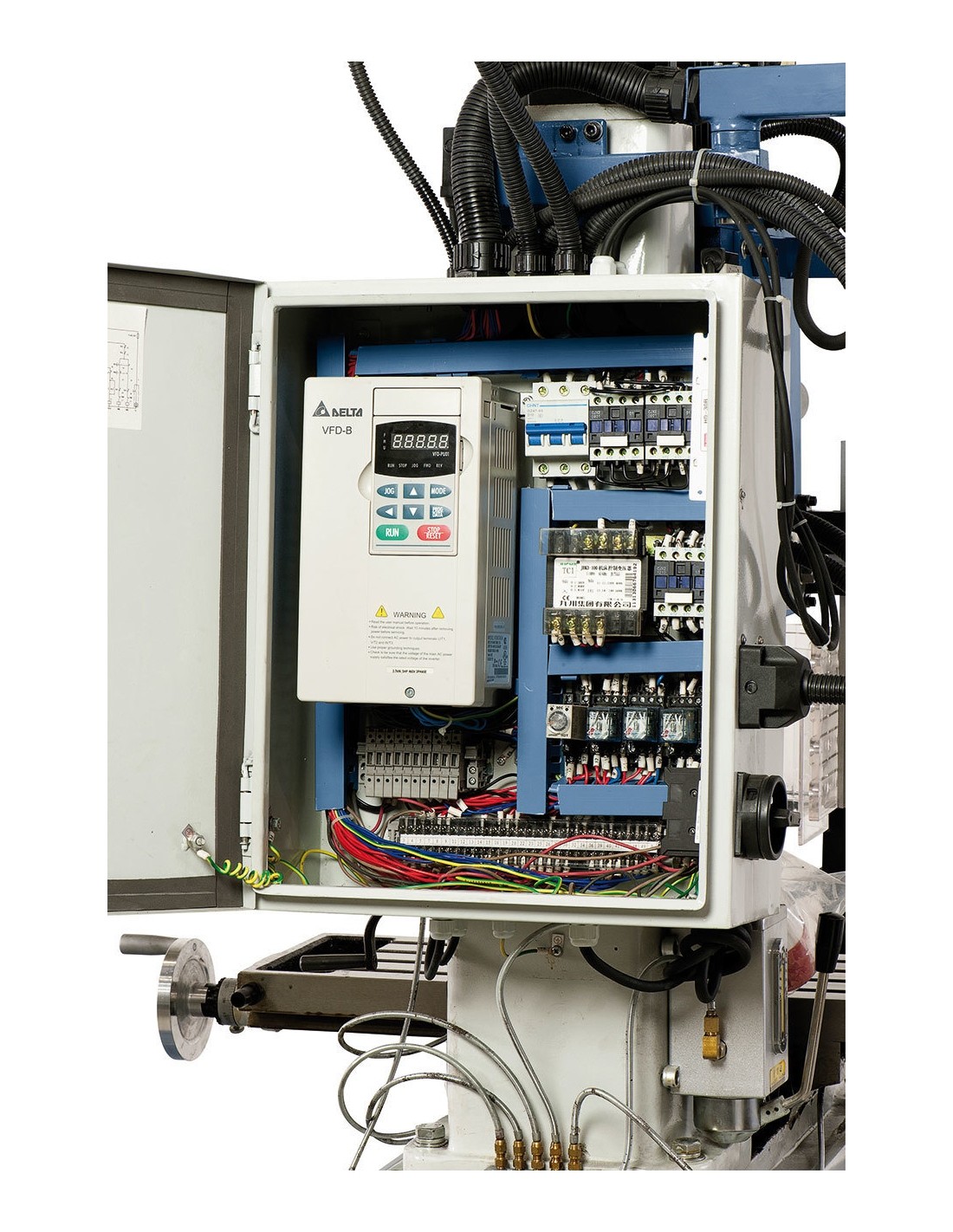

  • Frequency inverter Delta VFD-E
  • LED machine light
  • Digital speed indication
  • Digital spindle stroke indication
  • Thread cutting device
  • Steel cover
  • Coolant device
  • Longitudinal scale
  • Cast iron stand with coolant groove
  • Tools
