Weight approx.
235 kg
Machine dimension (W x D x H)
500 x 750 x 1620 mm
Distance spindle to column
260 mm
Spindle stroke
140 mm
T-slot size
14 mm
Motor power output S1 100%
0,85 / 1,1 kW (400 V)
Motor power input S6 40%
1,1 / 1,5 KW (400 V)
Drilling capacity max.
32 mm
Thread cutting max.
M20
Morse taper
MT 3
Spindle speeds
(12) 125 - 3030 rpm
Feed range
0,10 / 0,20 / 0,30 mm/rev.
Distance spindle to base
700 mm
Drill chuck
1 - 13 mm / B 16
Column diameter
110 mm
Working surface of base
340 x 335 mm

GB 30 TV

1091987
Price €5,933.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 2 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 235 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 235 kg.

Description

Properties

  • Precisely treated base includes T-slots and integrated coolant device
  • LED working light and automatic tool release device as standard
  • Hardened, polished gear wheels ensure smooth running
  • Absolute concentricity ≤0,02 mm, measured at spindle
  • 3 automatic spindle feeds come standard
  • Switch for left and right spindle rotation
  • T-slots allow clamping of workpiece
  • 2-speed motor allows 12 speed settings
  • Drill depth stop includes scale
  • Lever on gear head for quick speed adjustment
  • Powerful motor even at permanent use

Standard accessories

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Automatic tool release device
  • LED working light

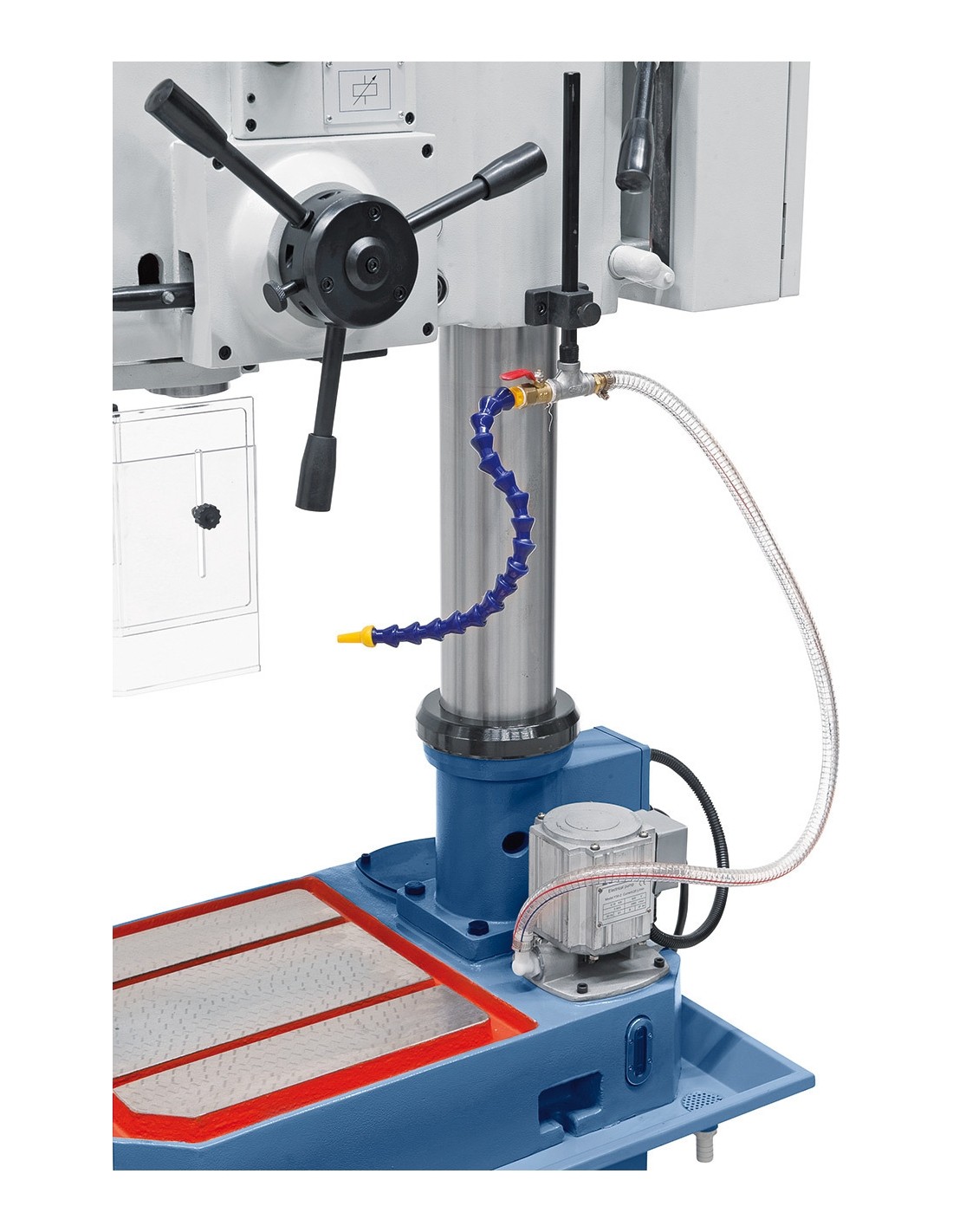

  • Coolant pump
  • Height adustable protective cover
