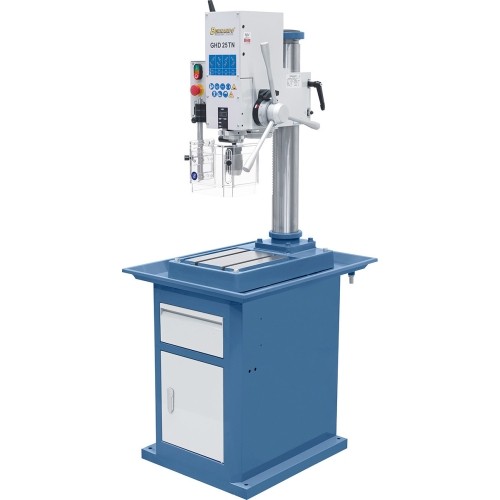

GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
  • Online only
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication
GHD 25 TN with digital drill depth indication

Weight approx.
140 kg
Spindle speed
(8) 105 - 2900 rpm
Machine dimension (W x D x H)
500 x 570 x 1100 mm
Distance spindle to column
255 mm
Spindle stroke
120 mm
Motor power output S1 100%
0,65 / 1,2 kW (400 V)
Motor power input S6 40%
0,90 / 1,7 kW (400 V)
Drilling capacity max.
25 mm
Thread cutting max.
M10
Distance spindle to base
535 mm
Column diameter
100 mm
Keyless drill chuck
1 - 16 mm / B 16
Morse taperx
MT 3
Working surface of base / T-slot size
250 x 290 mm / 14 mm

GHD 25 TN with digital drill depth indication

1091990
Price €3,554.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 2 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 140 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 140 kg.

Description

Properties

  • Digital display for drill depth increases comfort
  • Drill head swivels 360° and can be adjusted in height
  • Large machine table with T-slots
  • Helical –teethed gearbox for optimal torque
  • Switch for direction of rotation, right and left turning, allows for thread cutting
  • High-quality ball bearings ensure optimal concentricity
  • Solid, polished steel column, designed for heavy workloads
  • Helical gears in combination steel against reinforced fiber material result in high efficiency and smooth run
  • Powerful 2-step drive motor allows for 8 speed settings

Standard accessories

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Digital drill depth indication
  • Automatic tool release device
  • Left and right turning
  • Height adjustable protective cover
