WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
250 mm
Taper of tailstock sleeve
MT 1
Travel of tailstock sleeve
25 mm
Weight approx.
23 kg
Center height
75 mm
Swing over bed
150 mm
Spindle bore
10 mm
Metric thread
(5) 0,5 - 1,25 mm
Inch thread
(5) 16 - 24 threads/1"
Motor power input S6 40%
0,20 kW / 230 V
Taper at spindle bore
MT 2
Speed range, stepless
100 - 2000 rpm
Machine dimensions (W x D x H)
650 x 350 x 220 mm
Motor power ouput S1 100%
0,15 kW / 230 V

Hobby 250

1092086
Price €1,155.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up wednesday, july 16 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
We will deliver the product to you via: 5-11 w.d. Venipak (€8.00)

Description

Properties

  • Stepless speed adjustment of main spindle

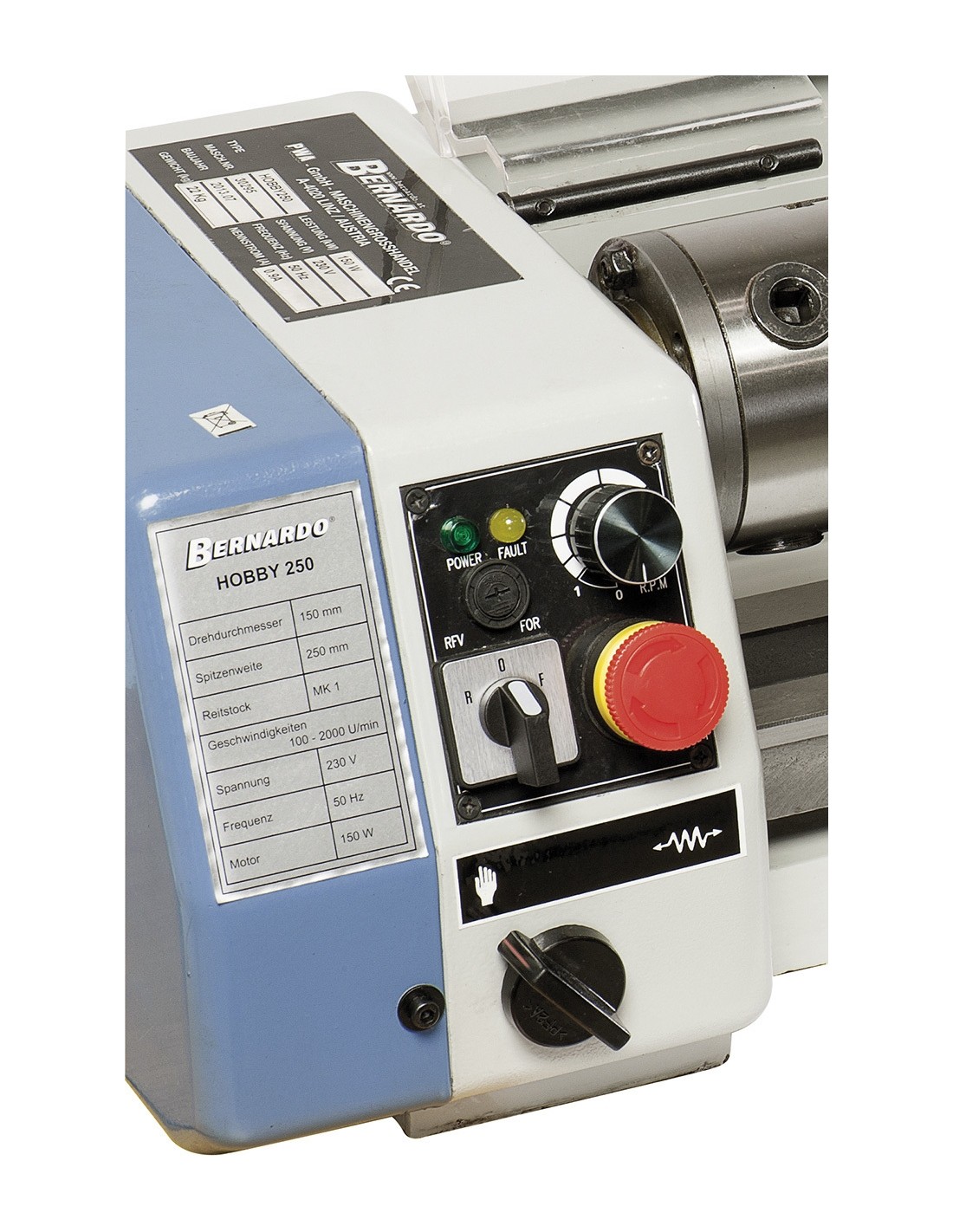

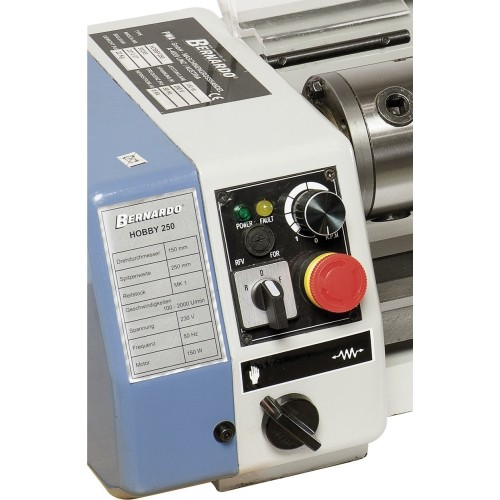

  • User-friendly arrangement of control elements
  • Quick and easy speed change
  • Inductive hardened and polished machine bed
  • Switch for manual or automatic longitudinal feed
  • Guides adjustable by gibs
  • Attractive price-to-performance ratio
  • Spindle bedded with 2 adjustable taper roller bearings
  • Small and compact construction eliminates most vibrations
  • High quality ball bearings ensure high spindle concentricity (≤ 0,015 mm)

Standard accessories

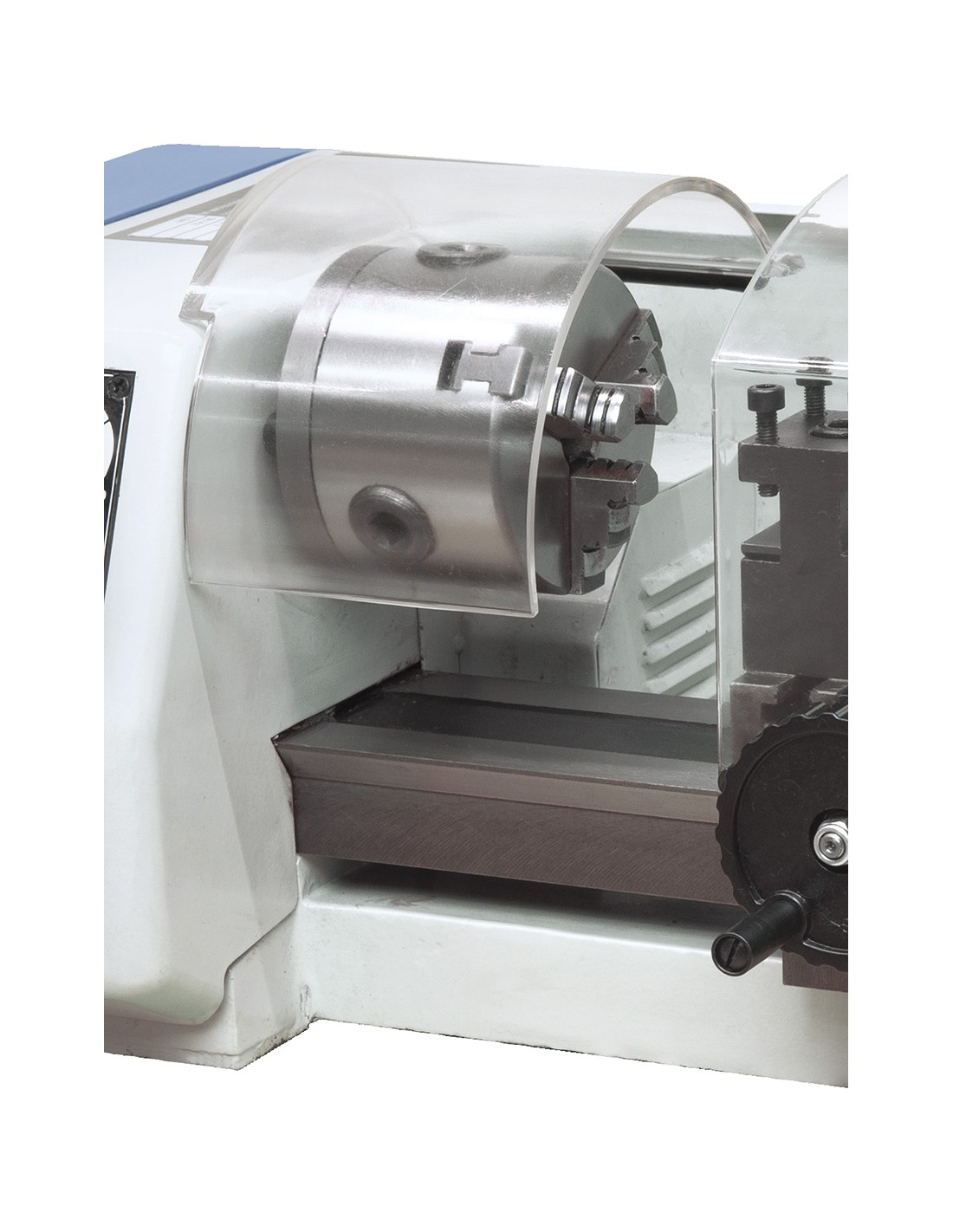

  • 3-jaw chuck 80 mm

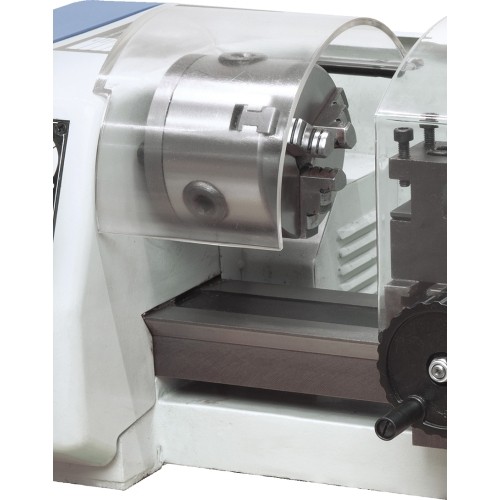

  • Chuck guard

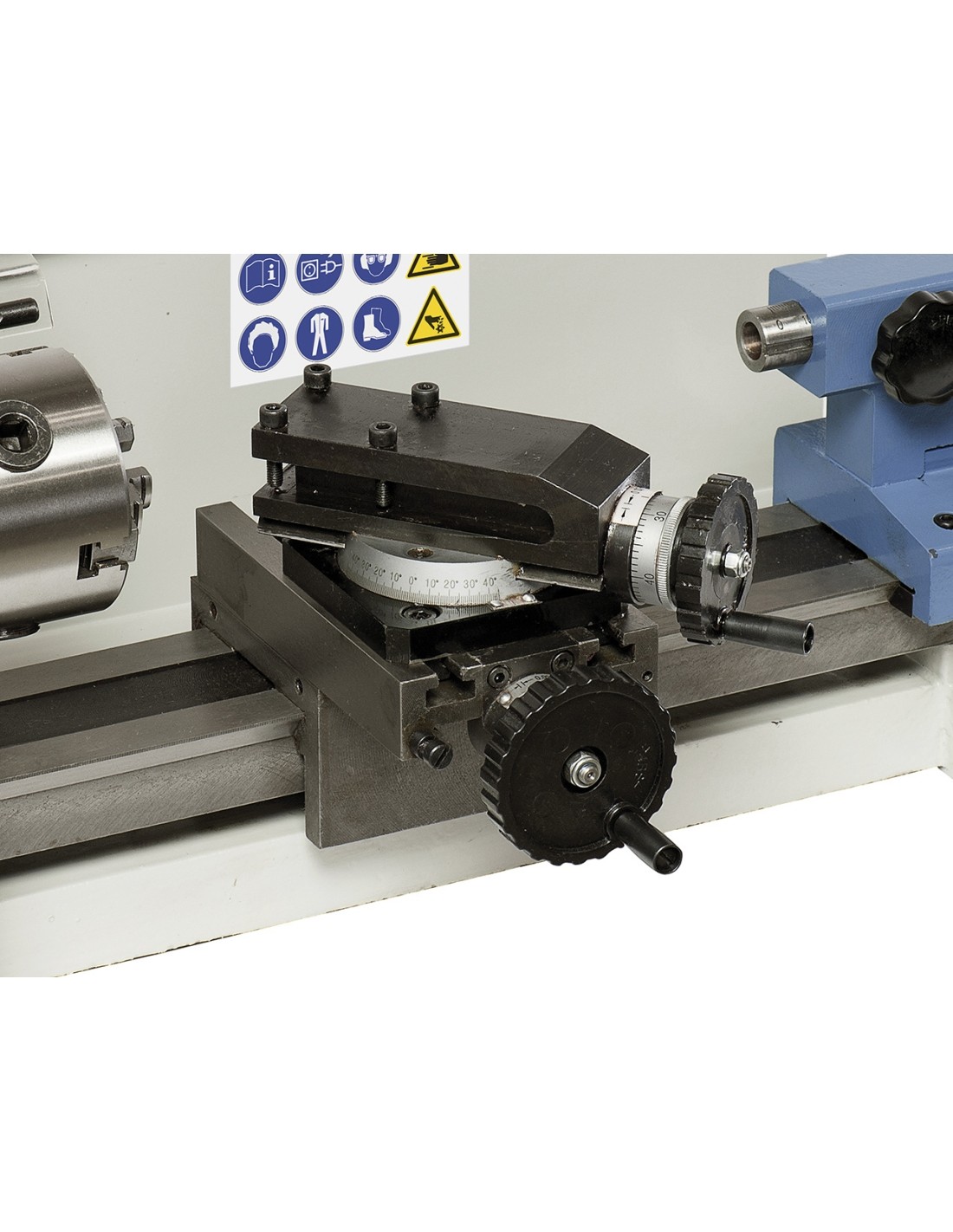

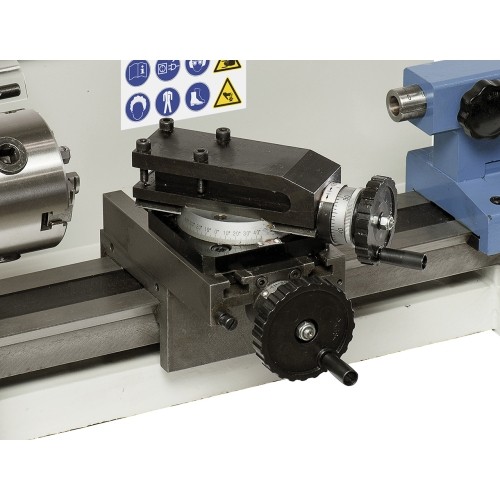

  • 2-way tool post holder
  • Live centre MT 1
  • Splash guard
  • Tools
