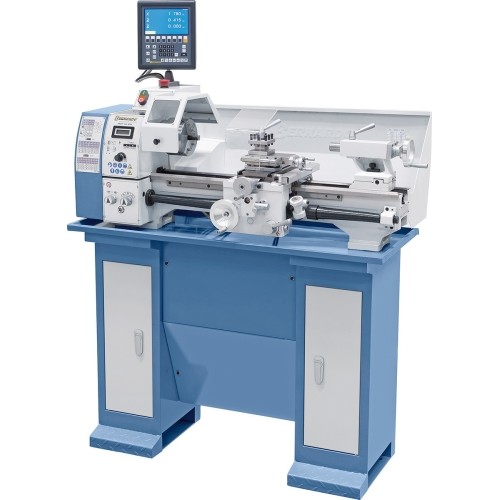

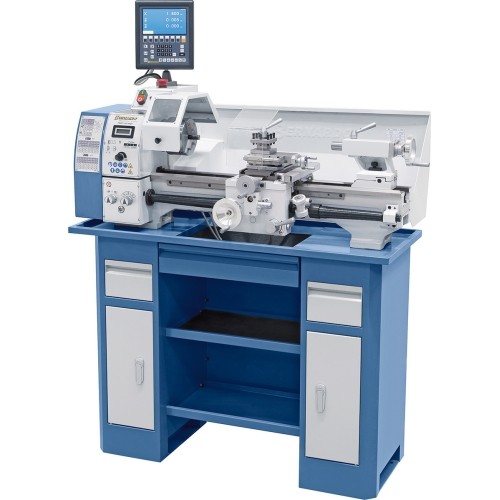

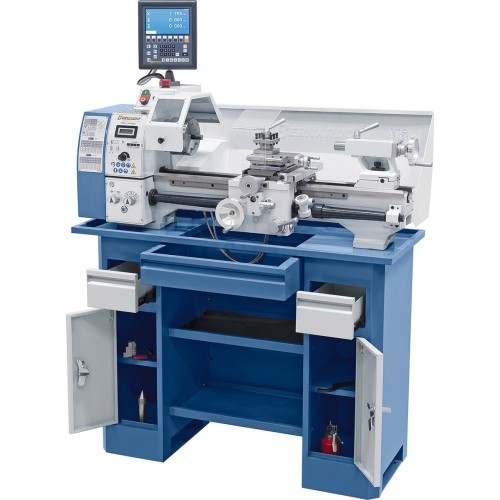

Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
  • Online only
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout
Profi 550 WQV - 230 V - with 2-axis digital readout

Distance between centers
550 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
70 mm
Weight approx.
120 kg
Center height
125 mm
Swing over bed
250 mm
Spindle bore
26 mm
Speed Range
Stepless, 50 - 1000 rpm
100 - 2000 rpm
Longitudinal feed
(6) 0,06 - 0,32 mm/rev
Cross feed
(4) 0,03 - 0,075 mm/rev.
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 - 56 threads/1"
Machine dimension (W x D x H)
1210 x 610 x 450 mm
Motor power output S1 100%
0,75 kW / 230 V
Motor power input S6 40%
1,0 kW / 230 V
Taper at spindle bore
MT 4
Bed width
135 mm

Profi 550 WQV - 230 V - with 2-axis digital readout

1092096
Price €4,378.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, august 31 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 120 kg.
We will deliver the product to you via: 6-12 w.d. Venipak (€40.99)
Weight: 120 kg.

Description

Properties

  • Comes complete with leadscrew for thread cutting and automatic longitudinal feed
  • Solid machine bed with inductively hardened and polished guides
  • High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0.009mm)
  • Serially equipped with electronic stepless speed setting
  • Temperature monitoring incl. warning light protect motor against overload

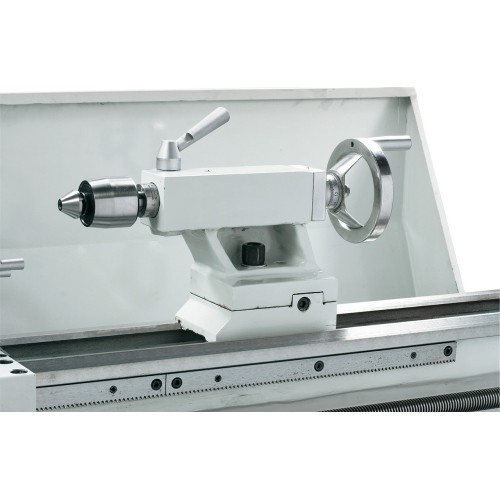

  • Tailstock can be adjusted for taper turning
  • User-friendly arrangement of control elements
  • Guides adjustable via gibs
  • Spindle features 2 adjustable tapered roller bearings (P5-quality)
  • Longitudinal and cross feed come standard
  • Protective switch with undervoltage release

Standard accessories

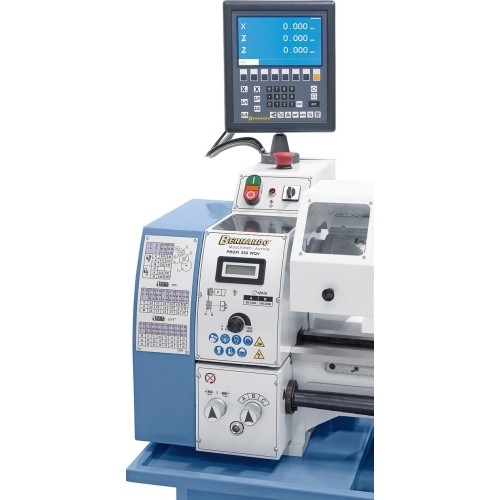

  • 2-axis digital readout ES-12 V with LCD-display
  • 3-jaw chuck DK11-125 mm

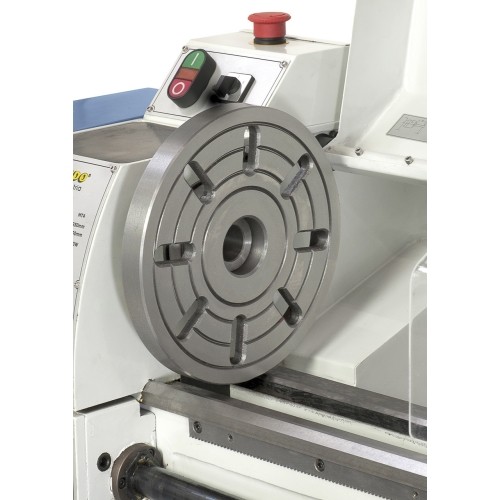

  • Flange 125 mm

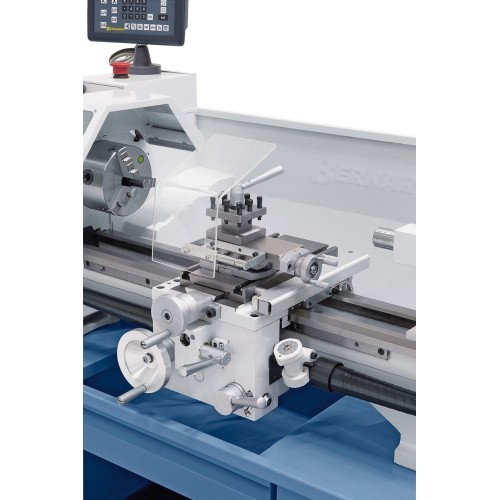

  • Cross slide with top support
  • Digital speed display
  • Dead centers
  • Thread dial

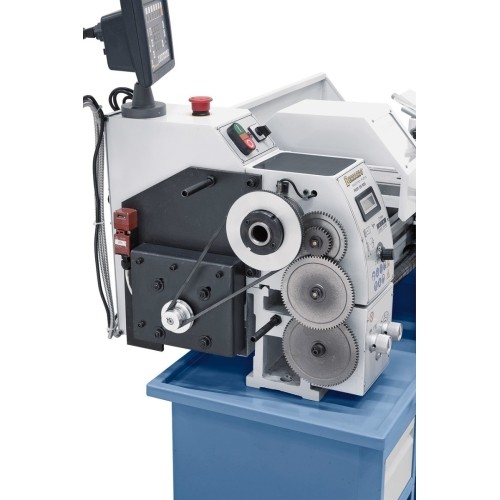

  • Change gears

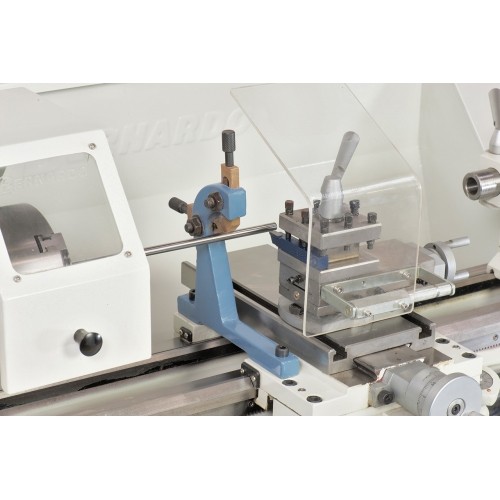

  • 4-way tool post holder
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools
