HORNEC® smart SynMIG 2200i MAX semi-automatic welding machine SET (synergic, welding capacity up to 6 mm) + 8L CO2 cylinder + ac

New
Free shipping

Phase: Vienfazis (230V)
Control: rankinis
synergetic
User Level: Hobbyist / Home user
Weight, kg: 10.8
Wire spool size [kg]: 5
0,45
1
D100-D200 / 1-5kg
PFC function: No
Maximum current MMA [A]: 180
Maximum current MIG/MAG: 180
MIG/MAG darbo ciklas [%]: 60
Inverter technology: IGBT
Shielding Gas Requirement: Gas / Gasless
Number of wire feed rollers: 2
Torch length: 4 m
Package Contents: 2 in 1 hammer/brush
electrode cable
ground cable
MIG / MAG burner
Mini shield for welding
welding machine
Ground cable connection: big (35 - 50 mm)
Torch connection in the machine: EURO
Functions: 2T / 4T
digital display
overheating protection
Post-gas regulation
Pre-gas adjustment
Spot welding mode
Welding methods: MIG FLUX (without gas)
MIG/MAG welding
MMA (electrodes)
TIG Lift

Brand

HORNEC® smart SynMIG 2200i MAX semi-automatic welding machine SET (synergic, welding capacity up to 6 mm) + 8L CO2 cylinder + ac

Name: HORNEC® smart SynMIG 2200i MAX semi-automatic welding machine SET (synergic, welding capacity up to 6 mm) + 8L CO2 cylinder + ac
Brand: Hornec
SKU: 1594162
Price: 379 EUR
Availability: InStock

Reference 1594162

Price €379.00 VAT incl.

Instead of €387.99

This pack contains

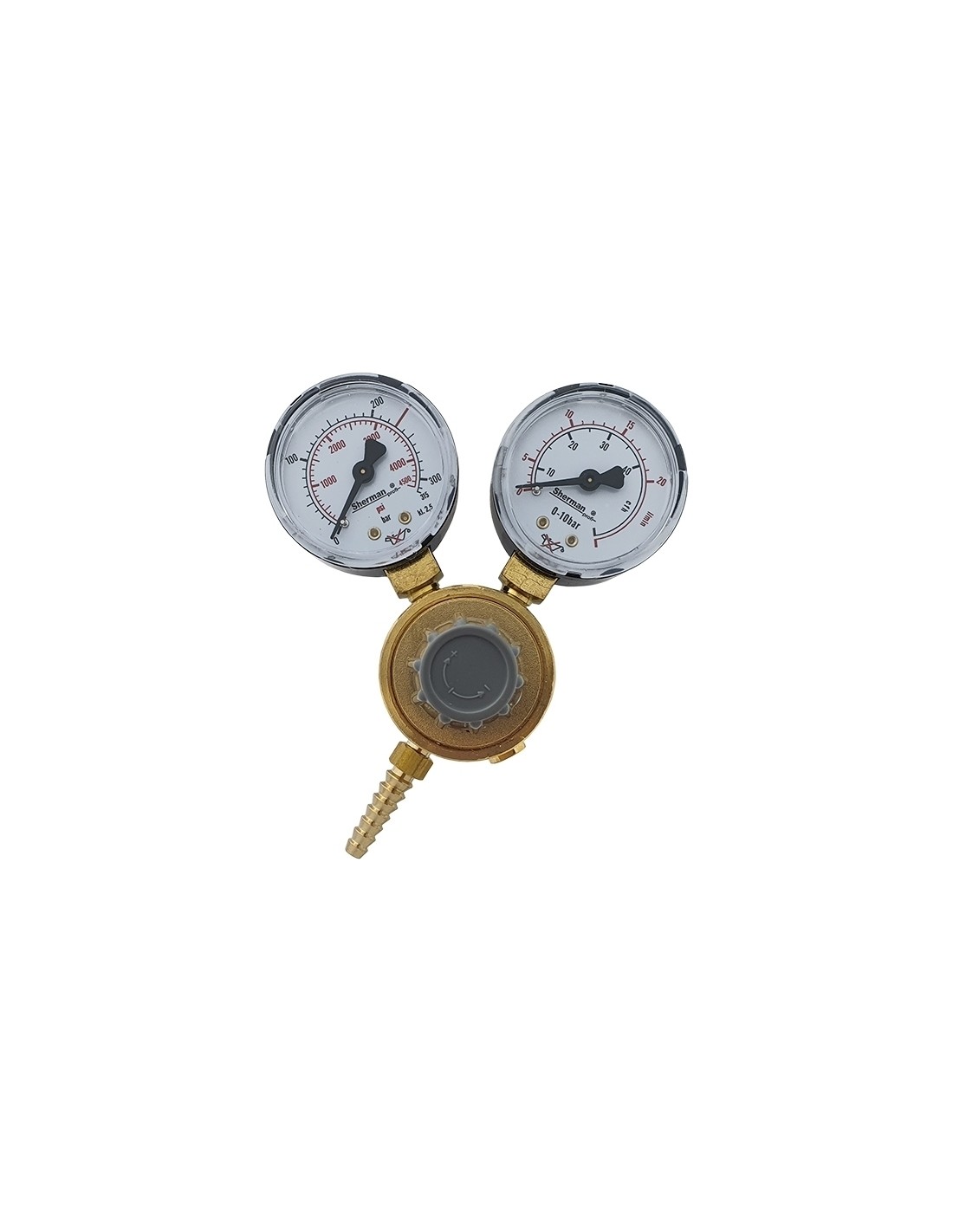

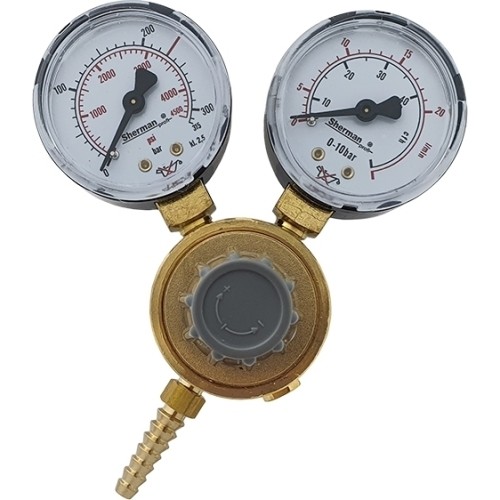

Mini CO₂/Argon reducer with two pressure gauges

€24.00

Dujų papildymas CO2 - 8 l / 5 kg

€20.00

Welding wire for black steel SG2 MIG spool D200 5kg - 0.8 mm

€14.99

Empty CO2 EURO type 8 l cylinder

€80.00

Welding machine HORNEC® smart SynMIG 2200i MAX

€249.00

Stock Quantity:

Kaunas Shop
not available

Central warehouse
(3+ pcs)

Delivery terms:

FREE pick up today, in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 40.925 kg.

We will deliver the product to you via: 1-2 w.d. Venipak (€10.00)
Weight: 40.925 kg.

Description

Suvirinimo aparatas HORNEC smart SynMIG 2200i MAX

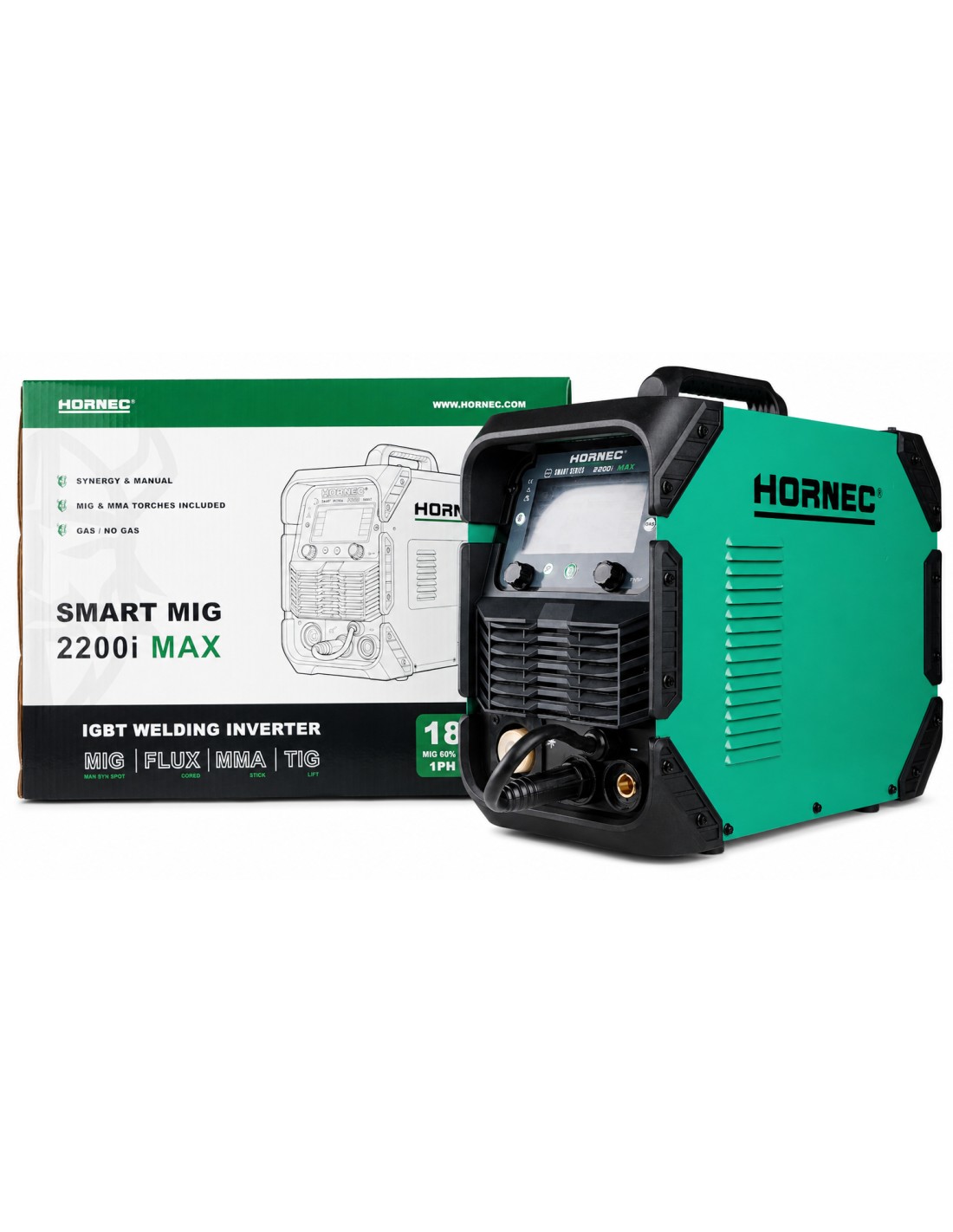

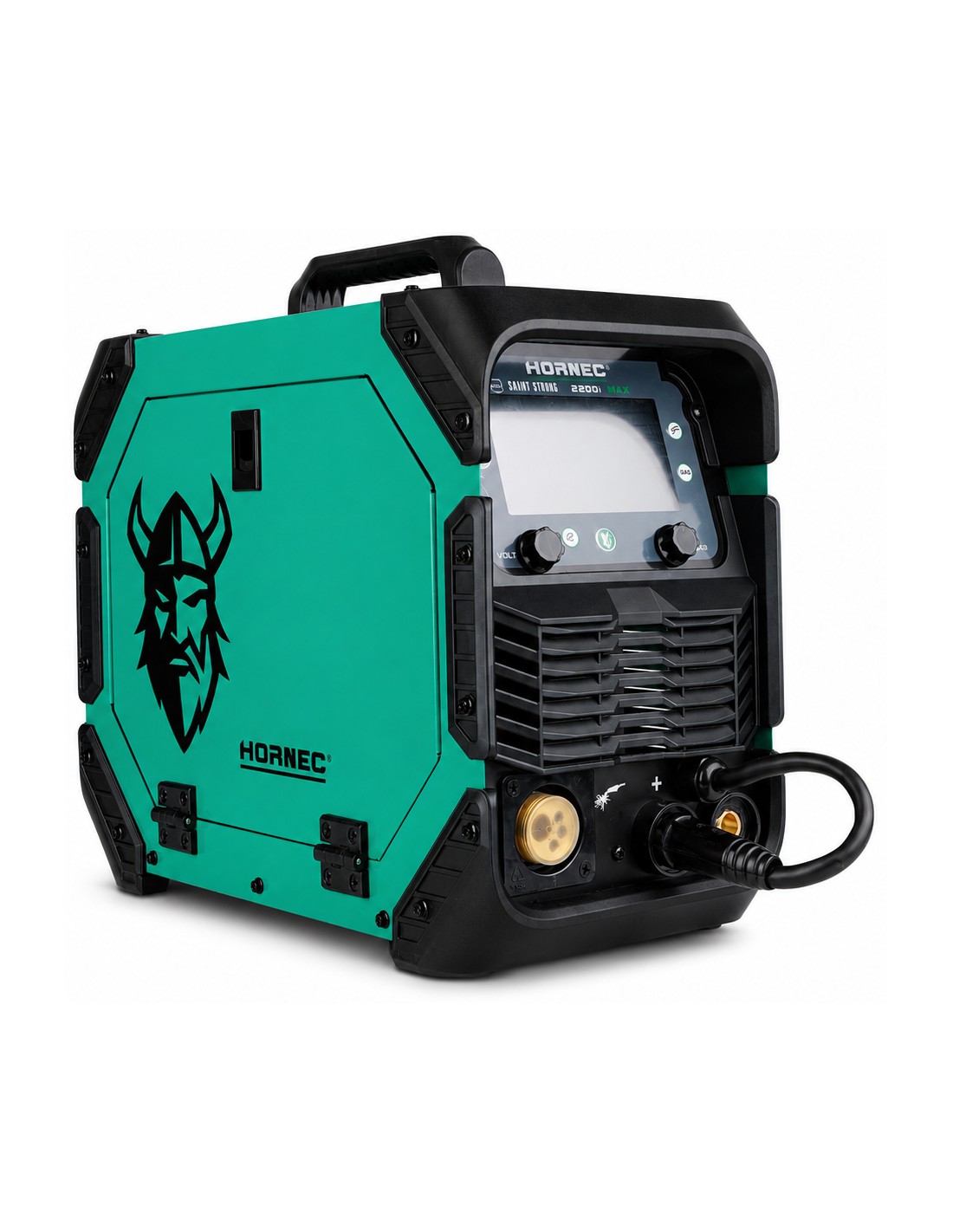

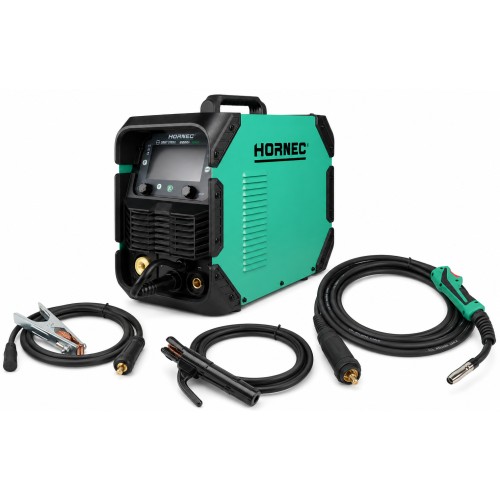

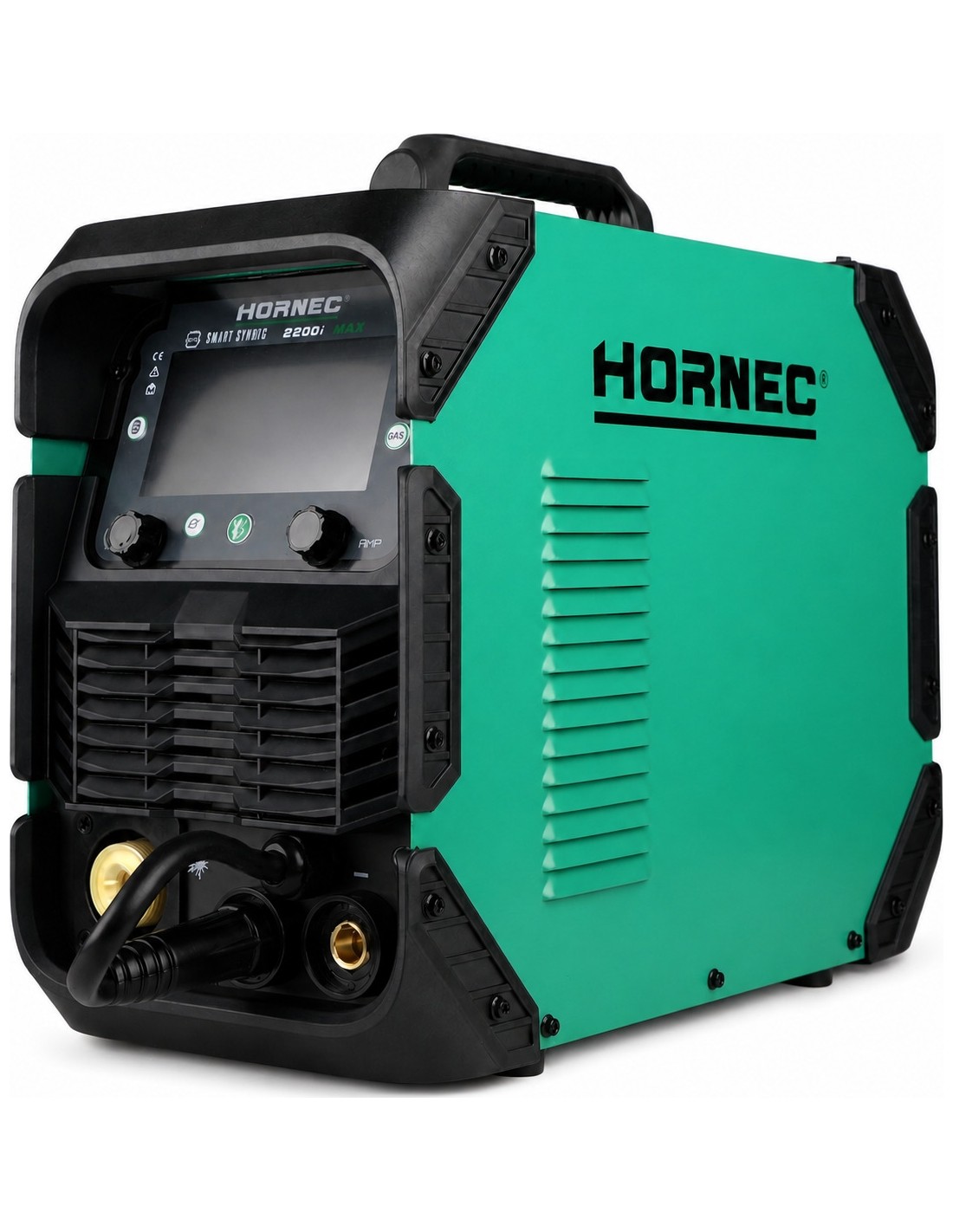

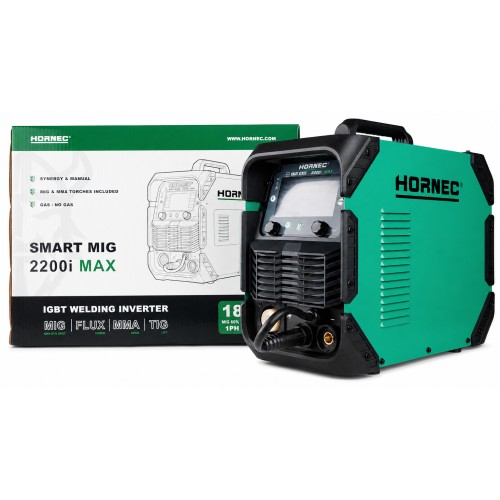

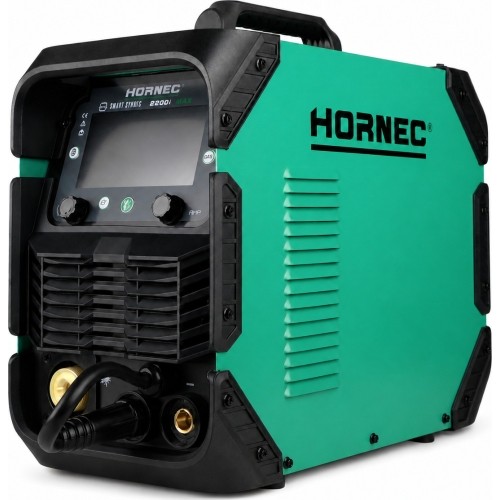

HORNEC® smart SynMIG 2200i MAX welding machine

4 in 1: SYN MIG / MAN MIG / Lift-TIG / MMA - for metal up to 6 mm

HORNEC® smart SynMIG 2200i MAX is a digitally controlled DC inverter 4 in 1 welding machine designed for home workshops, garages, repairs and small metal structure work. The synergic MIG mode makes it easier to match welding parameters, manual MIG gives you more freedom of adjustment, and the Lift-TIG and MMA modes expand the machine's range of applications.

Applications:

repair of cars and agricultural machinery;
fabrication of gates, fences, shelves and light metal structures;
garage, country house and home workshop jobs;
welding of thin and medium-thickness steel;
mobile repair and installation work.

Advanced IGBT inverter technology

The lightweight IGBT inverter design allows precise adjustment of welding parameters, helps maintain a stable arc and reduces energy losses. The integrated handle makes it easier to move the machine between workplaces.

digital parameter control;
stable DC arc;
overheating and overcurrent protection;
active fan cooling;
compact design for everyday repair work.

HORNEC SynMIG 2200i MAX suvirinimo aparatas

Four welding modes in one 4 in 1 machine

MIG (Synergic)

The synergic MIG mode helps automatically match the main welding parameters to the selected wire and working conditions. You can weld with shielding gas or with self-shielded FLUX wire.

MIG (Manual)

The manual MIG mode lets you adjust voltage and wire feed settings separately. It is intended for users who want to fine-tune the arc to the metal, wire and welding position.

TIG (Lift)

The Lift-TIG mode is designed for a more precise, cleaner weld seam. The arc is ignited by touching the workpiece with the tungsten electrode in a controlled way and lifting it.

MMA

Welding with 1.6-4.0 mm coated electrodes. A practical choice for repair, installation and outdoor work where no wire feeder or shielding gas is needed.

HORNEC SynMIG 2200i MAX skaitmeninis valdymas

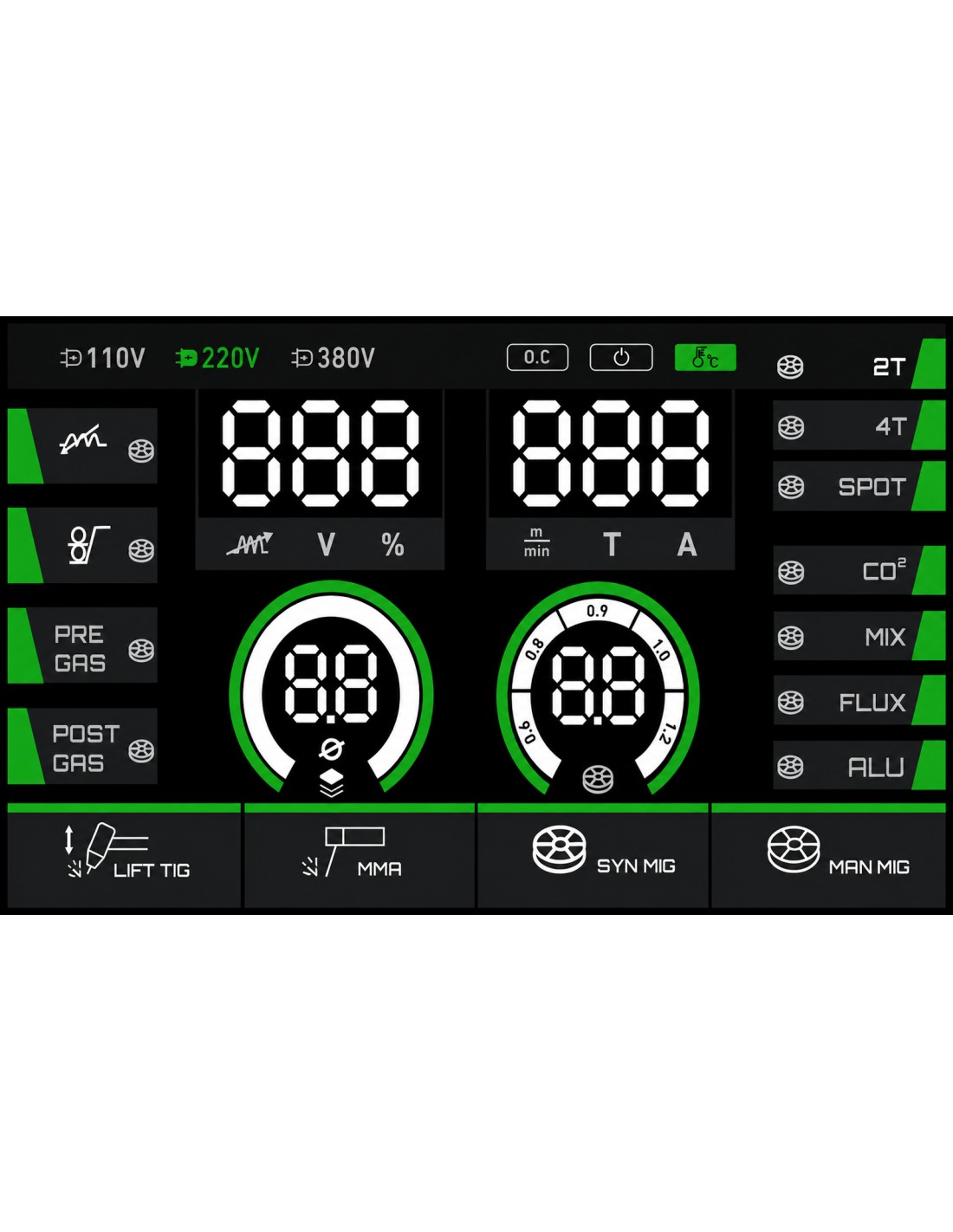

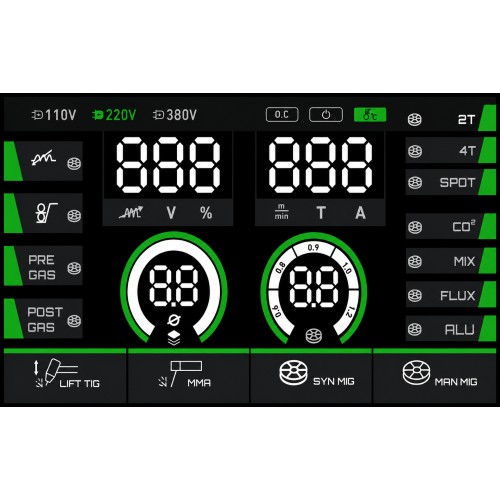

Simpler synergic MIG control

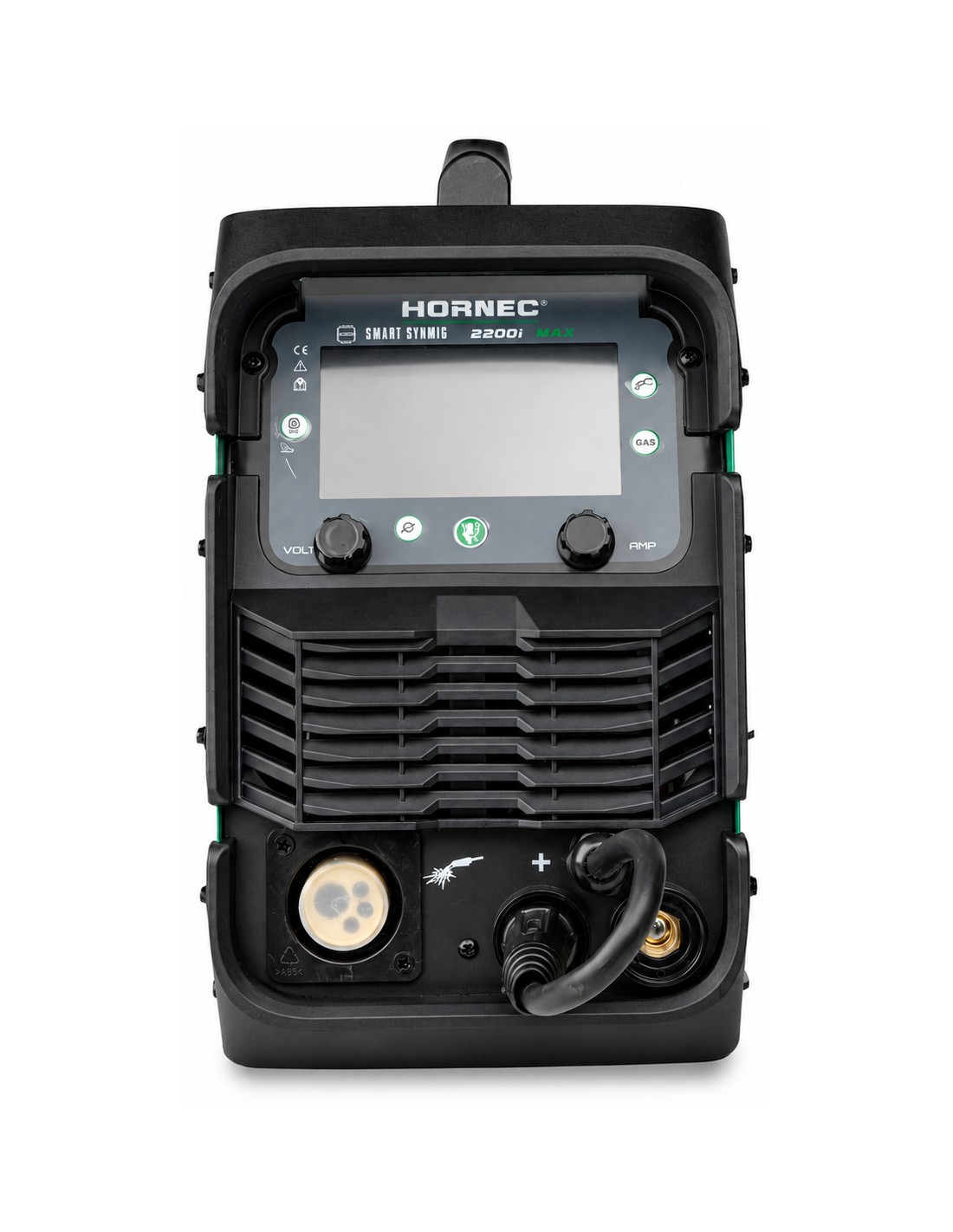

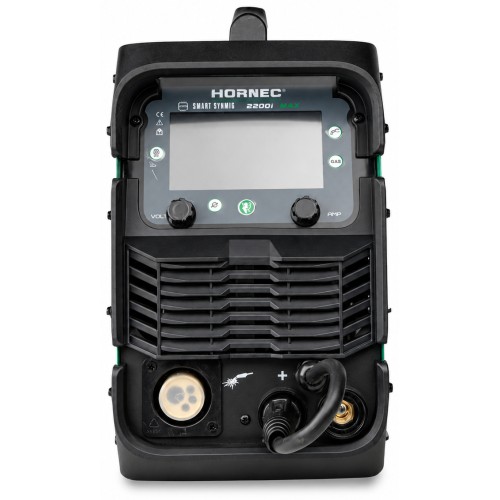

The digital control panel lets you select the welding process, wire feed settings and gas type, and adjust the voltage. Clearly visible parameters help you get the machine ready for work faster.

MIG with gas: steel wire is used with CO₂ or an argon/CO₂ mixture.
Gasless MIG: self-shielded flux-cored FLUX wire is used.
Wire diameter: 0.8-1.0 mm.
Voltage adjustment: lets you match the arc characteristics to the specific job.
Wire feed control: for a smooth and stable welding process.

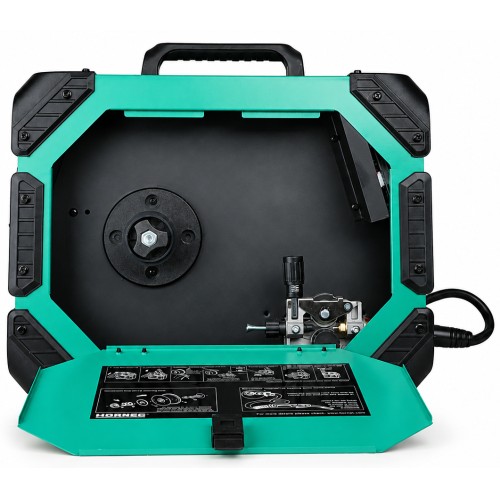

Stable MIG wire feed

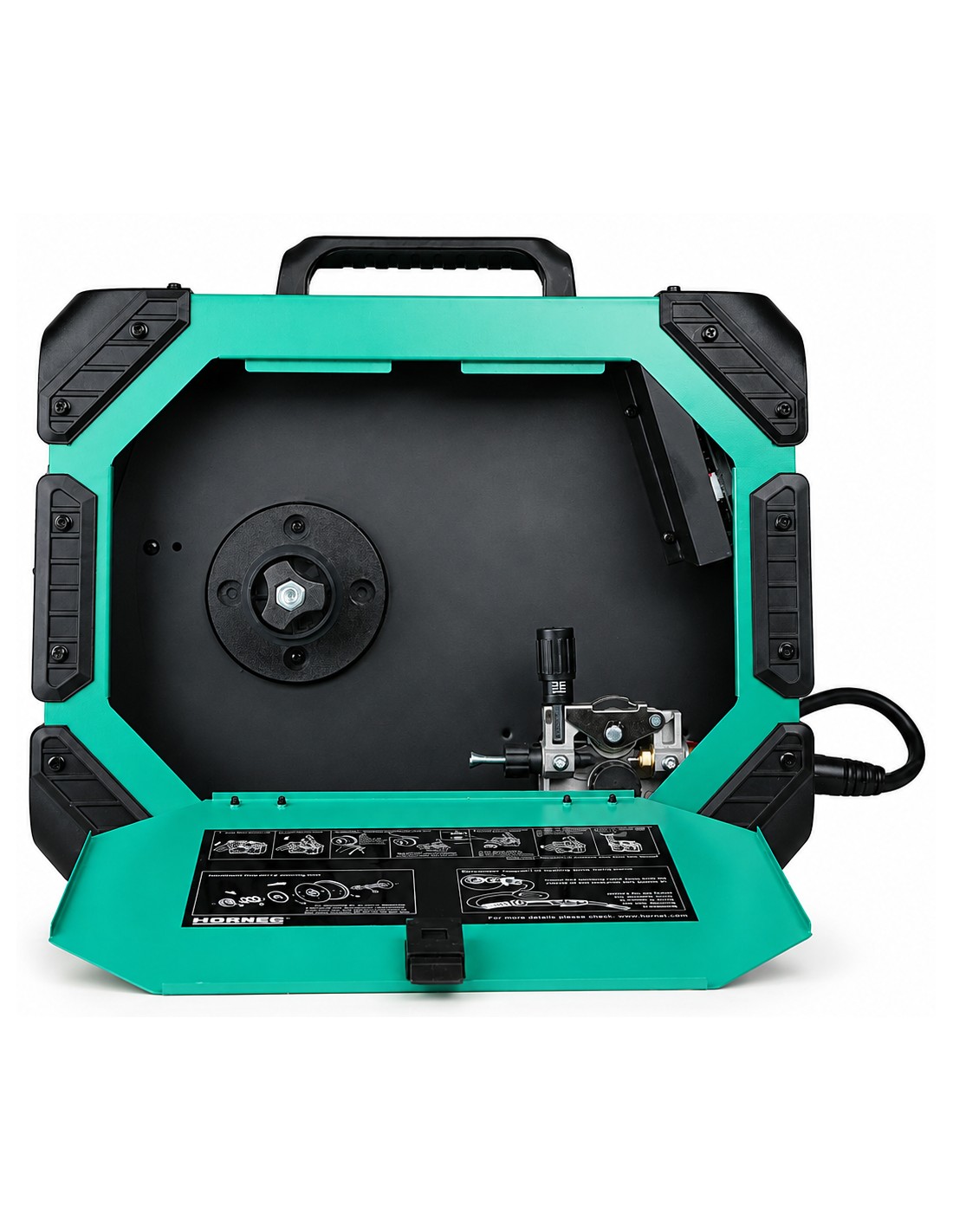

The easily accessible wire compartment makes it easier to change the spool, thread the wire and maintain the feed mechanism. Properly adjusted roller pressure helps ensure smooth wire movement and a more stable arc.

0.8-1.0 mm diameter welding wire;
welding with shielding gas or FLUX wire;
EURO-type MIG torch connector;
switchable polarity for working with different wires.

HORNEC SynMIG 2200i MAX vielos padavimo mechanizmas

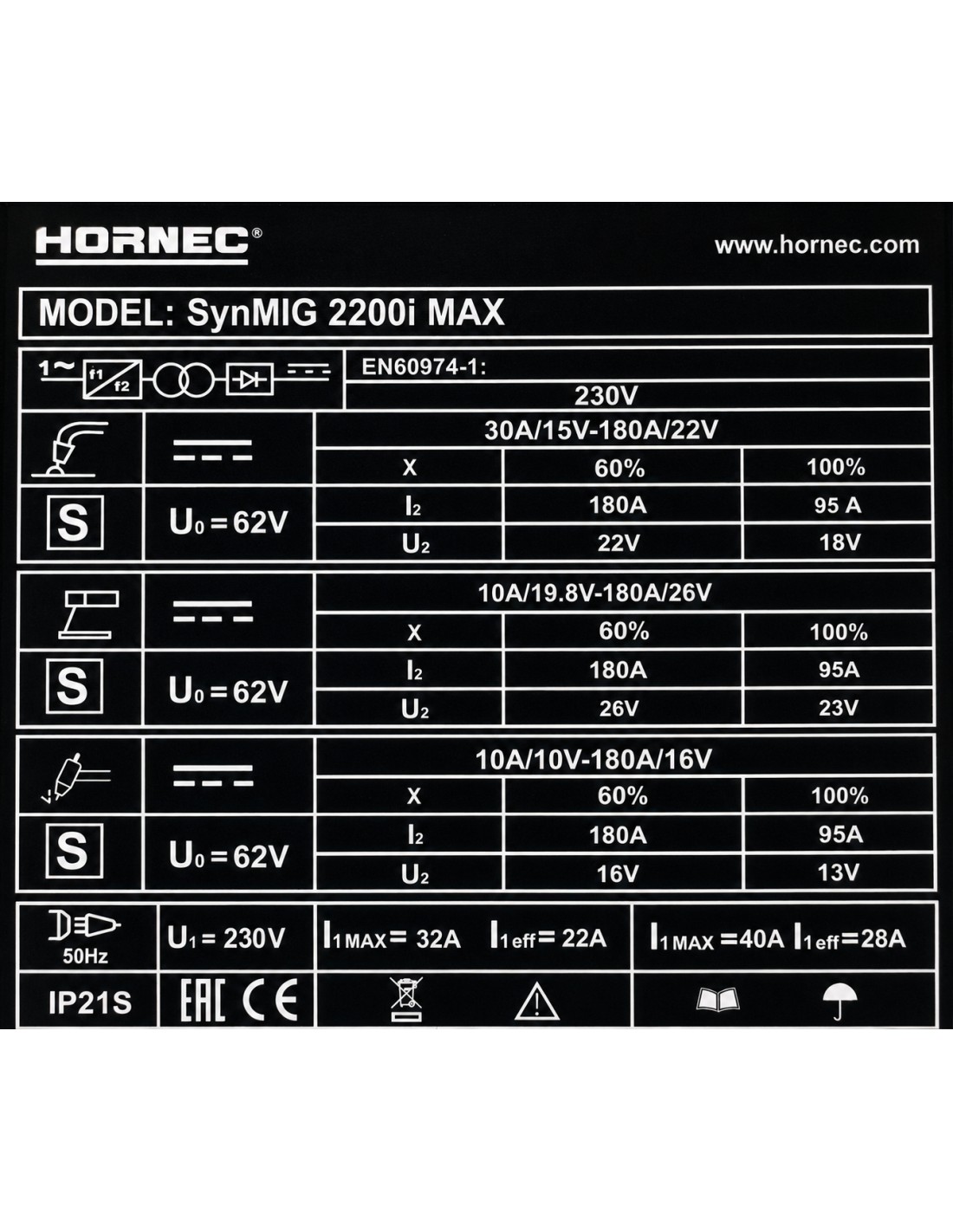

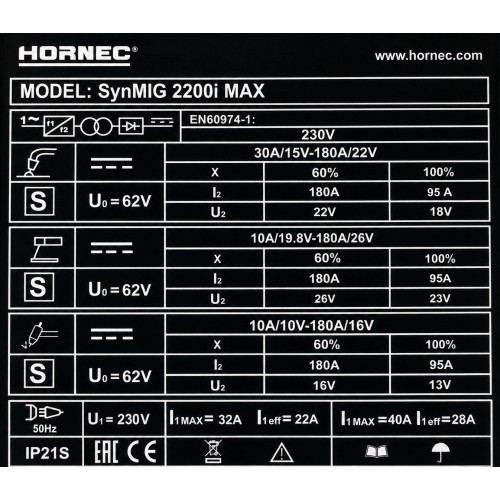

Duty cycle according to the machine rating plate

Process	Adjustment range	60 % duty cycle	100 % duty cycle
MIG	30 A / 15 V - 180 A / 22 V	180 A / 22 V	95 A / 18 V
MMA	10 A / 19.8 V - 180 A / 26 V	180 A / 26 V	95 A / 23 V
Lift-TIG	10 A / 10 V - 180 A / 16 V	180 A / 16 V	95 A / 13 V

Duty cycle indicates how long the machine can operate within a 10-minute period at the specified current. A 60 % duty cycle means up to 6 minutes of welding and the remaining time for cooling. The duty cycle may be reduced by high ambient temperature, insufficient ventilation or covered air vents.

HORNEC smart SynMIG 2200i MAX konstrukcija

Main technical specifications

Model	HORNEC® smart SynMIG 2200i MAX
Power supply	230 V, 50 Hz, 1 phase
Maximum welding current	180 A according to the machine rating plate
Welding modes	SYN MIG, MAN MIG, Lift-TIG, MMA
Open-circuit voltage	62 V
Wire diameter	0.8-1.0 mm
Electrode diameter	1.6-4.0 mm
Suitable metal thickness	from 0.8 mm; up to 6 mm depending on working conditions
Protection class	IP21S (rating plate)
Weight	10.8 kg
Dimensions	435 × 205 × 350 mm
Standard	EN 60974-1

HORNEC smart SynMIG 2200i MAX detalės

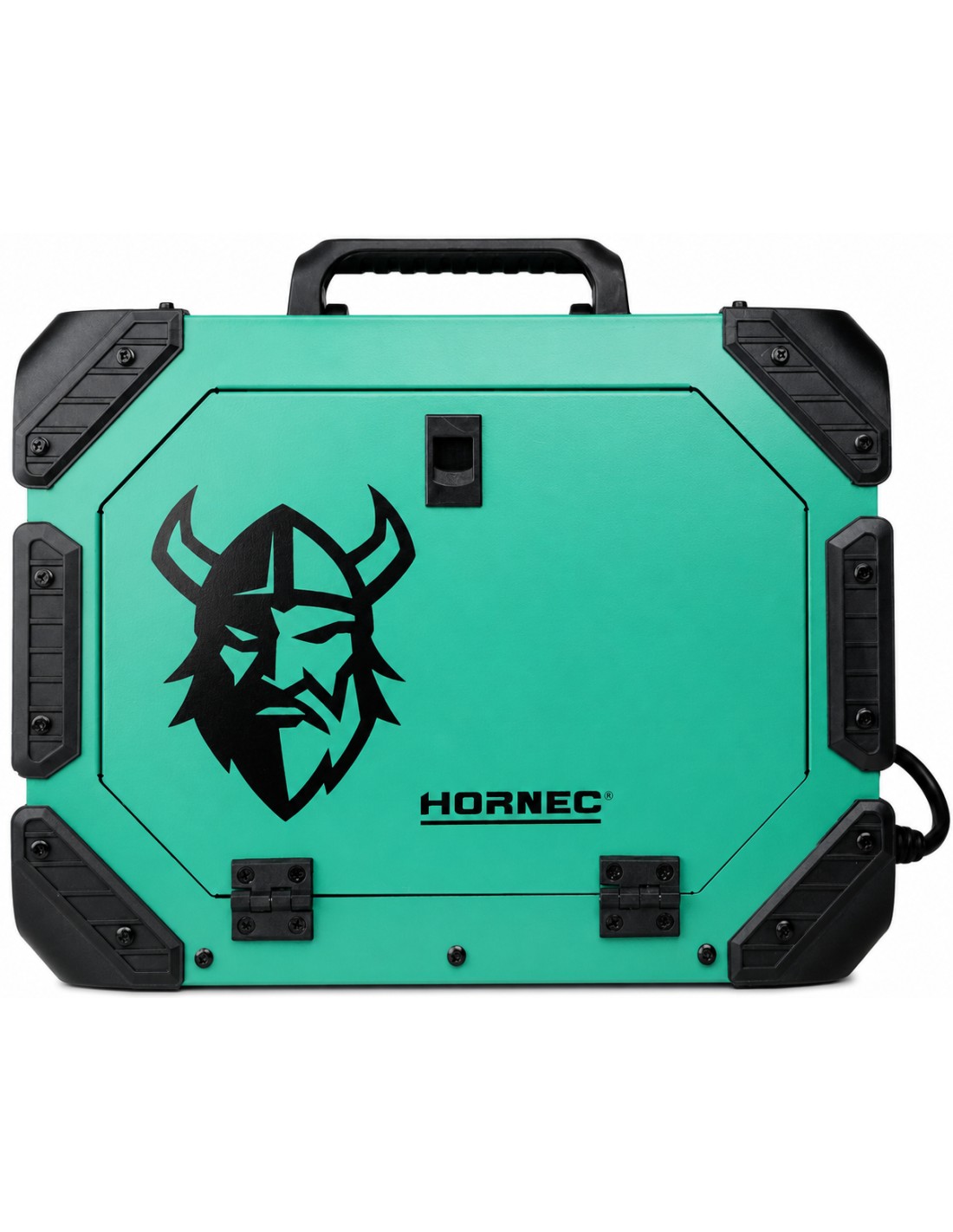

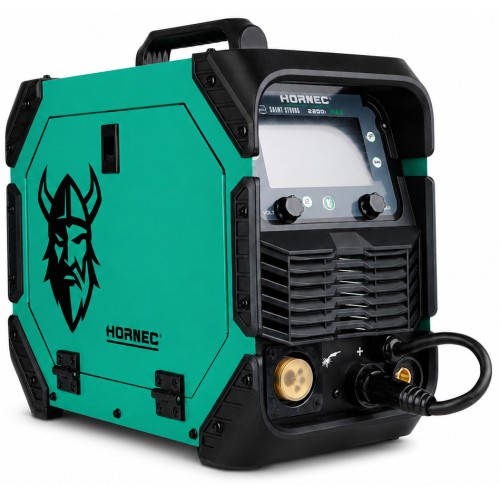

Practical in the workshop and garage

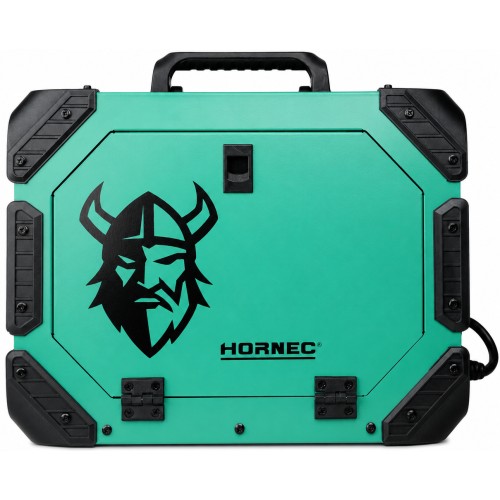

Integrated handle makes it easier to move the machine.
Digital display clearly shows the selected parameters.
EURO-type connector makes it easy to connect or replace the MIG torch.
Active cooling helps dissipate heat generated during operation.
Switchable polarity for working with gas or self-shielded wire.
Compact housing convenient for home workshops and mobile repair work.

Important before you start

The machine is intended for hobby use, small repairs and structural work; it is not intended for industrial production or heavy-duty work.
According to the manual, this model is not suitable for welding aluminium.
Use appropriate eye, face, hand and body protection.
Work in a well-ventilated, dry environment protected from rain.
Do not cover the ventilation openings and do not exceed the duty cycle stated on the rating plate.
If the machine overheats, stop working and let it cool down with the fan running.
Disconnect the machine from the mains before changing connections or the torch, or carrying out maintenance.

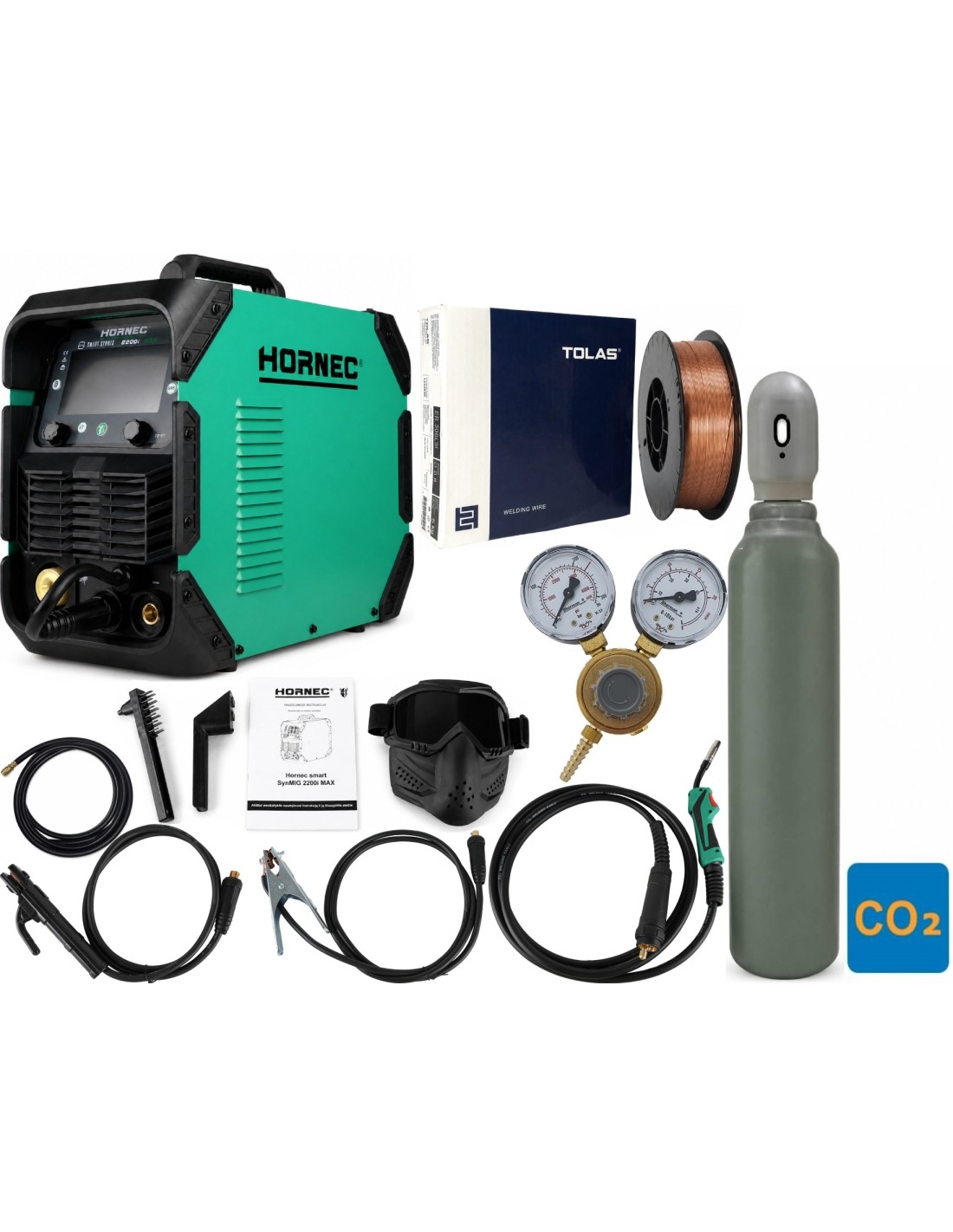

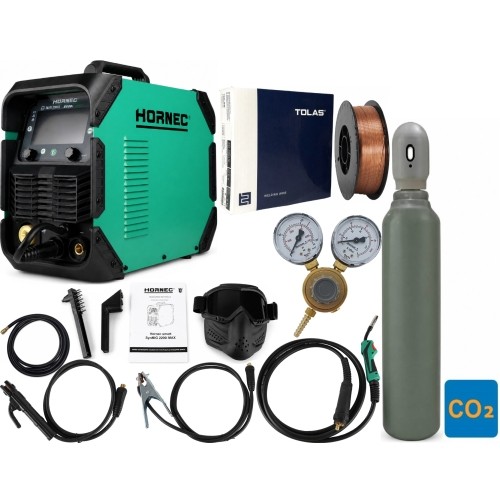

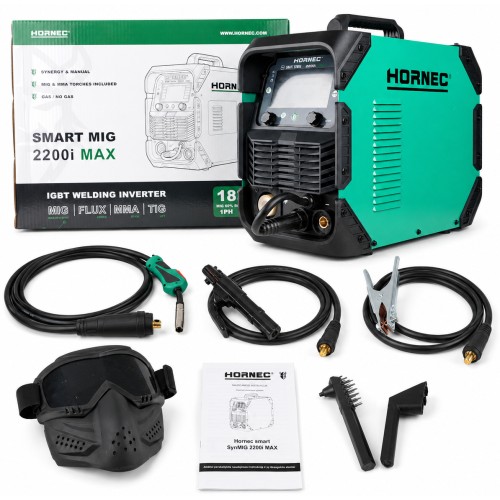

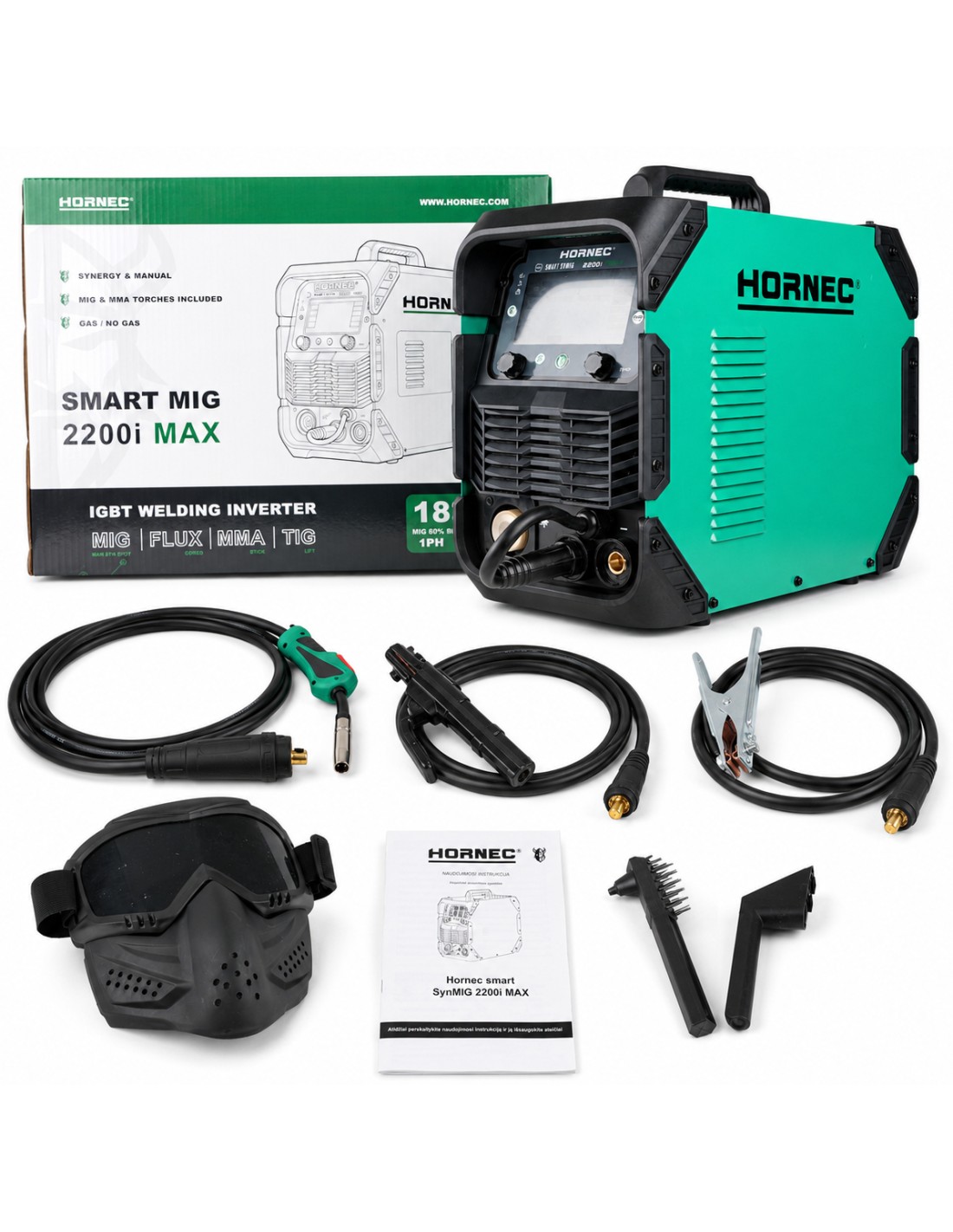

Package contents

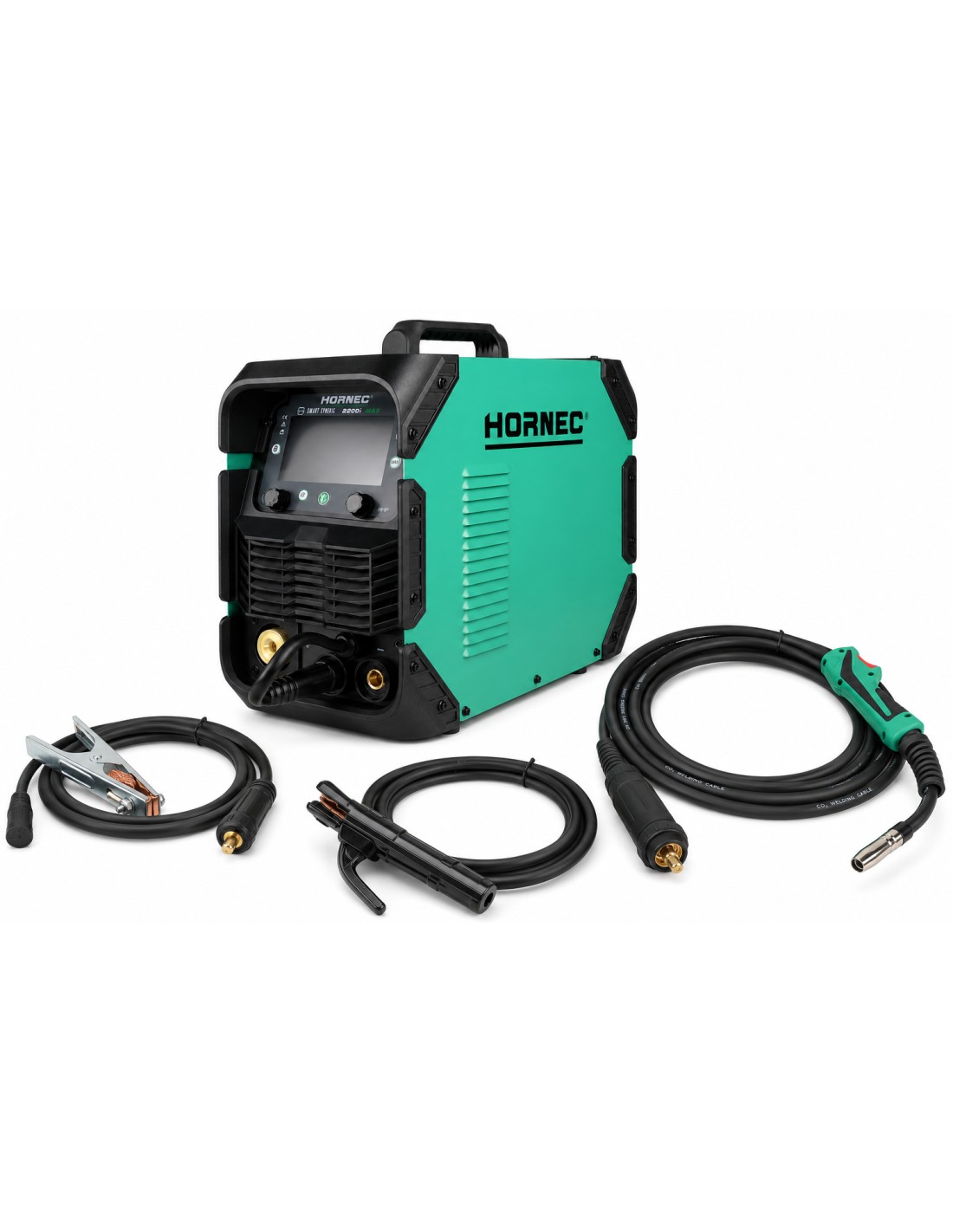

HORNEC® smart SynMIG 2200i MAX welding machine;

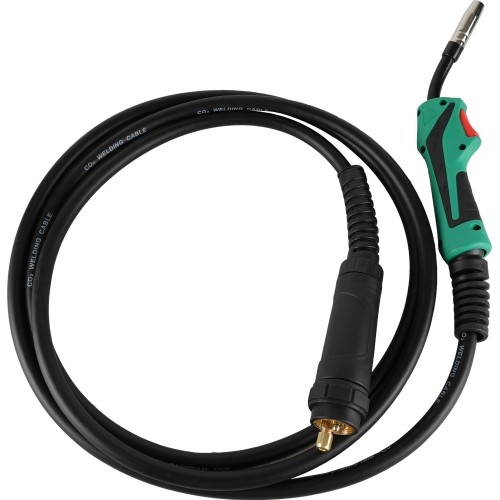

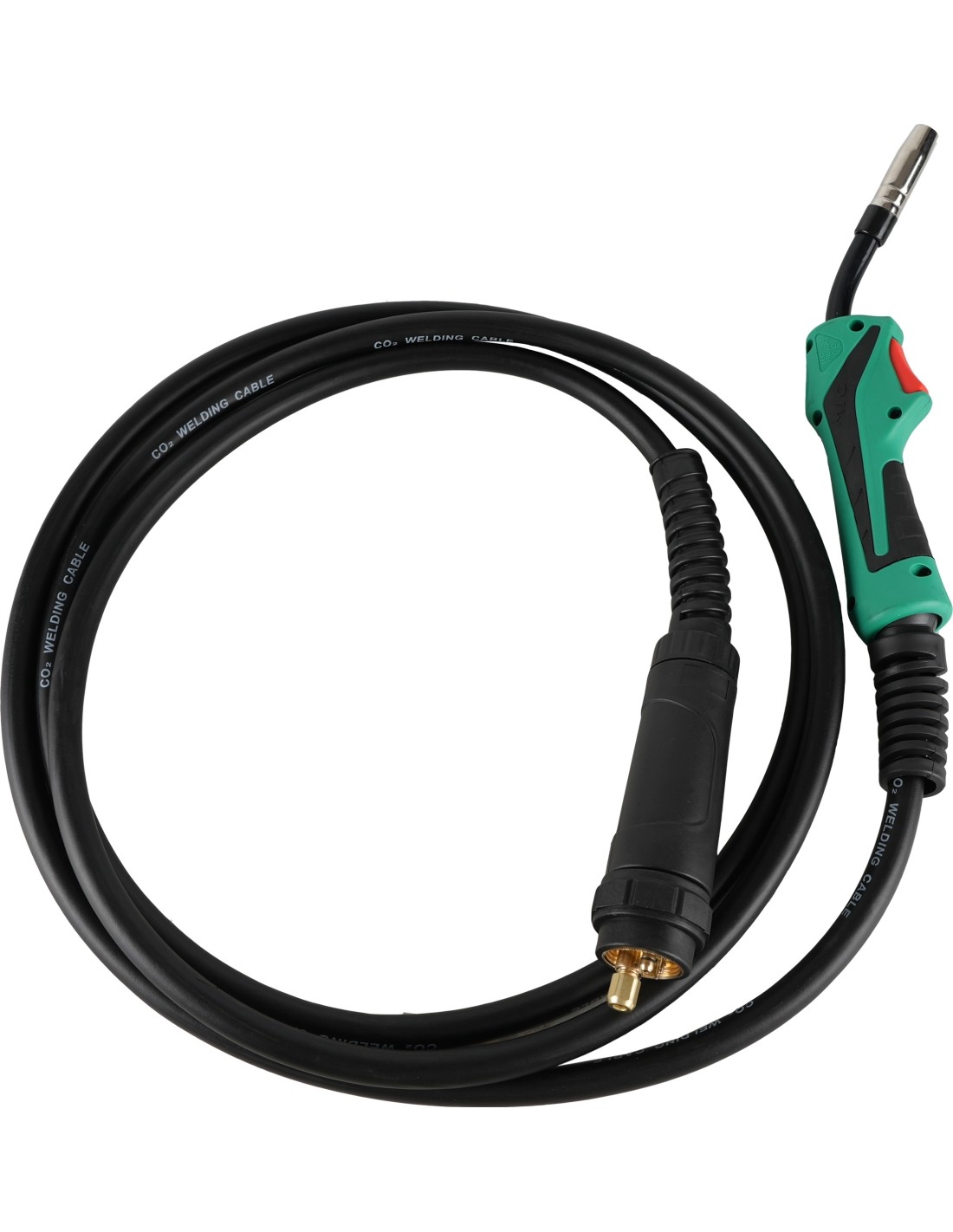

M-15 MIG torch with EURO connector, 4 m (with consumables);

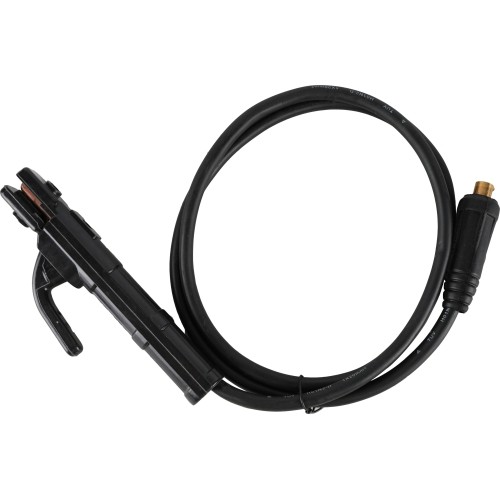

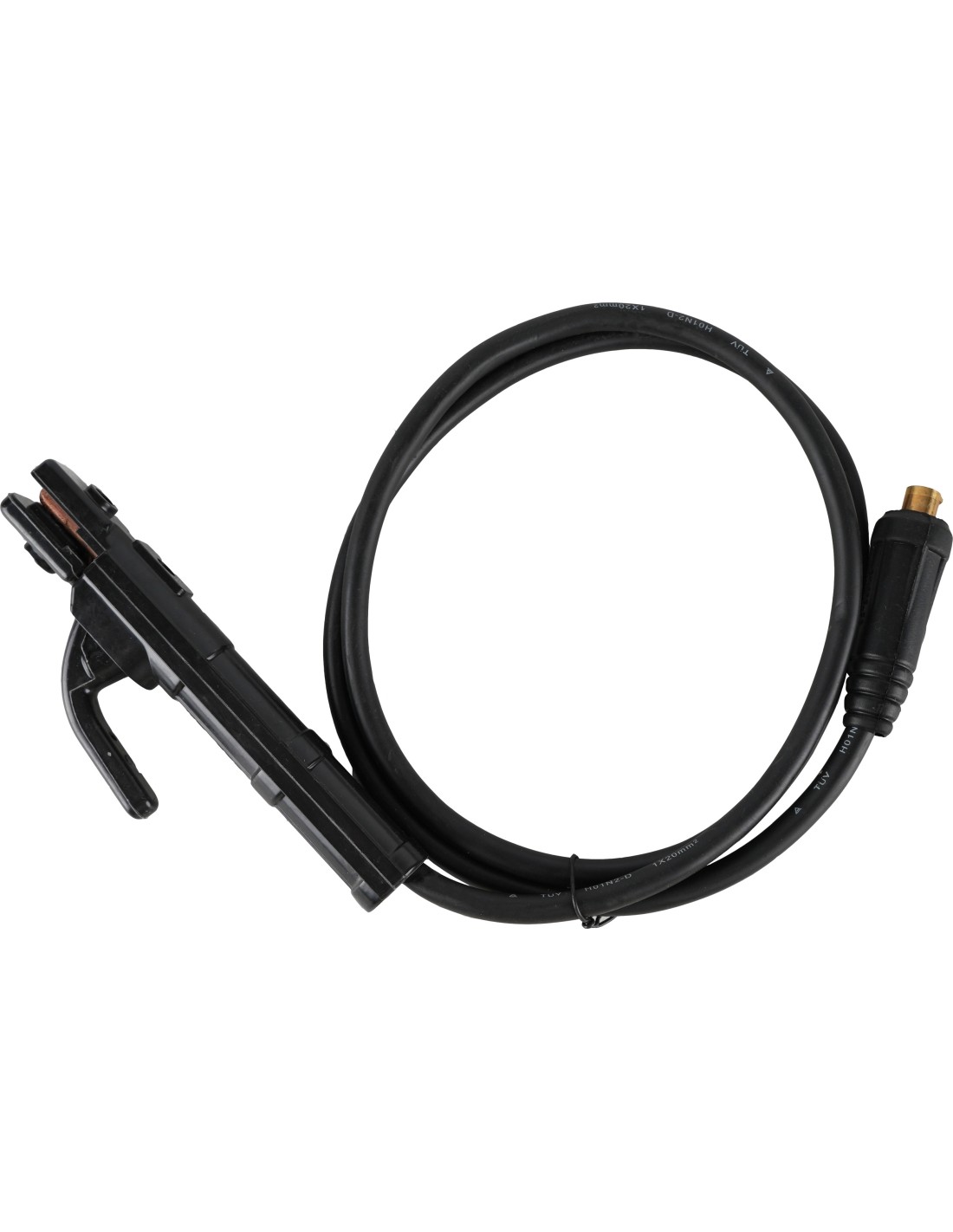

electrode holder with 2 m cable (16 mm² cable, 35-50 mm connector);

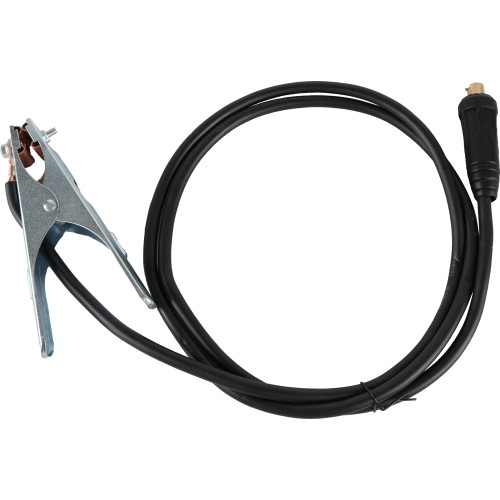

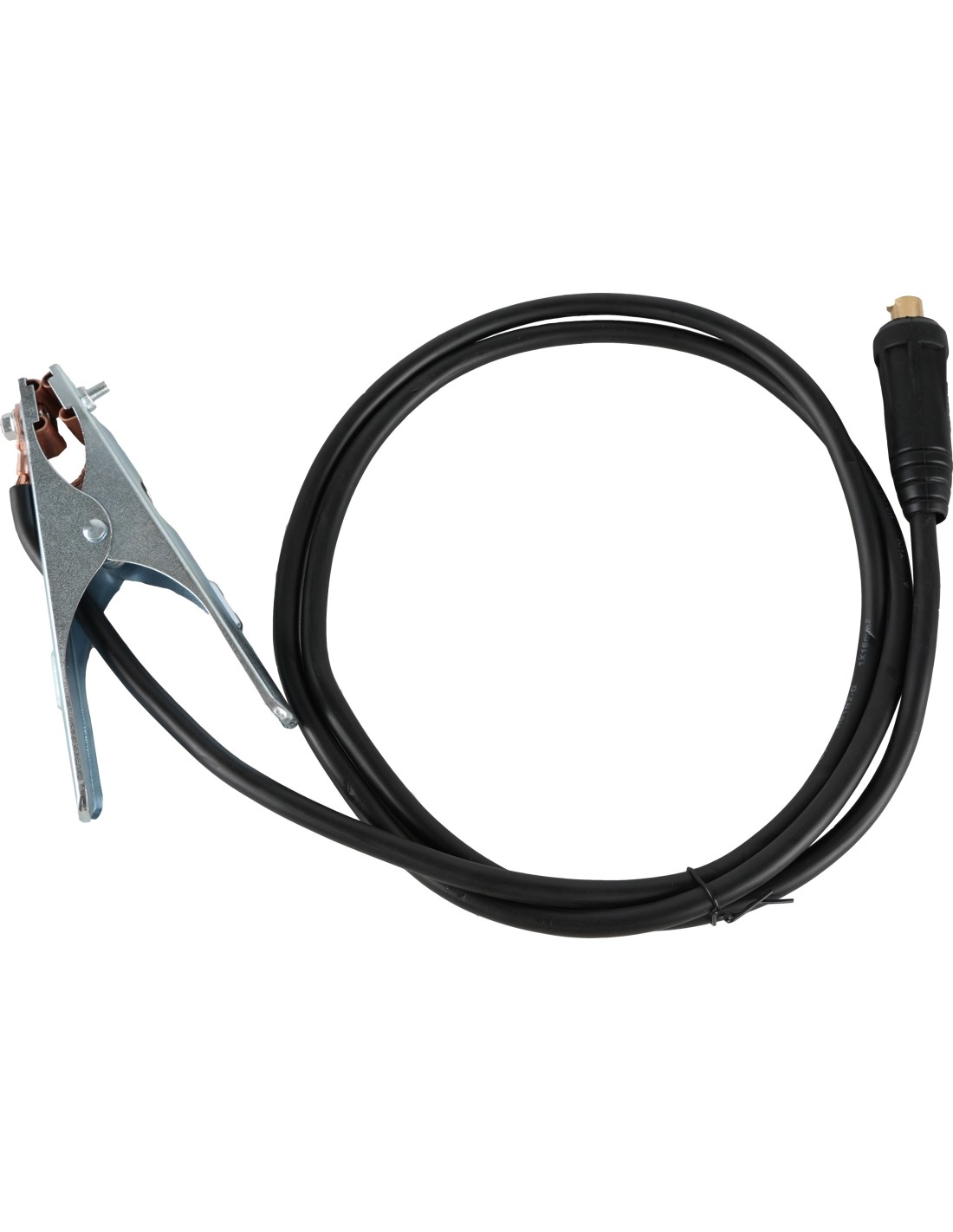

ground clamp with 2 m cable (16 mm² cable, 35-50 mm connector);
machine power cable, 2 m;

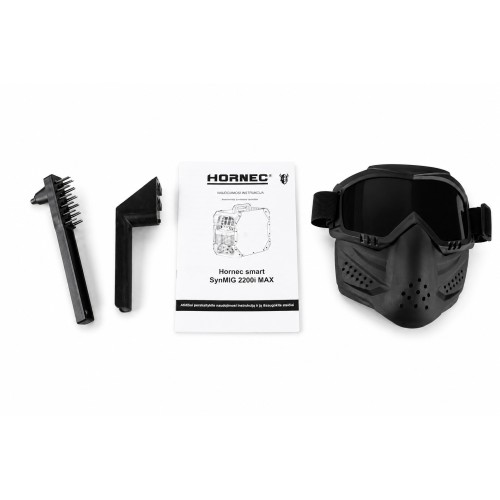

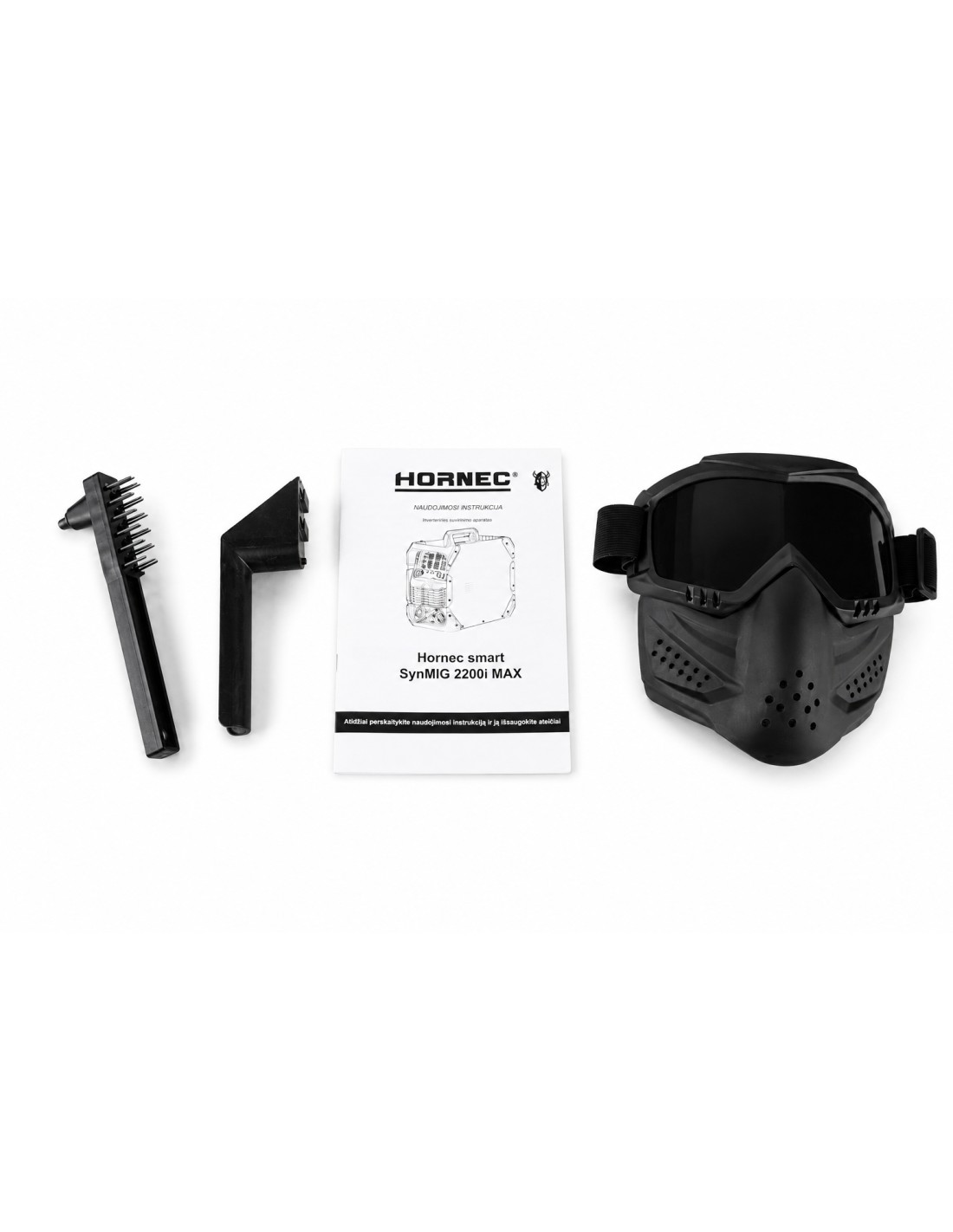

protective welding glasses / mask;
2 in 1 metal cleaning hammer-brush;
user manual EN / LT

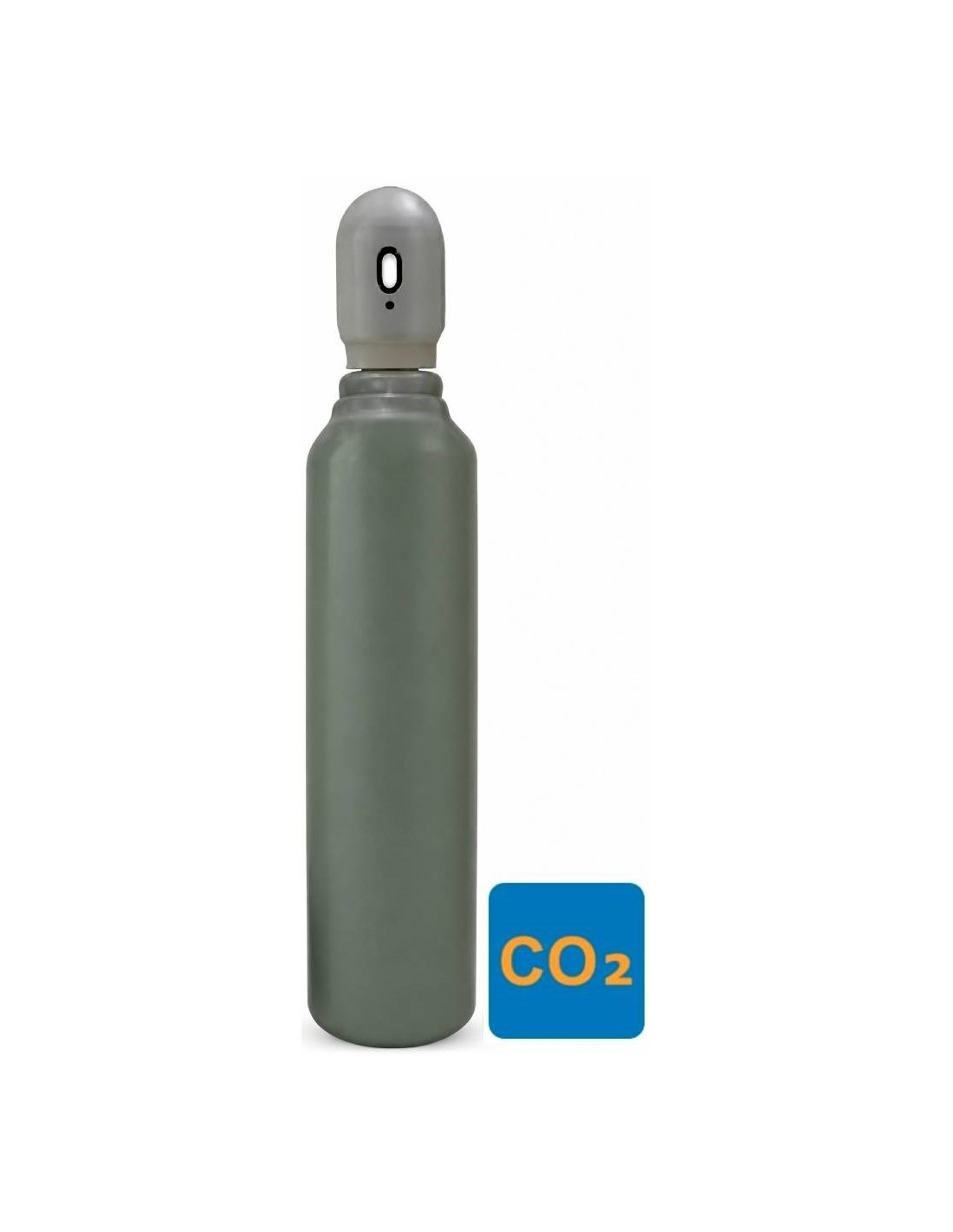

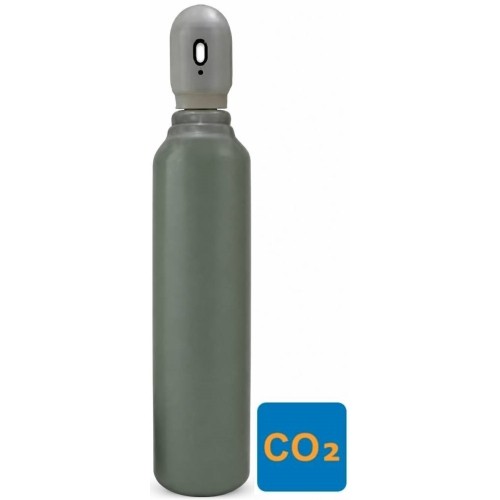

8 L CO2 gas cylinder (filled)
Ar/CO2 regulator

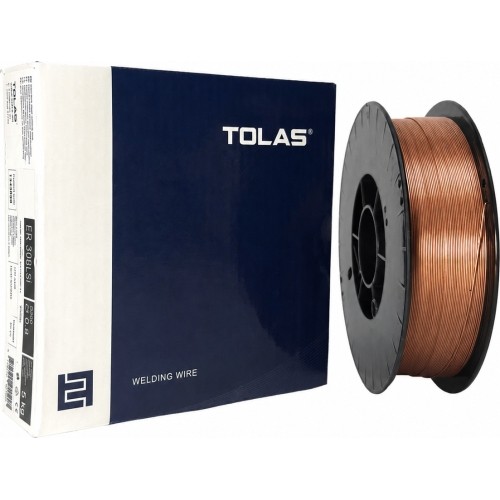

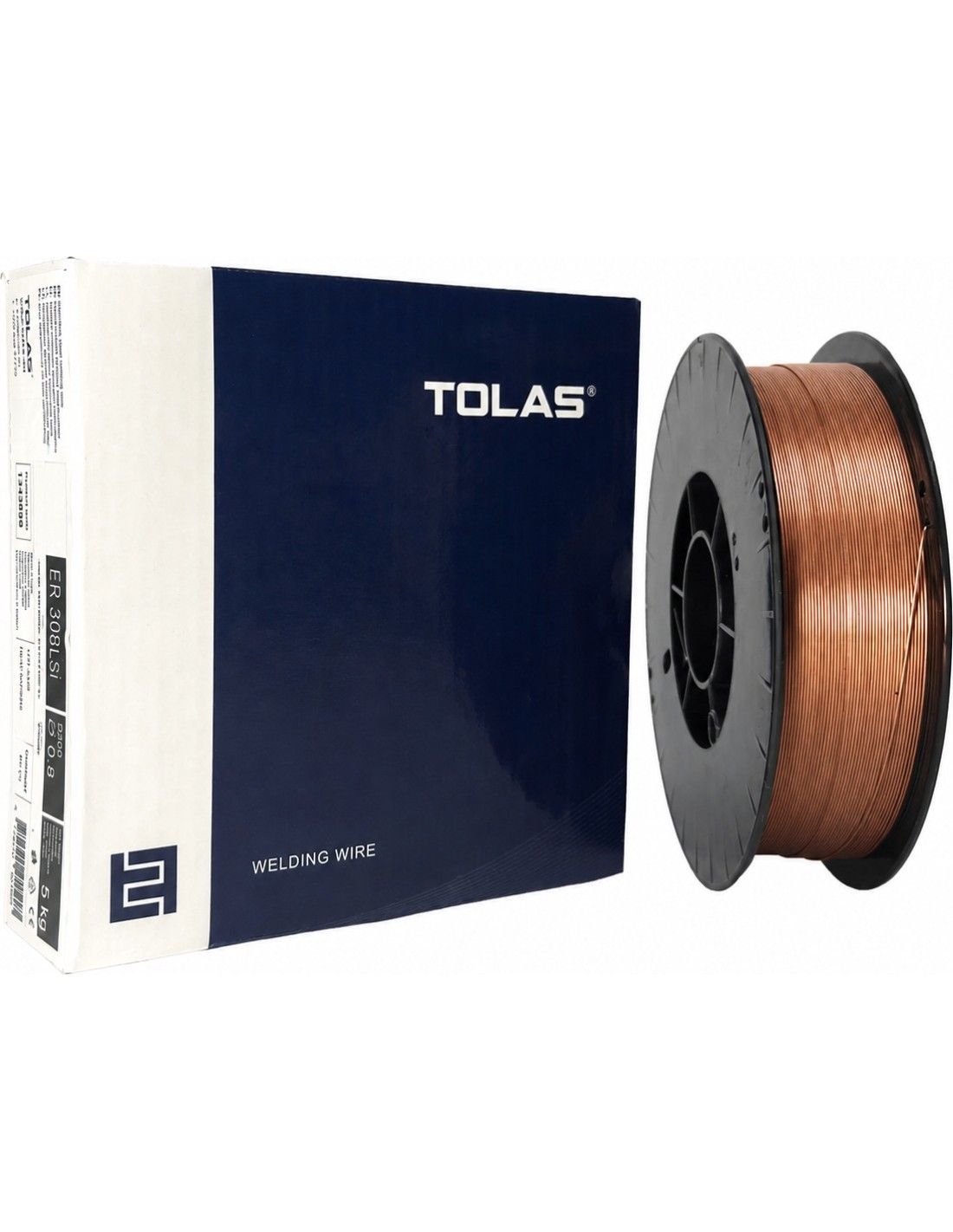

Structural steel wire 0.8 mm, 5 kg

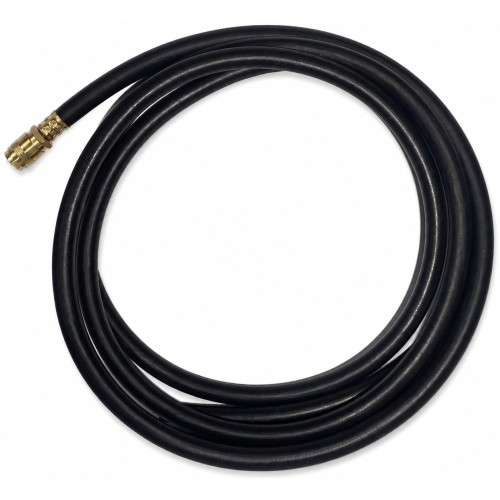

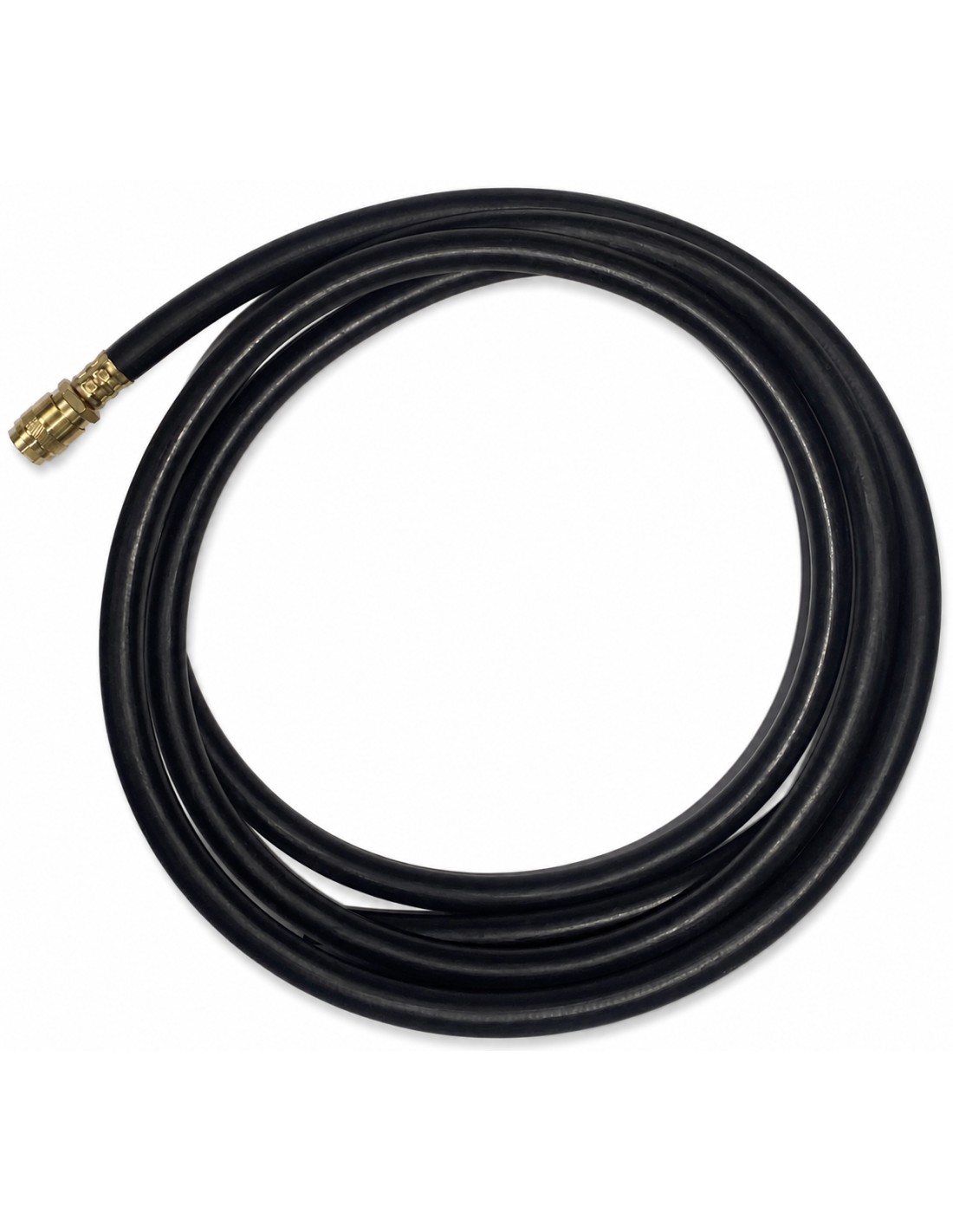

3 m pressure-resistant gas hose with quick connector (to the machine) and clamp

The appearance of the package contents and the quantity of small consumables may vary depending on the specific product batch.

HORNEC smart SynMIG 2200i MAX komplektacija

Versatile 4 in 1 welding machine for home workshops and repair work

If you are looking for one machine for synergic and manual MIG, Lift-TIG and MMA welding, the HORNEC® smart SynMIG 2200i MAX offers four welding modes, digital control and up to 180 A welding current according to the machine rating plate. The SYN MIG mode makes choosing settings easier, MAN MIG gives more freedom of adjustment, and the compact inverter design is well suited to garages, country houses and home workshops.
