- New
- Funkcijos
- Opcja Spool Gun, Podajnik 2-rolkowy, Spawanie bez gazu, Ustawienia synergiczne, Wyświetlacz LED
- Phase
- Vienfazis (230V)
- Control
- synergetic
- User Level
- Hobbyist / Home user
- Weight, kg
- 12.5
- Suvirinimas / pjaustymas / kiti metodai
- MIG/MAG, MMA DC, TIG Lift (trinant) DC
- Wire spool size [kg]
- 1
5 - Išmatavimai mm
- 43 x 18,5 x 32
- PFC function
- No
- Gamybos technologija
- IGBT
- Maximum current MMA [A]
- 200
- Maximum current TIG [A]
- 200
- MMA darbo ciklas [%].
- 60
- TIG darbo ciklas [%].
- 60
- Įtampa be apkrovos [V].
- 78
- Maksimalus MMA suvartojamos galios kiekis [kVA}
- 4,6
- Maksimalus TIG sunaudojamas galingumas [kVA].
- 4,6
- Pagrindinis metodas
- MIG/MAG
- Tinklo apsauga [A].
- 20
- Įmonių garantijos laikotarpis [metai].
- 1
- Maximum current MIG/MAG
- 200
- MIG/MAG darbo ciklas [%]
- 60
- MIG suvirinimo įtampa [V].
- 16,5 – 22
- Maksimalus MIG/MAG sunaudojamas galingumas [kVA].
- 4,6
- Ritinio matmenys [mm].
- 30x10x10
- Suvirinimo įtampos korekcija
- -2,0 – +2,0
- Vielos ritės skersmuo ø [mm].
- 100, 200
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless
- Number of wire feed rollers
- 2
- Package Contents
- MIG / MAG burner
electrode cable
gas cylinder
gas hose
ground cable
welding machine
wire - Ground cable connection
- big (35 - 50 mm)
- Torch connection in the machine
- EURO
- Welding methods
- MIG/MAG welding
MIG FLUX (without gas)
MMA (electrodes)
TIG Lift

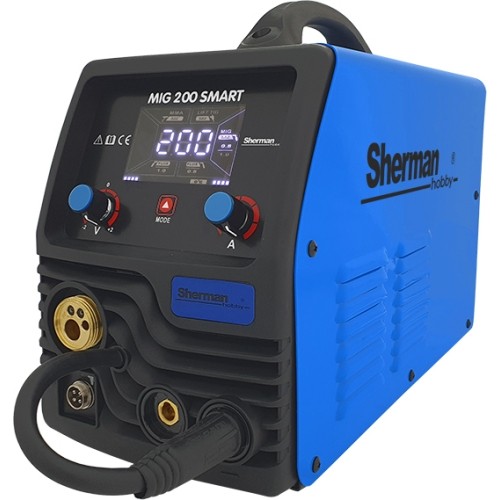

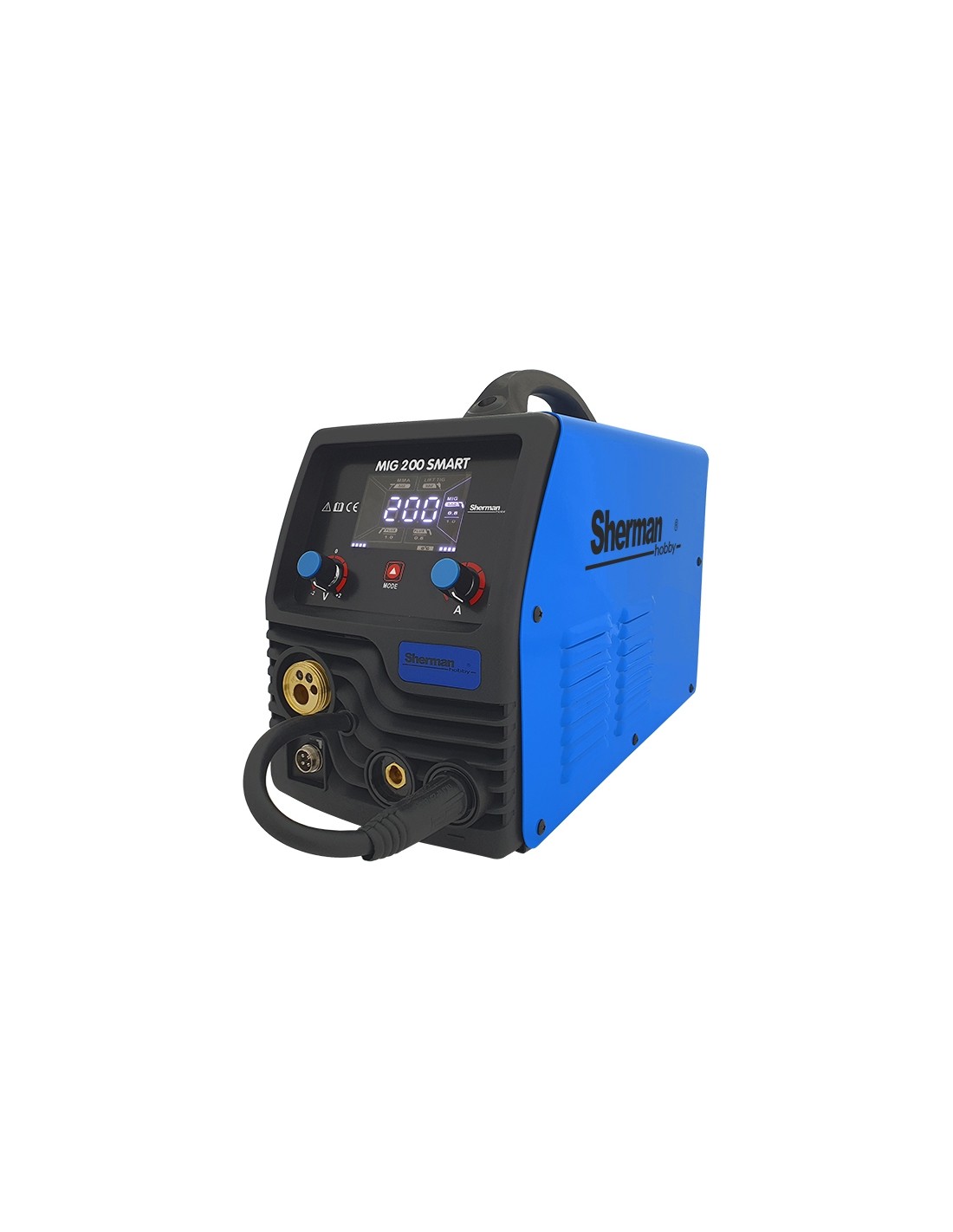

Inverter welder Sherman MIG 200 SMART (machine + gas cylinder CO2 5L + gas reducer + wire + other)
Instead of €365.89
Similar complects
Spare parts
Description

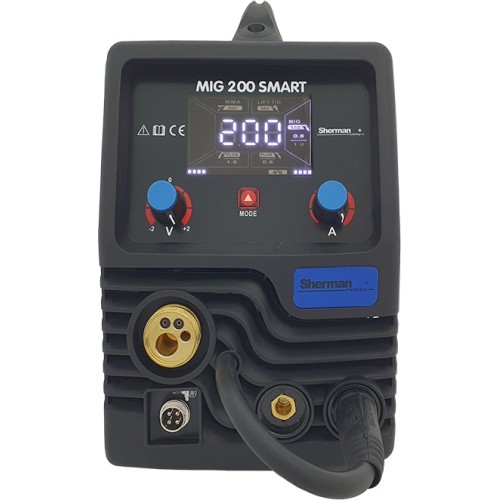

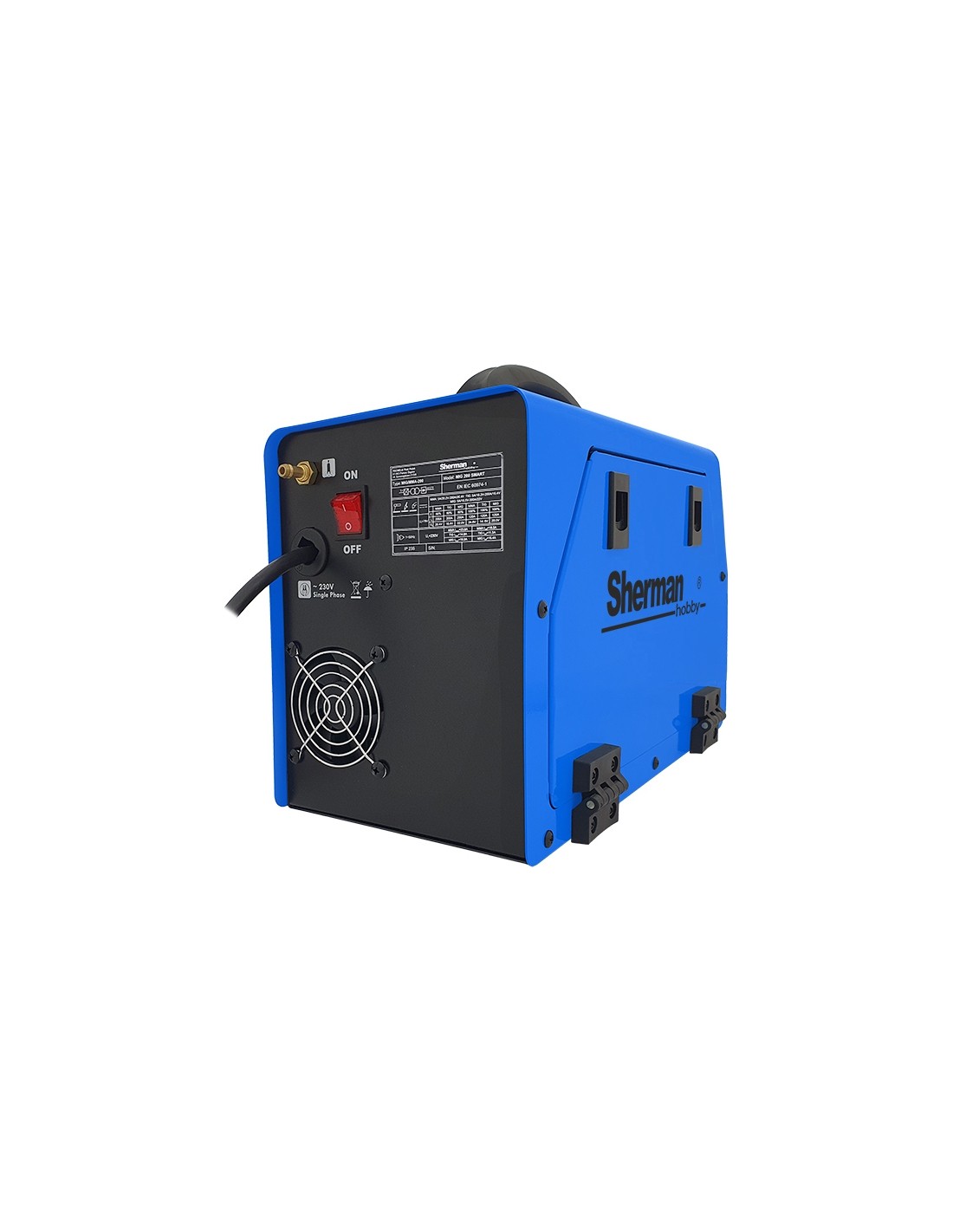

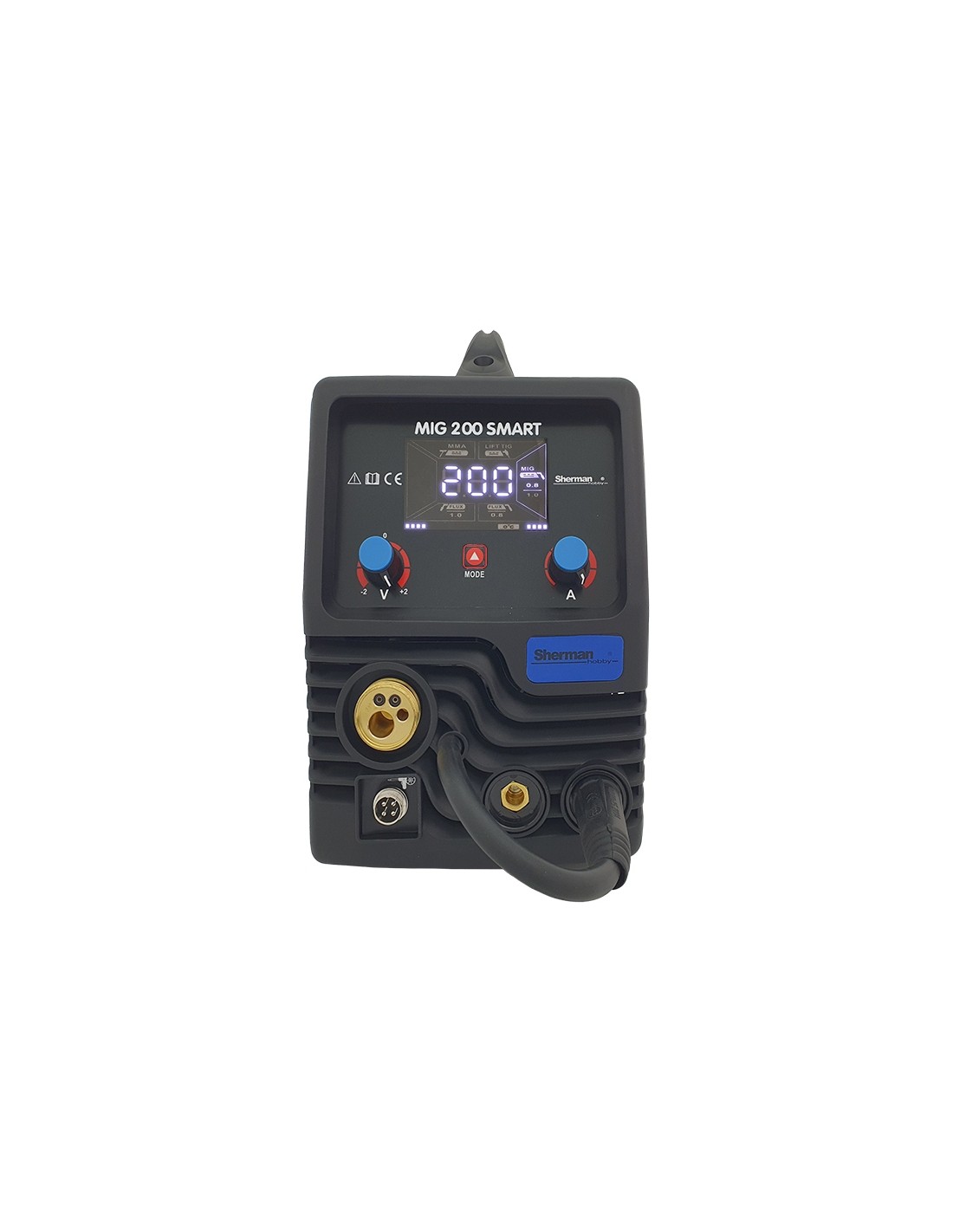

The Synergic MIG 200 SMART welder is designed for manual welding of steel. It offers easy operation and supports MMA (shielded metal arc), TIG Lift, and synergic MIG/MAG modes. By switching polarity, it enables MIG/MAG welding with both solid wires in shielding gas and gasless flux-cored wires.

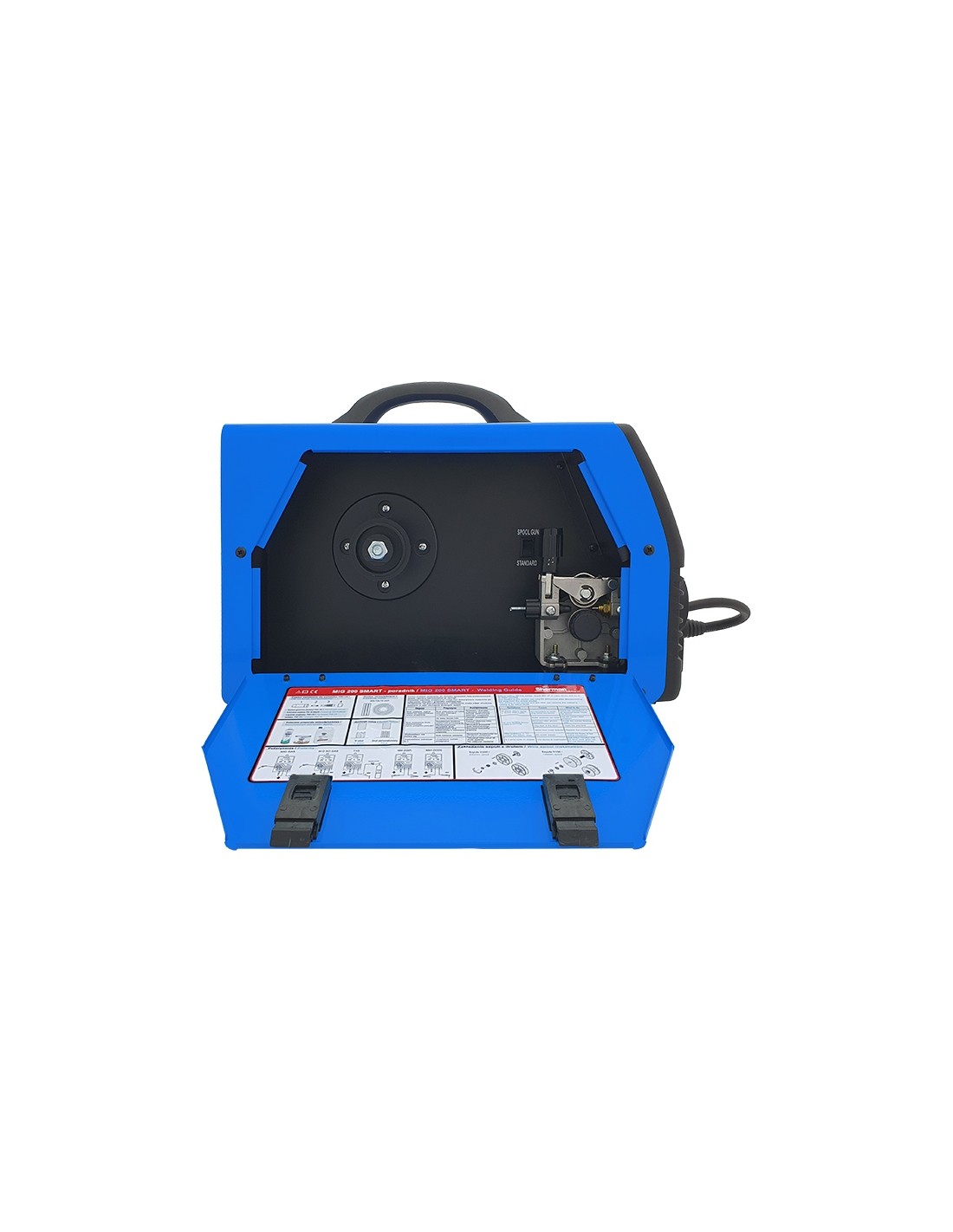

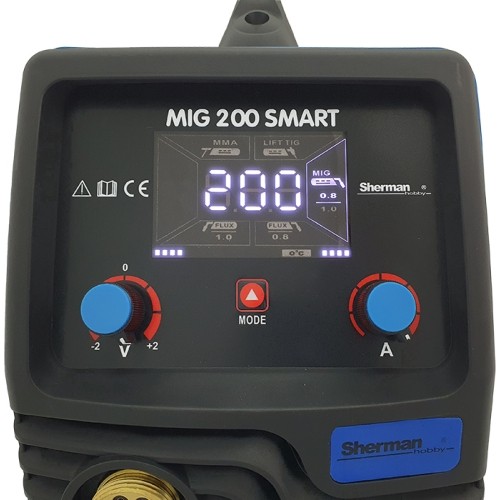

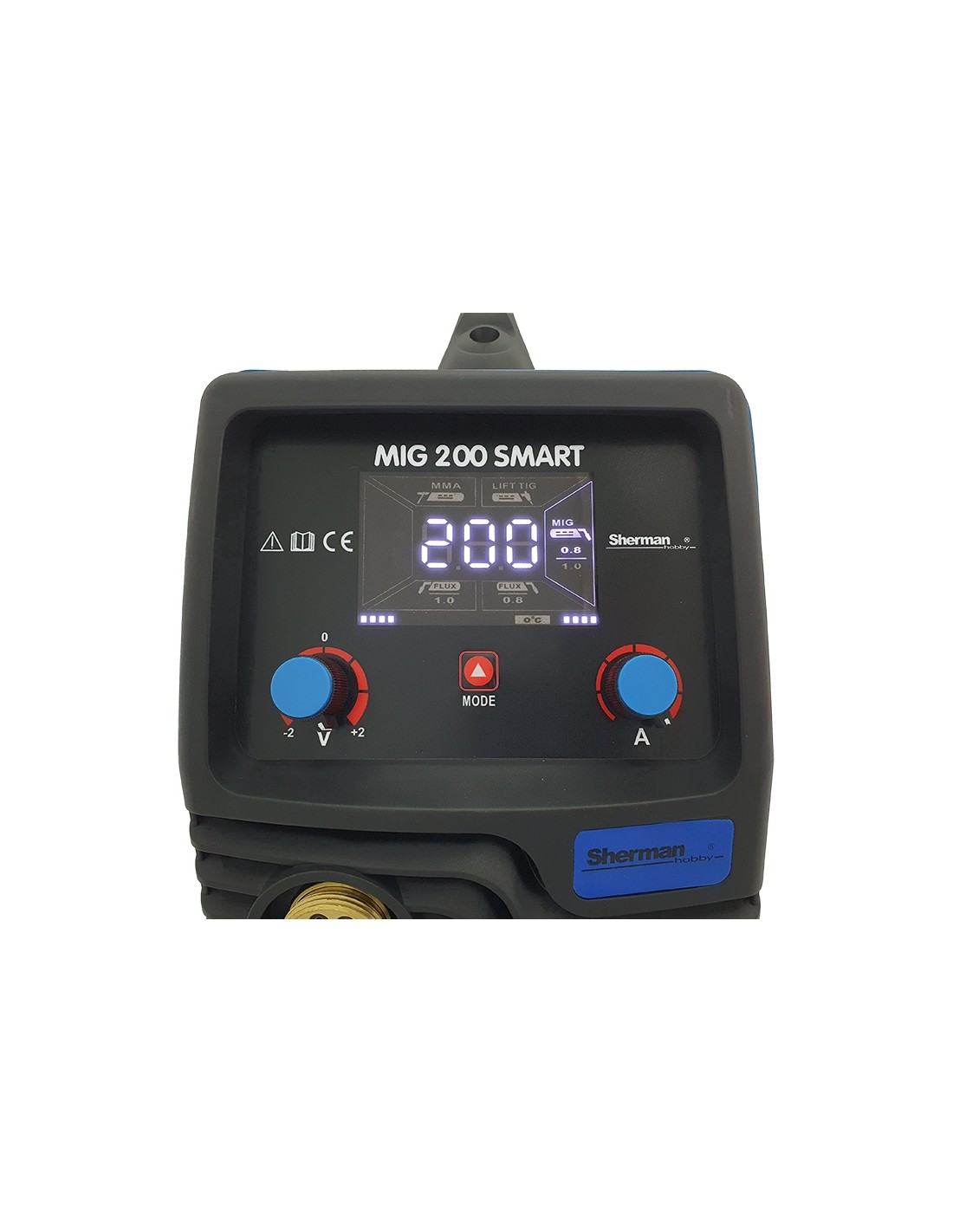

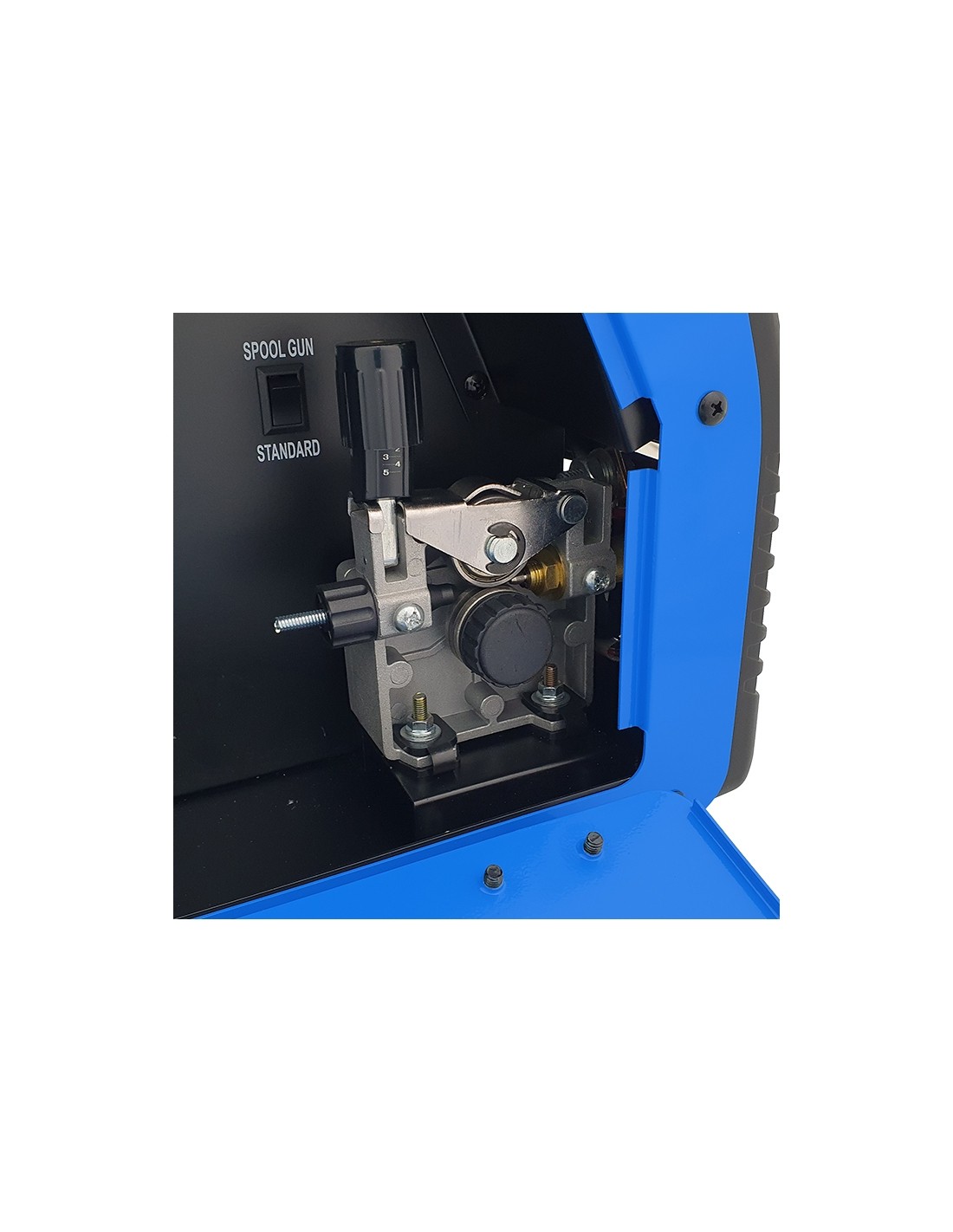

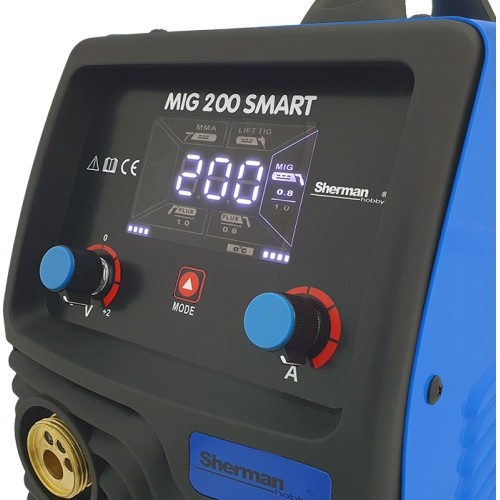

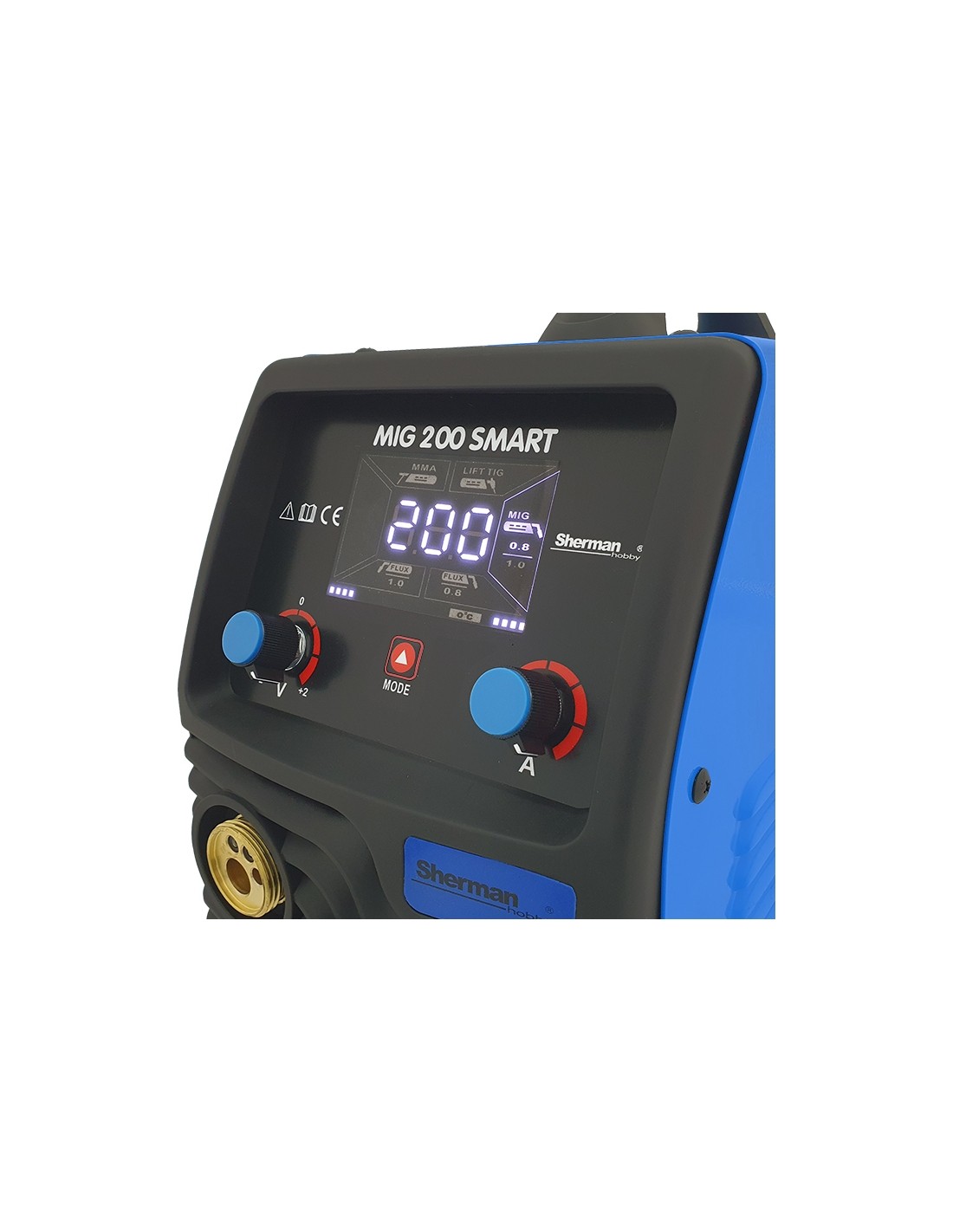

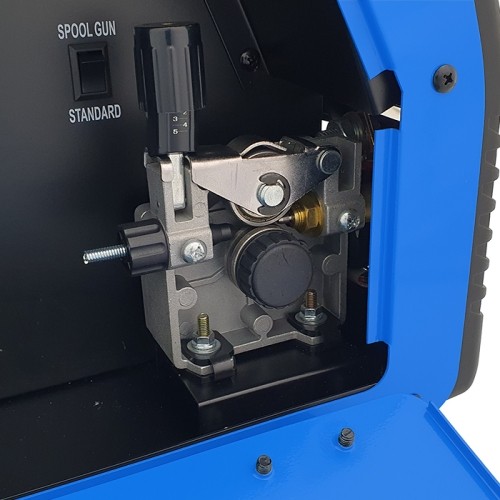

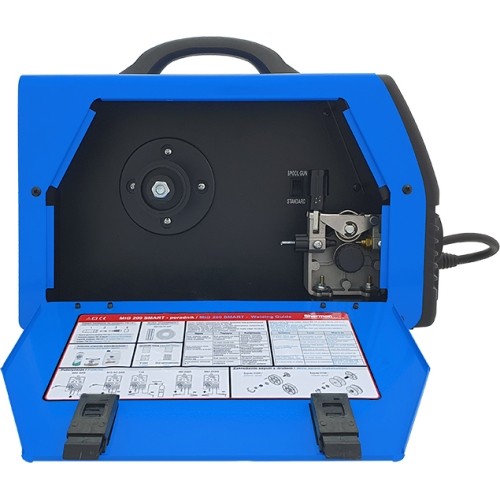

The machine accepts a Spool Gun torch with an integrated mini wire feeder and D100 spools for steel or non-ferrous wire. The built-in synergic control helps less experienced users quickly set suitable parameters. A two-roll wire feeder ensures stable wire delivery, and the LED display provides clear parameter readout.

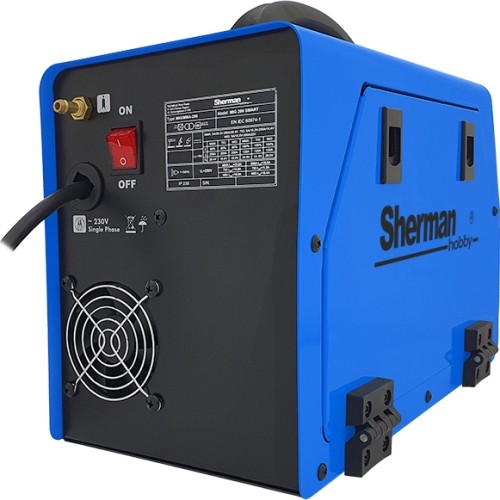

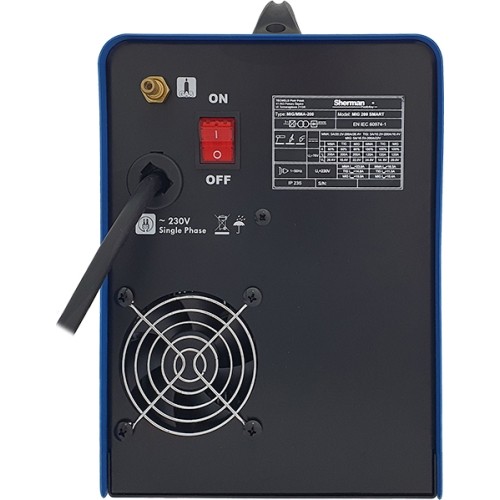

Constructed with IGBT inverter technology, the welder combines compact size with high efficiency while reducing energy consumption. It operates from a single-phase 230 V supply and delivers up to 200 A in MIG/MAG, MMA, and TIG Lift, with a 60% duty cycle. Compatible with 1 kg and 5 kg wire spools, it is suitable for use indoors or under cover, away from direct weather exposure.

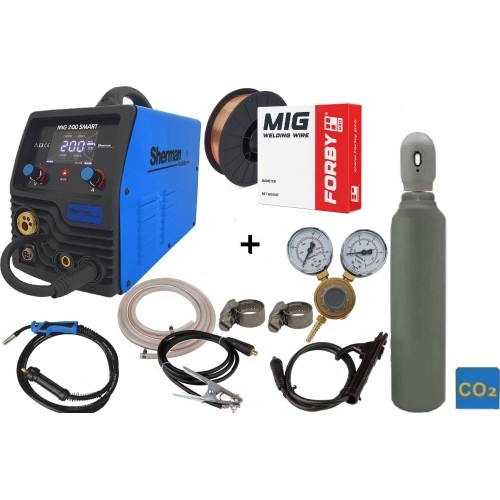

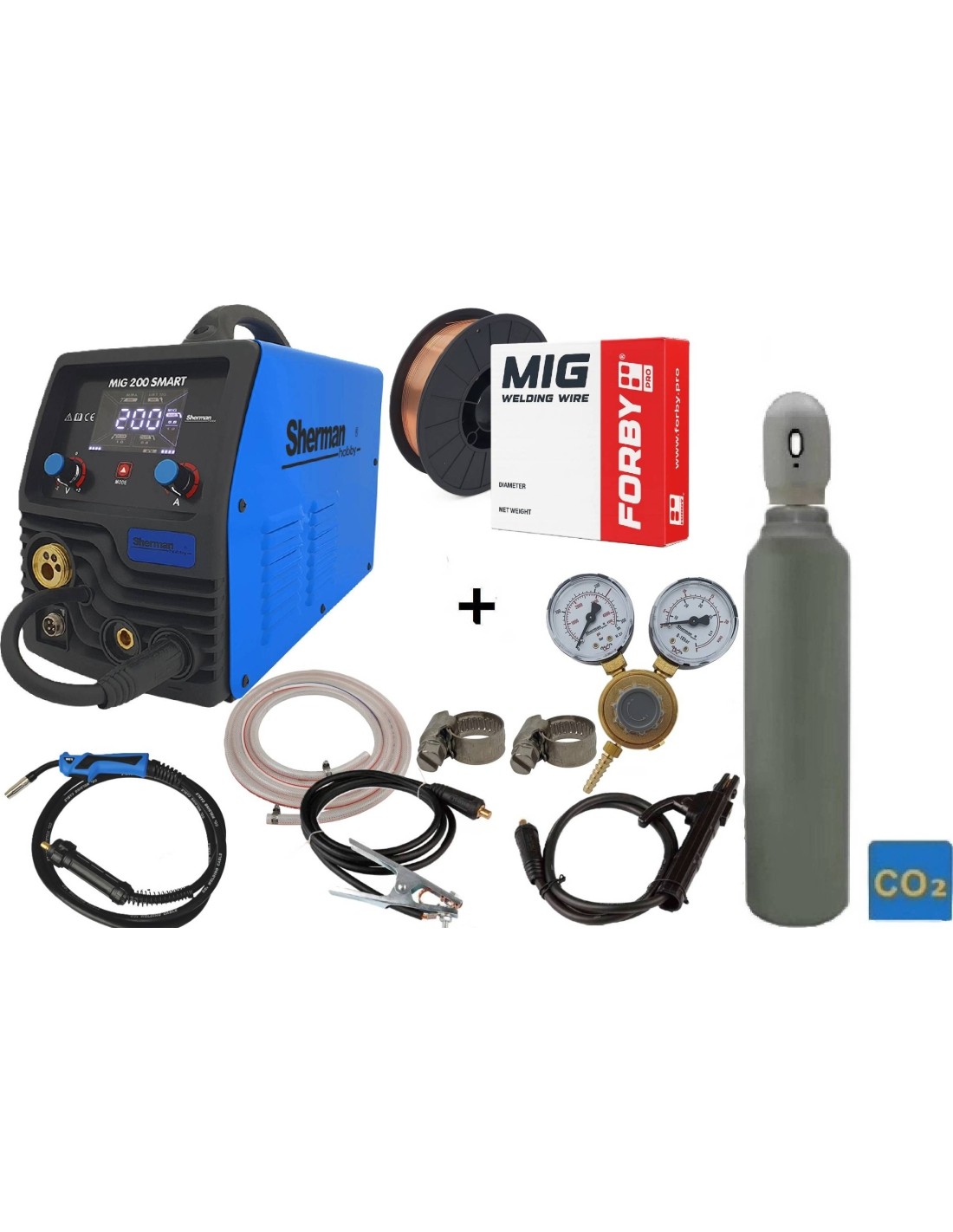

THE SET CONTAINS:
- Inverter welding machine

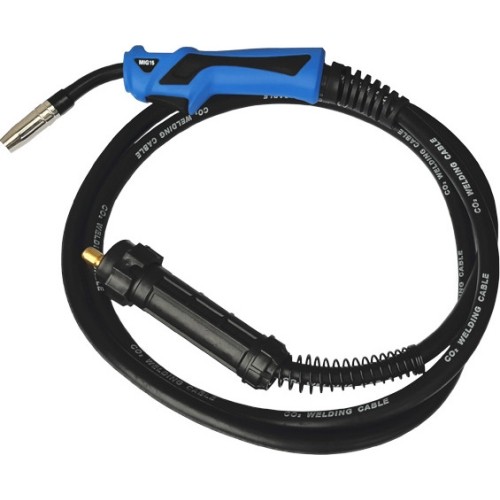

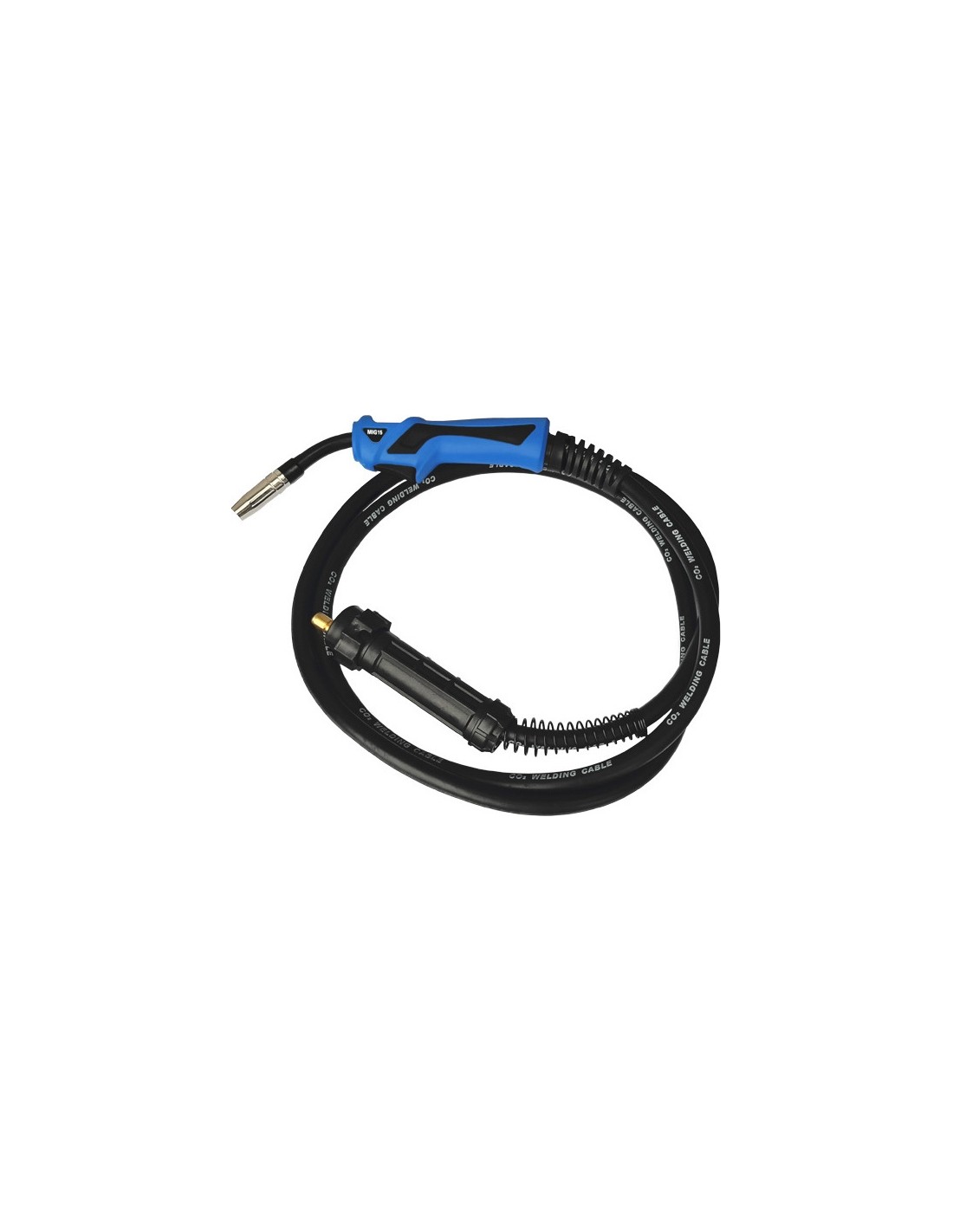

- MIG/MAG torch

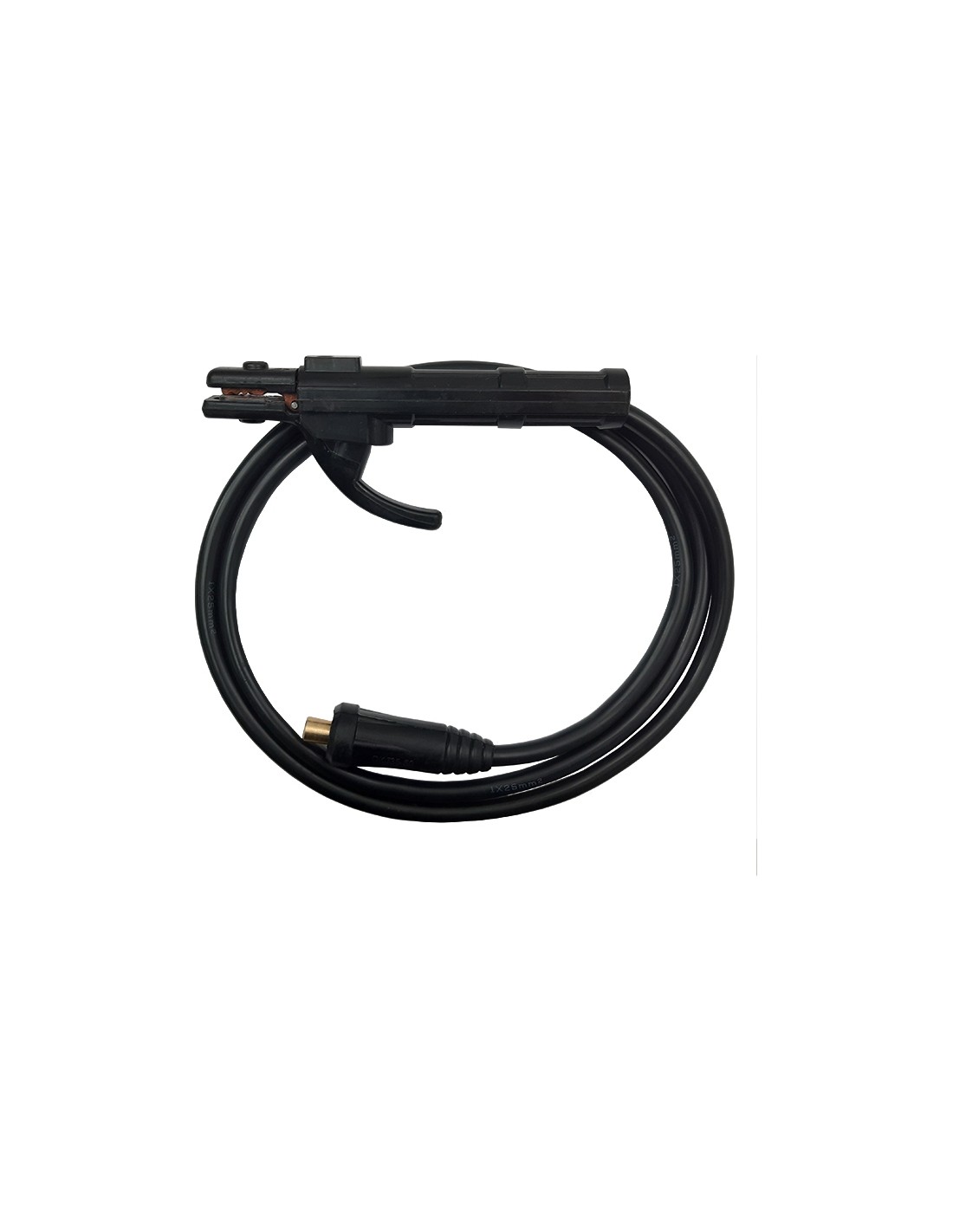

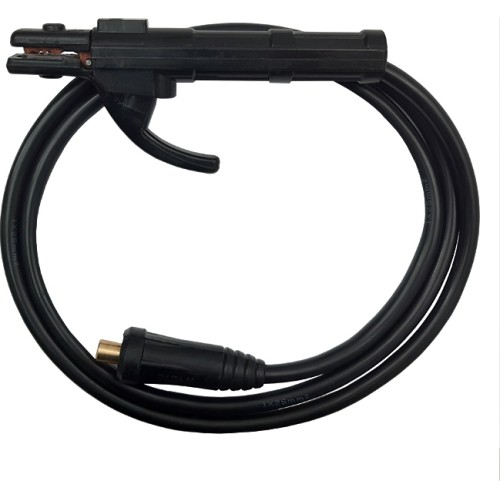

- Welding cable with electrode holder

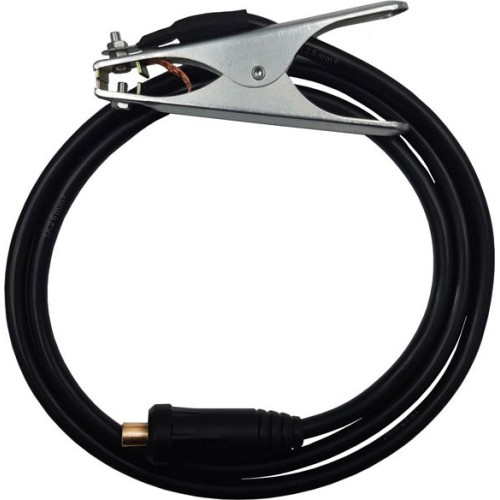

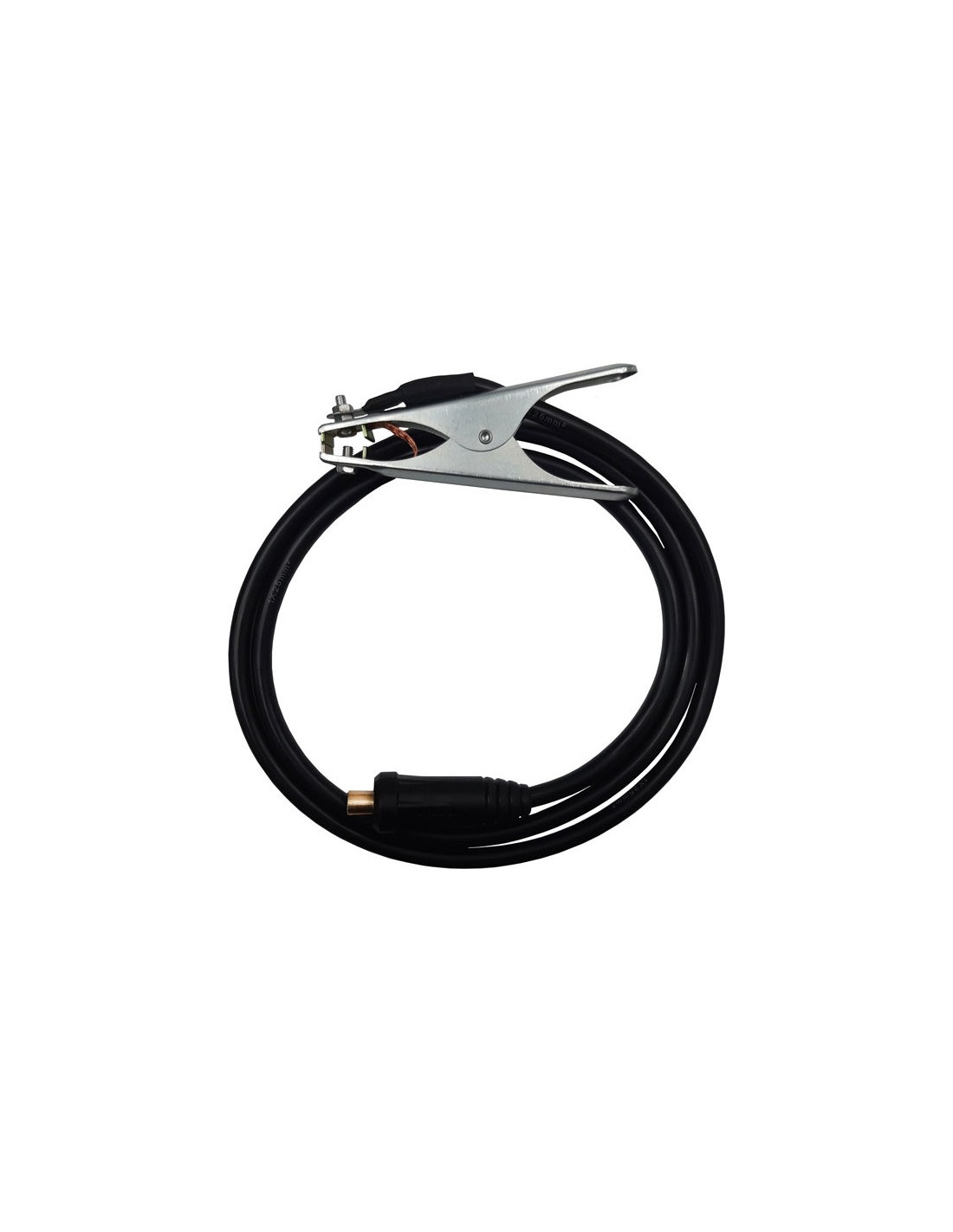

- Welding cable with mass holder
- Filled gas cylinder CO2 5L
- Wire for black metal, 0.8mm 5kg
- Reducer for CO₂/Argon gas
- Clamps 2pcs

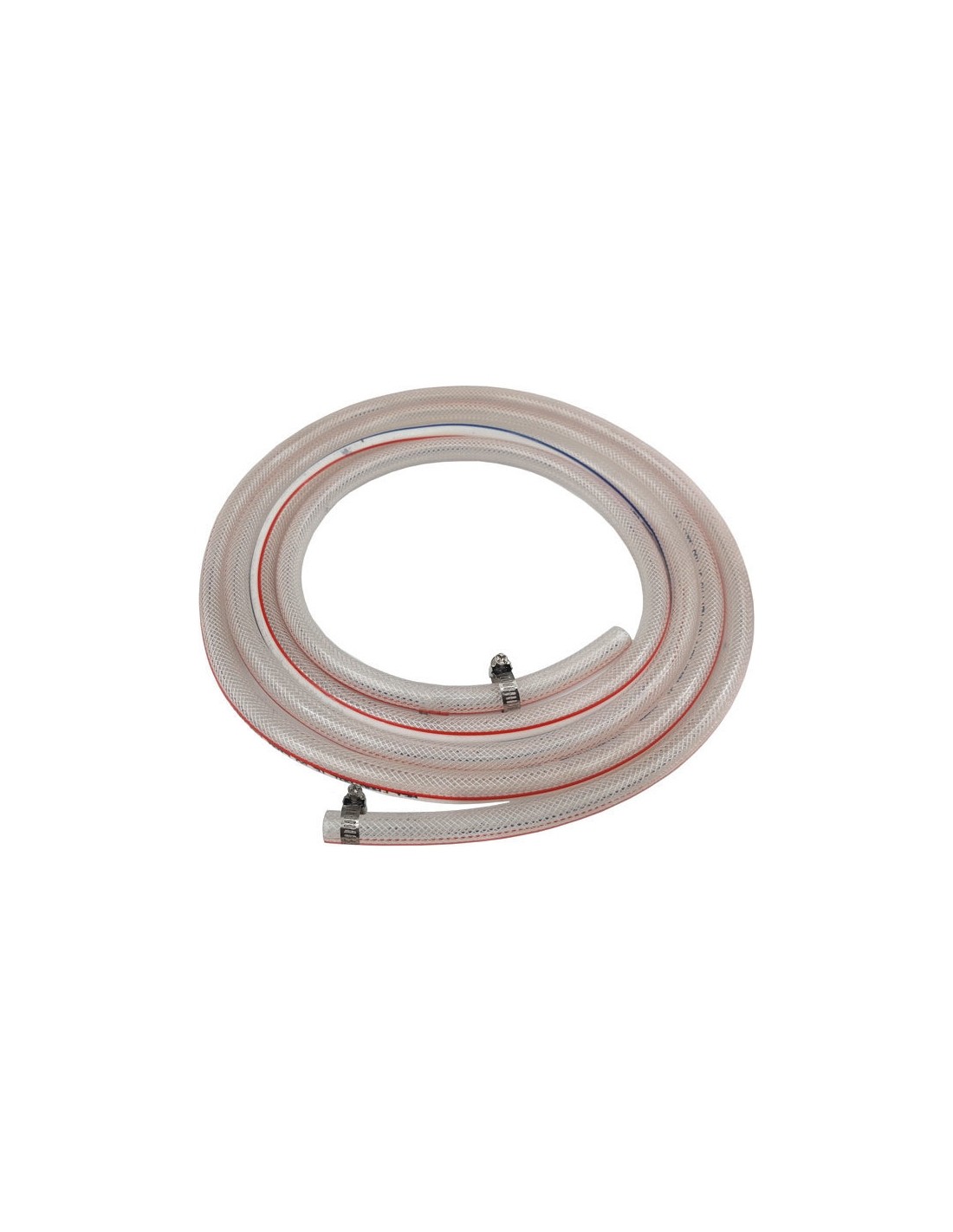

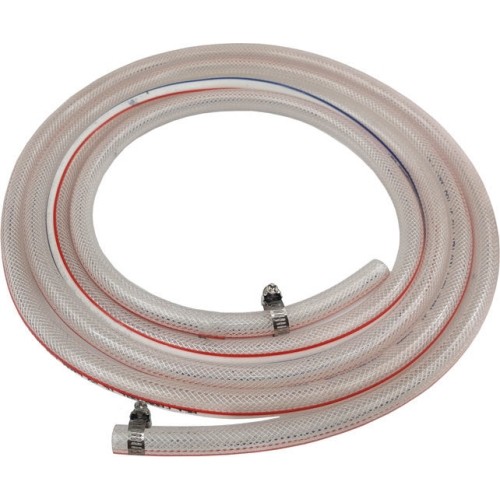

- Hose for gas, 3m
