- Svoris (Kg)
- 14
- MMA Darbo ciklas
- 30%
- TIG Darbo ciklas
- 30
- Phase
- Vienfazis (230V)
- Įtampa be apkrovos (V)
- 65
- Wire spool size [kg]
- 5
- Išmatavimai mm
- 450 x 220 x 380
- Maksimali MMA suvirinimo srovė [A]
- 200
- MIG/MAG darbo ciklas [%]
- 30
- Vielos padavimo greitis [m/min]
- 1 - 15
- MIG suvirinimo įtampa [V]
- 16 - 24
- Suvirinimo įtampos korekcija
- -15 - +15
- Ritinio matmenys [mm]
- 30x10x10
- Pagrindinis metodas
- MIG/MAG
- MIG taškinio suvirinimo laikas [s]
- 0,5-10
- Suvirinimas / pjaustymas / kiti metodai
- Litavimas, MIG/MAG, MMA DC, TIG Lift (trinant) DC.
- Maksimalus MMA suvartojamos galios kiekis [kVA]
- 7,7
- Maksimalus TIG sunaudojamas galingumas [kVA].
- 7,7
- Maksimalus MIG/MAG sunaudojamas galingumas [kVA].
- 7,7
- Funkcijos

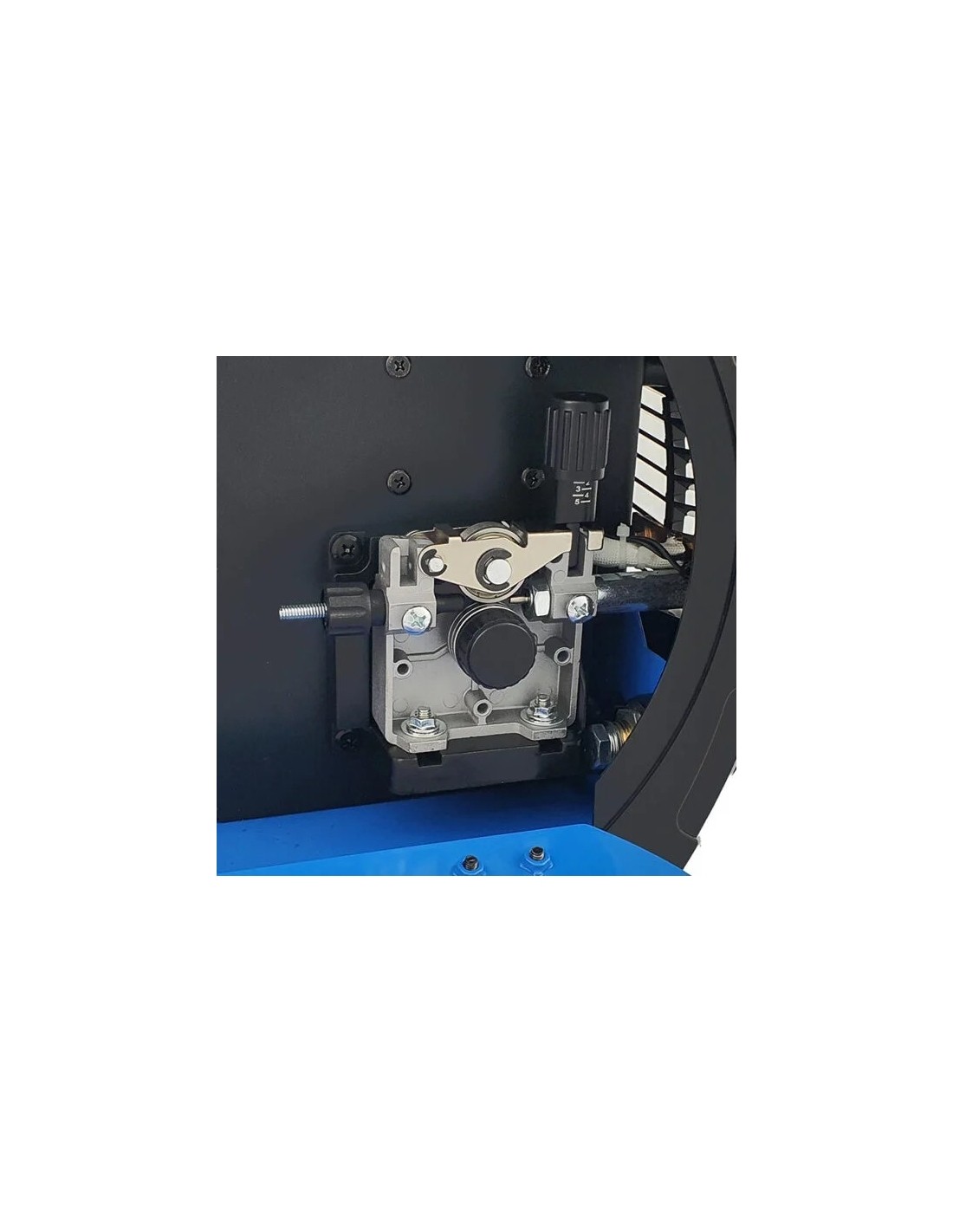

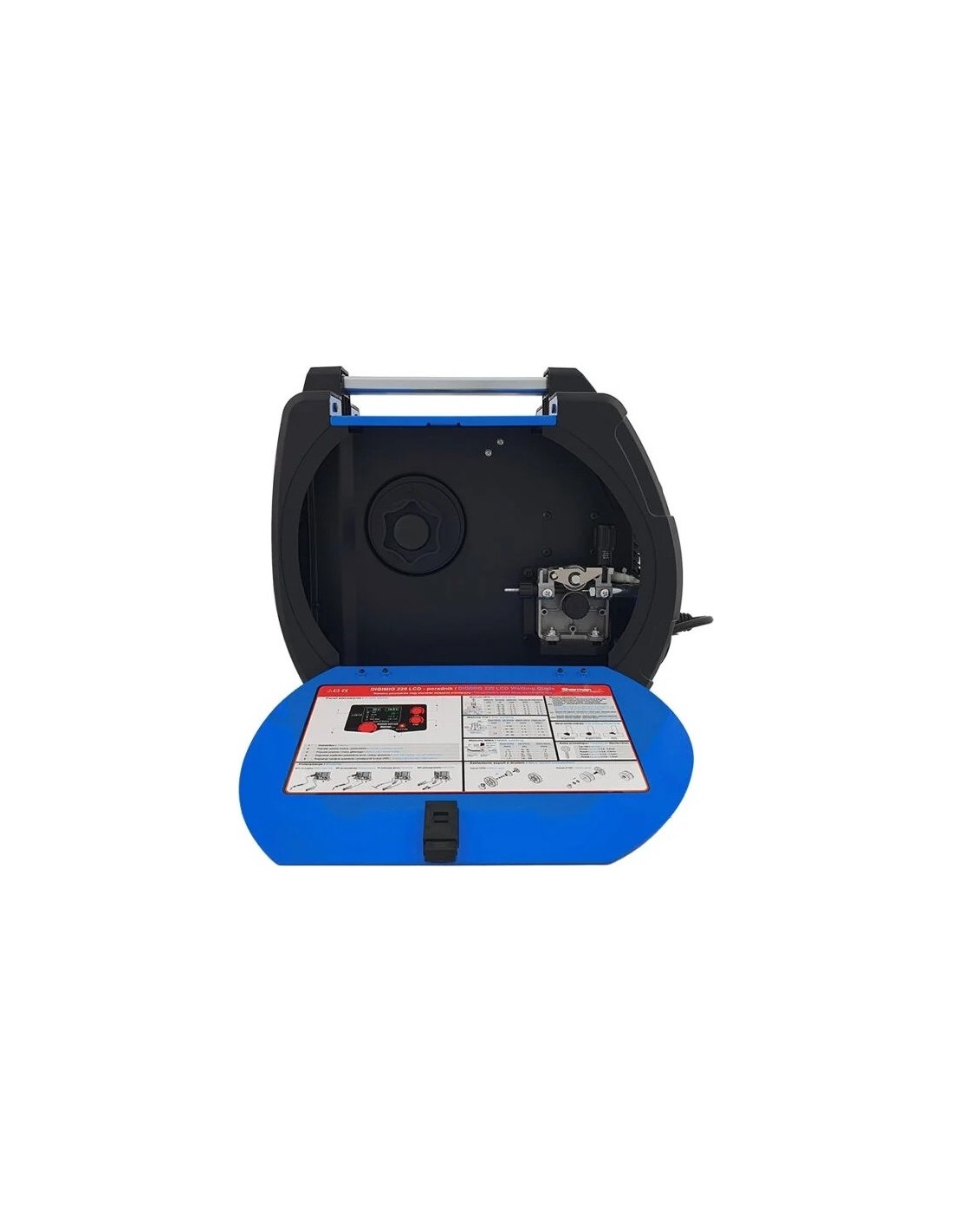

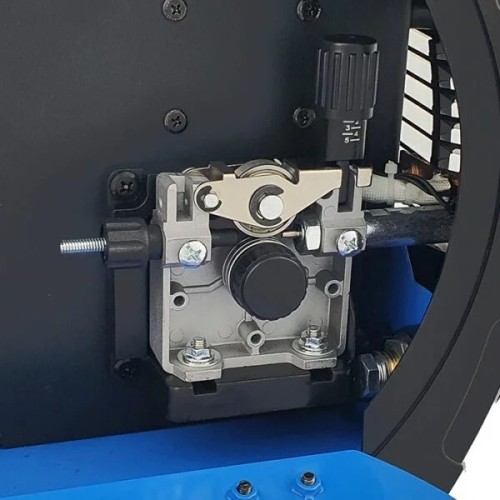

- Lanko jėga, ventiliatoriaus stabdymas, karštas paleidimas, ritės pistoleto parinktis, 2 ritinių tiektuvas, tiektuvo prieigos greitis, induktyvumo valdymas, suvirinimas be dujų, MIG taškinis
- Tinklo apsauga [A].
- 25
- Įmonių garantijos laikotarpis [metai].
- 1
- Maksimali nuolatinės srovės TIG suvirinimo srovė [A].
- 200
- Padavėjo atvykimo greitis
- 50 - 100%
- Vielos padavimo greičio diapazonas [m/min]
- 1-15
- Maximum current MIG/MAG
- 200
- Vielos ritės skersmuo ø [mm].
- 100, 200
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless

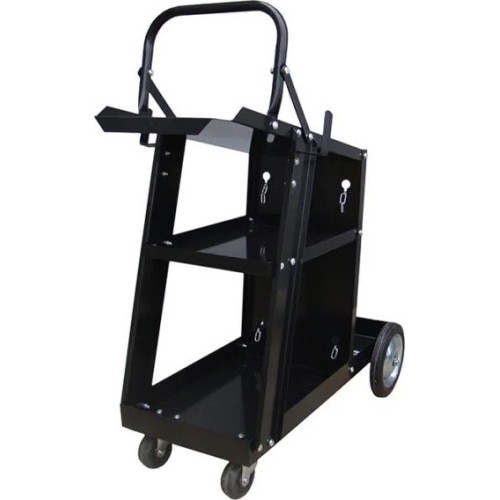

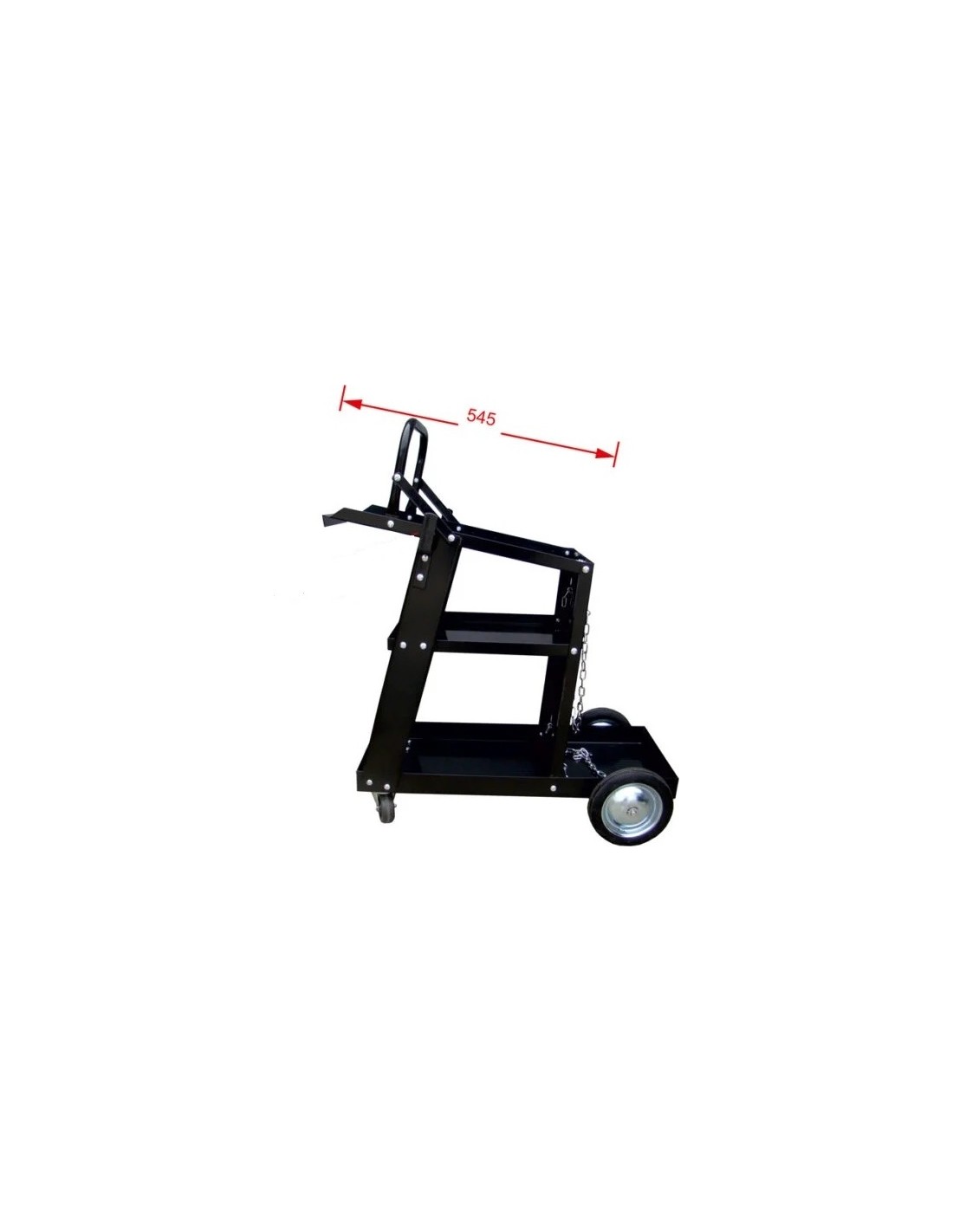

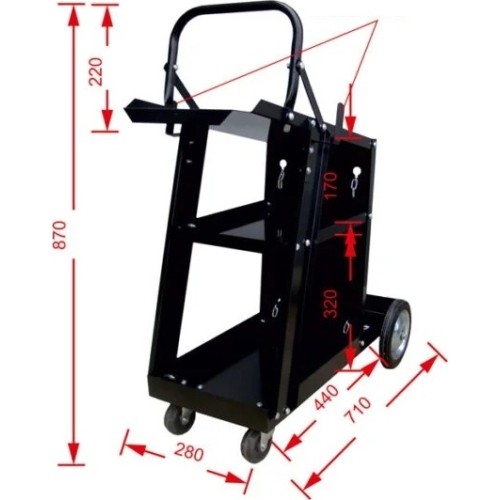

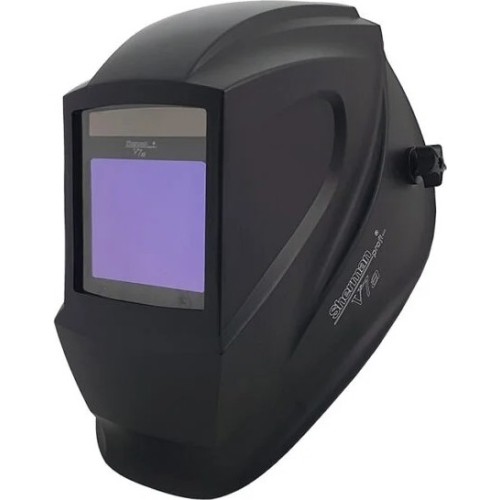

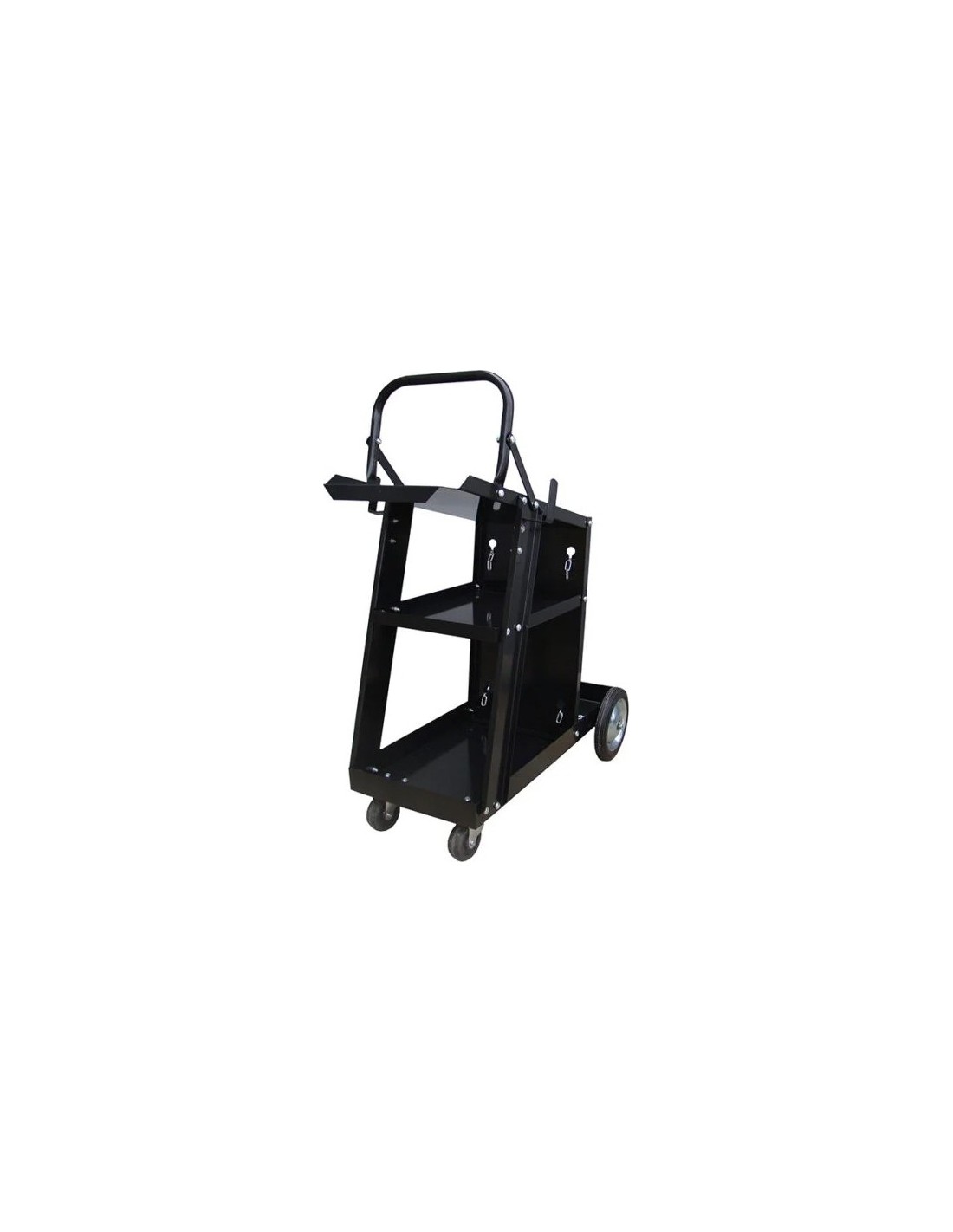

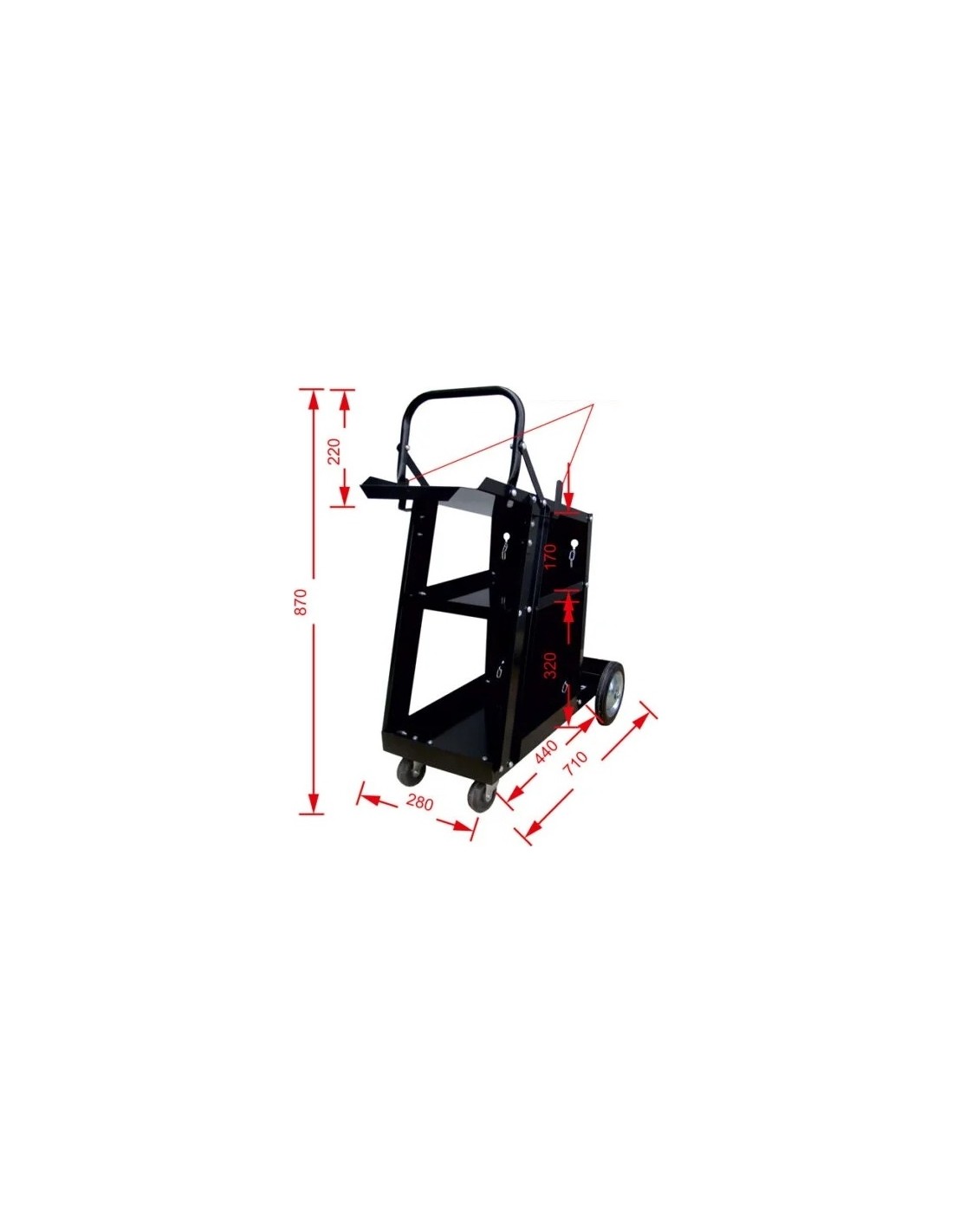

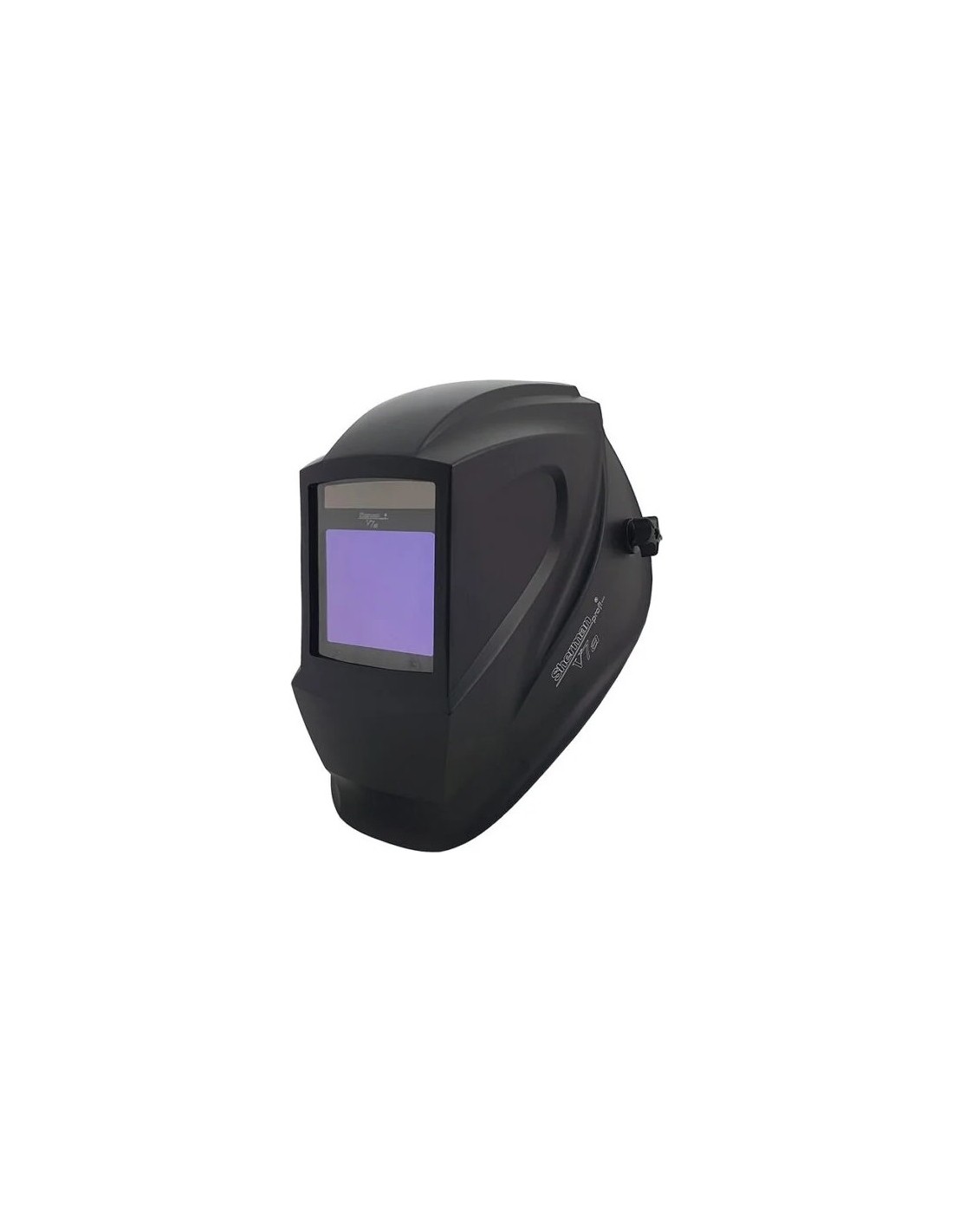

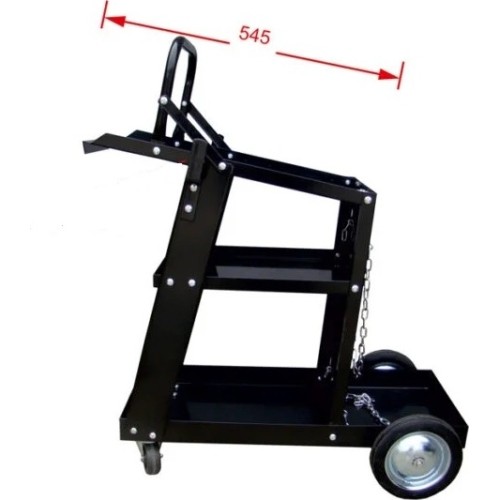

Pusautomačio KOMPLEKTAS SHERMAN DIGIMIG 220 LCD su skydeliu E3 ir vežimėliu MIG
Instead of €610.00
Similar complects
Description

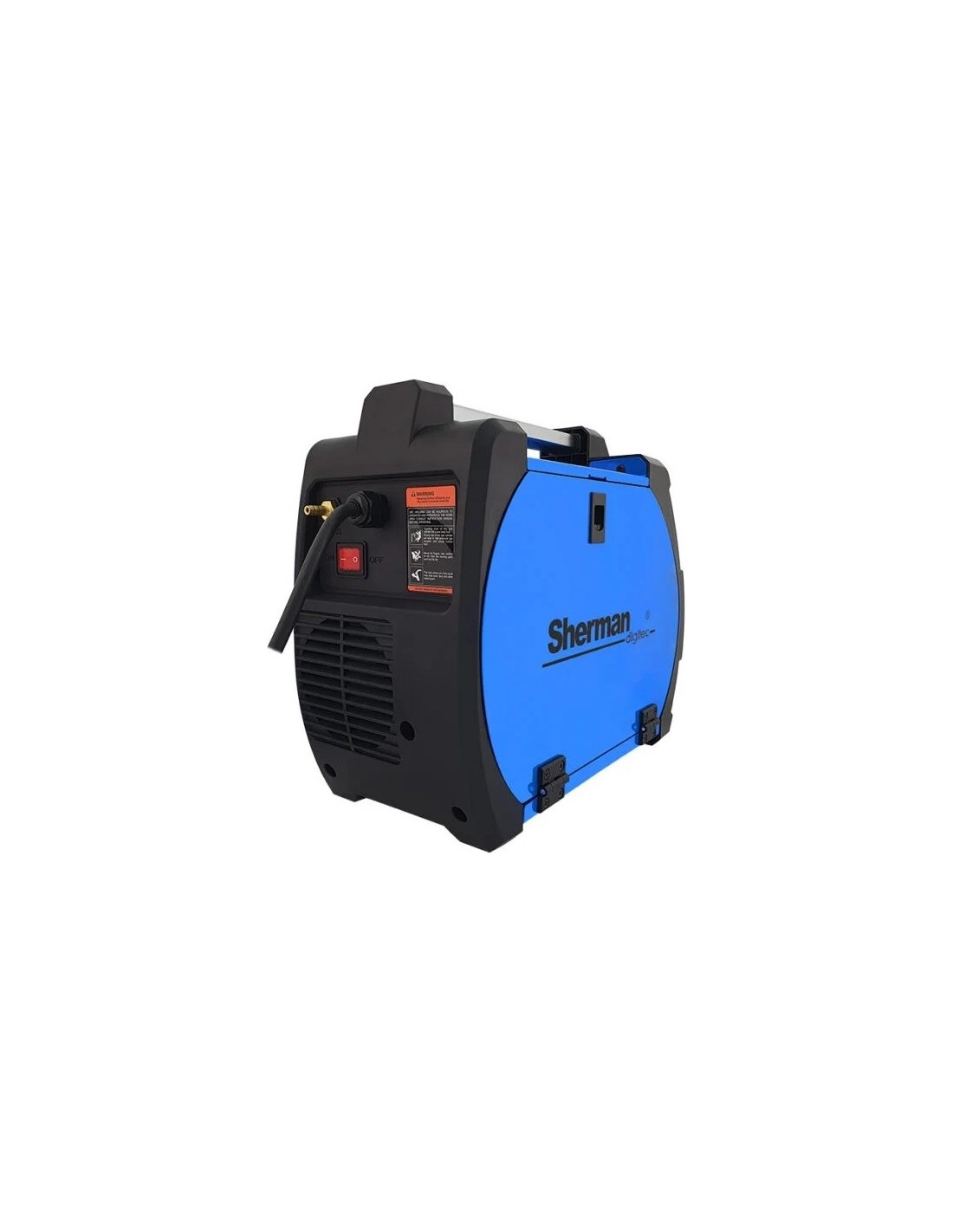

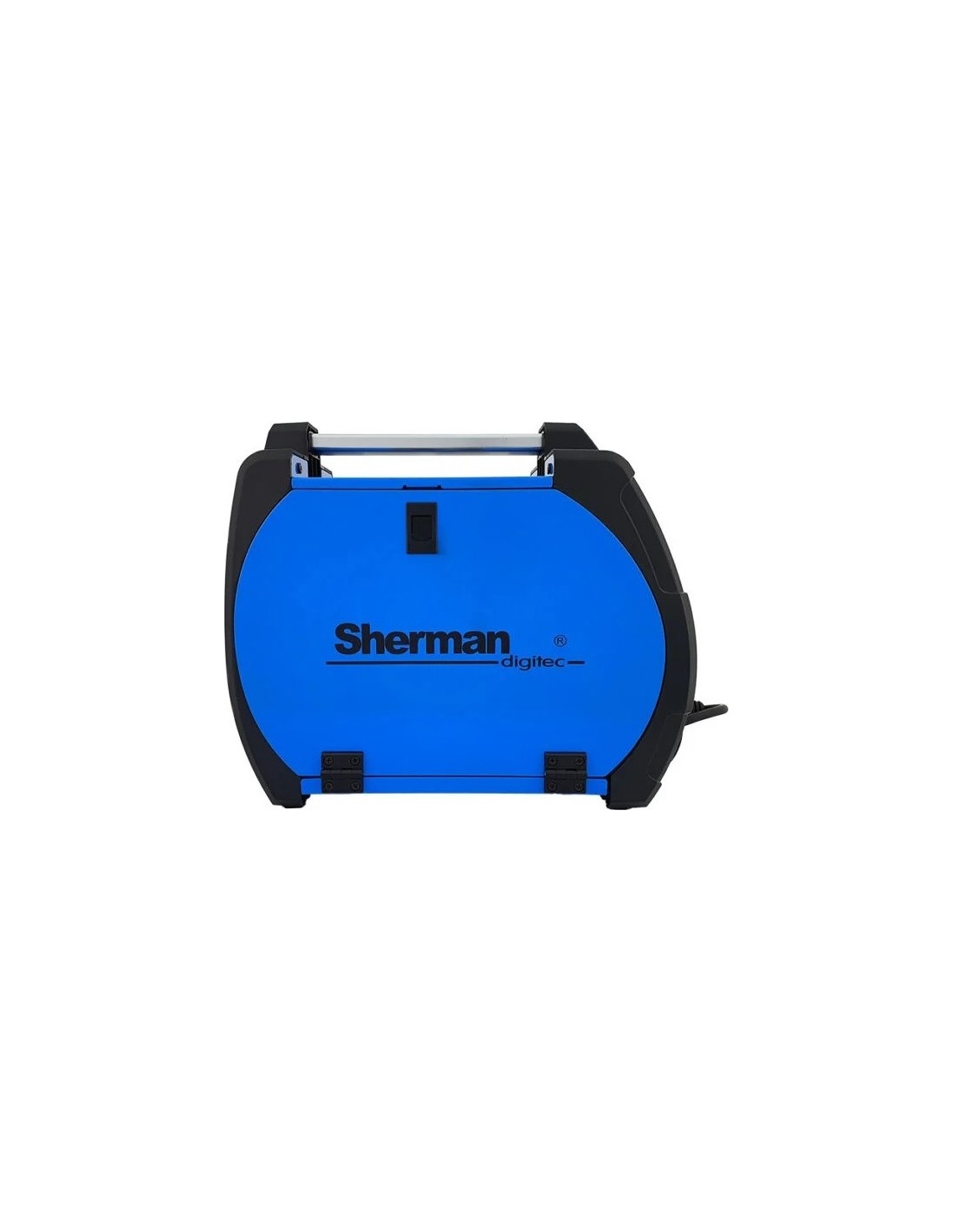

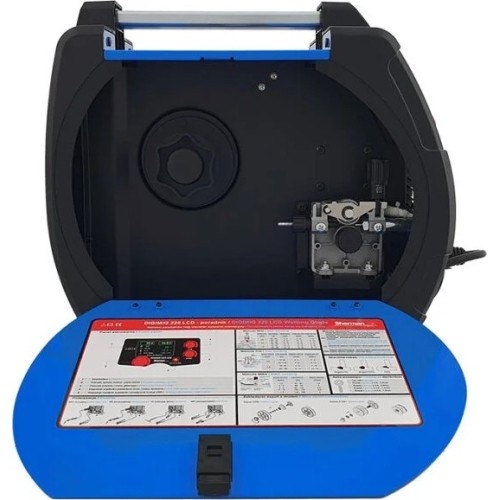

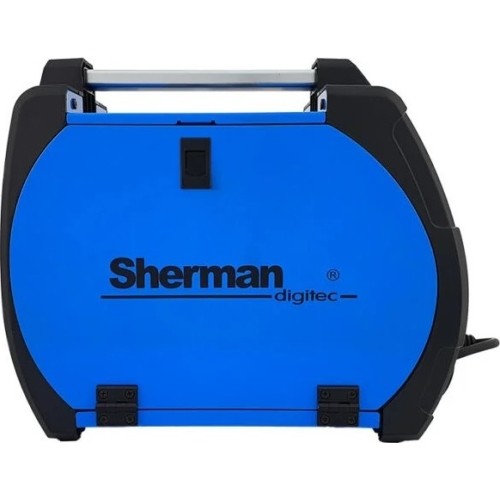

The synergic DIGIMIG 220 LCD welder is a device for manual welding of steel and non-ferrous metals using MIG/MAG , MMA (covered electrode) and TIG Lift methods . The device is intended for professionals who value high quality and reliability. It can also be used for brazing thin (up to 3 mm) galvanized sheets.

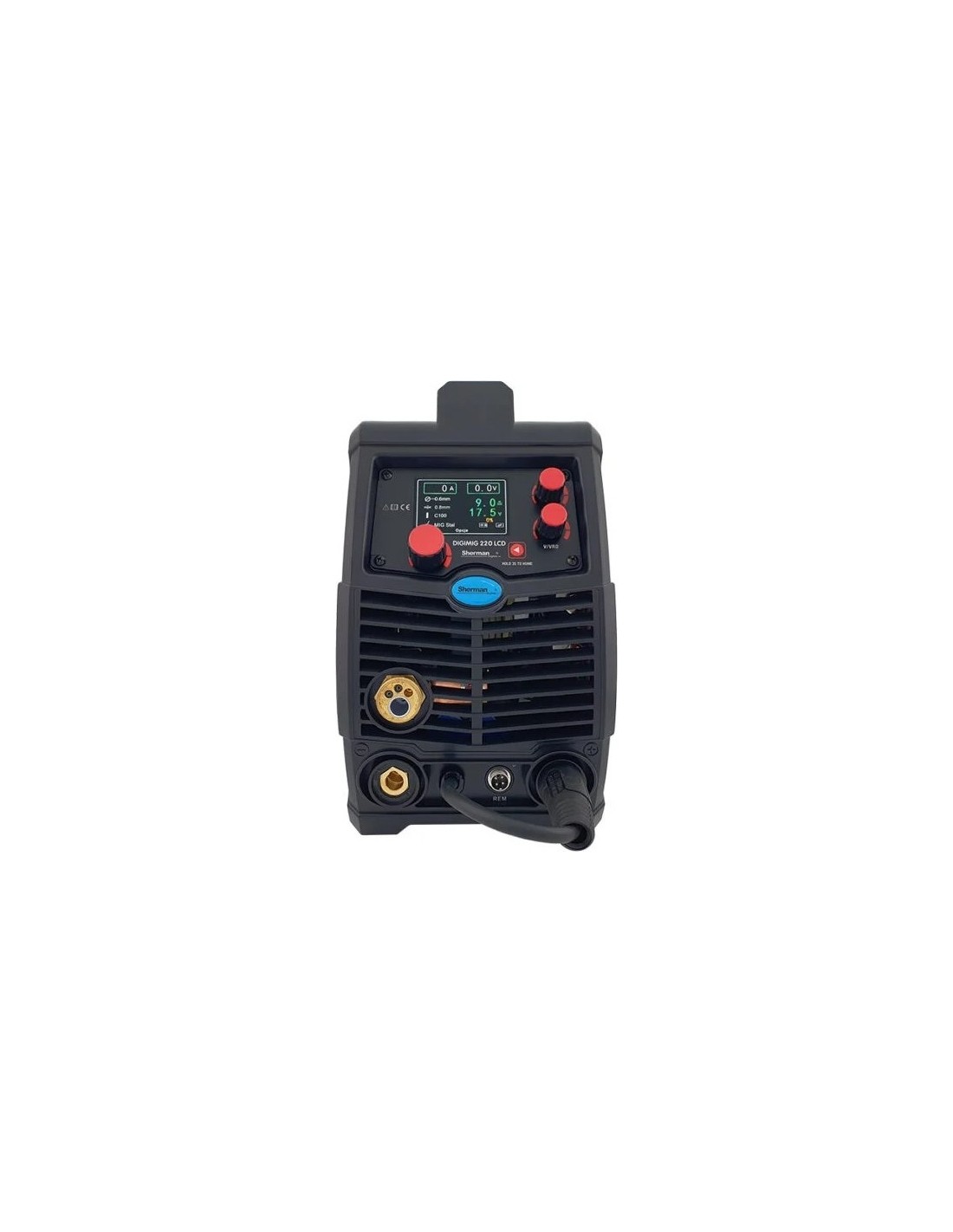

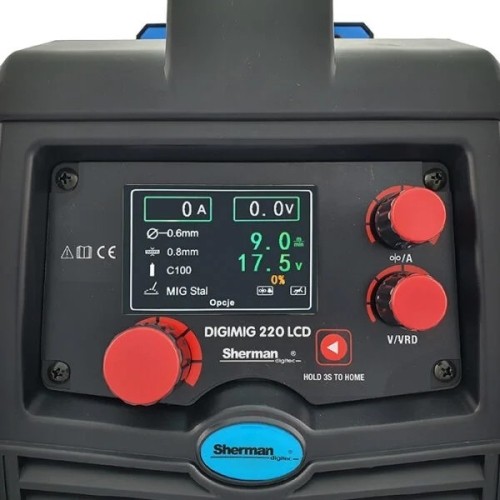

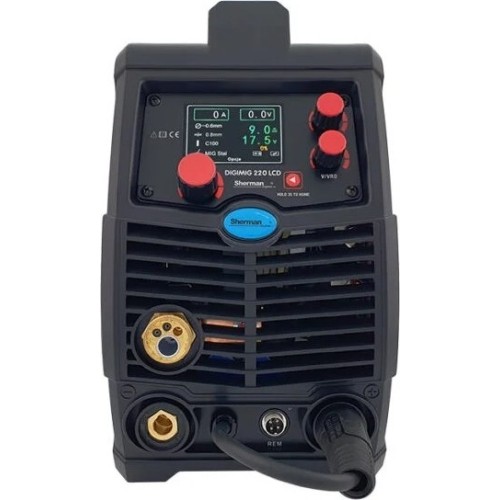

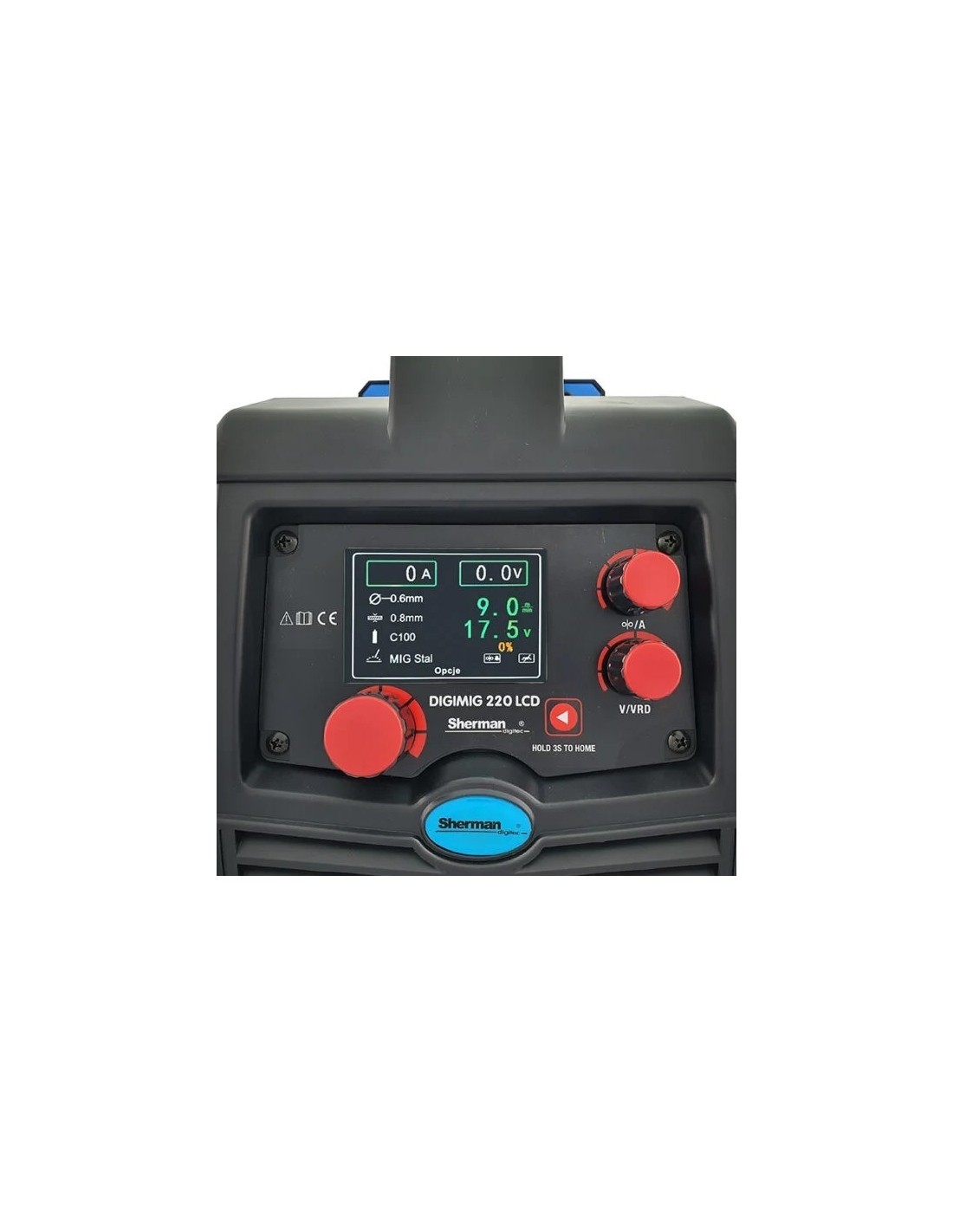

Digital control allows for welding according to the settings programmed in the device, as well as full adjustment of parameters , gas selection, material thickness, filler metal thickness and arc dynamics in the MIG/MAG method according to your needs.
The use of synergistic settings for carbon steel and aluminum alloys in the welder greatly simplifies its operation and allows it to be used by people with less experience and hobbyists.

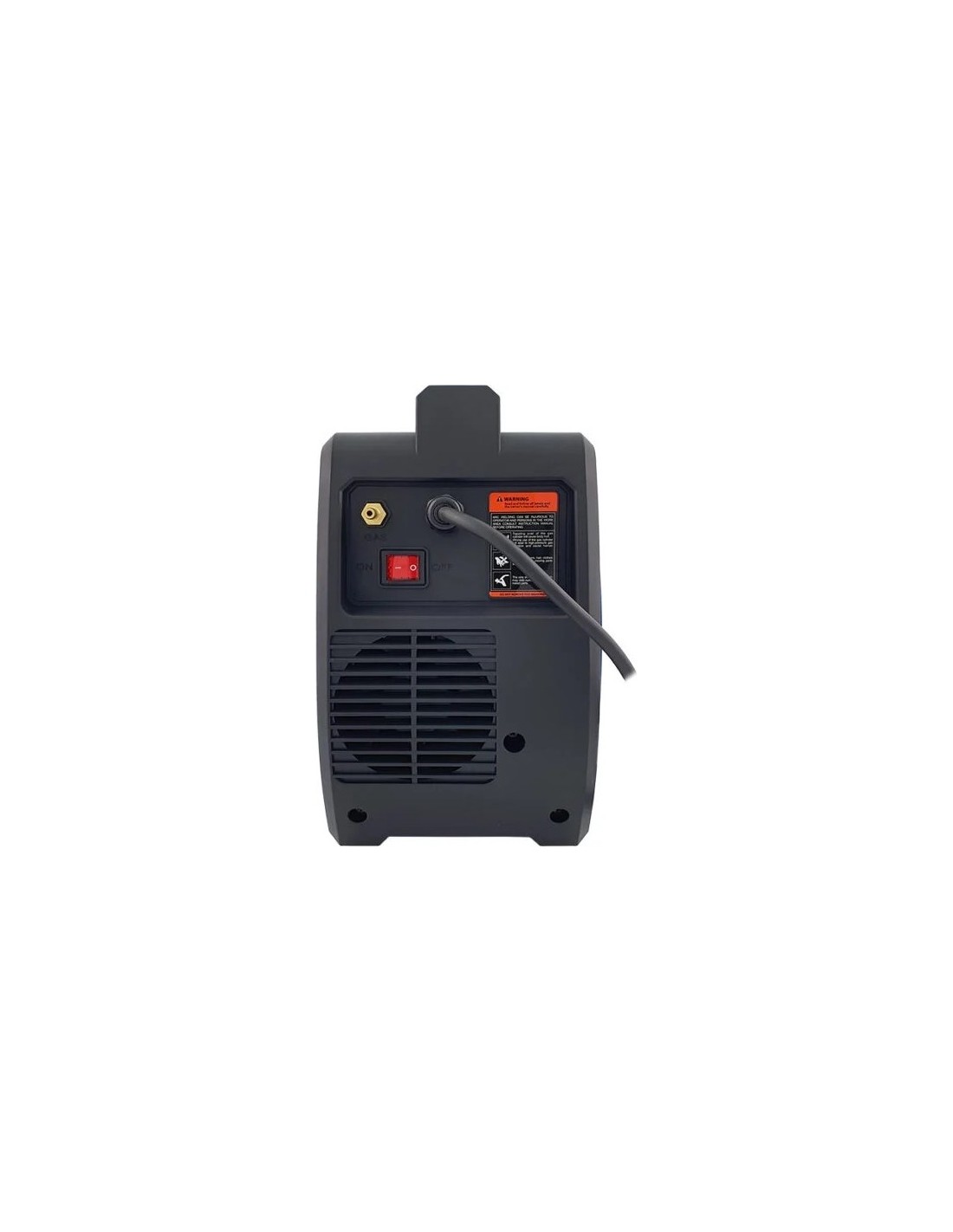

Thanks to the Fan Stop function, which turns off the fan at low welding load, the noise level has been significantly reduced. During MMA welding, you can adjust the HOT START and ARC FORCE functions and turn off VRD .
The device has a memory of the last setting , which means that after turning it off and on again, the last set parameters are restored.

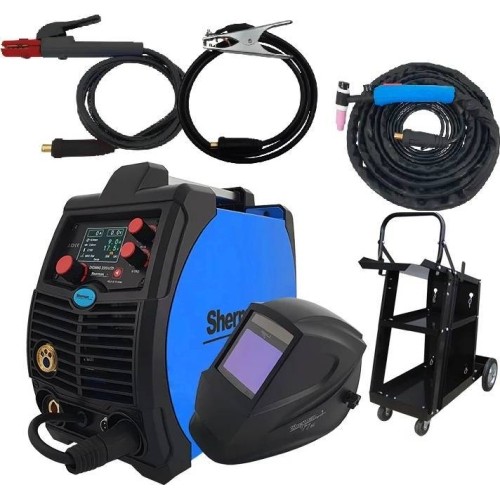

The set includes a MIG torch, a TIG torch with touch arc initiation, a ground cable and an electrode cable.

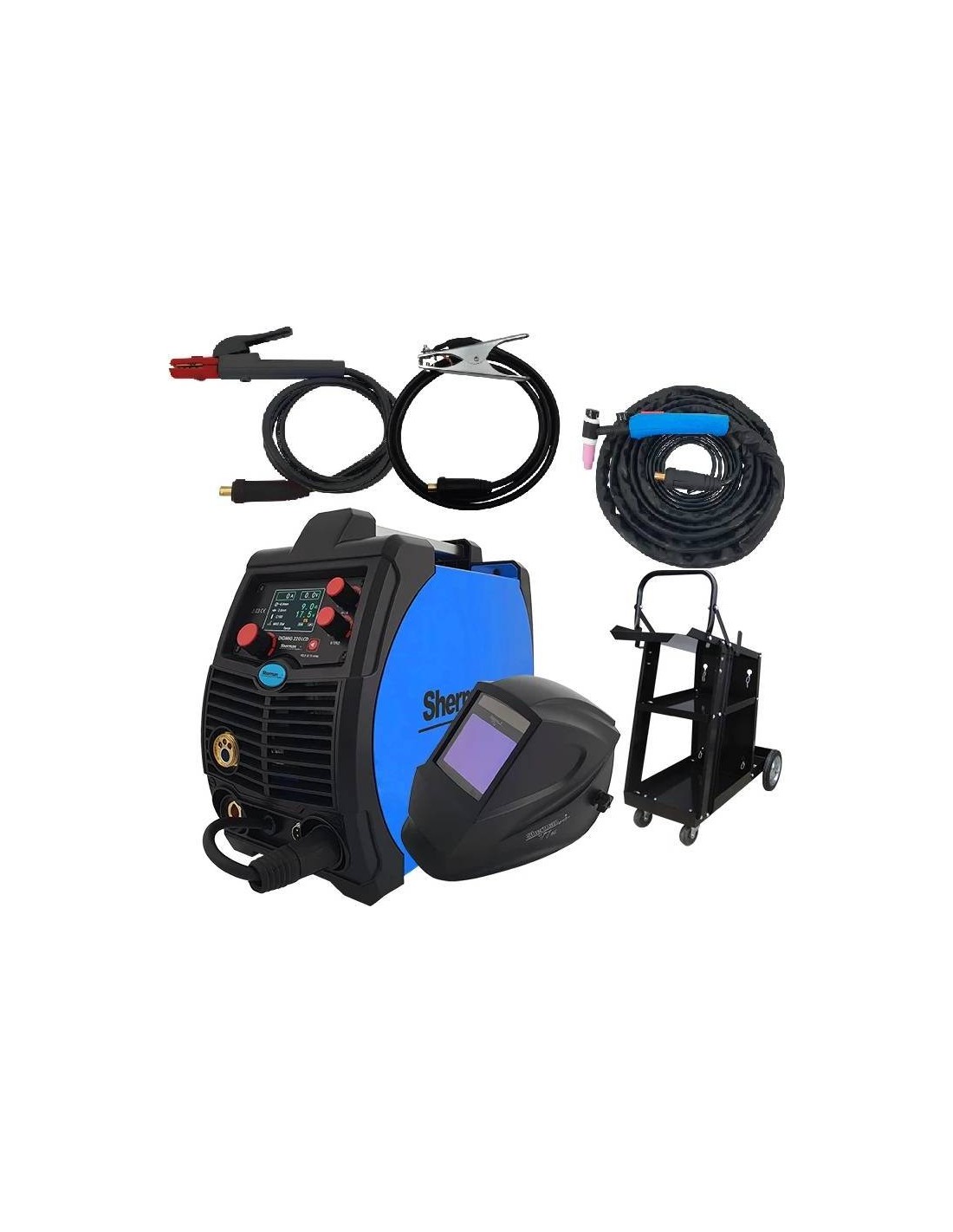

EQUIPMENT INCLUDED:

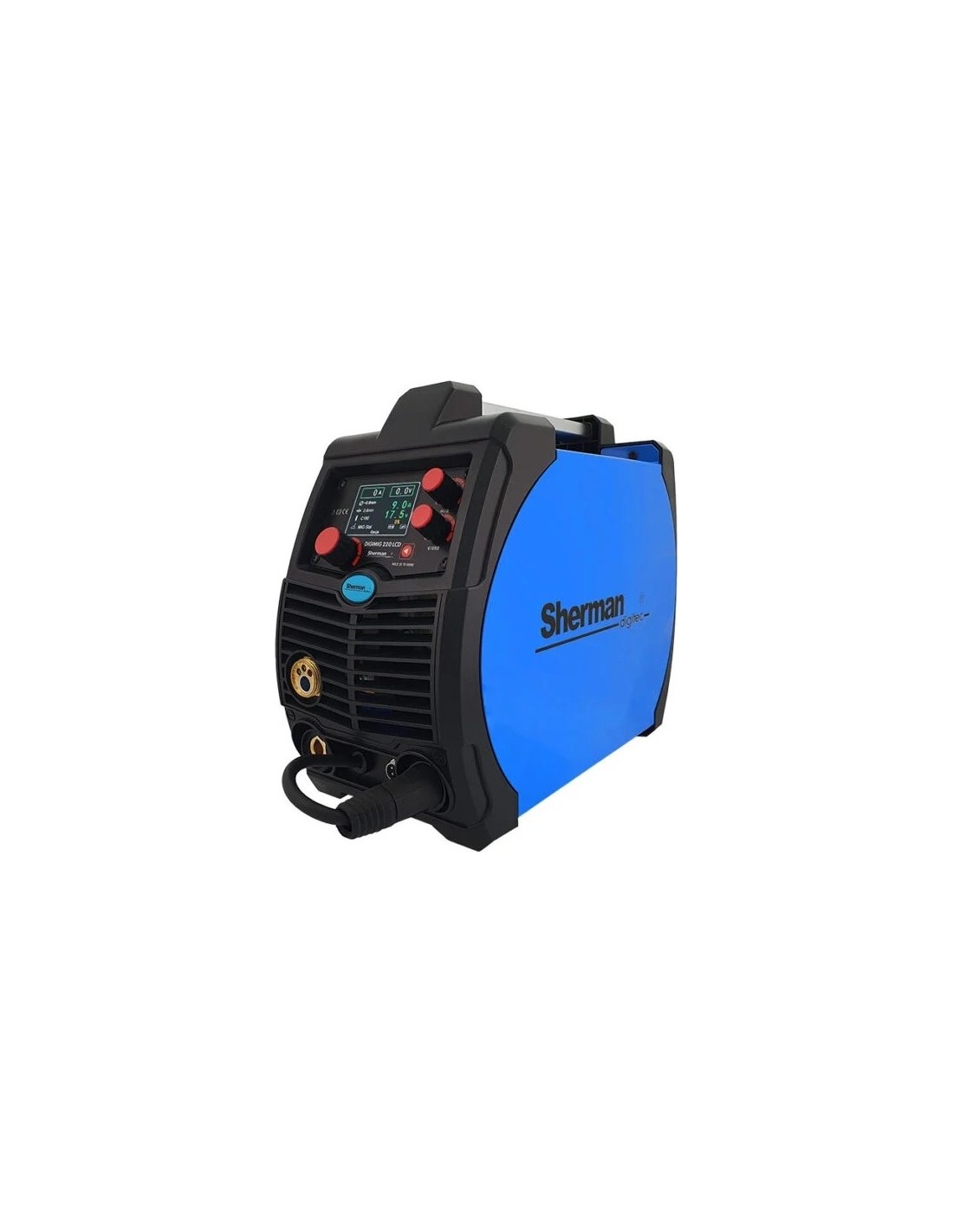

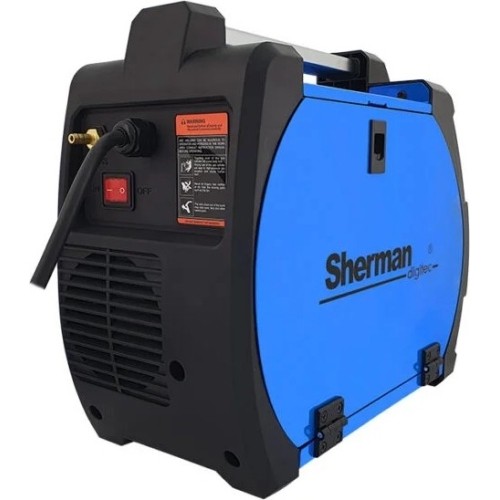

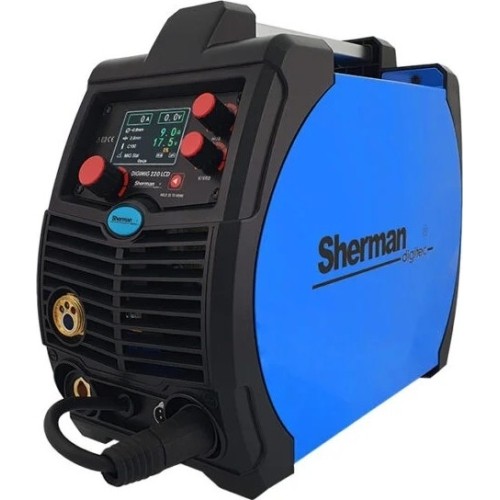

- Synergic DIGIMIG 220 LCD welder
- Welding torch TW-15/3m

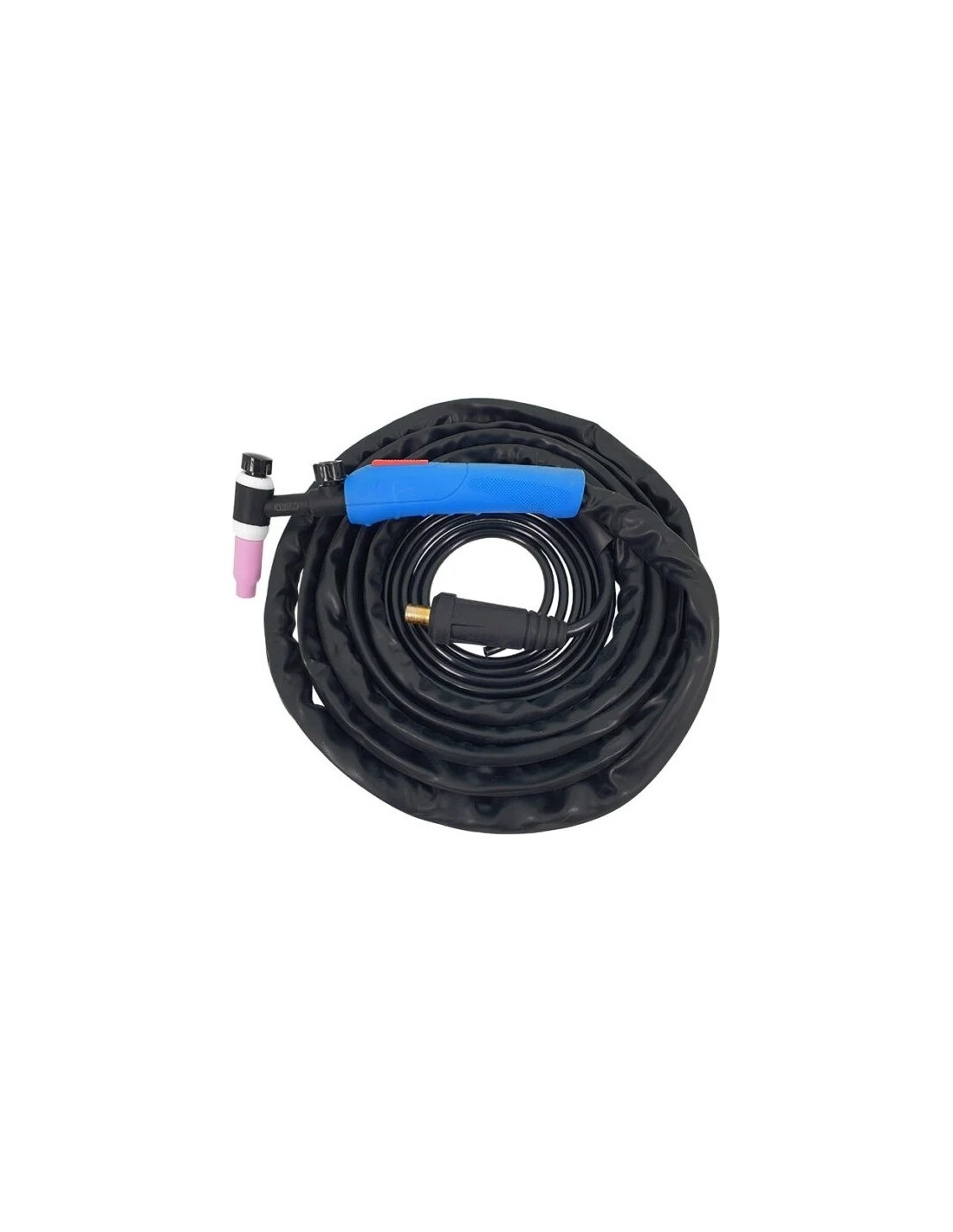

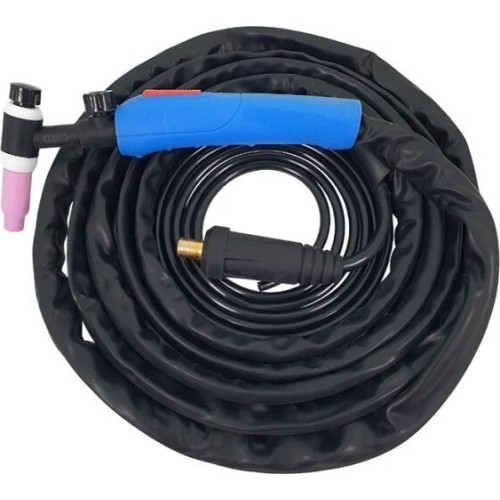

- TIG welding torch T-17 X60 ERGO with valve (V) 35/50 4 m

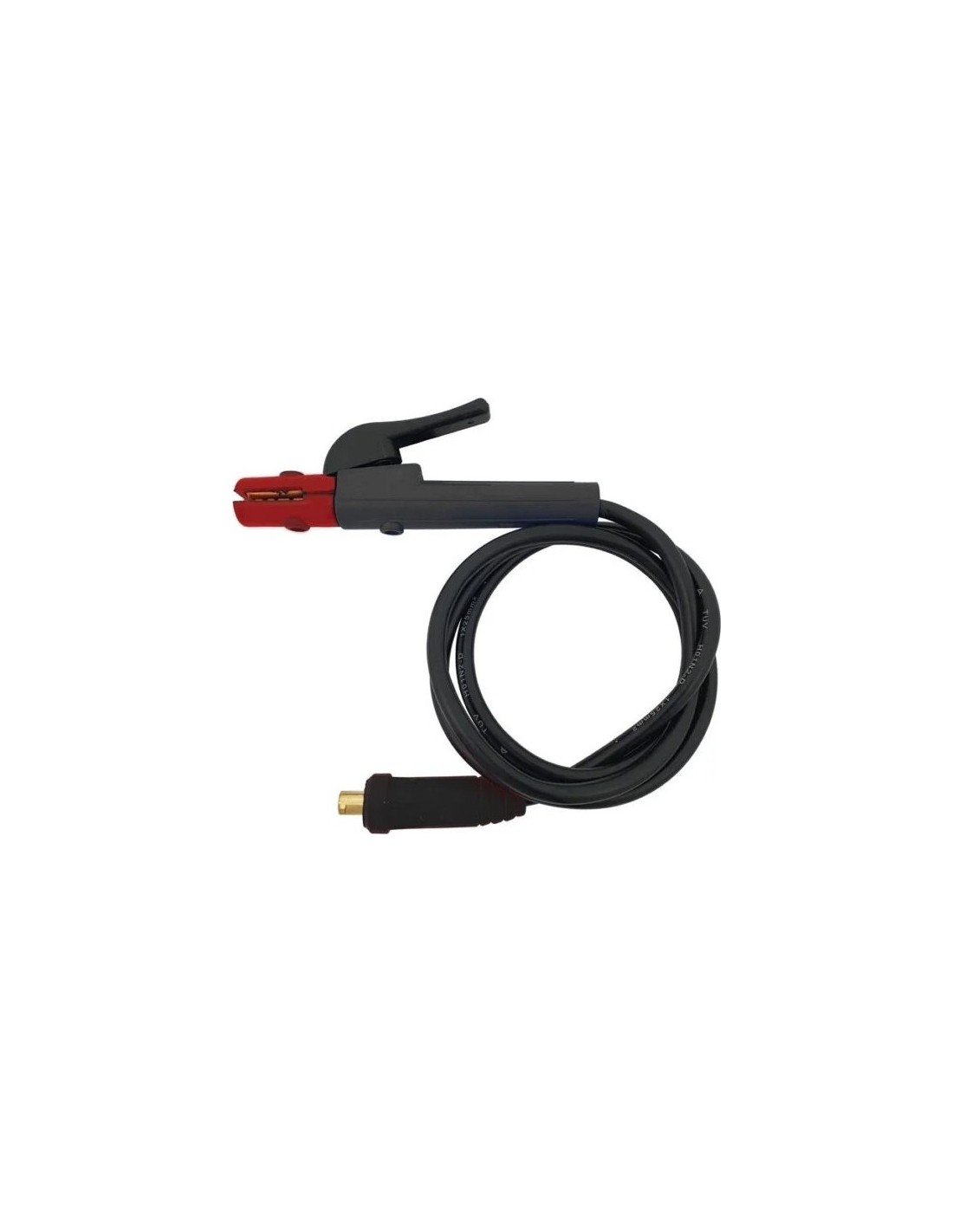

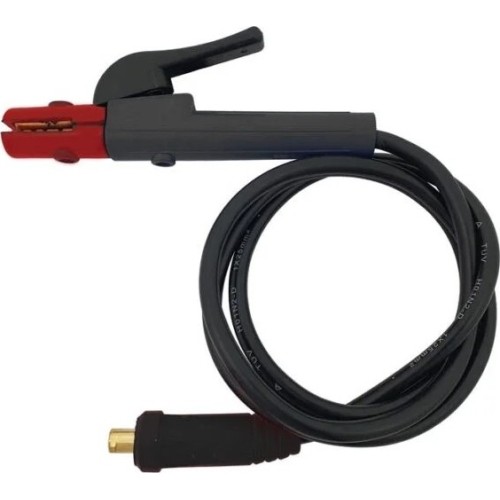

- Electrode wire

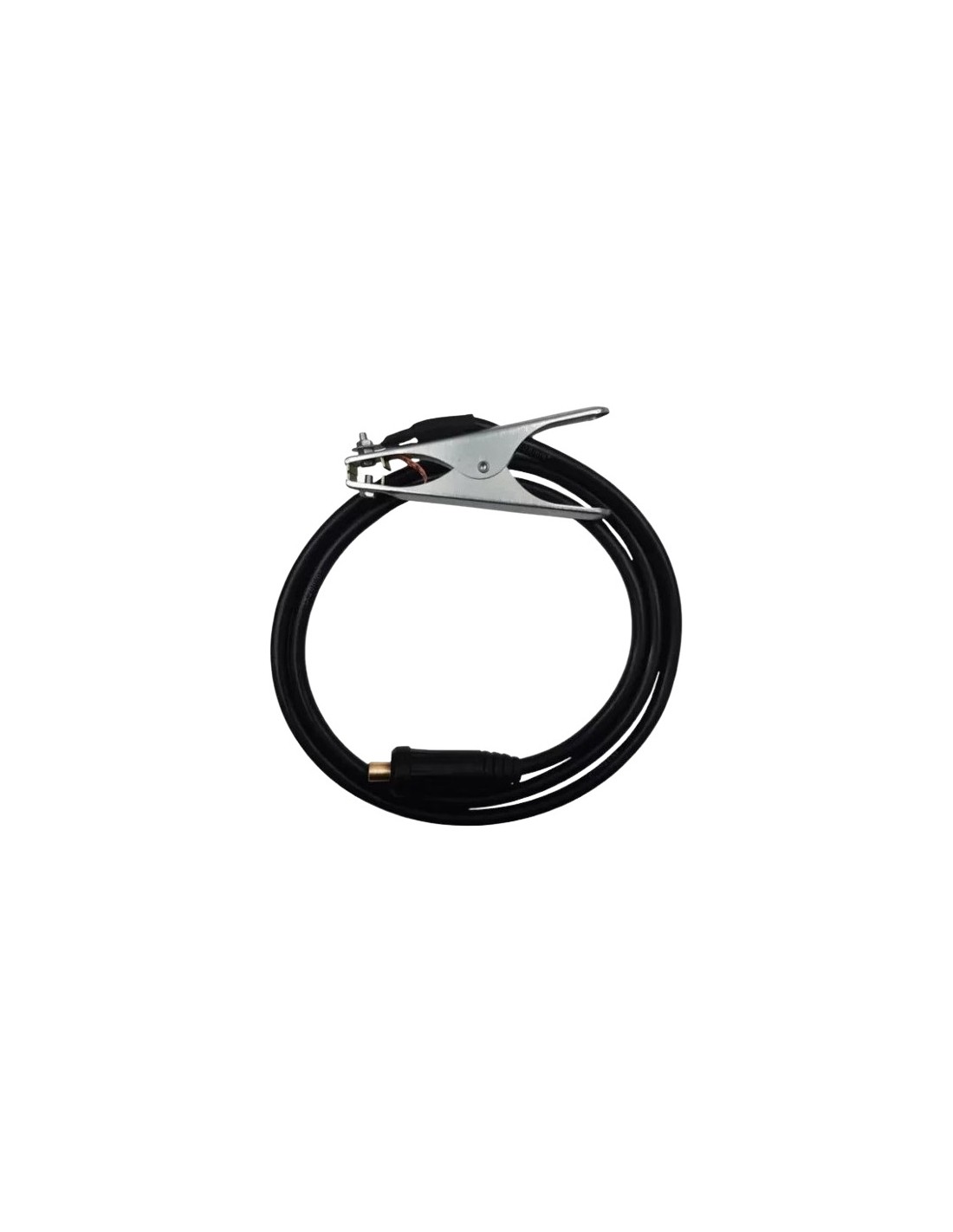

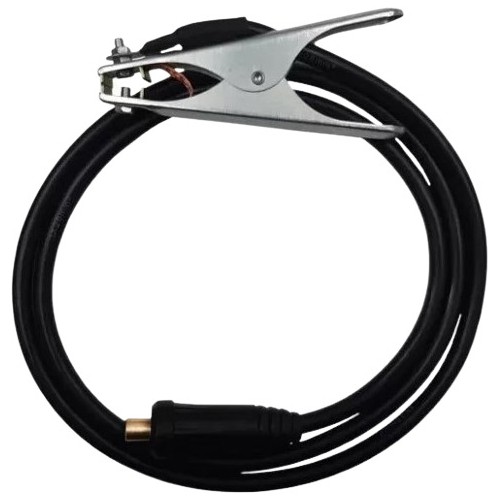

- Ground wire
