Max. workpiece weight
250 kg
Spindle taper
ISO 40 mm
Weight approx.
1505 kg
Spindle speed
(11) 45 - 1660 rpm
Machine dimension (W x D x H)
1740 x 1860 x 1900 mm
Distance spindle to column
95 - 575 mm
Table size
1370 x 300 mm
Table tiltable
-45° to +45°
Distance spindle to table
60 - 460 mm
Travel longitudinal (x)
1000 mm
Travel cross (y)
360 mm
Travel vertical (z)
400 mm
Feed range longitudinal / cross
(8) 30 - 830 mm/min
Feed range vertical
(8) 23 - 625 mm/min
Rapid feed x-, y- and z-axis
1000 / 1000 / 750 mm/min
T-slot (Quantity / Width / Distance)
3 / 14 mm / 80 mm
Main motor
3,0 kW
Servomotor (Torque / Output)
10 Nm / 1,5 kW
Coolant pump output
60 W
Coolant pump flow rate
12 l/min

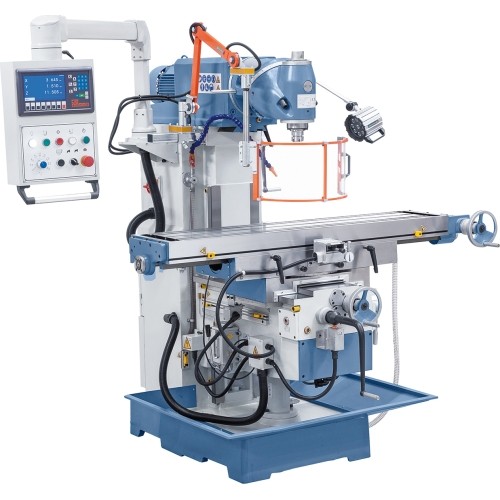

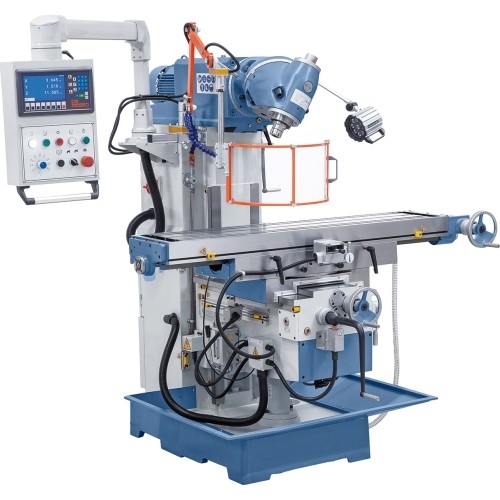

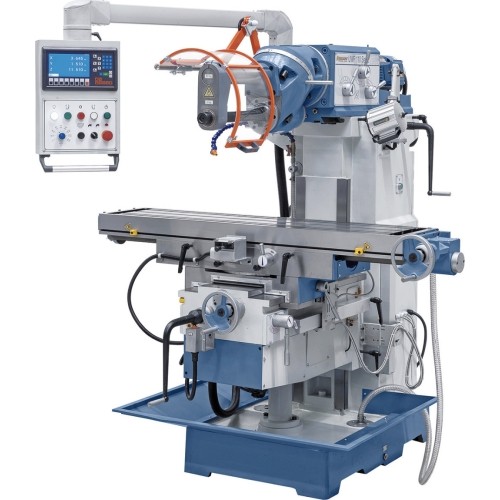

UWF 110 Servo - 1000

1092072
Price €27,613.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, august 3 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1505 kg.

Description

Properties

  • Large rectangular guide in the y- and z-axis guarantees an increase in stability
  • 8 automatic table feeds and rapid feed in all axis, driven by servomotor

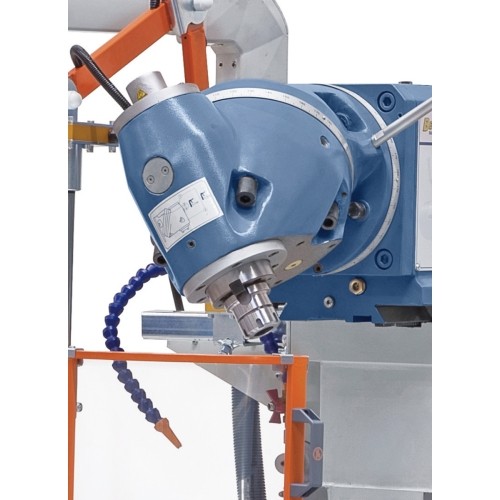

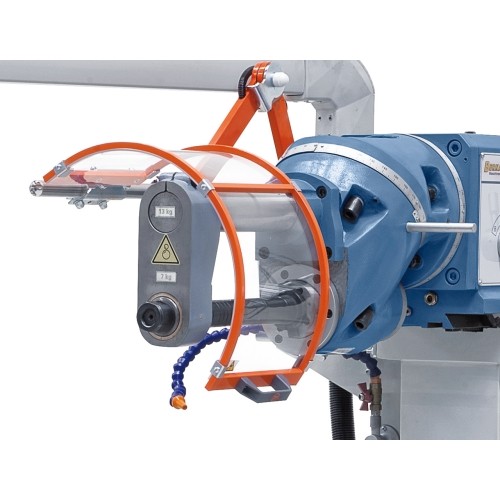

  • Universal mill head system „Huron“ adjusts to various angles
  • Ergonomically mounted switches on swivelling control panel
  • Solid, grey cast iron machine construction eliminates vibrations
  • Polished gears, in oil bath, guarantees smooth running

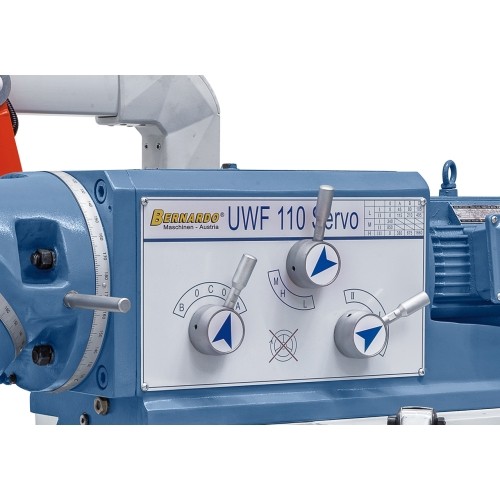

  • Clearly arranged spindle speed control unit on machine arm
  • Digital readout for x-, y- and z-axis come standard

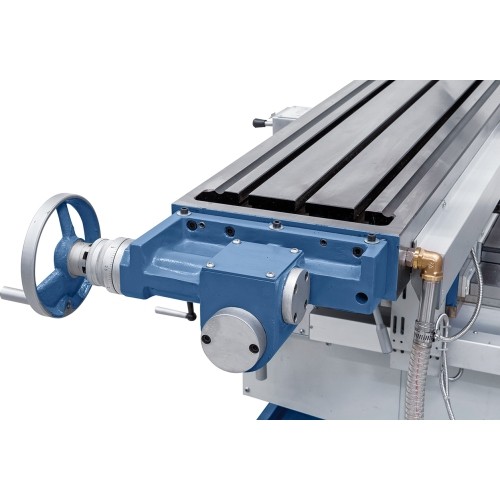

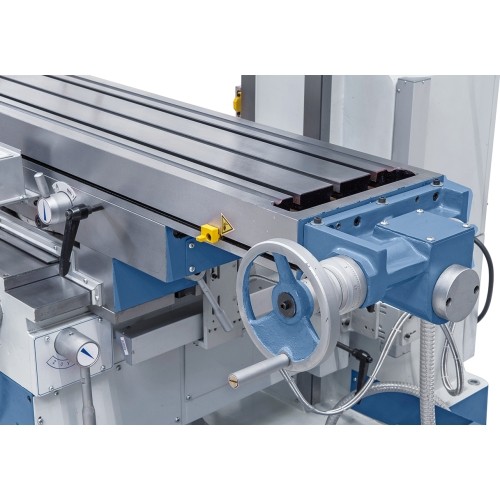

  • Surface treated table features T-slots

Standard accessories

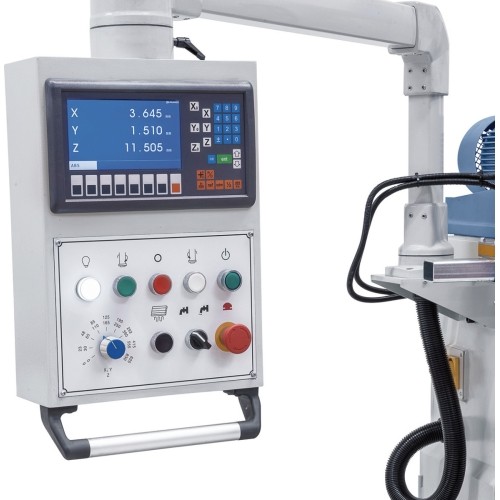

  • 3-axis digital readout ES-12 H with LCD-display
  • Drawbar M16
  • LED machine light
  • Power feed for x-, y- and z-axis
  • Coolant device
  • Counter bearing
  • Long milling arbor ISO 40 / 27 mm
  • Taper shell end mill holder ISO 40 / 27 mm
  • Coolant tray
  • Adjustable protective cover

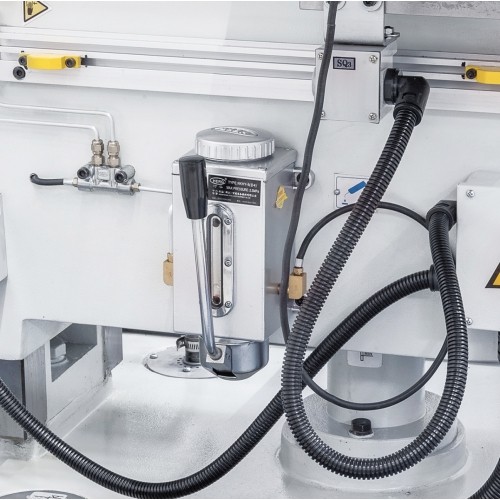

  • Central lubrication for x-, y- and z-axis
  • Tools
