- MMA Darbo ciklas
- 60
- Phase
- Vienfazis (230V)
- Control
- rankinis
- Įtampa be apkrovos (V)
- 59
- User Level
- Hobbyist / Home user
- Weight, kg
- 18
- Wire spool size [kg]
- 5
- MIG/MAG darbo ciklas [%]
- 60
60 - Vielos padavimo greitis [m/min]
- 1,5–19
- MIG suvirinimo įtampa [V]
- 14–24
- Ritinio matmenys [mm]
- 30x22x10 2RA
- Pagrindinis metodas
- MIG/MAG
- PFC function
- No
- Funkcijos
- Arc Force , ritės tipo suvirinimo pistoletas , 4 ritinėlių tiektuvas , induktyvumo valdymas , bedujinis suvirinimas , analoginis valdymas , greitas vielos padavimas , LED ekranas
- MMA darbo ciklas [%].
- 60
- Maximum current MIG/MAG
- 200
- Suvirinimas / pjovimas / kiti metodai
- Suvirinimas kietuoju lydmetaliu , MIG/MAG , MMA DC
- Maks. MMA suvirinimo srovė [A]
- 185
- Maks. energijos suvartojimas MMA [kVA]
- 8.8
- Maks. energijos suvartojimas MIG/MAG [kVA]
- 8.8
- Matmenys (I x P x A) [cm]
- 65,3 x 35,6 x 64,3
- Vielos ritės skersmuo ø [mm].
- 100, 200
- Inverter technology
- MOSFET
- Shielding Gas Requirement
- Gas / Gasless
- Number of wire feed rollers
- 4
- MIG/MAG torch length
- 3 m
- Package Contents
- MIG / MAG burner
additional wire feed roller(s)
electrode cable
ground cable
welding machine - Ground cable connection
- big (35 - 50 mm)
- Torch connection in the machine
- EURO
- Functions
- 2T / 4T
ARC FORCE
Burn-back control
HOT START
Spoolgun connection option
Wire inch
brazing
digital display
indukcija
overheating protection
polarity change (quick switching between MIG and FLUX)

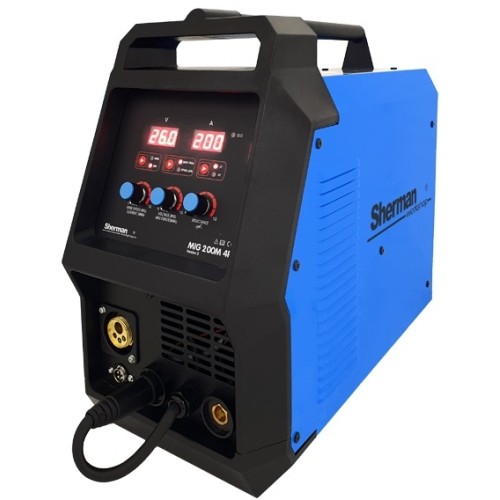

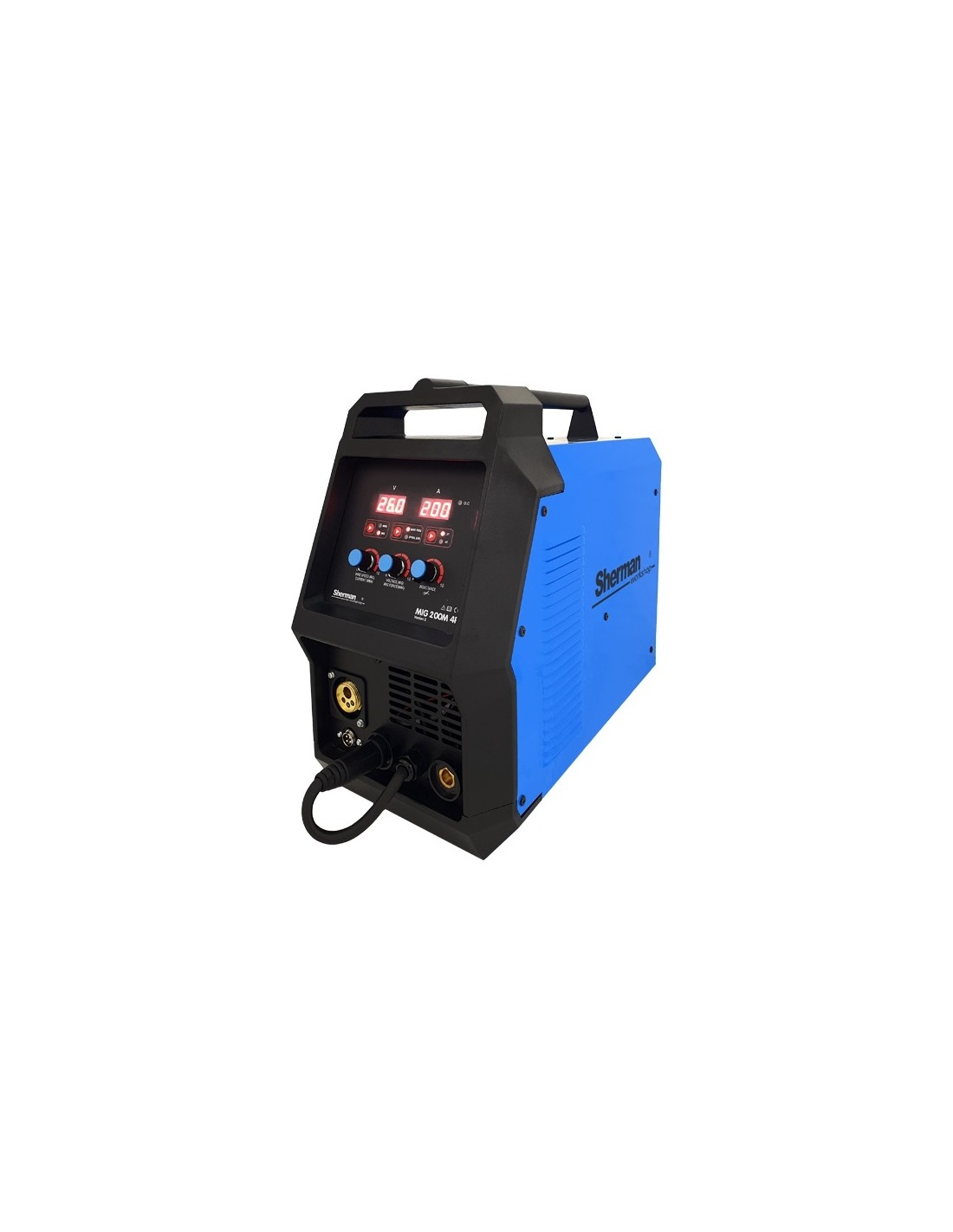

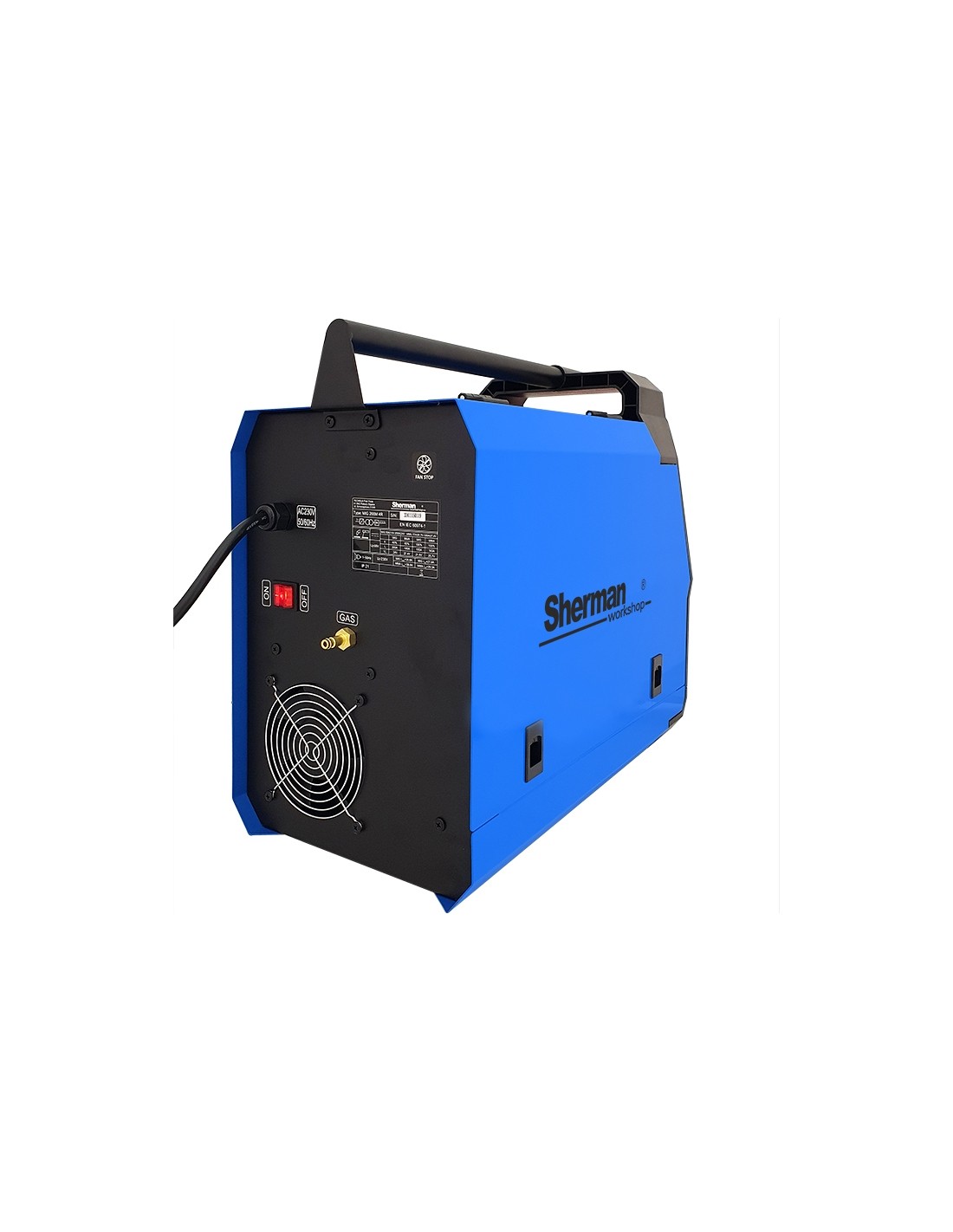

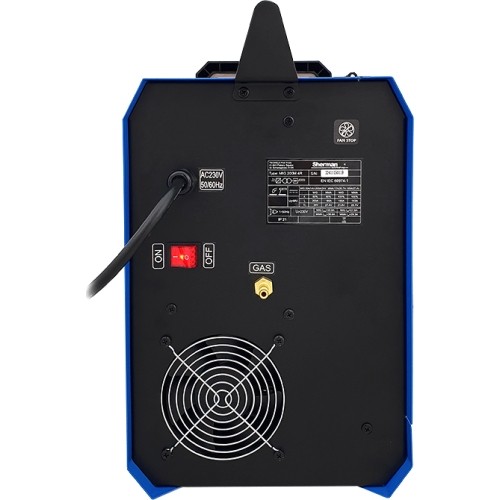

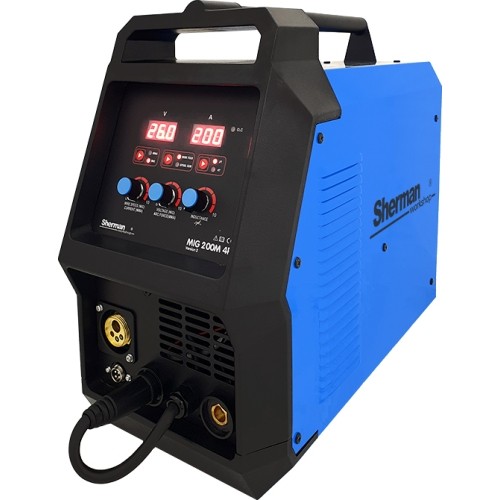

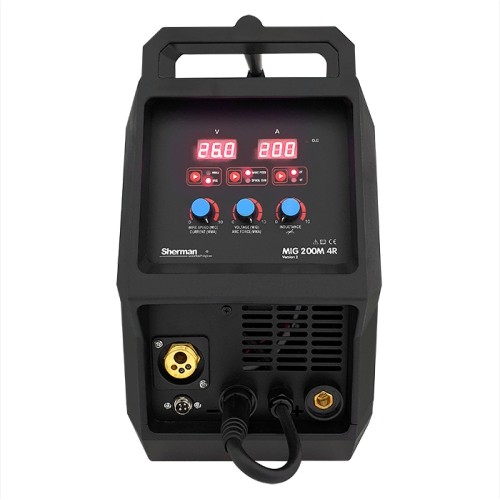

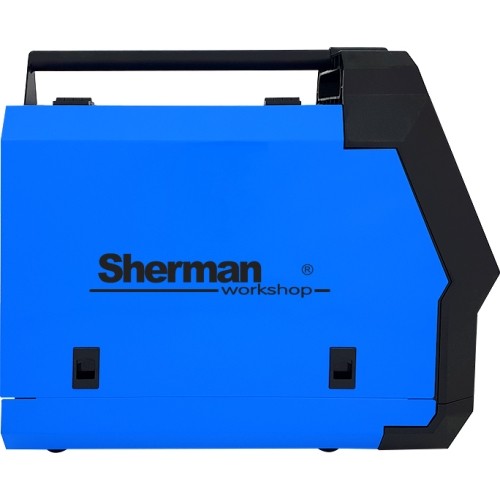

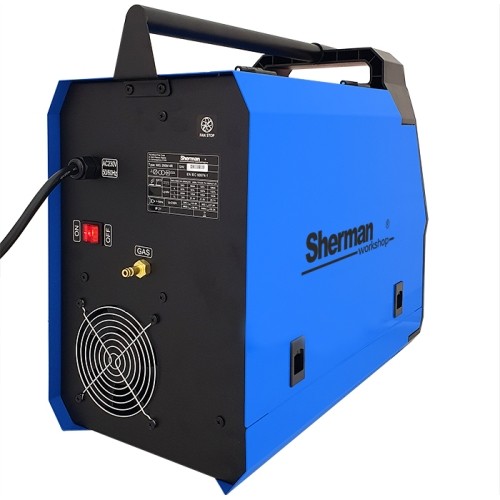

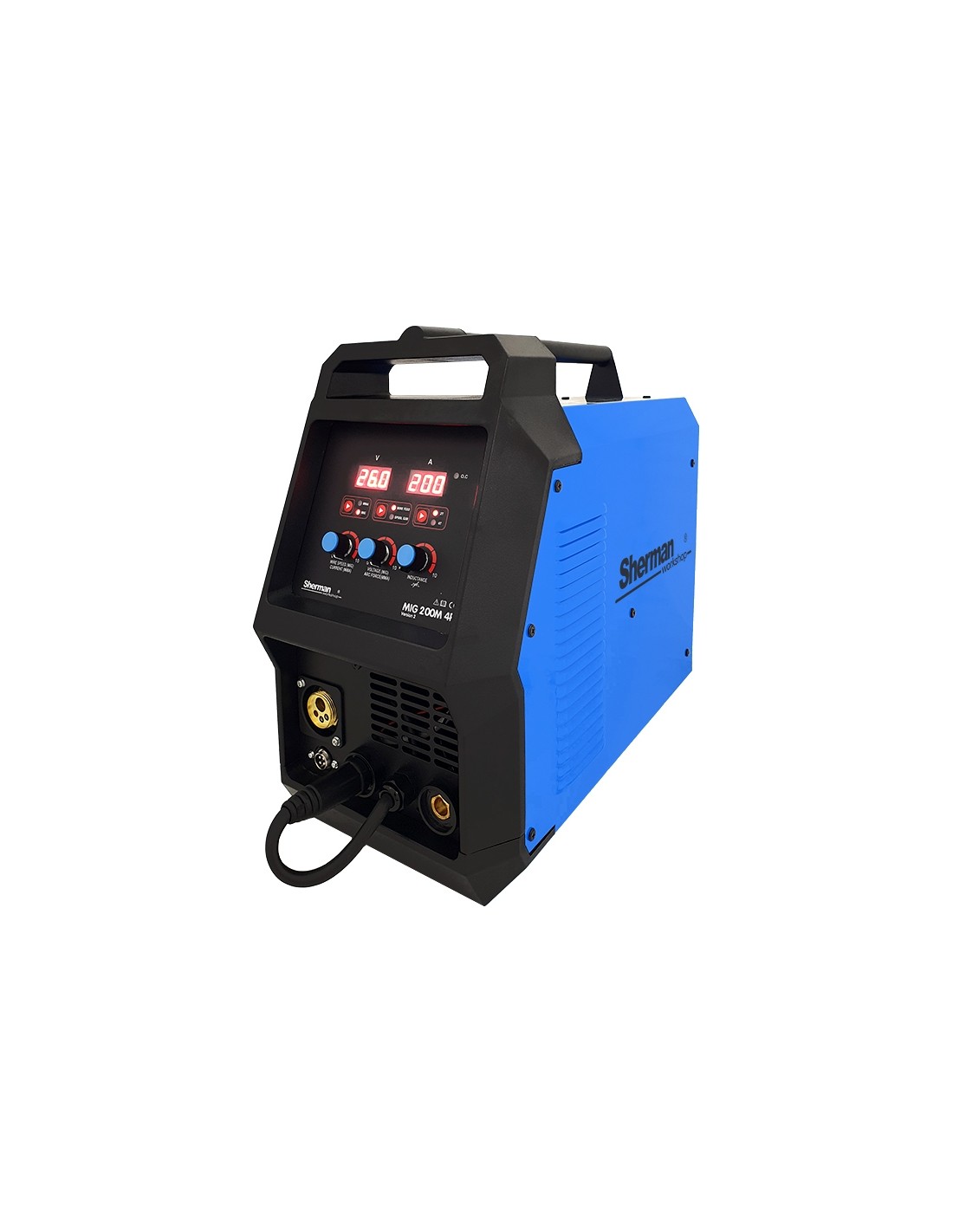

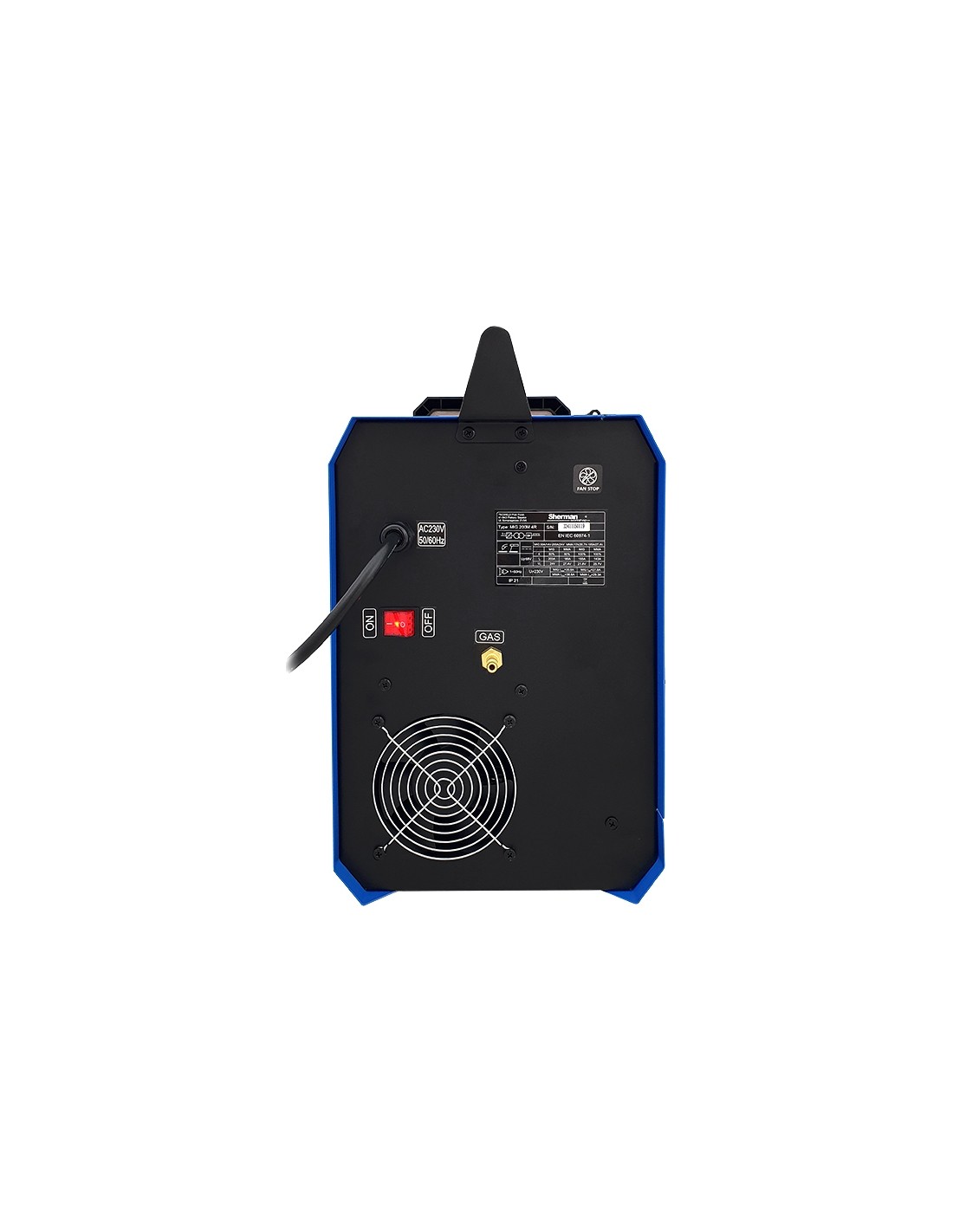

Inverter welder Sherman MIG 200M 4R
1051158
Price
€425.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
Gavimo data: 2026-05-13
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 25 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00)
We will deliver the product to you via: 5-11 w.d. Venipak
(€6.00)
Spare parts
Description
The MIG 200M 4R semi-automatic welder is a robust, reliable inverter designed for three processes: MMA (stick) welding of steel and non‑ferrous metals, MIG/MAG welding in shielding gas or with flux‑cored wire without gas, and brazing of thin galvanized sheets up to 3 mm.

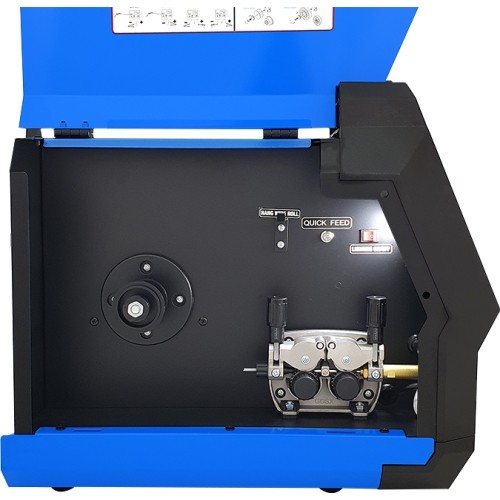

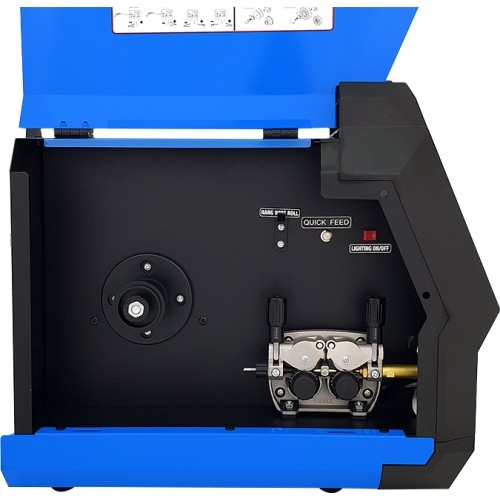

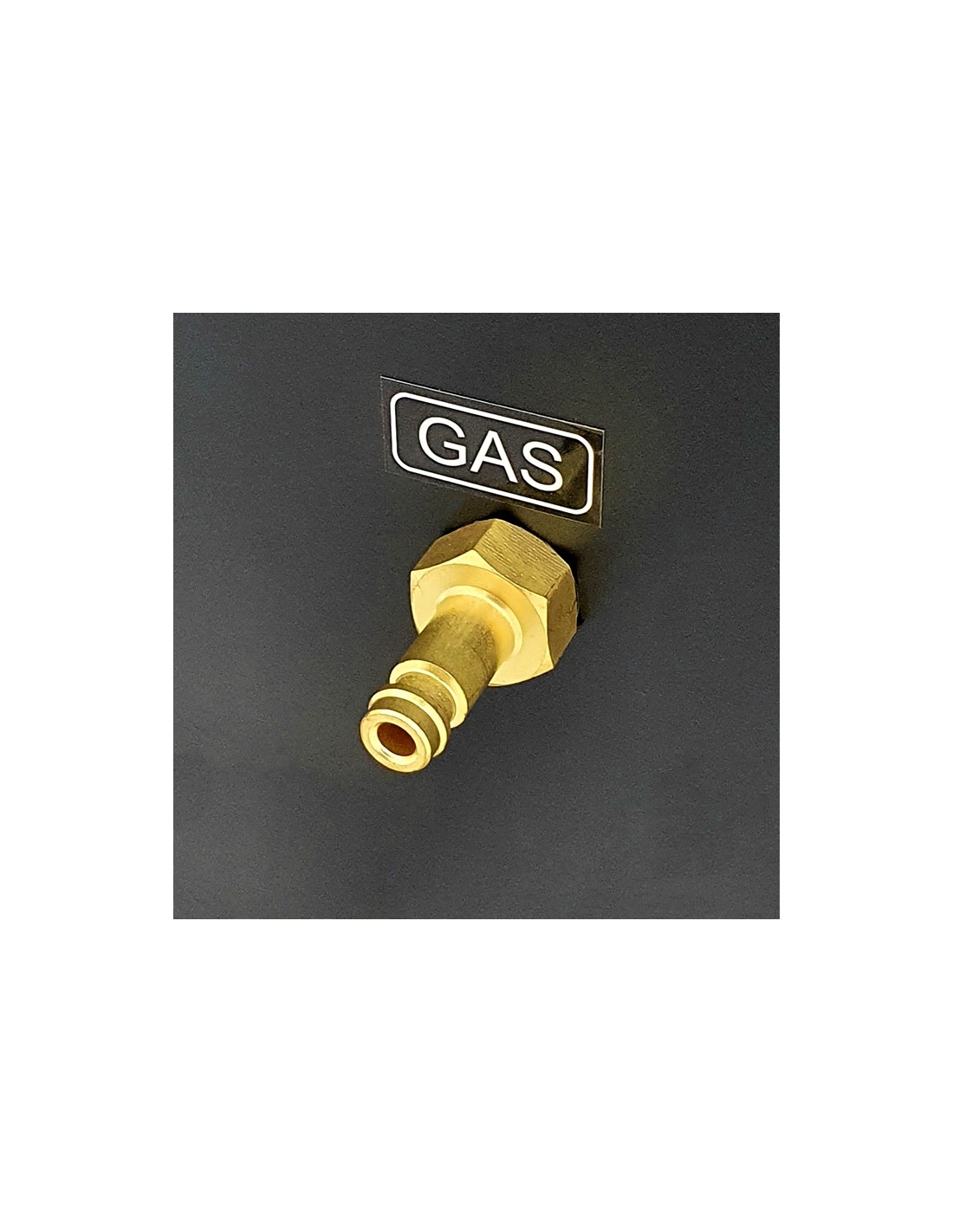

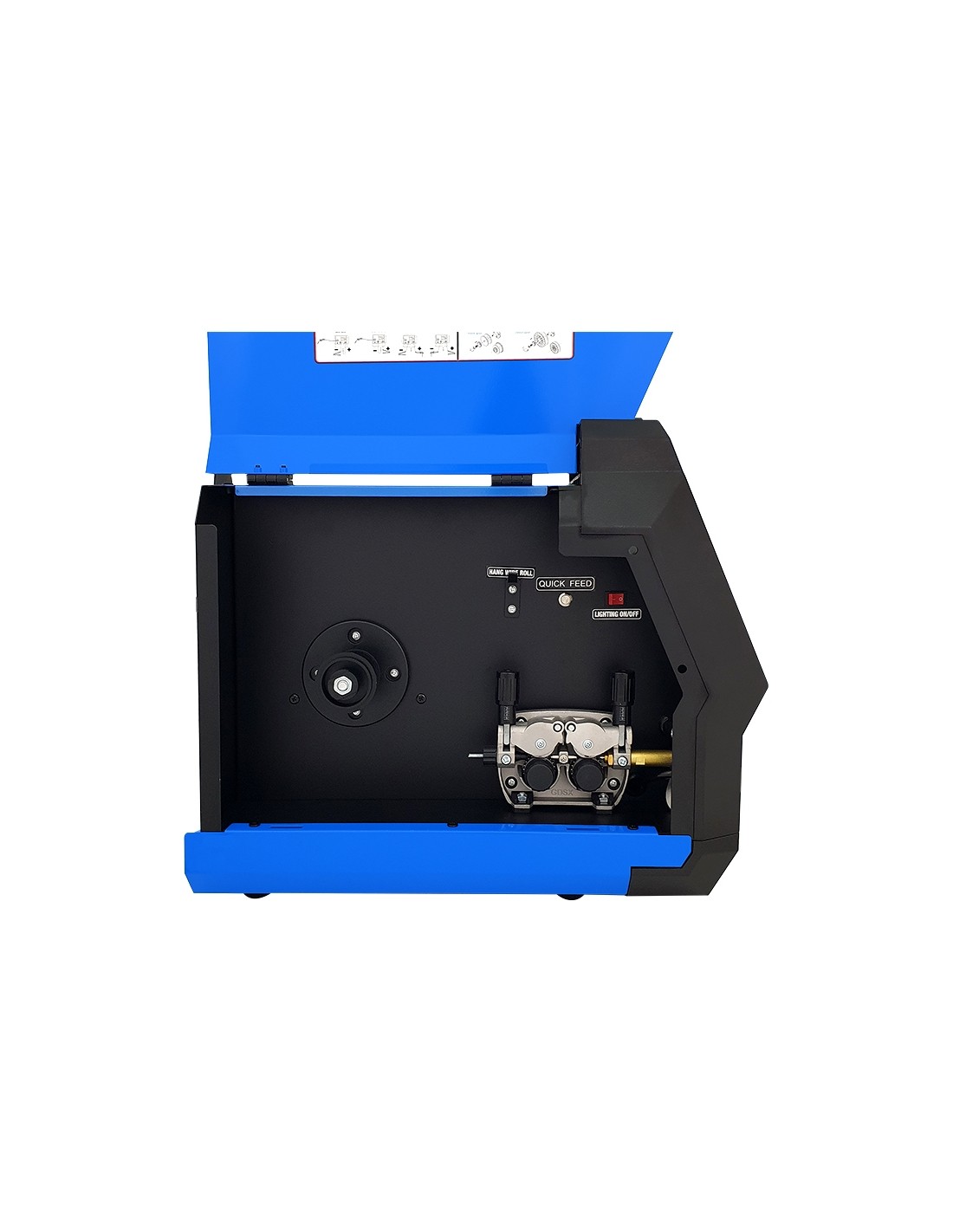

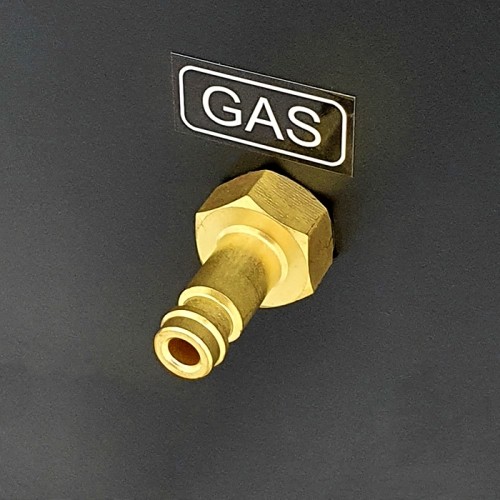

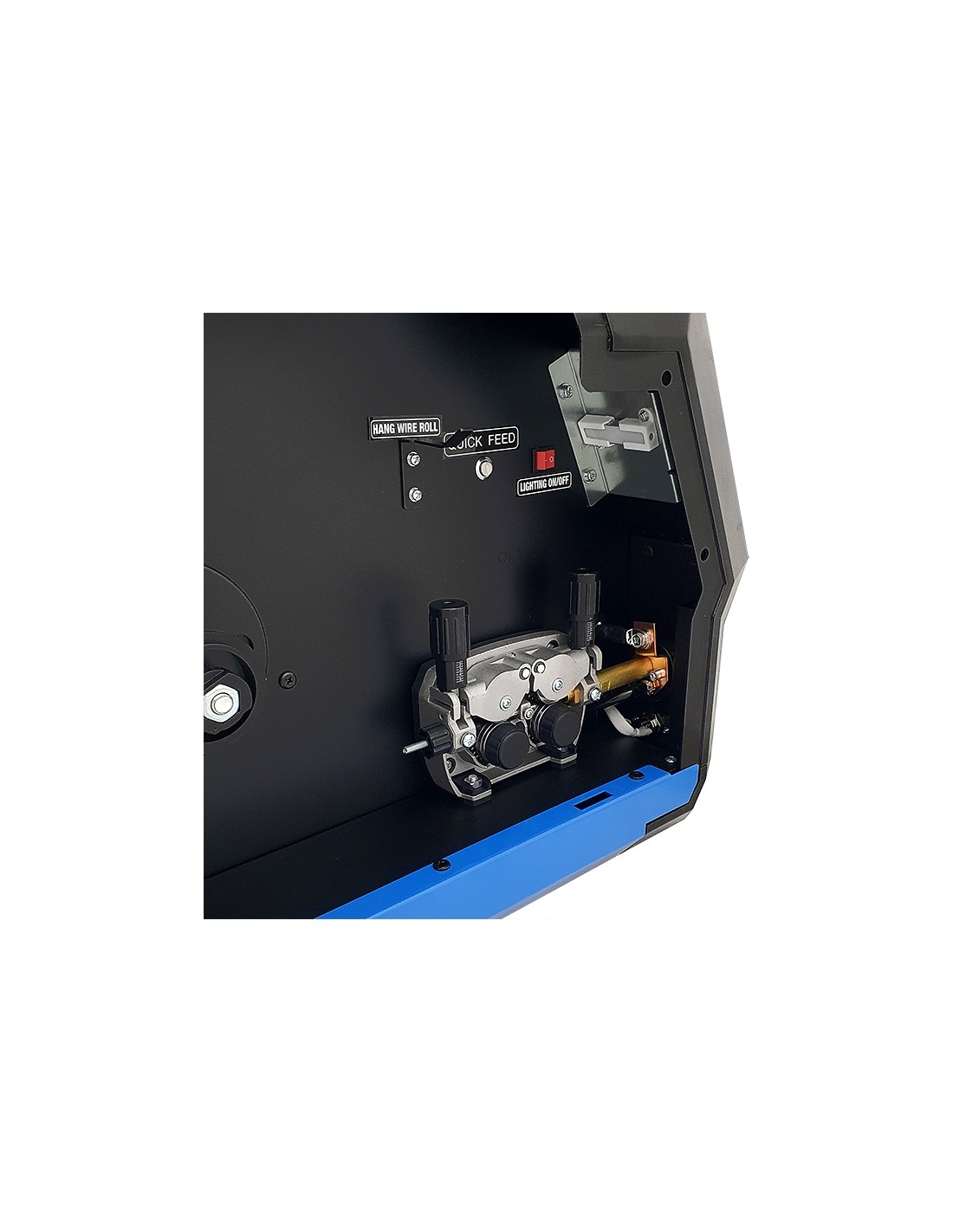

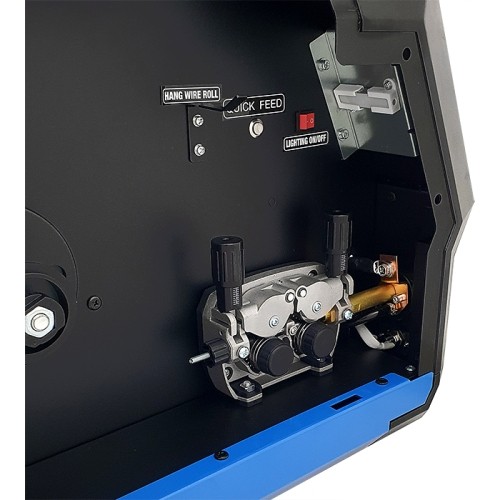

Its precise 4‑roll wire feeder ensures stable wire delivery, while a wide inductance adjustment range supports clean, low‑spatter brazing on thin sheets. Practical details such as feeder-chamber lighting, a hanger for guide rollers, and a quick connector stub for shielding gas make spool and roller changes fast and tidy, and gas switching easier. The Fan Stop function turns the fan off at low load to reduce noise and improve comfort.

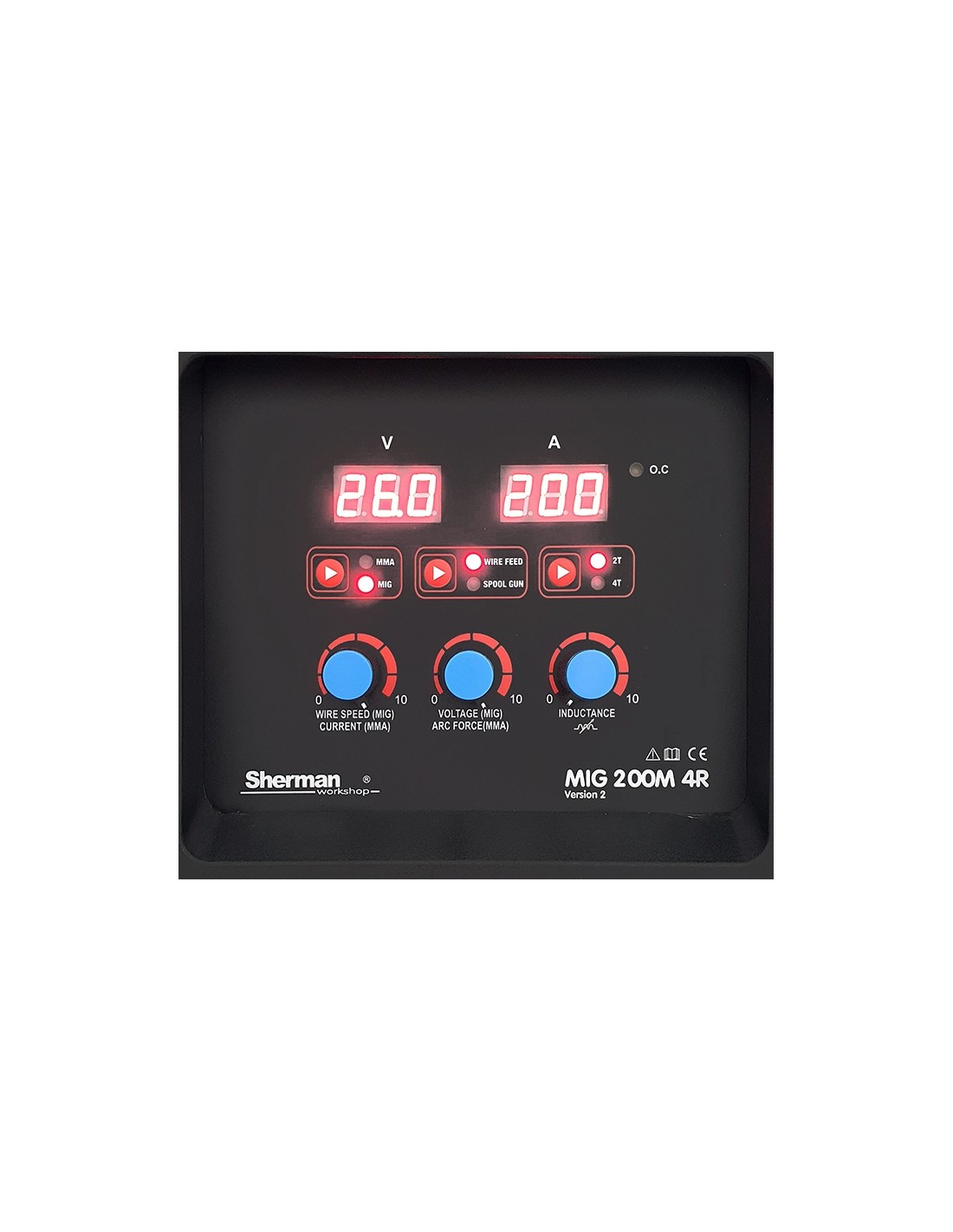

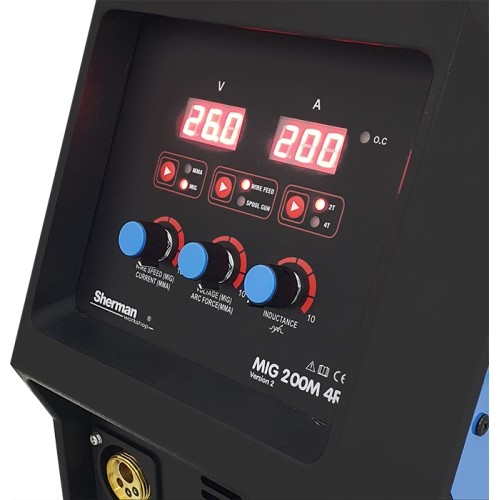

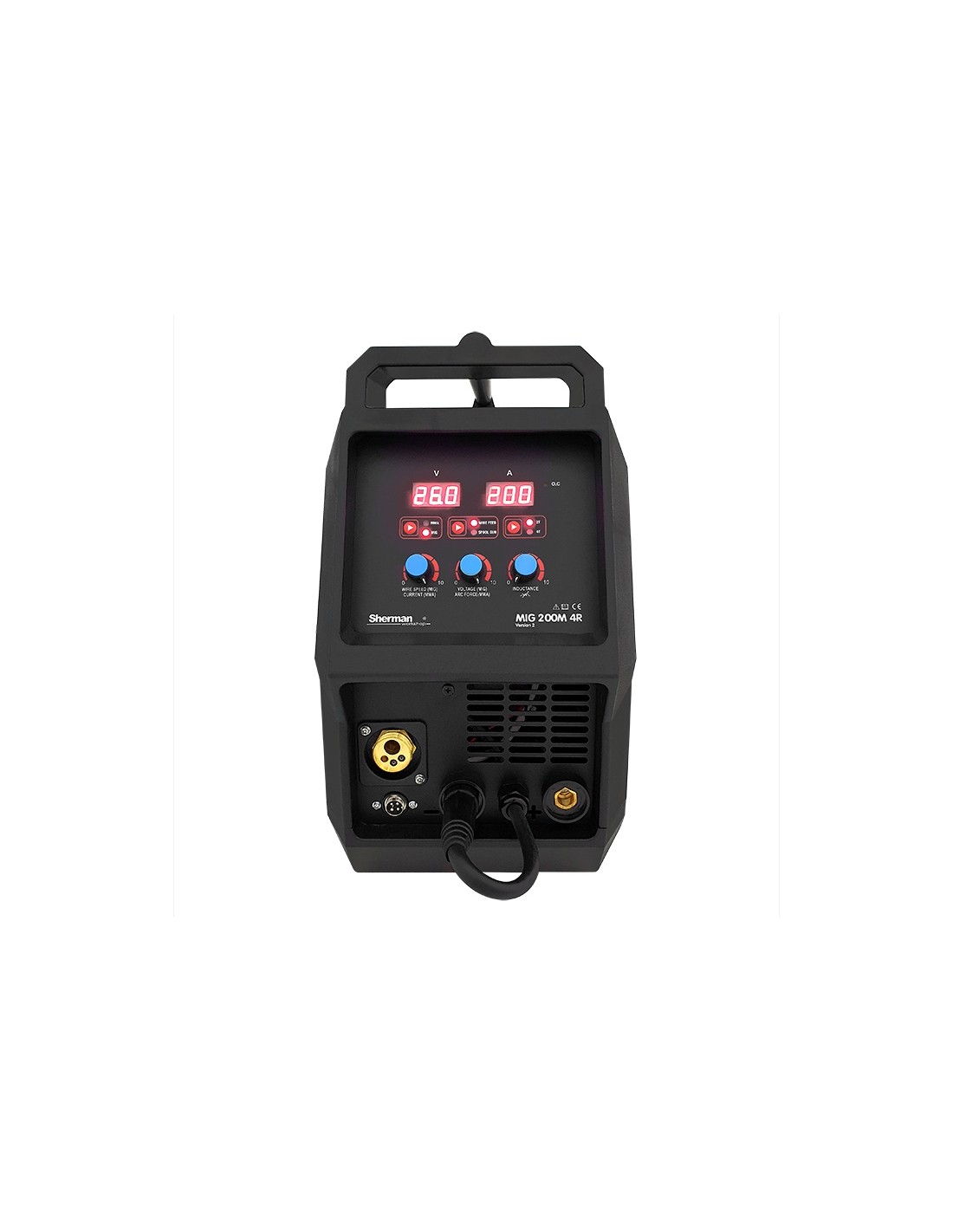

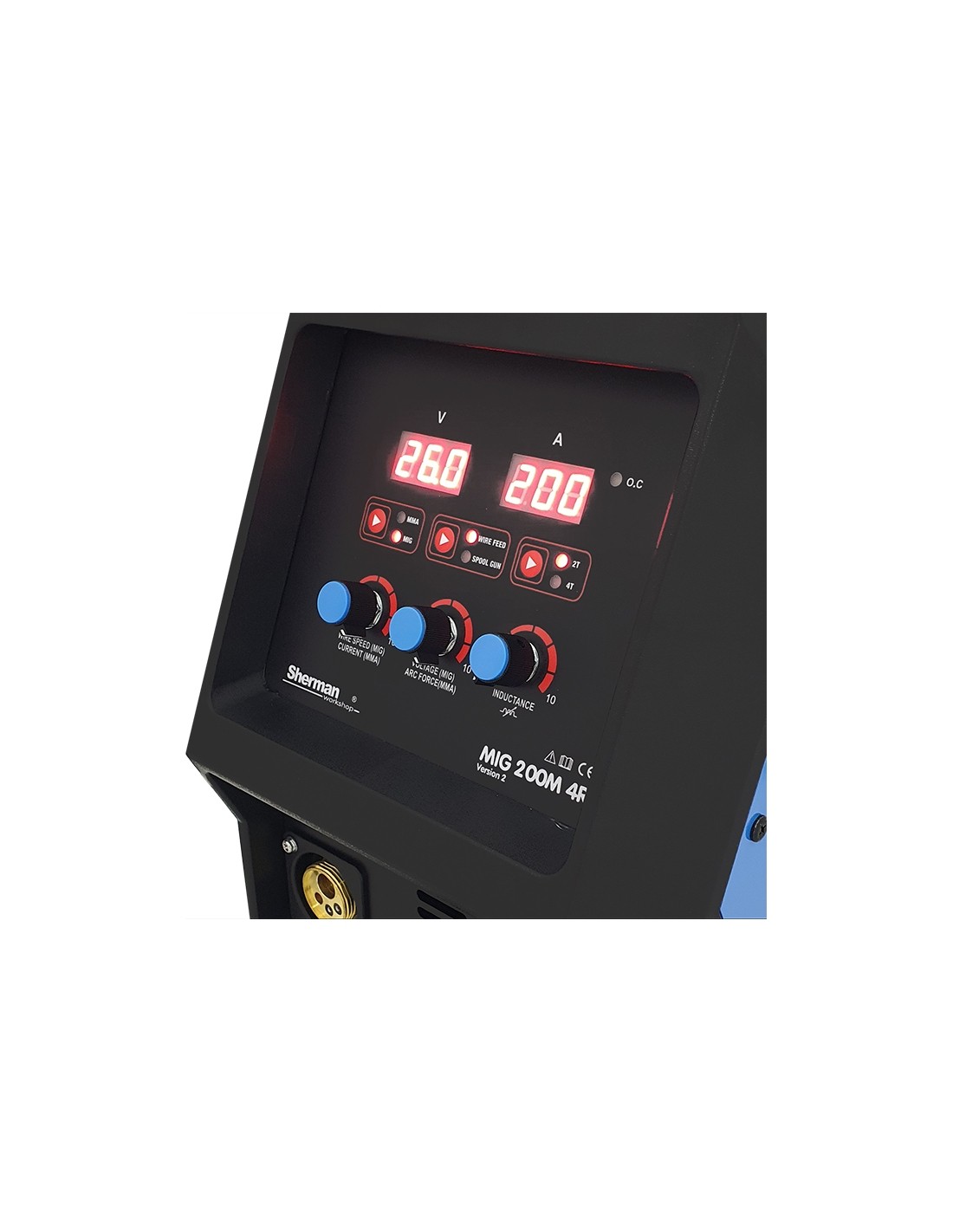

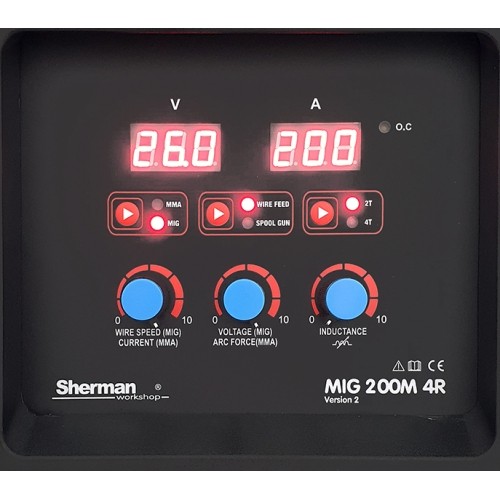

Built on MOSFET inverter technology for single‑phase 230 V power, the unit provides up to 200 A in MIG/MAG and 185 A in MMA with a 60% duty cycle. It features 2T/4T, Arc Force, Hot Start, Burn‑back control, polarity change for quick MIG/FLUX switching, Wire Inch, digital display, and overheating protection. EURO torch connection, a 3 m MIG/MAG torch, big 35–50 mm ground connector, wire speed 1.5–19 m/min, and compatibility with D100/D200 spools (up to 5 kg) further enhance versatility. Optionally, a Spoolgun (M‑15) with a mini feeder and D100 spool lets you work with two different wires without retooling.
Equipment included:

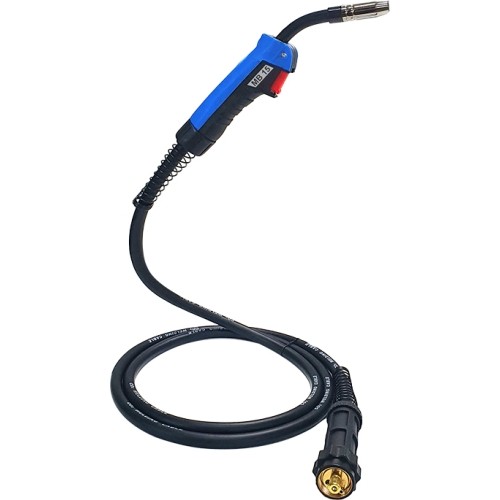

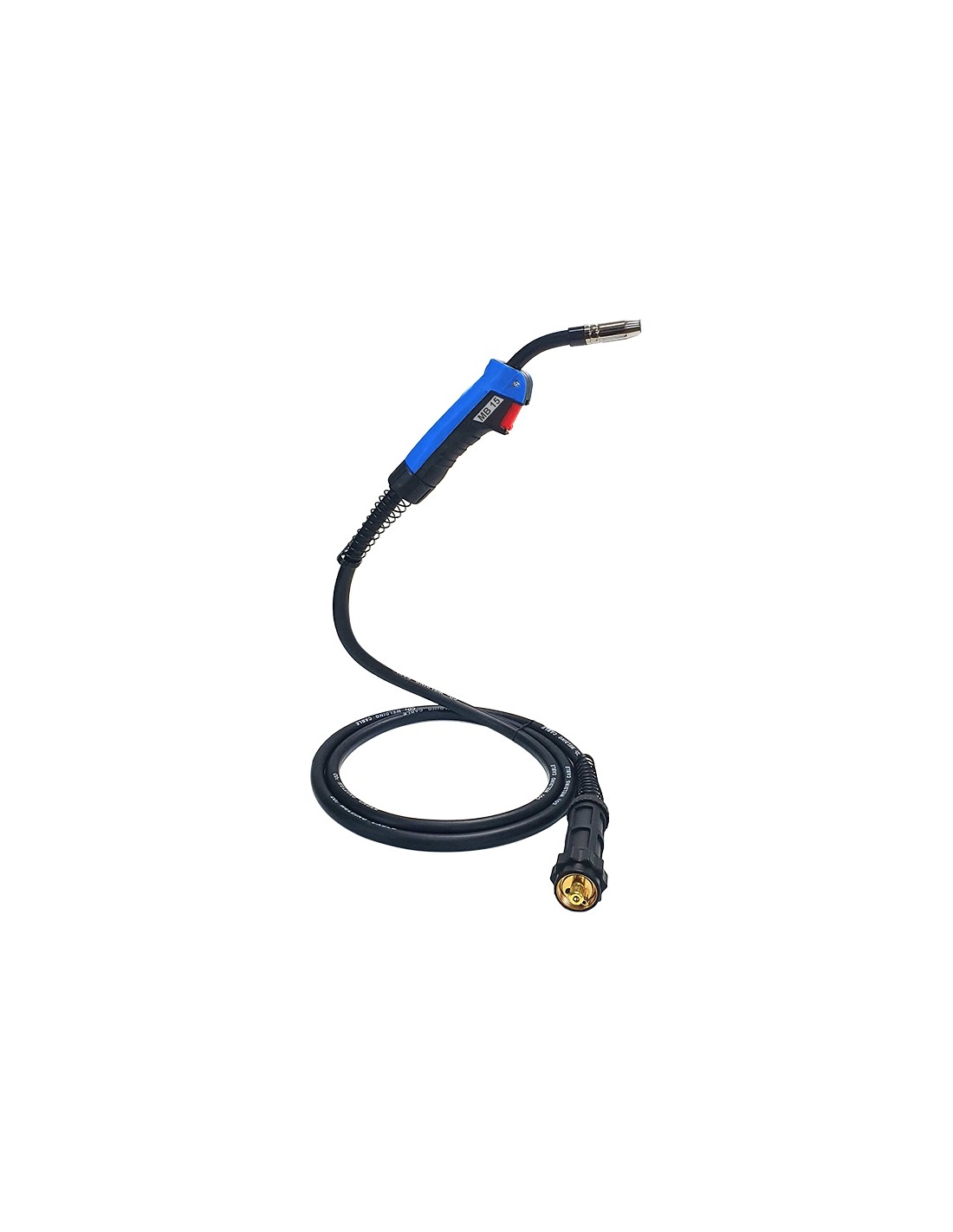

- MIG/MAG welding torch TW‑15, 3 m
- Electrode cable, 3 m
- Ground cable with clamp, 3 m

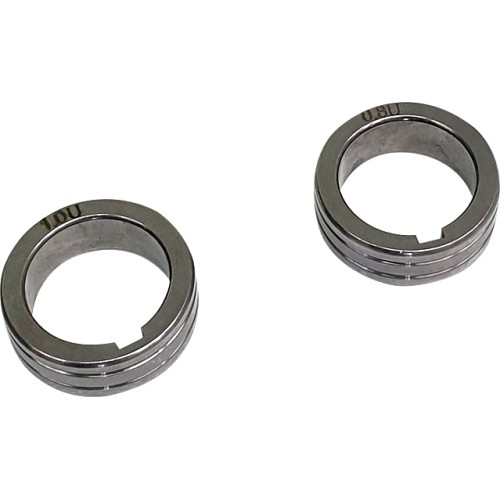

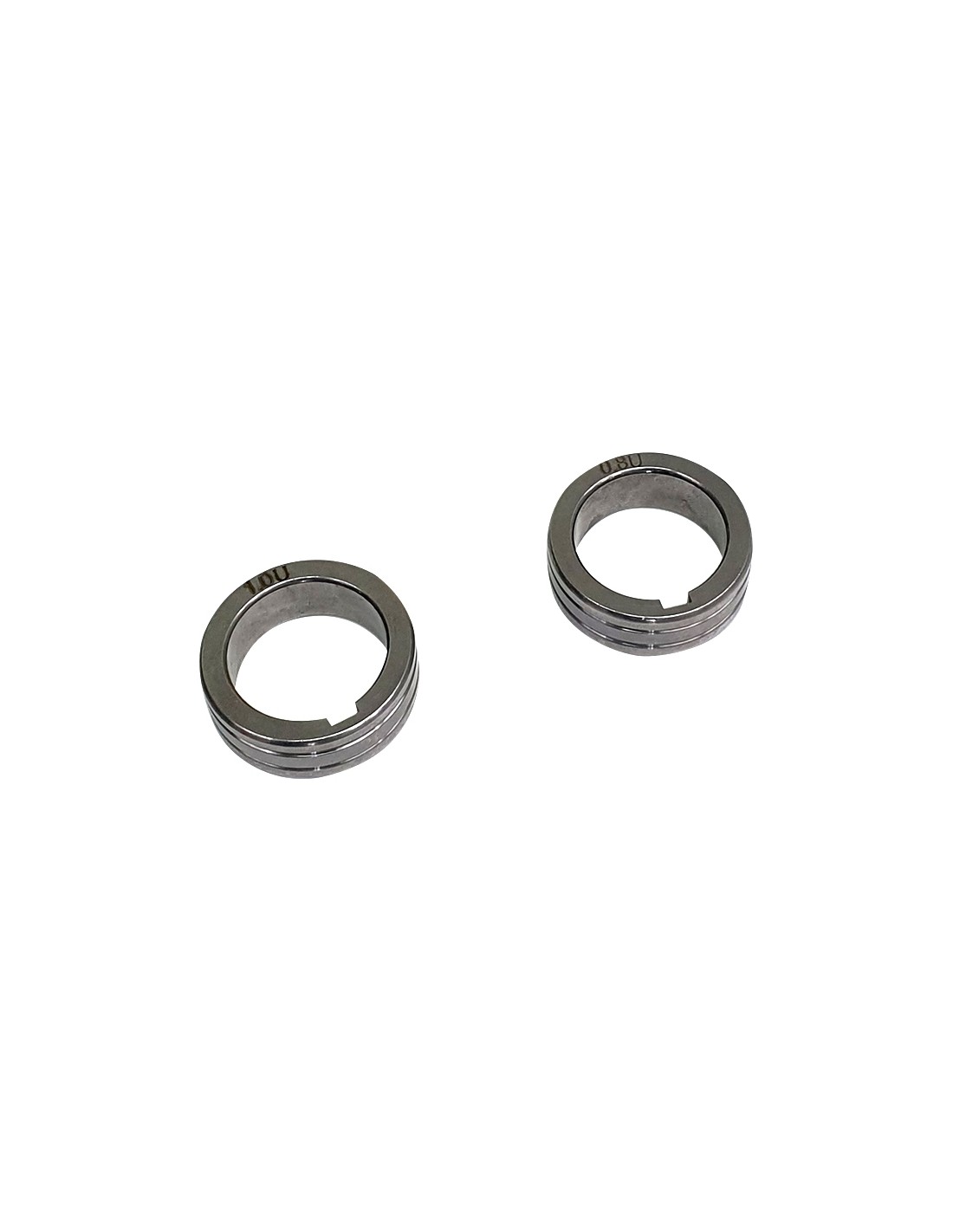

- Steel drive roller
- Aluminum drive roller
Optional accessories:
- Spoolgun M‑15 handle
