- Izoliacijos klasė
- F
- Metodas
- MIG/MAG, MMA, TIG
- Apsaugos klasė
- IP 23S
- Vielos padavimo greitis
- 1,5 - 16,5 m/min
- Tuščiosios eigos įtampa
- 66 V
- Phase
- Vienfazis (230V)
- Control
- synergetic
- User Level
- Professional
- Weight, kg
- 18.4
- Wire spool size [kg]
- 5
- PFC function
- No
- Maximum current MMA [A]
- 200
- Maximum current TIG [A]
- 200
- MMA darbo ciklas [%].
- 25
- TIG darbo ciklas [%].
- 40
- Maximum current MIG/MAG
- 200
- MIG/MAG darbo ciklas [%]
- 30
- Saugiklio reikalavimas
- 16 A
- Efektyvus srovės suvartojimas (I1eff)
- 15,6 A (MIG), 15,8 A (MMA), 12,9 A (TIG)
- Suvirinimo srovė (100% darbo ciklas)
- 120 A
130 A - Suvirinimo srovė (60% darbo ciklas)
- 150 A
165 A - Atitikties standartai
- ČSN EN IEC 60974-1, ČSN EN IEC 60974-10 A
- Matmenys (P x I x A)
- 230 x 640 x 420 mm
- Vielos ritės skersmuo ø [mm].
- 200
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless
- Package Contents
- consumable parts
gas hose
ground cable
welding machine

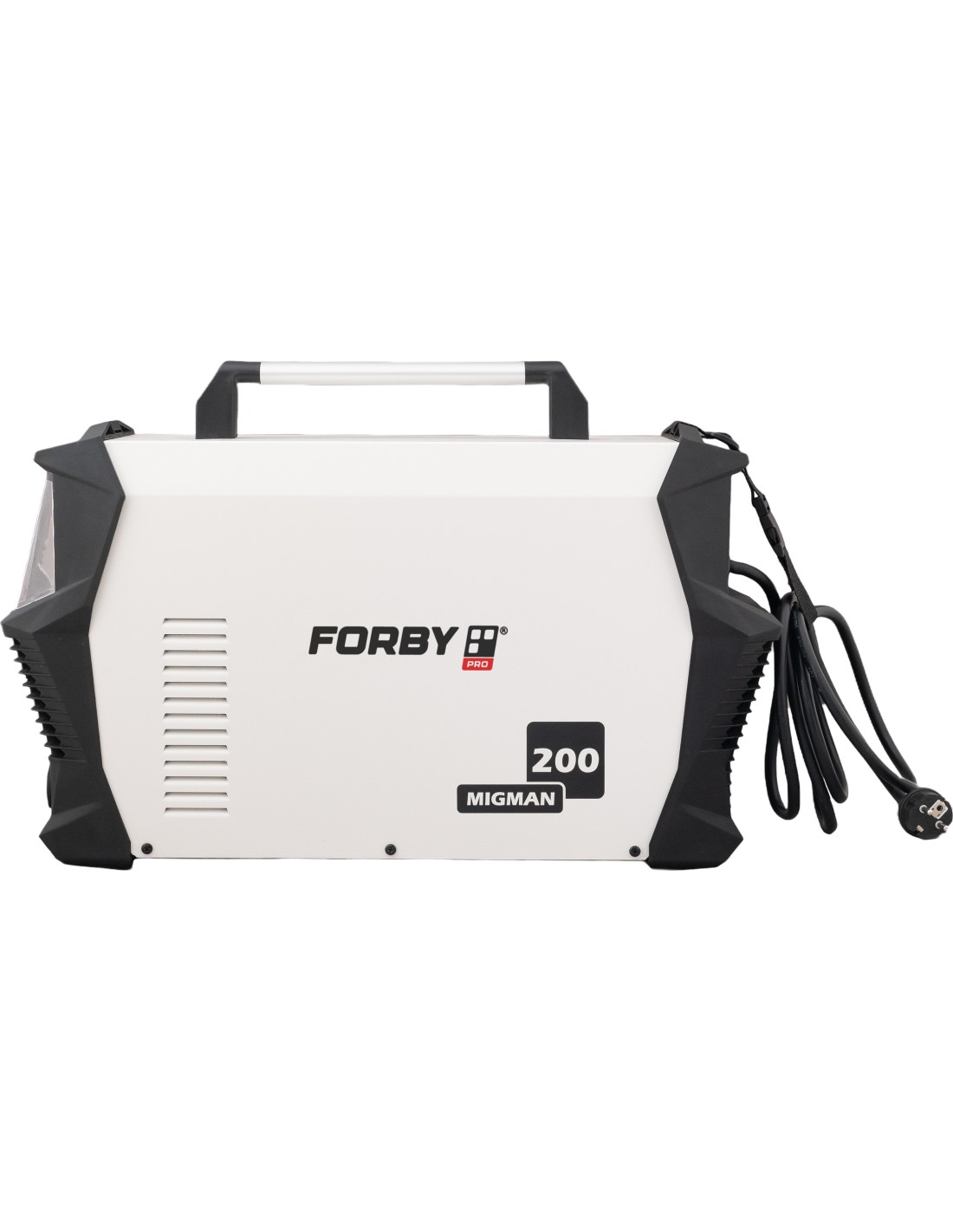

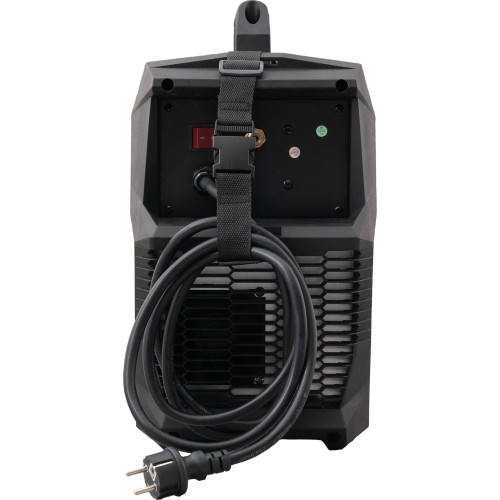

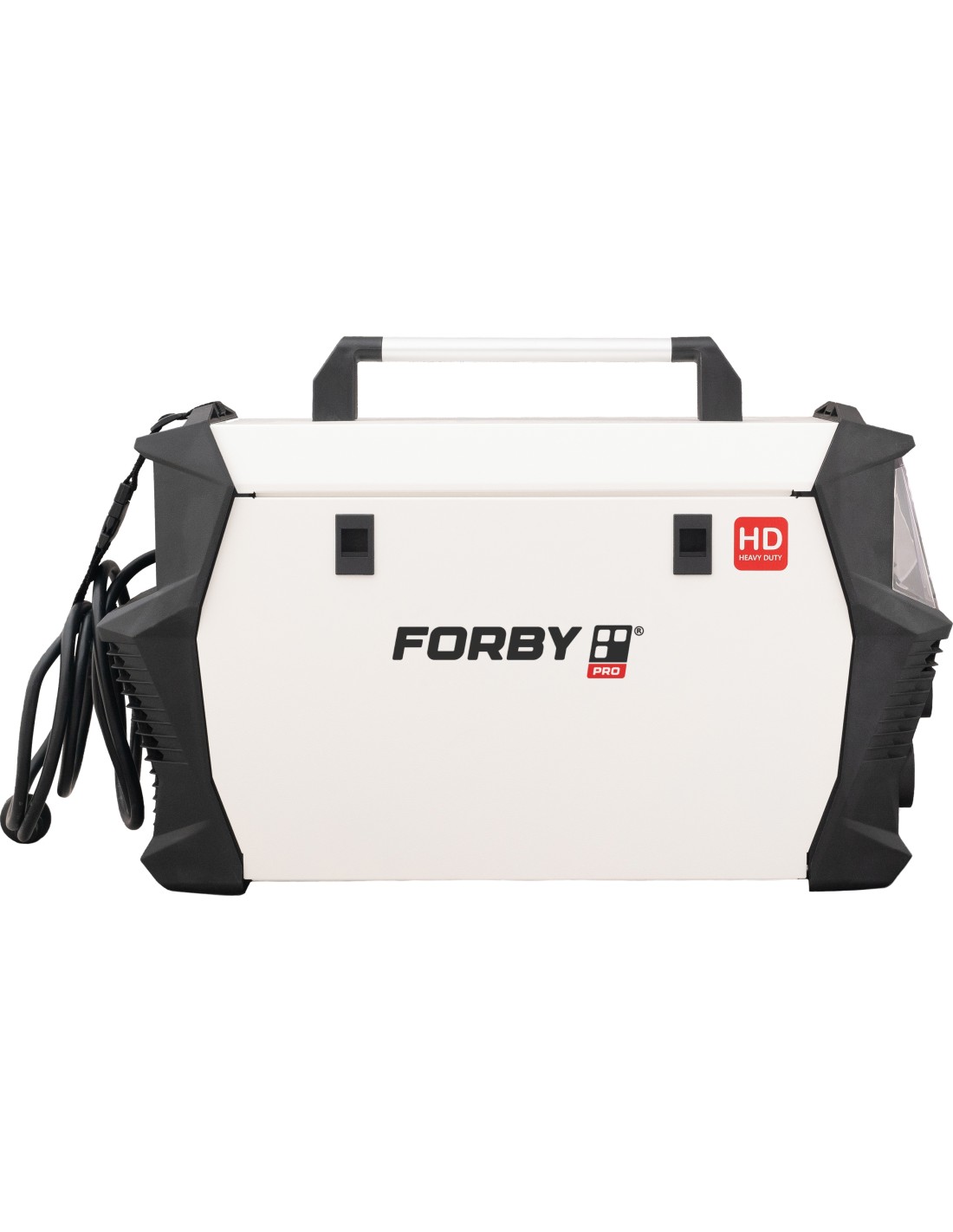

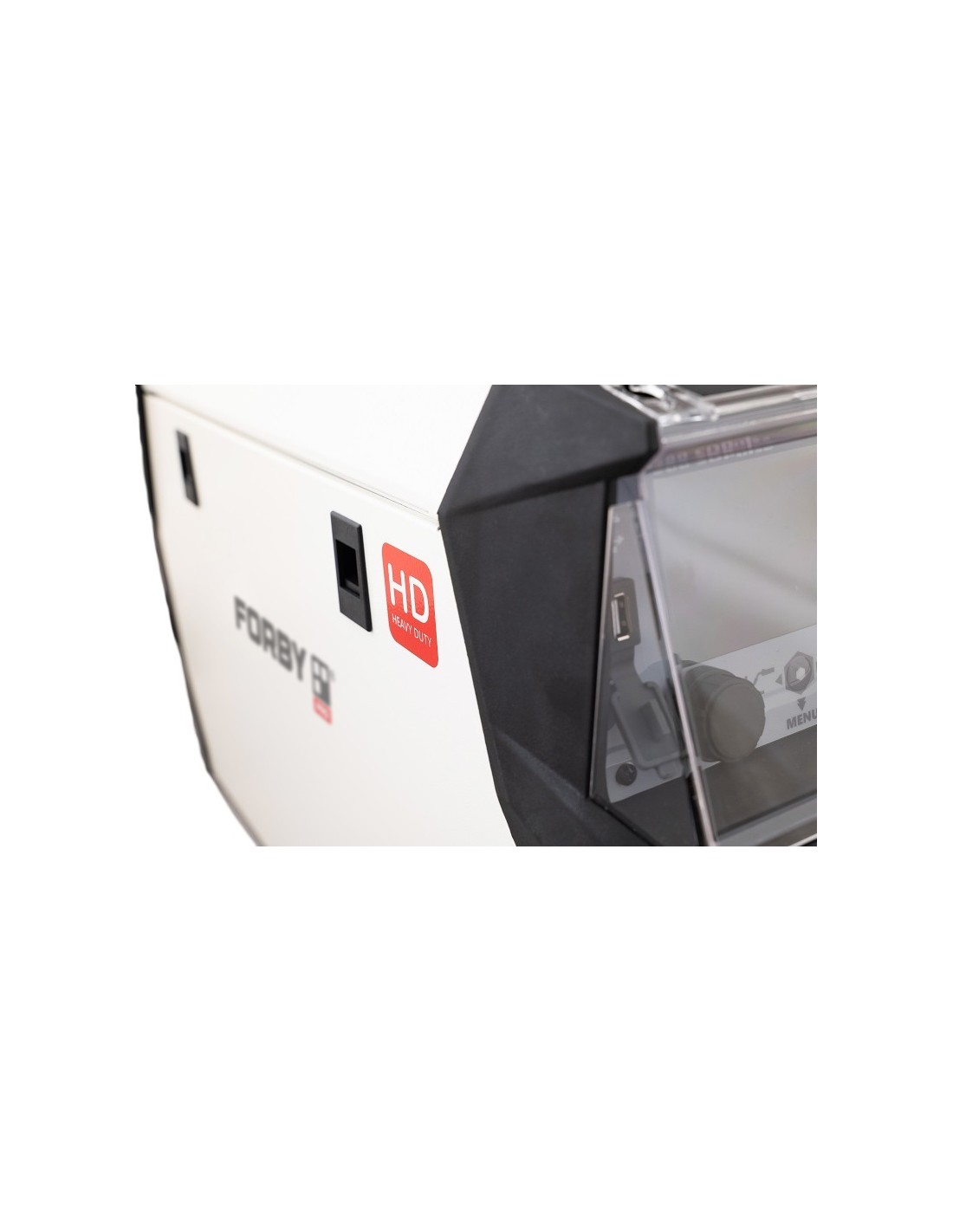

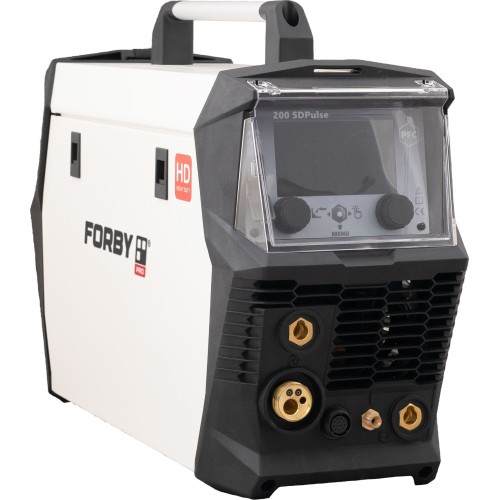

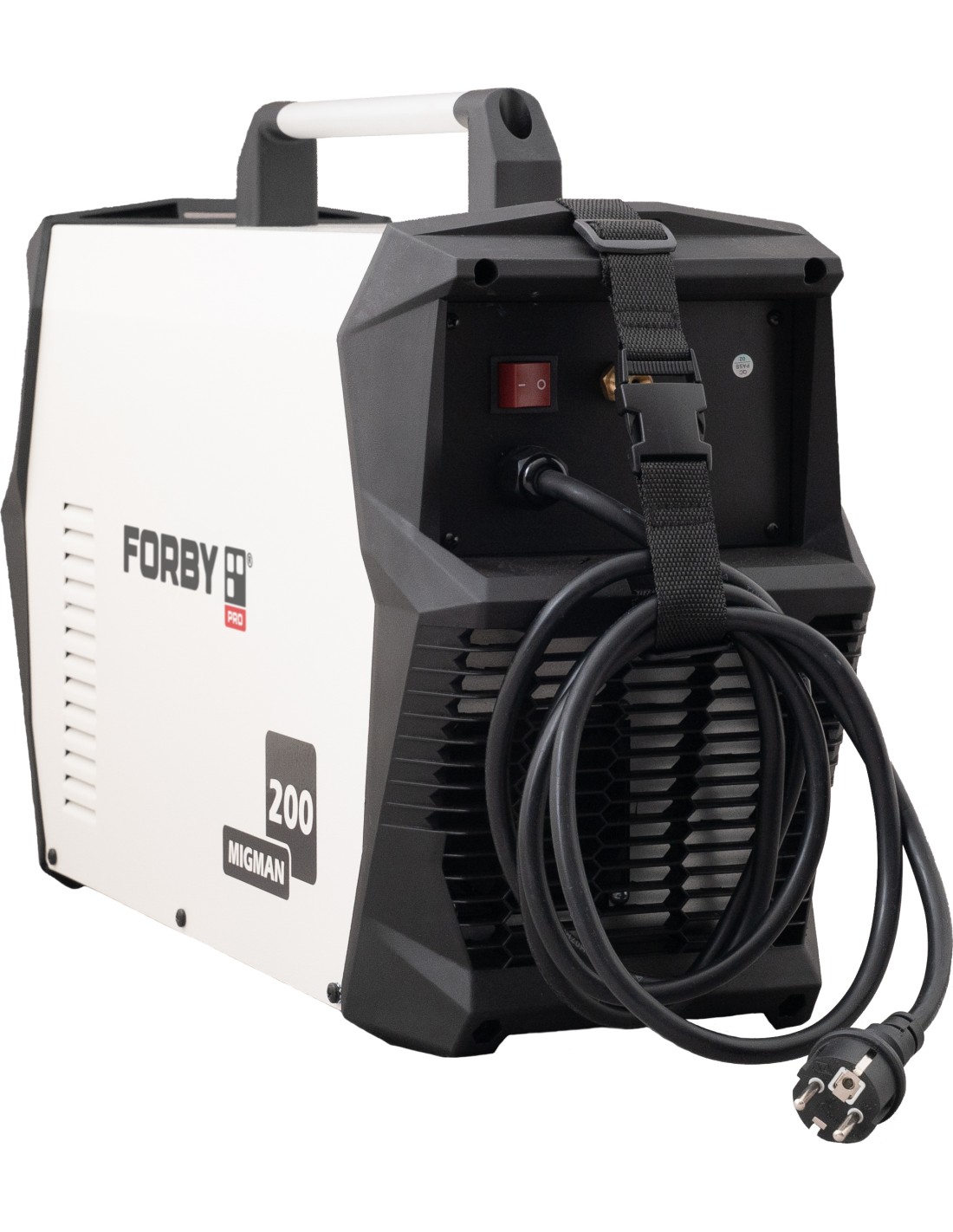

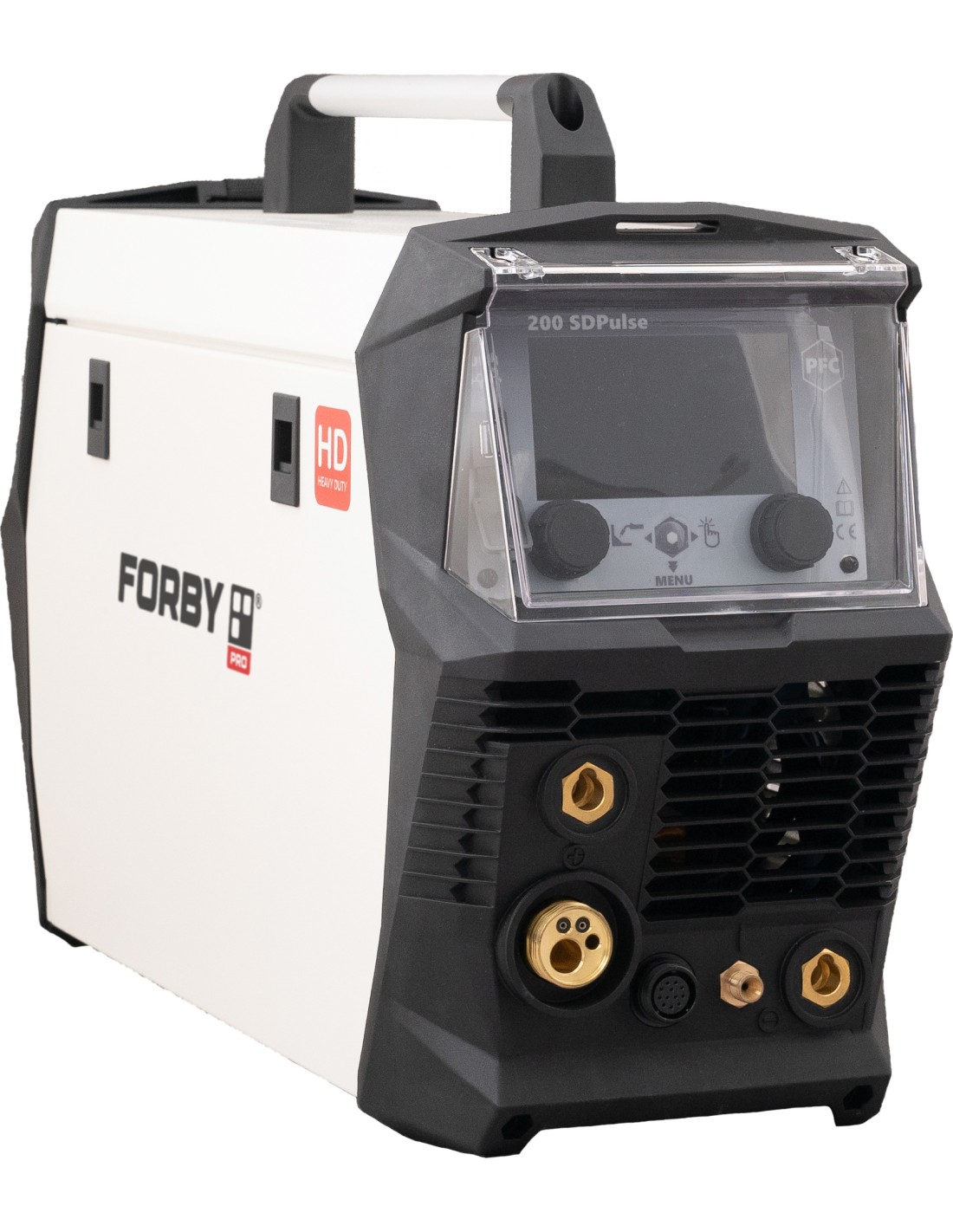

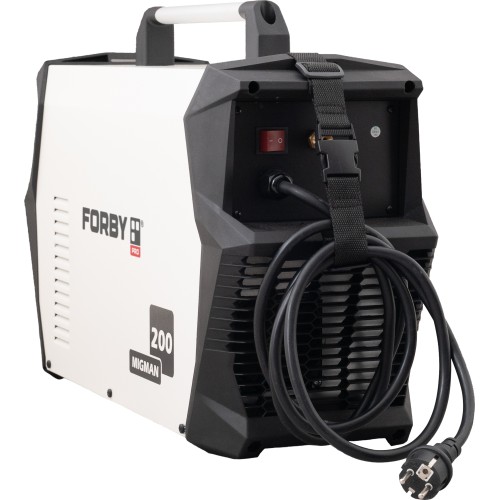

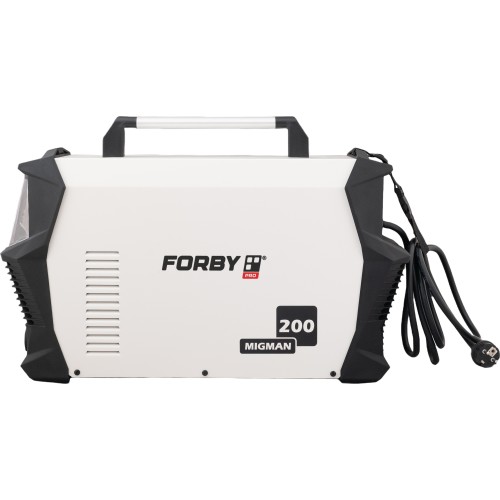

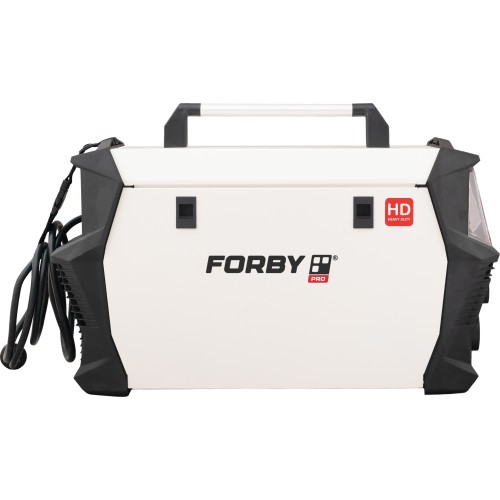

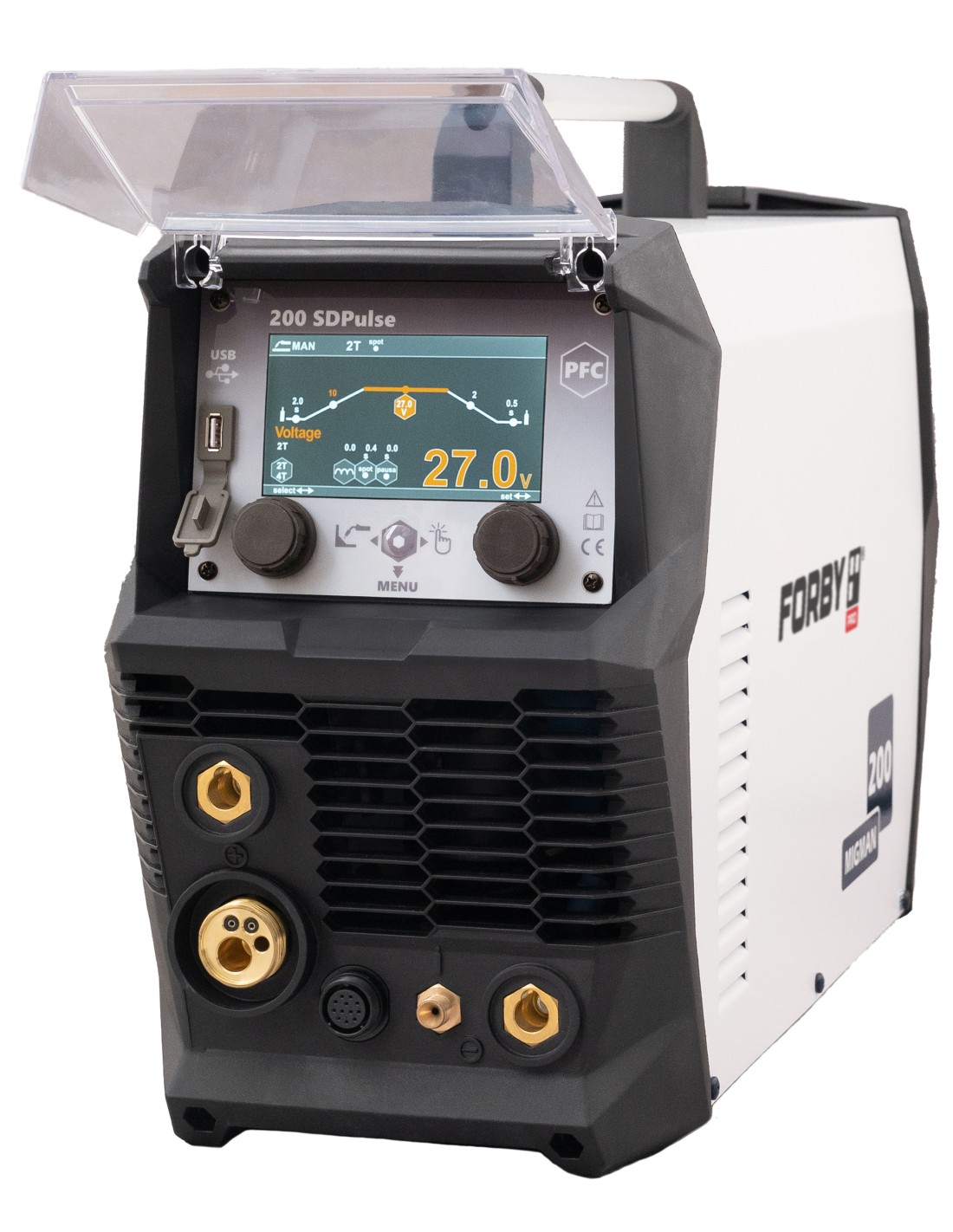

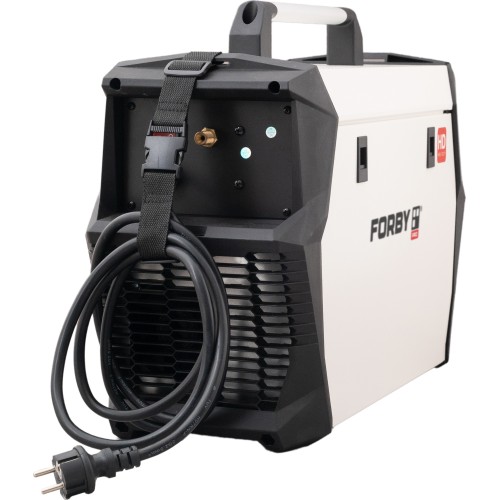

Suvirinimo aparatas FORBY® HD MIGMAN 200 SD PULSE (pramoninis, tinka aliuminiui)
Description
FORBY® 200 SD pulse is a multifunctional inverter welding machine with pulse mode for MIG/MAG, MMA and TIG welding. It has a modern design, high-quality welding characteristics and an intuitive user interface.
A 5-inch LCD display shows all the key welding parameters. Synergic modes make it easy to set the machine up for different materials: steel, stainless steel, aluminium alloys, galvanized metal and flux-cored wire. The machine runs on a single-phase 230 V supply with a 16 A fuse and has IP 23S protection.
Suitable for:
- Automotive repair and manufacturing
- Light and medium metal structures
- Stainless steel and aluminium welding
Key features:

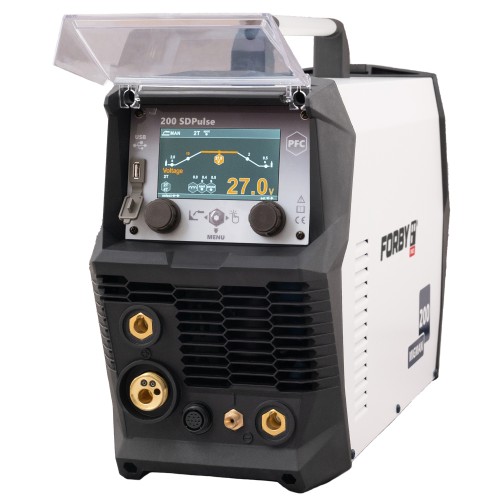

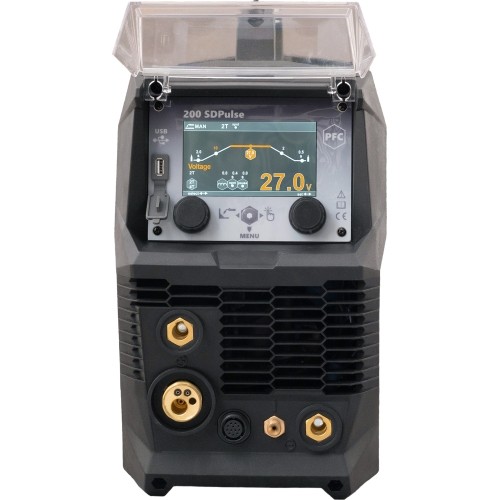

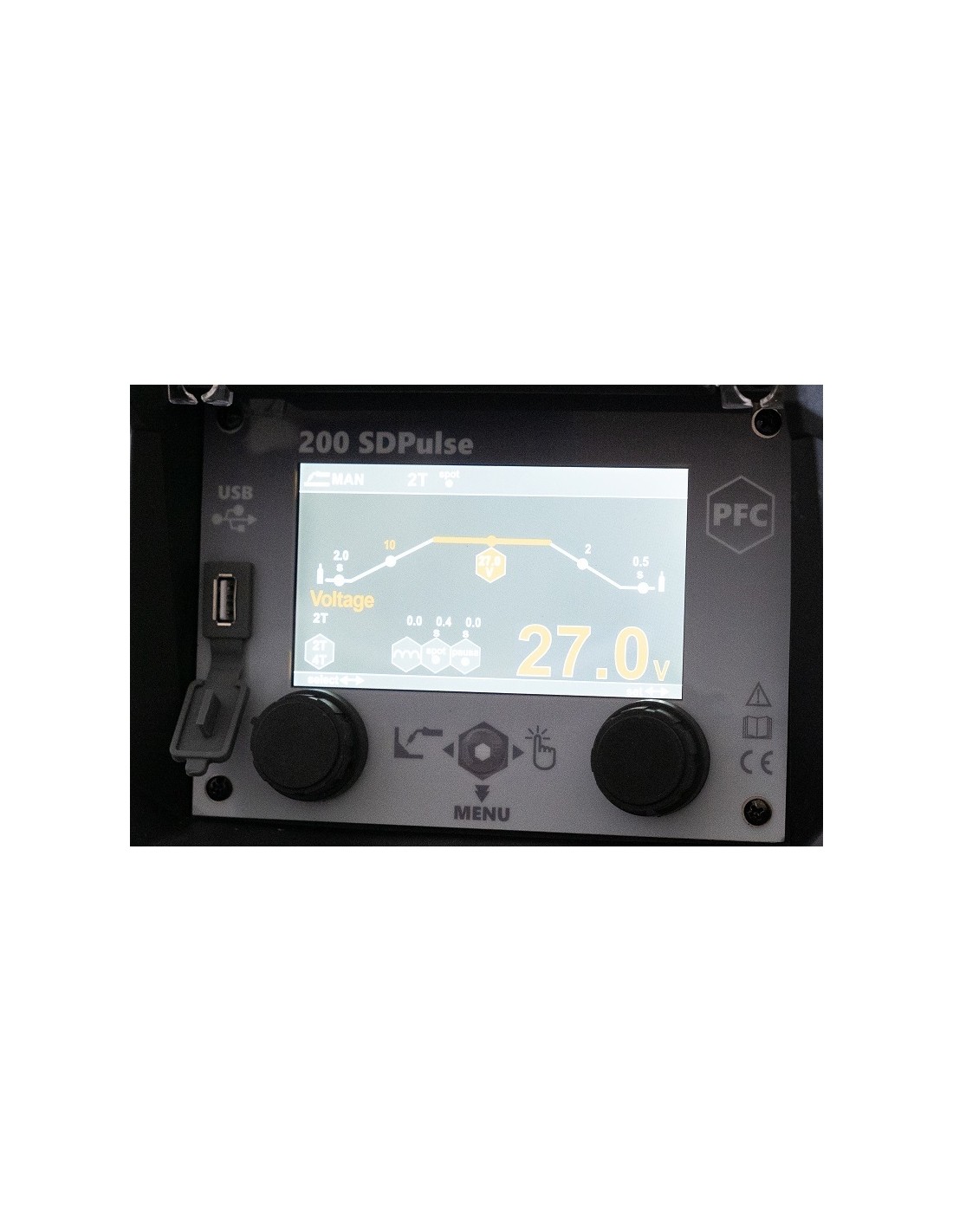

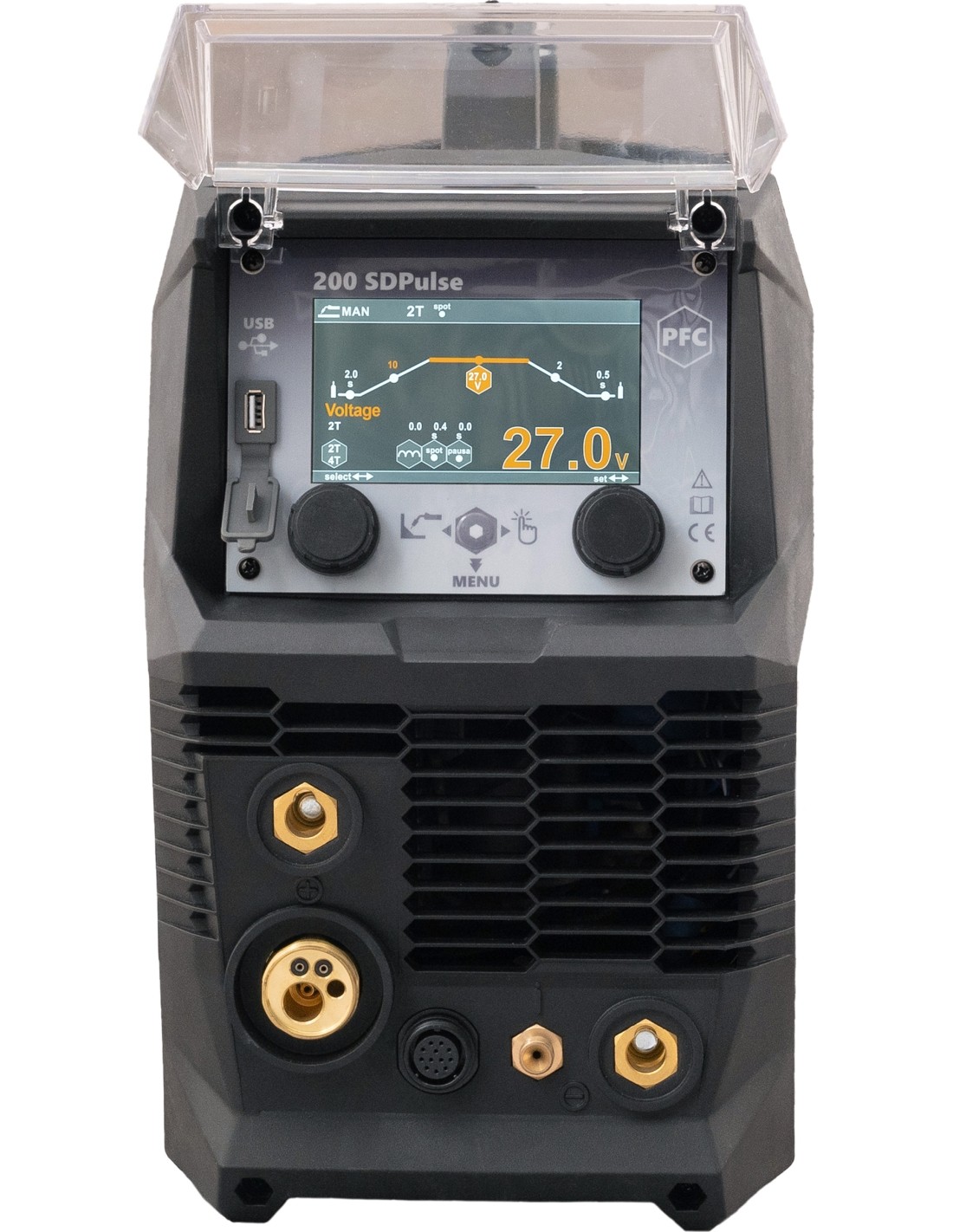

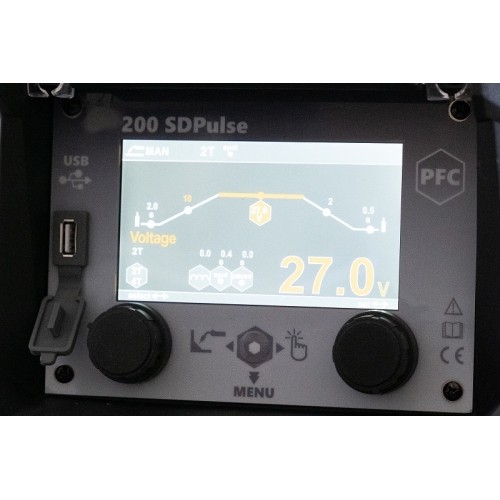

- 5-inch LCD display with day/night mode
- Synergic welding curves for various materials
- Pulse and double pulse MIG mode - for better weld quality
- TIG Lift Arc and MMA with pulse function

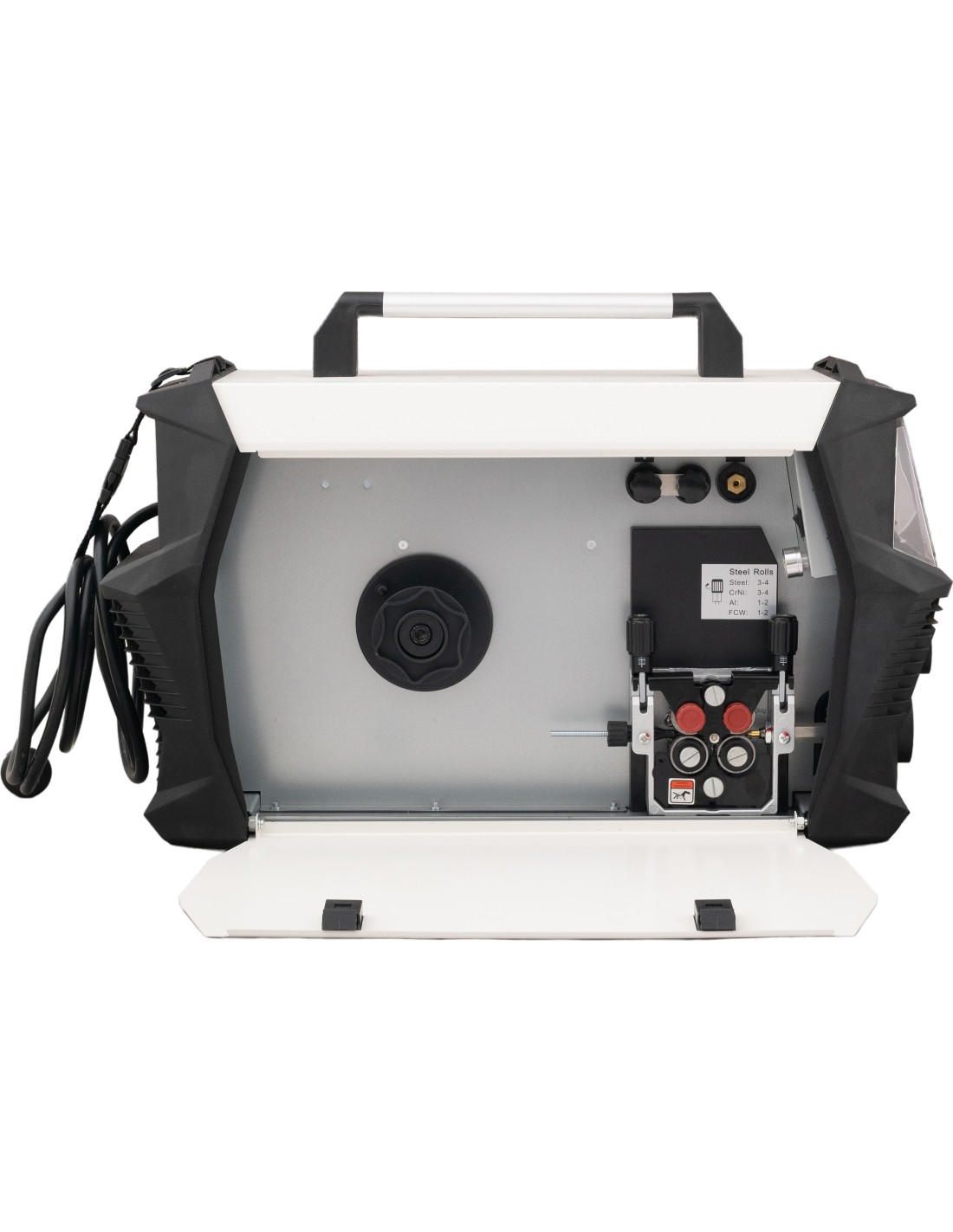

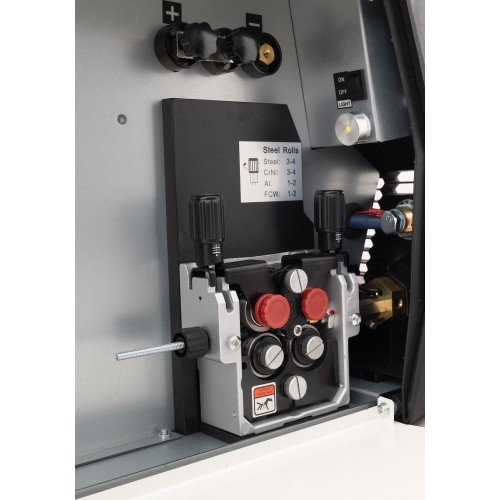

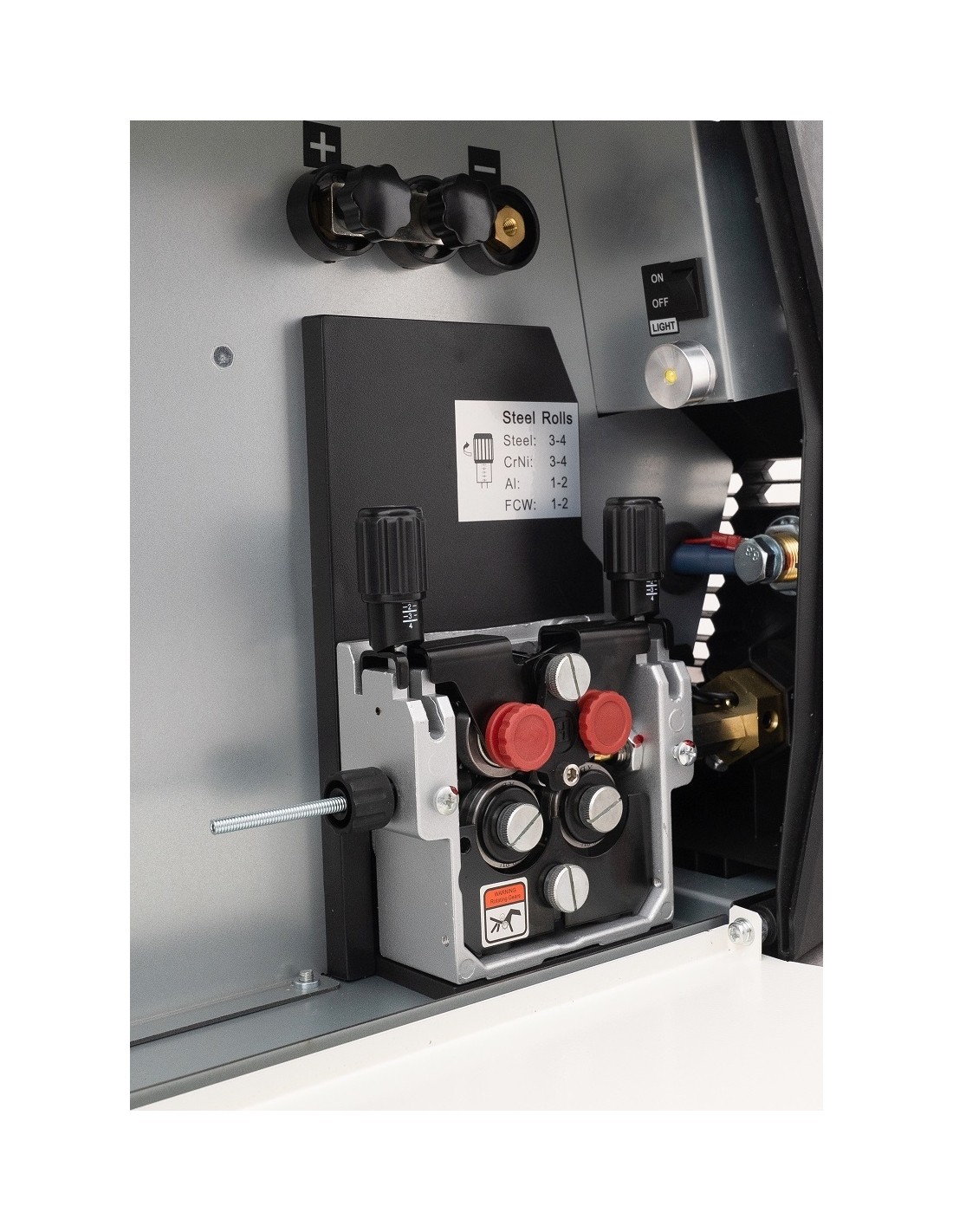

- 4-roller wire feed mechanism
- Reversible polarity for flux-cored wires

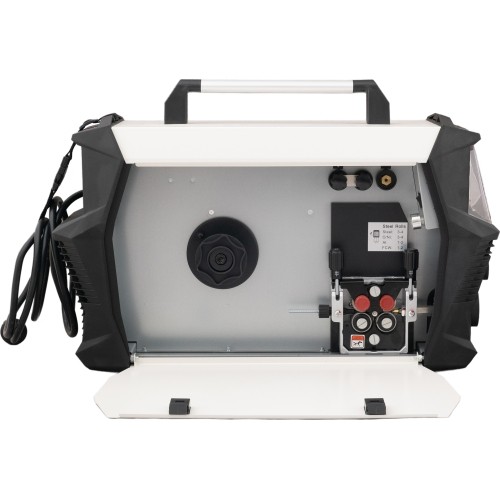

- Internal lighting - makes changing the wire easier
- On-demand fan control to lower noise
FORBY® 200 SD pulse is a modern, lightweight and versatile welding machine for professionals and advanced users. It gives excellent control, wide functionality and high welding quality in all three modes: MIG/MAG, MMA and TIG.
Package includes:
- Machine
- Earth cable 3 m
- Gas hose 3 m
