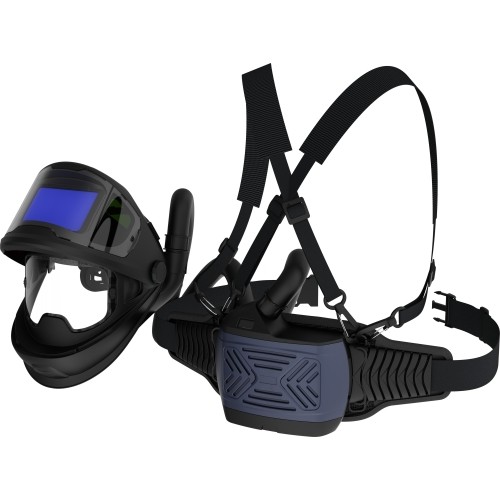

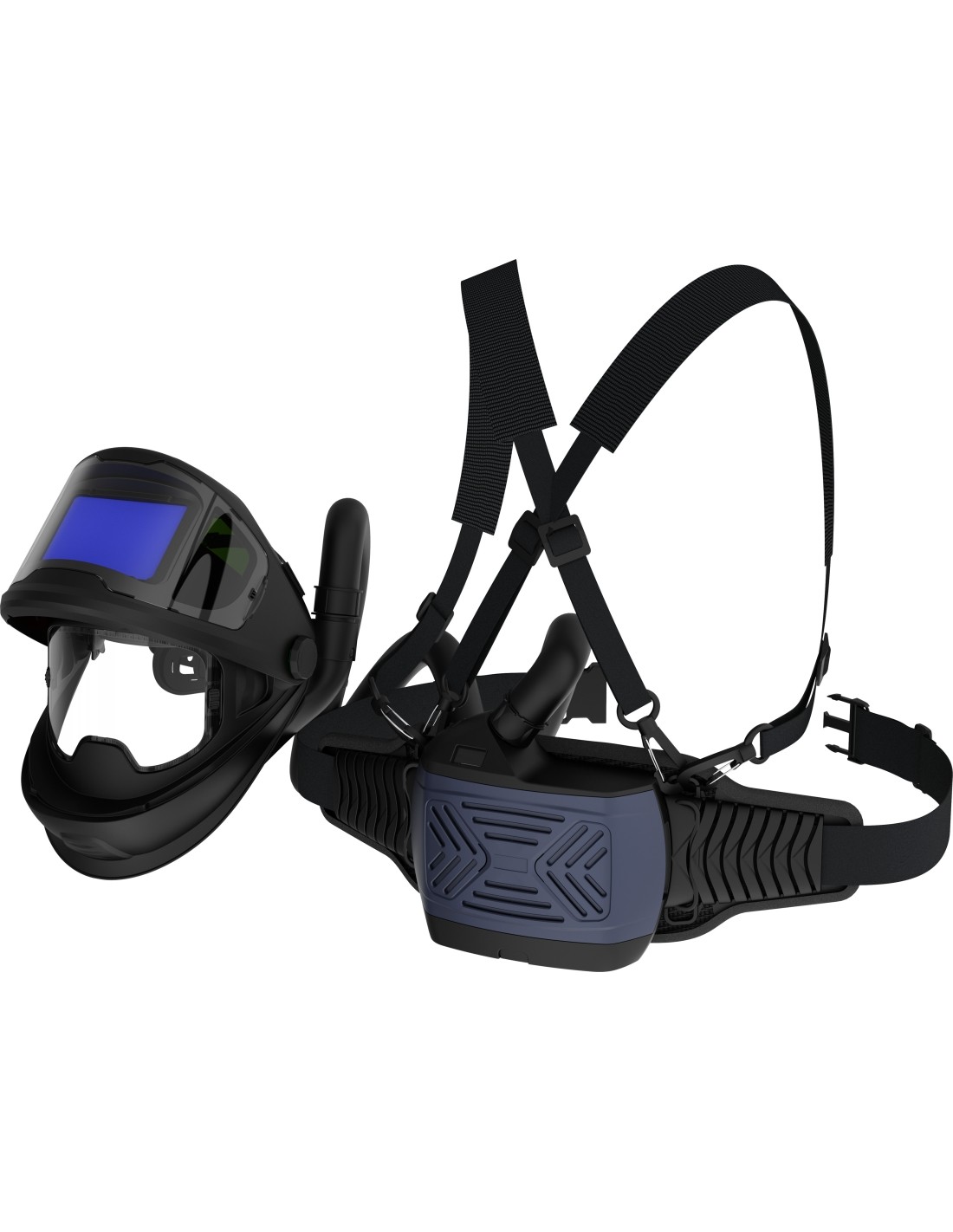

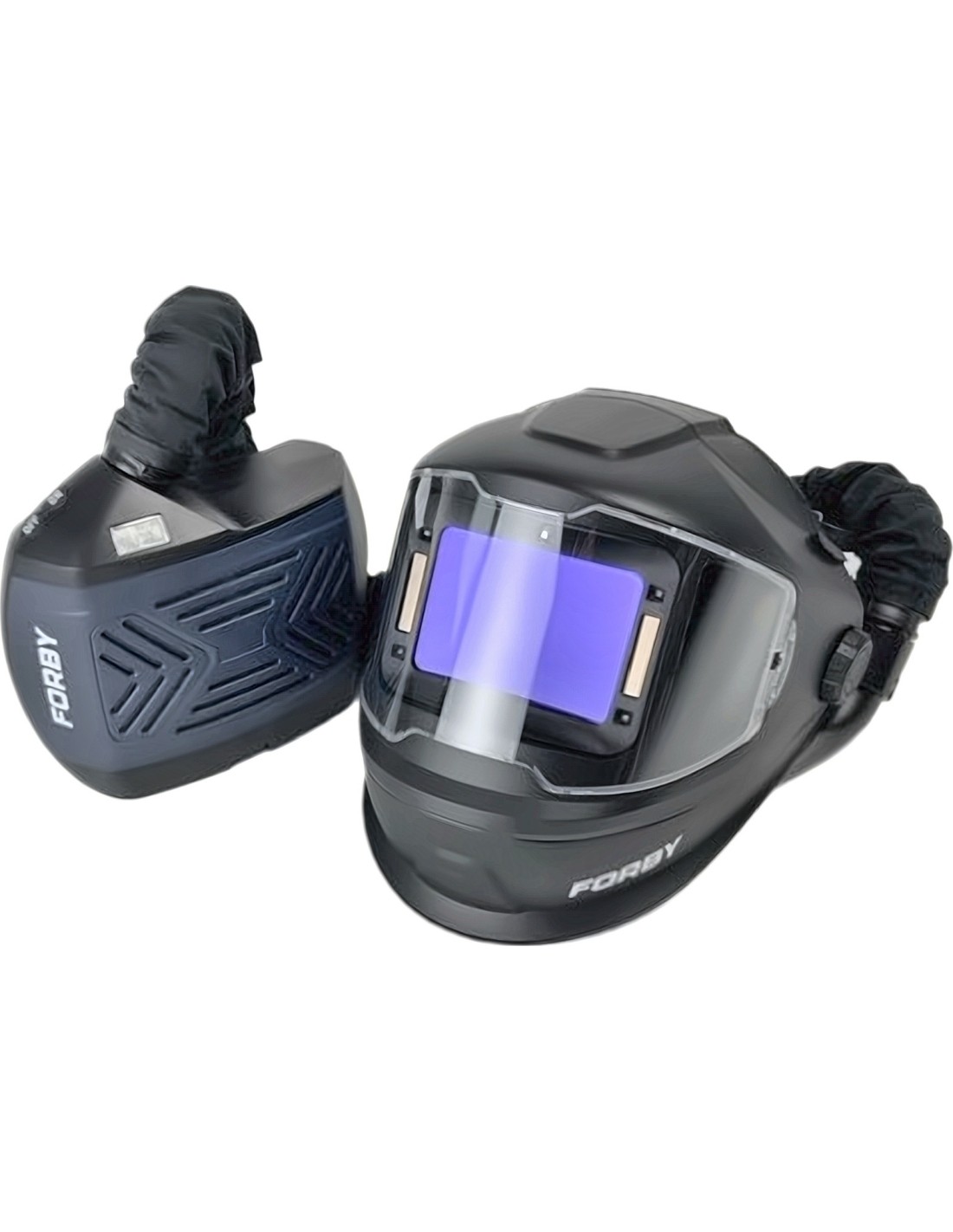

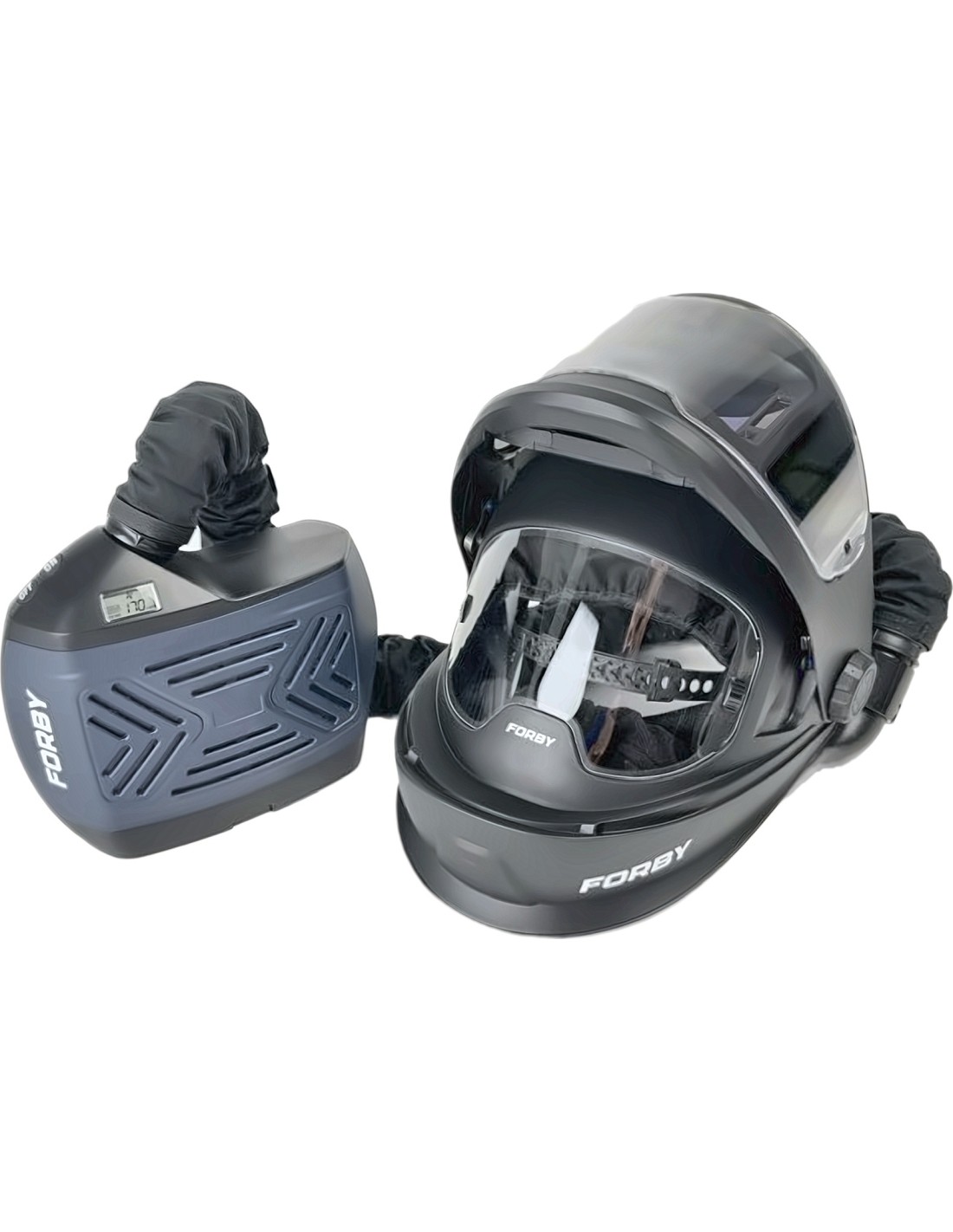

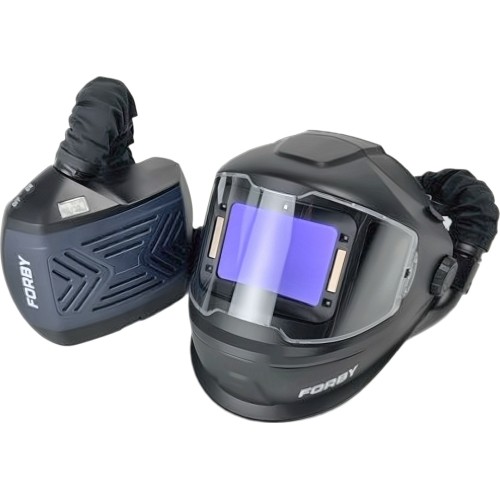

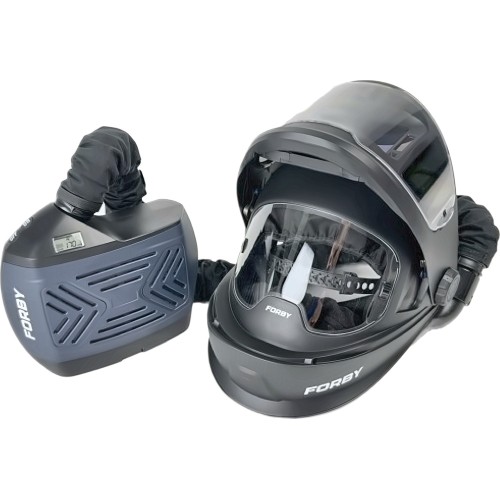

The PAPR A6 is an advanced Powered Air Purifying Respirator (PAPR) system designed to provide welders with maximum protection and comfort. Engineered with intelligent airflow control, high-efficiency filtration, and ergonomic design, it ensures safe, clean breathing air throughout every welding task.

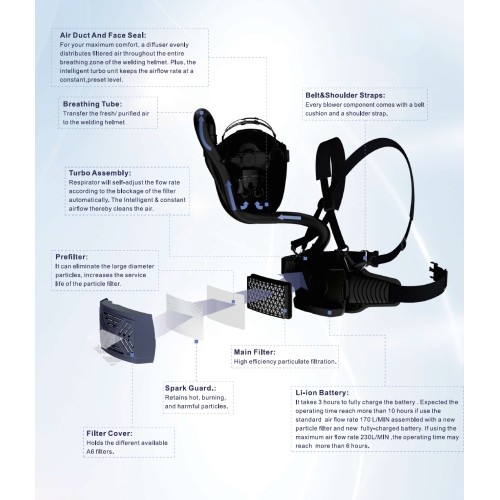

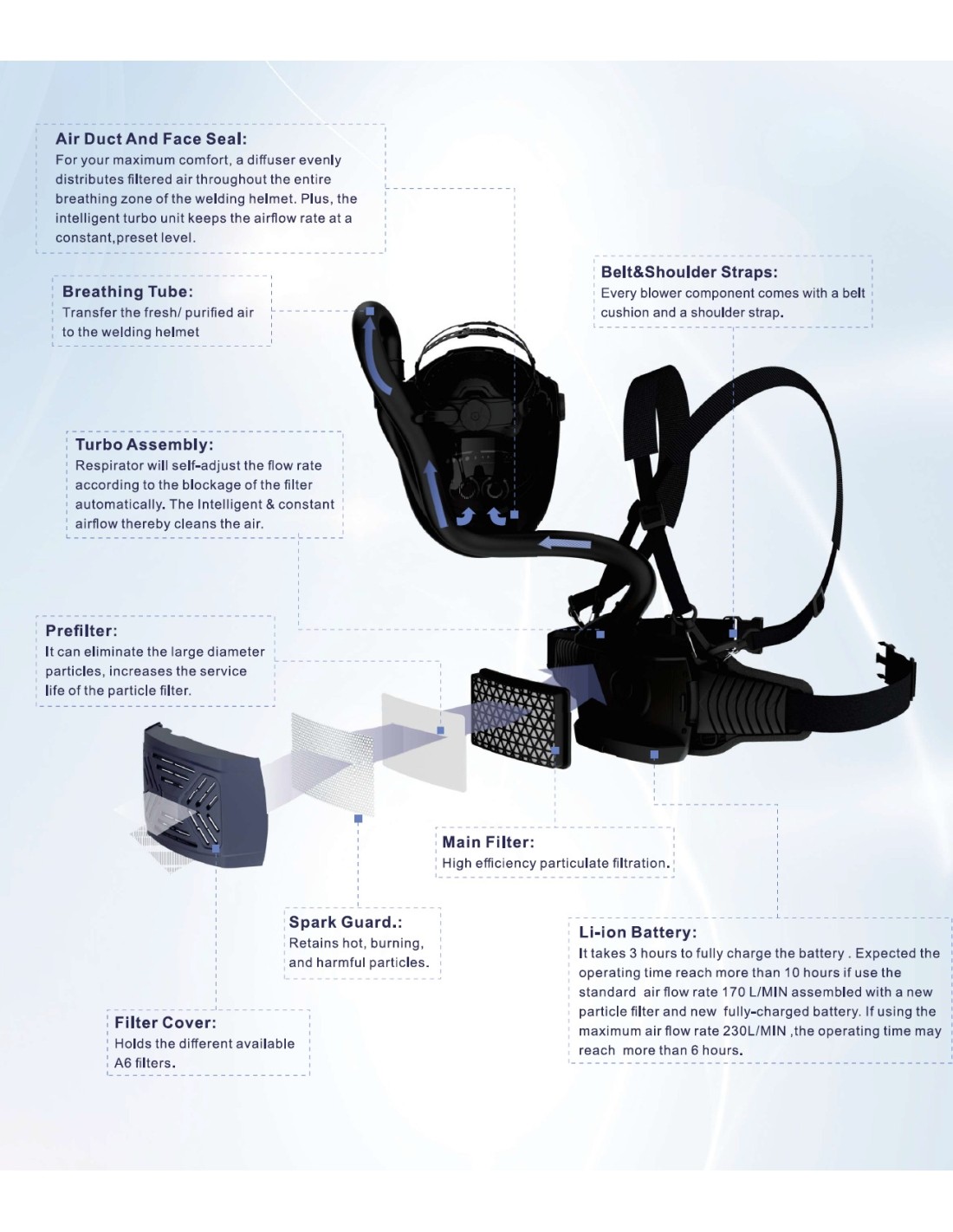

Key Features:
Air Duct & Face Seal:
A specially designed diffuser evenly distributes filtered air across the entire breathing zone inside the welding helmet. The intelligent turbo unit maintains a constant, preset airflow rate, ensuring comfort during extended use.

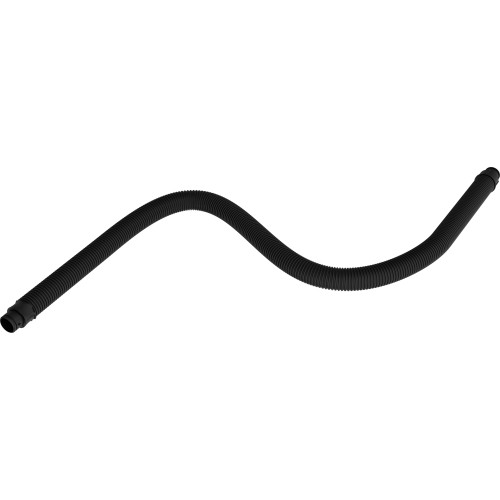

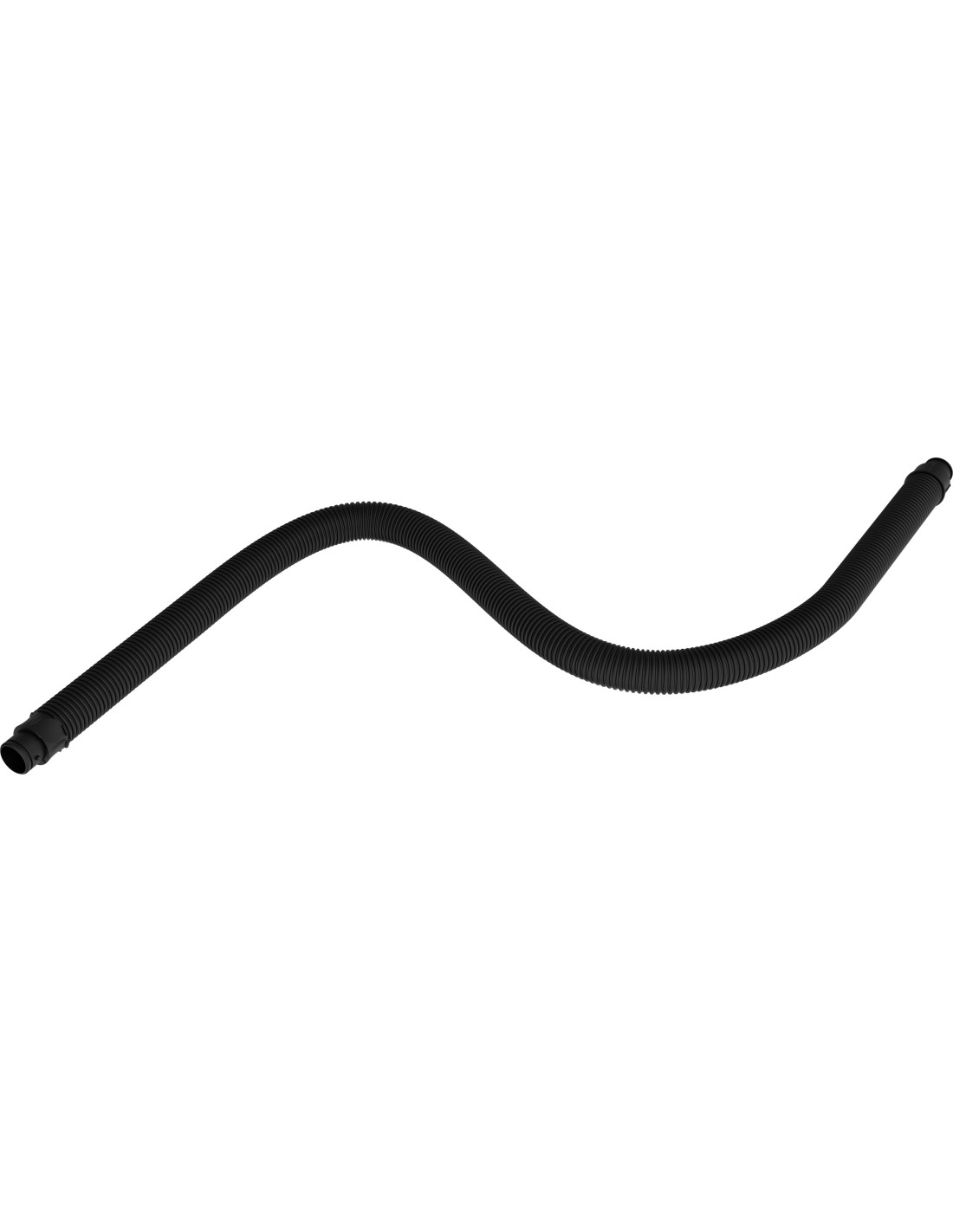

Breathing Tube:
Transfers purified air directly from the turbo assembly into the welding helmet, providing a steady supply of clean breathing air.

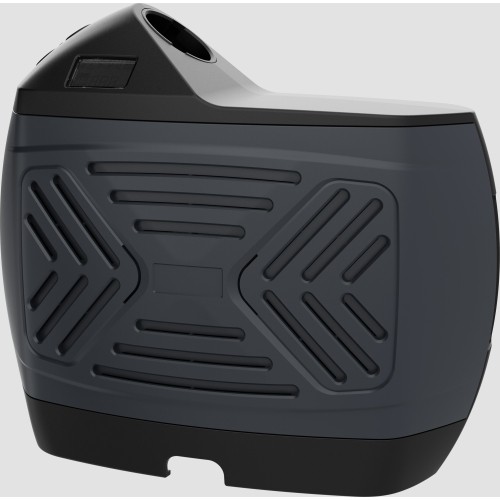

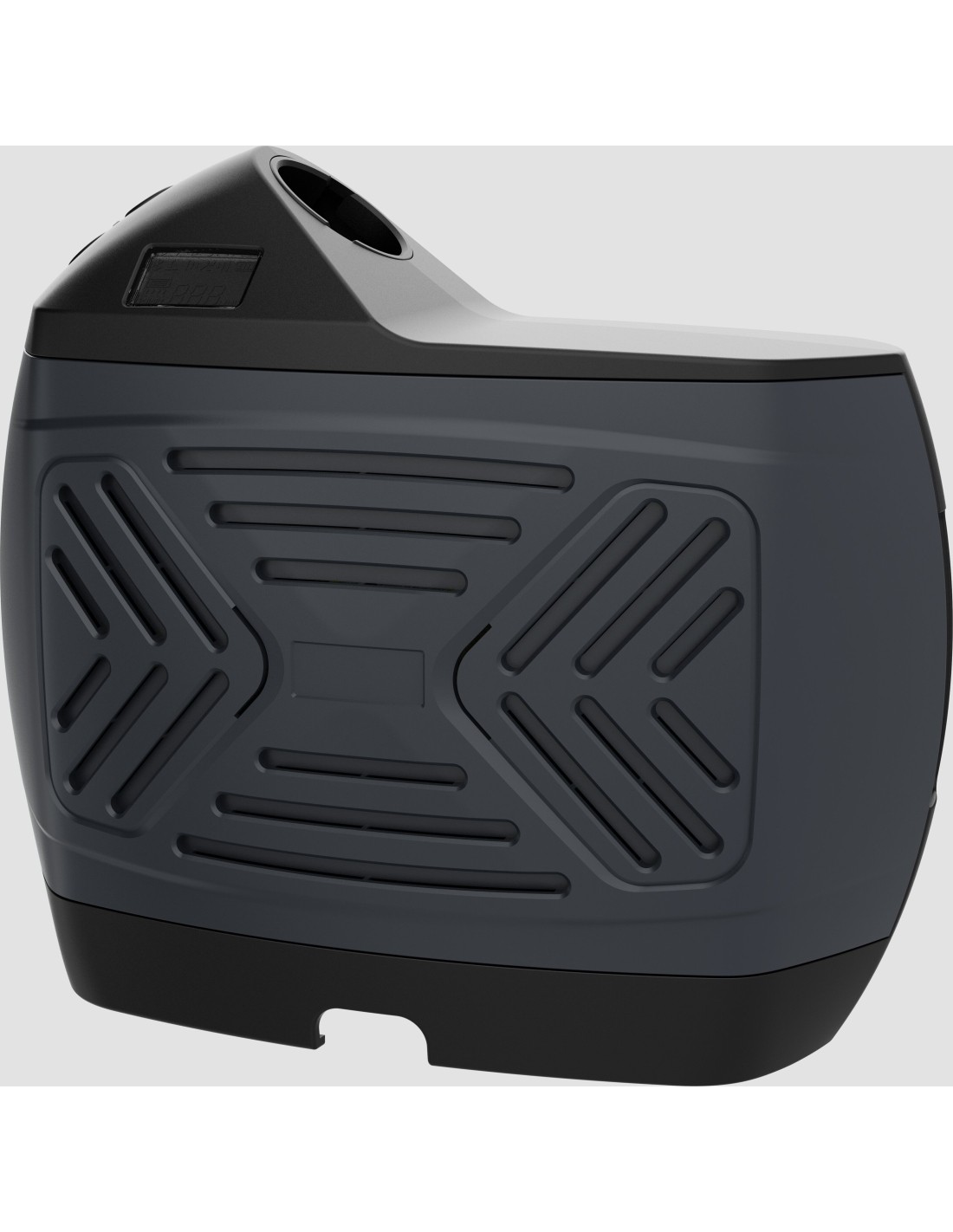

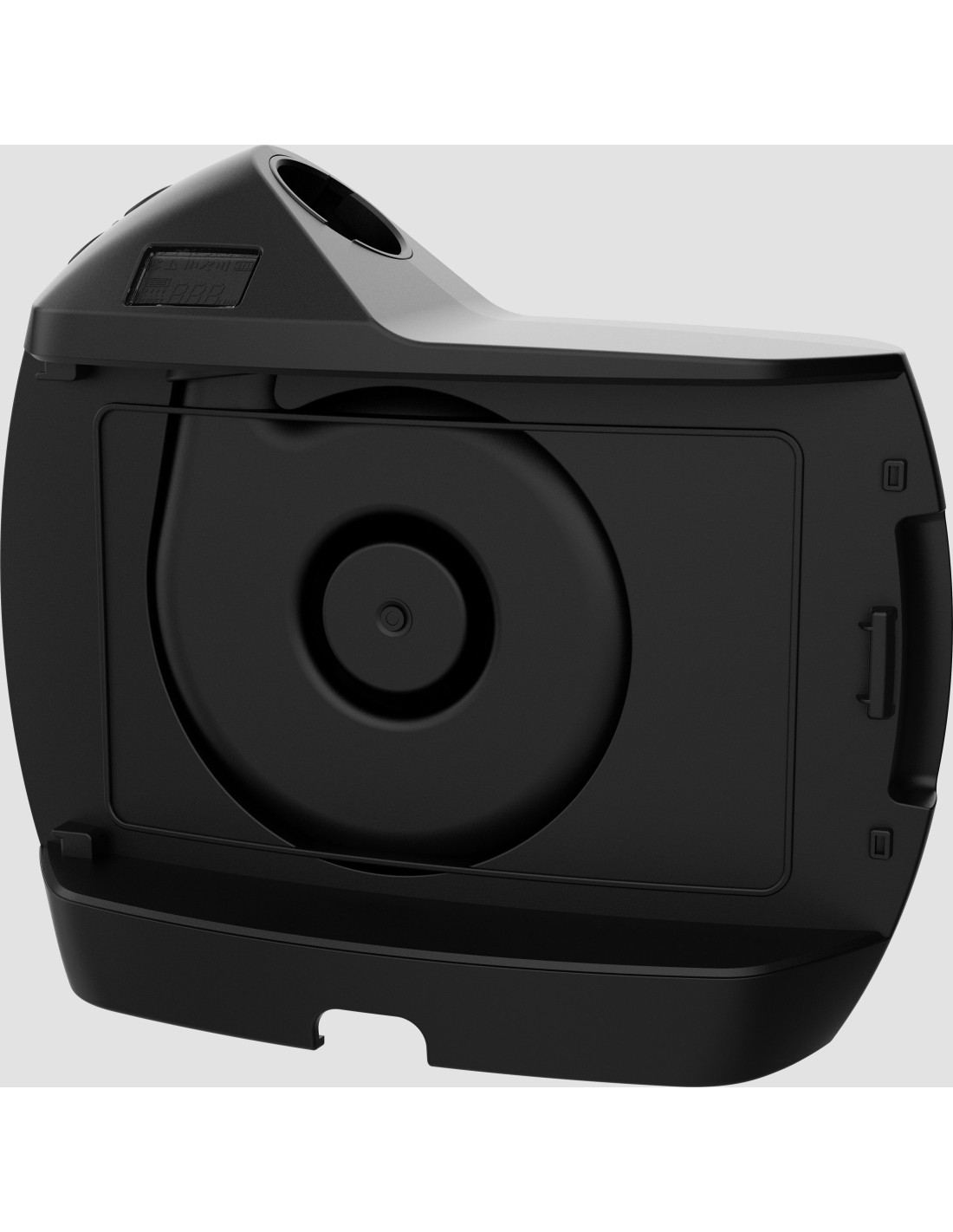

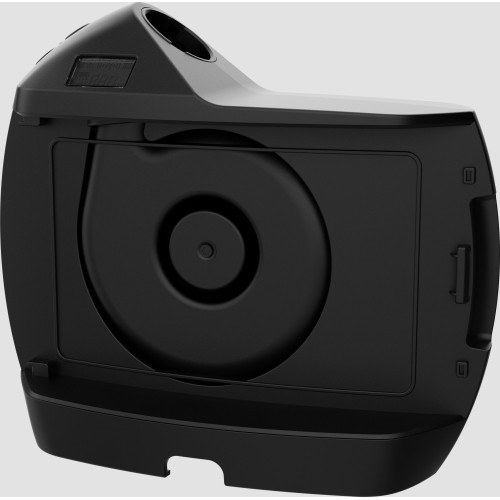

Turbo Assembly:
Equipped with smart airflow technology, the turbo assembly automatically adjusts flow rate according to filter blockage. This guarantees consistent, clean air delivery at all times.

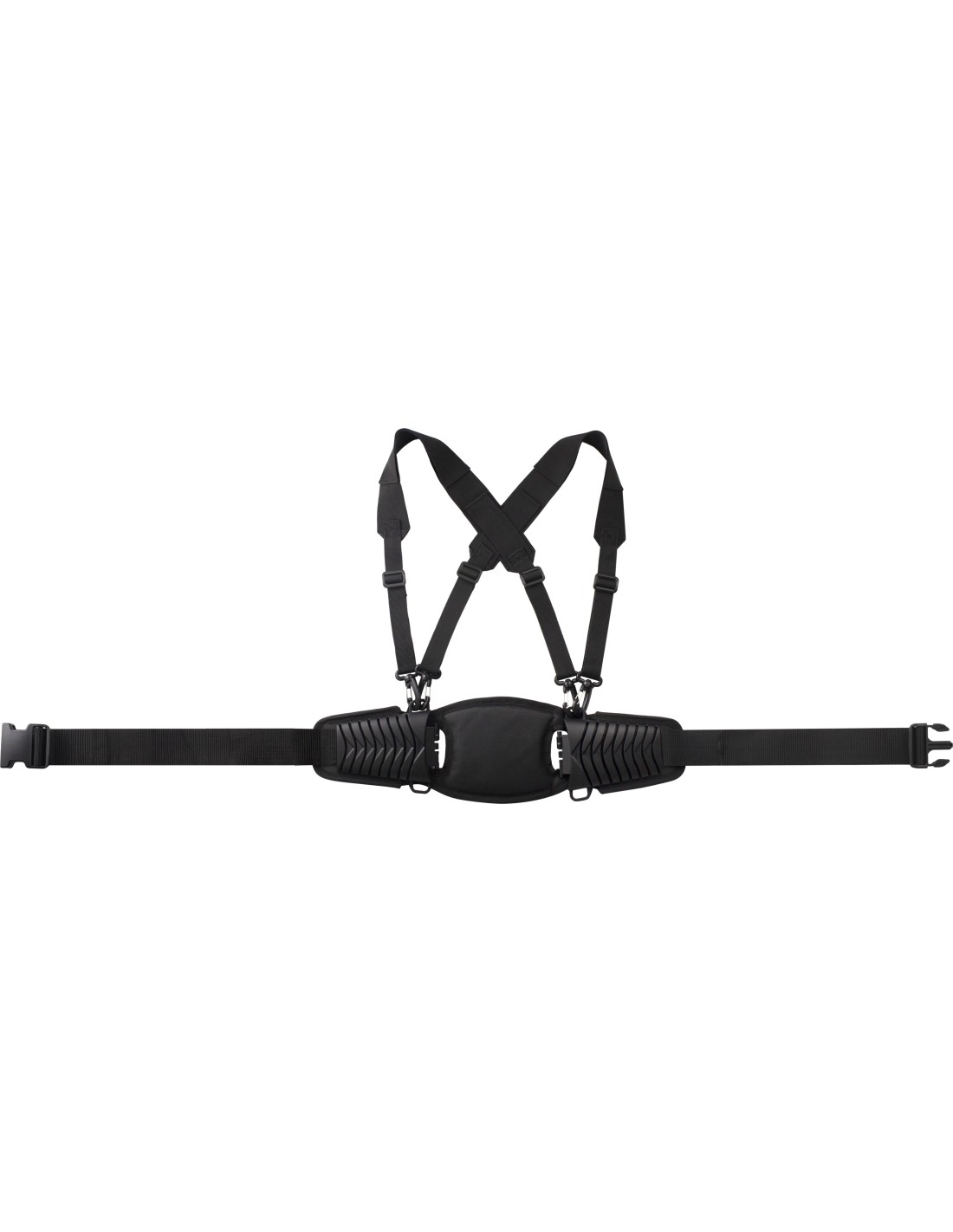

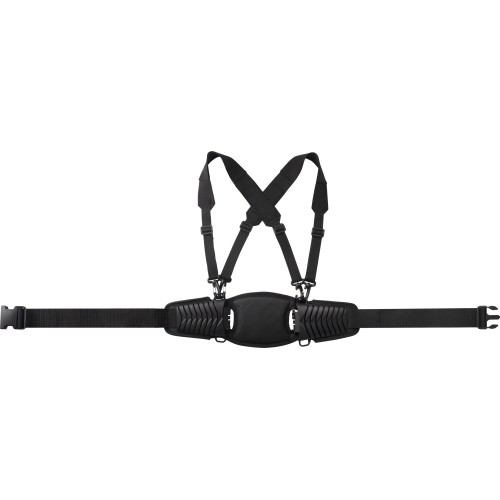

Belt & Shoulder Straps:
Every blower unit is designed with a cushioned belt and shoulder strap, offering ergonomic comfort and reducing strain during long working hours.

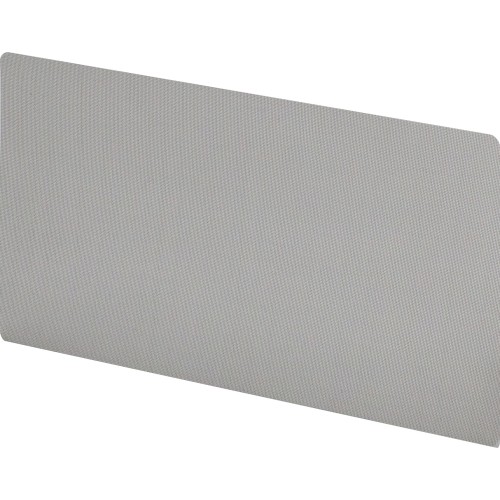

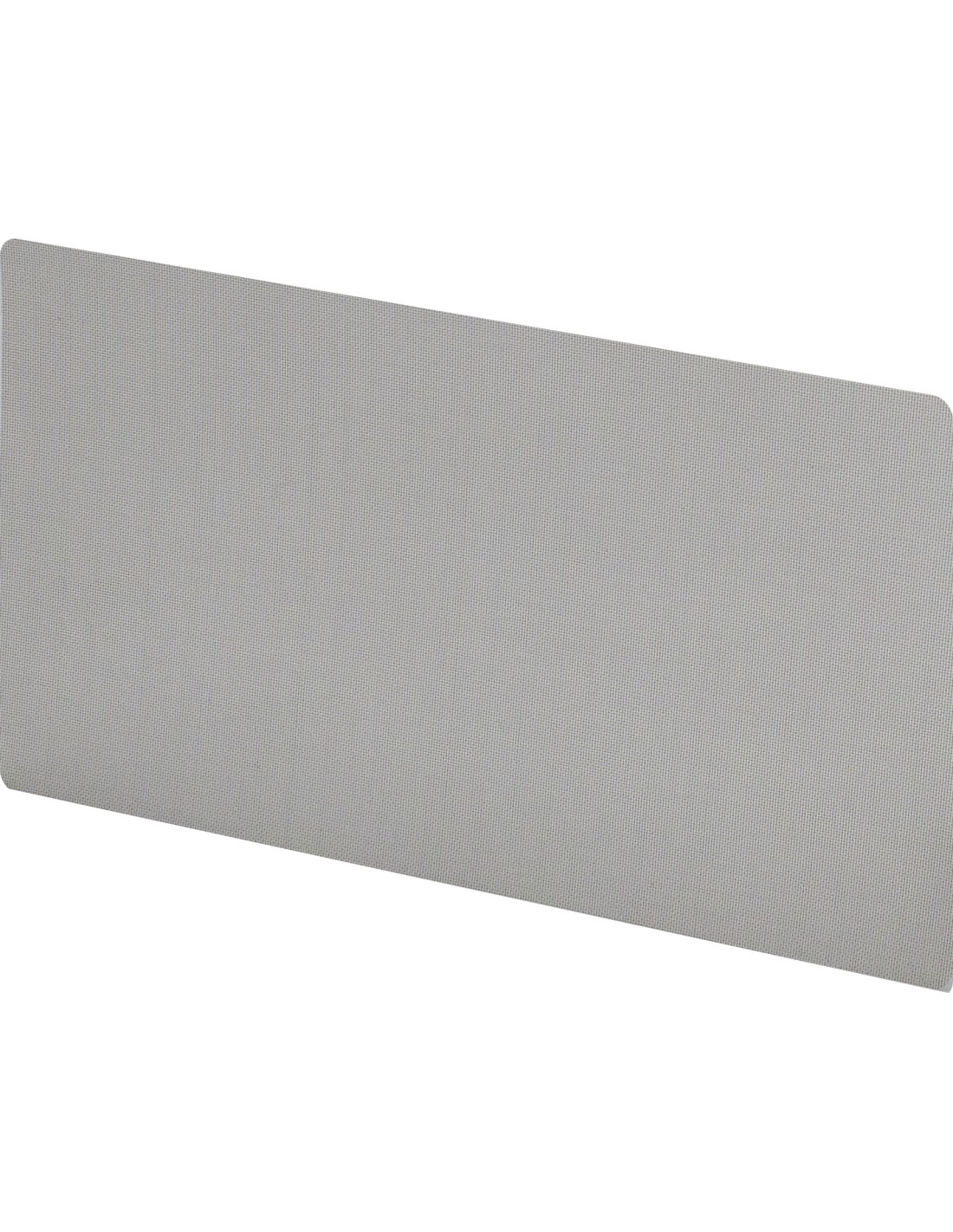

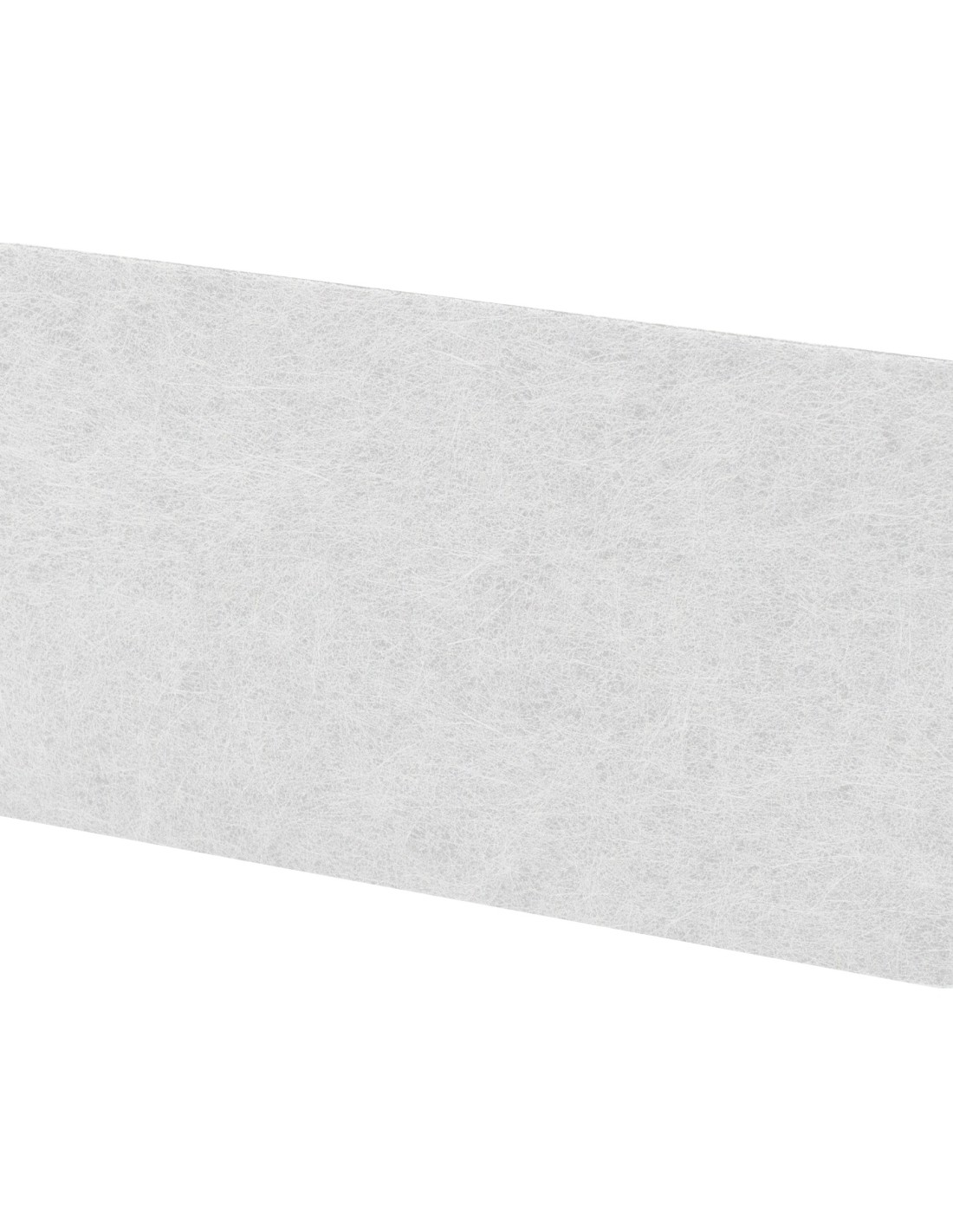

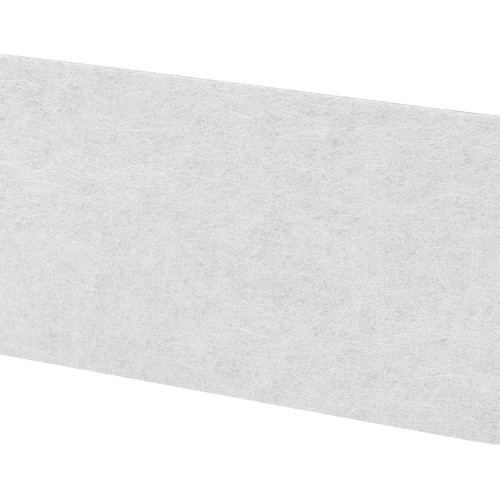

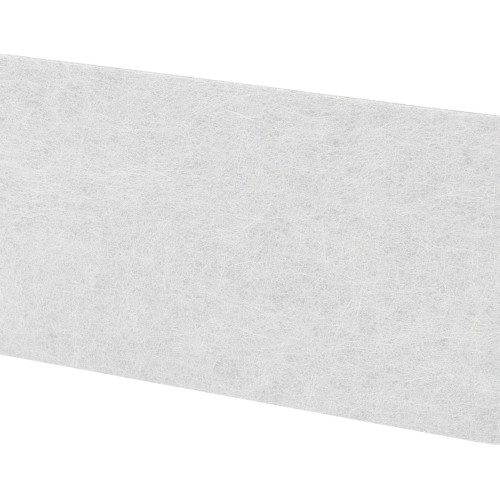

Prefilter:
Captures large particles at the first stage of filtration, effectively extending the service life of the main particulate filter.

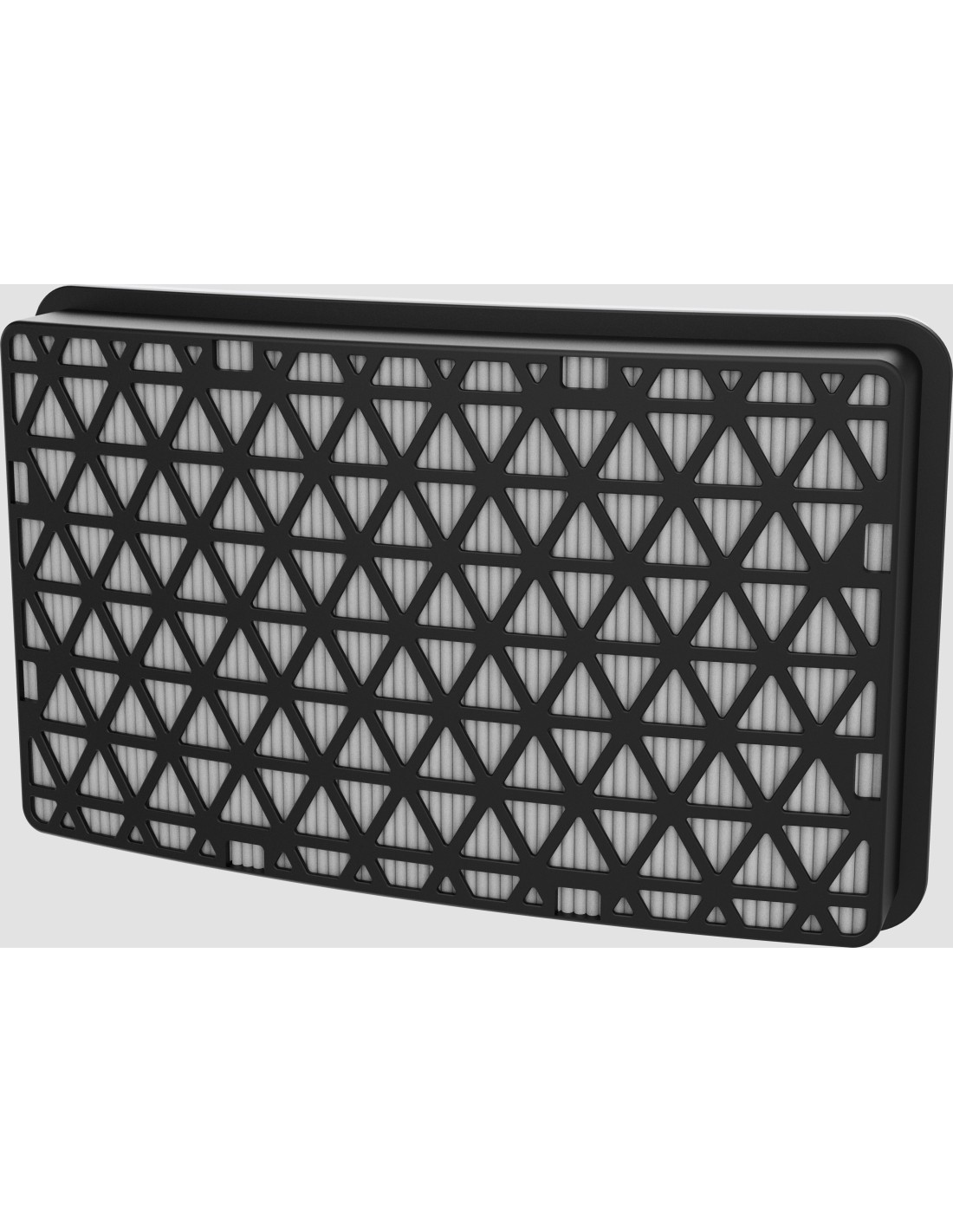

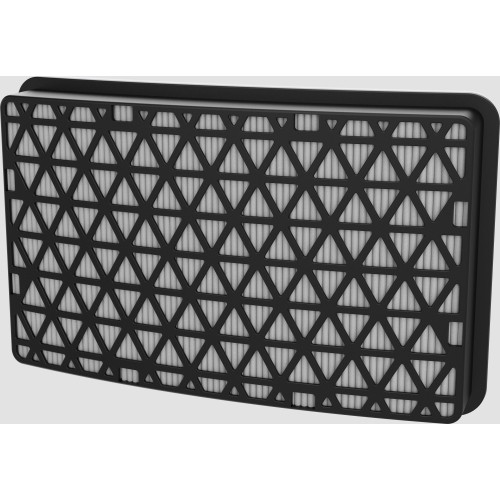

Main Particulate Filter:
Provides high-efficiency particulate filtration, protecting the user from harmful dust, fumes, and fine particles generated during welding.
Spark Guard:
Prevents hot, burning, and hazardous particles from damaging the filter system, ensuring longer filter life and improved safety.

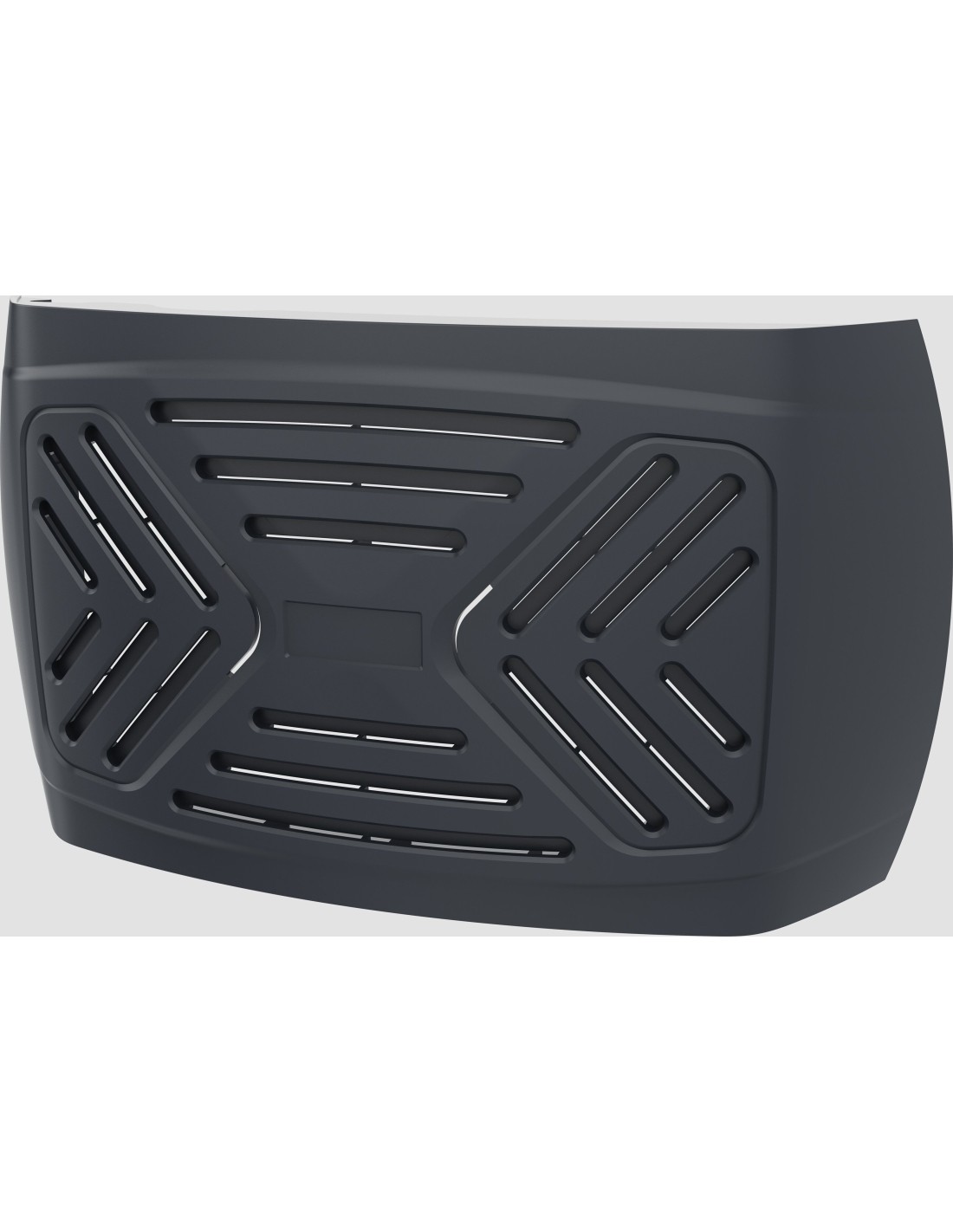

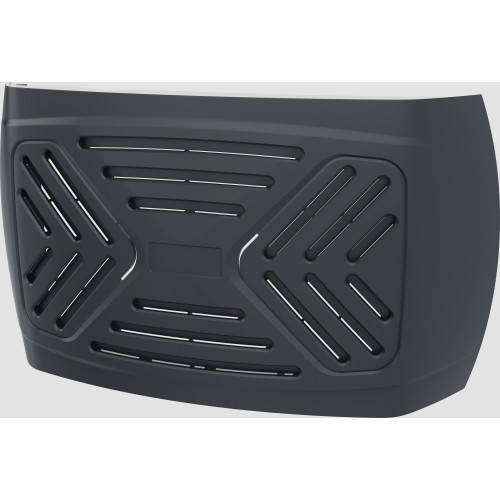

Filter Cover:
Securely holds the A6 series filters, allowing for easy installation and replacement of filter types as needed.

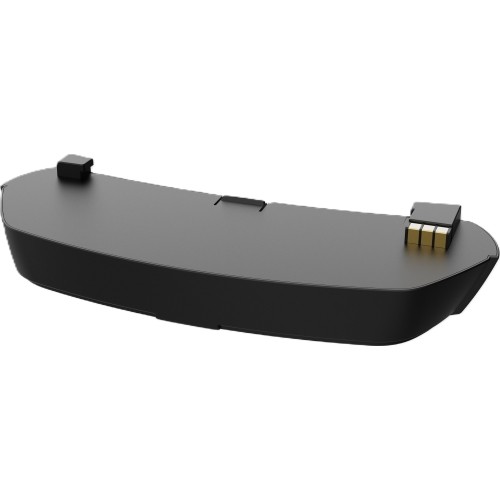

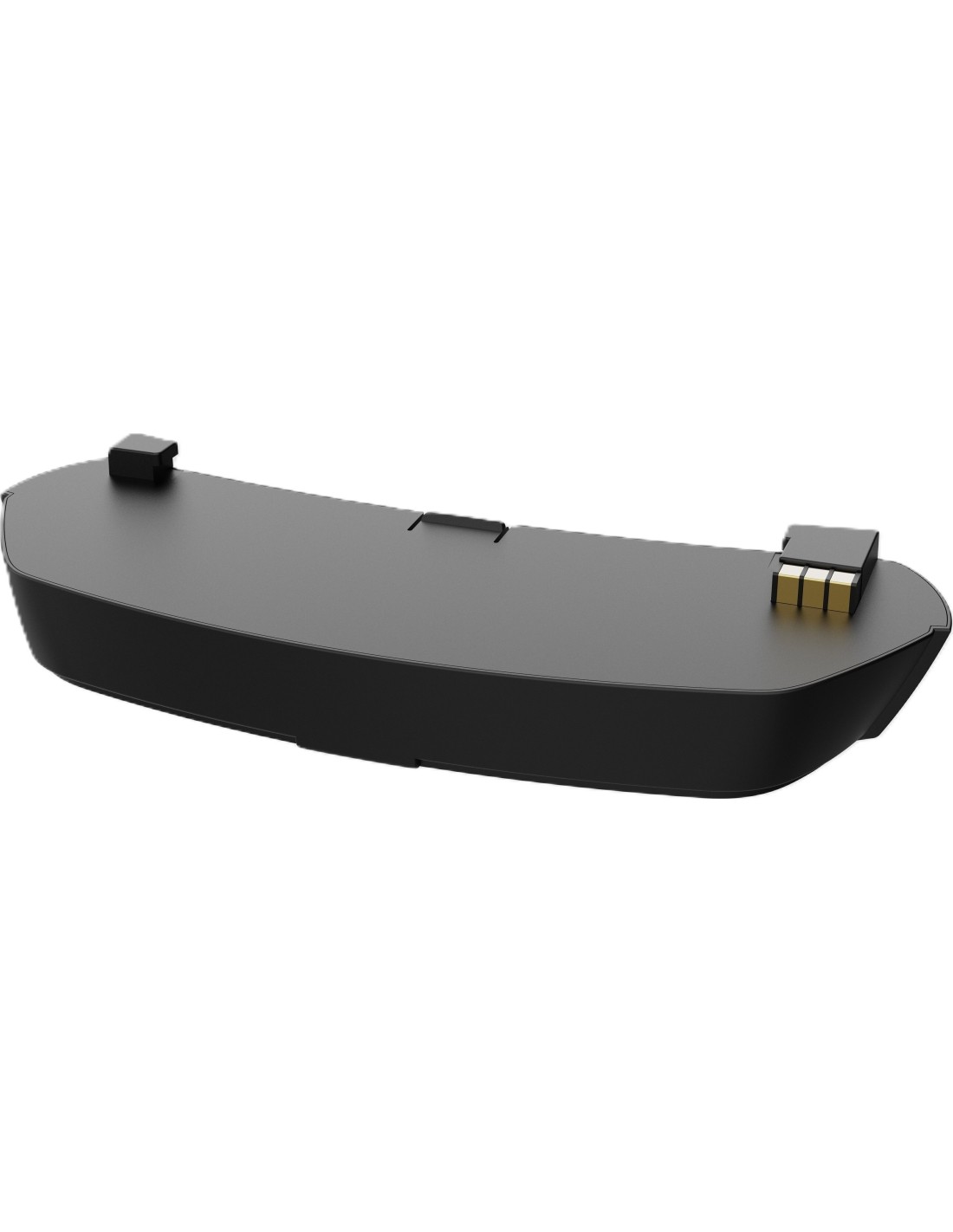

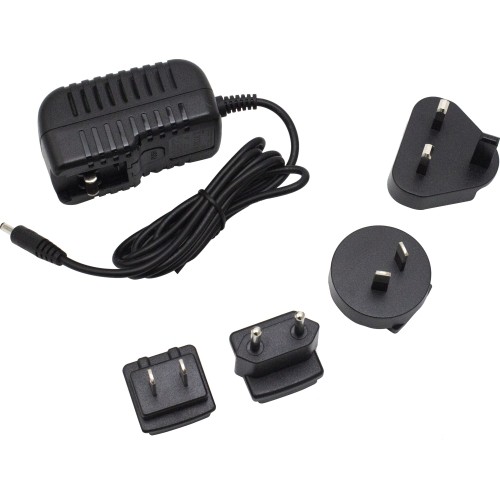

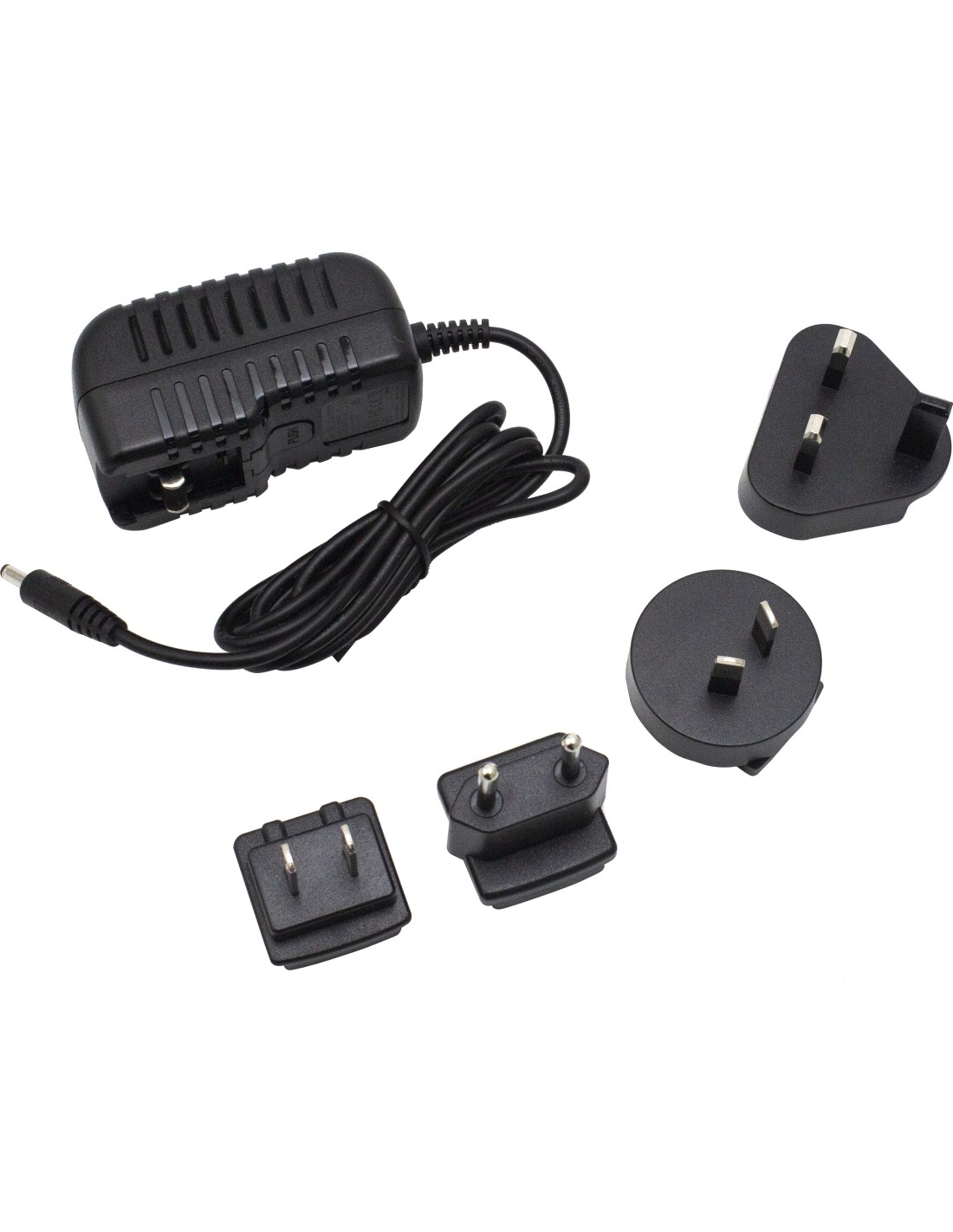

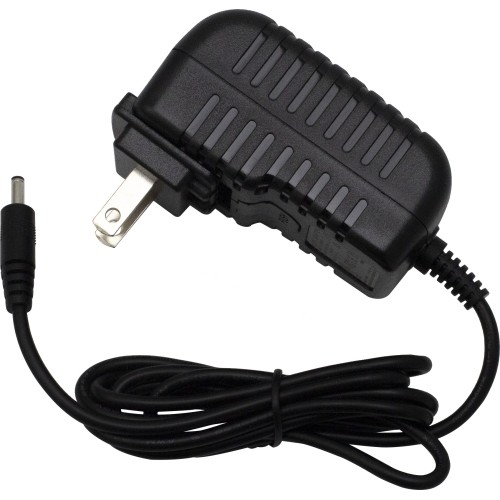

Li-ION Battery:
Charging time: Fully charges in just 3 hours.
Operating time:
Up to 10 hours at the standard airflow rate of 170 l/min with a new particulate filter and fully charged battery.
Around 6 hours at the maximum airflow rate of 230 l/min.
Benefits:
Consistent clean air supply with automatic airflow regulation.
Extended comfort with ergonomic belt and strap system.
Long operating time with quick-charging Li-ION battery.
Multi-stage filtration for maximum protection against dust, fumes, and sparks.
Designed specifically for welding environments requiring both safety and comfort.
Technical Specifications:
Certifications: CE EN12941
Filter Class: TH3 P R SL
Filter Type: Particle Filter
Filter Efficiency: >99.99%
Air Flow Rate: 170 L/min, 190 L/min, 230 L/min
System: Automatic Detection & Control System – provides constantly stable clean air
Switch: 3 Levels of Airflow Control / On-Off Button
Warning Alarms: Audio, Visual, Vibrating
Noise Level: Max. 73 dB
Operating Time:
• 190 L/min: >10 Hours
• 230 L/min: >6 Hours
Li-Ion Battery: 14.8V / 2.6Ah / 38.48Wh
Charging Cycles: >500
Charging Time: 3 Hours
Dimensions: 224 × 191 × 82 mm (L × H × W)
Weight: 1000 g (incl. filter and battery)
Operating Temperature: -5℃ to 55℃
Warranty: 1 Year
Delivery:
2-3 w.d.
