Distance between centers
1000 mm
Taper of tailstock sleeve
MK 3
Travel of tailstock sleeve
110 mm
Weight approx.
455 kg
Center height
165 mm
Swing over bed
330 mm
Swing over gap*
430 mm
Swing over cross slide
180 mm
Spindle bore
40 mm
Spindle nose fixture
DIN 55029, D1-4
Speed Range
(9) 75 - 1400 rpm
Longitudinal feed
(40) 0,053 - 1,29 mm/rev.
Cross feed
(40) 0,013 - 0,31 mm/rev.
Metric thread
(32) 0,4 - 7 mm
Inch thread
(36) 4 - 60 threads/1“
Machine dimension (W x D x H)
1600 x 700 x 1280 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Bed width
180 mm

Standard 150 Basic

1092113
Price €6,375.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 30 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 455 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 455 kg.

Description

Properties

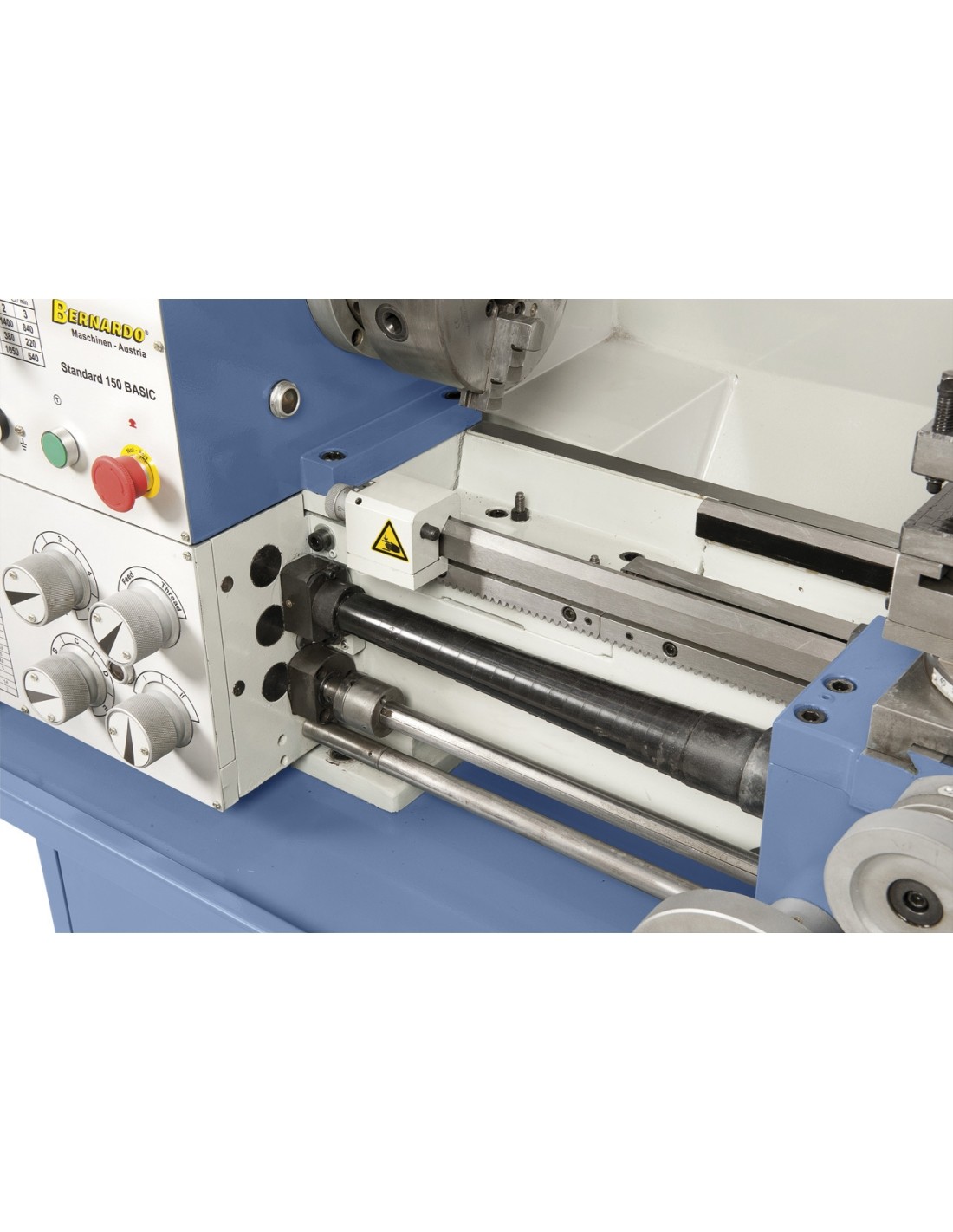

  • Practical machine with lead screw and feed rod for thread cutting and automatic feed
  • Removable bridge for processing of workpieces large in diameter
  • Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum

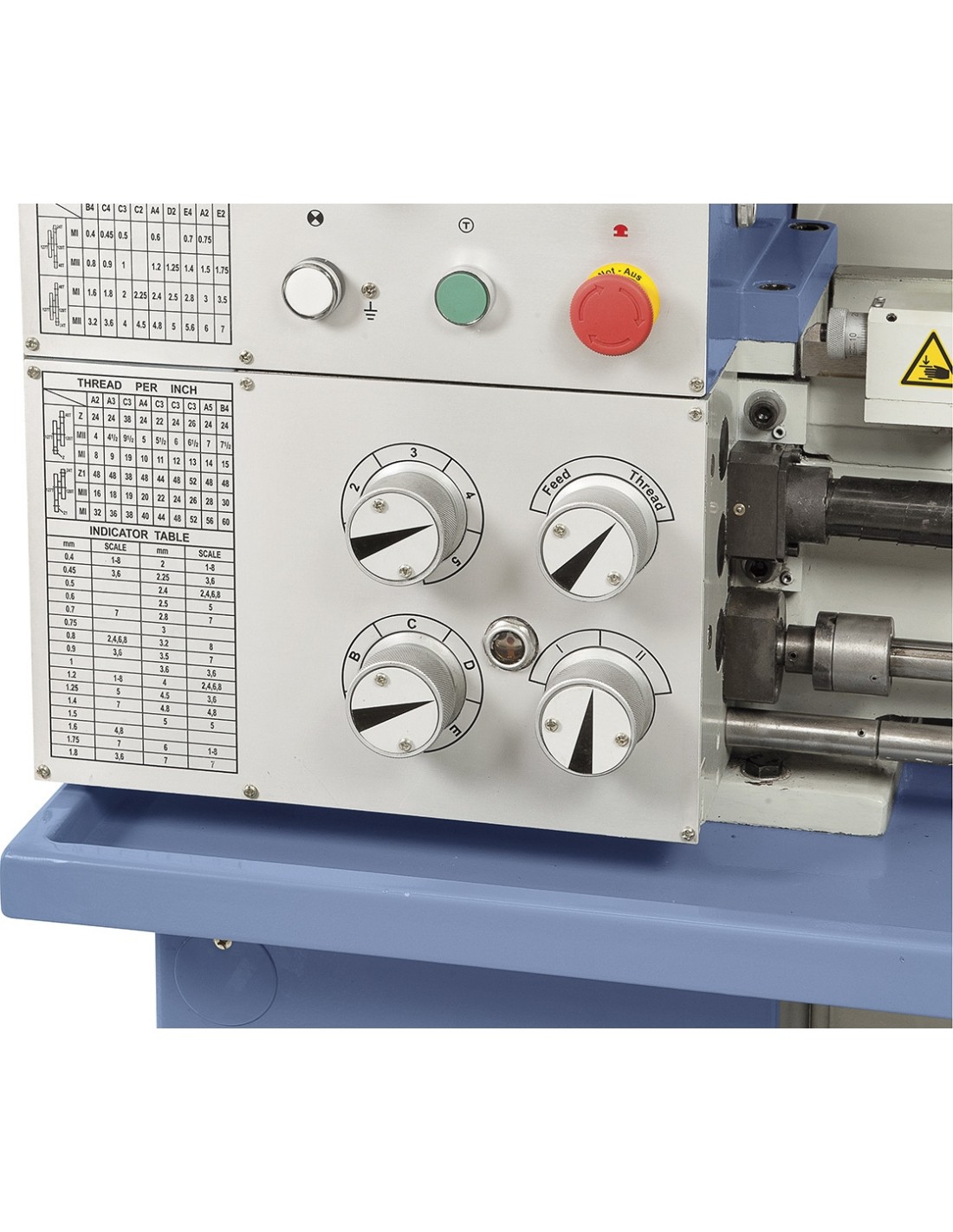

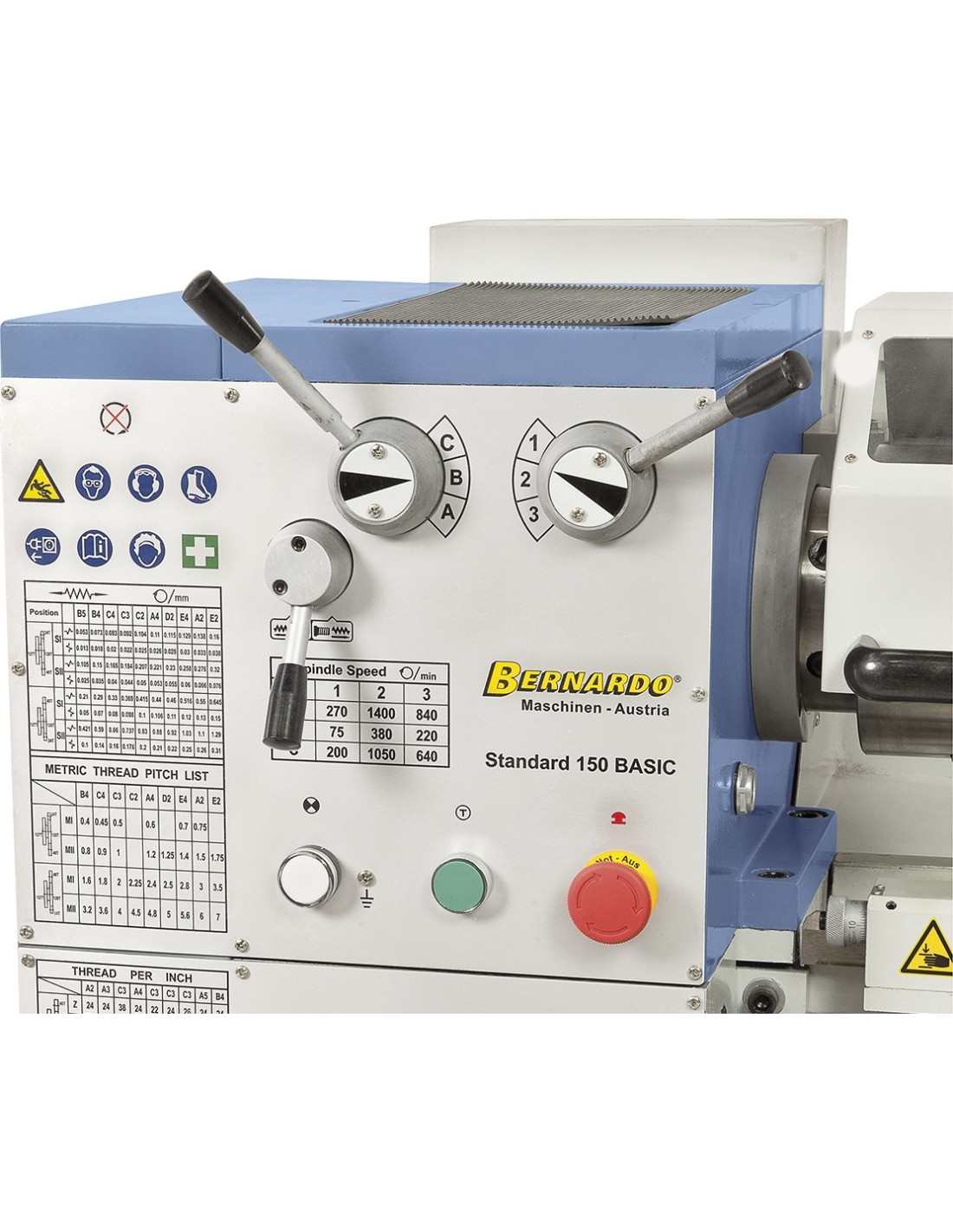

  • Clearly arranged speed and feed control settings, smooth operation and accurate control
  • Strongly reinforced prism-shaped machine bed features induction hardened and polished guiding
  • Tailstock can be adjusted ± 10 mm to allow taper turning
  • Tailstock features single lever clamping, handwheel features adjustable fine scale (0.04mm)
  • Tailstock, spindle stock and all guides are re-adjustable
  • Top slide with scale (0.02mm) swivels ± 45°

Standard accessories

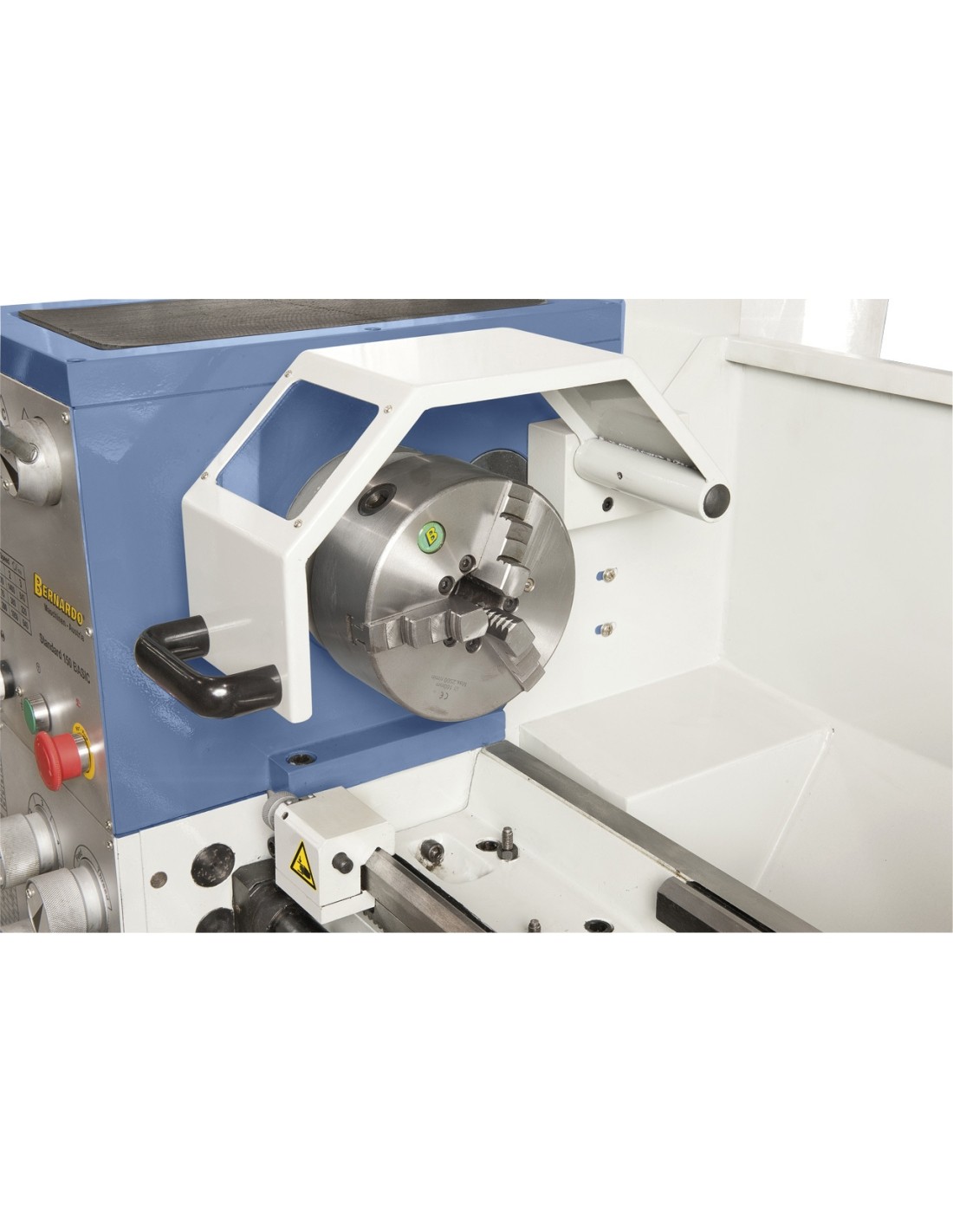

  • 3-jaw chuck DK11-160 mm / D4

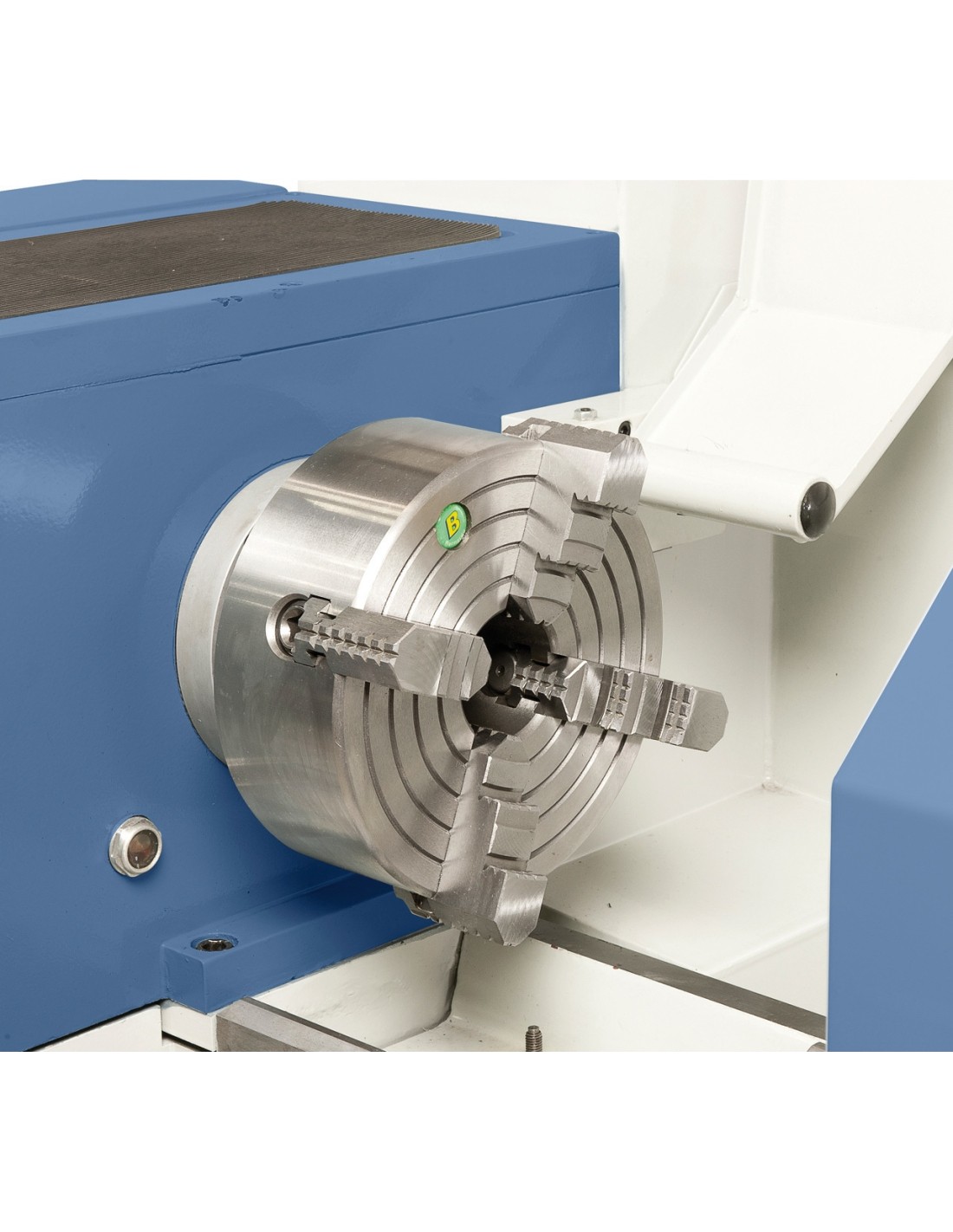

  • Independent chuck 200 mm / D4, according DIN 55029
  • Steady rest – Passage up to 60 mm
  • Follow rest – Passage up to 60 mm
  • Face plate 250 mm

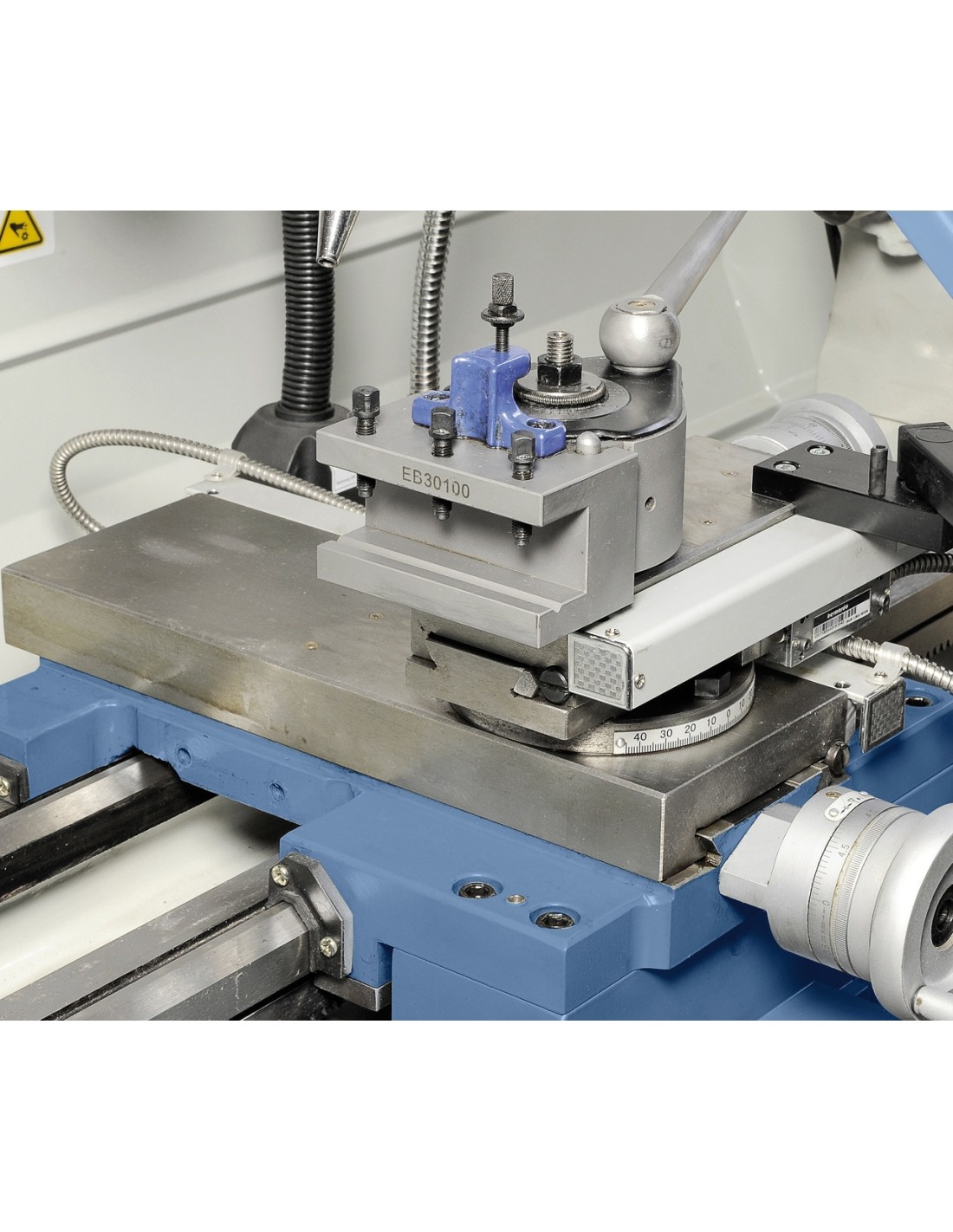

  • 4-way tool post holder
  • Protective device at 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Chip tray
  • Splash guard
  • 2 dead centers
  • Thread dial
  • Morse taper drill sleeve

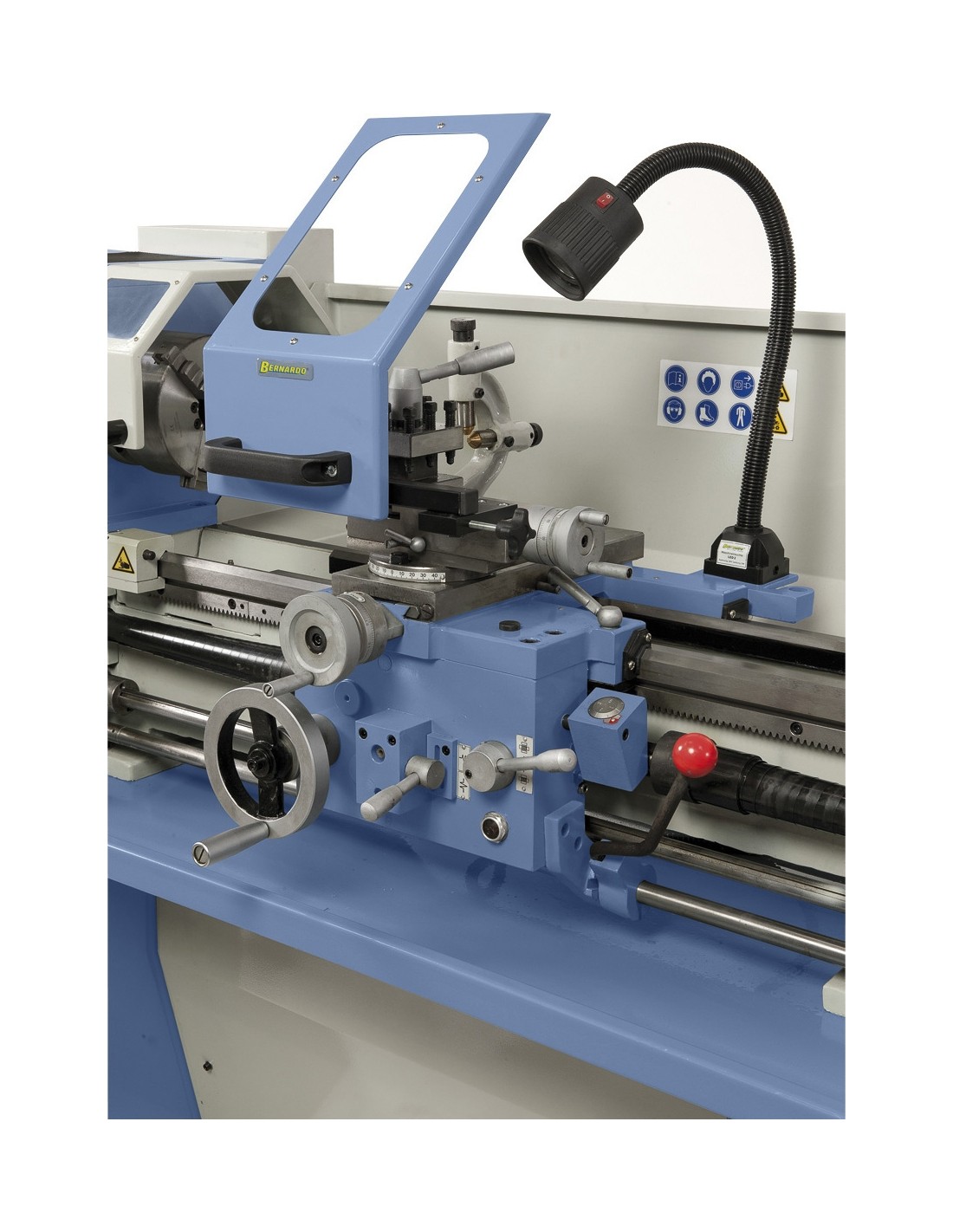

  • LED machine light

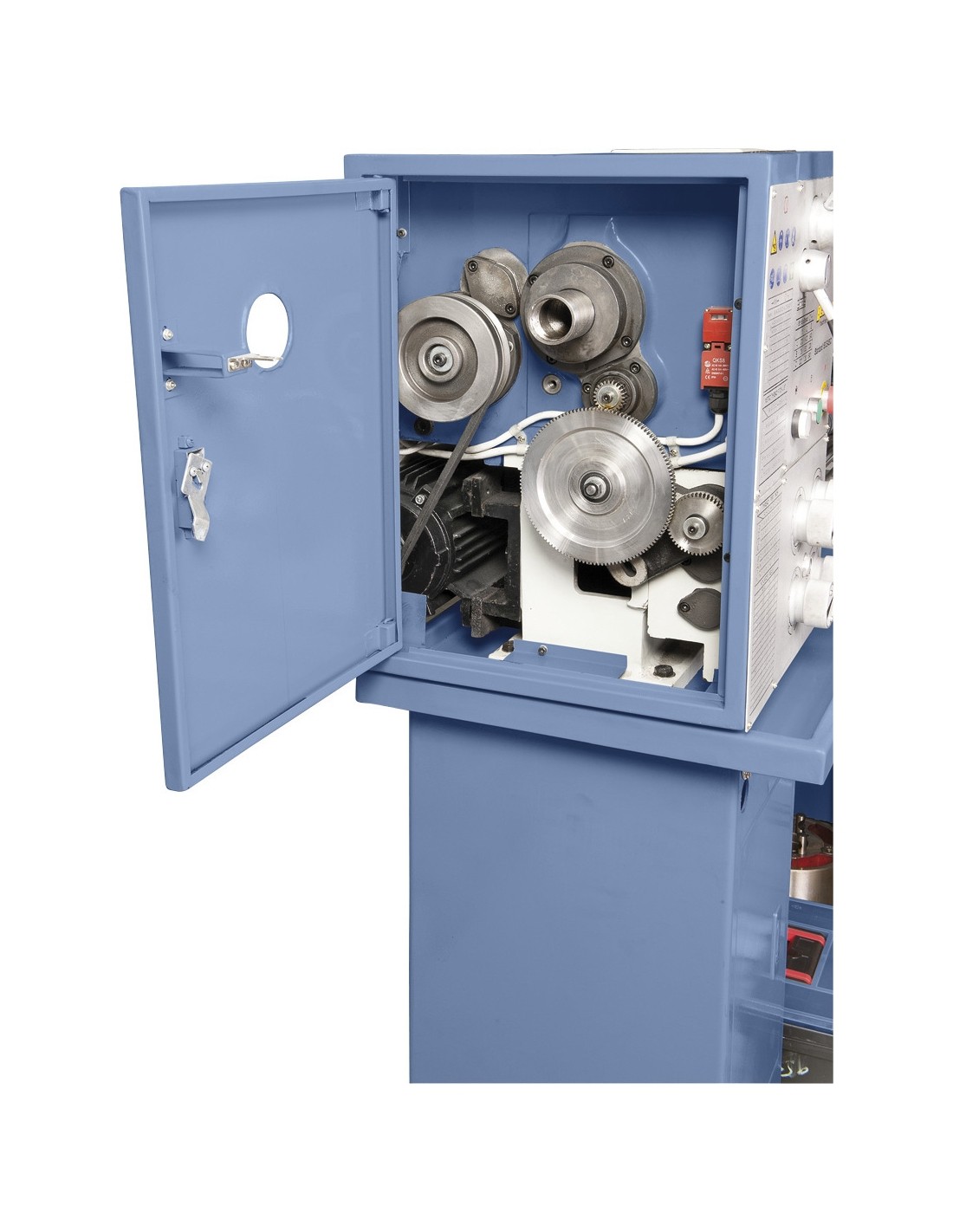

  • Change gears
  • Motor with magnetic brake according to CE
  • Stand
  • Tools
