Distance between centers
1000 mm
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
110 mm
Weight approx.
495 kg
Center height
175 mm
Swing over bed
350 mm
Swing over gap*
450 mm
Swing over cross slide
190 mm
Spindle bore
40 mm
Spindle nose fixture
DIN 55029, D1-4
Speed Range
(8) 70 - 2000 rpm
Longitudinal feed
(40) 0,053 - 1,29 mm/rev.
Cross feed
(40) 0,013 - 0,31 mm/rev.
Metric thread
(32) 0,4 - 7 mm
Inch thread
(36) 4 - 60 threads/1“
Machine dimension (W x D x H)
1730 x 700 x 1340 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Bed width
180 mm

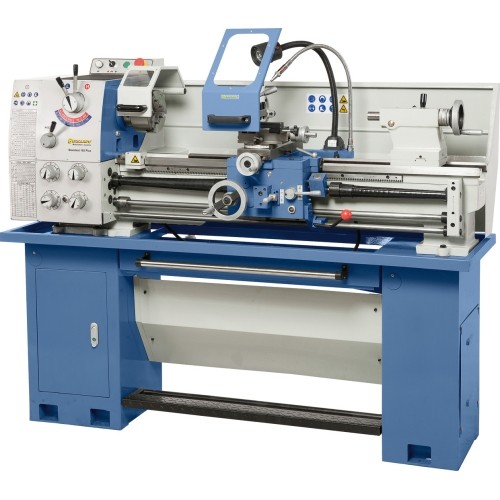

Standard 165 Plus

1320329
Price €8,046.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 30 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 495 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 495 kg.

Description

Properties

  • Wide range of applications include: training workshops, tool construction, repair shops etc.
  • Prism-shaped grey cast-iron machine bed, induction hardened and precisely polished

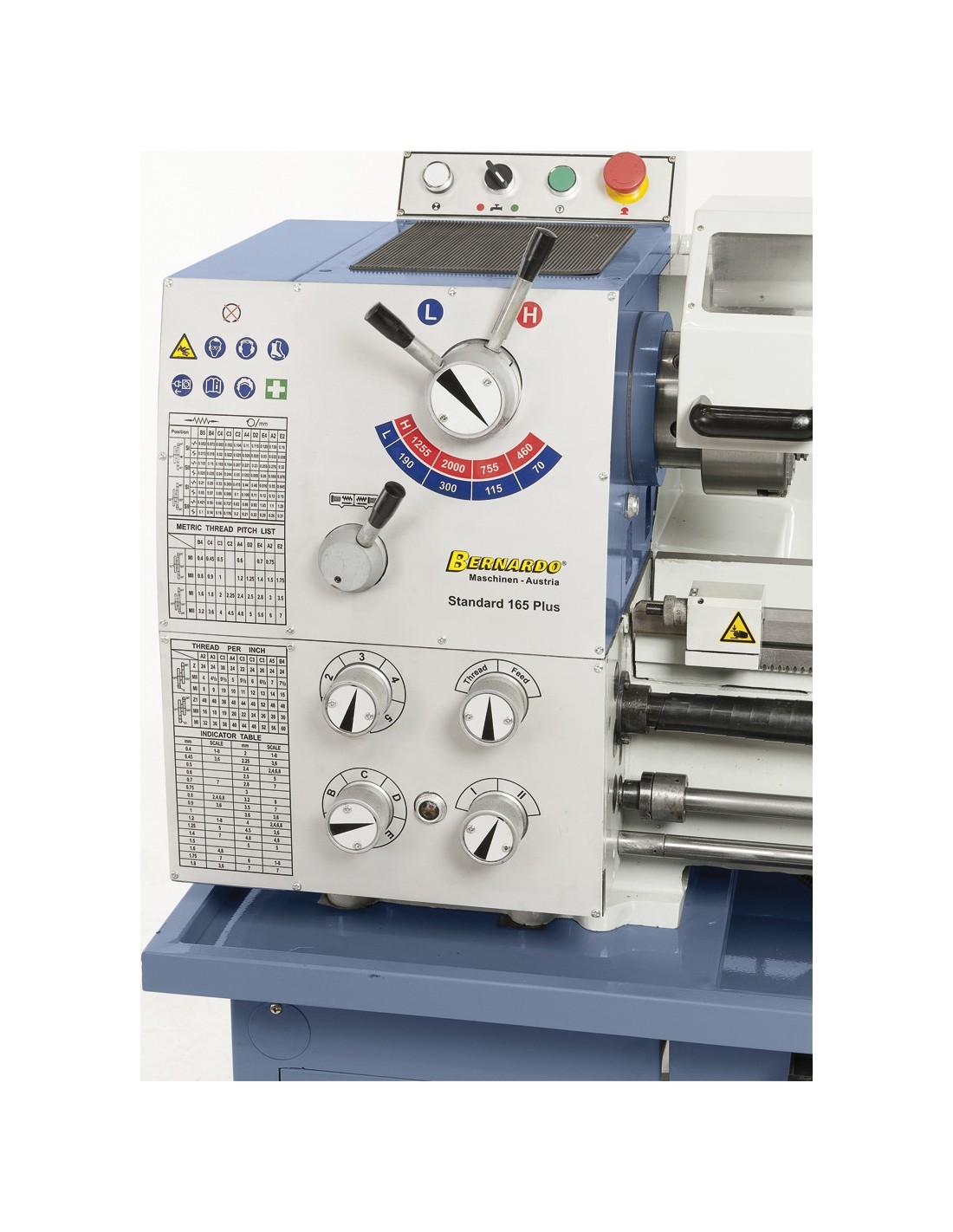

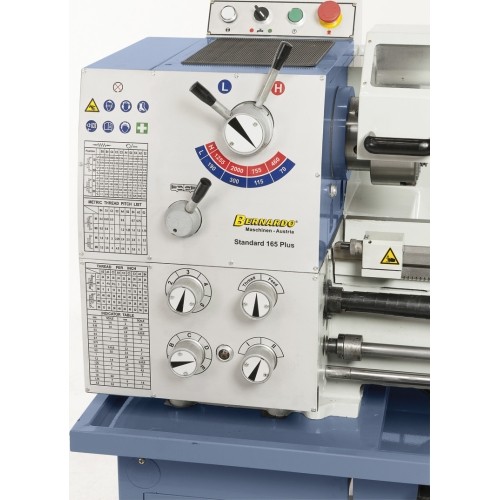

  • Speed and feed change features clear arrangement, accurate control and smooth operation

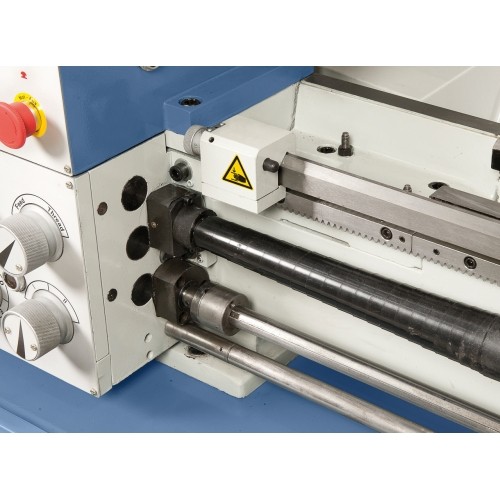

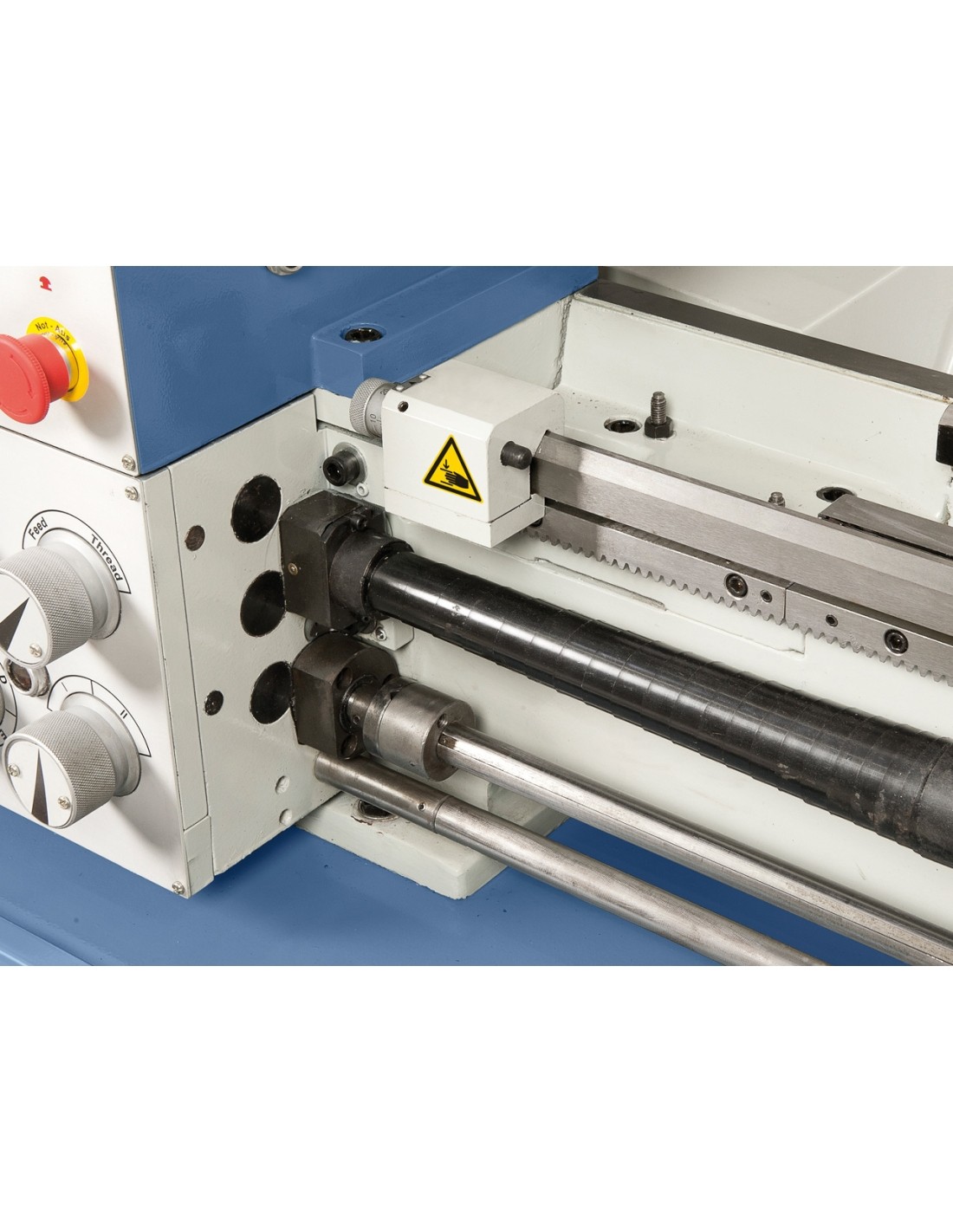

  • Practical lathe with leadscrew and feed rod for thread cutting and automatic feed
  • Single lever clamping on tailstock, adjustable for taper turning

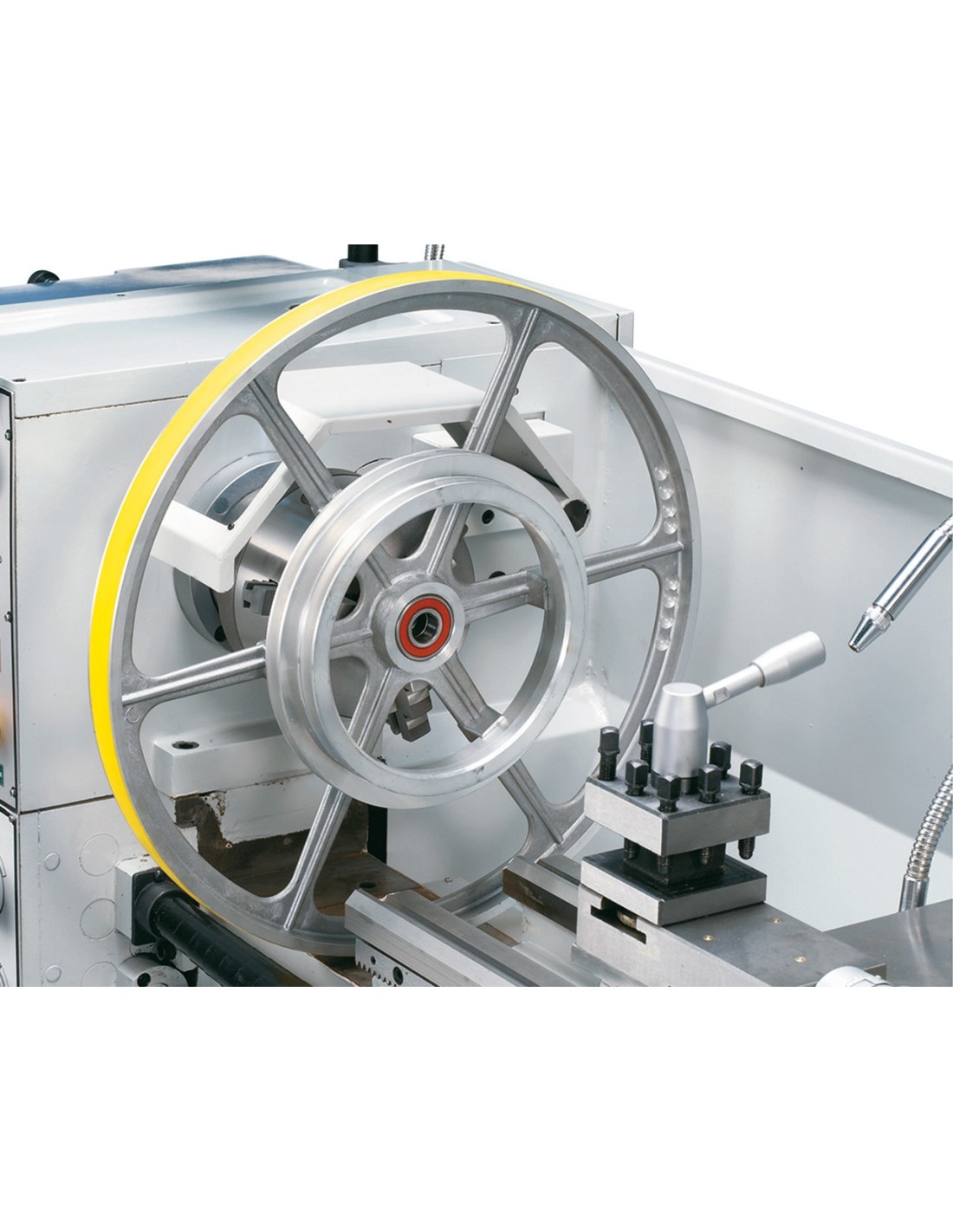

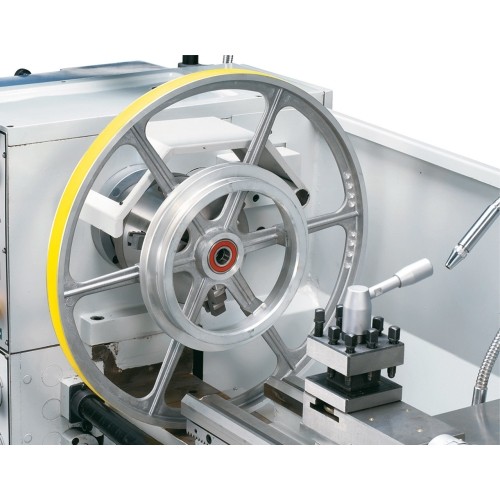

  • Removable bridge allows processing of workpieces with large diameter
  • Spindle bearing features 2 adjustable precision bearings
  • Hardened and polished gear wheels and shafts
  • Extractable chip tray reduces space requirements
  • Electro-mechanic foot brake clearly reduces downtime

Standard accessories

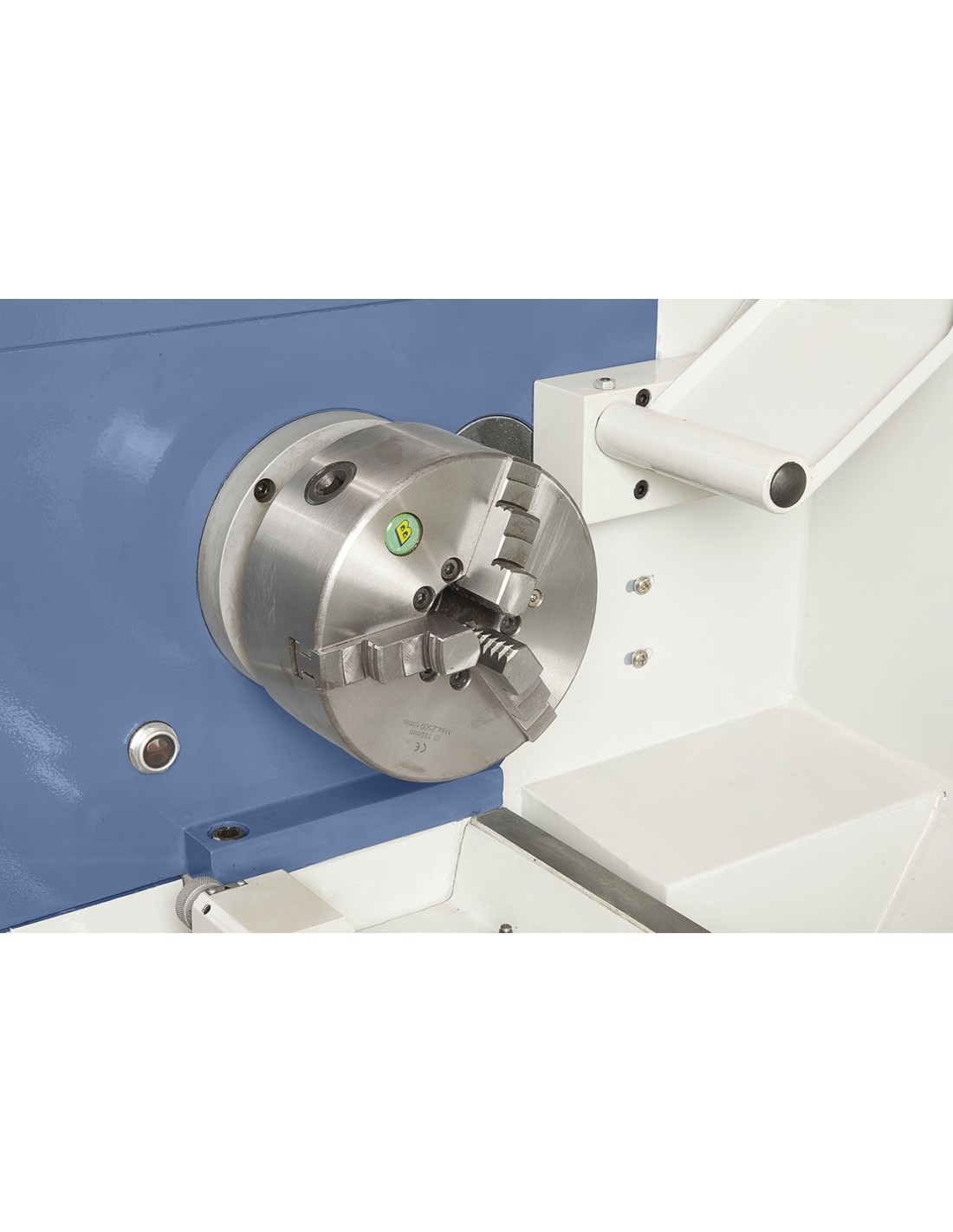

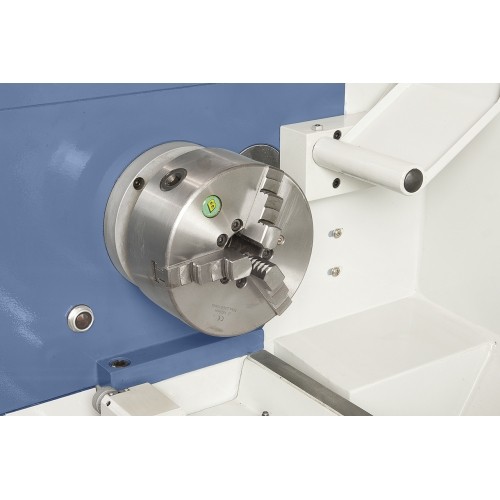

  • 3-jaw chuck DK11-160 mm / D4
  • Independent chuck 200 mm / D4, according DIN 55029

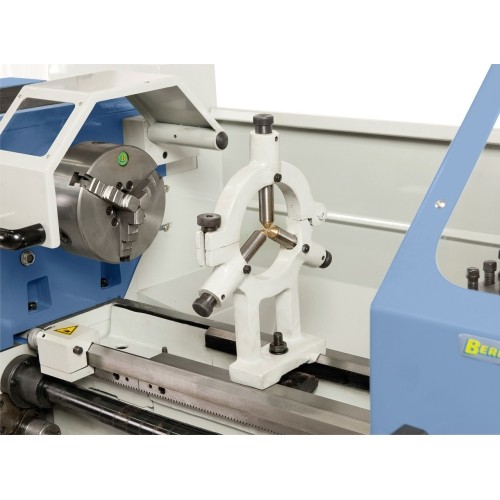

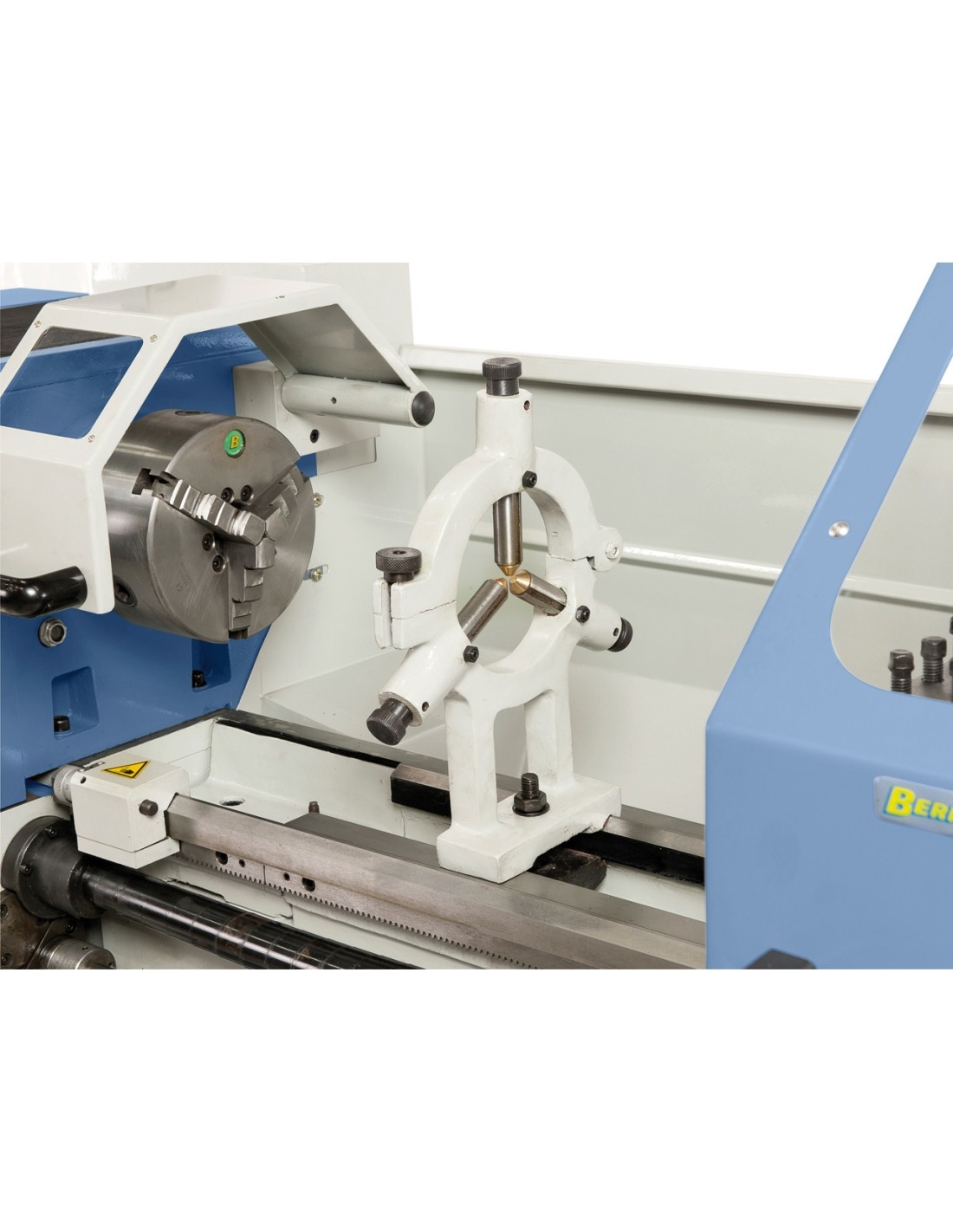

  • Steady rest – Passage up to 60 mm
  • Follow rest – Passage up to 60 mm
  • Face plate 250 mm
  • 4-way tool post holder
  • Protective device at
  • 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Coolant device
  • Extractable chip tray

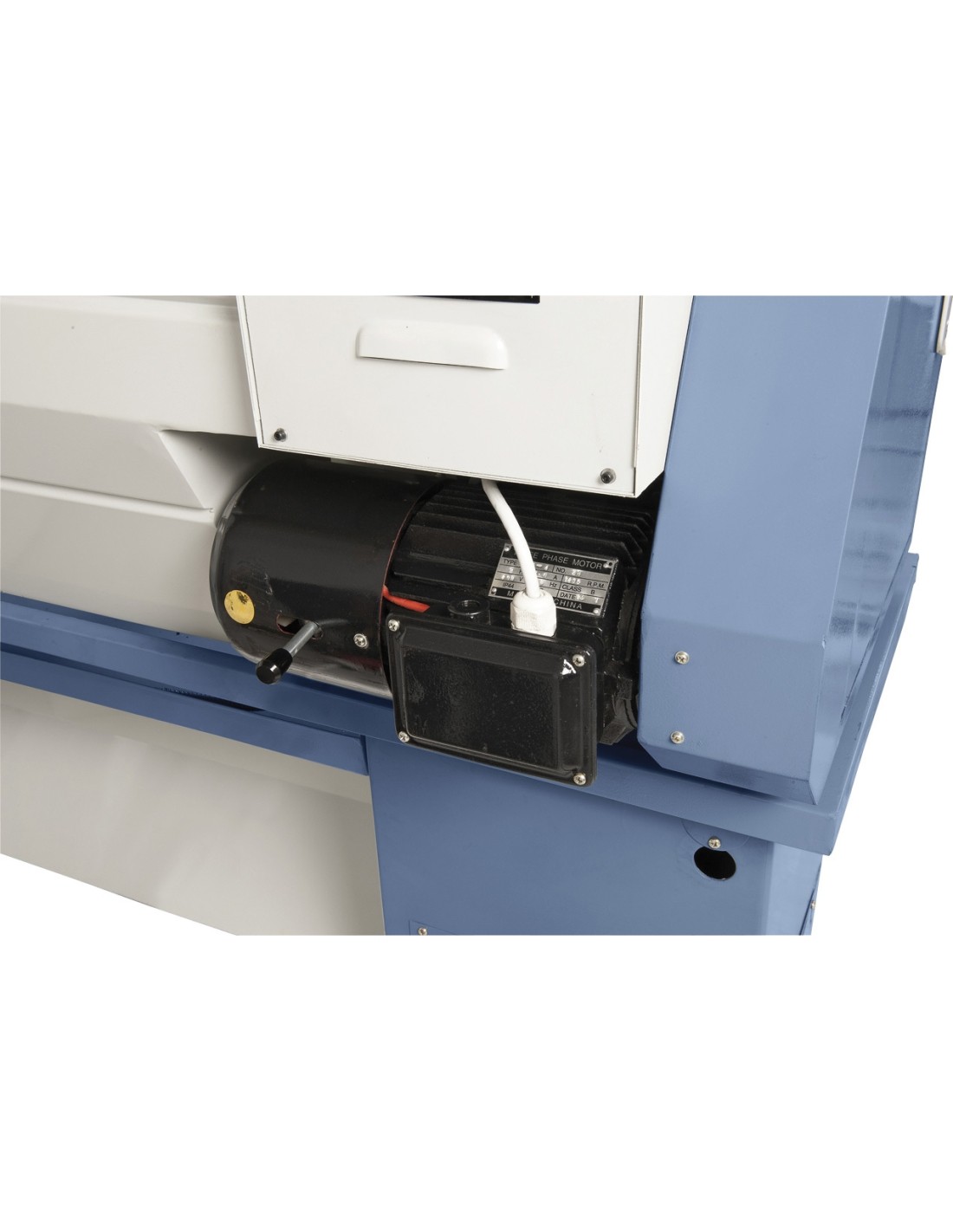

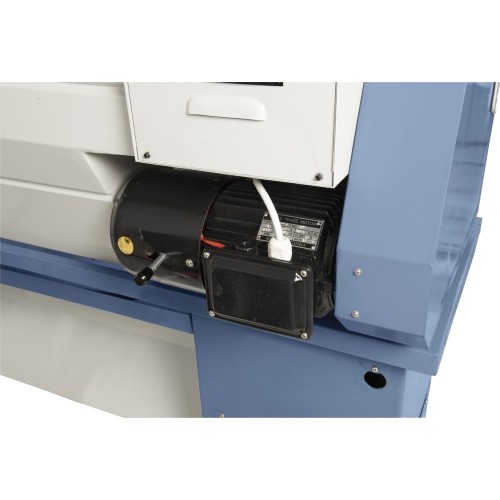

  • Motor with magnet brake according CE
  • Foot pedal with brake function according CE
  • Splash guard
  • Thread dial
  • LED machine light
  • Morse taper drill sleeve

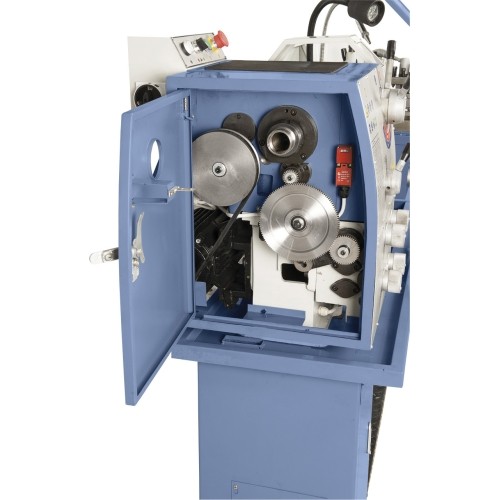

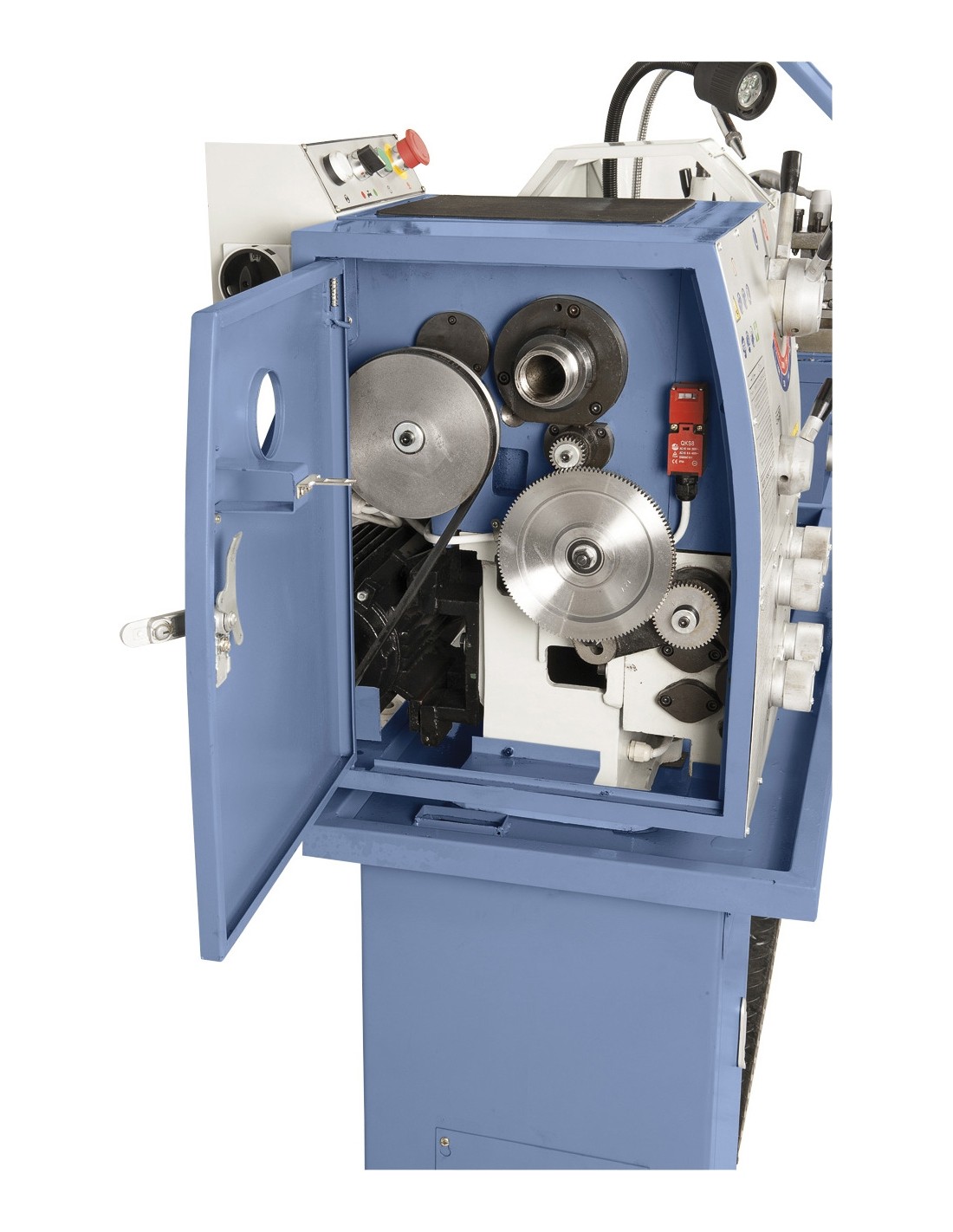

  • Change gears
  • 2 dead centers
  • Stand
  • Tools
